AXIOMTEK PANEL1080-845 User manual

PANEL1080-845
All-in-One
8.4” Super Slim
PANEL PC
User’s Manual

ii
Disclaimers
The information in this manual has been carefully checked and is believed to be
accurate. AXIOMTEK Co., Ltd. assumes no responsibility for any infringements of
patents or other rights of third parties, which may result from its use.
AXIOMTEK assumes no responsibility for any inaccuracies that may be contained in
this document. AXIOMTEK makes no commitment to update or to keep current the
information contained in this manual.
AXIOMTEK reserves the right to make improvements to this document and/or
product at any time and without notice.
No part of this document may be reproduced, stored in a retrieval system, or
transmitted, in any form or by any means, electronic, mechanical, photocopying,
recording, or otherwise, without the prior written permission of AXIOMTEK Co.,
Ltd.


Copyright 2002 by AXIOMTEK Co., Ltd.
All rights reserved.
August 2002, Version A2
Printed in Taiwan

iii
Safety Approvals
! CEMarking
! FCCClassA
FCC Compliance
This equipment has been tested and complies with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. If not installed and used in
accordance with proper instructions, this equipment might generate or
radiate radio frequency energy and cause harmful interference to
radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measurers:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and
receiver.
3. Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV
technician for help.
Shielded interface cables must be used in order to comply with
emission limits.

iv
Safety Precautions
Before getting started, read the following important cautions.
1. The PANEL1080-845 does not come equipped with an
operating system. An operating system must be loaded
first before installing any software into the computer.
2. Be sure to ground yourself to prevent static charge when
installing the internal components. Use a grounding wrist
strap and place all electronic components in any
static-shielded devices. Most electronic components are
sensitive to static electrical charge.
3. Disconnect the power cord from the PANEL1080-845
before making any installation. Be sure both the system
and the external devices are turned OFF. Sudden surge
of power could ruin sensitive components. Make sure the
PANEL1080-845 is properly grounded.
4. The brightness of the flat panel display decreases with
usage. However, hours of use vary depending on the
application environment.
5. Turn OFF the system power before cleaning. Clean the
system using a cloth only. Do not spray any liquid cleaner
directly onto the screen. The PANEL1080-845 may come
with or w/o a touchscreen. Although the touchscreen is
chemical resistant, it is recommended that you spray the
liquid cleaner on a cloth first before wiping the screen. In
case your system comes without the touchscreen, you
must follow the same procedure and not spray any
cleaner on the flat panel directly.
6. Avoid using sharp objects to operate the touchscreen.
Scratches on the touchscreen may cause malfunction or
internal failure to the touchscreen.
7. The flat panel display is not susceptible to shock or
vibration. When assembling the PANEL1080-845, make
sure it is securely installed.

v
8. Do not open the system’s back cover. If opening the
cover for maintenance is a must, only a trained
technician is allowed to do so. Integrated circuits on
computer boards are sensitive to static electricity. To
avoid damaging chips from electrostatic discharge,
observe the following precautions:
# Before handling a board or integrated circuit, touch an
unpainted portion of the system unit chassis for a few
seconds. This will help to discharge any static electricity on
your body.
# When handling boards and components, wear a
wrist-grounding strap, available from most electronic
component stores.
Trademarks Acknowledgments
AXIOMTEK is a trademark of AXIOMTEK Co., Ltd.
IBM, PC/AT, PS/2, VGA are trademarks of International
Business Machines Corporation.
Intel and Pentium are trademarks of Intel Corporation.
MS-DOS, Microsoft C and QuickBASIC are trademarks of
Microsoft Corporation.
C&T is a trademark of Chips and Technologies, Inc.
SST is a trademark of Silicon Storage Technology, Inc.
UMC is a trademark of United Microelectronics
Corporation.
Other brand names and trademarks are the properties of
their respective owners.

vi
This page does not contain any information.

Table of Contents vii
Table of Contents
Chapter 1 Introduction------------------------------- 1
1.1 General Description..........................................1
1.2 Specifications...................................................2
1.2.1 Core System for PANEL1080-845 SBC84500-based
system......................................................................2
1.2.2 I/O System................................................................2
1.2.3 Built-in Peripherals ...................................................3
1.2.4 System Specification...............................................4
1.3 Dimensions.......................................................5
1.4 I/O Outlets ........................................................6
1.5 Utilities Supported............................................6
Chapter 2 System Configuration------------------ 7
2.1 System Configuration.......................................7
2.1.1 Front View................................................................7
2.2 Panel Mount......................................................8
Chapter 3 System Installation --------------------- 9
3.1 CompactFlashTM and DRAM Installation .........10
3.2 HDD Installation .............................................11
3.3 3 x Serial Ports...............................................13
3.4 Parallel Port....................................................13
3.5 VGA ................................................................14
3.6 Ethernet..........................................................14
3.7 Digital I/Os......................................................15
3.8 Keyboard and PS/2 Mouse Connector ---------- 15
3.9 External FDD ..................................................16
3.10 CompactFlash™Socket (U25) ........................17
3.11 System O/S and Software Installation ............17
Appendix A Power Supply Specifications ----19
Appendix B General Care & Maintenance-----27

viii
This page does not contain any information.

PANEL1080-845 8.4” All-in-One PANEL PC User’s Manual
Introduction 1
C h a p t e r 1
Introduction
This chapter contains the general information and the detailed
specifications of the PANEL1080-845. Chapter 1 includes the
following sections:
$ General Description
$ System Specification
$ Dimensions
$ I/O Outlets
$ Utilities Supported
1.1 General Description
The PANEL1080-845 super slim industrial PANEL PC is mainly
designed for industrial automation and some space-constricted
embedded applications. For some space-concerned industries, a
traditional PC with a separate main system, display monitor and
keyboard is simply not integrated enough.
Ruggedly designed, the PANEL1080-845 is 100% IBM PC/AT
compatible and it integrates super I/Os, VGA, 8.4” TFT touchscreen,
Ethernet, and packs special industrial features like watchdog timer,
CMOS double backup, all in a single system. The full PC functionality
coupled with its industrial-grade construction easily tailors the system
for any embedded applications and allows the system to endure
continuous operation in any hostile industrial environments where
stability and reliability are a must. Common applications of the
PANEL1080-845 include tooling machine, POI terminal, stand-alone
KIOSK, medical instrument, mobile communication device and
banking system - to name just a few.
Designed by the PC experts for PC professionals, the
PANEL1080-845 is virtually the ultimate one-step solution for your
space-limited applications.

PANEL1080-845 8.4” All-in-One PANEL PC User’s Manual
Introduction
2
1.2 Specifications
1.2.1 Core System for PANEL1080-845
SBC84500-based system
$
CPU: 233MHz National Semiconductor Geode Gx1 (other
frequency processors are manufacturer optional)
$
System Chipset: NX Gx1 + CS5530A
$
BIOS: Award BIOS, Y2K compliant
2Mbit Flash ROM, DMI, Plug and Play
$
System Memory: 1x144-pin SODIMM Max. 128MB SDRAM
$
Real Time Clock: Integration in W83977AF with external
Lithium Battery
$
Watchdog Timer: System reset software programmable
timer interval 64 levels, 0.5~8 / 5~80 /
50~800 / 100~1600 seconds
1.2.2 I/O System
$ Standard I/O:
− 4 x serial ports with power;
3 x RS-232, 1 x
RS-232/422/485 jumper
selectable
− 1 x parallel port,
SPP/EPP/ECP
− 1 x External FDD Interface
− 1 x HDD Interface
− 1 x PS/2 Type (Mini-Din
Connector)
− 1 x External IDE Interface
− 1 x USB Ports
$
Digital I/O: Input x 4, Output x 4
$
Ethernet:
− Realtek 8139C PCI PnP 10/100Base-T Ethernet
− RJ-45 connector

PANEL1080-845 8.4” All-in-One PANEL PC User’s Manual
Introduction 3
$
Audio:
− AC97 Codec 32bit
− Internal MIC-in, Line-in and Speaker-out interface
reserved
$
VGA/Flat Panel Controller:
− CS5530A south bridge integrated support CRT/TFT display
via UMA Max. to 4MB sharing memory
− Resolution ~Non-interlaced CRT and TFT monitor up to
1024 x 768 @ 64K color
$ On-Board SSD:
− CompactFlash socket
$ Extension:
− One 16-bit PC/104 connector
1.2.3 Built-in Peripherals
$ Standard 70W power supply
$ 2.5” hard disk
$ 8.4” anti-glare analog resistive touchscreen with RS-
232 controller sharing COM3

PANEL1080-845 8.4” All-in-One PANEL PC User’s Manual
Introduction
4
1.2.4 System Specification
$ 8.4” TFT with 800 x 600 resolution
$ NEMA 4/12 sealed front panel
$ 24X slim type CD-ROM drive (option)
$ External FDD interface
$ Heat dispensing design
$ PC/104 expansion Bus
$ Net weight:
− 3.3 Kgs
$ Dimension (main body size):
− 1080-845:
271 x 212 x 89.9 mm
$ Operating Temperature Range: 0oC ~ 40oC
$ Relative Humidity: 5% ~ 95%; non-condensing
NOTE: For more detailed information on the system engine
board used in your PANEL PC, refer to the system board
User’s Manual that came with the system packaging.

PANEL1080-845 8.4” All-in-One PANEL PC User’s Manual
Introduction 5
1.3 Dimensions
The following diagrams show the dimensions and outlines of
PANEL1080-845.
PANEL1080-845 8.4" FLAT PANEL PC DIMENSIONS (Unit:mm)
244.20
81.90
8.00
271.00
212.00
185.20 38.40135.2038.40
182.60
75.00
88.40
75.00

PANEL1080-845 8.4” All-in-One PANEL PC User’s Manual
Introduction
6

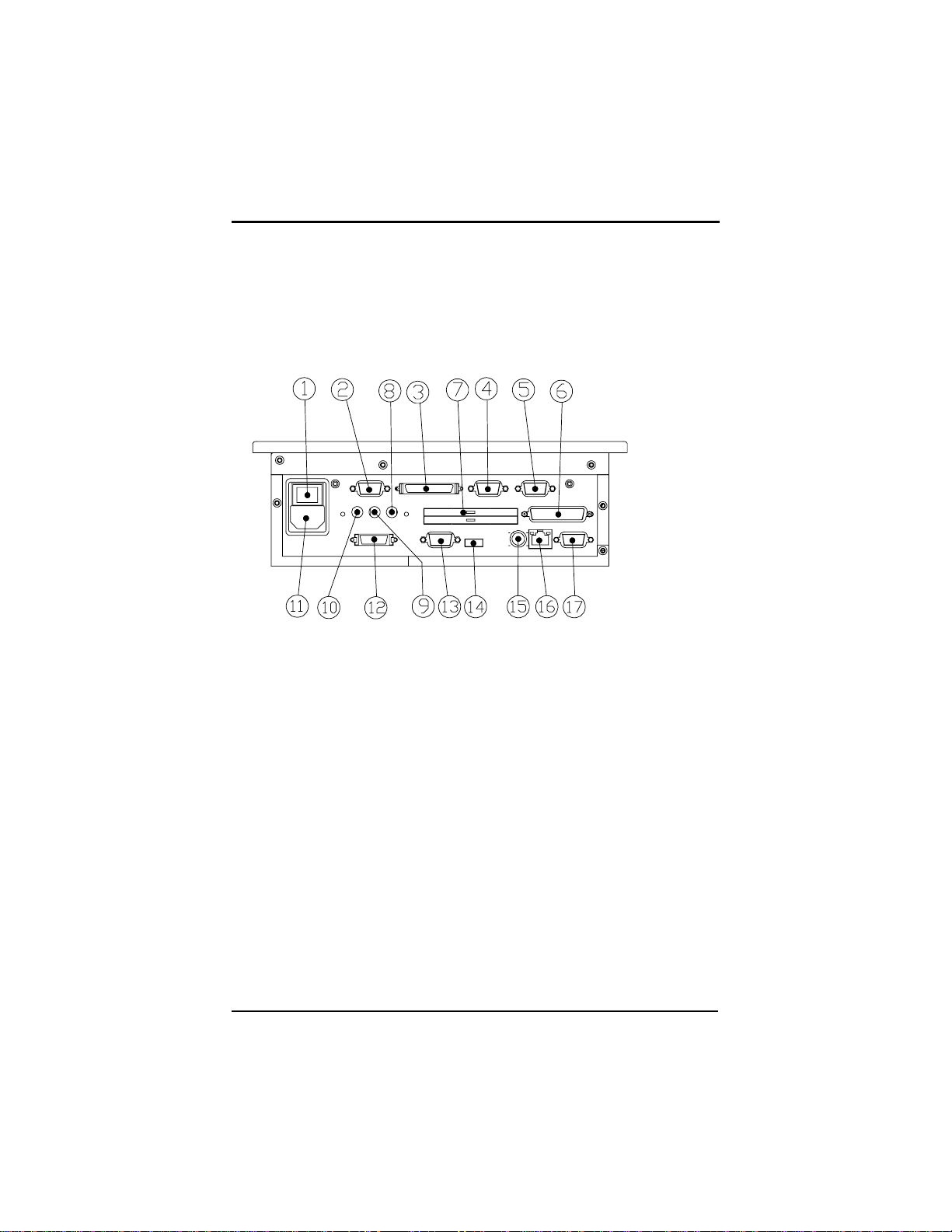

1.4 I/O Outlets
The following figure shows the I/O arrangement of the
PANEL1080-845. The backside of the chassis contains most of the
connectors.
01. Power Switch
02. DIO(4-channel Digital
Inputs/Outputs
03. EXT. IDE
04. COM2
05. COM3/4
06. PRN(Parallel Port)
07. PCMCIA
08. LINE-IN
09. MIC
10. LIN-OUT
11. AC Inlet
12. EXT. FDD
13. COM1
14. USB
15. Keyboard & Mouse
16. LAN(Ethernet Port)
17. VGA
1.5 Utilities Supported
%
Watchdog Utility
%
Ethernet Utility
%
VGA Drivers
%
Touchscreen Utility

PANEL1080-845 8.4” All-in-One PANEL PC User’s Manual
System Configuration 7
C h a p t e r 2
System Configuration
This chapter details the system parts and components with figures.
Sections include
$ System Major Parts $ Panel Mount
2.1 System Configuration

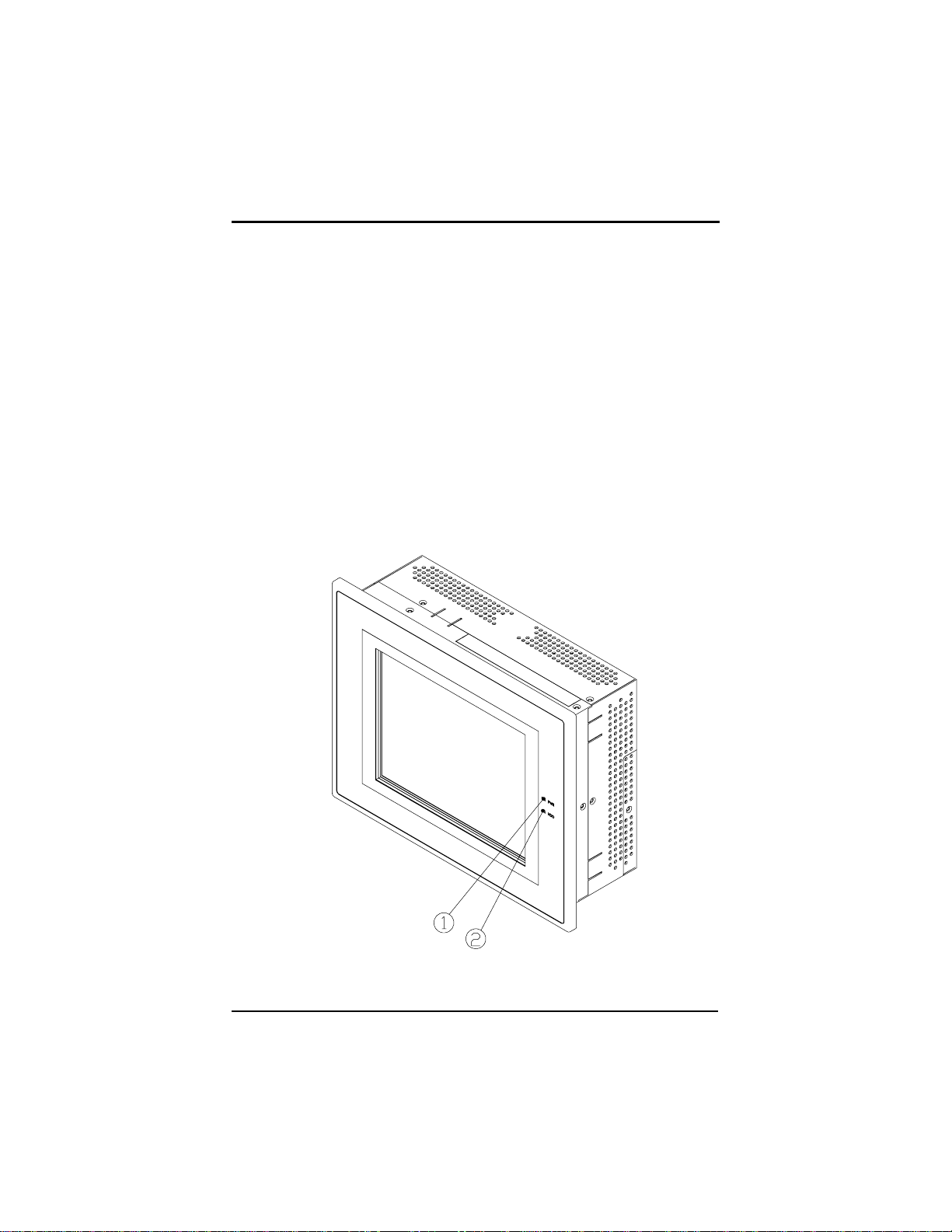

2.1.1 Front View
The figure below shows the features and controls on the
PANEL1080-845 front panel.
01. Power LED
02. HDD LED

PANEL1080-845 8.4” All-in-One PANEL PC User’s Manual
System Configuration
8

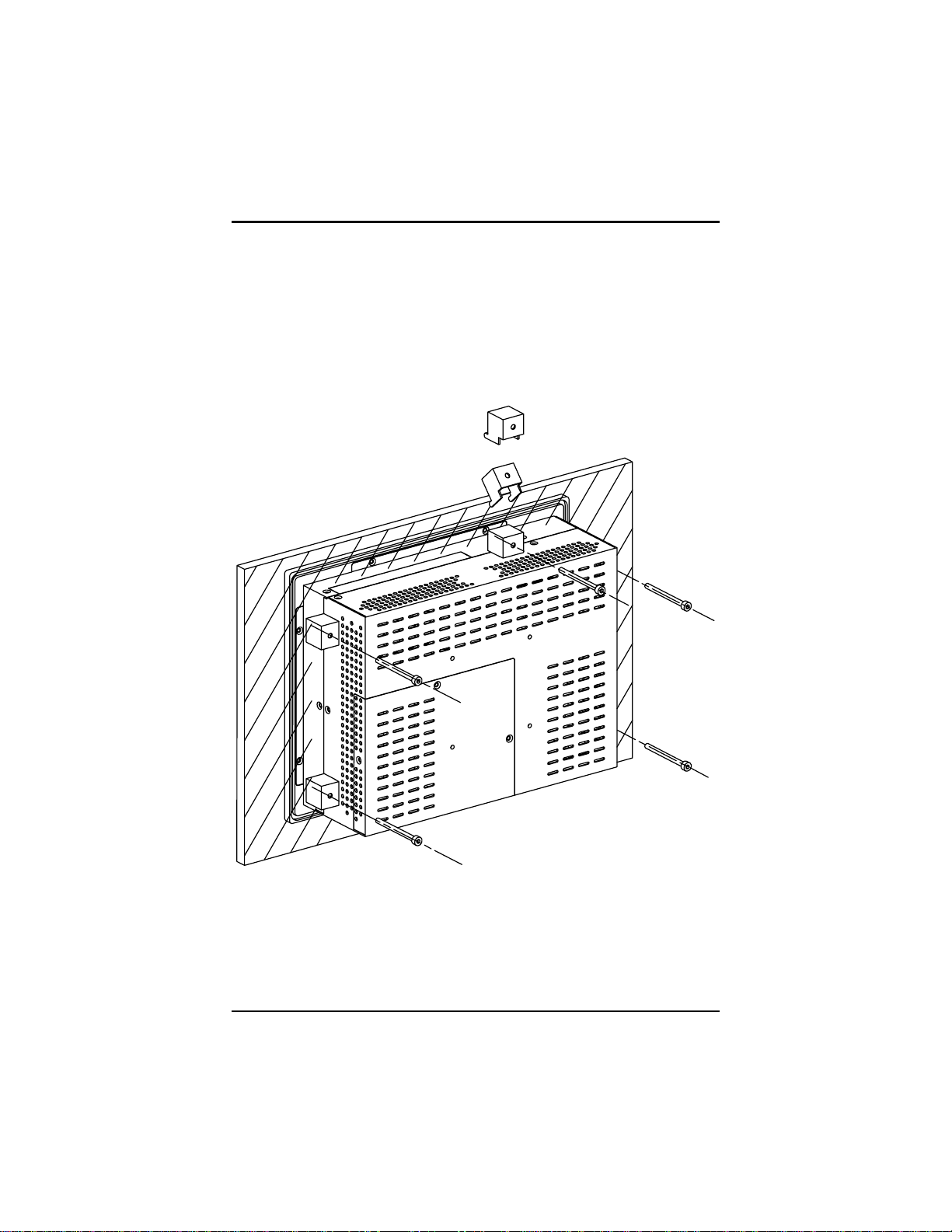

2.2 Panel Mount
The PANEL1080-845 is mainly designed for panel mount application.
To mount the PANEL1080-845, the standard set of mounting kit
(included in the system packaging) is needed. Please refer to the
following figure.

PANEL1080-845 8.4” All-in-One PANEL PC User’s Manual
System Installation 9
C h a p t e r 3
System Installation
This chapter describes the installation and the cable connection to the
system connectors. See system board User’s Manual that came with
your PANEL PC packaging for more details. Sections in this chapter
includes
$ CPU
$ DRAM
$ HDD
$ 3 x Serial
Ports
$ Parallel Port
$ VGA
$ Ethernet
$ Digital I/O
$ PS/2 Type
$ System O/S
and
Software
Installation
The PANEL1080-845 has a Pentium II little board. It already builds in
a Pentium II CPU, relevant DRAM and a 2.5” HDD. These are all
standard and the system is ready to play. System performance can be
increased by upgrading to, higher capacity DRAM modules and hard
disk drive. The user can use the I/O ports located at the backside of
the chassis to connect external peripheral devices, such as a monitor,
serial devices, parallel printer…etc.
NOTE: Make sure the power cord is disconnected before any
installation. To install any internal device such as CPU,
DRAM and HDD, take out the rear chassis cover first.

PANEL1080-845 8.4” All-in-One PANEL PC User’s Manual
System Installation
10

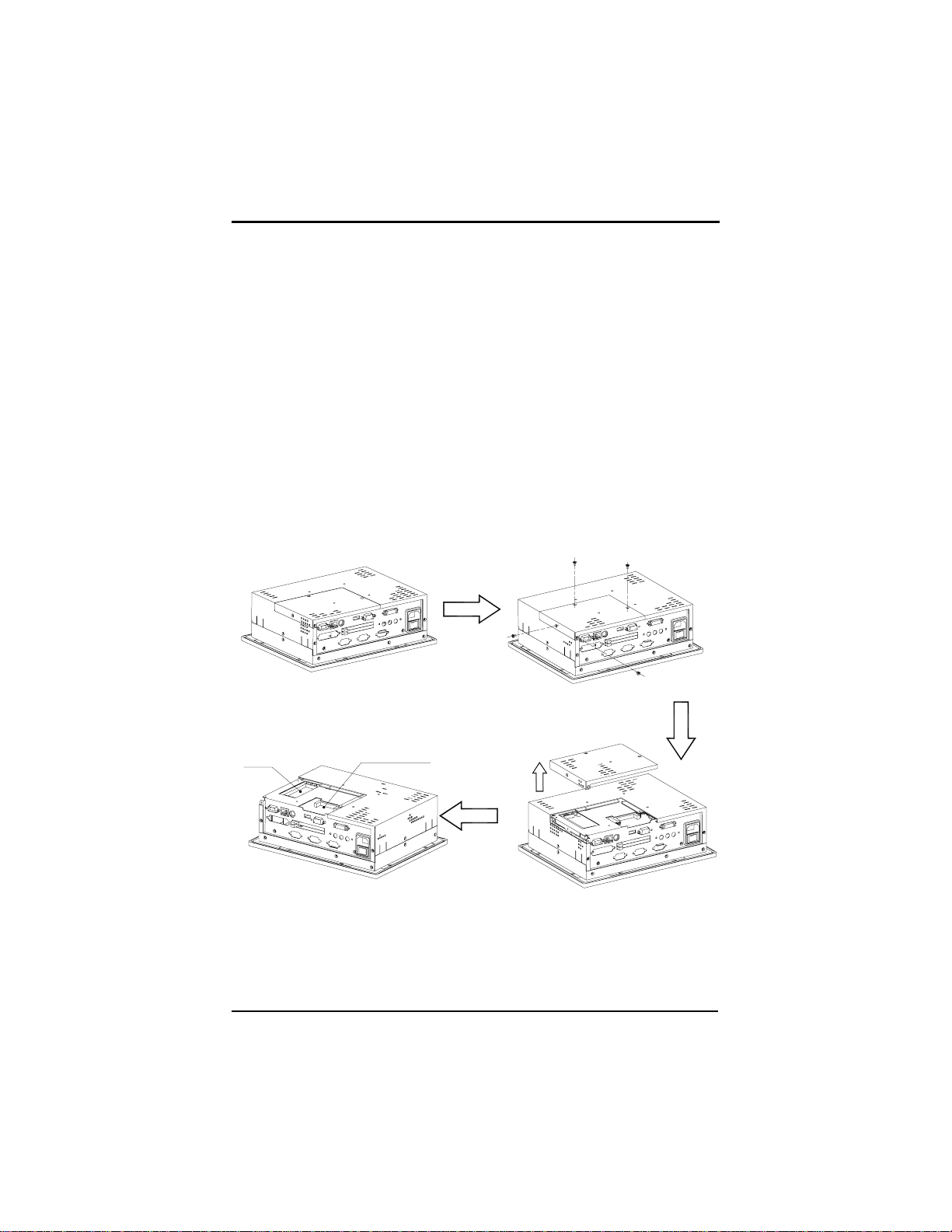

3.1 CompactFlashTM and DRAM
Installation
The standard PANEL1080-845 system already builds in a 2.5” hard
disk drive and CompactFlashTM card. SBC84500, on the one hand,
provide one 144-pin SODIMM socket that supports system memory
up to 128MB.
When upgrading the HDD or DRAM, or CompactFlash card refer to
the following illustration and instructions:
1. To take off four screws as Fig 2.
2. To open sub-rear cover and put DRAM module or
CompactFlashTM module on as Fig 4.
DRAM Compact Flash
Fig 1 Fig 2
Fig 4 Fig 3

PANEL1080-845 8.4” All-in-One PANEL PC User’s Manual
System Installation 11

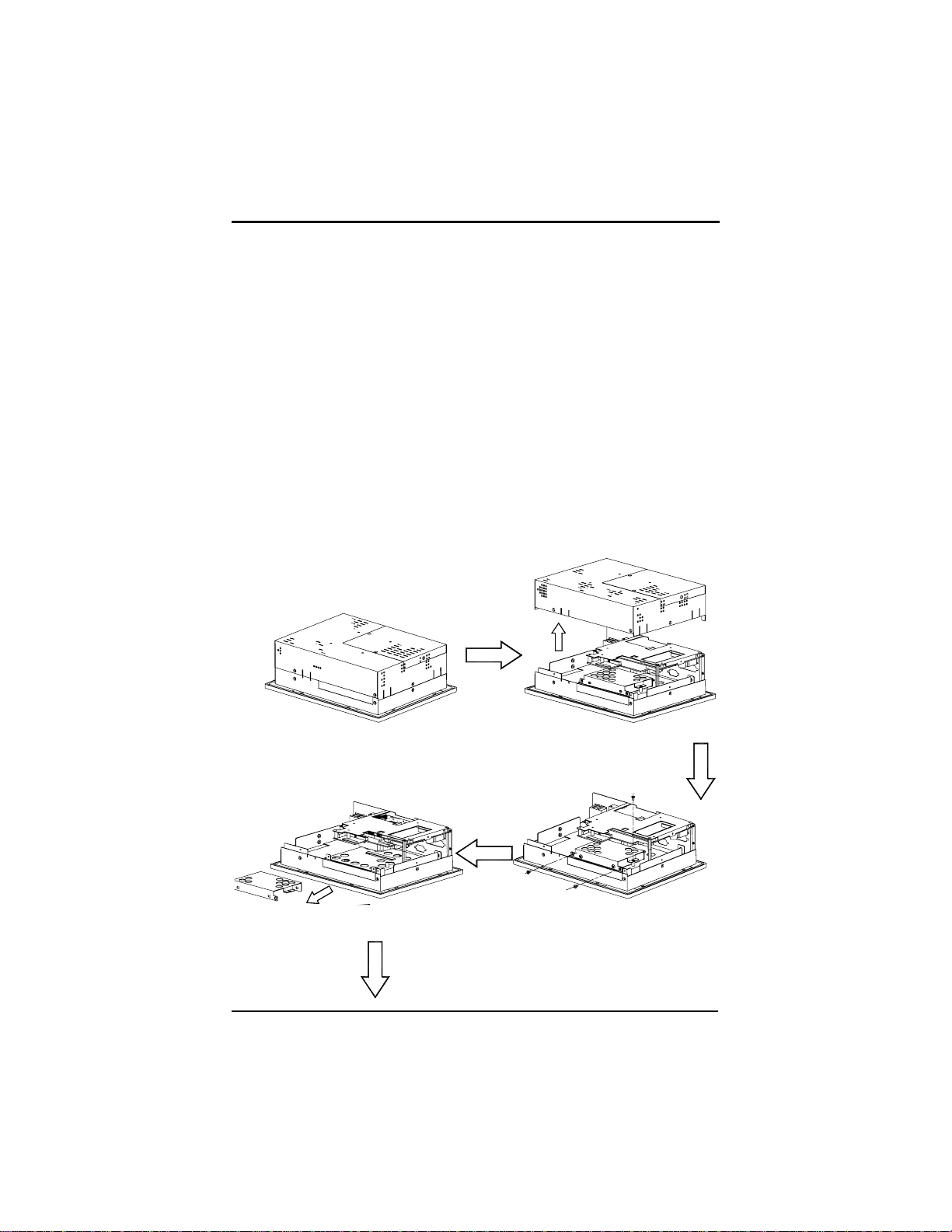

3.2 HDD Installation
When upgrading the CD-ROM or FDD, refer to the following
illustration and instructions:
1. To take off eight screws as Fig 1.
2. Then opening all rear cover as Fig 2.
3. To take off three screws of HDD drive bay and take out
HDD drive bay.
4. To fix HDD on drive bay by 4 screws.
5. Reverse step 3.
6. Reverse step 1.
Note: If you want to install CD-ROM, the HDD must be set at
Slave mode.
Fig 1 Fig 2
Fig 4 Fig 3

PANEL1080-845 8.4” All-in-One PANEL PC User’s Manual
System Installation
12
HDD Bracket
HDD
Fig 5 Fig 6
Fig 7Fig 8
Fig 9
