B-K lighting ArtiStar Integral User manual

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION
INSTRUCTIONS
RELEASE DATE
11/03/2021
REFERENCE NUMBER
INS-2119-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR
SELL ANYTHING IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
TOOLS
NEEDED:
Warning High Voltage Hot Surface
· Suitable for wet locations · Additionally suitable for mounting within 4 ft. of the ground
IMPORTANT LISTINGS AND CERTIFICATIONS
ArtiStar Integral
Solid State LED
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local
and Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel with appropriate personal protective
equipment must perform all servicing of this product.
• Before wiring to power supply and during servicing, turn off and
lock out power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause
an unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL
SAFETY AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part,
as this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body.
• Replace LED assembly only with correct wattage and type
of power supply appropriate for LED assembly.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause
an unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY
TO PERSONS IMPORTANT
SAFETY INSTRUCTIONS
Lighted fixture is HOT!
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before
replacing lamp/LED. Fixture gets HOT quickly!
Contact only switch/plug when turning
on. Do not touch hot lens, guard, or enclosure.
Keep fixture away from materials that may burn.
Do not operate the luminaire fitting with a missing or
damaged shield. Do not touch the source at any time.
Use a soft cloth or gloves. Oil from skin may cause
damage.
SAVE THESE INSTRUCTIONS
Standard Installation
Proper soil preparation is recommended before installation. See the DIG-IT guide at www.bklighting.com/dig-it for more information.
3/16” and 5/64” Allen Wrench
Waterproof Wire Connectors
Drill Bit and Drill
Mounting Hardware
Standard Mount
Anchor Base
Cap
Integral Driver
Housing
ArtiStar Knuckle
Mounting System

RELEASE DATE
11/03/2021
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
REFERENCE NUMBER
INS-2119-00
ArtiStar Integral
Solid State LED
Standard Installation
5. Make watertight connections using waterproof
wire connectors (not included) to connect
primary branch circuit wiring to primary driver
side. Connect incoming ground to ground wire
provided in fixture body. See wiring diagram.
WIRING DIAGRAM
7. Use a 3/16” allen wrench to slightly loosen ¼”-28
stainless steel black oxide socket head cap screw
at the knuckle for vertical aiming purposes.
Rotate fixture at base and aim fixture to desired
horizontal location.
8. Tighten the three (3) #8-32 stainless steel set
screws on anchor base and ¼”-28 stainless steel
locking screw at the knuckle to secure all aiming
positions.
6. Place fixture onto mounted anchor base and
press straight down until the two pieces are flush
with each other.
1. Study anchor base plan. Prepare mounting
surface for anchor base.
2. Use a 5/64” allen wrench to loosen three (3)
#8-32 stainless steel set screws (do not remove
stainless steel set screws from fixture base).
Remove anchor base from bottom of fixture.
3. Pull branch circuit wiring necessary for
installation (not included). Feed branch circuit
wiring through anchor base.
4. Secure anchor base to solid surface (i.e. wood,
concrete) using appropriate hardware for specific
surface.
Seal base to surface as per NEC.
Fixture Installation
All line voltage connections must be made in
compliance with the National Electrical Code.
Failure to do so will void warranty.
HOT (+)
FIXTURE
NEUTRAL
DRIVER
(-)
GROUND GROUND IN HOUSING

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION
INSTRUCTIONS
RELEASE DATE
11/03/2021
REFERENCE NUMBER
INS-2120-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR
SELL ANYTHING IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
TOOLS
NEEDED:
Warning High Voltage Hot Surface
· Suitable for wet locations · Additionally suitable for mounting within 4 ft. of the ground
IMPORTANT LISTINGS AND CERTIFICATIONS
ArtiStar Integral
Solid State LED
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local
and Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel with appropriate personal protective
equipment must perform all servicing of this product.
• Before wiring to power supply and during servicing, turn off and
lock out power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause
an unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL
SAFETY AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part,
as this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body.
• Replace LED assembly only with correct wattage and type
of power supply appropriate for LED assembly.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause
an unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY
TO PERSONS IMPORTANT
SAFETY INSTRUCTIONS
Lighted fixture is HOT!
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before
replacing lamp/LED. Fixture gets HOT quickly!
Contact only switch/plug when turning
on. Do not touch hot lens, guard, or enclosure.
Keep fixture away from materials that may burn.
Do not operate the luminaire fitting with a missing or
damaged shield. Do not touch the source at any time.
Use a soft cloth or gloves. Oil from skin may cause
damage.
SAVE THESE INSTRUCTIONS
Standard Installation
Proper soil preparation is recommended before installation. See the DIG-IT guide at www.bklighting.com/dig-it for more information.
Stability Flange
Power Pipe
ArtiStar Knuckle Mounting
System
Integral Driver
Housing
3/16” and 5/64” Allen Wrench
Waterproof Wire Connectors
Phillips Screwdriver

RELEASE DATE
11/03/2021
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
REFERENCE NUMBER
INS-2120-00
ArtiStar Integral
Solid State LED
Standard Installation

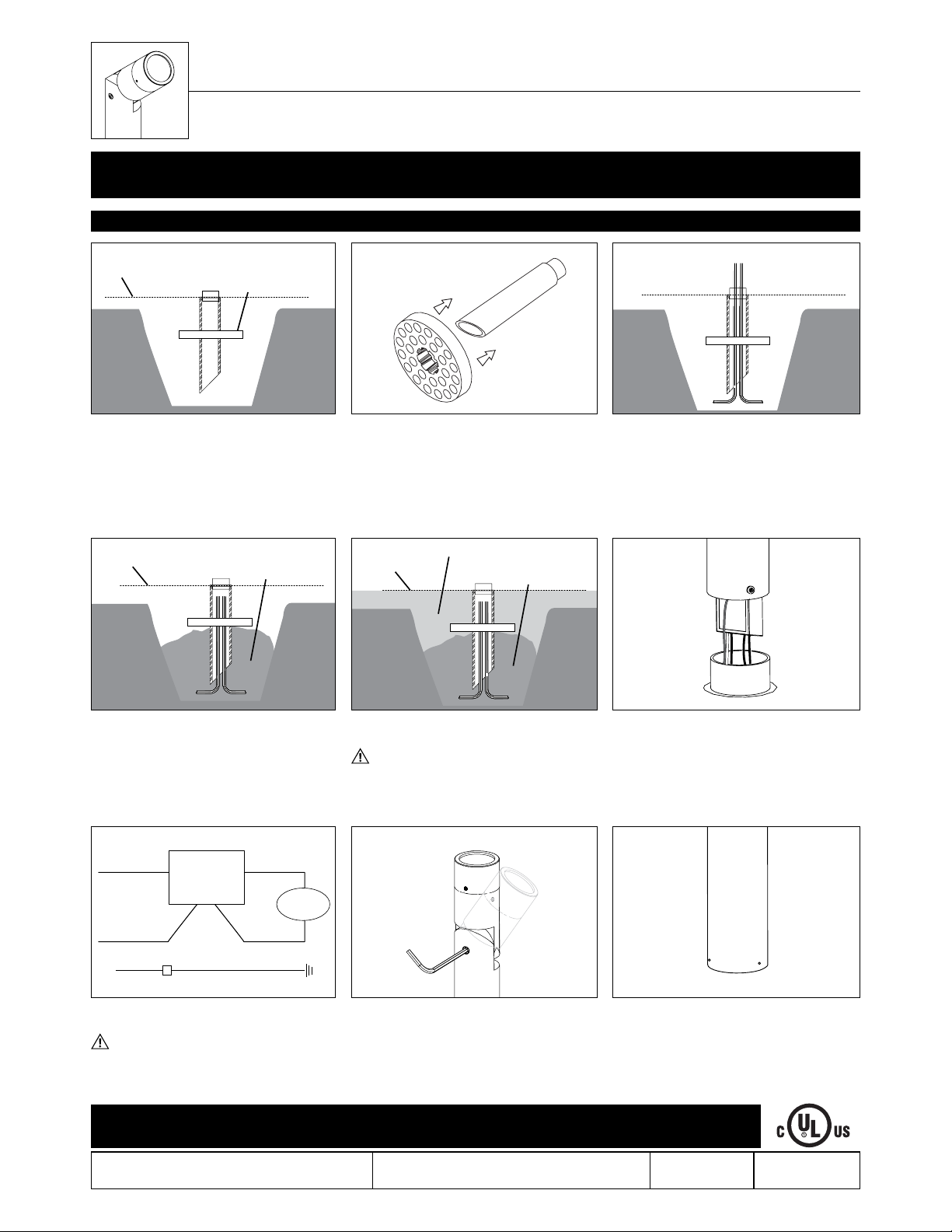

Power Pipe Mounting Option
Finished grade
Pea gravel or sand
Finished grade
Concrete
Finished grade
Stability Flange
Pea gravel or sand
Finished grade
Pea gravel
or sand
Above Ground
Installation
Pea gravel
or sand
Concrete
Pea gravel
or sand
Pea gravel
or sand
Pea gravel
or sand
Concrete
Below Ground
Installation
Pea gravel
or sand
4. Back fill with pea gravel or sand prior to pour.
8. Tighten three (3) #8-32 stainless steel round
head Phillips screws at base and 1/4”-28
stainless steel black oxide socket head screw
at the knuckle to secure all aiming positions.
Finished grade
Pea gravel or sand
Finished grade
Concrete
Finished grade
Stability Flange Pea gravel or sand
Finished grade
Pea gravel
or sand
Above Ground
Installation
Pea gravel
or sand
Concrete
Pea gravel
or sand
Pea gravel
or sand
Pea gravel
or sand
Concrete
Below Ground
Installation
Pea gravel
or sand
5. Pour concrete (not included).
Label on Power Pipe™ indicates installation
depth with finished grade.
WIRING DIAGRAM
6. Use waterproof wire connectors (not included)
to connect driver primary leads to branch
circuit wires. Connect incoming ground to
ground wire provided in fixture body. See
wiring diagram.
7. Insert wires, connectors and driver into fixture
base and attach to Power Pipe™. To aim
fixture, use 3/16” Allen wrench to slightly
loosen ¼”-28 stainless steel black oxide
socket head screw at the knuckle for vertical
aiming purposes. Rotate fixture to aim to
desired horizontal location.
Finished grade
Pea gravel or sand
Finished grade
Concrete
Finished grade
Stability Flange Pea gravel or sand
Finished grade
Pea gravel
or sand
Above Ground
Installation
Pea gravel
or sand
Concrete
Pea gravel
or sand
Pea gravel
or sand
Pea gravel
or sand
Concrete
Below Ground
Installation
Pea gravel
or sand
3. Pull branch circuit wires necessary for
installation (not included) through Power Pipe.
Allow for additional cable to make connections
to fixture lead and future service. Place Power
Pipe in hole. Do not cut PVC.
Finished grade
Pea gravel or sand
Finished grade
Concrete
Finished grade
Stability Flange
Pea gravel or sand
Finished grade
Pea gravel
or sand
Above Ground
Installation
Pea gravel
or sand
Concrete
Pea gravel
or sand
Pea gravel
or sand
Pea gravel
or sand
Concrete
Below Ground
Installation
Pea gravel
or sand
Pea gravel or sand
Finished grade
Pea gravel or sand
Concrete or Soil
Finished grade
LINE 12V
FIXTURE
COM
Remote
Transformer
(by others)
COM
Finished grade Optional
Stability Flange
2. Slide optional Stability Flange onto Power
Pipe. Use optional Stability Flange to aid in
installation of Power Pipe.
1. Excavate trench according to designed
lighting plan. Dig hole a minimum of 18” deep
and 10” wide to accommodate Power Pipe at
desired fixture location(s).
All line voltage connections must be made
in compliance with the National Electrical
Code. Failure to do so will void warranty.
HOT (+)
FIXTURE
NEUTRAL
DRIVER
(-)
GROUND GROUND IN HOUSING
DRIVER HOUSING MUST BE INSTALLED ABOVE GRADE. POWER PIPE™ IS LABELED AT GRADE LEVEL.
DRIVER HOUSING INSTALLED BELOW GRADE WILL VOID WARRANTY

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION
INSTRUCTIONS
RELEASE DATE
11/03/2021
REFERENCE NUMBER
INS-2121-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR
SELL ANYTHING IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
TOOLS
NEEDED: 3/16”, 1/8” and 5/64” Allen Wrench
Waterproof Wire Connectors
Mounting Hardware
Warning High Voltage Hot Surface
· Suitable for wet locations · Additionally suitable for mounting within 4 ft. of the ground
IMPORTANT LISTINGS AND CERTIFICATIONS
ArtiStar Integral
Solid State LED
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local
and Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel with appropriate personal protective
equipment must perform all servicing of this product.
• Before wiring to power supply and during servicing, turn off and
lock out power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause
an unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL
SAFETY AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part,
as this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body.
• Replace LED assembly only with correct wattage and type
of power supply appropriate for LED assembly.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause
an unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY
TO PERSONS IMPORTANT
SAFETY INSTRUCTIONS
Lighted fixture is HOT!
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before
replacing lamp/LED. Fixture gets HOT quickly!
Contact only switch/plug when turning
on. Do not touch hot lens, guard, or enclosure.
Keep fixture away from materials that may burn.
Do not operate the luminaire fitting with a missing or
damaged shield. Do not touch the source at any time.
Use a soft cloth or gloves. Oil from skin may cause
damage.
SAVE THESE INSTRUCTIONS
Junction Box
(Not Included)
Universal Mounting Ring Canopy
ArtiStar Knuckle
Mounting System
Integral Driver
Housing
Standard Installation

WIRING DIAGRAM
3. Use a 1/8” allen wrench to mount fixture with
two (2) #10-24 hex screws to installed back
box. Do not over tighten.
Phase 2 - Finish Installation of Fixture.
1. Install universal mounting ring (supplied with
fixture) using appropriate mounting hardware
(By Others). Align fixture mounting holes to
final mounting position.
2. Pull branch circuit wires necessary for
installation (not included). Use waterproof
wire connectors (not included) to connect
driver primary leads to branch circuit wires.
Connect incoming ground to ground wire
provided in fixture body. See wiring diagram.
4. Use a 3/16” allen wrench to slightly loosen
¼”-28 stainless steel black oxide socket head
cap screw at the knuckle for vertical aiming
purposes. Use a 5/64” allen wrench to loosen
the three (3) #8-32 stainless steel set screws.
Rotate to aim fixture to desired horizontal
location.
5. Tighten the three (3) #8-32 stainless steel
set screws and 1/4”-28 stainless steel black
oxide socket head cap screw at the knuckle to
secure all aiming positions.

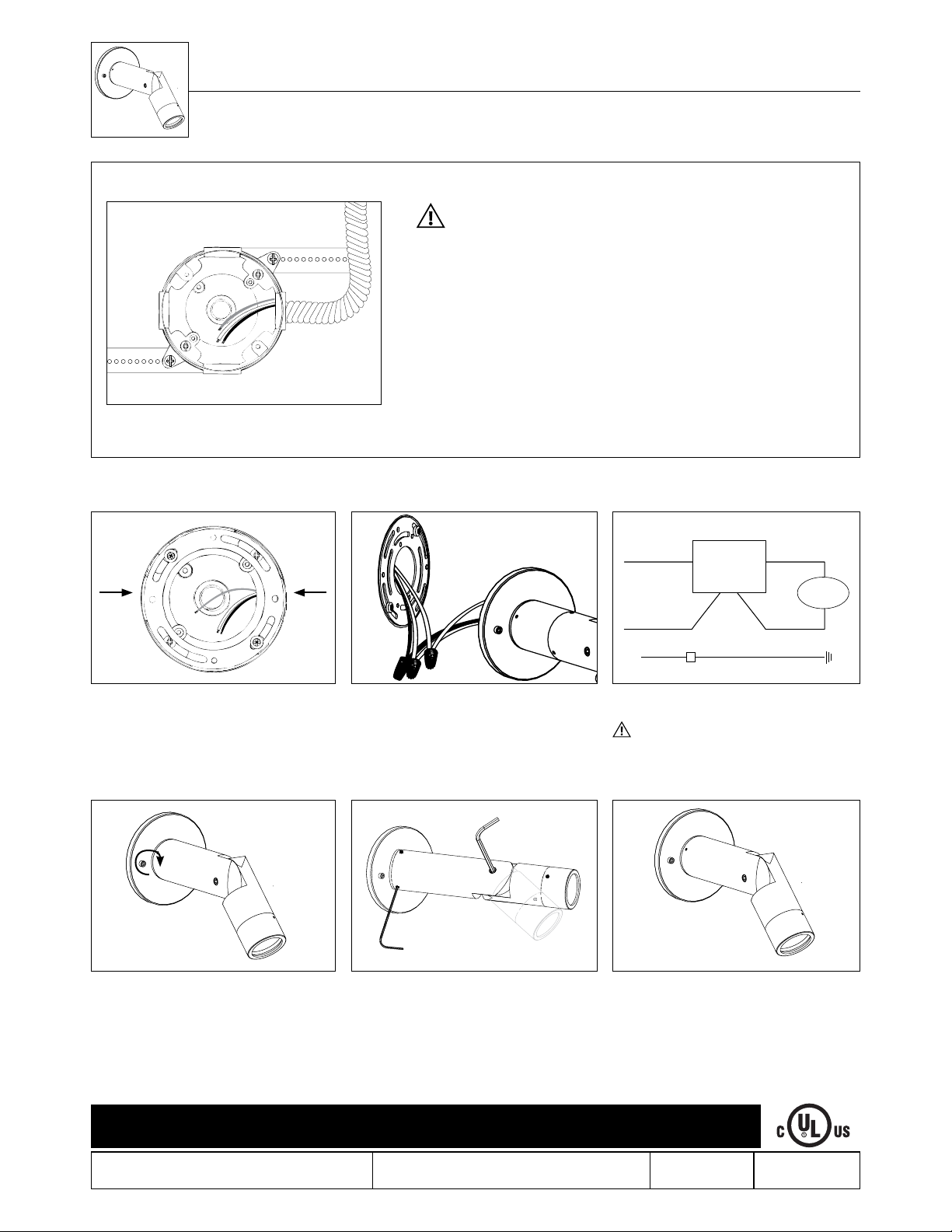

Phase 1 - Rough In
Installation of Back box
1. Install Conduit (not included) to be used with this
product.
2. Install junction box so that front
face is flush with finished wall or
ceiling.
3. Connect box to conduit and pull wires for
connections (See Wiring Diagram).
Additional Info
• Please follow National and Local electrical codes for your area.
• Suitable for through wire.
• Suitable for installation into combustible materials.
• Rated for 90° C.
• Junction box, universal mounting ring screws, box mounting
hardware and gaskets (not included).
All line voltage connections must be made
in compliance with the National Electrical
Code. Failure to do so will void warranty.
HOT (+)
FIXTURE
NEUTRAL
DRIVER
(-)
GROUND GROUND IN HOUSING
RELEASE DATE
11/03/2021
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
REFERENCE NUMBER
INS-2121-00
ArtiStar Integral
Solid State LED
Standard Installation
