B-K lighting ORION User manual

RELEASE DATE
01/20/2022
REFERENCE NUMBER
INS-2506-01
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR
SELL ANYTHING IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all
Local and Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel must perform all servicing or relamping
of this product.
• Before wiring to power supply and during servicing or
relamping, turn off power at fuse or circuit breaker before
service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause
an unsafe condition. The use of damaged components may
cause an unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL
SAFETY AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part,
as this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body. Do not touch the lamp at any time. Use
a clean, dry, soft cloth to handle the lamp. Oil from skin
may damage the lamp and cause it to rupture.
• Replace lamp only with correct wattage and type of lamp
marked on fixture label.
• All gaskets, o-rings and sealing surfaces must be kept
clean during installation and service; failure to do this may
cause an unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY
TO PERSONS IMPORTANT
SAFETY INSTRUCTIONS
Lighted fixture is HOT!
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before
replacing lamp/LED. Fixture gets HOT quickly!
Contact only switch/plug when turning
on. Do not touch hot lens, guard, or enclosure.
Keep fixture away from materials that may burn.
Do not operate the luminaire fitting with a missing or
damaged shield. Do not touch the source at any time.
Use a soft cloth or gloves. Oil from skin may cause
damage.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION
INSTRUCTIONS

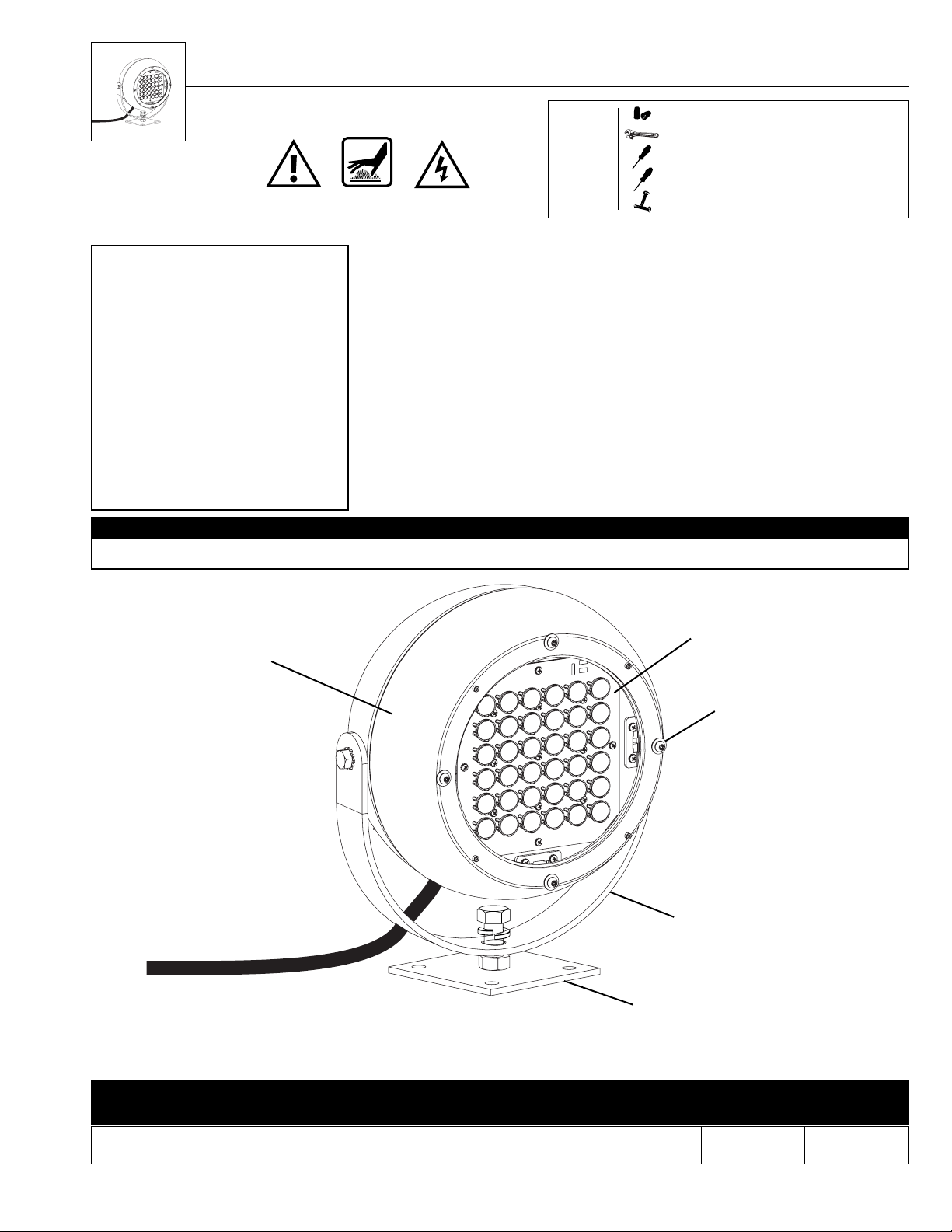

ORION
YOKE WITH MOUNTING STUD
IMPORTANT LISTINGS AND CERTIFICATIONS
· Suitable for wet locations
Standard Installation
TOOLS
NEEDED:
Warning Hot Surface
Waterproof Wire Connectors
Adjustable Crescent Wrench
Flat Head Screwdriver
TORX T27 Tamper Resistant 1/4” Bit
Mounting Hardware
High Voltage
ORION - YOKE WITH MOUNTING STUD
Yoke
Heavy-Gauged, Die-Formed
Aluminum Housing
Tamper Resistant
Screws
LED Array
Mounting
Plate

IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
RELEASE DATE
01/20/2022
REFERENCE NUMBER
INS-2506-01
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO
MANUFACTURE, USE OR SELL ANYTHING IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
ORION
YOKE WITH MOUNTING STUD
Standard Installation
WIRING DIAGRAM
4. Make watertight connections using waterproof
wire connectors to connect incoming primary
wiring to integral driver wiring as per NEC.
Secondary side is factory wired.
HOT LED
NEUTRAL
GROUND
HOT
NEUTRAL
GROUND
Integral
DRIVER
+
-
0-10V -
0-10V +
0-10V -
0-10V +
2. Clearance hole of yoke is 7/16” diameter.
7/16” Dia.
5. To relamp: remove faceplate and louver by
loosening four (4) tamper resistant screws
using a TORX T27 socket (1/4” bit). Relamp as
needed, then reverse install.
3. Line up fixture yoke to mounting plate and
secure with 3/4”-10 bolt and locking washer
(mounting hardware not included).
1. Install mounting plate in location as per
lighting plan. Mounting plate has four (4) 9/16”
dia. mounting holes 4-1/4” apart on center,
square (mounting hardware not included).
