BNI IOL-302-002-Z046
IO-Link 1.1 sensor/actuator hub
with extension port
User's Guide

Balluff Network Interface / IO-Link BNI IOL-302-002-Z046
www.balluff.com
2
Contents
1General 4
Structure of the Manual 41.1. Typographical Conventions 41.2. Enumerations 4
Actions 4
Syntax 4
Cross-references 4
Symbols 41.3. Abbreviations 41.4.
2Safety 5
Intended use 52.1. Installation and Startup 52.2. General Safety Notes 52.3. Resistance to Aggressive Substances 52.4. Dangerous Voltage 5
3First Steps 6
Connection Overview 63.1. Mechanical Connection 73.2. Electrical Connection 73.3. Function ground 7
IO-Link connection 7
Connecting the sensor hub 8
Module variants 8
Sensor/actuator interface 8
Extension port 8
4General Configuration 9
Extension port 94.1. Configuration of the extension port 55hex) 9
Setting the serial number 54hex 9
5Configuration: "Extension Off" 10
IO-Link data 105.1. Process Data/Input Data 105.2. Process Data/ Output Data 105.3. Parameter Data / Demand Data 115.4. Inversion of the inputs (40hex) 12
Configuration of inputs/outputs (41hex) 12
Safe state of Outputs 42hex 12
Voltage monitoring 44hex 14
Monitoring the outputs (45hex) 14
Actuator warning (46hex) 14
6Configuration: Extanded with BNI IOL-104-002-Z046 15
IO-Link data 156.1. Process Data/Input Data 156.2. Process Data/ Output Data 166.3. Parameter Data / Demand Data 176.4. Inversion of the inputs (40hex) 18
Configuration of inputs/outputs (41hex) 18
Safe state of Outputs 42hex 19
Safe state of the outputs on Pin 4 42hex) 19
Voltage monitoring 44hex 20
Monitoring the outputs (45hex) 21
Actuator warning (46hex) 21
Setting the serial number 54hex 21
7Diagnostics 22

www.balluff.com
3
Errors 227.1. Events 227.2.
8IO-Link functions 23
IO-Link Version 1.0 / 1.1 238.1. Data Storage 238.2. Block Configuration 238.3. Resetting to Factory Settings 23
9Technical Data 24
Dimensions 249.1. Mechanical Data 249.2. Electrical Data 249.3. Operating conditions 249.4.
10 Function indicators 25
Function indicators 2510.1. LED indicator module status 25
Digital LED indicators for inputs/outputs 26
Extension port 26
11 Appendix 27
Type code 2711.1. Ordering information 2711.2.

Balluff Network Interface / IO-Link BNI IOL-302-002-Z046
www.balluff.com
4
1General
Structure of the
1.1.
Manual
The manual is organized so that the sections build on one another.
Chapter 2: Basic Safety Information.
……..
Typographical
1.2.
Conventions
The following typographical conventions are used in this manual.
Enumerations
Enumerations are shown as a list with an en-dash.
Entry 1,
Entry 2.
Actions
Action instructions are indicated by a preceding triangle. The result of an action is indicated
by an arrow.
Action instruction 1.
Action result.
Action instruction 2.
Syntax
Numbers:
Decimal numerals are shown without an additional indicator (e.g. 123),
Hexadecimal numerals are shown with the additional indicator hex (e.g. 00hex).
Cross-references
Cross-references indicate where additional information on the topic can be found.
Symbols
1.3.
Attention!
This symbol indicates a security instruction which most be observed.
Note
This symbol indicates general notes.
Abbreviations
1.4.
BNI
DPP
I/O port
EMC
FE
IOL
LSB
MSB
SPDU
Balluff Network Interface
Direct Parameter Page
Digital input/output port
Electromagnetic compatibility
Function ground
IO-Link
Least Significant Bit
Most Significant Bit
Service Protocol Data Unit

www.balluff.com
5
2Safety
Intended use
2.1.
The BNI IOL-… acts as a decentralized input/output sensor module, which is connected to a
higher-level IO-Link master module through an IO-Link interface.
Installation and
2.2.
Startup
Attention!
Installation and startup must only be carried out by trained technical personnel.
Qualified personnel are people who are familiar with installation and operation of
the product and have the necessary qualifications for these tasks. Any damage
resulting from unauthorized tampering or improper use voids the manufacturer's
guarantee and warranty. The operator must ensure that appropriate safety and
accident prevention regulations are observed.
General Safety
2.3.
Notes
Commissioning and inspection
Before commissioning, carefully read the user's guide.
The system must not be used in applications in which the safety of persons is dependent
upon proper functioning of the device.
Authorized personnel
Installation and startup must only be carried out by trained technical personnel.
Intended use
Warranty and liability claims against the manufacturer are rendered void by:
Unauthorized tampering
Improper use
Use, installation or handling contrary to the instructions provided in this user's
guide
Obligations of the operating company
The device is a piece of equipment in accordance with EMC Class A. This device can
produce RF noise. The operator must take appropriate precautionary measures. The device
may only be used with an approved power supply. Use only approved cables.
Malfunctions
In the event of defects and device malfunctions that cannot be rectified, the device must be
taken out of operation and protected against unauthorized use.
Intended use is ensured only when the housing is fully installed.
Resistance to
2.4.
Aggressive
Substances
Attention!
The BNI modules always have good chemical and oil resistance. When used in
aggressive media (such as chemicals, oils, lubricants and coolants, each in a
high concentration (i.e. too little water content)), the material must first be
checked for resistance in the particular application. No defect claims may be
asserted in the event of a failure or damage to the BNI modules caused by such
aggressive media.
Dangerous
Voltage
Attention!
Before maintenance, disconnect the device from the power supply.
Note
In the interests of product improvement, Balluff GmbH reserves the right to
change the technical data of the product and the content of this manual
at any time without notice.

Balluff Network Interface / IO-Link BNI IOL-302-002-Z046
www.balluff.com
6
3First Steps
Connection
3.1.
Overview
Figure 3-1: Connection overview BNI IOL-302-002-Z046
1 Ground connection
2 Mounting hole
3 Status LED: communication
4 Part label
5 Port 1
6 Port 3
7 Port 5
8 Port 7
9 Port 9
10 Port 11
11 Port 13
12 Port 15, extension port
13 Pin/Port LED: signal status
14 Port 14
15 Port 12
16 Port 10
17 Port 8
18 Port 6
19 Port 4
20 Port 2
21 Port 0
22 IO-Link Interface
1
2
3
4
5
6
7
9
13
14
19
20
22
8
10
11
12
2
15
16
17
18
21

www.balluff.com
7
3 First Steps
Mechanical
3.2.
Connection
The BNI IOL modules are attached using 2 max. M4 screws and 2 washers.
Electrical
3.3.
Connection
The BNI IOL-302-002-Z046 modules do not require a separate supply voltage connection.
Supply voltage is provided via the IO-Link interface and the higher-level IO-Link master
module.
Function ground
The modules are equipped with a ground connection.
Ground connection BNI IOL-..
Note!
The function ground connection from the housing to the machine must have
low-impedance and be kept as short as possible.
IO-Link
connection
The IO-Link connection is established via an M12 connector (A-coded, male).
IO-Link (M12, A-coded, male)
Pin
Requirement
1
Supply voltage for controller Us, +24 V
2
Supply voltage for actuators Ua, +24 V
3
GND, reference potential
4
C/Q, IO-Link data transmission channel

Balluff Network Interface / IO-Link BNI IOL-302-002-Z046
www.balluff.com
8

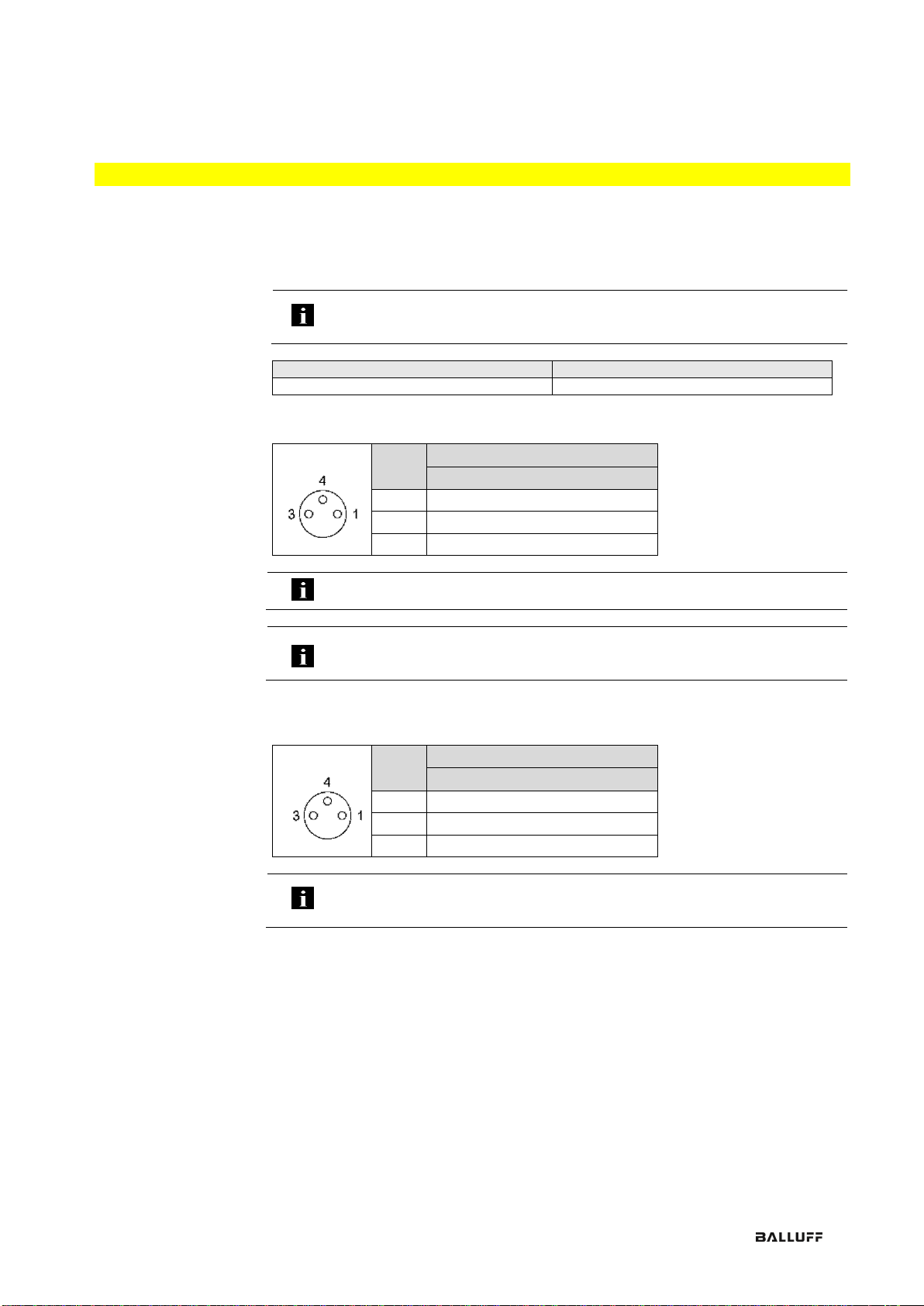

3 First Steps
Connecting the
sensor hub
Connect ground conductor to the functional ground connection, if available.
Connect the incoming IO-Link cable to the sensor hub.
Note
A standardized sensor cable is used to connect to the higher-level to the
IO-Link master module. Maximum length of 20 m.
Module variants
Sensor hub variants
Digital port
BNI IOL-302-002-Z046
IN / OUT
Sensor/actuator
interface
Standard in-/output M8
Pin
Function
IN / OUT
1
+24V
4
Input / Output
3
0V
Note
For the digital inputs, the input guideline specified in EN 61131-2, Type 3 applies
Note
Unused input port sockets must be fitted with blind caps to ensure the IP67 degree
of protection.
Extension port
Extension port (M8, female)
The port acts like a sensor/actuator interface if the extension function is disabled.
Pin
Function
IN / OUT
1
+24V
4
Communication
3
0V
Note
A standardized sensor cable is used to connect to the device/sensor to be
expanded. Maximum length of 20 m.

www.balluff.com
9
4General Configuration
Extension port
4.1.
The BNI IOL-302-002-Z046 module gives you the ability to use the No. 15 slot in various
ways. The standard setting is use as a digital
I/O slot, where Pin 4 can be used as a digital input or output.
This slot can be used as an extension port by making a corresponding entry in the
parameter with an index of 55hex. This makes it possible to operate one of the following
modules using the No. 7 slot.
BNI IOL-104-002-Z046
Configuration of
the extension port
55hex)
Configuration
Value Index 55hex
BNI IOL-302-002-Z046
0
BNI IOL-302-002-Z046 with BNI IOL-104-002-Z046
1
Note
The "Factory reset" command does not affect the configuration of the extension
port in any way.
Note
The process data length depends on the configuration.
The extension port can be configured using the parameter 55hex (see table). If data storage
or validation is used, validation (identical) must be used for configuring. Depending on the
system, the Device ID has to be entered (parameter data table) or the Device ID is read out
from the IODD.
Setting the serial
number 54hex
The serial number has a default value of 16x00hex.
In order to use the "Identity" master validation mode, a serial number can be set using this
parameter.
This prevents a device from connecting to the wrong master port.

Balluff Network Interface / IO-Link BNI IOL-302-002-Z046
www.balluff.com
10
5Configuration: "Extension Off"
IO-Link data
5.1.
BNI IOL-302-002-Z046 Extension off
Transmission rate
COM2 (38.4 kBaud)
Minimum cycle time
4.0 ms
Process data length
2 byte input, 2 byte output
Process
5.2.
Data/Input Data
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Description
Input Port 7 Pin 4
Input Port 6 Pin 4
Input Port 5 Pin 4
Input Port 4 Pin 4
Input Port 3 Pin 4
Input Port 2 Pin 4
Input Port 1 Pin 4
Input Port 0 Pin 4
Input Port 15 Pin 4
Input Port 14 Pin 4
Input Port 13 Pin 4
Input Port 12 Pin 4
Input Port 11 Pin 4
Input Port 10 Pin 4
Input Port 9 Pin 4
Input Port 8 Pin 4
Process Data/
5.3.
Output Data
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Description
Output Port 7 Pin 4
Output Port 6 Pin 4
Output Port 5 Pin 4
Output Port 4 Pin 4
Output Port 3 Pin 4
Output Port 2 Pin 4
Output Port 1 Pin 4
Output Port 0 Pin 4
Output Port 15 Pin 4
Output Port 14 Pin 4
Output Port 13 Pin 4
Output Port 12 Pin 4
Output Port 11 Pin 4
Output Port 10 Pin 4
Output Port 9 Pin 4
Output Port 8 Pin 4

www.balluff.com
11
5Configuration: "Extension Off"
Parameter Data
5.4.
/ Demand Data
DPP
ISDU
Parameter
Data
width
Access
rights
Default value
Index
Index
Subin
dex
Identification data
07hex
Vendor ID
2 bytes
Read only
0378hex
08hex
09hex
Device ID
3 bytes
05 0D 20hex
0Ahex
0Bhex
10hex
0
Vendor Name
-
BALLUFF
11hex
0
Vendor text
-
www.balluff.com
12hex
0
Product
Name
-
BNI IOL-302-002-Z046
13hex
0
Product ID
-
BNI00AU
14hex
0
Product text
-
M8 sensor/actuator hub
15hex
0
Serial number
16 bytes
0hex
16hex
0
Hardware
revision
17hex
0
Firmware
revision
18hex
0
Application-
specific tag
32 bytes
0hex
DPP
ISDU
Parameter
Data width
Access rights
Default
Value
Index
Index
Subindex
Parameter data
40hex
64
0
1-16
Inversion of the inputs
2 bytes
Read/write
0hex
41hex
65
0
1-16
Config. inputs/outputs
2 bytes
Read/write
0hex
42hex
66
0
1-16
Safe state on Pin 4
4 bytes
Read/write
0hex
44hex
68
0
1-24
Voltage monitoring
3 bytes
Read
-
45hex
69
0
1-16
Output monitoring
2 bytes
Read
-
46hex
70
0
1-16
Actuator warning
2 bytes
Read
-
54hex
84
0
Serial number
16 bytes
Read/write
16x00hex
55hex
85
0
Extension port
1 byte
Read/write
-

Balluff Network Interface / IO-Link BNI IOL-302-002-Z046
www.balluff.com
12
5Configuration: "Extension Off"
Inversion of the
inputs (40hex)
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Subin
dex
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
9
Description
Inversion of Port 7 Pin 4
Inversion of Port 6 Pin 4
Inversion of Port 5 Pin 4
Inversion of Port 4 Pin 4
Inversion of Port 3 Pin 4
Inversion of Port 2 Pin 4
Inversion of Port 1 Pin 4
Inversion of Port 0 Pin 4
Inversion of Port 15 Pin 4
Inversion of Port 14 Pin 4
Inversion of Port 13 Pin 4
Inversion of Port 12 Pin 4
Inversion of Port 11 Pin 4
Inversion of Port 10 Pin 4
Inversion of Port 9 Pin 4
Inversion of Port 8 Pin 4
Inversion of port (x):
0 –Normal
1 - Inverted.
Configuration
of
inputs/outputs
(41hex)
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Subin
dex
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
9
Description
Direction Port 7 Pin 4
Direction Port 6 Pin 4
Direction Port 5 Pin 4
Direction Port 4 Pin 4
Direction Port 3 Pin 4
Direction Port 2 Pin 4
Direction Port 1 Pin 4
Direction Port 0 Pin 4
Direction Port 15 Pin 4
Direction Port 14 Pin 4
Direction Port 13 Pin 4
Direction Port 12 Pin 4
Direction Port 11 Pin 4
Direction Port 10 Pin 4
Direction Port 9 Pin 4
Direction Port 8 Pin 4
Direction of port (x):
0 –Input
1 –Output
Safe state of
Outputs 42hex
The safe state parameter makes it possible to configure the outputs in case of a fault. If no
IO-Link communication is possible or the "valid flag" of the output process data has not been
set by the master, then each output adopts the configured status. The following statuses can be
configured for each pin.
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Sub-
Index
4
3
2
1
8
7
6
5
Description
Safe state Port 3 Pin 4
Safe state Port 2 Pin 4
Safe state Port 1 Pin 4
Safe state Port 0 Pin 4
Safe state Port 7 Pin 4
Safe state Port 6 Pin 4
Safe state Port 5 Pin 4
Safe state Port 4 Pin 4

www.balluff.com
13
5Configuration: "Extension Off"
Byte
2
3
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Sub-
Index
12
11
10
9
16
15
14
13
Description
Safe state Port 11 Pin 4
Safe state Port 10 Pin 4
Safe state Port 9 Pin 4
Safe state Port 8 Pin 4
Safe state Port 15 Pin 4
Safe state Port 14 Pin 4
Safe state Port 13 Pin 4
Safe state Port 12 Pin 4
Value
Output state
bin
dec
00
0
Output is 0V
01
1
Output is 24V
10
2
Current status is maintained
11
3
Not permitted

Balluff Network Interface / IO-Link BNI IOL-302-002-Z046
www.balluff.com
14
5Configuration: "Extension Off"
Voltage
monitoring
44hex
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Sub-
Index
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
9
Description
Short-circuit Port 7 Pin 1
Short-circuit Port 6 Pin 1
Short-circuit Port 5 Pin 1
Short-circuit Port 4 Pin 1
Short-circuit Port 3 Pin 1
Short-circuit Port 2 Pin 1
Short-circuit Port 1 Pin 1
Short-circuit Port 0 Pin 1
Short-circuit Port 15 Pin 1
Short-circuit Port 14 Pin 1
Short-circuit Port 13 Pin 1
Short-circuit Port 12 Pin 1
Short-circuit Port 11 Pin 1
Short-circuit Port 10 Pin 1
Short-circuit Port 9 Pin 1
Short-circuit Port 8 Pin 1
Byte
2
Bit
7
6
5
4
3
2
1
0
Sub-
Index
20
19
17
Description
-
-
-
-
Outputs off
(UA too low)
Undervoltage UA
-
Undervoltage US
Monitoring the
outputs (45hex)
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Sub-
Index
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
9
Description
Short-circuit Port 7 Pin 4
Short-circuit Port 6 Pin 4
Short-circuit Port 5 Pin 4
Short-circuit Port 4 Pin 4
Short-circuit Port 3 Pin 4
Short-circuit Port 2 Pin 4
Short-circuit Port 1 Pin 4
Short-circuit Port 0 Pin 4
Short-circuit Port 15 Pin 4
Short-circuit Port 14 Pin 4
Short-circuit Port 13 Pin 4
Short-circuit Port 12 Pin 4
Short-circuit Port 11 Pin 4
Short-circuit Port 10 Pin 4
Short-circuit Port 9 Pin 4
Short-circuit Port 8 Pin 4
Actuator
warning (46hex)
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Sub-
Index
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
9
Description
Warning Port 7 Pin 4
Warning Port 6 Pin 4
Warning Port 5 Pin 4
Warning Port 4 Pin 4
Warning Port 3 Pin 4
Warning Port 2 Pin 4
Warning Port 1 Pin 4
Warning Port 0 Pin 4
-
Warning Port 14 Pin 4
Warning Port 13 Pin 4
Warning Port 12 Pin 4
Warning Port 11 Pin 4
Warning Port 10 Pin 4
Warning Port 9 Pin 4
Warning Port 8 Pin 4

www.balluff.com
15
6Configuration: Extanded with BNI IOL-104-002-Z046
IO-Link data
6.1.
BNI IOL-302-002-Z046 extanded with BNI IOL-104-002-Z046
Transmission rate
COM2 (38.4 kBaud)
Minimum cycle time
4.5 ms
Process data length
4 byte input, 2 byte output
Process
6.2.
Data/Input
Data
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Description
Input Port 7 Pin 4
Input Port 6 Pin 4
Input Port 5 Pin 4
Input Port 4 Pin 4
Input Port 3 Pin 4
Input Port 2 Pin 4
Input Port 1 Pin 4
Input Port 0 Pin 4
-
Input Port 14 Pin 4
Input Port 13 Pin 4
Input Port 12 Pin 4
Input Port 11 Pin 4
Input Port 10 Pin 4
Input Port 9 Pin 4
Input Port 8 Pin 4
Byte
2
3
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Extension port
Description
Input Port 7 Pin 4
Input Port 6 Pin 4
Input Port 5 Pin 4
Input Port 4 Pin 4
Input Port 3 Pin 4
Input Port 2 Pin 4
Input Port 1 Pin 4
Input Port 0 Pin 4
Input Port 15 Pin 4
Input Port 14 Pin 4
Input Port 13 Pin 4
Input Port 12 Pin 4
Input Port 11 Pin 4
Input Port 10 Pin 4
Input Port 9 Pin 4
Input Port 8 Pin 4

Balluff Network Interface / IO-Link BNI IOL-302-002-Z046
www.balluff.com
16
6Configuration: Extanded with BNI IOL-104-002-Z046
Process Data/
6.3.
Output Data
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Description
Output Port 7 Pin 4
Output Port 6 Pin 4
Output Port 5 Pin 4
Output Port 4 Pin 4
Output Port 3 Pin 4
Output Port 2 Pin 4
Output Port 1 Pin 4
Output Port 0 Pin 4
-
Output Port 14 Pin 4
Output Port 13 Pin 4
Output Port 12 Pin 4
Output Port 11 Pin 4
Output Port 10 Pin 4
Output Port 9 Pin 4
Output Port 8 Pin 4

www.balluff.com
17
6Configuration: Extanded with BNI IOL-104-002-Z046
Parameter Data
6.4.
/ Demand Data
DPP
ISDU
Parameter
Data
width
Access
rights
Default value
Index
Index
Subin
dex
Identification data
07hex
Vendor ID
2 bytes
Read only
0378hex
08hex
09hex
Device ID
3 bytes
05 0D 21hex
0Ahex
0Bhex
10hex
0
Vendor Name
-
BALLUFF
11hex
0
Vendor text
-
www.balluff.com
12hex
0
Product
Name
-
BNI IOL-302-002-Z046
with BNI IOL-104-002-
Z046
13hex
0
Product ID
-
BNI00AU
with BNI00AY
14hex
0
Product text
-
Sensor/Actor hub M8
extended with Sensor
hub M8
15hex
0
Serial number
16 bytes
0hex
16hex
0
Hardware
revision
17hex
0
Firmware
revision
18hex
0
Application-
specific tag
32 bytes
0hex
DPP
ISDU
Parameter
Data width
Access rights
Default
Value
Index
Index
Subind
ex
Parameter data
40hex
64
0
1-16
Inversion of the inputs
4 bytes
Read/write
0hex
41hex
65
0
1-16
Config. inputs/outputs
2 bytes
Read/write
0hex
42hex
66
0
1-16
Safe state on Pin 4
4 bytes
Read/write
0hex
44hex
68
0
1-48
Voltage monitoring
6 bytes
Read
-
45hex
69
0
1-16
Output monitoring
2 bytes
Read
-
46hex
70
0
1-16
Actuator warning
2 bytes
Read
-
54hex
84
0
Serial number
16 bytes
Read/write
16x00hex
55hex
85
0
Extension port
1 byte
Read/write
1hex

Balluff Network Interface / IO-Link BNI IOL-302-002-Z046
www.balluff.com
18
6Configuration: Extanded with BNI IOL-104-002-Z046
Inversion of
the inputs
(40hex)
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Sub-
Index
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
9
Description
Inversion of Port 7 Pin 4
Inversion of Port 6 Pin 4
Inversion of Port 5 Pin 4
Inversion of Port 4 Pin 4
Inversion of Port 3 Pin 4
Inversion of Port 2 Pin 4
Inversion of Port 1 Pin 4
Inversion of Port 0 Pin 4
-
Inversion of Port 14 Pin 4
Inversion of Port 13 Pin 4
Inversion of Port 12 Pin 4
Inversion of Port 11 Pin 4
Inversion of Port 10 Pin 4
Inversion of Port 9 Pin 4
Inversion of Port 8 Pin 4
Byte
2
3
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Sub-
Index
24
23
22
21
20
19
18
17
32
31
30
29
28
27
26
25
Extension port
Description
Inversion of Port 7 Pin 4
Inversion of Port 6 Pin 4
Inversion of Port 5 Pin 4
Inversion of Port 4 Pin 4
Inversion of Port 3 Pin 4
Inversion of Port 2 Pin 4
Inversion of Port 1 Pin 4
Inversion of Port 0 Pin 4
Inversion of Port 15 Pin 4
Inversion of Port 14 Pin 4
Inversion of Port 13 Pin 4
Inversion of Port 12 Pin 4
Inversion of Port 11 Pin 4
Inversion of Port 10 Pin 4
Inversion of Port 9 Pin 4
Inversion of Port 8 Pin 4
Inversion of port (x):
0 - Normal
1 - Inverted
Configuration
of
inputs/outputs
(41hex)
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Subin
dex
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
9
Description
Direction Port 7 Pin 4
Direction Port 6 Pin 4
Direction Port 5 Pin 4
Direction Port 4 Pin 4
Direction Port 3 Pin 4
Direction Port 2 Pin 4
Direction Port 1 Pin 4
Direction Port 0 Pin 4
-
Direction Port 14 Pin 4
Direction Port 13 Pin 4
Direction Port 12 Pin 4
Direction Port 11 Pin 4
Direction Port 10 Pin 4
Direction Port 9 Pin 4
Direction Port 8 Pin 4
Direction of port (x):
0 –Input
1 –Output

www.balluff.com
19
6Configuration: Extanded with BNI IOL-104-002-Z046
Safe state of
Outputs 42hex
The safe state parameter makes it possible to configure the outputs in case of a fault. If no
IO-Link communication is possible or the "valid flag" of the output process data has not been
set by the master, then each output adopts the configured status. The following statuses can
be configured for each pin.
Safe state of
the outputs on
Pin 4 42hex)
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Sub-
Index
4
3
2
1
8
7
6
5
Description
Safe state Port 3 Pin 4
Safe state Port 2 Pin 4
Safe state Port 1 Pin 4
Safe state Port 0 Pin 4
Safe state Port 7 Pin 4
Safe state Port 6 Pin 4
Safe state Port 5 Pin 4
Safe state Port 4 Pin 4
Byte
2
3
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Sub-
Index
12
11
10
9
16
15
14
13
Description
Safe state Port 11 Pin 4
Safe state Port 10 Pin 4
Safe state Port 9 Pin 4
Safe state Port 8 Pin 4
-
Safe state Port 14 Pin 4
Safe state Port 13 Pin 4
Safe state Port 12 Pin 4
Value
Output state
bin
dec
00
0
Output is 0V
01
1
Output is 24V
10
2
Current status is maintained
11
3
Not permitted

Balluff Network Interface / IO-Link BNI IOL-302-002-Z046
www.balluff.com
20
6Configuration: Extanded with BNI IOL-104-002-Z046
Voltage
monitoring
44hex
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Sub-
Index
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
9
Description
Short-circuit Port 7 Pin 1
Short-circuit Port 6 Pin 1
Short-circuit Port 5 Pin 1
Short-circuit Port 4 Pin 1
Short-circuit Port 3 Pin 1
Short-circuit Port 2 Pin 1
Short-circuit Port 1 Pin 1
Short-circuit Port 0 Pin 1
Short-circuit Port 15 Pin 1
Short-circuit Port 14 Pin 1
Short-circuit Port 13 Pin 1
Short-circuit Port 12 Pin 1
Short-circuit Port 11 Pin 1
Short-circuit Port 10 Pin 1
Short-circuit Port 9 Pin 1
Short-circuit Port 8 Pin 1
Byte
2
Bit
7
6
5
4
3
2
1
0
Sub-
Index
20
19
17
Description
-
-
-
-
Outputs off
(UA too low)
Undervoltage UA
-
Undervoltage US
Byte
3
4
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Sub-
Index
32
31
30
29
28
27
26
25
40
39
38
37
36
35
34
33
Extension port
Description
Short-circuit Port 7 Pin 1
Short-circuit Port 6 Pin 1
Short-circuit Port 5 Pin 1
Short-circuit Port 4 Pin 1
Short-circuit Port 3 Pin 1
Short-circuit Port 2 Pin 1
Short-circuit Port 1 Pin 1
Short-circuit Port 0 Pin 1
Short-circuit Port 15 Pin 1
Short-circuit Port 14 Pin 1
Short-circuit Port 13 Pin 1
Short-circuit Port 12 Pin 1
Short-circuit Port 11 Pin 1
Short-circuit Port 10 Pin 1
Short-circuit Port 9 Pin 1
Short-circuit Port 8 Pin 1
