BDI SEQUEL 6051 User manual

Designed by Matthew Weatherly.
These distinctive product configurations are protected by US and international patents, trade dress, and/or
copyright laws. Sequel & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2016, BDI
Made in China. 10.10.2018 New Controller
T2 4mm Hex Wrench
C7 Wire tray x 1
C4 Keypad x 1
C5 Power Cord x 1
C3 Control Module x 1
C8 Glass Panel x 1
A1 Main Panel x 1
C1 Leg x 2
C6 Cord Conduit x 1
C2 Foot x 2
bdiusa.com
customerservic[email protected]om
SEQUEL®6051/6052
LIFT DESK
H5 1/4-20 x 19mm Screw x 7
Tool Required:
Phillips screwdriver
H2 #6 Wood Screw x 6
H3 M6 x 15mm Screw x 8
H8 Glass Bumper x 2
C9 Grommet cover x 1
H9 Dual Lock Dot x 8
Product Registration
Registering your new BDI product allows us to send you important
product updates, service information and helpful hints related to your BDI
products. Register today, and you will be entered to win free a BINK table
from BDI: www.bdiusa.com/register
Placement and Maintenance
Sequel®Lift Desk is designed for indoor use on level floors. Clean glass
with glass cleaner, and steel parts and wood veneer with a moist cloth.
Your Sequel®Office furniture is engineered for easy assembly. Carefully
follow this procedure to prevent any damage. Do not use power tools
for assembly of this product.

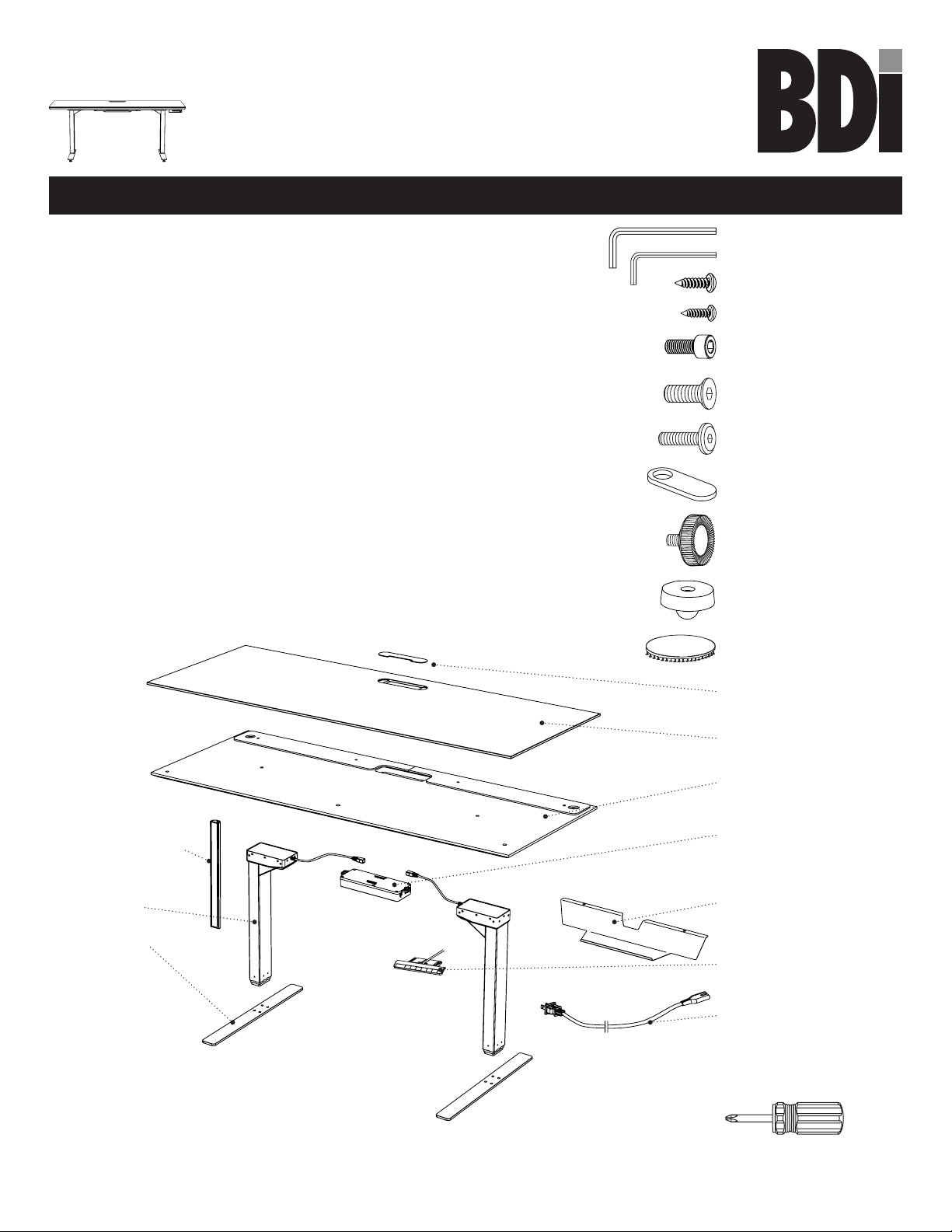

Step 1
Unpack and identify the parts listed below. The assembly workspace
should be a non-marring surface such as carpet. For missing hardware
pieces, please contact BDI Customer Service at customerservice@bdiusa.
com. For all other concerns, please contact your BDI retailer.
H7 Leveler x 4
H6 Wire clip x 6
H1 #10 Wood Screw x 4
T1 5mm Hex Wrench
H4 M6 x 16mm Screw x 8
OWNER’S MANUAL

bdiusa.com
customerservic[email protected]om
SEQUEL 6051/52
LIFT DESK
2
Step 2 - Install Control Module and Keypad
Lay top panel upside down on a soft surface (like carpet). Attach Keypad C4 on the desired side (left or right)
with 2 wood screws H1. Orient the control module C3 so that the keypad plug is facing the keypad side and
secure between the 2 steel rails with 2 wood screws H1 as shown. Route the keypad cord into the groove in
the panel and through the hole in the metal frame.
Step 3 - Connect keypad cord into the Control Module and bundle the slack with the hook and loop tie.
Step 4 - Secure the keypad cord into the groove using 6 cord clips H6 and 6 wood screws H2.
User’s left
hand side
User’s right
hand side
C3
C4
H1 x 4
H2 x 6
H6 x 6

bdiusa.com
customerservic[email protected]om
SEQUEL 6051/52
LIFT DESK
3
Step 6 - Attach each foot with 4 screws H4 and Hex Wrench T2. Thread in the levelers H7 to the bottom of
each foot.
Step 5 - Attach 2 legs C1 with 4 screws H3 per leg using Hex wrench T1. Start all 4 screws before tightening
them down. Connect the leg cords to either end of the control modual and bundle up any slack using the hook
and loop ties.
C1 x 2
C2 x 2
H7 x 4
H4 x 4
T1
H4 x 8
H3 x 8

bdiusa.com
customerservic[email protected]om
SEQUEL 6051/52
LIFT DESK
4

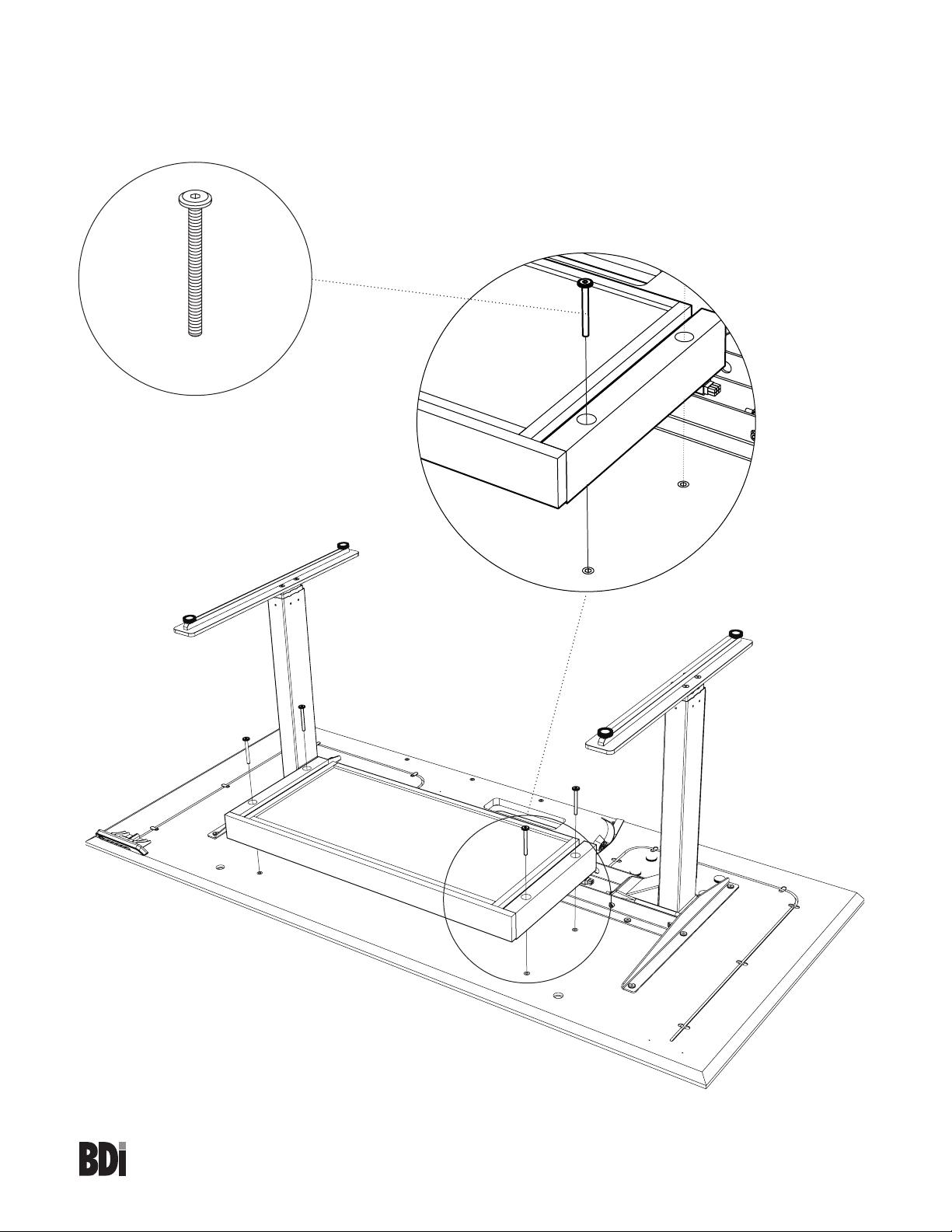

Optional Drawer Assembly for 6052
Attach the optional drawer (for 6052) using 4 Screws that came with your drawer as shown.
H10 x 4
A2

bdiusa.com
customerservic[email protected]om
SEQUEL 6051/52
LIFT DESK
5
Step 8 - Turn the desk upright and plug it in to adjust the height
With the help of another person, carefully flip the desk on to its feet. Plug the other end of the Power Cord into
the nearest wall socket. Refer to the User Manual on Page 13 and follow the Reset Procedure. You may
now adjust the height of your desk to make the remaining steps easier.
2 Person Ta sk
Step 7 - Plug the Power Cord C5 into the power port on the Control Module C3 (labeled AC).

bdiusa.com
customerservic[email protected]om
SEQUEL 6051/52
LIFT DESK
6
Step 9 -Install the glass bumpers.
Install the 2 glass bumpers H8 as shown.
H8 x 2
H5 x 5
C9
2 Person Ta sk
Step 10 - Install the glass panel.
With the help of another person, carefully place the Glass Panel C8 on top of the desk top with the metal pucks
facing down. The stem of the glass pucks should slip into 5 holes. Secure the glass panel in place from below
using 5 Screws H5.Do not over tighten. Place Grommet Cover C9 into the grommet hole.
C8

bdiusa.com
customerservic[email protected]om
SEQUEL 6051/52
LIFT DESK
7
Attach dual lock fastener to the bottom of the surge protector (surge protector not included)
Secure 4 pairs of Dual-Lock Dots H9 to the bottom corners of the surge protector.
Surge Protector
Dual- Lock
Peel and stick
Attach Dual Lock together
Attach the surge protector (not included)
For easy installation, raise the height of the desk. Determine where you prefer the surge protector to be mount-
ed. We suggest just behind the metal rails towards the leg closest to your wall outlet. Make sure the area is dust
free. Remove the adhesive film and attach the surge protector with the power cord facing the nearest leg. Press
firmly to allow the pressure sensitive adhesive to set.
H9

bdiusa.com
customerservic[email protected]om
SEQUEL 6051/52
LIFT DESK
8
Attach the Cord Conduit (optional)
Remove adhesive film and attach the Cord Conduit C6 to the back of the top section of the leg nearest the wall
outlet. Insert power cord(s) into the Cord Conduit.
Remove excess lubricant from legs
When new, the legs may have excess lubricant. Extend the legs to their highest position and wipe off excess
lubricant with a clean, dry cloth or rag.
C6

bdiusa.com
customerservic[email protected]om
SEQUEL 6051/52
LIFT DESK
9

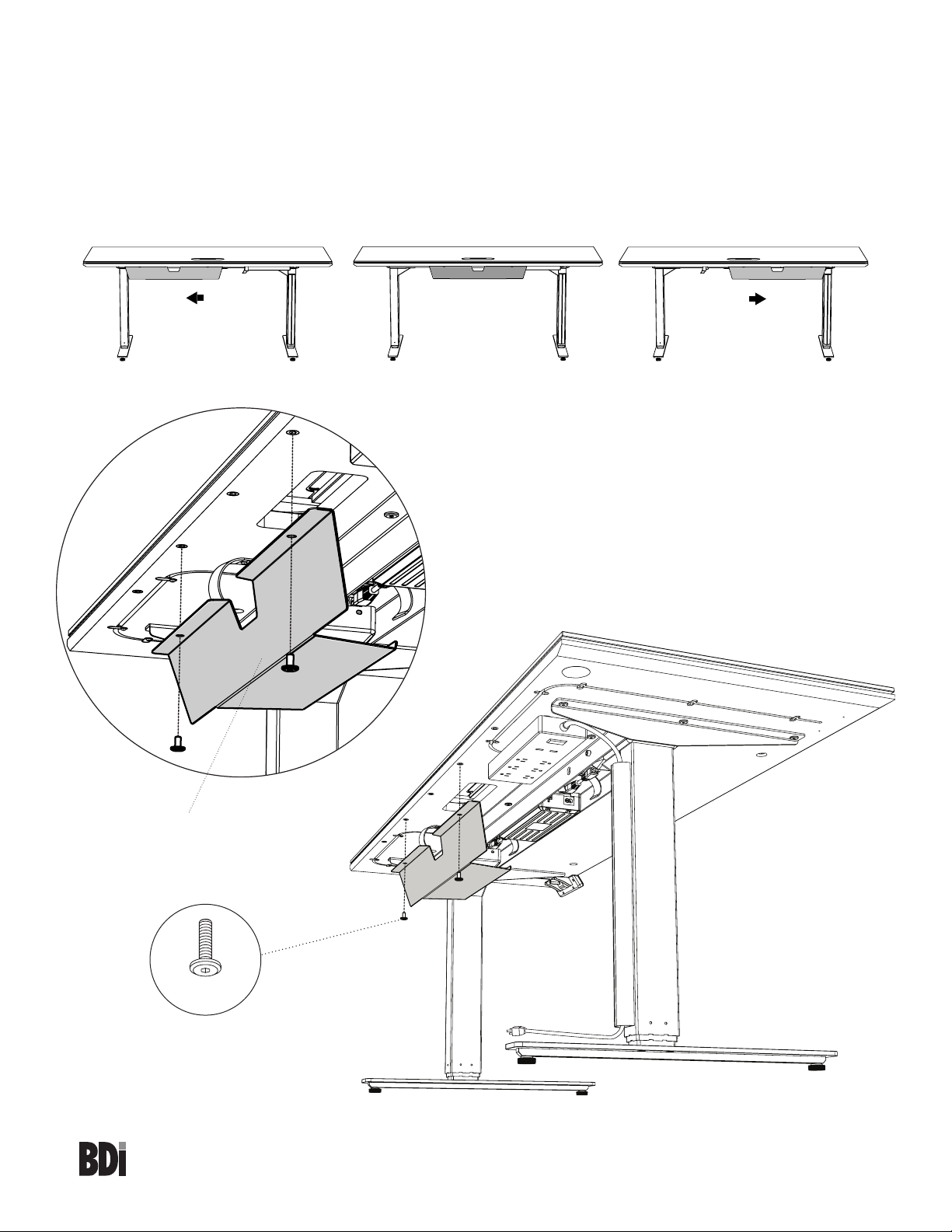

Attach the wire tray (optional)
Determine if you prefer the wire tray to be centered, shifted left or shifted right. If you plan to use a monitor arm,
it might be better to shift the position of the Wire Tray to make the monitor arm attach more centrally. Attach the
metal Wire Tray C7 to the back edge of the bottom of the desk with 2 Screws H5.
Shifted Right Shifted Left
C7 Wire Tray
H5 x 2

bdiusa.com
customerservic[email protected]om
SEQUEL 6051/52
LIFT DESK
10

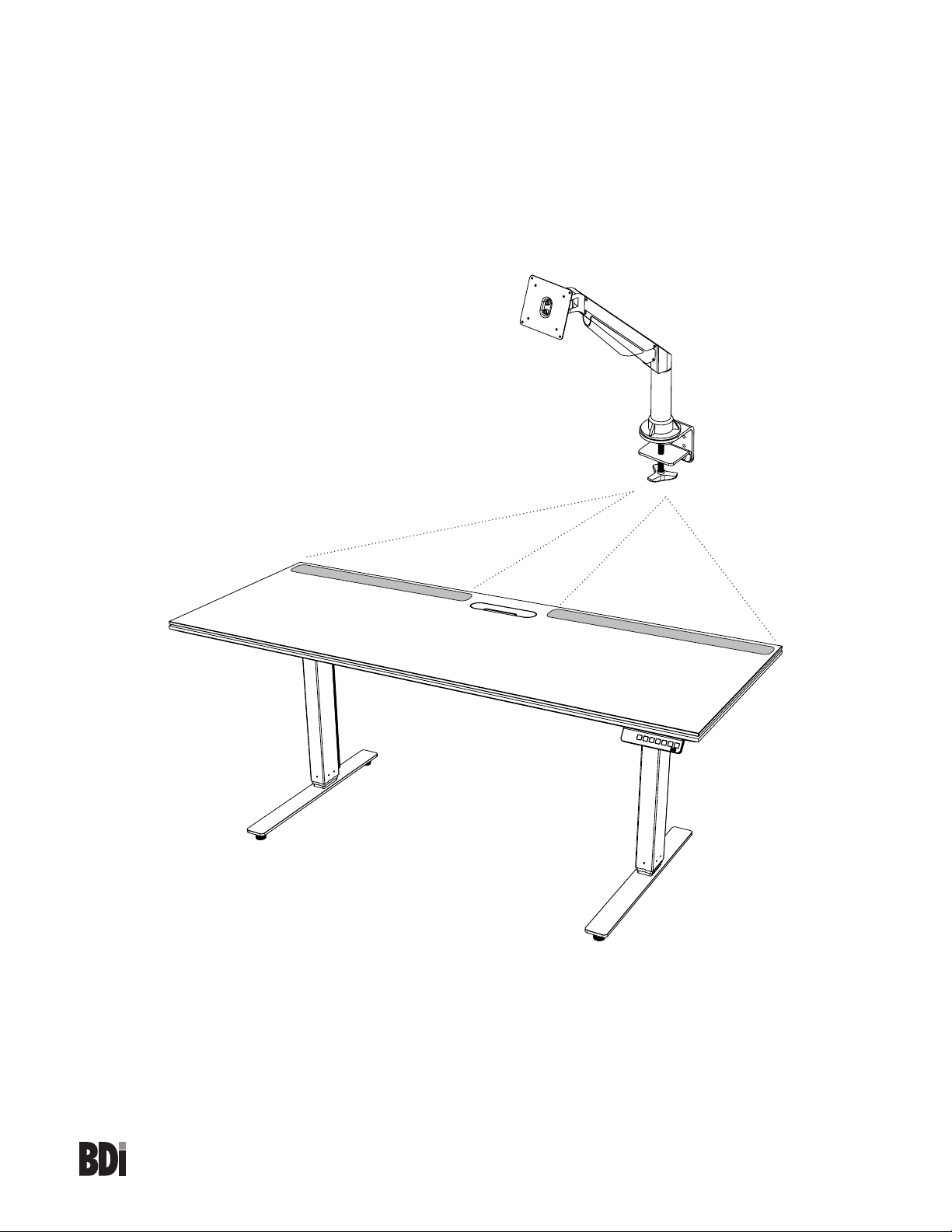

Attach a monitor arm (optional)
The Sequel Lift Desk is compatible with most third party monitor arms. Attach your monitor arm on either side
of the grommet hole along the back edge, staying at least 1” away from the grommet hole.
Optional Monitor Arm
(NOT INCLUDED)

bdiusa.com
customerservic[email protected]om
SEQUEL 6051/52
LIFT DESK
11

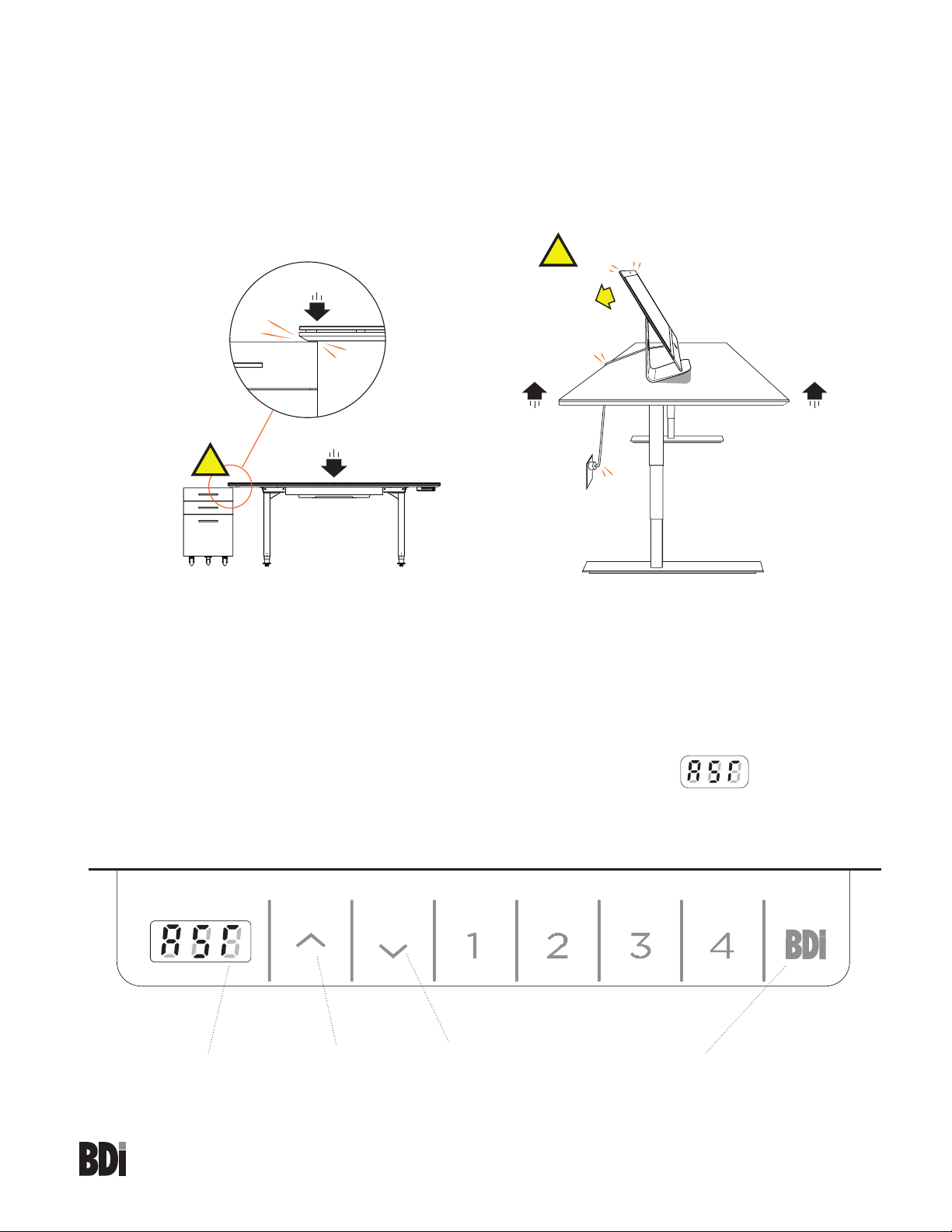

User Manual
Caution!
• Make sure there are no obstacles under or over the path of the desk.
• Make sure the desk top is not touching any walls.
• Make sure all the cords are long enough to reach lowest and highest desk positions.
Important:
• You must reset the desk prior to use.
Reset Procedure:
1. Press and hold the DOWN button on the keypad until the desk reaches its lowest height.
2. Release the DOWN button.
3. Press and hold the DOWN button again until the LED sidplay reads “RST”.
4. Release the DOWN button.
5. Press and hold the DOWN button again until the desk lowers a little bit more, slightly rises and stops.
6. Release the DOWN button. Your desk is now ready for use.
“Reset”
looks like this
UP Down Memory
!
!

bdiusa.com
customerservic[email protected]om
SEQUEL 6051/52
LIFT DESK
12
Height Adjustment
The desk base can be adjusted by pressing and holding either the UP or DOWN button until the desired
height is reached.
To program up to four presets, use the up/down buttons to find a desired height, then press “BDI” followed
by a number 1-4. To Change the Movement Program (explained below) follow the Reset Procedure to
step 4. The display should be flashing “RST”. Press and hold the “1” button (about 5 seconds) until the
display flashes “10.1” or “10.2”. You can press and hold the “1” button again to switch to the other setting.
Once the chosen setting is selected finish the Reset Procedure steps 5 and 6.
One Touch (Default) - 10.1:
Once a preset button is pushed, the desk will move to the programmed height. To stop movement, press any
number on the keypad.
Constant Touch - 10.2:
A preset button must remain pressed for the desk to move to the programmed height. To stop movement,
release the button.
Trouble Shooting
If your desk is not functioning properly it may need to be reset. Follow the RESET procedure above.
If your LED readout displays an error message Er1 confirm that all wired connections are secure. Then
perform the reset procedure above.
Keypad Lock
To lock the keypad:
Press and hold the “BDI” button for about 8 seconds until the LED display reads “LOC”. The keypad is now
locked and cannot be used to move the desk.
To unlock the keypad:
Press and hold the “BDI” button for about 8 seconds until the LED display switches from “LOC” to the height
display. The keypad is now unlocked and can be used as normal.
Height Display: Inches or Centimeters
To change unit of height measurements (inches or centimeters) follow the Reset Procedure to step 4. The
display should be flashing “RST”. Press and hold the “2” button (about 5 seconds) until the display flashes
“10.3” or “10.4”. You can press and hold the “2” button again to switch to the other setting. Once the chosen
setting is selected, finish the Reset Procedure steps 5 and 6.
Centimeters - 10.3
Inches (Default) - 10.4

bdiusa.com
customerservic[email protected]om
SEQUEL 6051/52
LIFT DESK
13
Technical Specifications
Height Range 24.75”–49.75” (63–126 cm)
Travel Speed 1.5"per second
Weight Capacity 150 lbs (68 kg)
Duty Cycle 10%, Max 2 minutes with 18 minutes off
Memory 4 position presets
Monitor Arm Compatible Yes
Setting the Upper and Lower Limits
The base is designed to go to its minimum and maximum heights, allowing for the widest possible range. If you
prefer to change the settings to a more narrow range, follow these steps:
To set the Lower-limit position:
Use the UP/DOWN buttons to move the base to the desired minimum height position. Press and release the
“BDI” button and the LED display should read “S”. Next, press and release the DOWN button. Now, press
and hold the “BDI” button (for about 2 seconds) until the LED display changes to “000” and then automatically
returns to show the selected height. The new lower limit is now set.
To set the Upper-limit position:
Use the UP/DOWN buttons to move the base to the desired maximum height position. Press and release the
“BDI” button and the LED display should read “S”. Next, press and release the UP button. Now, press and
hold the “BDI” button (for about 2 seconds) until the LED display changes to 999 and then automatically returns
to show the selected height. The new upper limit is now set.
Note:
• You can set just the upper limit or just the lower limit or both.
• After the upper and lower limits are set, the previous memory positions (1,2,3,4) may be outside the new
range of movement. If so, simply reset the momory positions.
• If you attempt to revise a previously set upper or lower limit and it is outside of the existing range, you will
need to remove the previously set upper/lower limits first.
A Reset Procedure requires the desk to be fully lowered (beyond any lower limit set). Please ensure that you
have the proper clearance below the desk!
To remove the upper/lower limit positions:
Press and release the “BDI” button and the LED display should read “S”. Within 5 seconds, press and hold the
“BDI” button until the display flashes “555”. The upper and lower limits are now removed.

bdiusa.com
customerservic[email protected]om
SEQUEL 6051/52
LIFT DESK
14
Trouble Shooting
If your desk is not functioning properly it may need to be reset. Follow the RESET procedure above.
If your LED readout displays an error message Er1 confirm that all wired connections are secure. Then
perform the reset procedure above.
