BE HW2765HAD User manual

Operation Manual
HOT WATER
PRESSURE WASHER
HW2765HAD
BEPOWEREQUIPMENT
.COM

2 3
Safety
6 Safety Rules
7 Safety Warnings
Features
12 Features
Installation & Preparation
13 Attire
13 Set-Up
14 Engine/Burner Fuel Tank
15 Nozzle Review
16 Nozzle Connection
16 Water Supply
17 Unloader
17 Thermal Relief Valve
18 Pre-Start Inspection Procedures
Operation
19 Priming The Pump
19 Start-Up/Cold Water Operation
21 Hot Water Operation
21 Cleaning with Detergents
22 Shutdown
Maintenance
23 Specific Maintenance
24 Winterizing
26 Maintenance Chart
Troubleshooting
27 Troubleshooting Chart
Parts List
30 Specifications
32 Flow Chart
32 EMF System
33 Operation Theory
34 Frame Assembly
36 Pump Plumbing
38 Pump Assembly
41 Unloader Assembly
43 Pressure Switch
44 Heat Exchanger/EMF System
46 Boiler Assembly
48 Gun/Wand/Hose Assembly
49 Fuel Tank
50 Electric Box Assembly
51 Fuel Pump
51 Fuel Solenoid
52 EMF System
54 Wire Schematic
54 Wire Diagram
55 Statement of Warranty
56 Warranty Exclusions
TABLE OF CONTENTS TABLE OF CONTENTS

4 5
Using the Operator’s manual
The operating manual is an important part of your Hot Water Pressure
Washer. It should be read thoroughly before initial use, and referred to
often to make sure adequate safety and service concerns are being ad-
dressed.
Reading the owner’s manual thoroughly will help avoid any personal injury
or damage to your pump. By knowing how best to operate this machine
you will be better positioned to show others who may also operate the
unit.
You can refer back to the manual at any time to help troubleshoot any
specific operating functions, so store it with the machine at all times.
Attention: Read through the complete
manual prior to the initial use of your
Hot Water Pressure Washer.
Record Identification Numbers
Hot Water Pressure Washer
If you need to contact an Authorized Dealer or Customer Service line (1-
866-850-6662) for information on servicing, always provide the
product model and identification numbers.
You will need to locate the model and serial number for the pump and
record the information in the places provided below.
Date of Purchase:
Dealer Name:
Dealer Phone:
Product Identification Numbers
Model Number:
Serial Number:
PRODUCT IDENTIFICATIONINTRODUCTION

6 7
The safety alert symbol ( ) is used with a signal word (DANGER,
CAUTION, WARNING), a pictorial and/or a safety message to alert you
to hazards.
DANGER indicates a hazard which, if not avoided, will result in death
or serious injury.
WARNING indicates a hazard which, if not avoided, could result in
death or serious injury.
CAUTION indicates a hazard which, if not avoided, might result in
minor or moderate injury.
NOTICE indicates a situation that could result in equipment damage.
Follow safety messages to avoid or reduce the risk of injury or death.
Hazard Symbols and Meanings
Save these Instructions
SAFETY RULES
This is the safety alert symbol. It is used
to alert you to potential personal injury
hazards. Obey all safety messages that
follow this symbol to avoid possible injury
or death.
explosion fire
toxic fumes
hot surface
flying objects injection
moving parts
electric
shock
WARNING
Serious injury or death may occur from normal sparks in
the multiple ignition sources or engine/burner exhaust.
Injury or death may occur as a result of improper fueling.
Serious injury or death may occur from a ground fire
caused by a muffler spark.
Serious injury or death may occur if system safety’s are
not properly maintained.
• Always operate pressure washer in a well ventilated area free of
flammable vapors, combustible dust, gases or other combustible
materials.
• Do not store the pressure washer near an open flame or any
equipment such as a stove, furnace, water heater, etc., which utilizes
a pilot light or sparking device.
• Do not use this pressure washer to spray flammable material!
• Do not smoke while filling burner fuel tank.
• Never fill the fuel tanks while the pressure washer is running or hot.
Allow to cool two minutes before refueling.
• Always refuel slowly to avoid the possibility of spilled fuel which may
cause a risk of fire.
• Do not refuel indoors or in a poorly ventilated area.
• Engine Fuel Tank: Refuel with gasoline only. Do not use diesel or fuel
oil.
• Burner Fuel Tank (Black): When refueling the Burner Fuel Tank, use
No. 1 or No. 2 fuel oil/diesel or kerosene. Do not use gasoline.
• Do not operate the unit if diesel fuel is spilled. Wipe the pressure
washer clean and move it away from the spill. Avoid creating any
ignition until the diesel fuel has evaporated.
• A spark arrester must be added to the muffler of this engine if it is
to be used on any forest covered, brush covered or grass covered
unimproved land. The arrester must be maintained in effective working
order by the operator. In the state of California, the above is required
by law. (Section 4442 of the California Public Resources Code.)
Other states may have similar laws. Federal laws apply on Federal
lands.
• This pressure washer has a Safety Relief device which should never
be altered, modified, removed or made inoperative. If the device fails,
replace immediately with only genuine manufacturer replacement part.
SAFETY SAFETY

8 9
WARNING
Serious injury or death may occur from inhaling engine/
burner exhaust or dangerous vapors. The engine
exhaust from this product contains chemicals known to
the State of California to cause cancer, birth defects, or
other reproductive harm.
• Never operate this pressure washer in an enclosed area. Always make
certain there is adequate ventilation (fresh outside air) for breathing
and combustion. This will prevent the buildup of dangerous carbon
monoxide gases. Beware of poorly ventilated areas, or areas with
exhaust fans which can cause poor air exchange.
• Follow all safety instructions provided with the materials you are
spraying. Use of a respirator may be required when working with
some materials. Do not use this pressure washer to dispense
hazardous detergents.
WARNING
Serious injury or death could occur from high pressure
spray penetrating the skin.
• Keep clear of nozzle and spray! Never put your hand, fingers or body
directly over the spray nozzle.
• Do not direct discharge stream at persons or self.
• This product is to be used only by trained operators.
• Always keep operating area clear of all persons.
• Close supervision is necessary when used near children. DO NOT
allow children to operate this unit!
• SEEK EMERGENCY MEDICAL CARE if the spray appears to have
penetrated the skin! DO NOT TREAT AS A SIMPLE CUT!!
• High pressure hoses and fuel lines should be inspected daily for signs
of wear. If evidence of failure exists, promptly replace all suspect
hoses and fuel lines to prevent the possibility of injury from the high
pressure spray. If a hose or fitting is leaking, NEVER PLACE YOUR
HAND DIRECTLY ON THE LEAK.
• NEVER operate the gun with the trigger wired in the open position.
To prevent accidental discharge, the trigger gun should be securely
locked when not in use.
• Before removing the spray nozzle or servicing the unit, ALWAYS shut
off the unit and trigger the gun to release trapped pressure. (Even af-
ter you shut off the unit, there is high pressure water left in the pump,
hose and gun until you release it by triggering the gun.)
WARNING
Serious injury or death may occur from contact with
electricity.
• DO NOT direct spray on or into electrical installations of any kind!
This includes electrical outlets, light bulbs, fuse boxes, transformers,
the unit itself, etc.
• DO NOT allow metal components of the pressure washer to come in
contact with live electrical components.
WARNING
Serious injury may occur from touching the gasoline
engine, muffler or heat exchanger. These areas can
remain hot for some time after the pressure washer is
shutdown.
• Never allow any part of your body to contact the gasoline engine,
muffler or heat exchanger.
WARNING
Serious injury may occur from a pressure washer
malfunction or exploding accessories if incorrect
system components, attachments or accessories are
used.
Serious injury or death may occur if attempting to start
the pressure washer when the pumping system is
frozen.
• Never make adjustments to the factory set pressures.
• Never exceed manufacturers maximum allowable pressure rating of
attachments.
• Do not allow any hoses to make contact with heat exchanger to
prevent the possibility of bursting. Avoid dragging the hoses over
abrasive surfaces such as cement.
• Use only manufacturer recommended repair parts for your pressure
washer.
• In freezing temperatures, the unit must always be warm enough to
ensure there is no ice formation in the pump. Do not start the pressure
washer if it has been transported in an open or under heated vehicle
without first allowing the pump to thaw.
SAFETY SAFETY

10 11
WARNING
Serious injury may occur to the operator from moving
parts on the pressure washer.
• Before making any adjustments, be certain the engine is turned off
and the ignition cable(s) is removed from the spark plug(s). Turning
the machinery over by hand during adjustment or cleaning might start
the engine and machinery with it.
• Do not operate the unit without all protective covers in place.
WARNING
Serious injury or death may occur from detergents con-
tacting the skin.
Serious injury can occur from loose debris being pro-
pelled at a high speed from the spray gun.
Injury may occur if the operator loses his balance
caused by the thrust of water traveling through the
spray nozzle.
Injury may occur from the pressure washer.
• SEEK EMERGENCY MEDICAL CARE if you are using cleaning
agents and the spray appears to have penetrated the skin! DO NOT
TREAT AS A SIMPLE CUT! Be prepared to tell a physician exactly
what kind of detergents you were using by reading the Material Safety
Data Sheet (MSDS) provided with your detergent.
• Never use any solvents or highly corrosive detergents or acid type
cleaners with this pressure washer.
• Protective equipment such as rubber suits, gloves and respirators are
advisable, especially when using cleaning detergents.
• Keep all detergents out of the reach of children!
• ALWAYS wear protective goggles when operating the unit to shield
the eyes from flying debris and detergents.
• DO NOT direct spray toward fragile materials such as glass for shat-
tering could occur.
• Stay alert-watch what you are doing. Do not operate the unit when
fatigued or under the influence of alcohol or drugs.
• NEVER squeeze the trigger unless securely braced.
• DO NOT overreach or stand on unstable support.
• Wet surfaces can be slippery, wear protective foot gear and keep
good footing and balance at all times.
• NEVER trigger the gun while on a ladder or roof.
• ALWAYS hold on firmly to the gun/lance assembly when starting and
operating the unit. Failure to do so can cause the lance to fall and
whip dangerously.
• Know how to stop the pressure washer and bleed pressures quickly.
Be thoroughly familiar with controls.
• DO NOT leave pressurized unit unattended. Shut off the pressure
washer and release trapped pressure before leaving.
• DO NOT operate the unit if you see any fuel, oil or water leaks from
the machine. DO NOT resume operation until the unit has been in-
spected and repaired by a qualified service person.
• NEVER run the engine with the governor disconnected or operate at
excessive speeds.
• Place unit in a clean, dry, flat area for servicing. Before servicing the
unit: turn the unit off, relieve the water pressure from the trigger gun,
and allow the unit to cool down. Service in clean, dry, flat area. If ap-
plicable, block wheels to prevent unit from moving.
• Do not move the unit by pulling on the hose.
SAFETY SAFETY
WARNING: This product can expose you to
chemicals including lead, which is known to the
State of California to cause cancer and birth
defects or other reproductive harm. For more
information, go to www.P65Warnings.ca.gov.
Wash hands after handling.

12 13
Features
ATTIRE
Proper attire is essential to your safety. It is advised to utilize whatever
means necessary to protect eyes, ears, and skin. Additional safety
attire (such as respiratory mask) may be required when using detergent
cleaning agents with this washer.
SET-UP
1. This unit should only be placed on a level surface to ensure proper
lubrication for the water pump while operating. NEVER spray water
directly on the unit.
2. Do not use unit in an area:
a. with insufficient ventilation.
b. where there is evidence of oil or fuel leaks.
c. where flammable gas vapors may be present.
This unit has multiple ignition sources that could cause an explosion or
fire.
3. Do not allow the unit to be exposed to rain, snow or freezing
temperatures. If any part of the unit becomes frozen, excessive
pressure may build up in the unit which could cause it to burst
resulting in possible serious injury to the operator or bystanders.
4. Be certain to block the wheels to prevent the unit from moving while
operating.
5. Pump oil level should be checked before each use. Make certain the
oil is on the “Full” mark on the dipstick or in the center of the oil sight
glass. If the level appears to be low, fill with SAE30W non-detergent
pump oil.
Installation & Preparation
DANGER
DO NOT PLACE UNIT IN AN AREA WHERE
FLAMMABLE GAS VAPORS MAY BE PRESENT.
A SPARK COULD CAUSE AN EXPLOSION OR FIRE!
DO NOT STORE/OPERATE UNIT IN FREEZING
ENVIRONMENTS!
1. Spray Nozzle Holder
2. Engine
3. Burner Fuel Tank
4. High Pressure Pump w/Unloader
5. Flat Free Wheels
6. Burner On/Off Switch
7. Air Shutter Adjusting Arm
8. Brake
9. High Pressure Hose
10. Trigger Safety Lock
11. Trigger Gun
12. Insulated Lance
13. Lance
14. Adjustable Nozzle
15. Wand Holder
FEATURES INSTALLATION & PREPARATION

14 15
WARNING
DO NOT OPERATE IN AN ENCLOSED AREA. USE
THIS PRODUCT ONLY IN WELL VENTILATED
AREAS!
THE EXHAUST CONTAINS CARBON MONOXIDE, A
POISONOUS, ODORLESS AND INVISIBLE GAS.
BREATHING THIS GAS CAN CAUSE SERIOUS
INJURY, ILLNESS & POSSIBLE DEATH.
DANGER
DO NOT SMOKE WHILE FUELING!
DO NOT FILL THE FUEL TANK WHILE UNIT IS
RUNNING OR HOT. ALLOW UNIT TO COOL FOR
TWO MINUTES BEFORE RE-FUELING.
DO NOT FILL FUEL TANK TO POINT OF
OVERFLOWING. ALLOW APPROXIMATELY 1/4” OF
TANK SPACE FOR FUEL EXPANSION.
ALWAYS STORE FUEL AWAY FROM THE WASHER
WHILE THE UNIT IS RUNNING OR HOT.
ENGINE/BURNER FUEL TANK
1. Review “Risk of Explosion or Fire” Warnings pg. 4, before fueling.
2. Locate the Safety Decals on your unit and heed their warnings.
3. Gasoline Engines: A minimum of 85 octane fuel is recommended for
use with this unit. DO NOT MIX OIL WITH GASOLINE.
Burner Fuel: Use No. 1 or No 2 fuel oil/diesel or kerosene.
4. Purchase gasoline fuel in quantities that may be used within 30 days.
Use of clean, fresh lead-free gasoline is recommended. Leaded
gasoline may be used if lead-free is unavailable. DO NOT use gasoline
containing methanol or alcohol.
5. Check the engine oil level before starting the engine. (See Engine
manual.)
6. Fill fuel tanks according to accompanying manufacturer’s instruction
manual.
7. Refer to the Engine Manual supplied with this unit for proper engine
adjustment procedures.
8. Review the engine manual accompanying this pressure washer for
correct engine start-up and maintenance procedures.
NOZZLE REVIEW
Various nozzles may be quick-connected into the end of the wand to
change the spray pattern or use the detergent feature. When using Quick
Connects (Q.C.), be certain the connection is securely locked. If not, the
high pressure water may shoot the nozzle from the wand, causing severe
injury or serious damage. To determine spray fan, refer to the actual num-
ber stamped on the nozzle. The first two digits indicate the spray fan in
degrees, i.e.; 00=0”, 15=15°, 40=40°.
1. The 0° nozzle (RED): This is a blasting nozzle. It delivers a very con-
centrated stream of water. Be cautious when using the straight narrow
stream. It is not recommended for use on painted or wood surfaces,
or items attached with adhesive backings. Uses: Removing weeds
from sidewalk cracks, stubborn stains from concrete, masonry, alumi-
num and steel, caked mud from equipment, and cleaning lawn mower
undersides.
2. The 15° nozzle (YELLOW): This is a chiseling nozzle. The spray should
be directed at a 45° angle to the surface and used like a scraper to
remove paint, grease and dirt. Uses: Surface preparation (removing
mildew stains and paint chips).
3. The 40° nozzle (WHITE): This is a wash nozzle. This wide spray pattern
disperses the water pressure over a large area and is recommended
for moderate washing. Uses: Washing aluminum siding, cleaning win-
dows, washing vehicles, spraying sidewalks, driveways, and patios.
WARNING
NEVER LOOK DIRECTLY AT THE NOZZLE ORIFICE UNLESS IT
IS DISCONNECTED FROM THE GUN/WAND ASSEMBLY!
CONNECTION OF Q.C. NOZZLES QUICK-CONNECT (Q.C.)
12
12 Operator's Manual
INSTALLATION & PREPARATION
WATER SUPPLY:
1. Select a water supply hose which is a quality grade of garden hose measuring
at least 3/4" ID and no longer than 50 feet.
2 Check the water inlet strainer to ensure it is clean and free of any obstructions.
As a strainer becomes obstructed, it restricts proper ow of water to the
pump. This can result in cavitations which will prematurely cause failure
of pump packings.
a. Using a screwdriver, remove the screen from the water inlet.
b. Clean or replace if necessary.
3. Connect the hoses.
a. Connect one end of the water supply hose to the water inlet of the unit.
b. Connect the other end of the hose to your pressurized water supply.
NOTE 1: Do not use a non-pressurized water supply (i.e. from a pond or
well) with this unit.
NOTE 2: When connecting the water inlet to the water supply mains, local
regulations of your water company must be observed. In some
areas, the unit must not be connected directly to the public drinking
water supply. This is to ensure there is no feedback of detergents
into the water supply. (Direct connection is permitted if a backow
preventer is installed. Check with local authorities for approval.)
NOTE 3: If there is a high mineral content in your water, it is highly
recommended that a water softener and an additional water strainer
be added to the water inlet to help prevent the possibility
of excessive scale buildup inside the heat exchanger coil. Clean
both strainers before starting your pressure washer.
NOZZLE REVIEW:
Various nozzles may be quick-connected into the end of the wand to change the
spray pattern or use the detergent feature. When using Quick Connects (Q.C.),
be certain the connection is securely locked. If not, the high pressure water
may shoot the nozzle from the wand, causing severe injury or serious damage.
To determine spray fan, refer to the actual number stamped on the nozzle. The
rst two digits indicate the spray fan in degrees, i.e.; 00=0”, 15=15°, 40=40°.
1. The 0° nozzle (RED): This is a blasting nozzle. It delivers a very concentrated
stream of water. Be cautious when using the straight narrow stream. It is
not recommended for use on painted or wood surfaces, or items attached
with adhesive backings. Uses: Removing weeds from sidewalk cracks,
stubborn stains from concrete, masonry, aluminum and steel, caked mud
from equipment, and cleaning lawn mower undersides.
2. The 15° nozzle (YELLOW): This is a chiseling nozzle. The spray should
be directed at a 45° angle to the surface and used like a scraper to remove
paint, grease and dirt. Uses: Surface preparation (removing mildew stains
and paint chips).
3. The 40° nozzle (WHITE):
This is a wash nozzle. This wide spray pattern disperses the water pressure
over a large area and is recommended for moderate washing. Uses: Washing
aluminum siding, cleaning windows, washing vehicles, spraying sidewalks,
driveways, and patios.
NOZZLE CONNECTION:
1. Be certain the trigger gun is locked in the “OFF” position. See WARNING, left.
2. The nozzle assembly should be disconnected from the gun/wand assembly
at this by retracting the locking ring on the quick-connect tting to remove
the nozzle.
WARNING
RISK OF INJECTION CAUSING
SEVERE INJURY!
NEVER LOOK DIRECTLY AT THE
NOZZLE ORIFICE UNLESS IT
IS DISCONNECTED FROM THE
GUN/WAND ASSEMBLY!

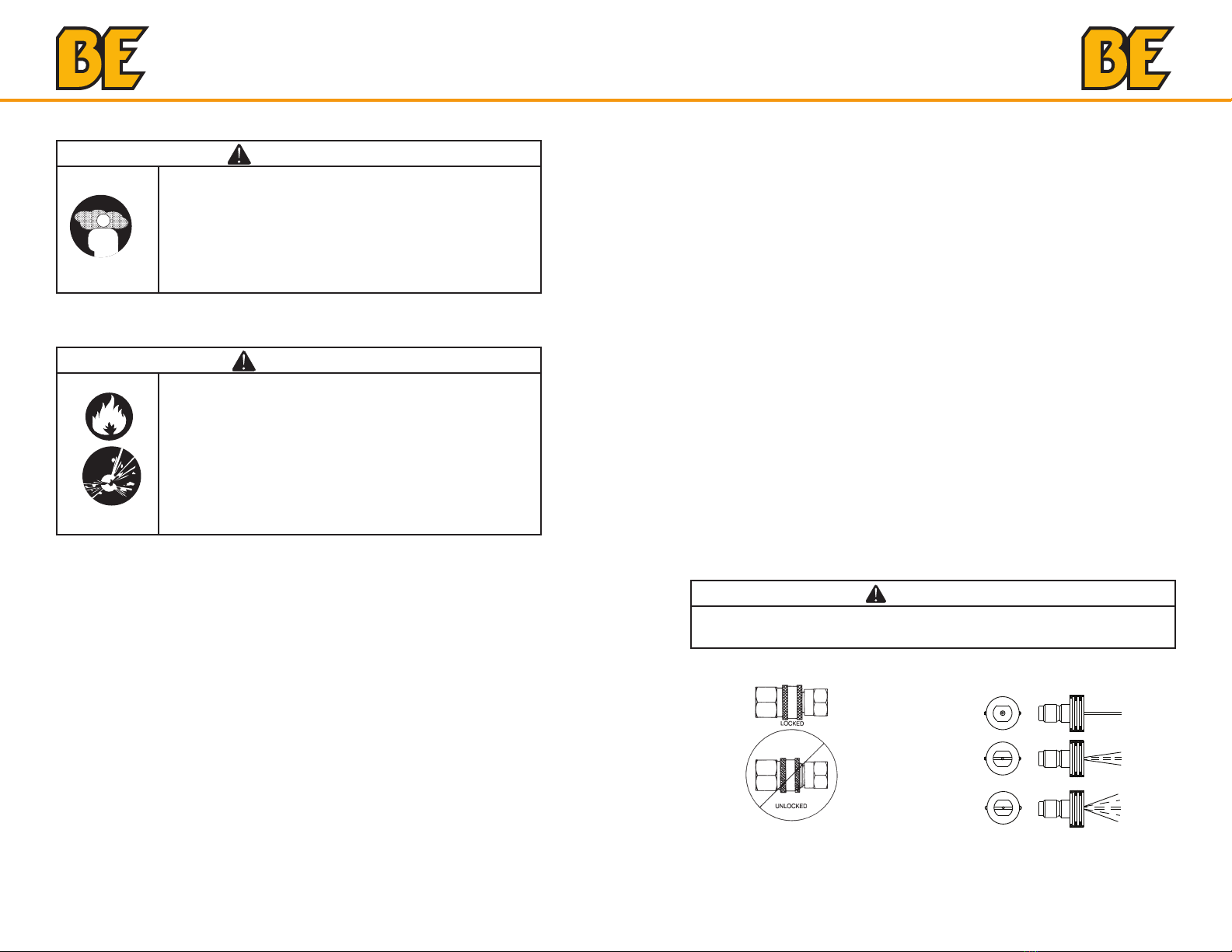

CONNECTION OF Q.C. NOZZLES
QUICK-CONNECT FITTING
WARNING
RISK OF SEVERE INJURY!
THE TRIGGER GUN SHOULD
ALWAYS BE LOCKED IN THE OFF
POSITION WHEN NOT IN USE!
QUICK-CONNECT (Q.C.)
0°
15°
40°
12
12 Operator's Manual
INSTALLATION & PREPARATION
WATER SUPPLY:
1. Select a water supply hose which is a quality grade of garden hose measuring
at least 3/4" ID and no longer than 50 feet.
2 Check the water inlet strainer to ensure it is clean and free of any obstructions.
As a strainer becomes obstructed, it restricts proper ow of water to the
pump. This can result in cavitations which will prematurely cause failure
of pump packings.
a. Using a screwdriver, remove the screen from the water inlet.
b. Clean or replace if necessary.
3. Connect the hoses.
a. Connect one end of the water supply hose to the water inlet of the unit.
b. Connect the other end of the hose to your pressurized water supply.
NOTE 1: Do not use a non-pressurized water supply (i.e. from a pond or
well) with this unit.
NOTE 2: When connecting the water inlet to the water supply mains, local
regulations of your water company must be observed. In some
areas, the unit must not be connected directly to the public drinking
water supply. This is to ensure there is no feedback of detergents
into the water supply. (Direct connection is permitted if a backow
preventer is installed. Check with local authorities for approval.)
NOTE 3: If there is a high mineral content in your water, it is highly
recommended that a water softener and an additional water strainer
be added to the water inlet to help prevent the possibility
of excessive scale buildup inside the heat exchanger coil. Clean
both strainers before starting your pressure washer.
NOZZLE REVIEW:
Various nozzles may be quick-connected into the end of the wand to change the
spray pattern or use the detergent feature. When using Quick Connects (Q.C.),
be certain the connection is securely locked. If not, the high pressure water
may shoot the nozzle from the wand, causing severe injury or serious damage.
To determine spray fan, refer to the actual number stamped on the nozzle. The
rst two digits indicate the spray fan in degrees, i.e.; 00=0”, 15=15°, 40=40°.
1. The 0° nozzle (RED): This is a blasting nozzle. It delivers a very concentrated
stream of water. Be cautious when using the straight narrow stream. It is
not recommended for use on painted or wood surfaces, or items attached
with adhesive backings. Uses: Removing weeds from sidewalk cracks,
stubborn stains from concrete, masonry, aluminum and steel, caked mud
from equipment, and cleaning lawn mower undersides.
2. The 15° nozzle (YELLOW): This is a chiseling nozzle. The spray should
be directed at a 45° angle to the surface and used like a scraper to remove
paint, grease and dirt. Uses: Surface preparation (removing mildew stains
and paint chips).
3. The 40° nozzle (WHITE):
This is a wash nozzle. This wide spray pattern disperses the water pressure
over a large area and is recommended for moderate washing. Uses: Washing
aluminum siding, cleaning windows, washing vehicles, spraying sidewalks,
driveways, and patios.
NOZZLE CONNECTION:
1. Be certain the trigger gun is locked in the “OFF” position. See WARNING, left.
2. The nozzle assembly should be disconnected from the gun/wand assembly
at this by retracting the locking ring on the quick-connect tting to remove
the nozzle.
WARNING
RISK OF INJECTION CAUSING
SEVERE INJURY!
NEVER LOOK DIRECTLY AT THE
NOZZLE ORIFICE UNLESS IT
IS DISCONNECTED FROM THE
GUN/WAND ASSEMBLY!
CONNECTION OF Q.C. NOZZLES
QUICK-CONNECT FITTING
WARNING
RISK OF SEVERE INJURY!
THE TRIGGER GUN SHOULD
ALWAYS BE LOCKED IN THE OFF
POSITION WHEN NOT IN USE!
QUICK-CONNECT (Q.C.)
0°
15°
40°
INSTALLATION & PREPARATION INSTALLATION & PREPARATION

16 17
1. Be certain the trigger gun is locked in the “OFF” position.
2. The nozzle assembly should be disconnected from the gun/wand
assembly at this by retracting the locking ring on the quick-connect
fitting to remove the nozzle.

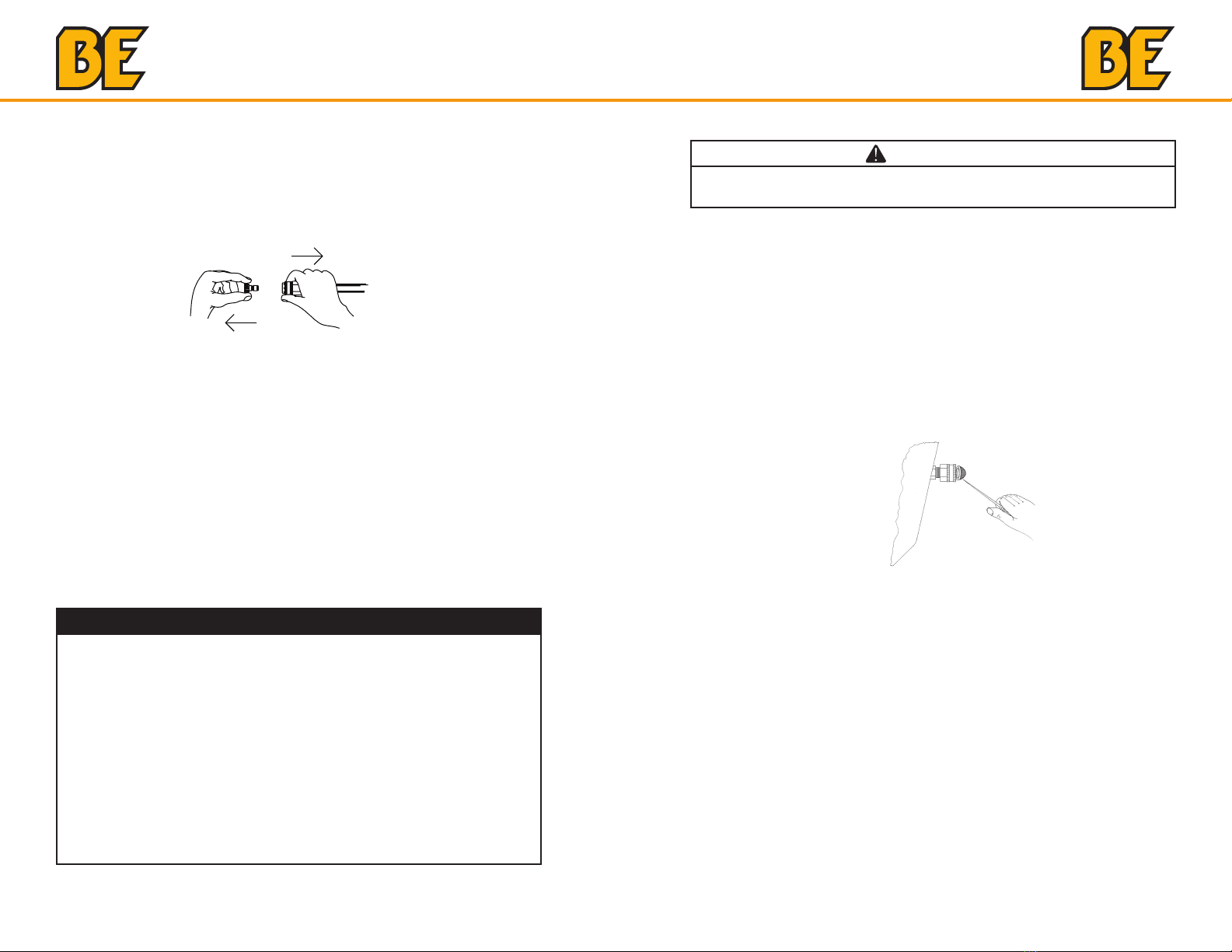

NOZZLE CONNECTION
12
12 Operator's Manual
INSTALLATION & PREPARATION
WATER SUPPLY:
1. Select a water supply hose which is a quality grade of garden hose measuring
at least 3/4" ID and no longer than 50 feet.
2 Check the water inlet strainer to ensure it is clean and free of any obstructions.
As a strainer becomes obstructed, it restricts proper ow of water to the
pump. This can result in cavitations which will prematurely cause failure
of pump packings.
a. Using a screwdriver, remove the screen from the water inlet.
b. Clean or replace if necessary.
3. Connect the hoses.
a. Connect one end of the water supply hose to the water inlet of the unit.
b. Connect the other end of the hose to your pressurized water supply.
NOTE 1: Do not use a non-pressurized water supply (i.e. from a pond or
well) with this unit.
NOTE 2: When connecting the water inlet to the water supply mains, local
regulations of your water company must be observed. In some
areas, the unit must not be connected directly to the public drinking
water supply. This is to ensure there is no feedback of detergents
into the water supply. (Direct connection is permitted if a backow
preventer is installed. Check with local authorities for approval.)
NOTE 3: If there is a high mineral content in your water, it is highly
recommended that a water softener and an additional water strainer
be added to the water inlet to help prevent the possibility
of excessive scale buildup inside the heat exchanger coil. Clean
both strainers before starting your pressure washer.
NOZZLE REVIEW:
Various nozzles may be quick-connected into the end of the wand to change the
spray pattern or use the detergent feature. When using Quick Connects (Q.C.),
be certain the connection is securely locked. If not, the high pressure water
may shoot the nozzle from the wand, causing severe injury or serious damage.
To determine spray fan, refer to the actual number stamped on the nozzle. The
rst two digits indicate the spray fan in degrees, i.e.; 00=0”, 15=15°, 40=40°.
1. The 0° nozzle (RED): This is a blasting nozzle. It delivers a very concentrated
stream of water. Be cautious when using the straight narrow stream. It is
not recommended for use on painted or wood surfaces, or items attached
with adhesive backings. Uses: Removing weeds from sidewalk cracks,
stubborn stains from concrete, masonry, aluminum and steel, caked mud
from equipment, and cleaning lawn mower undersides.
2. The 15° nozzle (YELLOW): This is a chiseling nozzle. The spray should
be directed at a 45° angle to the surface and used like a scraper to remove
paint, grease and dirt. Uses: Surface preparation (removing mildew stains
and paint chips).
3. The 40° nozzle (WHITE):
This is a wash nozzle. This wide spray pattern disperses the water pressure
over a large area and is recommended for moderate washing. Uses: Washing
aluminum siding, cleaning windows, washing vehicles, spraying sidewalks,
driveways, and patios.
NOZZLE CONNECTION:
1. Be certain the trigger gun is locked in the “OFF” position. See WARNING, left.
2. The nozzle assembly should be disconnected from the gun/wand assembly
at this by retracting the locking ring on the quick-connect tting to remove
the nozzle.
WARNING
RISK OF INJECTION CAUSING
SEVERE INJURY!
NEVER LOOK DIRECTLY AT THE
NOZZLE ORIFICE UNLESS IT
IS DISCONNECTED FROM THE
GUN/WAND ASSEMBLY!
CONNECTION OF Q.C. NOZZLES
QUICK-CONNECT FITTING
WARNING
RISK OF SEVERE INJURY!
THE TRIGGER GUN SHOULD
ALWAYS BE LOCKED IN THE OFF
POSITION WHEN NOT IN USE!
QUICK-CONNECT (Q.C.)
0°
15°
40°
WATER SUPPLY
1. Select a water supply hose which is a quality grade of garden hose
measuring at least 3/4” ID and no longer than 50 feet.
2 Check the water inlet strainer to ensure it is clean and free of any
obstructions. As a strainer becomes obstructed, it restricts proper
flow of water to the pump. This can result in cavitations which will
prematurely cause failure of pump packings.
a. Using a screwdriver, remove the screen from the water inlet.
b. Clean or replace if necessary.
3. Connect the hoses.
a. Connect one end of the water supply hose to the water inlet of the
unit.
b. Connect the other end of the hose to your pressurized water supply.
4. Follow the incoming water requirements listed below:
a. Water pressure must be a minimum of 20 pounds per square
Inch (PSI) and a maximum of 125 PSI. (A typical outdoor faucet will
generally supply this PSI if turned completely “ON”.)
b. Incoming GPM must be approximately one gallon more than the
outgoing GPM stated on the pressure washer nameplate. (You can
check GPM by timing how long it takes to fill a 5 gallon container.)
c. Incoming water temperature must not exceed 125°F. Excessive
pump damage may result if the water temperature exceeds this
acceptable level.
5. Never allow the unit to operate without the incoming water line
attached and the water supply is completely turned on.
WARNING
THE TRIGGER GUN SHOULD ALWAYS BE LOCKED IN THE OFF
POSITION WHEN NOT IN USE!
NOTICE
• Do not use a non-pressurized water supply (i.e. from a pond or well)
with this unit.
• When connecting the water inlet to the water supply mains, local
regulations of your water company must be observed. In some areas,
the unit must not be connected directly to the public drinking water
supply. This is to ensure there is no feedback of detergents into the
water supply. (Direct connection is permitted if a back flow preventer
is installed. Check with local authorities for approval.)
• If there is a high mineral content in your water, it is highly recommend-
ed that a water softener and an additional water strainer be added
to the water inlet to help prevent the possibility of excessive scale
buildup inside the heat exchanger coil. Clean both strainers before
starting your pressure washer.
UNLOADER
WATER INLET STRAINER
The unloader has been preset at the factory.
13
Operator's Manual 13
INSTALLATION & PREPARATION
4. Follow the incoming water requirements listed below:
a. Water pressure must be a minimum of 20 pounds per square inch (PSI)
and a maximum of 125 PSI. (A typical outdoor faucet will generally
supply this PSI if turned completely "ON".)
b. Incoming GPM must be approximately one gallon more than the outgoing
GPM stated on the pressure washer nameplate. (You can check GPM
by timing how long it takes to ll a 5 gallon container.)
c. Incoming water temperature must not exceed 125°F. Excessive pump
damage may result if the water temperature exceeds this acceptable
level.
5. Never allow the unit to operate without the incoming water line attached and
the water supply is completely turned on.
UNLOADER:
Standard Models:
The unloader has been preset at the factory.
THERMAL RELIEF VALVE:
To ensure the water temperature does not exceed acceptable levels, never
allow the pressure washer to operate in the bypass mode (with the unit
running and the trigger closed) for more than three minutes.
A thermal relief valve has been added to this unit to protect the pump. This
valve will open and release water if the water temperature in the pump has
exceeded 140° F. This will allow fresh, cool water to enter the system,
therefore preventing premature failure of pump packings.
PRE-START INSPECTION PROCEDURES:
Before starting the unit, perform the following procedures:
1. Inspect the electrical cords for cuts. If a cut is found, DO NOT TOUCH OR
USE CORD! Replace cord before starting unit.
2. Check the oil level in the pump.
3. Inspect the water inlet strainer. Clean or replace if necessary. See “Water
Supply”, #2.
4. Check all hose connections to ensure they are securely tightened.
5. Inspect for system water leaks, oil leaks and fuel leaks. If a fuel leak is
found, DO NOT START UNIT! See “Risk of Explosion or Fire”, pg. 5. Be
sure that all damaged parts are replaced and that the mechanical problems
are corrected prior to operation of the unit. If you require service, contact
Customer Service.
6. Inspect high pressure hoses for kinking, cuts and leaks. If a cut or leak
is found, DO NOT USE HOSE! Replace hose before starting unit. See
“Risk of Injection or Severe Cutting Injury”, pg. 6. Be sure that all damaged
parts are replaced and that the mechanical problems are corrected prior to
operation of the unit. If you require service, contact Customer Service.
END OF PREPARATION INSTRUCTIONS
WATER INLET STRAINER
THERMAL RELIEF VALVE
To ensure the water temperature does not exceed acceptable levels,
never allow the pressure washer to operate in the bypass mode (with the
unit running and the trigger closed) for more than three minutes.
A “thermal relief valve” has been added to this unit to protect the pump.
It may begin to open and release water if the water temperature in the
pump has exceeded 140° F. This will allow fresh, cool water to enter the
system.
INSTALLATION & PREPARATION INSTALLATION & PREPARATION

18 19
PRE-START INSPECTION PROCEDURES
Before starting the unit, perform the following procedures:
1. Check the oil level in the pump and engine.
2. Inspect the water inlet strainer. Clean or replace if necessary. See
“Water Supply”, #2, pg 16.
3. Check all hose connections to ensure they are securely tightened. See
“Water Supply”, #3, pg. 16.
4. Inspect for system water leaks, oil leaks and fuel leaks. If a fuel leak is
found, DO NOT START UNIT! See “Risk of Explosion or Fire”, pg. 7.
Be sure that all damaged parts are replaced and that the mechanical
problems are corrected prior to operation of the unit. If you require
service, contact Customer Service.
5. Inspect high pressure hoses for kinking, cuts and leaks. If a cut or leak
is found, DO NOT USE HOSE! Replace hose before starting unit. See
“Risk of Injection” pg. 8. Be sure that all damaged parts are replaced
and that the mechanical problems are corrected prior to operation of
the unit. If you require service, contact Customer Service.
Operating Instructions
PRIMING THE PUMP
It is essential to prime the pump and flush the unit each time the water
supply has been disconnected from the unit OR whenever the unit has
set for any period of time. This unit has a steel coil which, after setting,
will cause the water remaining in the coil from the previous usage to
turn brown or black. This contaminated water must be flushed from the
system before start-up. This procedure should be performed without the
high pressure hose, gun and nozzle assembly installed.
1. Turn on the water supply.
2. Low pressure water will begin flowing from the water outlet. This al-
lows the unit to prime and purge any air from the system. The unit is
primed when water flow is uninterrupted by air.
3. Once the system is flushed, turn off the water supply and connect the
high pressure discharge hose/gun to the water outlet of the unit.
4. Turn on the water supply.
CAUTION
BE CERTAIN THE HOSE, GUN & LANCE ASSY. ARE NOT
CONNECTED TO THE UNIT WHILE PRIMING THE PUMP. PRIMING
ALLOWS MINERAL DEPOSITS TO BE RELEASED FROM THE
SYSTEM WHICH WOULD OBSTRUCT OR DAMAGE THE GUN
AND NOZZLE ASSEMBLY RESULTING IN COSTLY REPAIRS.
START-UP/COLD WATER OPERATION
WARNING
KEEP CLEAR OF NOZZLE! NEVER PLACE HAND OR FINGERS IN
FRONT OF NOZZLE!
DO NOT DIRECT DISCHARGE STREAM AT PEOPLE OR PETS!
CAUTION
DO NOT ALLOW SPRAY PATTERN TO REMAIN ON A FIXED AREA
FOR AN EXTENDED PERIOD OF TIME. POSSIBLE DAMAGE MAY
OCCUR TO THE AREA.
INSTALLATION & PREPARATION OPERATION
