Beckman Coulter GH-3.8 User manual

PN GS6-TB-003MD
June 2018
Instruction For Use
GH-3.8 Swinging Bucket Rotor
In Beckman Coulter Allegra 6 Series, GS-6 Series, Spinchron Series,
and GP Series Centrifuges
Beckman Coulter, Inc.
250 S. Kraemer Blvd.
Brea, CA 92821 U.S.A.

GH-3.8 Swinging Bucket Rotor
In Beckman Coulter Allegra 6 Series, GS-6 Series,
Spinchron Series, and GP Series Centrifuges
PN GS6-TB-003MD (June 2018)
© 2018 Beckman Coulter, Inc.
All rights reserved.
Beckman Coulter, the stylized logo, and the Beckman
Coulter product and service marks mentioned herein are
trademarks or registered trademarks of Beckman Coulter,
Inc. in the United States and other countries.
All other trademarks, service marks, products, or services
are trademarks or registered trademarks of their
respective holders.
Contact Us
If you have any questions, contact our Customer Support
Center.
• Worldwide, find us via our website at
www.beckman.com/support/technical
• In the USA and Canada, call us at 1-800-369-0333.
• Outside of the USA and Canada, contact your local
Beckman Coulter Representative.
Find us on the World Wide Web at:
www.beckman.com
Beckman Coulter Eurocenter S.A.
22, rue Juste-Olivier
Case Postale 1044
CH - 1260 Nyon 1, Switzerland
Tel: [phone]
Original Instructions

PN GS6-TB-003MD iii
Safety Notice
This safety notice summarizes information basic to the safe use of the equipment described in this
publication. The international symbol displayed above is a reminder to the user that all safety
instructions should be read and understood before operation or maintenance of this equipment is
attempted. When you see the symbol on other pages of this publication, pay special attention to the
specific safety information presented. Observance of safety precautions will also help to avoid
actions that could damage or adversely affect the performance of the rotor system.
Safety Notice
• This rotor is warranted for 7 years (see the warranty at the back of this publication). Beckman
Coulter recommends that you retire the rotor from use at the end of the 7-year warranty period
to prevent the possibility of a rotor mishap resulting from material fatigue.
• Handle body fluids with care because they can transmit disease. No known test offers complete
assurance that they are free of micro-organisms. Some of the most virulent—Hepatitis (B and C)
and HIV (I–V) viruses, atypical mycobacteria, and certain systemic fungi— further emphasize
the need for aerosol protection. Handle other infectious samples according to good laboratory
procedures and methods to prevent spread of disease. Because spills may generate aerosols,
observe proper safety precautions for aerosol containment. Do not run toxic, pathogenic, or
radioactive materials in this rotor without taking appropriate safety precautions. Biosafe
containment should be used when Risk Group II materials (as identified in the World Health
Organization Laboratory Biosafety Manual) are handled; materials of a higher group require more
than one level of protection.
• Dispose of all waste solutions according to appropriate environmental health and safety
guidelines.
• The rotor and accessories are not designed for use with materials capable of developing
flammable or explosive vapors. Do not centrifuge such materials (such as chloroform or ethyl
alcohol) in or handle or store them near the centrifuge.
• If glass tubes break, remove the glass very carefully from the adapter, bucket, or cavity. If all
the glass particles are not contained in the bucket or cavity, be careful when examining or
cleaning the centrifuge gasket and chamber as glass particles may be embedded in their
surfaces.
• Inspect the rotor once a month, especially inside cavities, for rough spots or pitting, white
powder deposits—frequently aluminum oxide—or heavy discoloration. If any of these signs are
evident, do not run the rotor. Contact your Beckman Coulter representative for information
bout the Field Rotor Inspection Program and the rotor repair center. To reduce the potential
for corrosion, clean buckets or carriers thoroughly immediately following a tube or well plate
breakage. Be sure to remove all glass particles from buckets or carriers.

PN GS6-TB-003MD
iv
Safety Notice
Safety Notice
• Components or accessories designed for other rotors may cause rotor mishap if used in this
rotor. Use only components and accessories that have been designed for use in this rotor. The
safety of rotor components and accessories made by other manufacturers cannot be ascertained by
Beckman Coulter. Use of other manufacturers’ components or accessories in the rotors may void the
rotor warranty and should be prohibited by your laboratory safety officer. If tubes, microplates, or
other labware made by manufacturers other than Beckman Coulter are used, reduce rotor
speed to prevent breakage. The strength of glass and plastic tubes can vary between lots, and
will depend on handling and usage; we highly recommend that you pretest labware in the rotor
using water samples to determine optimal operating conditions. Scratches (even microscopic
ones) significantly weaken glass tubes.
• Do not substitute a metal fastener for the plastic tiedown nut supplied with the rotor. If a tie
down nut comes off the shaft during centrifugation, the plastic nut furnished will break apart
in the chamber, causing minimal damage to the instrument. A loose metal object could
substantially damage the rotor, chamber, and lid, and could potentially escape the chamber
into the laboratory, causing personal injury or property damage.
• The rotor must be run with a full complement of buckets and/or multiwell plate carriers
attached to the yoke. You can run four buckets, four multiwell plate carriers, or two buckets
and two carriers (with like components loaded opposite each other). If only two buckets are
loaded with blood bags, bottles, or modular disk adapters, the other two buckets should contain
at least a minimal “blank” load (e.g., empty modular disk adapters) to achieve optimal results
and to avoid rotor imbalance.
• The maximum allowable run speed (3750 rpm) listed in the rotor specifications is for operation
when all conditions are within the standard specifications (using buckets). Maximum allowable
run speed when using Micro Plus multiwell plate carriers is 3250 rpm. Do not overload the rotor
without reducing the speed (see SPEED DERATING). Failure to derate will reduce the safe useful
life of the rotor.
• If disassembly reveals evidence of leakage, you should assume that some fluid escaped the
rotor. Apply appropriate decontamination procedures should be applied to the centrifuge and
accessories.

PN GS6-TB-003MD v
Safety Notice
Alerts for Danger, Warning, Caution, Important, and Note
Alerts for Danger, Warning, Caution, Important, and Note
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation, which, if not avoided, may
result in minor or moderate injury.
IMPORTANT
IMPORTANT is used for comments that add value to the step or procedure being performed.
Following the advice in the Important adds benefit to the performance of a piece of equipment or to a
process.
NOTE NOTE is used to call attention to notable information that should be followed during installation, use,
or servicing of this equipment.

PN GS6-TB-003MD
vi
Safety Notice
Alerts for Danger, Warning, Caution, Important, and Note

vii
Contents
Safety Notice,iii
Safety Notice,iii
Alerts for Danger, Warning, Caution, Important, and Note,v
GH-3.8 Rotor,1
Specifications,1
Description,3
The Rotor,3
Buckets and Accessories,3
Modular Disk Adapters,3
Bottle Adapters,4
Blood Bag Cups,4
Bucket Covers,4
Aerosolve Cannisters,4
Micro Plus Multiwell Plate Carriers,10
Installation,11
The Rotor Yoke,11
Buckets or Carriers,14
Loading the Rotor,15
Working with Physiological Fluids,15
Symmetric and Balanced Loading,15
Using Buckets,19
Assembling Modular Disk Adapters,20
Loading Tubes in Adapters,21
Loading Adapters in the Buckets,21
Using Bottles in Adapters,22
Using Blood Bag Cups,22
Bucket Covers,23
Using Aerosolve Cannisters,25
Using Micro Plus Multiwell Plate Carriers,26
Operation,27
Speed Derating,27
Temperature Limits,28
Run Procedure,28
Care and Maintenance,31
Inspection,31
Maintenance,31
Cleaning,32
The Rotor Components,32

viii
Contents
Buckets,33
Micro Plus Plate Carriers (Including Base and Pad), Blood Bag
Cups, and Bucket Covers,33
Modular Disk Adapters,33
Aerosolve Cannisters,34
Decontamination,34
Sterilization and Disinfection,34
Tube Breakage,35
Aerosolve Cannisters,35
SST or Corvac Tubes,35
Returning a Rotor,36
Supply List,37
Replacement Rotor Parts,37
Supplies,38
Benchtop Rotor Warranty
Conditions,1
Disclaimer,1

ix
Illustrations
Illustrations

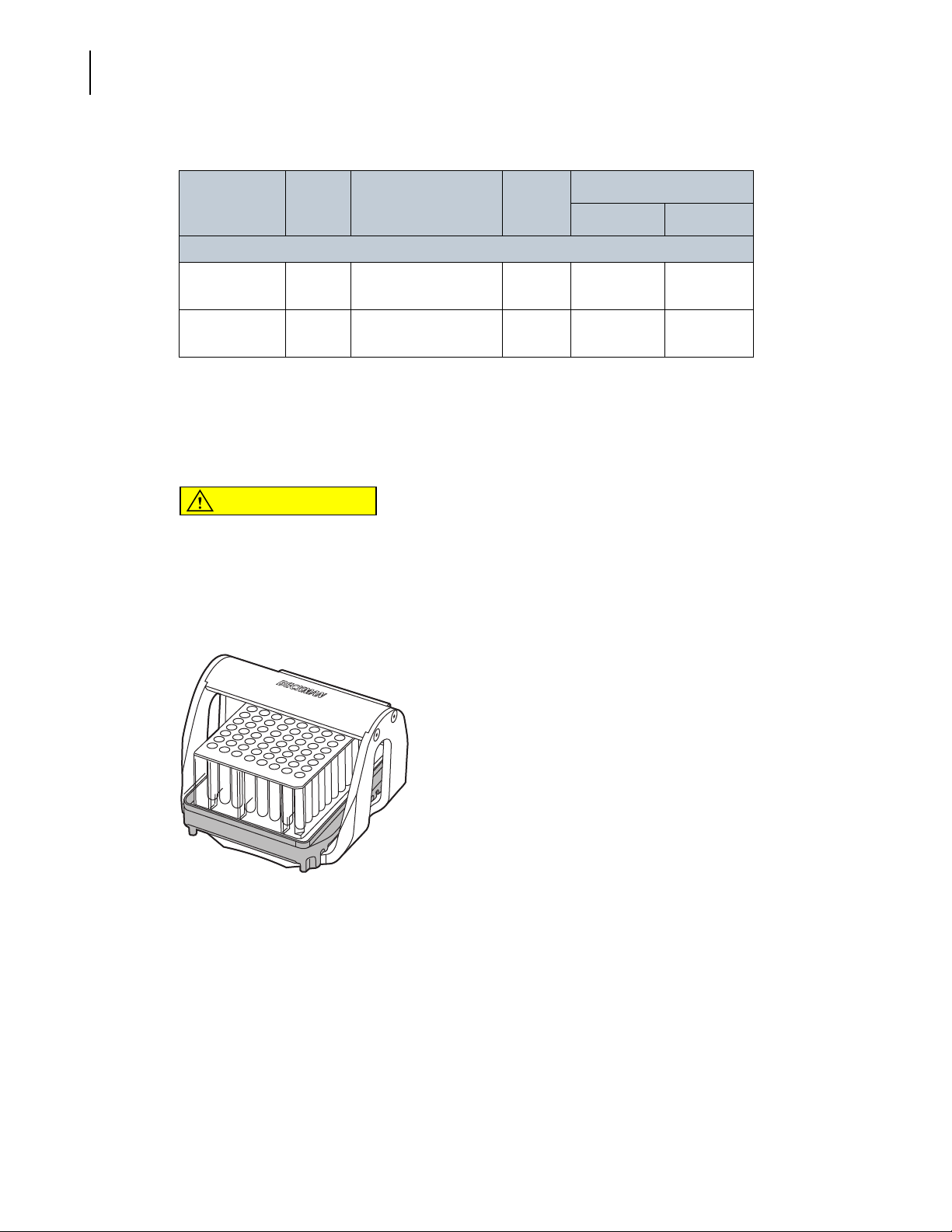

1 The Micro Plus Multiwell Plate Carrier,10
2 Rotor Yoke and Centrifuge Drive Shaft. Be sure the pin in the
drive shaft is in the groove in the rotor yoke.,13
3 Rotor Tie-Down Nut and O-Ring,14
4 Examples of Correctly and Incorrectly Loaded Buckets and
Carriers. Contents of opposing buckets must be the same and
each bucket must be balanced on its pivotal axis.,16
5 The Bails (Vertical Supports) of the GH-3.8 (and GH-3.7)Modular
Disk Adapters and the J6 Series Adapters are Not the Same.
Bails for the GH-3.8 are straight and end in a disk; bails for
the J6 have curved ends. Do not intermix adapters (or disks
from adapters) between sets.,18
6 Examples of the Effects on the Horizontal
Swing of Buckets Caused by Proper and Improper
Weight Distribution,19
7 Assembling a Modular Disk Adapter,20
8 Installing an Adapter in a Bucket. Be sure the bails (vertical
supports)
line up with the bucket pivot pins.,21
9 Blood Bag Loading Procedures,23
10 Proper Placement of O-Ring,24
11 Securing Bucket Cover Latches,24
12 The Micro Plus Multiwell Plate Carrier, Base, Pad, and Deep-well
Plate,26
13 Lubricating Pivot Pin/Bucket Contact Areas,32

x
Tables
Tables

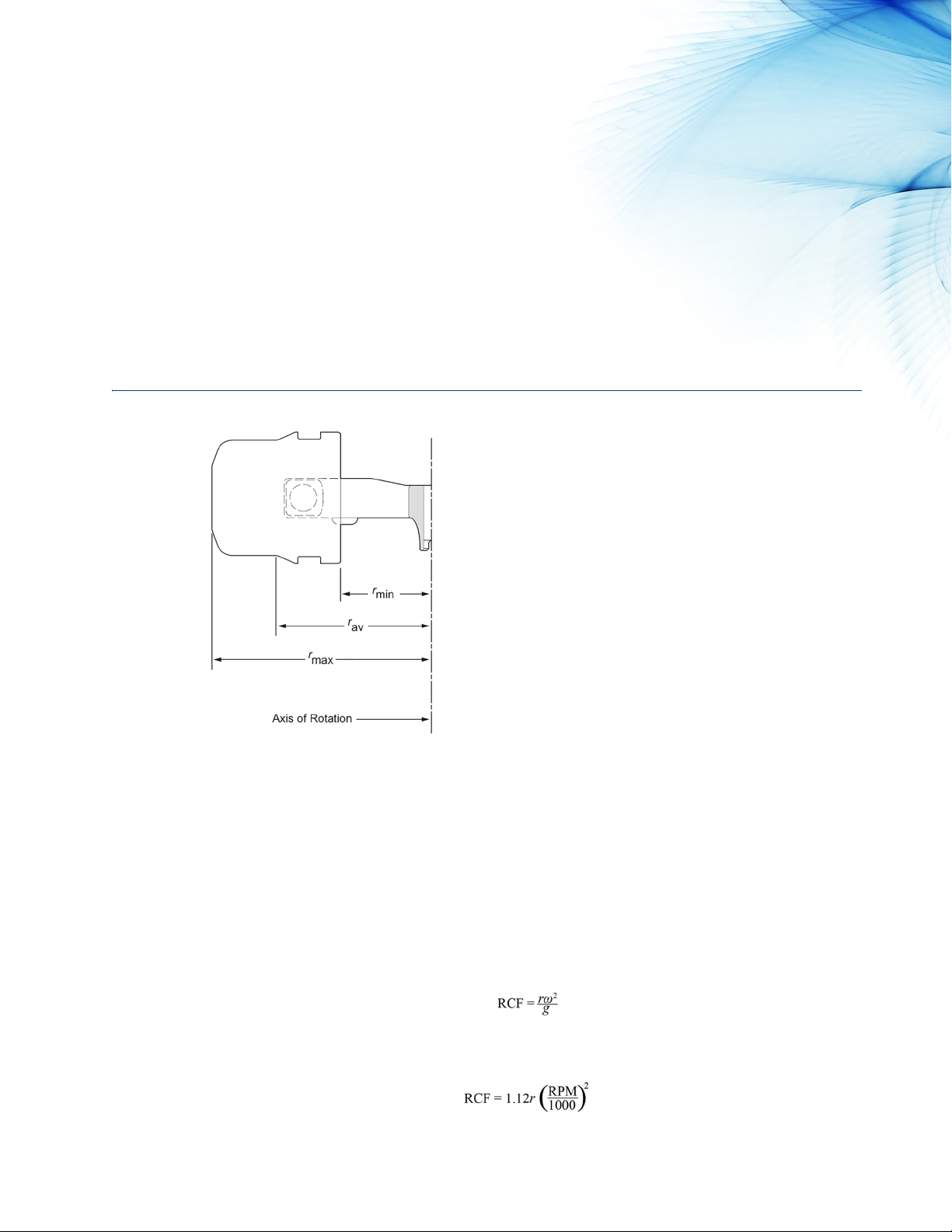

1 Relative Centrifugal Fields for the GH-3.8 Rotor. Entries in the
table are
calculated from the formula RCF = 1.12 r (RPM/1000)2and are
then rounded to
three significant digits.,2
2 Modular Disk Adapters, Bottle Adapters, and Cups Available for
the GH-3.8 Rotor,5
3 Beckman Coulter Tubes and Bottles for the GH-3.8 Rotor,7
4 Labware for Use with Micro Plus Carriers,12
5 Recommended g-Force Limits to Minimize Breakage of Certain
Glass Tubes and Bottles Made by Other Manufacturers in the
GH-3.8 Rotor,29
6 Approximate Acceleration and Deceleration Times for the GH-
3.8 Rotor in Allegra 6 Series,
GS-6 Series, and Spinchron Series Centrifuges,30
7 Approximate Acceleration and Deceleration Times for the GH-
3.8 Rotor in
GP Series Centrifuges,30

PN GS6-TB-003MD 1-1
GH-3.8 Rotor
This rotor has been manufactured in a registered ISO 9001 or 13485 facility for use with the specified
Beckman Coulter centrifuges.
Specifications
SPECIFICATIONS
Maximum speed (buckets). . . . . . . . . . . . . . . . . . . . . . . 3750 rpm
Maximum speed (Micro Plus carriers) . . . . . . . . . . . . . . 3250 rpm
Critical speed rangea. . . . . . . . . . . . . . . . . . . . . 400 to 1450 rpm
Maximum solution density . . . . . . . . . . . . . . . . . . . . . . . . 1.2 g/mL
Relative Centrifugal Fieldsbat maximum speed
(see Table 1 for RCF at other speeds)
using buckets (rmax = 204 mm). . . . . . . . . . . . . . . . . 3210 × g
using Micro Plus carriers (rmax = 163 mm) . . . . . . . . 1924 × g
Conditions requiring speed reduction . . . . . . see Speed Derating
Number buckets or carriers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Available tubes and bottles . . . . . . . . . . . . . . . . . . . . . see Table 3
Maximum load allowed in each bucket at rated
speed (excluding weight of bucket and cover). . . 1000 grams
Maximum load allowed in each Micro Plus carrier
at rated speed (excluding weight of carrier). . . . . . 500 grams
Maximum rotor capacity . . . . . . . . . . . . . . . . . . . . . . . . .3 liters
Approximate acceleration and
deceleration times . . . . . . . . . . . . . . . .see Table 6 and Table 7
Weight of fully loaded rotor
(buckets with covers). . . . . . . . . . . . . . . . . . . . 11.4 kg (25.2 lb)
Rotor yoke material . . . . . . . . . . . . . . . . . . . . . . . . .stainless steel
Bucket material . . . . . . . . . . . . . . . . . . . . . . anodized aluminum
Carrier material . . . . . . . . . . . . . . . . . . . . . . anodized aluminum
a
The critical speed range is the range of speeds over which the rotor shifts so as to rotate about its center of mass. Passing through
the critical speed range is characterized by some vibration.
b
Relative Centrifugal Field (RCF) is the ratio of the centrifugal acceleration at a specified radius and speed (rω
2
) to the standard
acceleration of gravity (g) according to the following formula:
where ris the radius in millimeters, ωis the angular velocity in radians per second (2πRPM /60), and gis the standard acceleration
of gravity (9807 mm/s
2
). After substitution:

PN GS6-TB-003MD
1-2
GH-3.8 Rotor
Specifications
Table 1 Relative Centrifugal Fields for the GH-3.8 Rotor. Entries in the table are
calculated from the formula RCF = 1.12 r (RPM/1000)2 and are then rounded to
three significant digits.
Rotor
Speed
(rpm)
Relative Centrifugal Field (× g) at rmax
Buckets
(204 mm)
Micro Plus Carriers
(163 mm)
3750
3500
3250
3210
2800
2400
Don’t run above 3250
1928
3000
2750
2500
2060
1730
1430
1643
1381
1141
2250
2000
1750
1160
913
700
924
730
559
1500
1000
500
514
228
57
411
183
46
Relative Centrifugal Field (RCF)
GH-3.8 Rotor
Speed (rpm)
0
500
1000
1500
2000
2500
3000
3500
0 2000 4000
Buckets
Micro Plus
RCF (× g)
30001000

PN GS6-TB-003MD 1-3
GH-3.8 Rotor
Description
Description
Specific information about the GH-3.8 rotor is given here. Information about the use and care of centrifuges
is contained in the individual instrument instruction manuals, which should be used in combination with
this manual for complete centrifuge and rotor operation information.
The Rotor
The GH-3.8 rotor, rated for 3750 rpm, is used in Beckman Coulter Allegra 6 series, GS-6 series,
Spinchron series, and GP series centrifuges. This four-place swinging bucket rotor carries a wide
range of tube and bottle sizes (from 1.5 to 750 mL) or single- to quad-pack blood bags in buckets, as
well as 96-well multiwell plates in specially designed carriers. This rotor rapidly sediments protein
precipitates, large particles, cells, and cell debris. It can also be used for binding studies and for
separating serum from whole blood.
The rotor yoke is made of stainless steel. Either buckets or multiwell plate carriers, both made of
anodized aluminum, may be run by placing them over pivot pins on the arms of the yoke. Both
buckets and carriers swing out to a horizontal position during centrifugation.
CAUTION
Although rotor components and accessories made by other manufacturers may fit
in the GH-3.8 rotor, their safety in this rotor cannot be ascertained by Beckman
Coulter. Use of other manufacturers’ components or accessories in the
GH-3.8 rotor may void the rotor warranty and should be prohibited by your
laboratory safety officer. Only the components and accessories listed in this
publication should be used in this rotor.
Buckets and Accessories
Several types of labware can be placed in the buckets, depending upon your application: modular
disk adapters (for tubes of various sizes), bottle adapters, blood bag cups, and Aerosolve cannisters
(when aerosol containment is required). Bucket covers are also available as an aid toward
containment.
Modular Disk Adapters
Tubes are supported in modular disk adapters, which can also serve as tube racks in the laboratory.
The adapter disks are color coded by the tube size they accommodate (see Table 2); the number of
disks used in an adapter assembly depends upon the length of tubes used. A tube decanter is
available to hold either 10-mm or 12-mm tubes securely in the blue adapter, allowing all the tubes
to be decanted at once. Additionally, 1.5-mL Microfuge tubes can be run using a special plate that
fits on top of the blue adapter. Both of these accessories are described in Table 2. Beckman Coulter
tubes and bottles available for use in the GH-3.8 rotor buckets are described in Table 3.

PN GS6-TB-003MD
1-4
GH-3.8 Rotor
Description
Bottle Adapters
Bottles are supported in polypropylene adapters that fit inside the rotor buckets. The adapters are
ribbed for strength and accommodate three bottle sizes, including one conical bottle (see Table 2).
Blood Bag Cups
Polypropylene cups provide support for blood bags in the rotor buckets. Blood bag cups are
available in two sizes: one for single- or double-pack bags, and one for triple- or quadpack bags (see
Table 2).
Bucket Covers
Transparent covers made of a high-impact plastic are available for the GH-3.8 rotor buckets. Each
cover requires an O-ring (made of ethylene propylene) that seats on a ledge inside the bucket. The
covers are held in place by attached latches. Although the covers are not designed to contain aerosols
that may result from tube breakage, they will contain most liquids and broken tube particles,
reducing the need to clean the centrifuge chamber, and allowing you to take appropriate
precautions before opening the covers in the event of tube breakage.
Aerosolve Cannisters
Aerosolve cannisters, designed to minimize aerosol leakage and liquid spills, can be used in the GH
3.8 buckets when this type of containment is required. The cannister was tested
*
to demonstrate
containment of microbiological aerosols under normal operating conditions of the associated
Beckman Coulter centrifuge, when used and maintained as instructed. Aerosolve cannisters hold a
variety of tube sizes in racks, or they can be used as 500-mL wide-mouth bottles.
* Validation of microbiological containment was done at an independent third-party testing facility (CAMR,
Porton Down, UK, or USAMRIID, Ft. Detrick, MD, U.S.A.). Improper use or maintenance may affect seal integrity and
thus containment.

PN GS6-TB-003MD 1-5
GH-3.8 Rotor
Description
Table 2 Modular Disk Adapters, Bottle Adapters, and Cups Available for the GH-3.8 Rotor
MODULAR DISK ADAPTERS (polypropylene)
Color
Code
Nom.
tube
Vol.
(mL)
Nom.
Tube
Dia.
(mm)
Max.
No.
Tubes
per
Adapter
Max.
No.
tubes
in
Rotor
rmax at
Adapter
Bottom
(mm)
RCF at
maximum
Speed
(x g)
No.
Disks
per
Adapter
Adapter Part No.
Set of
Two
Set of
Four
blue 3
5
10
12
37 148 184.7 2910 5 359469 359148
tan 3 &
5
13 30 120 184.7 2910 5 359478 359157
orange 7 &
10
14 24 96 184.7 2910 6 359470 359149
purple 12 16 19 76 184.7 2910 7 359471 359150
green
(conical)
15 18 14 56 194.7 3070 6 359472 359151
green 15 &
20
18 14 56 184.7 2910 7 359473 359152
lit. green
(conical)
30 &
50
30 4 16 191 3010 5 359475 359154
yellow 50 29 7 28 184.7 2910 6 359474 359153
dk. blue 50 35 4 16 184.7 2910 7 359476 359155
brown 100 44 2 8 184.7 2910 3 359477 359156
tube
decanter
3
5
10
12
37 148 — — 1 343108a
(each)
—
1.5-mL
adapter
plate
1.5 &
1.8
11 26 104 — — 1 354511a
(each)
—
BLOOD BAG CUPS (polypropylene)
Color
Code
Cup
Capacity
Size
(mm)
Number
Bags
per
Cup
rmax
at Cup
Bottom
(mm)
RCF at
Maximum
Speed
(x g)
Part
Number
(qty one)
yellow single bag double pack 90 2 196.2 3090 356856
orange triple pack quad pack 97 1 196.7 3100 356857

PN GS6-TB-003MD
1-6
GH-3.8 Rotor
Description
AEROSOLVE CANNISTER RACKS (polypropylene)
Color
Code
Nom.
Tube
Vol.
(mL)
Nom.
Tube
Dia.
(mm)
Max.
No.
Tubes
per
Adapter
Max. No.
Tubes
in
Rotor
rmax at
Adapter
Base
(mm)
RCF at
Maximum
Speed
(× g)b
Adapter Part
Number
Set of
Two
Set of
Four
white 1.5 11 24 96 174 2740 354495
(each)
—
blue 3 & 5 12 24 96 174 2740 359482 359160
tan 5 12 24 96 180 2840 359489 358993
orange 10 14 18 72 175 2760 359483 359161
purple 12
3 & 5
16
12
12
6
48
24
177
178
2790
2800
359484 359162
white
(vials)
15 14 10 40 174 2740 344517
(each)
—
green 15 & 20
3 & 5
18
12
12
6
48
24
174
176
2740
2770
359485 359163
lt. green 15 (conical)
3 & 5
(round bottom)
17
12
6
6
24
24
181
180
2850
2840
359487 358991
lime
green
50 (conical)
3 & 5
(round bottom)
30
12
4
4
16
16
181
180
2850
2840
359488 358992
yellow 50
3 & 5
29
12
4
4
16
16
177
178
2970
2800
359486 359164
orange 230 62 1 4 180 2852 — 356985
Cannister
Kitc
500 — — — 183 2880 359481 359232
Table 2 Modular Disk Adapters, Bottle Adapters, and Cups Available for the GH-3.8 Rotor (Continued)

PN GS6-TB-003MD 1-7
GH-3.8 Rotor
Description
BOTTLE ADAPTERS (polypropylene)
Color
Code
Nominal
Bottle
Volume
(mL)
Nominal
Bottle
Diameter
(mm)
Maximum
Number
Bottles
in Rotor
rmax at
Bottle
Bottom
(mm)
RCF at
Maximum
Speed
(x g)
Adapter
Part Number
(qty one)
orange
(conical)
230 62 4 195.1 3070 356983
(use with 349946)
yellow 250 62 4 195.1 3070 349946
warm red
(conical)
250d62 4 203.2 3200 349849
light
purplee
500 70 4 200.2 3150 349945
blue 750 96 4 195.2 3070 349846
a. Tube retainers and adapter plates are sold individually.
b. Tube racks used with Aerosolve cannisters do not provide full tube support; some manufacturers’ plastic and glass tubes cannot withstand the
maximum forces generated by this rotor when used in these racks. Beckman Coulter highly recommends that you pretest other manufacturers’
tubes (in the appropriate Aerosolve cannister labware) using water samples.
c. Cannisters and lids are made of polyphenylsulphone; O-rings are ethylene-propylene. Cannister kit includes the pad that must be used beneath
the cannister in the GH-3.8 rotor; sold in sets of two or four.
d. Corning polypropylene bottle.
e. Light purple adapter replaces the previous tan adapter. See note under Symmetric and Balanced Loading for weight difference information.
Table 2 Modular Disk Adapters, Bottle Adapters, and Cups Available for the GH-3.8 Rotor (Continued)
Table 3 Beckman Coulter Tubes and Bottles for the GH-3.8 Rotor
Dimensions
Volume
(mL) Description
Part
Number
Adapter
Set of Two Set of Four
OPEN-TOP TUBES
16 × 76 mm 10 polypropylene 355640 349471
359484a
359150
359162a
16 × 76 mm 10 polycarbonate 355630
359471
359484a
359150
359162a
16 × 76 mm 10 stainless steel 301108
359471
359484a
359150
359162a
18 × 98 mm 15 polycarbonate 342080 359473 359152
18 × 98 mm 15 polyethylene 342081 359473 359152
18 × 98 mm 15 polypropylene 342082 359473 359152
29 × 104 mm 50
polycarbonate,
graduated
363075
(pkg/8)
359474
359486a
359153
359164a
29 × 103 mm 50 polypropylene 357007
359474
359486a
359153
359164a
29 × 103 mm 50 polycarbonate 363647
359474
359486a
359153
359164a

PN GS6-TB-003MD
1-8
GH-3.8 Rotor
Description
TUBES WITH SNAP-ON CAPS
11 × 38 mm 1.5 polypropylene 357448
359469
354511b
354495a
359148
11 × 38 mm 1.5 polypropylene 356090
359469
354511b
354495a
359148
11 × 38 mm 1.5 blue
polypropylene 356091
359469
354511b
354495a
359148
11 × 38 mm 1.5 green
polypropylene 356092
359469
354511b
354495a
359148
11 × 38 mm 1.5 yellow
polypropylene 356093
359469
354511b
354495a
359148
11 × 38 mm 1.5 orange
polypropylene 356094
359469
354511b
354495a
359148
11 × 38 mm 1.5 polypropylene
(cap separate) 343169
359469
354511b
354495a
359148
11 × 39 mm 1.8 white
polyethylene 340196
359469
354511b
354495a
359148
29 × 103 mm 50 polypropylene 357005 359474
359486a
359153
359164a
29 × 103 mm 50 polycarbonate 363664 359474
359486a
359153
359164a
CONICAL TUBES
17 × 120 mm
15
polypropylene
(graduated) 355663 359472
359487a
359151
358991a
62 × 141 mm 230 polycarbonate
(with cap) 356987c349946b356983
356985a
62 × 141 mm 230 polypropylene
(with cap) 356989c349946b356983
356985a
Table 3 Beckman Coulter Tubes and Bottles for the GH-3.8 Rotor (Continued)
Dimensions
Volume
(mL) Description
Part
Number
Adapter
Set of Two Set of Four

PN GS6-TB-003MD 1-9
GH-3.8 Rotor
Description
BIOVIALS
14 × 55 mm 4 polypropylene 566353
359470
344517a
(each)
359149
BOTTLES
29 × 104 mm 50 polycarbonate
(with cap assembly) 361693 359474
359486a
359153
359164a
29 × 104 mm 50 polycarbonate
(with screw cap) 357002 359474
359486a
359153
359164a
29 × 104 mm 50 polypropylene
(with cap assembly)
357001
or
361694
359474
359486a
359153
359164a
29 × 104 mm 50 polypropylene
(with screw cap) 357003 359474
359486a
359153
359164a
28.5 × 107 mm 50 Teflon with high-speed
screw cap 363076 359474
359486a
359153
359164a
62 × 141 mm 230 conical, wide-mouth
polycarbonate 356987c
356983
(use w/
349946)
—
62 × 141 mm 230 conical, wide-mouth
polypropylene 356989c
356983
(use w/
349946)
—
62 × 136 mm 250
polycarbonate
(with screw cap,
round bottom)
355673 349946b—
62 × 122 mm 250
wide-mouth
polycarbonate
(with cap)
356013 349946b—
62 × 122 mm 250
wide-mouth
polypropylene
(with cap)
356011 349946b—
62 × 122 mm 250 wide-mouth
polycarbonate 358275 349946b—
62 × 120 mm 250 wide-mouth
polypropylene 358326 349946b—
69 × 160 mm 500 polypropylene
(with cap assembly) 355607c349945b—
69 × 159 mm 500 polypropylene
(with cap) 355665c349945b—
69 × 159 mm 500 polypropylene 355650c349945b—
Table 3 Beckman Coulter Tubes and Bottles for the GH-3.8 Rotor (Continued)
Dimensions
Volume
(mL) Description
Part
Number
Adapter
Set of Two Set of Four

PN GS6-TB-003MD
1-10
GH-3.8 Rotor
Description
CAUTION
Do not run chloroformed samples in Aerosolve cannisters. Chloroform vapors can
damage the cannister material.
Micro Plus Multiwell Plate Carriers
Figure 1 The Micro Plus Multiwell Plate Carrier
Micro Plus multiwell plate carriers (see Figure 1) are used by installing them on the pivot pins in
place of the buckets normally used with the rotor. Micro Plus carriers are made of aluminum, and
are black-anodized for corrosion resistance. The design of this carrier allows higher operating
speeds than were possible in older carrier designs. A blue thermoplastic base is used to house the
multiwell plates. A flexible plastic pad between the base and the plate(s) supports the plates during
a run. Each Micro Plus carrier will accommodate a deep-well multiwell plate, or can run up to three
96-well microplates (when more than one are run, one plate is placed directly on top of the other).
Refer to Table 4 for a list of labware that can be used with the carrier. Multiwell plates will break if
g-forces are too high. Rotor speed must not exceed 3250 rpm when Micro Plus carriers are run, and
additional speed reduction is required if maximum load limits (500 grams per carrier) are exceeded.
BOTTLES (Continued)
96 × 130 mm 750 polycarbonate
(with screw capd)358299e349846b—
96 × 130 mm 750 polypropylene
(with screw capd)356855e349846b—
a. Adapter used in Aerosolve cannister (part number 359232).
b. Tube retainers and adapter plates are sold individually.
c. These tubes cannot be run with bucket covers in place.
d. Replacement bottle cap part number is 356263 (set of 6).
e. Do not load the 750-mL bottle directly into the bucket; always use the adapter.
Table 3 Beckman Coulter Tubes and Bottles for the GH-3.8 Rotor (Continued)
Dimensions
Volume
(mL) Description
Part
Number
Adapter
Set of Two Set of Four
A
B
C
D
E
F
G
H
