Beckman Coulter MET ONE 3411 User manual

DOC026.53.80359
MET ONE 3411
10/2013, Edition 2, Firmware version 4.08.XX
User Manual

Table of Contents
Specifications..................................................................................................................................................................................7
Instrument specifications...................................................................................................................................................................7
Sample measurement specifications.................................................................................................................................................8
Battery specifications ........................................................................................................................................................................8
General information.....................................................................................................................................................................8
Safety information..............................................................................................................................................................................8
Use of hazard information...........................................................................................................................................................8
Precautionary labels ..................................................................................................................................................................9
Compliance.................................................................................................................................................................................9
Certification........................................................................................................................................................................................9
Wi-Fi devices...................................................................................................................................................................................10
Country-specific approval for Wi-Fi devices ............................................................................................................................10
Certification...............................................................................................................................................................................11

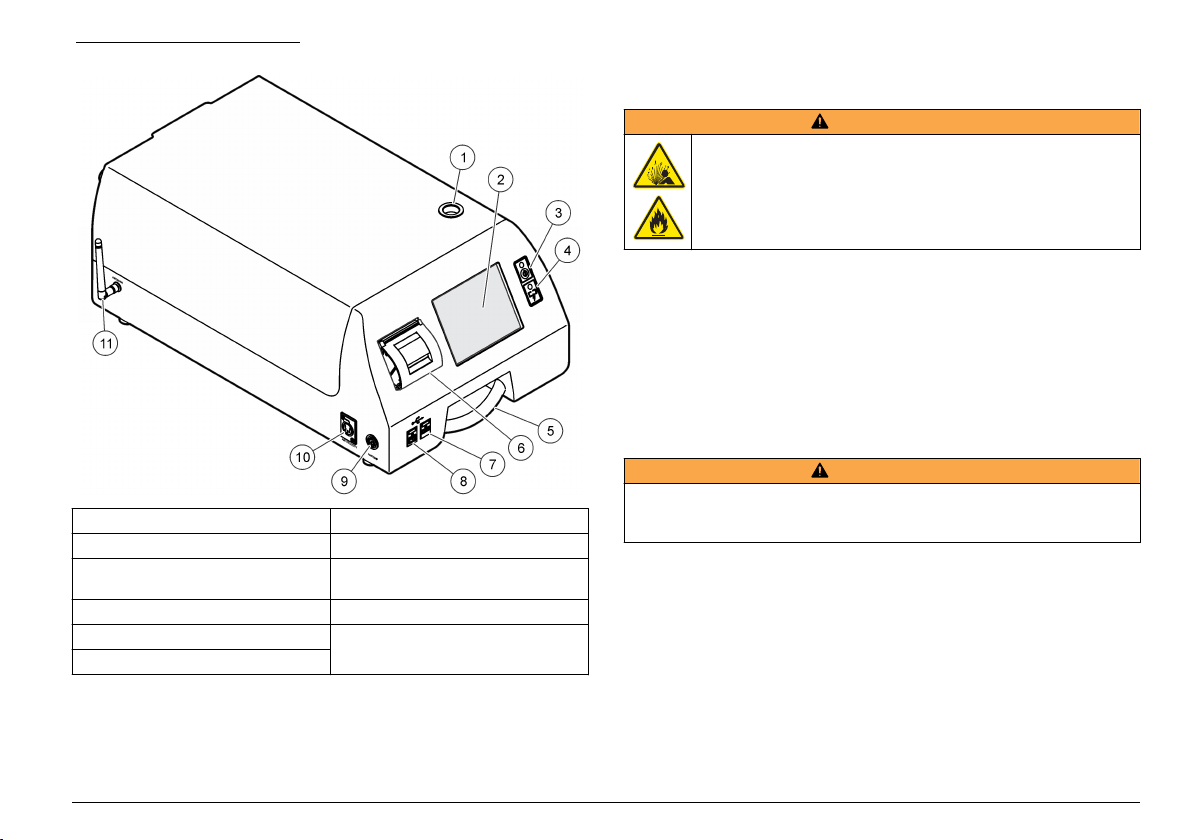

Product overview.............................................................................................................................................................................11

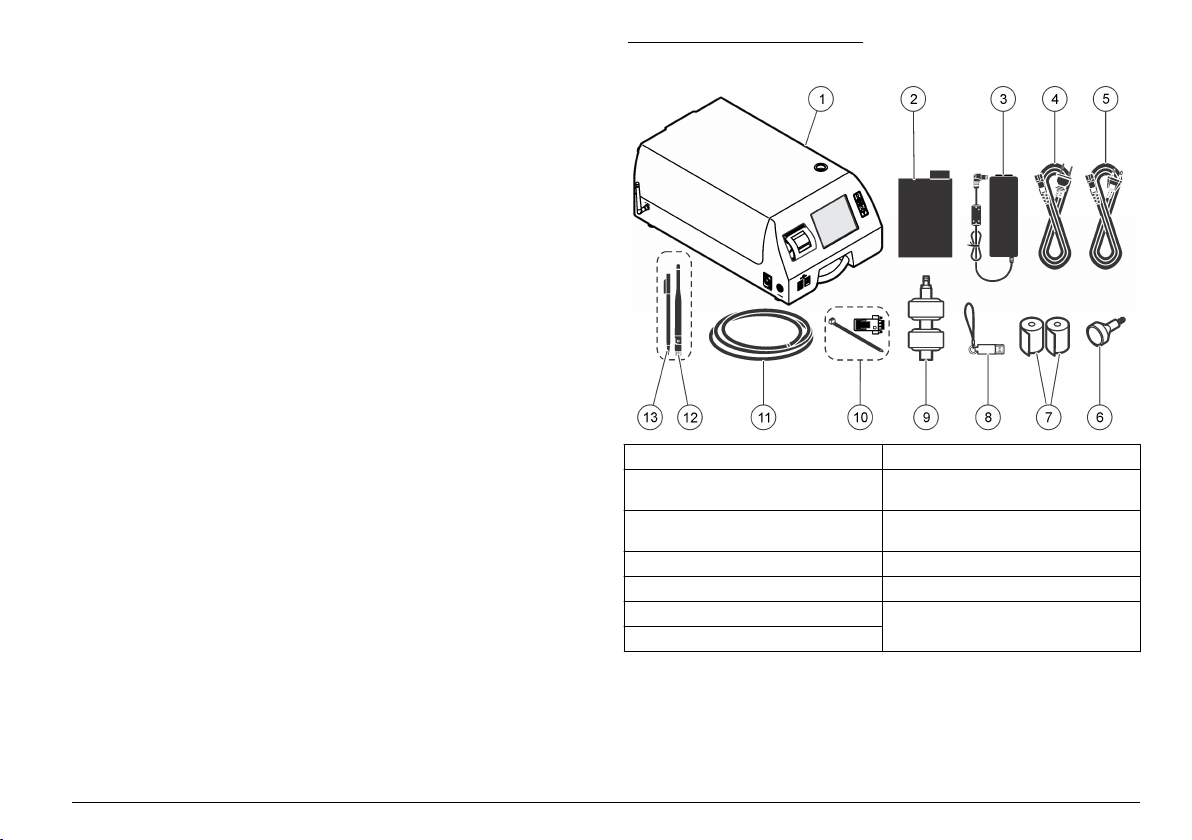

Product components........................................................................................................................................................................11
Installation.......................................................................................................................................................................................12
Wiring safety information.................................................................................................................................................................12
Electrostatic discharge (ESD) considerations...........................................................................................................................12
Electrical connections......................................................................................................................................................................12
Lithium battery safety.......................................................................................................................................................................13
Install the batteries...........................................................................................................................................................................13

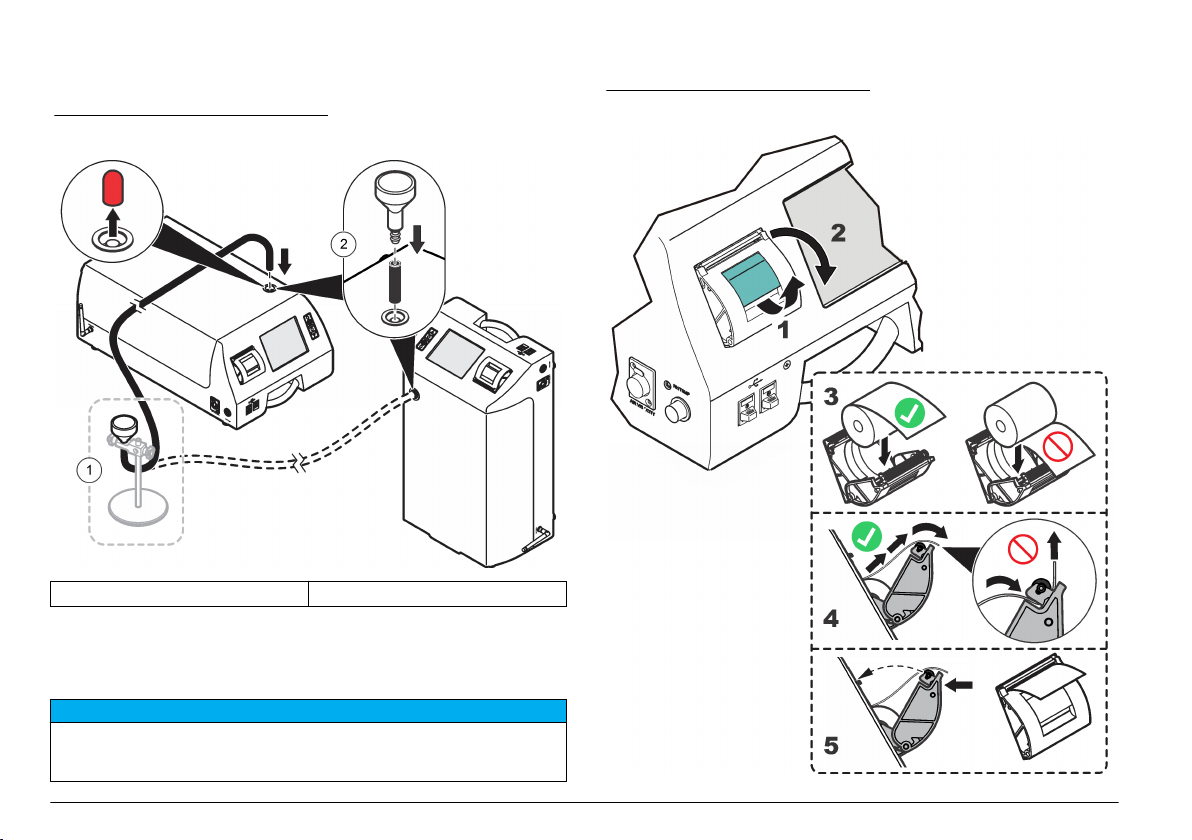

Assemble the particle counter system.............................................................................................................................................16
Install the printer paper....................................................................................................................................................................16
Connect to clean dry air (optional)...................................................................................................................................................17
Connect RS485 communication (optional)......................................................................................................................................17
Particle counter navigation .................................................................................................................................................19
Network and communications............................................................................................................................................20
About network and communications setup......................................................................................................................................20
Setup for serial communication........................................................................................................................................................20
1

Setup for Ethernet communication...................................................................................................................................................21
Setup for wireless communication...................................................................................................................................................21
Set wireless security........................................................................................................................................................................21
Configuration.................................................................................................................................................................................21
About configuration..........................................................................................................................................................................21
About Basic and Advanced operation..............................................................................................................................................21
Set the operation mode at initial startup...................................................................................................................................21
Change the operation mode.....................................................................................................................................................22
Configure the system.......................................................................................................................................................................22
Set the time and date................................................................................................................................................................22
Set the sleep mode and backlight timeout................................................................................................................................22
Set the Alarm Reasons option..................................................................................................................................................22
Set the Sample Comments option............................................................................................................................................23
Set the user interface language................................................................................................................................................23
Manage units and alarms.........................................................................................................................................................23
Manage audible alarm settings..........................................................................................................................................23
Set the measurement units................................................................................................................................................24
Set the flow rate alarm values...........................................................................................................................................24
Add an alarm reason.........................................................................................................................................................24
Edit an alarm reason.........................................................................................................................................................24
Delete an alarm reason.....................................................................................................................................................24
Apply an alarm reason to a data record............................................................................................................................24
Set the inert gas and altitude values.................................................................................................................................25
Set the particle count alert (beep function)........................................................................................................................25
Change the relative humidity and temperature probe...............................................................................................................25
Manage backup and restore settings........................................................................................................................................25
Make a backup of configurable settings............................................................................................................................25
Restore settings from backup............................................................................................................................................25
Configurations...........................................................................................................................................................................25
Copy a configuration..........................................................................................................................................................25
Install a configuration.........................................................................................................................................................26
Locations, areas and groups ...........................................................................................................................................................26
Table of Contents
2

Location management..............................................................................................................................................................26
Add a location....................................................................................................................................................................26
Edit a location....................................................................................................................................................................26
Configure new settings for the location.............................................................................................................................26
Copy settings from another location..................................................................................................................................27
Set location alarms............................................................................................................................................................27
Remove a location.............................................................................................................................................................27
Change the order of locations...........................................................................................................................................27
Area management....................................................................................................................................................................28
Add a new area.................................................................................................................................................................28
Edit an area.......................................................................................................................................................................28
Remove an area................................................................................................................................................................28
Change the order of areas.................................................................................................................................................28
Group management .................................................................................................................................................................28
Add a group.......................................................................................................................................................................28
Install a group....................................................................................................................................................................28
Delete a group...................................................................................................................................................................28
Add a location to a group...................................................................................................................................................28
Data management...........................................................................................................................................................................29
Store partial data......................................................................................................................................................................29
Manage the data buffer.............................................................................................................................................................29
Set the data buffer to rotate data.......................................................................................................................................29
Set the data buffer size......................................................................................................................................................29
Real-time PDF/CSV option..............................................................................................................................................................29
Turn on the PDF option............................................................................................................................................................29
Save the count data to a folder.................................................................................................................................................29
Manage users and permissions.......................................................................................................................................................30
Enable the user logon function.................................................................................................................................................30
Log on as administrator............................................................................................................................................................30
Change the password...............................................................................................................................................................30
Replace a forgotten password..................................................................................................................................................30
Add a user................................................................................................................................................................................30
Assign groups to a user............................................................................................................................................................31
Table of Contents
3

Assign user access rights.........................................................................................................................................................31
Operation..........................................................................................................................................................................................31
Log on to the particle counter..........................................................................................................................................................31
Measure particle counts...................................................................................................................................................................32
Change the particle count location...........................................................................................................................................32
See settings during the particle count.......................................................................................................................................32
See historical data during the particle count.............................................................................................................................32
Use the filter scan probe...........................................................................................................................................................32
Manage sample batch identification.........................................................................................................................................32
Enter or change a Batch ID...............................................................................................................................................32
Disable a Batch ID.............................................................................................................................................................32
Set or clear the Batch ID...................................................................................................................................................33
How to use the Test and Report Wizard..........................................................................................................................................33
About standard sampling protocols..........................................................................................................................................33
About reports............................................................................................................................................................................33
Set up the Test and Report Wizard..........................................................................................................................................33
Start sample measurement with the Wizard.............................................................................................................................34
Use existing data......................................................................................................................................................................34
Report test results.....................................................................................................................................................................34
How to use the Print Center.............................................................................................................................................................34
About the Print Center..............................................................................................................................................................34
Set automatic print functions....................................................................................................................................................34
Print records manually..............................................................................................................................................................35
Review historical buffer data............................................................................................................................................................36
Set the data filter.......................................................................................................................................................................36
Clear the data buffer.................................................................................................................................................................36
Export data.......................................................................................................................................................................................36
About status values in exported data........................................................................................................................................37
Configure and enable the FTP function....................................................................................................................................38
Data transfer to the OPC server......................................................................................................................................................38
User-initiated data upload.........................................................................................................................................................38
User-initiated data download....................................................................................................................................................38
Table of Contents
4

Automatic data download.........................................................................................................................................................38
Calibration.......................................................................................................................................................................................38
Maintenance...................................................................................................................................................................................38
Clean the instrument exterior...........................................................................................................................................................39
Set the count to zero........................................................................................................................................................................39
Update the instrument software.......................................................................................................................................................39
Charge the batteries in the particle counter.....................................................................................................................................39
Battery recharge intervals.........................................................................................................................................................40
Calibrate the battery.........................................................................................................................................................................40
Diagnostics and Troubleshooting....................................................................................................................................40
Factory settings...........................................................................................................................................................................40
Parts and accessories ............................................................................................................................................................41
Parts for the 28.3 LPM counter........................................................................................................................................................41
3411 parts .......................................................................................................................................................................................41
Spare parts kit (2087919-01) ..........................................................................................................................................................42
Table of Contents
5

Table of Contents
6

Specifications
Specifications are subject to change without notice.
Instrument specifications
Specification Detail
Power requirement 100–240 VAC, 3.4 A maximum, 50–60 Hz to the AC-
to-DC power supply; 24 VDC and 75 W to the
instrument
Installation category I
Protection class III
Pollution degree 2
Altitude 2000 m (6562 ft)
Light source Helium-neon laser, Class 3R Laser (IEC/EN), Class
3A Laser (CDRH), 5 mW maximum at 632.8 nm
Pump type Air vacuum, rated for continuous use
Count display Color ¼ VGA TFT touch screen
Interface Windows CE®-based
Maximum count shown 9,999,999
Delay time 00:00:06 to 23:59:59
Sample and hold times 00:00:01 to 23:59:59
Count alarms 1 to 9,999,999 counts
Data storage 50 to 5000 samples, scrollable on Historical Data
review screen
3000 is the default value
Count cycles Up to 100 while in automatic mode
Locations Up to 999
Exhaust port 3/8-in. NPT thread
Specification Detail
Outputs Ethernet–10Base-T/100Base-TX
RS485 Serial
RS232 Serial
Optional wireless–802.11 b/g compatible
USB Client (Version 1.1)
USB Host (Version 1.1)
Auxiliary (alarm and scan probe)
Manifold Supports A3432, 32-port manifold system (available
on 1 CFM units only)
Communication protocols Modbus TCP, Modbus RTU, Serial FX
Inputs Air velocity probe, relative humidity/temperature
probe
Auto CDA purge Purge solenoid activated by connection to CDA
Enclosure material Stainless steel (passivated)
Weight without battery 15.9 kg (35 lb)
Size (W x D x H) 33 x 56 x 23 cm (13 x 22 x 9 in.) including
protrusions, handles and feet
Environment, operation 0 to 40 °C (32 to 104 °F); 10 to 90% relative humidity,
non-condensing
Environment, storage –40 to 50 °C (–40 to 122 °F); 0 to 98% relative
humidity, non-condensing
Certifications CE, C-Tick, KC, FCC, IC, CDRH laser accession no.
9020917-023
English 7

Sample measurement specifications
Sampling
Particle size ranges and
standard channels
0.1, 0.2, 0.3, 0.5, 1.0, 5.0 µm
Flow rate 28.3 L/min (1.00 cfm) ± 5% (default factory setting)
Zero count Conforms to ISO 21501-4 and JIS B9921. 1 count or
less in 5 minutes, 95% confidence level
Coincidence loss 5% at 1,765,000 particles/m3 (50,000 particles/ft3) per
ISO 21501-4 method
Count efficiency 50% for 0.1 μm; 100% for 0.15 μm. Fully complies with
ISO 21501-4 and JIS B 9921.
Battery specifications
Specification Detail
Battery type Lithium ion smart battery; can be charged, ejected
and changed without disruption to the system.
Battery life during operation 3 hours minimum1
Battery recharge time 6.75 hours minimum, 10 hours maximum
Power 14.4 VDC, 6.6 Ah (2x)
Battery weight 0.66 kg (1.45 lb)
1With two fully-charged batteries in a 1.0 CFM unit sampling for 20 minutes
(1 m3 sample), print record, a 5-minute hold time (simulating a move to new
location), then repeating this cycle. The backlight time-out set to 2 minutes.
General information
In no event will the manufacturer be liable for direct, indirect, special,
incidental or consequential damages resulting from any defect or
omission in this manual. The manufacturer reserves the right to make
changes in this manual and the products it describes at any time, without
notice or obligation. Revised editions are found on the manufacturer’s
website.
Safety information
NOTICE
The manufacturer is not responsible for any damages due to misapplication or
misuse of this product including, without limitation, direct, incidental and
consequential damages, and disclaims such damages to the full extent permitted
under applicable law. The user is solely responsible to identify critical application
risks and install appropriate mechanisms to protect processes during a possible
equipment malfunction.
Please read this entire manual before unpacking, setting up or operating
this equipment. Pay attention to all danger and caution statements.
Failure to do so could result in serious injury to the operator or damage
to the equipment.
Make sure that the protection provided by this equipment is not impaired.
Do not use or install this equipment in any manner other than that
specified in this manual.
Use of hazard information
DANGER
Indicates a potentially or imminently hazardous situation which, if not avoided, will
result in death or serious injury.
W A R N I N G
Indicates a potentially or imminently hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation that may result in minor or moderate
injury.
NOTICE
Indicates a situation which, if not avoided, may cause damage to the instrument.
Information that requires special emphasis.
8 English

Precautionary labels
Read all labels and tags attached to the instrument. Personal injury or
damage to the instrument could occur if not observed. A symbol on the
instrument is referenced in the manual with a precautionary statement.
This symbol, if noted on the instrument, references the instruction
manual for operation and/or safety information.
This symbol, when noted on a product enclosure or barrier, indicates
that a risk of electrical shock and/or electrocution exists.
Delicate internal electronic components can be damaged by static
electricity, resulting in degraded performance or eventual failure.
This symbol indicates a laser device is used in the equipment.
This symbol identifies the location of a fuse or current limiting device.
Electrical equipment marked with this symbol may not be disposed of
in European public disposal systems after 12 August of 2005. In
conformity with European local and national regulations (EU Directive
2002/96/EC), European electrical equipment users must now return
old or end-of-life equipment to the Producer for disposal at no charge
to the user.
Note: For return for recycling, please contact the equipment producer or supplier
for instructions on how to return end-of-life equipment, producer-supplied
electrical accessories, and all auxillary items for proper disposal.
Compliance
This symbol indicates
that the instrument is a
Class 1 LASER product.
This product complies with IEC/EN 60825-1:2007 and 21 CFR
1040.10 except for deviations pursuant to Laser Notice No. 50, dated
June 24, 2007. FDA accession number: 8721904-033.
This product is also CE compliant. Contact the manufacturer for
complete compliance details.
Certification
Canadian Radio Interference-Causing Equipment Regulation,
IECS-003, Class A:
Supporting test records reside with the manufacturer.
This Class A digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Cet appareil numérique de classe A répond à toutes les exigences de la
réglementation canadienne sur les équipements provoquant des
interférences.
FCC Part 15, Class "A" Limits
Supporting test records reside with the manufacturer. The device
complies with Part 15 of the FCC Rules. Operation is subject to the
following conditions:
1. The equipment may not cause harmful interference.
2. The equipment must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications to this equipment not expressly approved by
the party responsible for compliance could void the user's authority to
operate the equipment. This equipment has been tested and found to
comply with the limits for a Class A digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference
to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference, in which case the user will be
required to correct the interference at their expense. The following
techniques can be used to reduce interference problems:
English 9

1. Disconnect the equipment from its power source to verify that it is or
is not the source of the interference.
2. If the equipment is connected to the same outlet as the device
experiencing interference, connect the equipment to a different
outlet.
3. Move the equipment away from the device receiving the interference.
4. Reposition the receiving antenna for the device receiving the
interference.
5. Try combinations of the above.
Wi-Fi devices
NOTICE
Network and access point security is the responsibility of the customer that uses
the wireless instrument. The manufacturer will not be liable for any indirect,
special, incidental or consequential damages caused by a breach in network
security.
Country-specific approval for Wi-Fi devices
CAUTION
Electromagnetic radiation hazard. Make sure that the antenna is kept at
a minimum distance of 20 cm (7.9 in.) from all personnel in normal use.
The antenna cannot be co-located or operated in conjunction with any
other antenna or transmitters.
Products with the wireless option contain a modular RF Wi-Fi device that
operates in the 2.4 GHz range.
• United States FCC ID: R68WIPORTG
• Canada IC ID: 3867A-WIPORTG
Country ISO31662 letter code
Austria AT
Belgium BA
Denmark DK
Finland FI
Country ISO31662 letter code
France FR
Germany DE
Greece GR
Hungary HU
Ireland IE
Italy IT
Mexico MX
Poland PL
Portugal PT
Spain ES
Sweden SE
United Kingdom GB
Iceland IS
Norway NO
Switzerland CH
Turkey TR
Netherlands NL
Regulatory RF device approvals
• FCC: Approved as a Modular Device under a TCB Grant of
Authorization. FCC ID: R68WIPORTG
• IC: Approved as a Modular Device under Certificat D'Acceptabilite'
Technique C-REL ID : 3867A-WIPORTG
Opinion: Compliant under the R&TTE Directive 1999/5/EC to the
essentials requirements of Article 3.2 according to the assessment
procedures in Article 10(5) and Annex IV for (class-2 equipment) and
marked as CE1177.
10 English

Certification
The device complies with Part 15 of the FCC Rules and Industry Canada
license-exempt RSS standard(s). Operation is subject to the following
conditions:
1. The equipment may not cause harmful interference.
2. The equipment must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications to this wireless communication equipment not
expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment. Any change to the
equipment will void the Industry Canada certification and FCC grant.
Product overview
This instrument counts and measures the size of airborne particles in
cleanroom environments. Refer to Sample measurement specifications
on page 8 for the particle sizes ranges.
Product components
Make sure that all components have been received. Refer to Figure 1. If
any items are missing or damaged, contact the manufacturer or a sales
representative immediately.
Figure 1 Product components
1 3411 particle counter 8 USB Flash drive
2 Rechargeable battery (2x)
(280-120-2024)
9 Zero count filter
3 AC-to-DC power supply
(230-300-7052)
10 RS485 connector assembly
4 Power cord (US) 11 Extension tube for isokinetic probe
5 Power cord (EU) 12 Wireless antenna for Wi-Fi
6 Isokinetic probe 13 Stylus for touchscreen interface
7 Thermal paper rolls for printer (2x)
English 11

Installation
W A R N I N G
Multiple hazards. Only qualified personnel must conduct the tasks
described in this section of the document.
Wiring safety information
W A R N I N G
Electrocution hazard. Make sure that there is easy access to the local
power disconnect.
NOTICE
Always disconnect power to the instrument before electrical connections are
made.
Obey all safety statements while connections are made to the
instrument.
Electrostatic discharge (ESD) considerations
NOTICE
Potential Instrument Damage. Delicate internal electronic components
can be damaged by static electricity, resulting in degraded
performance or eventual failure.
Refer to the steps in this procedure to prevent ESD damage to the
instrument:
• Touch an earth-grounded metal surface such as the chassis of an
instrument, a metal conduit or pipe to discharge static electricity from
the body.
• Avoid excessive movement. Transport static-sensitive components in
anti-static containers or packages.
• Wear a wrist strap connected by a wire to earth ground.
• Work in a static-safe area with anti-static floor pads and work bench
pads.
Electrical connections
Connect probes, external power, cables and USB devices as shown in
Figure 2 and Figure 3.
Figure 2 Back view
1 Serial communications
RS485 connector
6 CDA (clean dry air) purge
connector
2 Ethernet connector 7 Exhaust port1
3 Power connector 8 Manifold controller connector or
standard RS232 port
4 Supplemental feet 9 Auxiliary I/O port for the filter scan
probe
5 Battery ports
1The exhaust port has a 3/8-in. NPT thread that can be connected to a 3/8-in.
NPT to 3/8-in. hose barb adapter (580854).
12 English

Figure 3 Front and side view
1 Sample intake nozzle 7 USB host connector
2 Touchscreen 8 USB client connector
3 Power button 9 Relative humidity and temperature
probe connector
4 Battery status light 10 Air velocity probe connector
5 Handle 11 Wireless antenna
6 Printer
Note: For best results, use USB flash drives supplied by the manufacturer.
Lithium battery safety
W A R N I N G
Fire and explosion hazard. Lithium batteries may get hot, explode or
ignite and cause serious injury if exposed to abuse conditions.
• Do not use the battery if there is visible damage.
• Do not use the battery after strong shock or vibration occurs.
• Do not expose the battery to fire.
• Keep the battery at temperatures less than 60 ºC (140 ºF).
• Keep the battery dry and away from water.
• Prevent contact between the positive and negative battery terminals.
• Do not let unauthorized persons touch the battery.
Install the batteries
W A R N I N G
Explosion hazard. To avoid fire and/or explosion, use only the battery type and
power supply/charger specified by the manufacturer. For part numbers, refer to
Figure 1 on page 11.
English 13

14 English

English 15

Assemble the particle counter system
Figure 4 shows how to assemble the particle counter system.
Figure 4 Particle counter assembly
1 Remote installation of the probe 12 Local installation of the probe
1Shown with the optional isokinetic probe stand. Refer to 3411 parts
on page 41 for ordering information.
Install the printer paper
NOTICE
To avoid damage to the printer, do not operate the printer without paper. Use
only the recommended thermal paper. If the particle counter must be used
without paper, be sure to set the print mode to "None".
Refer to the illustrated steps in Figure 5 to install printer paper.
Figure 5 Printer paper installation
16 English

Connect to clean dry air (optional)
Make sure that all the components installed before the particle counter,
including interconnecting lines, are pressure rated for higher than
150 psi.
Use a clean dry air (CDA) purge in high vapor areas to minimize
contamination of the sensor. The CDA purge typically consists of a
pressure source (40–120 psi, 100 psi nominal), a desiccator and an
absolute 0.1 µm filter. The CDA will use approximately 0.1 CFM at
atmospheric pressure.
1. Connect the purge air line to the CDA purge connector on the
particle counter. Refer to Figure 2 on page 12. Use the supplied 1/8-
inch NPT fitting.
2. Switch on the particle counter.
3. Switch on the purge air.
Connect RS485 communication (optional)
To connect for RS485 communication, refer to the illustrated steps that
follow.
English 17

18 English
