BEGA 77 008 Manual

Installation and Technical Information
BEGA
Due to the dynamic nature of lighting products and the associated technologies, luminaire data on this sheet is subject to change at the discretion of BEGA North America. For the most current technical data, please refer to bega-us.com
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 © copyright BEGA 2019

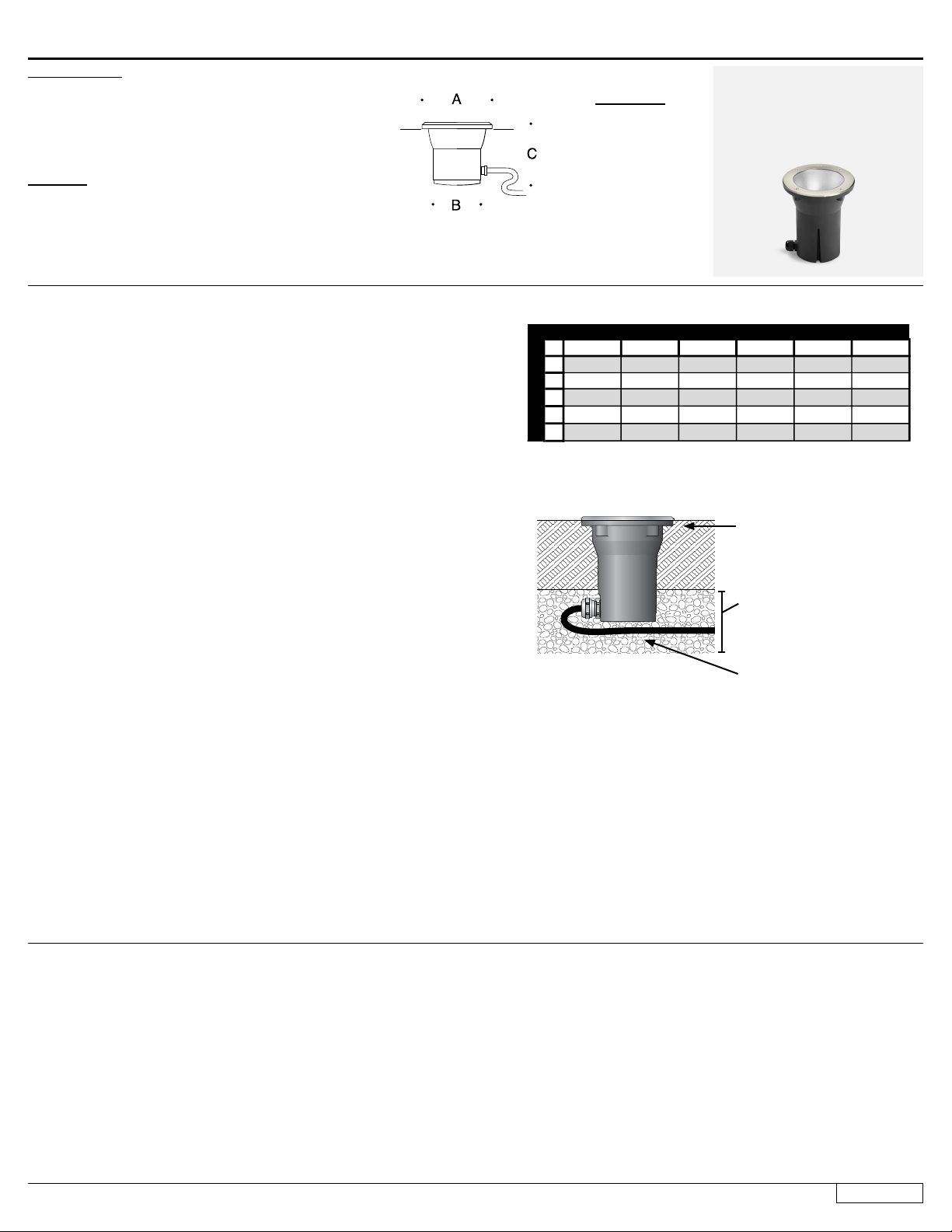

Figure 1:Voltage drop chart
Overview:
LED Watts: 3.0W
System Watts: 4.2W
Controllability: Non dimmable
Weight: 1.9 lbs.
Protection Class: IP67
Tools Required:
• Digging tool
Housing ush to nished surface
Figure 2: Installation
6' #18 AWG wire
Proper draining required
Garden oodlight - Home & Garden 77 008
Notice to Installer:
1. BEGA fixtures may be damaged if connected to a conduit system that contains water.
Article 300-5G of the National Electric Code requires that “conduits or raceway
through which moisture may contact energized live parts shall be sealed or plugged at
both ends”.
2. Remote 12-24V AC input voltage required for use with BEGA Home and Garden
luminaire. Voltage must not drop below 10V AC.
3. Pre-wired with 6' of #18 AWG wire with waterproof gland into housing.
4. Luminaire must be installed 10'' or more from pool, spa or fountain.
5. Do not remove the desiccant pouch from the luminaire housing.
Installation:
1. Turn main power off before start of installation.
2. Establish planned fixture location and provide 12-24V AC supply wiring.
3. Dig hole at least 5” deep for luminaire. Sufficient drainage (e,g, gravel, stone
chippings) must be provided under the luminaire. [Figure 2]
4. Install luminaire housing flush to finished surface.
5. Make wiring connections. For maximum wire run lengths see [Figure 1].
6. Wiring connections must be made in a watertight location.
7. Fill soil or gravel around luminaire assuring housing stays level.
8. Turn main power on.
Dimensions
A: 4 3/8''
B: 2 3/8''
C: 5''
Maintenance:
Clean regularly with solvent-free cleaner
removing dirt and debris. Do not use high
pressure cleaners.
Replacement Parts
See label inside of xture for LED replacement
part number.
Consult factory for all other replacement
components.
Accessories
Please refer to the appropriate accessory installation
sheet for further instruction when applicable.
Low voltage magnetic transformer 536
Updated: 10/07/19
77 008 1 of 2
5W 10W 15W 20W 30W 40W
18 366 183 122 92 61
46
16
585
292
195
146
97
73
14 928 464 309 232 155
116
12 1477 738 492 369 246
185
10 2353 1176 784 588 392
294
*Max Run Length (ft) Per Wire Size: 2V drop
WIRE SIZE (AWG)
TOTAL SYSTEM WATTS
Installation and Technical Information
BEGA
Due to the dynamic nature of lighting products and the associated technologies, luminaire data on this sheet is subject to change at the discretion of BEGA North America. For the most current technical data, please refer to bega-us.com
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 © copyright BEGA 2019
Product Safety Warnings:
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
SUITABLE FOR WET LOCATIONS.
MIN 90°C SUPPLY CONDUCTORS.
CE PRODUIT DOIT ÊTRE INSTALLÉ SELON LE CODE D’INSTALLATION PERTINENT, PAR UNE PERSONNE QUI CONNAÎT
BIEN LE PRODUIT ET SON FONCTIONNEMENT AINSI QUE LES RISQUES INHÉRENTS.
CONVIENT AUX EMPLACEMENTS MOUILLÉS.
LES FILS D’ALIMENTATION 90°C MIN.
Updated: 10/07/19
2 of 2
77 008
Garden oodlight - Home & Garden 77 008

Other BEGA Outdoor Light manuals
