BEMIS bioBidet HD-5000 User manual

OWNER’S MANUAL
Manual del Propietario
HD-5000
BIDET SEAT

2 3
PRODUCT INFORMATION
Main Unit & Parts.......................................................4
Product Diagram........................................................5
PRODUCT INSTALLATION
Pre-Installation............................................................6
Installation.....................................................................8
Water Connection....................................................12
Operation......................................................................16
Night Light Instructions.........................................17
PRODUCT MAINTENANCE
Cleaning & Maintenance......................................20
Troubleshooting.......................................................22
Specifications............................................................24
WARRANTY
Warranty......................................................................25
TABLE OF CONTENTS

4 5
MAIN UNIT & PARTS PRODUCT DIAGRAM
Method 1
Method 2
NOTE:
There are two methods for
installation. The recommended
way is using the rubber expansion
nuts. The second option is using
the buttery nuts. Please select the
option best suited for your specic
installation needs.
T-valve and
rubber gasket
Bidet Supply Hose

6 7
PRE-INSTALLATION
Please make sure you read the instructions carefully and install it properly.
Caution
1. The water pressure limit is from 10 to 110 PSI. Please use as instructed.
2. The water shutoff valve should be near where the product is installed.
Pre-Installation
1. Insert the mounting bolts
into the rectangular steel
mounting brackets.
2. Insert the mounting bolts
with the brackets into the
catch plate.
3. Example of how the bolts fit through the mounting brackets
and how they are placed onto the catch plate and secured to
the toilet.

8 9
1. Completely remove the
old toilet seat and lid.
2. Install expansion nuts. 3. Attach the catch plate. 4. Install the bidet seat.

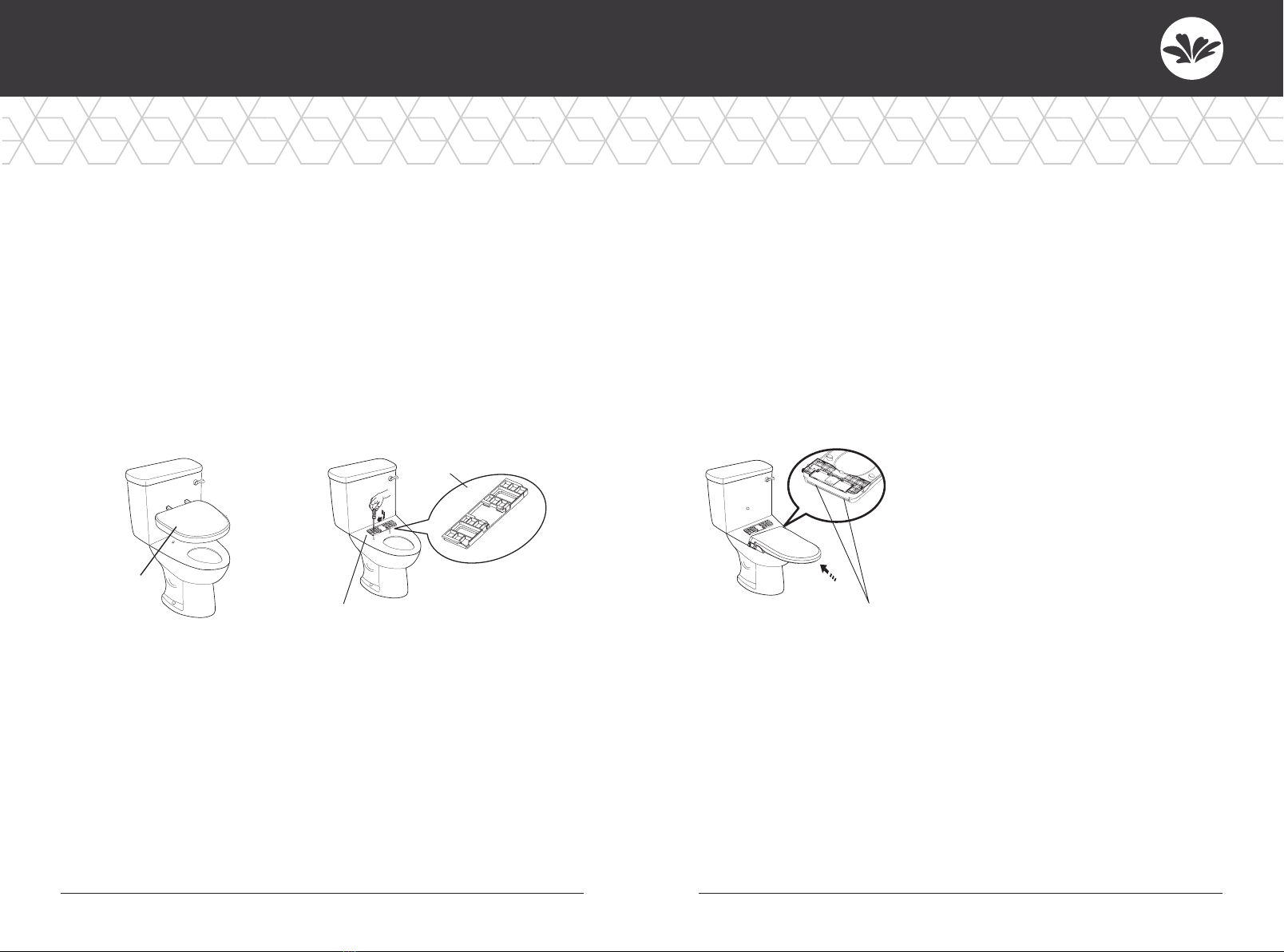

•Attach the catch plate in the
toilet seat holes. Adjust the
position of mounting bolts
and adjust the pieces to line
up the mounting bolts to the
expansion nuts. Then tighten to
secure the catch plate.
•Line up the bidet with the
catch plate then push the bidet
seat onto the catch plate. You
will hear the bidet seat click
into place.
•Be sure to firmly press down
so the top of the expansion
nut is flush with the ceramic
toilet surface.
First Installation Method (Recommended)
INSTALLATION

10 11
Second Installation Method

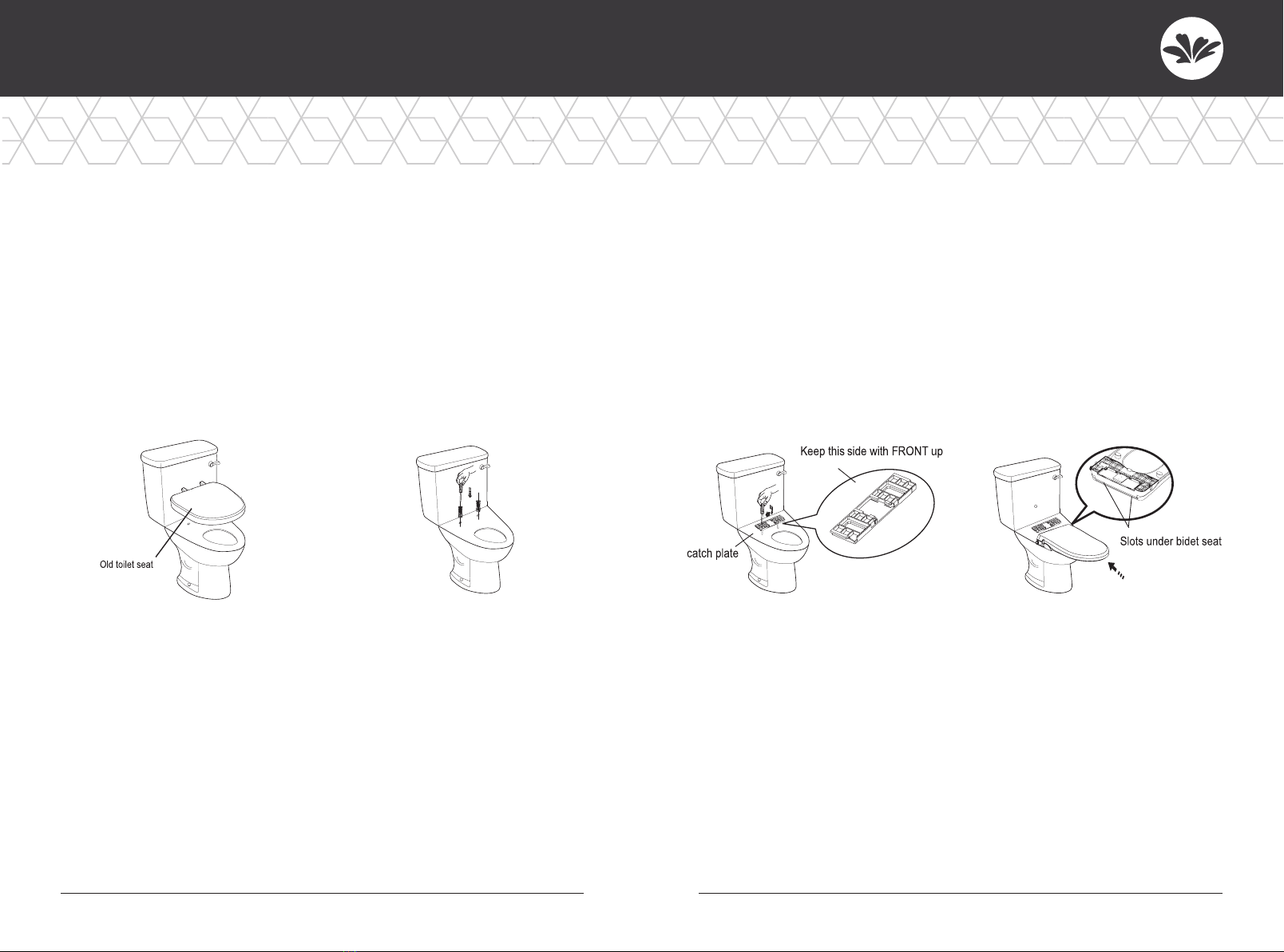

1. Remove the old
toilet seat.
2. Attach the catch plate. 3. Install the bidet seat, line
up the bidet with the
catch plate, you will hear
the seat click into place.
•Put the catch plate over
the toilet seat mounting
holes. Screw on the nuts from
underneath the toilet. Tighten
to secure the catch plate.
INSTALLATION (CONT.)

12 13
WATER CONNECTION
1. Close the water supply
valve. Flush the toilet.
2. Unscrew the water
supply hose from the
water tank. Place a towel
below the tank to catch
any dripping water.
3. Attach the T-valve to the
water tank where you
removed the water supply
hose. Ensure the rubber
gasket is properly seated
within the T-valve.
4. Re-attach the water
supply hose to the
bottom of the T-valve.

14 15
WATER CONNECTION (CONT.)
5. Connect the bidet
supply hose.
•Connect the bidet supply hose
to the metal inlet on the side
of the bidet seat. Connect the
other end of the hose to the
T-valve and tighten snugly. Be
careful not to over-tighten.
6. Slowly open the water
valve to check if there is
any leakage. •Tighten any connectors gently until leakage stops. If any leaks continue,
turn off the water supply and check older hoses for damaged rubber
o-rings. Teflon tape may be used on connections to help seal.
Contact Bio Bidet support if additional assistance is needed.
7. Wipe the hoses and connectors thoroughly with a towel and
carefully observe for any leaks for at least 10 minutes.

16 17
OPERATION NIGHT LIGHT INSTRUCTIONS
Stop
•Return the lever to the upright
position to turn it off.
Bidet (Front Feminine Wash)
•Gradually push control lever forward until
preferred pressure is reached.
Rear Wash
•Gradually push the control lever back until
preferred pressure is reached.
1. Installing the battery
•Remove the battery pack. •Insert 4AA batteries, and put
the battery pack in the control
box. Replace the cover firmly.
•To ensure the proper polarity AA batteries must be used.
•During initial installation and replacement of the batteries you must install
based on the figure provided above.
•During long periods of non-use, it is recommended to remove the batteries
from the battery pack.
Note: Please check and clean the battery contacts prior to installation
Single use AA batteries are recommended.

18 19
NIGHT LIGHT INSTRUCTIONS (CONT.)
2. Instructions 3. Replacing the battery.
•Insert the battery pack back
into the bidet seat.
•When the light turns red please
replace the battery.
•When replacing the battery,
press the release button on
the bidet, then remove.
Repeat the previous steps to
replace the batteries.
•Press the button once to activate the night light.
•Press again to dim the light.
•Press a third time to turn the light off.
•To prolong the battery life, the night light turns off after 7 hours.
•Pressing the power button will reset the 7 hour timer.
Operation
Important

20 21
1. Cleaning the exterior of
the bidet seat.
•Using a sponge/cloth with
water and/or mild soap to
clean the product. Do not
use the following types of
cleaning products: hydrogen
chloride detergent, paint
thinner, benzene abrasive
paper, polishing agent, bleach
or chlorine.
•Pull out the nozzle softly
and use a smooth cloth/
sponge or soft toothbrush
to clean the nozzle.
•Turn off the water supply,
remove the white water hose
and clean the filter screen.
•Clean the regulator o-ring.

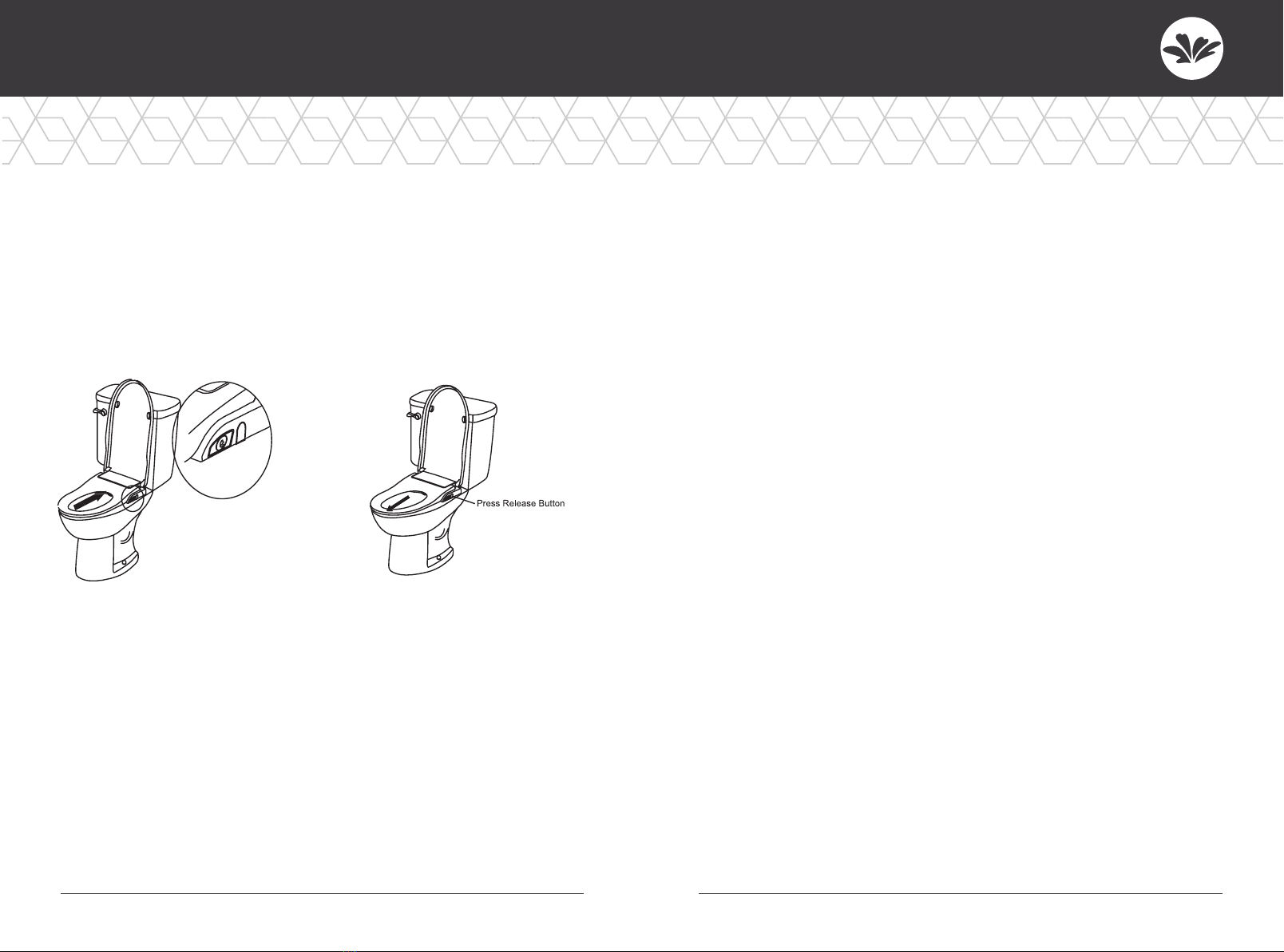

•Close the cover. Push and hold
the release button and pull the
bidet seat forward as shown.
2. Cleaning the
spray nozzles.
3. Clean the filter
and regulator.
4. Remove the main body.
CLEANING & MAINTENANCE

22 23
TROUBLESHOOTING
Status Cause Solution
Water is too
low during
WASH/BIDET
Low water pressure of
the unit.
During use, turn the lever
forward or backward to
highest setting
Low water pressure of
water supply.
If the water supply pressure
is too low, contact your
local water utility.
No water comes
out during
WASH/BIDET
Water shut-off valve is
turned off
Turn on the water
shut-off valve
Filter of the T-shaped
connector is clogged
Clean the lter of the
T-shaped connector
Filter of water inlet
hose is clogged
Clean the lter of water
inlet hose
Nozzle head is stuck Take off and clean the
nozzle head
External water
pressure is low
Increase the external
water pressure
Water is
dropping from
the bowl when
using the unit
External water
pressure is too high
The maximum water pressure
of the unit is 110 PSI. If the
water supply pressure is
above this, contact
your local water utility.
Night light
doesn’t work
Low batteries Water is too low during
WASH/BIDET
If any failure still occurs after above troubleshooting, please
contact [email protected] or call 847.458.2334.
Do not disassemble, repair, or remodel the unit, as this will
void the warranty.

24 25
Classifications Description
Model Number Sta-Clean Bidet Seat
WASH water ow 0.35-1.8 L/min
Feminine water ow 0.35-1.8 L/min
Backow Prevention Check valve
Water Supply Direct connection
Water Pressure Range 10-110 PSI
Dimensions 19.68” (l) x 14.30” (w)
x 2.25” (h)
Weight 4.85 lbs
SPECIFICATIONS WARRANTY
Your product is warranted against defects in materials or workmanship for
one (1) year from the date of original purchase. Defective parts or a defective
product returned to Bio Bidet Innovation LLC will be repaired with new or
comparable rebuilt parts by Bio Bidet Innovation LLC at their sole discretion.
This limited warranty given by Bio Bidet Innovation LLC covers all
defects encountered in normal use of our product, and does not apply in
the following cases:
1. Loss of or damage to your product due to abuse, misuse, tampering,
mishandling, improper packaging by you, alteration, and failure to following
operating instructions.
2. Use of parts supplies (other than those by Bio Bidet Innovation LLC’s
dealers) that cause damage to your product.
3. Replacement of discolored or stained parts caused by chlorine, bleach,
ammonia and other chemicals, cleaning supplies, oxidation, normal wear
and tear.
4. Damage to or malfunction of the unit as a result of improper and
negligent installation.
5. Any and all damages to plumbing, walls, floors, ceiling and personal
properties resulting from water leaks or breakage. The product must be
used at the user’s own risk. Therefore, the owner hereby releases the
manufacturer and distributor from any and all claims for damages where
the above condition exists.

26
No implied warranty, included any implied warranty of merchantability or
tness or a particular purpose, applies to Bio Bidet Innovation LLC after
the applicable period of the express limited warranty stated above, and no
other express warranty or guarantee, except as mentioned above, given by
any person or entity with respect to Bio Bidet Innovation LLC shall bind Bio
Bidet Innovation LLC, (some states and provinces do not allow limitations
of the length of an implied warranty) so the above limitation may not apply
to you. Bio Bidet Innovation LLC shall not be liable for revenues or spacings,
inconvenience, expense for substitute equipment or service, or any other
special incidental or consequential damages caused by the use or misuse of
or in ability to use, Bio Bidet Innovation LLC regardless of the possibility and
foresee ability of such damages. In no event shall recovery of any kind against
Bio Bidet Innovation LLC be greater in amount than the purchase price of the
product and causing the alleged damage. Without limiting the foregoing, you
assume all risk and liability for loss, damage or injury to you and your property
and to others ad their property arising out of use or misuse of or inability to
use the Bio Bidet Innovation LLC not caused directly by the negligence of
Bio Bidet Innovation LLC. This limited warranty shall not extend to anyone
other than the original purchaser of the Bio Bidet Innovation LLC.
WARRANTY (CONT.)
Thank You
Technical Support/Customer Service
7900 S Route 31 Crystal Lake, IL 60014
T: 847.458.2334
U.S. TOLL FREE: 877.339.5214
[email protected]
www.biobidet.com

Español

30 31
INFORMACIÓN DEL PRODUCTO
Unidad principal y piezas....................................32
Diagrama de producto.........................................33
INSTALACION DEL PRODUCTO
Preinstalación............................................................34
Instalación...................................................................36
Conexión de agua...................................................42
Operación...................................................................44
Instrucciones para la luz nocturna..................45
MANTENIMIENTO DEL PRODUCTO
Limpieza y mantenimiento................................48
Solución de problemas........................................50
Especificaciones......................................................52
GARANTÍA
Garantía.......................................................................53
TABLA DE CONTENIDO

32 33
UNIDAD PRINCIPAL Y PIEZAS DIAGRAMA DEL PRODUCTO
Método 1
Método 2
NOTA:
Hay dos métodos de instalación.
La forma recomenda es utilizar las
tuercas de expansión de
goma. La segunda opción es
usar las tuercas de mariposa. Por
favor seleccione la opción que mejor
se adapte a sus necesidades
especícas de instalación. Válvula en T y
junta de goma
Manguera de
suministro de bidet
Paquete de baterías
Entrada de agua metálica
a la izquierda
Pestaña de
liberación del asiento
Control de luz nocturna
y compartimento
para batería
Tapa
Palanca de
control
Conector de válvula
en T (suministrado)
Manguera de
suministro de bidet
(incluida)
Manguera de
suministro de agua
Válvula de cierre
Asiento
Boquilla rociadora
de lavado frontal
(bidet)
Boquilla de rociado
de lavado trasero
2 pernos de
montaje metálicos
2 pernos de
montaje plástico
2 tuercas de
mariposa
2 tuercas de
expansión de goma
2 soportes de
montaje
2 soportes de
montaje
placa de retención
placa de retención

34 35
PRE-INSTALACIîN
Asegúrese de leer las instrucciones detenidamente e instalarlo correctamente.
Precaución
1. El límite de presión del agua es de 10 a 110 PSI. Utilice según las instrucciones.
2. La válvula de cierre de agua debe estar cerca de donde está
instalado el producto.
Preinstalación
1. Inserte los pernos de
montaje en los soportes
de montaje de acero
rectangulares.
2. Inserte los pernos de
montaje con los soportes
en la placa de retención.
3. Ejemplo de cómo encajan los pernos a través de los soportes
de montaje y cómo se colocan en la placa de retención y se
aseguran al sanitario.

36 37
1. Retire completamente
el asiento y la tapa del
sanitario viejo.
2. Instale las tuercas
de expansión.
3. Coloque la placa
de retención.
4. Instale el asiento del
bidet.
•Coloque la placa de retención
en los orificios del asiento del
sanitario. Ajuste la posición
de los pernos de montaje y
ajuste las piezas para alinear
los pernos de montaje con las
tuercas de expansión. Luego
apriete para asegurar la placa
de retención.
•Alinee el bidet con la placa
de retención y luego empuje
el asiento del bidet hacia la
placa de retención. Escuchará
que el asiento del bidet encaja
en su lugar.
•Asegúrese de presionar
firmemente hacia abajo para
que la parte superior de la
tuerca de expansión quede
al ras con la superficie de
cerámica del inodoro.
Primer método de instalación (recomendado)
INSTALACIîN
Asiento
sanitario viejo
Mantenga este lado con el
FRENTE hacia arriba
placa de retención Ranuras debajo del asiento
del bidet

38 39
Segundo método de instalación
1. Quitar el viejo asiento
del baño.
2. Coloque la placa
de retención.
3. Instale el asiento del
bidet, alinee el bidet con
la placa de retención,
escuchará que el asiento
encaja en su lugar.
•Ponga la placa de retención
en los orificios de montaje del
asiento sanitario. Atornille las
tuercas de debajo del sanitario.
Apriete para asegurar la placa
de retención.
INSTALACIîN (CONTINUACIîN)
Asiento
sanitario viejo
Mantenga este lado con
el FRENTE hacia arriba
placa de retención Ranuras debajo del asiento
del bidet
