77-2650-R10.1 (2/2015) 1 / 12
SERVICE MANUAL
BINKS MODEL M1-G HVLP
GRAVITY FEED SPRAY GUN
6909-XXXX-X
Replaces
Part Sheet
77-2650R-9
Part
Sheet
77-2650R-10
Binks Model M1-G HVLP
GRAVITY FEED SPRAY GUN
6909-XXXX-X
The Binks M1-G HVLP Gravity Feed
Gun is a high quality sprayer that
produces fine finish for compliant and
non-compliant areas. A superbly bal-
anced forged aluminum body provides
you with extra comfort and control.
All components are machined and
finished to exacting tolerances and
only the best materials are used,
ensuring years of peak efficiency.
Simple to operate, the M1-G HVLP
provides exceptional finishes with
complex coatings such as primers,
base coats, clear coats, single stage
and waterborne compliant materials.
Additionally, specially designed air
and fluid nozzles enable the M1-G
HVLP to operate at more than 65%
transfer efficiency, in compliance with
air quality regulations as a high vol-
ume low pressure air spray gun.
The Binks M1-G HVLP Gravity
Feed Spray Gun includes a metal
paint cup with drip-proof cover.
To obtain optimum performance from
your new M1-G HVLP Gravity Feed
Spray Gun, read all instructions care-
fully.
PACKAGE CONTENTS
Please note your Binks M1-G HVLP
Gravity Feed Spray Gun package
was shipped with the following con-
tents. If anything in the following
list is missing, call 1-800-992-4657
for a prompt shipment to you of the
missing item.
Illustration Key
1. Air Nozzle Assembly
2. Gravity Feed Cup
3. Gun Body
4. Side Port Control
5. Fluid Control Knob
6. Air Connection 1/4" NPS(m)
2
1
3
4
5
6
PART
NO. DESCRIPTION QTY.
M1-G HVLP GRAVITY FEED SPRAY GUN ........ 1
54-4720 1 LITER GRAVITY FEED CUP ASSEMBLY.......... 1
SBBI-4-043 1 LITER CUP ASSEMBLY PART SHEET .............. 1
54-3871 GUNNERS MATE .............................................. 1
82-469 GUN BRUSH (ROUND)...................................... 1
192219 PLASTIC COATED GUN HOOK ........................ 1
OMX-88 CLEANING BRUSH (FLAT) ................................ 1
NOTE
IMPORTANT REGULATORY NOTE regarding
the use of this product appears on page 9.

EN
77-2650-R10.1 (2/2015)2 / 12
Binks reserves the right to modify equipment specification without prior notice.
LOCK OUT / TAG-OUT
Failure to de-energize, disconnect, lock out and tag-out all power
sources before performing equipment maintenance could cause
serious injury or death.
OPERATOR TRAINING
All personnel must be trained before operating finishing
equipment.
EQUIPMENT MISUSE HAZARD
Equipment misuse can cause the equipment to rupture,
malfunction, or start unexpectedly and result in serious injury.
PROJECTILE HAZARD
You may be injured by venting liquids or gases that are released
under pressure, or flying debris.
PINCH POINT HAZARD
Moving parts can crush and cut. Pinch points are basically any
areas where there are moving parts.
INSPECT THE EQUIPMENT DAILY
Inspect the equipment for worn or broken parts on a daily basis.
Do not operate the equipment if you are uncertain about its
condition.
In this part sheet, the words WARNING, CAUTION and NOTE are used to
emphasize important safety information as follows:
Hazards or unsafe practices which
could result in minor personal injury,
product or property damage.
!
CAUTION
Hazards or unsafe practices which
could result in severe personal
injury, death or substantial property
damage.
!
WARNING
Important installation, operation or
maintenance information.
NOTE
Read the following warnings before using this equipment.
READ THE MANUAL
Before operating finishing equipment, read and understand all
safety, operation and maintenance information provided in the
operation manual.
WEAR SAFETY GLASSES
Failure to wear safety glasses with side shields could result in
serious eye injury or blindness.
NEVER MODIFY THE EQUIPMENT
Do not modify the equipment unless the manufacturer provides
written approval.
IT IS THE RESPONSIBILITY OF THE EMPLOYER TO PROVIDE THIS INFORMATION TO THE OPERATOR OF THE EQUIPMENT.
FOR FURTHER SAFETY INFORMATION REGARDING THIS EQUIPMENT, SEE THE GENERAL EQUIPMENT SAFETY BOOKLET (77-5300).
KNOW WHERE AND HOW TO SHUT OFF THE EQUIPMENT
IN CASE OF AN EMERGENCY
PRESSURE RELIEF PROCEDURE
Always follow the pressure relief procedure in the equipment
instruction manual.
NOISE HAZARD
You may be injured by loud noise. Hearing protection may be
required when using this equipment.
STATIC CHARGE
Fluid may develop a static charge that must be dissipated through
proper grounding of the equipment, objects to be sprayed and all
other electrically conductive objects in the dispensing area. Improper
grounding or sparks can cause a hazardous condition and result in
fire, explosion or electric shock and other serious injury.
PROP 65 WARNING
WARNING: This product contains chemicals known to the
State of California to cause cancer and birth defects or other
reproductive harm.
WEAR RESPIRATOR
Toxic fumes can cause serious injury or death if inhaled.
Wear a respirator as recommended by the fluid and solvent
manufacturer’s Material Safety Data Sheet.
TOXIC FLUID & FUMES
Hazardous fluid or toxic fumes can cause serious injury or death if
splashed in the eyes or on the skin, inhaled, injected or
swallowed. LEARN and KNOW the specific hazards or the fluids
you are using.
KEEP EQUIPMENT GUARDS IN PLACE
Do not operate the equipment if the safety devices have been
removed.
!
WARNING
AUTOMATIC EQUIPMENT
Automatic equipment may start suddenly without warning.
FIRE AND EXPLOSION HAZARD
Improper equipment grounding, poor ventilation, open flame or
sparks can cause a hazardous condition and result in fire or
explosion and serious injury.
MEDICAL ALERT
Any injury caused by high pressure liquid can be serious. If you
are injured or even suspect an injury:
• Go to an emergency room immediately.
• Tell the doctor you suspect an injection injury.
• Show the doctor this medical information or the medical alert
card provided with your airless spray equipment.
• Tell the doctor what kind of fluid you were spraying or
dispensing.
GET IMMEDIATE MEDICAL ATTENTION
To prevent contact with the fluid, please note the following:
• Never point the gun/valve at anyone or any part of the body.
• Never put hand or fingers over the spray tip.
• Never attempt to stop or deflect fluid leaks with your hand,
body, glove or rag.
• Always have the tip guard on the spray gun before spraying.
• Always ensure that the gun trigger safety operates before
spraying.

EN
77-2650-R10.1 (2/2015) 3 / 12
3
OPERATION and MAINTENANCE INSTRUCTIONS for M1-G HVLP SPRAY GUN
SPRAY GUN CLEANING INSTRUCTIONS
In certain states, spraying solvents which contain Volatile
Organic Compounds (VOC) into the atmosphere when
cleaning a spray gun is now prohibited.
In order to comply with these new air quality laws Binks
recommends one of the following two methods to clean
your spray finishing equipment:
1. Spray solvent through the gun into a closed system.
An enclosed unit or spray gun cleaning station con-
denses solvent vapors back into liquid form which
prevents escape of VOC’s into the atmosphere.
2. Place spray gun in a washer type cleaner. This
system must totally enclose the spray gun, cups, noz-
zles and other parts during washing, rinsing and
draining cycles. This type of unit must be able to
flush solvent through the gun without releasing any
VOC vapors into the atmosphere.
Additionally, open containers for storage or disposal
of solvent or solvent-containing cloth or paper used for
surface preparation and clean-up may not be used.
Containers shall be nonabsorbent.
CLEANING GUN AND GRAVITY FEED CUP
Remove the cup cover and drain unused material from
cup. Carefully rinse cup with solvent. Place clean solvent
into the cup and spray this through the gun until it is clean.
Remove and clean the cup if necessary. Blow air through
the gun to dry it. (Refer to Service Bulletin SBBI-4-043 for
cleaning instructions when using cup liners.)
Your new M1-G HVLP Spray Gun is exceptionally rugged
in construction and is built to stand up under hard, continu-
ous use. However, like any other fine precision instrument,
its most efficient operation depends on a knowledge of its
construction, operation and maintenance. Properly handled
and cared for, it will produce beautiful, uniform finishing
results long after other spray guns have worn out.
IMPORTANT: Before removing any components from the
spray gun, shut off air pressure and drain material from the
paint cup.
SETUP FOR SPRAYING
CONNECTING GUN TO AIR HOSE
Air should be supplied by a suitable length of 5/16" diameter
air hose fitted with a 1/4 NPS(f) connection at gun end. For
hose lengths over 50', use 3/8" hose.

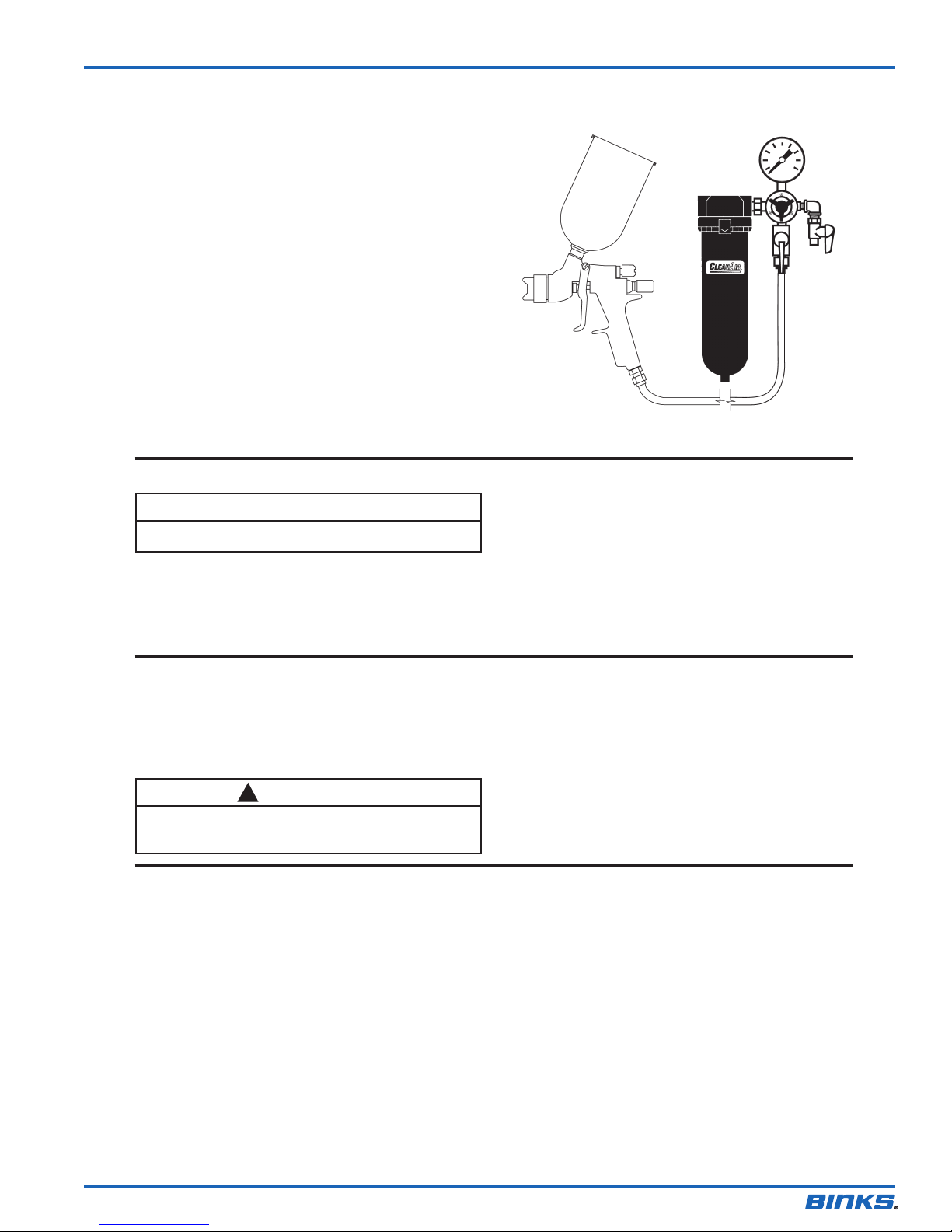

CONNECTING GRAVITY FEED CUP TO GUN
(Figure 1) Screw the cup into the spray gun fluid inlet. Fig. 1
OPERATING THE M1-G HVLP SPRAY GUN
CONTROLLING THE MATERIAL FLOW
Correct fluid nozzle size should be selected for proper
material flow rate. The material valve control knob (19)
may be used to restrict the material needle valve opening
and reduce the material flow as necessary.
CONTROLLING THE FAN SPRAY
The fan spray is controlled by means of the side port
control assembly (9). Turning this control clockwise until
it is closed will give a round spray. Turning it counter-
clockwise will widen the spray into a fan shape. The fan
spray can be turned anywhere through 360° by position-
ing the air cap (2) relative to the gun. To affect this,
loosen retainer ring, position nozzle, then tighten retainer
ring.
TROUBLE SHOOTING
FAULTY SPRAY
A faulty spray is often caused by improper cleaning,
resulting is dried materials around the material nozzle tip
or in the air nozzle. Soak these parts in thinners to soften
the dried material and remove with brush or cloth.
If either the air cap (2) or fluid nozzle (3) are damaged,
these parts must be replaced before perfect spray can be
obtained.
INTERMITTENT SPRAY
Fluttering spray is caused by either insufficient material
in the gravity feed cup or a clogged fluid passage. If the
fluid passage is clogged, drain material from the paint
cup and remove the cup and fluid nozzle. Clean the fluid
passage with solvent and reassemble.
Gravity Feed Cup
Air
Extractor
NOTE
All numbers in parentheses ( ) refer to item numbers in
Assembly Drawing on Page 6.
CAUTION
Never use metal instruments to clean the air or material
nozzles. These parts are carefully machined and any damage
to them will cause faulty spray.
!

EN
77-2650-R10.1 (2/2015)4 / 12
4
MAINTENANCE
TO REPLACE AIR VALVE AND SPINDLE ASSEMBLY
Remove material control knob (19), spring (16) and
fluid needle (18). Unscrew housing (17) and remove spin-
dle assembly (15) with springs (14 & 16), seal
retainers (13) and o-rings (12). Lubricate new o-rings
with Gunner’s Mate. Assemble components using
material needle. Place this assembly along with housing
(17) into gun body and screw into position.
Remove material needle and tighten housing.
TO REPLACE CARTRIDGE ASSEMBLY
Remove material valve control knob (19), spring (16) and
remove fluid needle (18). Pull back trigger (21) and
remove seal cartridge assembly (22). Remove and discard
plastic packing pin in new cartridge assembly. Pull back
trigger and insert new seal cartridge assembly. Reassemble
fluid needle (18), spring (16) and material valve control
knob (19).
FLUID NOZZLES
Standard Fluid Nozzles
FLUID NEEDLE
54-4382
54-4547▲
(See Note)★
54-4382
APPLICABLE FLUID
MATERIAL FLUID NOZZLE NO. AIR NOZZLES** NEEDLE
LIGHT/MEDIUM 94F (.055" Dia.) 1.4 mm• 92P•, 93P■, 94P•, 54-4390•
95P•, 95AP✷•,
MEDIUM 97F (.070" Dia.) 1.7 mm•
97AP✷•
54-4391•
FEATHERING NOZZLES
For applications requiring more gradual Material Valve opening;
metering control of fluid flow is obtained with Gun Trigger.
Optimum setup for fine automotive spray is 94 x 93P.
✷´´BLUE MAX´´ fine finish nozzles. (Retaining ring attached).
•Optional.
▲ Recommended Fluid and Air Nozzle combinations for clear
coat application.
NOTE
★
Use stainless steel fluid needle (54-4382) for these nozzles.
Use 54-4547 needle with 92GS, 94GS and 96GS fluid nozzles.
NOTE
This chart applies to M1-G Gravity Feed Guns only.
MATERIAL
LIGHT: 15 to 20 seconds in a
ZAHN 2 Cup, e.g., stains, varnishes, thin
lacquers, automotive refinishing materials.
MEDIUM: 20 to 60 seconds in a ZAHN 2
Cup, e.g., general industrial coatings
HEAVY: greater than 60 seconds in a
Zahn 2 Cup.
FLUID NOZZLE NO.
92 (.046" Dia.) 1.2 mm
92GS (.046" Dia.) 1.2 mm▲
93 (.051" Dia.) 1.3 mm•
94 (.055" Dia.) 1.4 mm
94GS (.055" Dia.) 1.4 mm▲
96GS (.063" Dia.) 1.6 mm▲
97 (.070" Dia.) 1.7 mm
903 (.079" Dia.) 2.0 mm•
905 (.089" Dia.) 2.3 mm
906 (.100" Dia.) 2.5 mm•
909 (.111" Dia.) 2.8 mm•
AIR NOZZLE**
92P•, 93P, 94P•,
95P•, 95AP✷•,
97AP✷•, 90P,
96G▲
905P

EN
77-2650-R10.1 (2/2015) 5 / 12
5
AIR NOZZLES
AIR PRESSURE RECOMMENDATIONS
AIR NOZZLE RECOMMENDATIONS:
The 93P and 905P Air Nozzles are most suitable
for conventional materials. Use of very low fluid
delivery rates with these Nozzles will produce a
narrower than normal fan pattern.
USE OF THE 95AS OR 97AS SIPHON NOZZLES IS
NOT RECOMMENDED WITH THE M1-G GRAVITY
FEED GUN.
ATOMIZING
TYPE OF MATERIAL PSI
Light Stains, Inks 3-4
Primer/surfaces 5-6
Acrylic Enamels 7-8
Lacquers 7-8
Low VOC, Urethanes 8-10
HVLP AIR NOZZLE 96G
NOZZLE NOZZLE REGULATOR
ATOMIZING ATOMIZING GUN INLET PRESSURE
AIR FLOW (SCFM) PRESSURE (PSI) PRESSURE (PSI) (PSI)
7.5 3.0 23.0 35.0
14.0 5.0 29.0 42.0
15.5 7.0 33.0 47.0
17.5 9.0 39.0 55.0
19.0 10.0 43.0 60.0
HVLP AIR NOZZLE 94P
NOZZLE NOZZLE GUN INLET
AIR FLOW ATOMIZING PRESSURE
(SCFM) (PSI) (PSI)
7.0 3.0 14.0
9.0 5.0 21.0
11.0 7.0 27.0
12.0 9.0 30.0
13.0 10.0 33.0
LVLP AIR NOZZLE 93P
NOZZLE NOZZLE REGULATOR
ATOMIZING ATOMIZING GUN INLET PRESSURE
AIR FLOW (SCFM) PRESSURE (PSI) PRESSURE (PSI) (PSI)
5.5 3.0 8.0 10.0
7.0 5.0 11.5 14.0
8.0 7.0 14.5 18.0
9.5 9.0 17.0 22.5
10.0 10.0 18.0 24.0
LVLP AIR NOZZLES 92P
NOZZLE NOZZLE REGULATOR
ATOMIZING ATOMIZING GUN INLET PRESSURE
AIR FLOW (SCFM) PRESSURE (PSI) PRESSURE (PSI) (PSI)
4.5 3.0 6.0 9.0
6.0 5.0 8.5 10.0
6.8 7.0 11.5 14.0
7.5 9.0 13.5 18.0
8.0 10.0 15.0 19.0
92P and 93P are for general industrial and automotive finish applications.
HVLP AIR NOZZLES 95P, 95AP, 97AP, 905P
NOZZLE NOZZLE REGULATOR
ATOMIZING ATOMIZING GUN INLET PRESSURE
AIR FLOW (SCFM) PRESSURE (PSI) PRESSURE (PSI) (PSI)
11.0 3.0 20.0 27.0
15.7 5.0 30.0 40.0
17.5 7.0 38.0 50.0
19.6 9.0 45.0 58.0
22.5 10.0 50.0 64.0
NOTE
Regulator pressures are based on 25' of 5/16"
Hose in good condition without Quick-
Disconnects or other restrictive fittings. Use
the Air Nozzle Test Gauge accessory to confirm
the atomizing/regulator pressure relationship
for your actual air supply set-up. These
recommendations are for “typical” or
“average” materials, and are intended to
serve as a starting point. Adjust as necessary
for your specific application.

EN
77-2650-R10.1 (2/2015)6 / 12
6
ASSEMBLY DRAWING FOR THE M1-G GRAVITY FEED SPRAY GUN
1
2
3
45
8
6
9
7
22
23
12
13
14
11
28
30
31
26
15
10
16
13
12
17
19
16
18
24
21
20
27
29
REFER TO SERVICE BULLETIN SBBI-4-043 FOR:
• Warnings and cautions for
cup assembly 54-4720.
• Assembly instructions for
the liner (not shown).
• Cleaning instructions for the
cup assembly when used with or without the liner.
32
25

EN
77-2650-R10.1 (2/2015) 7 / 12
7
ITEM PART
NO. NO. DESCRIPTION QTY.
1 54-3531 RETAINING RING ........................................ 1
2★AIR CAP ...................................................... 1
3★FLUID NOZZLE ............................................ 1
4 54-4368 HEAD INSERT .............................................. 1
5 54-4369-5▲❍ HEAD INSERT SEAL RING............................ 1
6 54-4361▼M1-G HANDLE ASSEMBLY
7 54-4359 TRIGGER STUD ............................................ 1
8 82-126 TRIGGER SCREW ........................................ 1
9 54-4364 SIDE PORT CONTROL ASSEMBLY .............. 1
10 54-3511▲RETAINING RING ........................................ 1
11 20-6160▲O-RING ........................................................ 1
12 20-4615-5▲❍ O-RING ........................................................ 2
13 54-3515 SEAL RETAINER .......................................... 2
14 54-3520▲SPRING (Yellow).......................................... 1
15 54-3512▲SPINDLE ASSEMBLY .................................... 1
16 54-3518▲SPRING (Blue).............................................. 2
17 54-3541 HOUSING .................................................... 1
PARTS LIST
(When ordering, please specify PART NO.)
★ See Air and Fluid Nozzle Chart on Page 4.
✹ Available in KGP-5-K5 Filter Kit (quantity of 5) only.
▲ Available in Spare Parts Kit 54-4367.
Not furnished. Please order separately.
▼ Item NOT available separately.
ITEM PART
NO. NO. DESCRIPTION QTY.
18 ★FLUID NEEDLE ............................................ 1
19 54-3606 MATERIAL VALVE CONTROL KNOB .......... 1
20 54-768 AIR CONNECTION
21 54-4360 TRIGGER ...................................................... 1
22 54-4370▲SEAL CARTRIDGE ASSEMBLY...................... 1
23 54-3513 VALVE SPINDLE CAP .................................. 1
24 54-4720 1 LITER GRAVITY FEED CUP ASSEMBLY .... 1
25 GFC-404❏DISPOSABLE LID ASSEMBLY
26 KGP-13▲✚ CUP GASKET (Blue) .................................... 1
27 54-3918 WRENCH (Optional) .................................. 1
28 82-469 GUN BRUSH (Round) .................................. 1
29 KGP-5✹FILTER ..........................................................
30 192219 PLASTIC COATED GUN HOOK.................... 1
31 6-429 GUNNER’S MATE (Twelve 2-oz. bottles).... 1
32 OMX-88 CLEANING BRUSH (Flat) ............................ 1
33 OMX-70 ✖DISPOSABLE LINER (Not Shown)
(Refer to Service Bulletin SBBI-4-043)
❍ Available only as a Quantity Pak.
❏ Available in GFC-404-K2 Disposable Lid Kit (quantity of 2) only.
✚ Available in KGP-13-K5 Cup Gasket (Blue) Kit (quantity of 5) only.
✖ Available in OMX-70-K48 Disposable Liner Kit (quantity of 48) only.
GENERAL SPRAY INSTRUCTIONS
To reduce overspray and obtain maximum efficiency, always
spray with the lowest possible fluid/air pressure that produces an
acceptable spray pattern.
Excessive atomizing air pressures can increase overspray,
reduce transfer efficiency, and with some materials, result in poor
finish quality from dry spray. Atomizing air pressures should not
exceed 10 psi. See table on page 5, diagram on this page and
Regulatory Note on page 9. Generally use 30 - 35 psi at gun inlet
(see below). Unusually heavy, difficult to atomize materials may
require up to 50 psi air at gun head.
SPRAY TECHNIQUE
The first requirement for a good resultant finish is the proper
handling of the gun. The gun should be held perpendicular to
the surface being covered and moved parallel with it. The stroke
should be started before the trigger is pulled, and the trigger
should be released before the stroke is ended. This gives accu-
rate control of the gun and material.
The distance between gun and surface should be 6 to 10 inches
depending on material and atomizing pressure. The material
deposited should always be even and wet. Lap each stroke over
the preceding stroke to obtain a uniform finish.
6 to 12 inches
Coating should be even
and wet when spraying
Oil and Water Extractor is important
Achieving a fine spray finish without the use of a good oil and water extractor is virtually impossible.
A Regulator/Extractor serves a double purpose. It eliminates blistering and spotting by keeping air
free of oil and water and it gives precise air pressure control at the gun. See page 3 regarding installa-
tion of extractors.
Atomizing pressure must be set to allow for the drop in air pressure between the regulator and the
spray gun.

EN
77-2650-R10.1 (2/2015)8 / 12
U.S.A./ Canada Customer Service
195 Internationale Blvd.
Glendale Heights, IL 60139
630-237-5000
Toll Free Customer Service
and Technical Support
800-992-4657
Toll Free Fax
888-246-5732
Binks Sales and Service: www.binks.com
WARRANTY
This product is covered by Binks’ 1 Year Limited Warranty.
Approx.
5 1/2 psi
at Nozzle
Approx.
9 psi
at Nozzle
Only 34 psi
at Gun Inlet
25 feet of
1/4" I.D. hose
causes a drop
of 26 psi
between the
air supply
and the gun.
48 psi
at Gun Inlet
25 feet of 5/16" I.D.
hose causes a drop
of 12 psi between
the air supply and
the gun. For this
reason we recommend
the use of 5/16" hose.
1/4" 5/16"
Cross section view showing comparison of
inside hose diameters (actual size). 60 lbs
regulated pressure.
HOSE RECOMMENDATION
With 60 psi applied at air supply:
RECOMMENDED
NOT RECOMMENDED
IMPORTANT REGULATORY NOTE
Some Regulatory Agencies prohibit the operation of HVLP spray guns above 10 psi nozzle atomizing pressure. Users subject to
this type of regulation should not exceed the gun inlet pressure indicated on the air cap. See General Spray Instructions and Air
Pressure Recommendations, page 8. It is recommended that the nozzle test gauge (see below) be used to confirm actual nozzle
operating pressure.
It may also be a requirement of some regulatory agencies that users have this gauge nozzle available on site to verify that the
gun is being operated within the limits of applicable rules.
AIR NOZZLE TEST GAUGE ASSEMBLY
54-3935 for 95P, 97P, 95AP, and 97AP Nozzles.
54-3908 for 900 Series Nozzles.
54-4345 for 90P Air Nozzle.
54-4356 for 93P Air Nozzle.
54-3902 for 92P Air Nozzle.
54-4066 for 94P Air Nozzle.
54-4566 for 96G Air Nozzle.
ACCESSORIES
(When ordering, please specify PART NO.)
Part No. Description
192219 Plastic Coated Gun Hook
81-82 Strainer
145 Mesh—typical for Lacquers
81-83 Strainer
100 Mesh—typical for Metal Flake
81-84 Strainer
80 Mesh—typical for Primers
59-299
Gauge
only
192219
Plastic Coated Gun Hook
(Supplied with outfit)
3/13 ©2013 Binks All rights reserved. Printed in U.S.A.
77-2650R-10 Revisions: Trademark update;
(P9) Revised Accessories.

EN
77-2650-R10.1 (2/2015) 9 / 12
NOTES

EN
77-2650-R10.1 (2/2015)10 / 12
NOTES

EN
77-2650-R10.1 (2/2015) 11 / 12
NOTES

EN
77-2650-R10.1 (2/2015)12 / 12
Finishing Brands reserves the right to modify equipment specications without
prior notice. DeVilbiss, Ransburg, BGK, and Binks are registered trademarks of
Finishing Brands. ©2015 Finishing Brands. All rights reserved.
WARRANTY POLICY
Binks products are covered by Finishing Brands one year materials and workmanship limited warranty.
The use of any parts or accessories, from a source other than Finishing Brands, will void all warranties.
For specic warranty information please contact the closest Finishing Brands location listed below.
Binks is part of Finishing Brands, a global leader in innovative spray nishing
technologies. For technical assistance or to locate an authorized distributor,
contact one of our international sales and customer support locations below.
USA/Canada
www.binks.com
info@nishingbrands.com
Tel: [phone]
Fax: [phone]
United Kingdom
www.nishingbrands.eu
info@nishingbrands.eu
Tel: [phone]
Fax: [phone]
China
www.nishingbrands.com.cn
mkt@nishingbrands.com.cn
Tel: [phone]
Fax: [phone]
Mexico
www.nishingbrands.com.mx
sales@nishingbrands.com.mx
Tel: [phone]
Fax: [phone]
France
www.nishingbrands.eu
info@nishingbrands.eu
Tel: [phone]
Fax: [phone]
Japan
www.ransburg.co.jp
[email protected].jp
Tel: [phone]
Fax: [phone]
Brazil
www.devilbiss.com.br
[email protected]
Tel: [phone]
Fax: [phone]
Germany
www.nishingbrands.eu
info@nishingbrands.eu
Tel: [phone]
Fax: [phone]
Australia
www.nishingbrands.com.au
sales@nishingbrands.com.au
Tel: [phone]
Fax: [phone]
