Blatchford EliteVT User manual

Instructions for Use
Navodila za uporabo
Инструкции за употреба
Upute za uporabu
Návod na použitie
Használati útmutató
Οδηγίες χρήσης
Lietošanas pamācība
Naudojimo instrukcija
Kasutusjuhend
PK2
EliteVT
Instructions for Use
EVT22L11S–EVT30R94S
EVT22L11SD–EVT30R94SD
EN 2
SL 17
BG 32
HR 47
SK 62
HU 77
EL 92
LV 107
LT 122
ET 137

2
Contents
938289SPK1/1-0121
EN
Contents.................................................................................................................................................................2
1 Description and Intended Purpose ....................................................................................................................3
2 Safety Information....................................................................................................................................................5
3 Construction ...............................................................................................................................................................6
4 Function........................................................................................................................................................................7
5 Maintenance...............................................................................................................................................................7
6 Limitations on Use....................................................................................................................................................8
7 Bench Alignment.......................................................................................................................................................9
7.1 Static Alignment..................................................................................................................................................9
7.2 Dynamic Alignment...........................................................................................................................................9
7.3 Transfemoral Alignment...................................................................................................................................9
8 Fitting Advice........................................................................................................................................................... 10

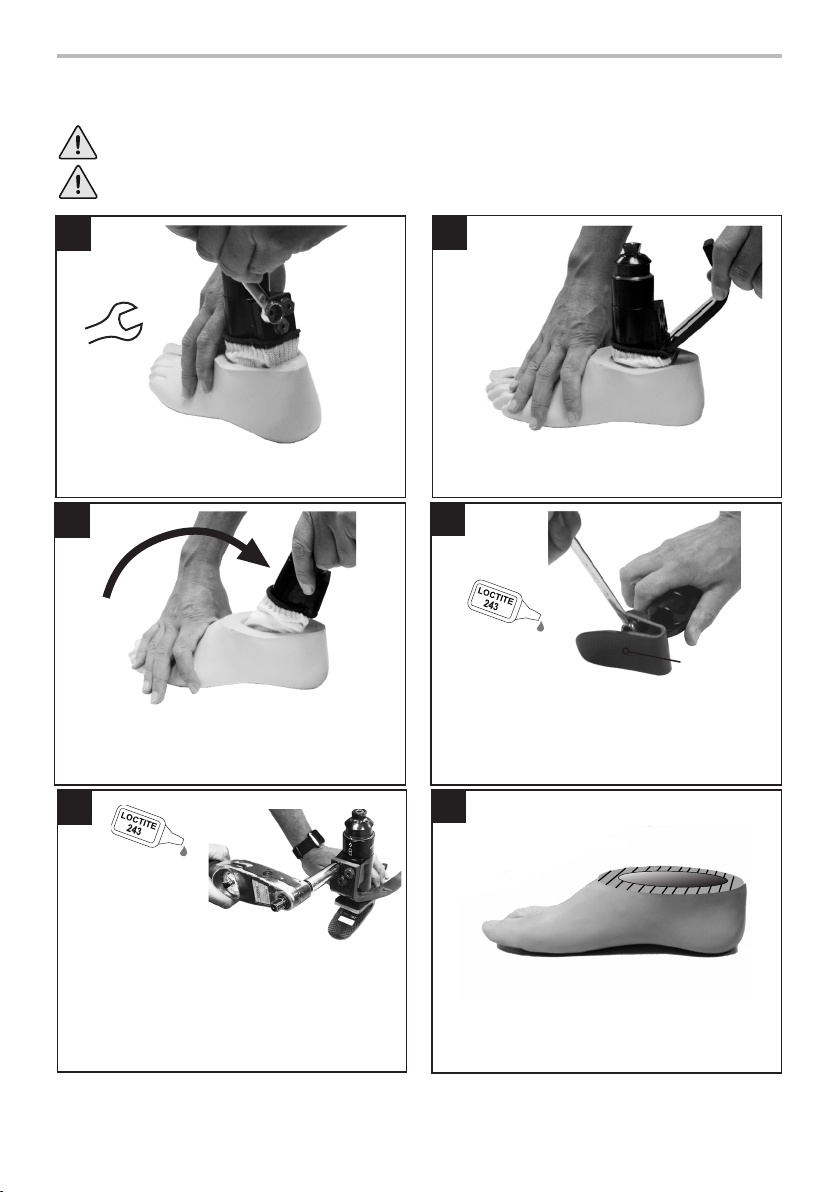

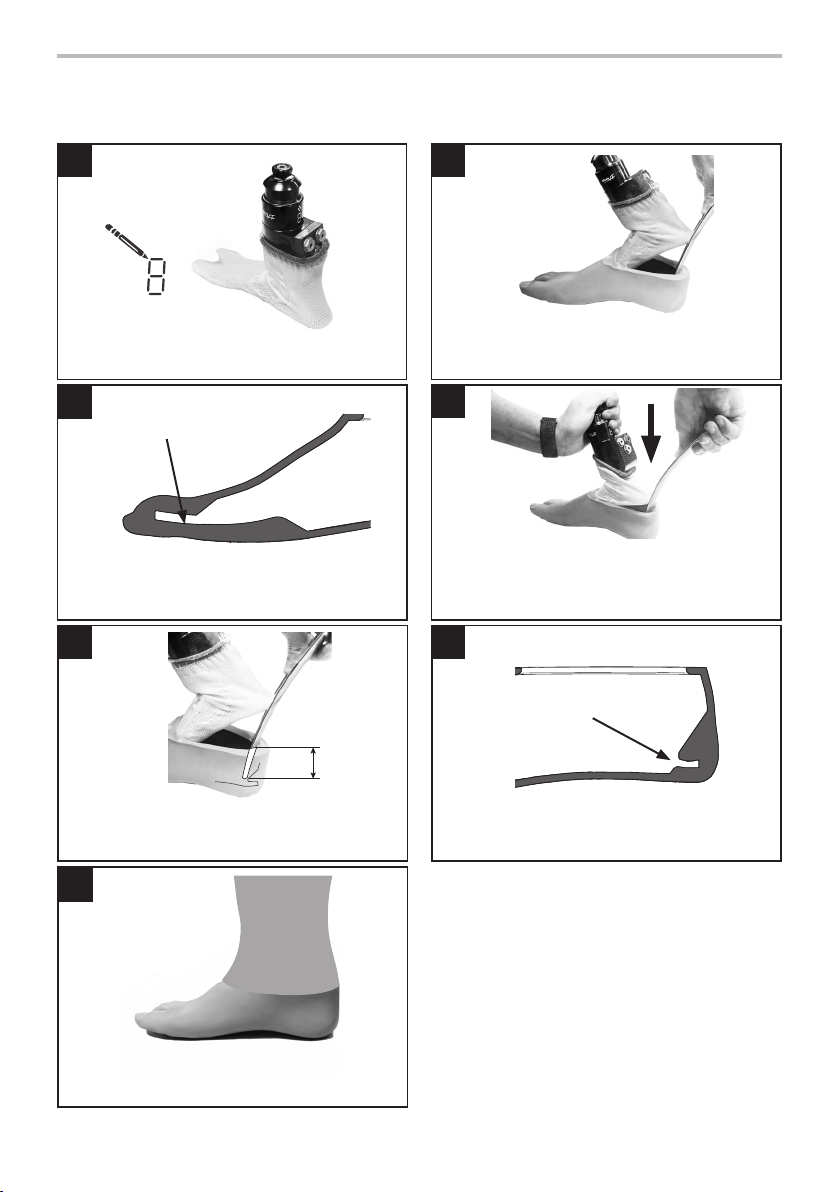

9 Foot Shell Removal & Foot Spring Replacement........................................................................................ 11
10 Axial Shock Spring Replacement...................................................................................................................... 13
11 Technical Data ......................................................................................................................................................... 14
12 Ordering Information ........................................................................................................................................... 15

3
1 Description and Intended Purpose
These Instructions for Use are intended for use by the practitioner and user unless otherwise
stated.
The term device is used throughout these instructions for use to refer to EliteVT.
Please read and ensure you understand all instructions for use, in particular all safety information
and maintenance instructions.
Application
This device is to be used exclusively as part of a lower limb prosthesis.
Intended for a single user.
A high-energy-return foot. Independent heel and toe spring provides axial deection. The split
toe provides good ground compliance. This device also includes a spring element capable of
absorbing axial and rotational shock intended to reduce sheer stresses at the residuum/socket
interface.
Features
• Precision titanium spring for vertical compression and axial rotation
• Linear response to axial loading
• Ecient energy return
• Independent e-carbon foot springs
• Heel wedge for adjusting spring stiness
Activity Level
This device is recommended for users that have the potential to achieve Activity Level 3 or 4.
Of course there are exceptions and in our recommendation we want to allow for unique,
individual circumstances and any such decision should be made with sound and thorough
justication.
Activity Level 3
Has the ability or potential for ambulation with variable cadence.
Typical of the community ambulator who has the ability to traverse most environmental barriers and
may have vocational, therapeutic, or exercise activity that demands prosthetic utilization beyond
simple locomotion.
Activity Level 4
Has the ability or potential for prosthetic ambulation that exceeds basic ambulation skills, exhibiting
high impact, stress, or energy levels. Typical of the prosthetic demands of the child, active adult, or
athlete.
Contraindications
This device may not be suitable for Activity Level 1 individuals or for competitive sports events,
as these types of users will be better served by a specially designed prosthesis optimized for their
needs.
938289SPK1/1-0121

4
Clinical Benets
• Allows variable running speeds
• Increased walking speed, compared to rigid pylons
• High levels of mobility for active users, compared to non-energy-storage-and-return feet,
hydraulic ankles, ex-foot-style feet and ex-walk-style feet.
• Improved prosthetic push-o work compared to solid-ankle-cushioned-heel feet
• Increased prosthetic positive work done, compared to lower activity feet
• High degree of user satisfaction, particularly with high activity users
• Reduced loading rate on the residual limb, compared to rigid pylons
• Reduced back pain when twisting, compared to rigid pylons
Note… If in doubt choosing between two categories, choose the higher rate spring set.
Foot spring set recommendations shown are for transtibial users.
For transfemoral users we suggest selecting a foot spring set one category lower.
Once tted with springs, cover appropriate lines on carrier with permanent black
marker to leave spring set number showing.
Warning: For higher impact users, do not exceed the weight limit for individual springs.
Low Daily walking and occasional sports such as golf and hiking
Moderate Aggressive walking, frequent or daily sports such as jogging
High Daily activities such as distance running, climbing, lifting and carrying heavy objects for
vocational purposes
User Weight
Impact
Activity
44–52
(100-115)
53–59
(116-130)
60–68
(131-150)
69–77
(151-170)
78–88
(171-195)
89–100
(196-220)
101-116
(221-255)
117-130
(256-285)
131-147
(286-325)
148-166
(326-365)
kg
(lbs)
Low 31123456789
Mod4123456789
High 4 2 3 4 5 6 7 8 9
Foot Spring
Set
1
Axial shock
spring rated
as shown
2 3 4
Spring Set Selection
938289SPK1/1-0121

5
Any changes in the performance or
function of the limb e.g. restricted or
excessive movement, non-smooth
motion or unusual noises should be
immediately reported to your service
provider.
Always use a hand rail when
descending stairs and at any other time
if available.
The device is not suitable for extreme
sports, competitive running or cycle
racing, ice and snow sports, extreme
slopes and steps. Any such activities
undertaken are done so completely at
the users’own risk. Recreational cycling
or running is acceptable.
Assembly, maintenance and repair of
the device must only be carried out by a
suitably qualied practitioner.
The user should be advised to contact
their practitioner if their condition
changes.
Ensure only suitably retrotted vehicles
are used when driving. All persons are
required to observe their respective
driving laws when operating motor
vehicles.
To minimize the risk of slipping and
tripping, appropriate footwear that ts
securely onto the foot shell must be
used at all times.
The device is not intended for use
when immersed in water or as a
shower prosthesis. If the limb comes
into contact with water wipe dry
immediately.
To minimize the risk of slipping and
tripping, appropriate footwear that ts
securely onto the foot shell must be
used at all times.
Be aware of nger trap hazard at all
times
This warning symbol highlights important safety information which must be
followed carefully.
2 Safety Information
938289SPK1/1-0121

6
Principal Parts
• Carrier Assembly Aluminum/titanium/stainless steel
• Heel & Toe Springs e-carbon
• Spring Attachment Screws Titanium
• Glide Sock UHM PE (ultra-high-molecular-weight polyethylene)
• Foot Shell PU (polyurethane)

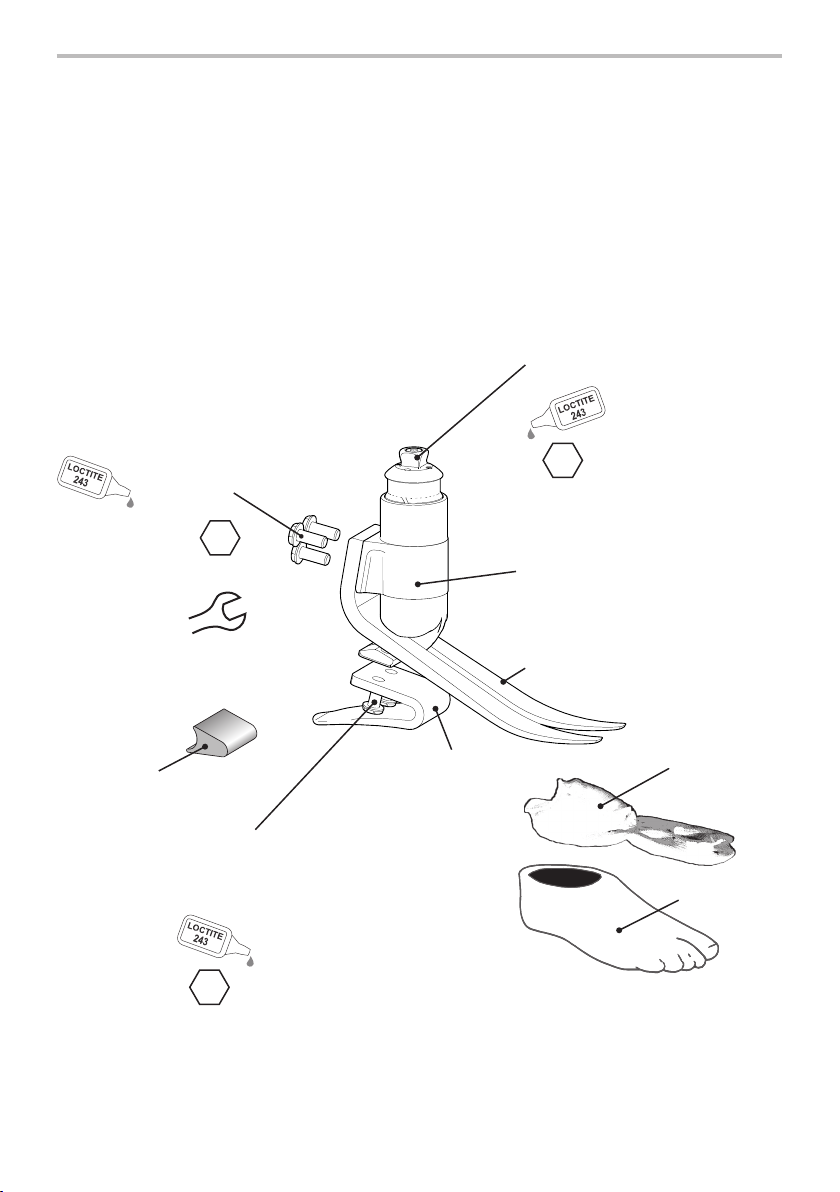

3 Construction
Heel Spring Glide Sock
Foot Shell
Toe Spring
Pyramid
Screw
(Loctite 243)
Carrier
Assembly
5
20Nm
Spring Sets 8 & 9:
25Nm,
13A/F Spanner
Heel Wedge
Heel Spring Screws
(Loctite 243)
Torque Spanner
Adaptor 940081
Toe Spring
Screw
(Loctite 243)
4
Spring Sets 1–7:
15Nm,
4 A/F Allen
4
15Nm
938289SPK1/1-0121

7
4 Function
This device comprises an e-carbon toe and independent heel spring. The carrier assembly
contains a spring component which allows the pyramid tube to deect and/or rotate through a
limited range under an axial and/or torsional load. When the load is removed the spring returns
to its original position. The eect of this movement is to attenuate any shock forces that would
otherwise be transmitted to the residuum/socket interface both in axial and rotational directions.
Heel and toe springs are attached to the carrier assembly using titanium screws. The foot is
wrapped in a UHM PE sock which is in turn surrounded by a PU foot shell.
5 Maintenance
Visually check the device regularly.
Report any changes in performance of this device to the practitioner/service provider e.g.
unusual noises, increased stiness or restricted/excessive rotation, signicant wear or excessive
discoloration from long term exposure to UV.
Inform the practitioner/service provider of any changes in body weight and/or activity level.
Cleaning
Use a damp cloth and mild soap to clean outside surfaces, do not use aggressive cleansers.
The remaining instructions in this section are for practitioner use only.
This maintenance must be carried out only by competent personnel (practitioner or suitable
trained technician).
The following routine maintenance is to be carried out at least annually:
• Remove foot shell and glide sock, check for damage or wear and replace if necessary.
• Check all screws for tightness, see Construction section; clean and reassemble as necessary.
• Check heel and toe springs for signs of delamination or wear and replace if necessary. Some
minor surface damage may occur after a period of use, this does not aect the function or
strength of the foot.
Instructions to remove the foot shell and replace the foot-springs are included in Foot Shell
Removal & Foot Spring Replacement section.
If necessary, re-lubricate the spring’s bearing surfaces. To do this:
• Disassemble the device as shown in the Axial Shock Spring Replacement instructions.
• Apply‘Sapphire Endure’ (928015) or equivalent PTFE loaded grease to the bearing surface,
then reassemble.
Ensure the user has read and understood all safety and user-level maintenance information.
Advise the user that a regular visual check of the foot is recommended and signs of wear that
may aect function should be reported to their service provider (e.g. signicant wear or excessive
discoloration from long term exposure to UV).
If this device is used for extreme activity, the maintenance level and interval should be reviewed
and if required advice and technical support sought to plan a new maintenance schedule
dependent upon the frequency and nature of the activity. This should be determined by a local
risk assessment carried out by a suitably qualied individual.
938289SPK1/1-0121

8
Intended Life
A local risk assessment should be carried out based upon activity and usage.
Lifting Loads
Users weight and activity is governed by the stated limits.
Load carrying by the users should be based on a local risk assessment.
Environment
Avoid exposing this device to corrosive elements such
as water, acids and other liquids. Also avoid abrasive
environments such as those containing sand for example
as these may promote premature wear.
Exclusively for use between -15°C and 50 °C
(5°F and 122 °F).
6 Limitations on Use
938289SPK1/1-0121

0-10mm
½½
9
7 Bench Alignment
The instructions in this section are for practitioner use only.
Allow for user’s own
footwear
*
7.1 Static Alignment
Set-up Length
With exion, adduction and abduction
properly accommodated, set the limb length
10mm longer than the sound side to allow for
compression and deection of the foot & axial
shock springs during gait. This should be re-
assessed before the dynamic trial commences
and the length adjusted accordingly.
Build Line
This should fall 10mm anterior to the centre
of the pyramid (with heel height properly
accommodated). The socket should be
positioned accordingly.
7.2 Dynamic Alignment
Coronal Plane
Ensure that M-L thrust is minimal by adjusting
relative positions of socket and foot.
Sagittal Plane
Check for smooth transition from heel strike
to toe-o. Ensure also that when standing the
heel and toe are evenly loaded and that both
are touching the oor.

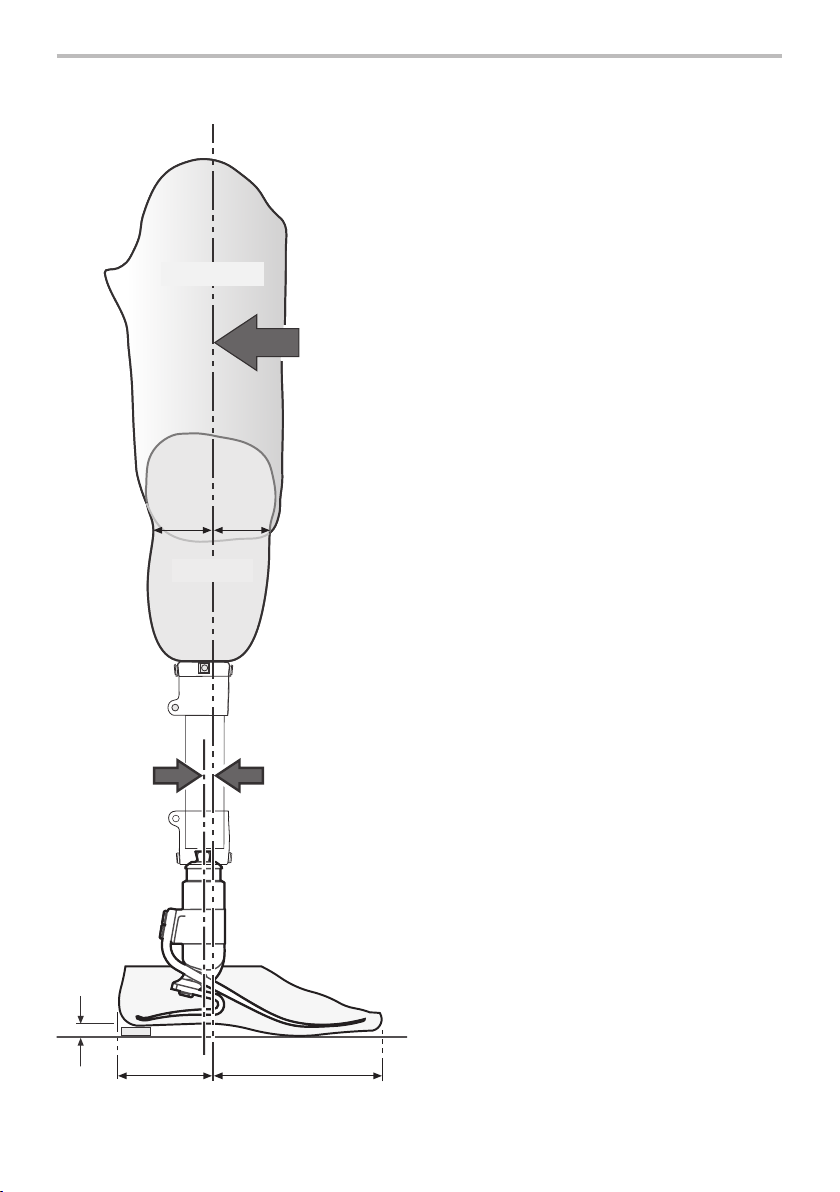

7.3 Transfemoral Alignment
Align transfemoral components according to
tting instructions supplied with the knee,
keeping the build line relative to this device,
as shown.
Build
Line
Approx.
1/3 2/3
*
Transfemoral
Transtibial
938289SPK1/1-0121

10
Springs are supplied as matched sets i.e. the heel, toe and axial springs are designed to work
together to give smooth progression for most users.
Heel Wedge
A heel wedge is supplied with the foot. Fitting the wedge will have the eect of stiening the
heel spring. These can be taped in place for trial. For permanent tting, wedges should be
adhered in place by application of Loctite 424 (926104) between the lower contacting surface of
the heel and the wedge.
Heel Stiness
Progression throughout the stance phase should be smooth; heel function is key to this process:
• Too soft a heel or load line excessively posterior will result in sinking at heel strike and
diculty in getting over the toe.
• Too hard a heel or load line excessively anterior will result in a rapid progression through
mid-stance or jarring at heel strike.
Axial Stiness
The axial spring controls both compressive and torsional resilience. Typical vertical movement
should be between 3-6mm for normal walking. Alternative stiness springs are available if
required.
8 Fitting Advice
Note… Please contact your supplier if it is not possible to achieve a smooth gait after following the
advice above.
Symptoms Remedy
Heel too soft • Sinking at heel strike
• Diculty climbing over the
toe (toe feels too hard)
1. Add heel wedge
2. Move socket anteriorly in relation
to the foot (excess movement may
result in drop-o)
3. If 1 and 2 fail, t a stier spring set
Heel too hard • Rapid transition from heel
strike through stance phase
• Diculty in controlling heel
action, foot jars into mid-
stance
• Foot feels too rigid
1. Remove heel wedge (if tted)
2. Move socket posteriorly in relation
to foot
3. If 1 and 2 fail, t softer spring set
Toe/ Blade too soft • Rapid progression through
mid-stance.
• ‘Drop o’ at higher Activity
Levels
1. Move socket posteriorly in relation
to foot
2. Plantarex foot slightly - note:
some re-alignment may be
required
The instructions in this section are for practitioner use only.
938289SPK1/1-0121

Remove toe spring screws (13A/F spanner
940273). Withdraw toe spring from shell.
13A/F
Rotate the carrier/heel spring assembly toward
the rear of the foot to dis-engage the spring
from it’s location in the shell.
Undo and remove heel spring screws. Assemble
new heel spring onto carrier, use Loctite 243
(926012) and torque to 15Nm. Use special Allen
wrench 940080, Torque spanner adaptor 940081
or 13A/F spanner 940273
If a foam cosmesis is to be tted, roughen top
surface of foot shell to provide ideal bonding
surface.
Attach the toe
spring to the carrier
using Loctite 243
(926012) on the
bolts.
1. For spring rates 1 to 7 use 4 A/F Allen
wrench and torque to 15Nm. Do not use
external hex, this is reserved for loosening
the bolt, if required.
2. For spring rates 8 and 9 use 13 A/F
spanner and torque to 25Nm.
11
9 Foot Shell Removal & Foot Spring Replacement
Be aware of nger trap hazard at all times.
Use appropriate health and safety equipment at all times including
extraction facilities.
The instructions in this section are for practitioner use only.
Heel Spring
1.2.
3.4.
5.
6.
938289SPK1/1-0121

12
9Foot Shell Removal & Foot Spring Replacement
(continued)
Insert assembly into foot shell, push toe spring,
carrier and heel assembly forward in the foot
shell as far as possible.
Slide a metal shoe horn between heel spring
and back of foot shell opening. Lever the spring
down into the foot shell while pushing the whole
assembly downwards.
Ensure toe spring’s correct t into location slot in
foot shell.
The shoe horn should be located approx. 30 mm
below top surface of foot shell to ensure full
engagement of heel spring.
Ensure heel spring’s correct t into location slot
in foot shell.
Bond foam cosmesis to top surface of the foot
shell as shown using Thixox adhesive (926204)
or equivalent and shape to suit.
The instructions in this section are for practitioner use only.
Mark carrier with spring category as appropriate
and t glide sock as shown.
30 mm
Toe Spring location
in Foot Shell
Heel Spring location slot
7.8.
9.10.
11.12.
13.
938289SPK1/1-0121

4
5
4
13
10 Axial Shock Spring Replacement
Remove from foot shell as shown previously
Unscrew pyramid
screw to withdraw
pylon.
It may be necessary
to partially unscrew
the pyramid screw as
shown and tap the
screw head gently to
disengage the anti
rotation pins
Using a long-reach
hex key wrench,
remove distal spring
retaining screw
Re-lubricate bearing surface with‘Sapphire Endure’(928015) or equivalent PTFE loaded grease if
necessary.
Re-assembly is the reverse of above, note the position and location of anti-rotation pins in the
axial spring and the orientation of the slot in the pylon (posterior). Apply Loctite and apply
torque to screws as shown in the Construction section.
The instructions in this section are for practitioner use only.
Remove rotation stop
Withdraw
pylon
Note spring rating
1.2.
3.4.
938289SPK1/1-0121

14

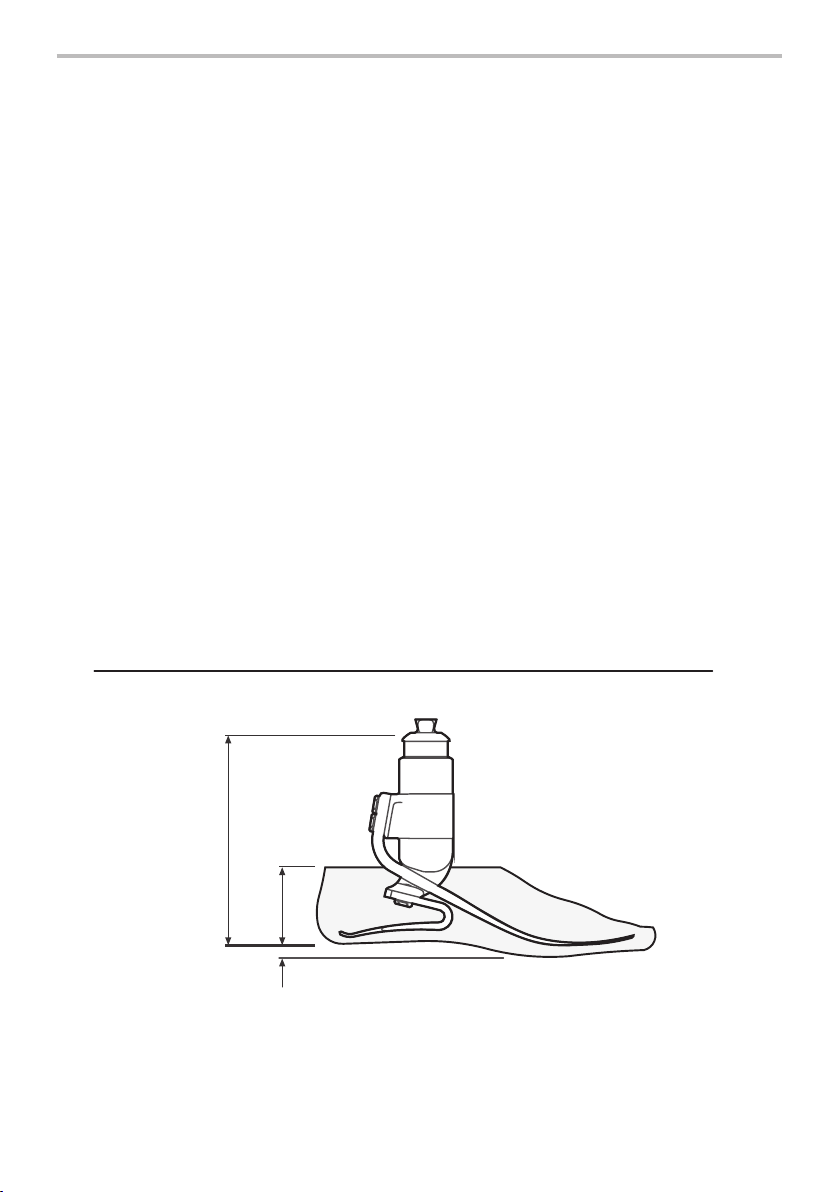

Fitting Length
11 Technical Data
Operating and
Storage Temperature Range:
-15°C to 50 °C
(5°F to 122 °F)
Component Weight (size 26):1000 g (2lb 2oz)
Activity Level: 3–4
Maximum User Weight: 166kg (365 lb)
Range of Adjustment ±7° angular
Maximum Rotation ±15°
Typical Axial Movement 3–6mm (max. 10 mm)
Proximal Attachment: Male pyramid (Blatchford)
Build Height: 170mm
Heel Height 10mm
170mm
10mm
*
Note…
Refer to Bench
Alignment
section.
* Sizes
22-26 = 65mm
27-28 = 70mm
29-30 = 75mm
938289SPK1/1-0121

15
EVT 25 L N 7 3 S
Size Side
(L/R)
Width*
(N/W)
Spring
Set
Shock
Spring
Sandal
Toe
e.g. EVT25LN73S
12 Ordering Information
Order Example Available from
size 22 to size 30:
EVT22L11S to EVT30R94S
EVT22L11SD to EVT30R94SD
(add‘D’ for a dark tone foot shell)
Spring Kit Foot Size
22-24 25–26 27–28 29–30
Set 1 539701S 539710S 539719S Special order
Set 2 539702S 539711S 539720S Special order
Set 3 539703S 539712S 539721S 539730S
Set 4 539704S 539713S 539722S 539731S
Set 5 539705S 539714S 539723S 539732S
Set 6 539706S 539715S 539724S 539733S
Set 7 539707S 539716S 539725S 539734S
Set 8 539708S 539717S 539726S 539735S
Set 9 539718S 539727S 539736S
Spring Kit
Glide Sock
Foot Shell (For dark add‘D’)
Size/Side Narrow Wide
22L 539038S -
22R 539039S -
23L 539040S -
23R 539041S -
24L 539042S -
24R 539043S -
25L 539044SN 539044SW
25R 539045SN 539045SW
26L 539046SN 539046SW
26R 539047SN 539047SW
27L 539048SN 539048SW
27R 539049SN 539049SW
28L - 539050S
28R - 539051S
29L - 539052S
29R - 539053S
30L - 539054S
30R - 539055S
Axial Shock Springs
Rate 1 539058
Rate 2 539059
Rate 3 539060
Rate 4 539061
Sizes 22-24 531011
Sizes 25-30 532811
*Sizes 25-27 only. For all other sizes, omit the Width eld.
938289SPK1/1-0121

16
Liability
The manufacturer recommends using the device only under the specied conditions and for
the intended purposes. The device must be maintained according to the instructions for use
supplied with the device. The manufacturer is not liable for any adverse outcome caused by any
component combinations that were not authorized by them.
CE Conformity
This product meets the requirements of the European Regulation EU 2017/745 for medical
devices. This product has been classied as a class I device according to the classication rules
outlined in Annex VIII of the regulation. The EU declaration of conformity certicate is available at
the following internet address: www.blatchford.co.uk
Compatibility
Combination with Blatchford branded products is approved based on testing in accordance
with relevant standards and the MDR including structural test, dimensional compatibility and
monitored eld performance.
Combination with alternative CE marked products must be carried out in view of a documented
local risk assessment carried out by a Practitioner.
Warranty
This device is warranted for 36 months - foot shell 12 months - glide sock 3 months. The user
should be aware that changes or modications not expressly approved could void the warranty,
operating licenses and exemptions. See Blatchford website for the current full warranty
statement.
Reporting of Serious Incidents
In the unlikely event of a serious incident occurring in relation to this device it should be
reported to the manufacturer and your national competent authority.
Environmental Aspects
Where possible the components should be recycled in accordance with local waste handling
regulations.
Retaining the Packaging Label
The practitioner is advised to keep the packaging label as a record of the device supplied.
Single Patient – multiple use
Medical Device
Trademark Acknowledgements
Elite Foot and Blatchford are registered trademarks of Blatchford Products Limited.
Manufacturer’s Registered Address
Blatchford Products Limited, Lister Road, Basingstoke RG22 4AH, UK.
938289SPK1/1-0121

17 938289PK2/1-0121
Vsebina SL
Vsebina................................................................................................................................................................. 17
1 Opis in namen uporabe....................................................................................................................................... 18
2 Varnostne informacije .......................................................................................................................................... 20
3 Konstrukcija.............................................................................................................................................................. 21
4 Delovanje.................................................................................................................................................................. 22
5 Vzdrževanje.............................................................................................................................................................. 22
6 Omejitve uporabe.................................................................................................................................................. 23
7 Poravnanost sestava.............................................................................................................................................. 24
7.1 Statična prilagoditev....................................................................................................................................... 24
7.2 Dinamična prilagoditev................................................................................................................................. 24
7.3 Transfemoralna prilagoditev........................................................................................................................ 24
8 Nasvet za namestitev............................................................................................................................................ 25
9 Odstranjevanje ogrodja stopala in zamenjava stopalne vzmeti........................................................... 26
10 Zamenjava aksialne blažilne vzmeti................................................................................................................ 28
11 Tehnični podatki..................................................................................................................................................... 29
12 Podatki za naročanje............................................................................................................................................. 30

18 938289PK2/1-0121
1 Opis in namen uporabe
Ta navodila za uporabo so predvidena za zdravnika in uporabnika, razen če je navedeno drugače.
Izraz pripomoček se v teh navodilih za uporabo uporablja za EliteVT.
Preberite in poskrbite, da boste razumeli vsa navodila za uporabo, predvsem vse varnostne
informacije in navodila za vzdrževanje.
Uporaba
Pripomoček je predviden izključno kot del proteze za spodnje okončine.
Predviden je za enega uporabnika.
Stopalo z visokim povratkom energije. Neodvisni vzmeti na peti in sprednjem delu stopala
omogočata aksialni pregib. Deljeni veliki prst zagotavlja dobro prileganje tlom. Pripomoček ima
tudi vzmetni element, ki lahko ublaži aksialne in rotacijske udarce ter zmanjša strižne sile na krn
okončine.
Lastnosti
• Precizna titanova vzmet za navpično kompresijo in aksialno vrtenje
• Linearni odziv na aksialno obremenitev
• Učinkovit povratek energije
• Samostojne e-karbonske stopalne vzmeti
• Petna zagozda za nastavitev togosti vzmeti
Stopnja aktivnosti
Pripomoček je priporočen za uporabnike, ki imajo potencial doseči stopnjo aktivnosti3 ali4.
Seveda pa obstajajo izjeme, zato pri našem priporočilu dopuščamo možnost edinstvenih,
posameznih okoliščin, odločitev o tem pa je treba sprejeti na osnovi temeljite presoje.
Stopnja aktivnosti 3
Ima sposobnost ali potencial za premikanje s spremenljivim korakom.
Običajno pokretna oseba, ki lahko premaga večino okoljskih ovir in morda opravlja poklicno,
terapevtsko ali zično aktivnost, ki zahteva uporabo proteze, ki presega zgolj preprosto gibanje.
Stopnja aktivnosti 4
Ima sposobnost ali potencial za hojo s protezo, ki presega osnovne sposobnosti hoje, in je izpostavljena
močnim udarcem, visokim obremenitvam ali visokim ravnem energije. Običajno za zahteve za protezo
otroka, aktivne odrasle osebe ali športnika.
Kontraindikacije
Ta pripomoček ni primeren za uporabnike s stopnjo aktivnosti1 ali za vrhunske športne
prireditve, saj morajo ti uporabniki uporabljati proteze, razvite posebej za njihove potrebe.

19 938289PK2/1-0121
Klinične prednosti
• Omogoča različne hitrosti teka.
• Večja hitrost hoje v primerjavi s togimi palicami.
• Visoke stopnje mobilnosti za aktivne uporabnike v primerjavi s stopalom brez povratka
energije, hidravličnimi gležnji, gibkim slogom stopal in prožnimi stopali za hojo.
• Izboljšan odriv proteze v primerjavi s stopalom s trdim gležnjem in oblazinjeno peto.
• Večje pozitivno protetično delo v primerjavi s stopali z nižjo aktivnostjo.
• Zelo zadovoljni uporabniki, predvsem tisti, ki so zelo aktivni.
• Manjša obremenitev na krn okončine v primerjavi s togimi palicami.
• Manj bolečin v hrbtu pri obračanju v primerjavi s togimi palicami.
Opomba… Če ste v dvomih in ne veste, katero kategorijo izbrati, izberite sklop vzmeti z višjo
stopnjo.
Priporočila za sklope stopalnih vzmeti so prikazana za transtibialne uporabnike.
Za transfemoralne uporabnike priporočamo uporabo sklopa stopalnih vzmeti ene
kategorije niže.
Ko stopalo opremite z vzmetmi, prekrijte ustrezne linije nosilca s črnim
permanentnim markerjem, vidna naj ostane samo številka sklopa vzmeti.
Opozorilo: pri uporabnikih, izpostavljenih visokim sunkovitim obremenitvam,
ne prekoračite omejitve teže za posamezne vzmeti.
nizka Dnevna hoja in občasne športne aktivnosti, kot sta golf in pohodništvo.
zmerna Agresivna hoja, pogosta ali dnevna športna aktivnost, kot je tek.
visoka Dnevne aktivnosti, kot so tek na dolge razdalje, plezanje, dviganje in nošenje težkih
predmetov pri izvajanju poklica.
Teža uporabnika
Sunkovita
obremenitev
Aktivnost
44–52 53–59 60–68 69–77 78–88
89–100
101–116 117–130 131–147 148–166
kg
nizka 3 1 1 2 3 4 5 6 7 8 9
zmerna 4 1 2 3 4 5 6 7 8 9
visoka 4 2 3 4 5 6 7 8 9
Sklop stopalnih
vzmeti
1
Aksialna vzmet
stopnje, kot je
prikazano
2 3 4
Izbor sklopa vzmeti

20 938289PK2/1-0121
Morebitne spremembe v delovanju
okončine, kot so npr. omejeno ali
prekomerno gibanje, zatikajoče gibanje
ali neobičajni zvoki, je treba nemudoma
javiti ponudniku storitve.
Pri hoji po stopnicah navzdol in vedno,
ko je sicer mogoče, je treba uporabljati
držala.
Pripomoček ni primeren za ekstremne
športe, tekaške tekme ali kolesarske
dirke, športe na ledu in snegu ter za
hojo po strminah in strmih stopnicah.
Tovrstne aktivnosti uporabnik izvaja
na lastno odgovornost. Rekreativno
kolesarjenje ali tek je sprejemljivo.
Pripomoček lahko sestavi, vzdržuje in
popravlja samo ustrezno usposobljen
zdravnik.
Uporabniku je treba svetovati, da se
naj obrne na svojega zdravnika, če se
njegovo stanje spremeni.
Poskrbeti je treba, da se za vožnjo
uporabljajo samo ustrezno predelana
vozila. Vse osebe morajo pri upravljanju
motornih vozil upoštevati veljavne
cestno-prometne predpise v svoji
državi.
Za zmanjšanje nevarnosti zdrsa in
spotika je treba uporabljati ustrezno
obutev, ki se dobro prilega na ogrodje
stopala.
Pripomoček ni predviden za uporabo
v vodi ali kot proteza za prhanje.
Če proteza pride v stik z vodo, jo takoj
obrišite.
Za zmanjšanje nevarnosti zdrsa in
spotika je treba uporabljati ustrezno
obutev, ki se dobro prilega na ogrodje
stopala.
Vedno bodite pozorni na nevarnost
zmečkanja prstov.
Ta opozorilni simbol poudarja pomembne varnostne informacije,
ki jih je treba natančno upoštevati.
2 Varnostne informacije
