2 I Condens 8300iW External Boiler Casing
Introduction
The Bosch External Boiler Casing has been especially designed to be used only with the models listed below when installed in an external
location as defined in AS/NZS5601.
must be used. The installation instructions supplied with the flue terminal must be followed to ensure the correct fitting of the flue
When installing any of the above Condens 8300iW boiler models in the external casing, the horizontal flue terminal (7738112499)
terminal to the front cover of the external casing. All models will require the flue to be adjusted to correctly fit the external casing.
DANGER:
This external boiler casing must not be installed
indoors or in an enclosed space in accordance
with AS/NZS5601.
Part no. 8736200348 Bosch 8300iW External Boiler Casing Installation Instructions
Manufactured in Australia in high quality Colorbond steel (Windspray colour) to meet the demands of harsh Australian and New Zealand
weather conditions.
Capacity
7738101049 GC8300iW 25 23
7738101048 GC8300iW 35 23
Description
25 kW heating boiler, NG model
35 kW heating boiler, NG model
35 kW heating & 40 kW domestic hot water
combi boiler, NG model
25 kW
35 kW
40 kW 7738101047 GC8300iW 35/40 C 23
Model NumberBosch Part Number

Installation Instructions I 3
Part no. 8736200348 Bosch 8300iW External Boiler Casing Installation Instructions
Regulations
All local by-laws and regulations pertaining to installation and use of gas appliances must be observed. This appliance must be installed
in accordance with the manufacturers installation instructions, AS/NZS5601, AS/ NZS3500, and all Local Building & Gas fitting
regulations. This External casing must not be installed indoors or in an enclosed space. This External Boiler Casing is approved for
outdoor installation only. Do not install this External Boiler Casing with any modification or alteration. Failure to install this appliance in
accordance with these installation instructions will void the warranty and may create an unsafe situation.
Installation
To be installed and serviced only by an authorised person
The “authorised installing person” is responsible for:
• Correct installation and commissioning of this appliance.
• Ensuring the appliance performs to the specifications stated on the rating label.
• Demonstrating the operation of the appliance to the customer before leaving.
• Handing the operating instructions to the customer.
IMPORTANT:
Installation of external boiler casing back
panel must be made before the boiler itself
is hung on the wall.
Once the external boiler casing back panel has been installed (step 2) follow the boiler installation instructions before completing
the external sides and top / front of the casing. Including the commissioning.
Follow the instructions for flue terminal installation and ensure the flue is adapted to the correct size to fit the box, and the flue sealing
rubber is correctly fitted.

4 I Condens 8300iW External Boiler Casing
Part no. 8736200348 Bosch 8300iW External Boiler Casing Installation Instructions
250
495
410
503
190
65
1052 1052
127O
380
500482
1050
List of components
Back Panel Front Panel Installation InstructionsSide Panels x 2 (Left & Right)
Top Panel Bottom Panel
Please note, all measurements are in mm.
Description Quantity
Top Panel 1
Bottom Panel 1
Side Panel 2
Back Panel 1
Front Panel 1
Installation Instructions 1

Installation Instructions I 5
Part no. 8736200348 Bosch 8300iW External Boiler Casing Installation Instructions
1
2
3
Step by step instructions
Locate fixing noggins behind
the casing back panel indicated
by the shaded area.
The back panel must be installed
onto a fixed, rigid surface at least
the same size as the boiler and
capable of supporting the boiler
weight.
Hang the back panel to a
structural wall. Position the
back panel using a single screw
in the central top key hole.
Position the Bosch boiler hanging
bracket to the casing back panel
as shown.
Be sure to level the two brackets
prior to fixing to wall.
Fix to wall using appropriate
mechanical fixers at multiple
points as shown.
Don't screw the screws in fully.
Bosch boiler fixing points will line up
with the back panel fixing points
Screw in bottom two screws loosely,
and hang the boiler manifold
from these points.
Once boiler manifold is hung,
secure the screws.
Then tighten the top of the
boiler bracket fixings.
155mm
770mm
260mm
90mm

6 I Condens 8300iW External Boiler Casing
Part no. 8736200348
Step by step instructions
4
5
x3
O
2
CO
2
Elbow
Discard extension flue piece
Flue Terminal Piece
1.
2.
1.
3.
2.
Once the boiler manifold has been
installed, install the Bosch boiler.
Refer to Bosch boiler installation
instructions.
Once boiler has been installed,
return to this instruction manual
to complete the external casing
installation.
Ensure the tab on top of boiler
is fixed back to wall with
appropriate fixing.

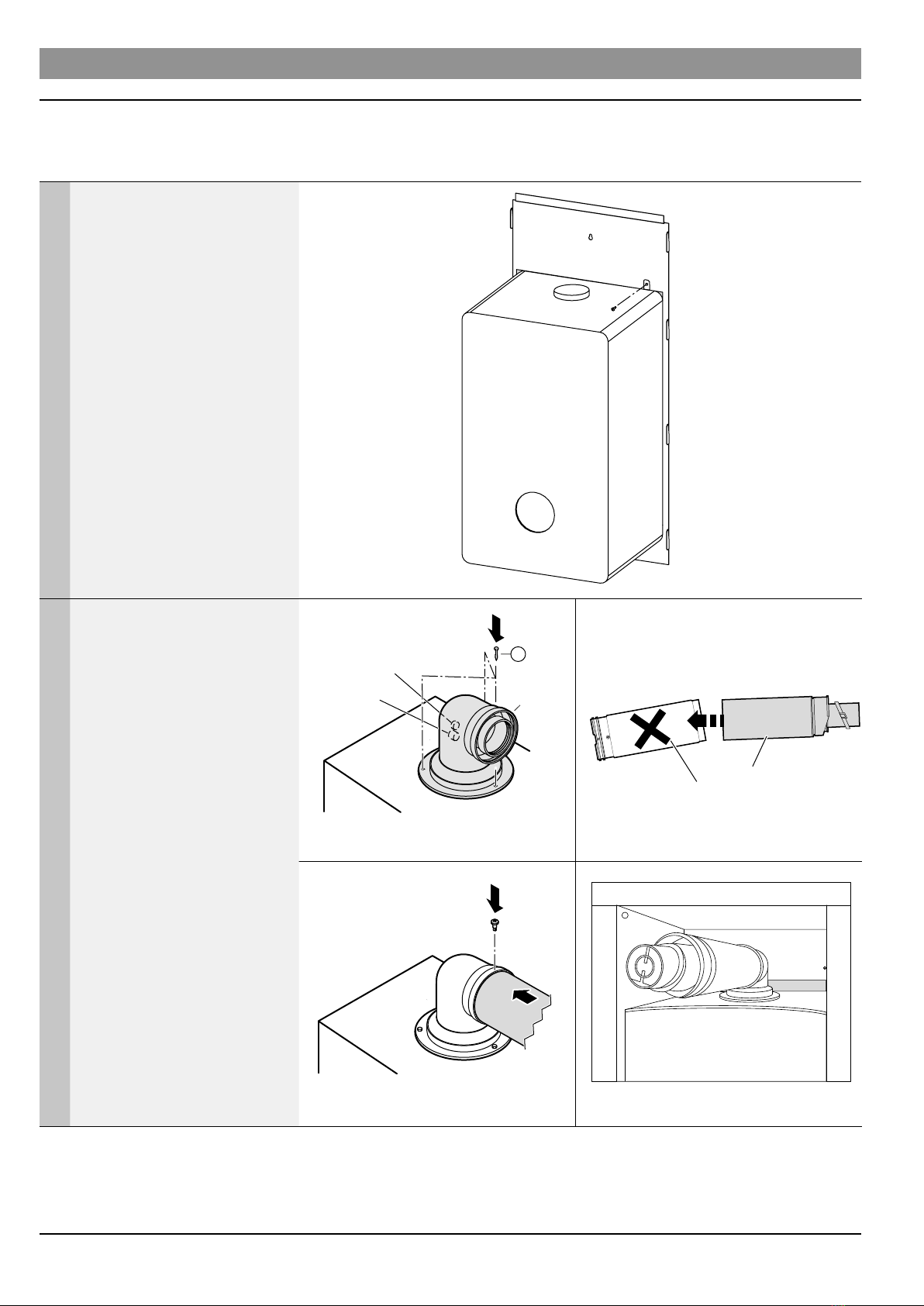

Horizontal Flue Installation
(7738112499)
1. Mount flue elbow to top
of boiler.
2. Remove flue terminal end
from extension flue piece
and discard extension.
3. Install flue terminal piece
directly into elbow, fixing
with screw.
Refer to flue kit installation
manual for more information
Bosch 8300iW External Boiler Casing Installation Instructions

Installation Instructions I 7
Part no. 8736200348
6
7
8
Step by step instructions
Once the Bosch boiler has been
installed, the remaining external
casing assembly can now be
completed.
Slot in the left hand side wall
panel to the rear bracket hooks
as shown.
Slot in the right hand side wall
panel to the rear bracket hooks
as shown.
Slide in the bottom panel by
guiding the bottom lip into to
internal lip of the side pall panels
(for both left and right hand side)
Sleeve the top panel over the
side wall panels and the rear
casing bracket.
Sleeve the front panel up inside
the top panel and push into
the side walls.
Ensure you click the bottom into
the base panel as detailed below
(1.1)
Once the external casing is
complete. Sleeve the rubber
seal over the ventilation pipe.
Bosch 8300iW External Boiler Casing Installation Instructions
