Table of contents
2
Chapter Page
System description
System overview.................................................................................................... 3
Variants and kits for the SPE blocking element..................................................... 3
Description of the connections to the control unit .................................................. 4
Installation instructions
Mounting the system components.........................................................................6
Mounting of magnet contact and bolt contact........................................................ 6
Connecting the control panel and optional components........................................ 7
Programming......................................................................................................... 8
SPE blocking element function test ....................................................................... 8
Completing the system installation ........................................................................ 8
Fault elimination................................................................................................ 11
Notes on maintenance and service
General................................................................................................................ 10
Inspection and maintenance................................................................................ 10
Replacing the bolt in the SPE blocking element .................................................. 11
Technical data.................................................................................................. 112

System description
3
System overview
The SmartKey blocking unit is used to mechanically lock doors. The SE 60 LSNi control unit
controls the SPE blocking element depending on the state of the bolt contact and/or the intrusion
control panel (control panel armed/disarmed). When the door is closed (bolt contact is activated),
the bolts of the SPE blocking element are automatically engaged. When the door is unlocked, the
bolts are disengaged if the detection area is disarmed. When the detection area is activated, the
bolts remain engaged, thus preventing unintended access to the area.
SPE blocking element
The SPE blocking element is
an additional lock for the
door and is intended to
prevent unauthorized entry
to the armed area. The SPE
blocking element must
always be mounted in the
secure area with a kit that is
designed for it to be fitted to
different door types (the
illustration here shows on-
door mounting, other
variants are shown below).
A
conventional magnet
contact can be used in the
on-door mounting kit
Note:
The use of conventional
contacts is recommended, as
these can be directly
processed by the control unit.
SE 60 LSNi control unit
The control unit processes the
status reports from all components
in the system, communicates these
reports to the intrusion detection
system and controls the SPE
blocking element. The control uni
t
is mounted in the secure area.
Bolt contact
A conventional bolt contact can be connected
to the control unit. The bolt contact is no
t
included in the scope of delivery.
Magnet contact
A conventional standard magnet contact can
be connected to the control unit. The magne
t
contact is not included in the scope of delivery.
Variants and kits for the SPE blocking element
SPE blocking element SE 60 LSNi
Mounting on the door or frame Mounting in the door or frame
Fitting Standard
collar Angled collar
Locking plate
Kit for glass
doors
Kit for on-door mounting
A
conventional magnet contact can be
used in the on-door mounting kit.
Bolt piece (mounted on frame)
Sleeve piece (mounted on door)
Installation example:Installation example:Installation example:
Spacers
Frame
Door
J-mounts
for the kit
Blocking element
bolt piece
Glass
Blocking element
sleeve piece
Locking plate/
Fitting
Collar
Blocking
element

System description
4
Description of the connections to the control unit
The connections to the control unit have different functions. There are inputs and outputs as well
as plug-in terminals. For the scope of the basic functions, the inputs and outputs must be laid out
according to a specific scheme.
XREEG 12K1 already installed
YPoints 21/22 and 23/24 are connected internally.
N/A N/A
+V
0 V
aLSN1
bLSN1
+V
0 V
aLSN2
bLSN2
Ground
DK
A
B
C
D
N/A N/A
X
REEG
PL2
N/A
N/A
EW1a
EW1b
PL1
0 V
0 V
0 V
LSZ
Ground
+12 V SPE
0 V
HALL1
HALL2
MOT2
MOT1
Test
LED
BR1
Y
B1 operation
B3 bolt test
N/A
N/A
N/A
N/A

System description
5
Description of the connections to the control unit
The connections to the control unit have different functions. There are inputs and outputs as well
as plug-in terminals. For the scope of the basic functions, the inputs and outputs must be laid out
according to a specific scheme.
Connection Designation Function Description
1
2
3
4
5
6
7
8
9
+V
0 V
aLSN1
bLSN1
+V
0 V
aLSN2
bLSN2
Ground
Input
Input
Input
Input
Output
Output
Output
Output
Distributor
9.6–30 V power supply
0 V power supply
Incoming LSN
Incoming LSN
9.6–30 V power supply
0 V power supply
Outgoing LSN
Outgoing LSN
Functional ground
17 Test Input This input is only for test purposes, i.e., a cable may
only be connected temporarily to perform a test. If 0 V
is applied, the SPE blocking element bolt retracts.
18 N/A
21/22
23/24 N/A N/A Distributor Distributor Free plug-in terminals, 21 and 22 connected Free plug-in terminals, 23 and 24 connected
37/38
39
40
41
42
MOT2/MOT1
HALL2
HALL1
0 V
+V
Output
Input
Input
Output
Output
SPE blocking element motor control
Bolt starting position detection
Bolt final position detection
SPE blocking element 0 V power supply
SPE blocking element 12 V power supply
43 Ground Distributor Functional ground
44/45 0 V/LSZ Input Connection option for conventional bolt contact
46/47
50/51 EW1b/EW1a 0 V/PL 1 Input Input Connection option for magnet contact Connection option for magnet contact
48/49 N/A Distributor Free plug-in terminals
52/53 0 V/PL 2 Input Free usable primary line
54–57 N/A Distributor Free plug-in terminals
Note: The primary lines PL 1, PL 2 and LSZ are assessed by the control unit.
REEG is integrated
REEG
Conventional magnet contact

Installation instructions
6
1. Mounting the system components
Observe the following during mounting:
• Only use shielded cables.
• The standard precautions for C-MOS technology must be taken when
handling PCBs This also applies for soldering work. Wear a grounding
armband when working on the control panel
Mounting the control unit
• Mount the control unit on the wall. When selecting the position, be aware that the SPE
blocking element has a fixed molded cable of 6 m length, which cannot be
extended.
Mounting the SPE blocking element
• Mount the SPE blocking element using the appropriate kit in line with the mounting
instructions enclosed.
Ensure the door cannot bang shut. Otherwise the SPE blocking element bolt
could be damaged during commissioning by a door banging shut.
2. Mounting of magnet contact and bolt contact
Mount the magnet contact or bolt contact according to the appropriate manufacturer's
instructions. The control unit serves as the distributor for the contacts.

Installation instructions
7

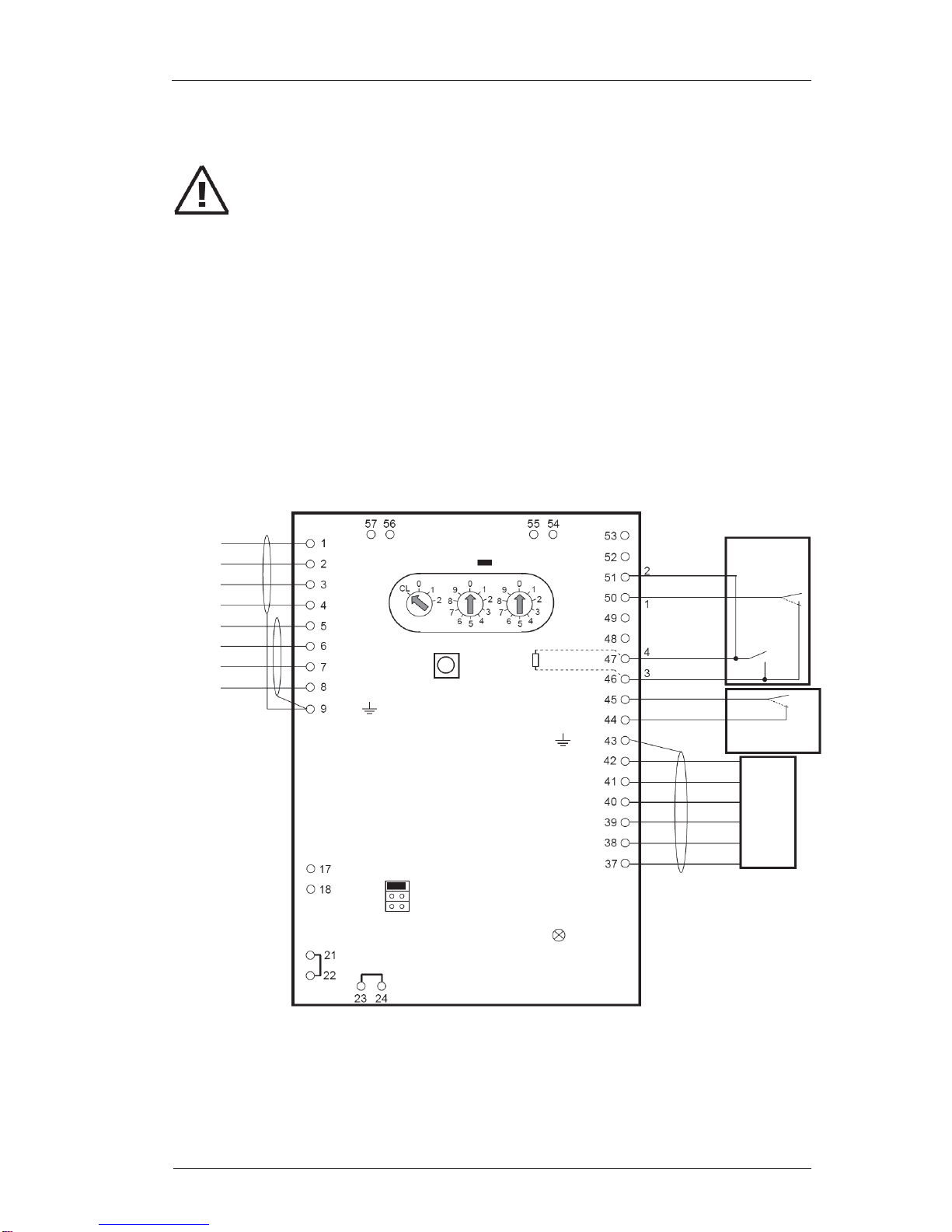

3. Connecting the control panel and optional components
Make sure that the control panel is disconnected from the power supply.
Connect the control unit and the optional components according to the
relevant interface.
Address switch: The address switch is used on LSN control panels currently being planned. The
address switch does not need to be set on any of the LSN control panels currently available. The
address switch remains at positions CL 0 0. Factory default.
Advance information regarding the address switch:
CL 0 0 = "Classic" LSN mode (default setting)
001–254 = LSNi mode with manual addressing of the control unit
0 0 0 = LSNi mode with automatic addressing of the control unit
The address of the control unit is set by adjusting the three rotating switches. Use a flat-blade
screwdriver to set each switch. The switches click as they turn. The valid range is 1 to 254.
Settings between 255 and 299 lead to an error message on the control panel.
XREEG 12K1 already installed
YPoints 21/22 and 23/24 are connected internally.
N/A N/A
+V
0 V
aLSN1
bLSN1
+V
0 V
aLSN2
bLSN2
Ground
DK
A
B
C
D
N/A N/A
X
REEG
PL2
N/A
N/A
EW1a
EW1b
PL1
0 V
0
V
0 V
LSZ
Ground
+12 V SPE
0 V
HALL1
HALL2
MOT2
MOT1
Test
LED
BR1 B1 operation
B3 bolt test
N/A
N/A
N/A
N/A
+
0 V
aLSN1
bLSN1
+
0 V
aLSN2
bLSN2
rd
blk
wh
ye
rd
blk
wh
ye
Cable len
g
th < 3 m
rd
ye
gn
bn
blk
or
SPE
blocking
element
Bolt contact
Tamper
protection
Switch part
Magnet
contact
Cable length < 3 m
Y
LSN

Installation instructions
8
4. Programming
Programming of the SE 60 LSNi and all other system components is performed by the
corresponding program on the control panel.
5. SPE blocking element function test
Turn on the power supply
• Before turning on the power supply, make sure that bridge B1 is inserted in the control unit
• Turn on the power
Functional test
1. Remove the jumper from B1 on the control unit and insert it in B3.
¨The SPE blocking element bolt extends. Yellow LED lights up on the control unit.
2. Remove the jumper from B3 on the control unit.
¨The SPE blocking element bolt retracts. The LED on the control unit goes out.
3. Repeat steps 1–2 with the door closed, to check the bolt on the SPE blocking element fits into
the bolt receiver accurately.
4. After the function test, insert the jumper back into bridge B1 in the control unit.
The yellow LED on the control unit circuit board shows the status of the system, as follows:
LED Status Required action
off System is OK. None
Single flashing
pulse Bolt does not extend or retract.
ƒCheck the SPE blocking element and the
bolt receiver are correctly mounted and
check the electrical connection
ƒRepeat the test
6. Completing the system installation
After completing the connection work:
1. Make sure that bridge BR1 is closed in the control unit for normal operation.
2. Place the cover on the control unit.
3. Carry out a check of the system.

Fault elimination
9
First, thoroughly check the following:
• Are the components correctly wired?
• Is there a short circuit/wire breakage?
• Are the components supplied with power?
• Is bridge BR1 correctly inserted in the control unit?
Problem Possible cause(s) Elimination
Bolt does not extend/
retract during the
function test.
• Mounting fault
• SPE blocking element
damaged
Check the SPE blocking element is
assembled and mounted correctly, then
repeat the test. If this is not successful,
replace the SPE blocking element.
Operating problems under normal circumstances
Problem Possible cause Elimination
Door cannot be
unlocked, although
the bolt contact is
open.
Bolt jams (door might be slightly
warped). Shake the door lightly and operate the
bolt contact again. If this is not
successful, the door must be opened
with a strong push/pull (predetermined
breaking point in the SPE blocking
element breaks without damaging the
door).

Notes on maintenance and service
10
General
Maintenance and inspection work must be carried out at specified intervals by appropriately
qualified personnel. In all other respects, the conditions of DIN VDE 0833 apply for this work.
Inspection and maintenance
• Function test of the tamper contact in the control unit
• Visual inspection of the mounting/damage
• SPE blocking element function test
Function test of the SPE blocking element with bolt contact:
1. Operate the bolt contact while the door is closed.
¨The SPE blocking element bolt extends.
2. Return the bolt contact to its normal position.
¨The SPE blocking element bolt retracts.
Function test of the SPE blocking element with control unit (tamper contact open):
• See function test on page 8

Notes on maintenance and service
11
Replacing the bolt in the SPE blocking element
(for example if the bolt breaks or if the bolt can no longer be moved)
The bolt can be replaced while the system is running (while it is disarmed).
Proceed as follows with the help of the appropriate mounting instructions:
1. Expose the SPE blocking element by removing the plastic cover for the bolt piece (for on-door
mounting) or the collar (built-in version). On the on-door version, it may be necessary to
unscrew the magnet contact housing.
2. Release the screws on the SPE blocking element (1) and remove the cover.
3. Slightly lift the worm gear (2) on the motor, so that the bolt (3) is released from the gear
framework.
4. Pull out the bolt.
5. Insert a new bolt.
6. Return the motor to its original position.
7. Replace the cover and tighten the screws.
8. Mount the SPE blocking element in line with the mounting instructions.

Technical data
12
SE 60 LSNi control unit
Operating voltage 9.6 V to 30 V
Total current consumption including blocking
element at an input voltage of 9.6 V
- Standby LSN part 3.53 mA
- Standby additional
supply 41 mA
- Bolts are engaged 110 mA for 200 ms
- Bolts blocked 470 mA for 200 ms
Total current consumption including blocking
element at an input voltage of 28 V
- Standby LSN part 3.53 mA
- Standby additional
supply 30 mA
- Bolts are engaged 65 mA for 200 ms
- Bolts blocked 200 mA for 200 ms
Environmental
Conditions
- Environmental class 2
- Protection category IP 30
- Operating temperature -5 °C to +45 °C
- Storage temperature -40 °C to +85 °C
Housing
- Material
A
BS
- Color RAL 9002
Dimensions
(H x W x D) 160 x 135 x 35 mm
Weight 0.25 kg
VdS approval
(class C) for whole
system
G 106062, C
Laws/Standards/Guidelines
The system fulfills all the requirements
resulting from the relevant laws, standards
and guidelines, in particular
- EN 61000-6-3
- EN 50130-4
- DIN VDE 0833, Part 1 and 3
- VdS 2110
- VdS 2227
- VdS 2119
- VdS 2311
- VdS 2203
- VdS 2252
Blocking element
Maximum distance
between bolt and locking
plate
4mm
Bolt break force
A
pprox. 1 kN
Cable to control unit Max. 6 m, 6-pin,
shielded,
permanently sealed
Environmental Conditions
- Environmental class 3
- Protection category IP 44
- Operating temperature -25 °C to +55 °C
- Storage temperature -40 °C to +85 °C
Housing
-Material
A
BS
- Color RAL 9002
Weight
- Surface mounted
models 0.45 kg
- Recessed mounted
models 0.40 kg
Dimensions (H x W x D) 28 x 118 x 16 mm
Note on blocking element: SE 60 LSNi
without bolt contact. If all the bolts of all SE
60 LSNi in a detection area are activated
at the same time, the values for "Bolt
activated" must be added together when
calculating the current. Due to the time
shift caused by the LSN, up to four
SE 60 LSNi can be activated within 200 ms.

Notes
13

Notes
14

Notes
15

Bosch Security Systems
For more information, please visit
www.boschsecurity.com
Bosch Sicherheitssysteme GmbH
Robert-Bosch-Ring 5
85630 Grasbrunn
Germany
F.01U.341.973
A4 04.2017
