BRETFORD BASICS™
MOBILE 19" RACK MOUNT PRESENTATION CART
MOBILE 19" RACK MOUNT
PRESENTATION CART
TC15 features a locking lower cabinet with 19"
rack mount and front and rear door for easy
access to cords. Supports a projector, laptop,
document camera and other equipment for
presentations.
FEATURES
• Lower cabinet features a 19" rack mount for DVD players and other electronics while top shelf and two pull out shelves support a data
projector, notebook computer, and document camera. Ideal for use during multimedia presentations.
• Pull-out shelves located on both the left and right sides nearly double the work surface! Each shelf is 14"d x 20-3/4"w and have 3-1/4"
clearance below the top shelf. Pull out at a 37" standing height.
• Locking lower cabinet includes a 19" rack mount system with 16 unit spacing and two rack mounted accessory shelves. Front and rear locking
doors provide easy access to cords and controls. Cabinet may be equipped with a 4-outlet electrical unit, electrical unit, standard on TC15FF
models.
• Heavy-duty 1" square tubular legs with “W” bracket shelf design for maximum strength.
• All-steel construction with die pressed shelves.
• 4" Quiet-Glide stem casters, two are locking. Each caster is load rated to 115 lbs.
• TC15FF includes a surge protected, 4-outlet electrical assembly with on/off switch and 20’ grounded power cord. Electrical unit mounts
inside the lower cabinet.
• Constructed using an average 30% post-consumer recycled steel content and finished in environmentally friendly powder paint. Steel
construction is 100% recyclable at the end of the product life cycle.
TC15-BK

11000 SEYMOUR AVENUE
FRANKLIN PARK, ILLINOIS 60131 USA
TOLL FREE PHONE [phone]
PHONE [phone]
TOLL FREE FAX [phone]
FAX [phone]
WWW.BRETFORD.COM
©2002 Bretford / b_tech_cart_19rack_tc15 / 07.08
DIMENSIONS
TC15 Overall: 32"w x 24"d x 42"h
Storage Cabinet: 30"w x 23"d x 27"h
Storage Cabinet Doors: 21-3/4"w x 25"h
Pull Out Shelves: 14"d x 20-3/4"w
Pull Out Shelves to Floor: 37"h
Pull Out Shelves Clearance to Top Shelf: 3-1/4"h
COLOR & FINISH
Black (-BK) powder paint
WEIGHT, FREIGHT CLASS AND UPC CODE
TC15-BK: 154 lbs., Freight class 70
0 96633 27650 9
TC15FF-BK: 158 lbs., Freight class 70
0 96633 27651 6
Both ship ready to assemble in one (1) carton pack and are available
to ship via LTL Truck.
CARTON DIMENSIONS
TC15 & TC15FF: 40"l x 33"w x 10-1/2"d
ACCESSORIES
CFPS - 4 Outlet Electrical Unit (inc. on FF models) - 0 96633 10076 7
UCSE10 - 10 Outlet Electrical Unit - 0 96633 11038 4
MADE IN THE USA
TC series carts are made at Bretford’s Chicago area manufacturing
facility using union labor.

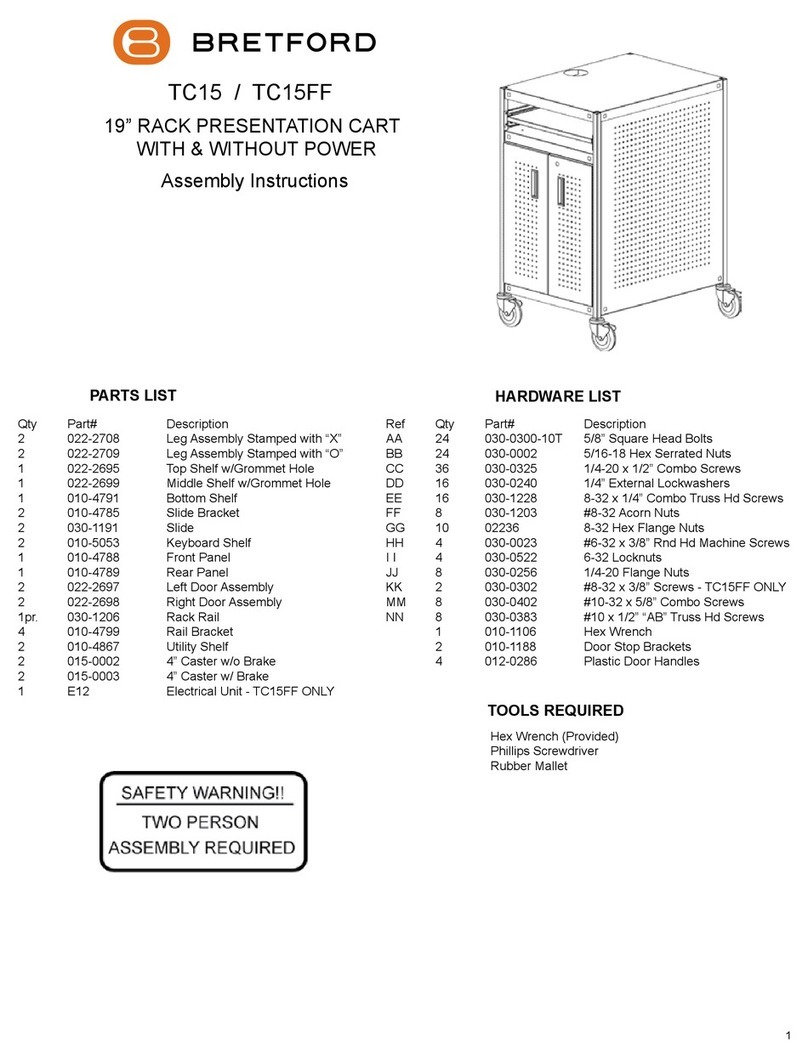

CART ASSEMBLY SPECIFICATIONS
TC15 19" Rack Mount Technology Carts has one (1) 32"w x 24"d, 18-
gauge steel top shelf with 20-gauge steel stiffener, one (1) 32"w x
24"d middle shelf, and one (1) 32"w x 24"d bottom shelf. All shelves
have open corners so the sides of the shelf do not connect. The leg
assembly fits flush to each shelf and attach with a 13-gauge steel “W”
bracket design that interlocks the legs and shelves for maximum
strength and stability. Leg assemblies are 1" square tubular 18-gauge
steel and run the height of the cart and form the corners of the lower
cabinet. Door assemblies allow access to both sides of the cabinet
and lock using a key lock, four (4) keys included. Cabinet side panels
and doors are perforated 20-gauge steel to ventilate equipment.
Cabinet interior is 23"w x 30"d, cabinet doors are 21-3/4"w x 25"h. A
19" rack mount assembly is installed inside the cabinet with 16 unit
spacing for rack mount equipment. Two (2) 19" rack compatible
accessory shelves are included. Each lower leg has a hard plastic
caster insert mounted in the bottom of the tube. Includes two (2)
14"d x 20-3/4"w, 18-gauge steel pull-out shelves that extend off the
left and right sides. Shelves are set at 37" standing height and there
is 3-1/4" clearance under the top shelf when shelves are pushed in.
Model TC15FF includes a surge protected 4-outlet electrical assembly
with on/off switch and 20' 3-wire cord and two (2) 3⁄16" diameter
machine screws with nuts for attaching unit to the inner cabinet.
Constructed with “prime” steel which has a 25% to 35% post-
consumer recycled content. Stem casters are mar-resistant, hard
black rubber, 4" in diameter. Each caster assembly has ball bearing
swivel capabilities, steel construction and is load rated for 115 lbs
each. Two (2) have locking brakes. Finished in Black (-BK) powder
paint. Ships knocked down (KD) via LTL truck class 70.
Locking front and rear doors provide easy access to
19" rack mounted equipment
