Bretford TC15SAFF User manual

1
Qty Part# Description
1 022-2820 Welded Body Assembly
2 022-2697 Left Door Assembly**
2 022-2698 Right Door Assembly**
2 010-1188 Door Stop Brackets**
1 022-2695 Top Shelf w/Grommet Hole
2 010-4785 Slide Brackets
2 030-1191 14” Full Extension Slides
2 010-4780 Keyboard Shelves
1 030-1206 Rack Rail Pair
4 010-4799 Rail Brackets
2 010-4867 Utility Shelves
2 015-0002 4” Casters w/o Brake
2 015-0003 4” Casters w/ Brake
1 UCSE10 Electrical Unit - TC15SAFF ONLY
** Doors and stop brackets are attached to body assembly at
the factory prior to shipping.
PARTS LIST
Ref Qty Part# Description
AA 14 030-0325 1/4-20 x 1/2” Combo Screws
BB 8 030-0256 1/4-20 Flange Nuts
CC 16 030-1228 8-32 x 1/4” Combo Truss Hd Screws
DD 8 030-1203 #8-32 Acorn Nuts
EE 16 030-0240 1/4” External Lockwashers
FF 10 02236 8-32 Hex Flange Nuts
GG 8 030-0300-10T 5/8” Square Head Bolts
HH 8 030-0002 5/16-18 Hex Serrated Nuts
II 2 030-0302 #8-32 x 3/8” Screws - TC15FF ONLY
JJ 8 030-0402 #10-32 x 5/8” Combo Screws
KK 8 030-0383 #10 x 1/2” “AB” Truss Hd Screws
1 010-1106 Hex Wrench
4 012-0286 Plastic Door Handles
HARDWARE LIST
Hex Wrench (Provided)
Phillips Screwdriver
Rubber Mallet
TOOLS REQUIRED
TC15SA / TC15SAFF
19” RACK PRESENTATION CART
WITH & WITHOUT POWER
Assembly Instructions

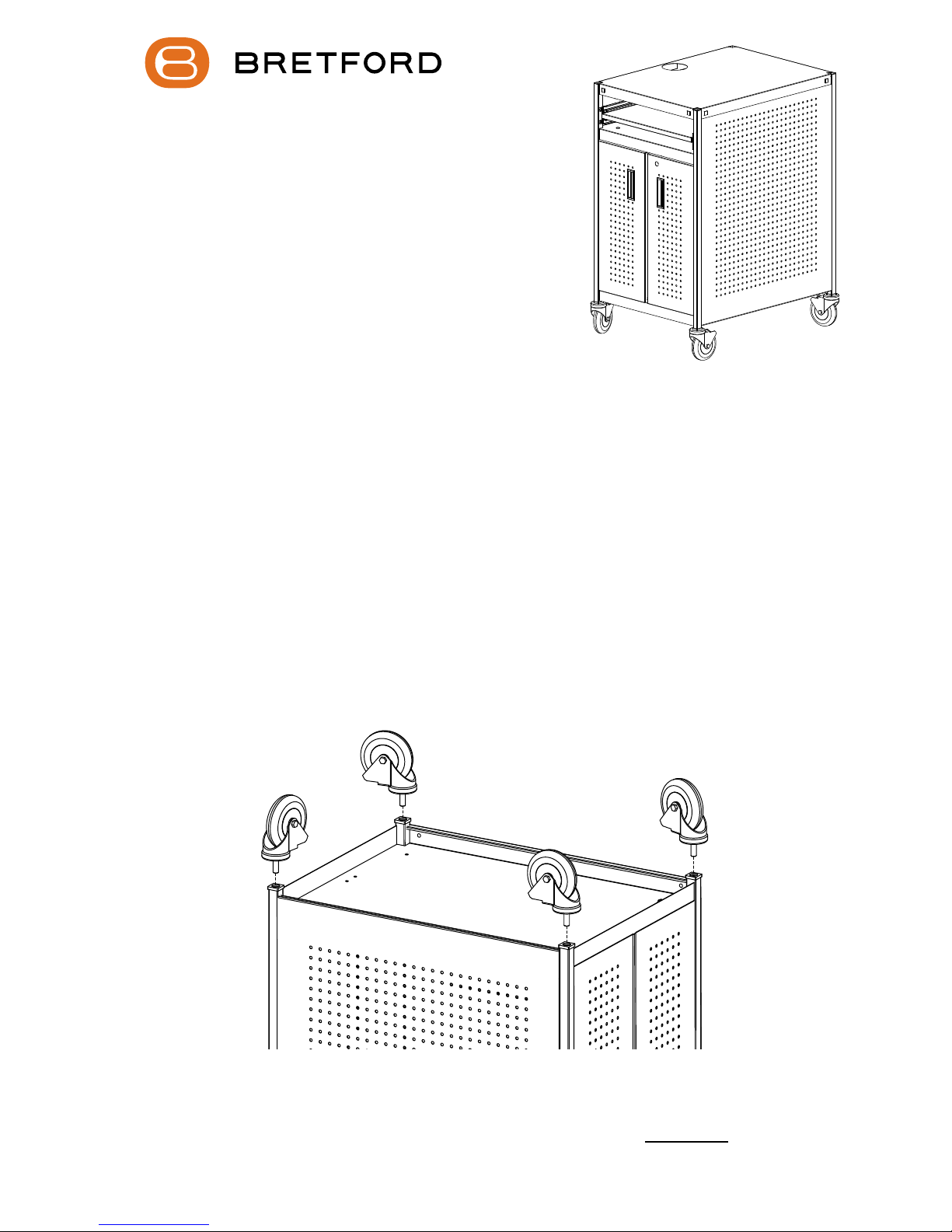

STEP 1
Insert each caster into the bottom of each leg. If caster does not insert easily,
use a rubber mallet to tap caster in place. Once caster are SECURELY in
place, stand unit upright.

2
STEP 2
Attach L-brackets to one side of the cart. These should be mounted on the side that you wish the 19”
rack rails to be installed on. Attach each bracket (2 per shelf) with screws (AA) and nuts (BB) as shown.
NOTE: Screws are only used on the bottom shelf. Middle shelf has screws already welded in place.
MIDDLE SHELF ATTACHMENT
BOTTOM SHELF ATTACHMENT
AA BB

3
MIDDLE SHELF ATTACHMENT
BOTTOM SHELF ATTACHMENT
STEP 3
Attach the rack rails to the L-brackets with screws (AA) and nuts (BB) as shown.
The threaded holes (smaller) are facing out.
AA BB
NOTE, THE RACK RAIL MUST BE INSTALLED AS SHOWN.
TOP DOWN VIEW OF INSIDE CART
INCORRECTCORRECT

4
STEP 4
Separate each slide and attach outer slide piece (2 per bracket) to the
slide brackets using screws (CC) and nuts (DD) as shown. NOTE:
Slide may need to be extended some to align attachment holes.
CC DD
NOTE: Separate slides
by pulling on black tab.
Attach each slide bracket above the middle shelf
using screws (AA) and washers (EE) as shown.
EE
STEP 5
AA

5
STEP 6
Attach each inner slide piece to each keyboard shelf with screws (CC), washers (EE) and nuts (FF).
FF
STEP 7
Slide top shelf onto cart as shown. Secure all 4 corners with bolts
(GG) and nuts (HH). Make sure shelf sides t over the leg brackets
and panel anges.
CC EE
GG HH

STEP 8 - FOR TC15SAFF MODELS ONLY
Attach the UCSE10 unit to rear panel as shown using screws (II) and nuts (FF).
II
6
STEP 9
Attach the utility shelves to the rack rails as shown with screws (JJ).
NOTE: You can install the shelves in any desired location along the rails.
JJ
FF

STEP 10
Attach a handle to each door using screws (KK) as shown.
KK
7
STEP 11
Slide both keyboard drawers into the cart.
Part # 031-7758
Rev. 07.01.08 CZ
