Flow transmitter SE56
Basic version
Release number: MASE56_BV_EN_BU_R9_3.91.0XXX.docx
– The characters of file name in
bolt type indicate the software version, visualized at the instrument start up, which the manual refers to.

SE56
2

SE56
3
INTRODUCTION.................................................................................. 4
SAFETY INFORMATIONS..................................................................... 4
SAFETY CONVENTIONS........................................................................... 5
TECHNICAL CHARACTERISTICS.......................................................... 6
ENVIRONMENTAL USE CONDITIONS ........................................................ 6
OPERATING TEMPERATURE..................................................................... 6
Data plate.............................................................................................. 6
ELECTRIC CHARACTERISTICS.................................................................. 6
DIMENSIONS ......................................................................................... 7
ELECTRICAL CONNECTIONS ............................................................... 8
GROUNDING INSTRUCTIONS................................................................... 8
POWER SUPPLY...................................................................................... 8
INTERNAL VIEW..................................................................................... 9
TRANSMITTER TO SENSOR ELECTRICAL CONNECTIONS ............................ 9
DIGITAL INPUT.....................................................................................10
INPUT ON/OFF OPERATION....................................................................10
OUTPUT WIRINGS .............................................................................11
DISPLAY FLAGS AND LED WARNING INTERPRETATION...................12
TRANSMITTER ACCESS......................................................................13
KEYPAD................................................................................................13
BLIND CONFIGURATION ........................................................................13
ACCESSING THE FUNCTIONS AT START-UP (Power On) ............................14
FLOW RATE VISUALIZATION .............................................................15
ACCESS CODES...................................................................................16
ACCESS TO THE CONFIGURATION MENU ..........................................18
EXAMPLE..............................................................................................19
FUNCTIONS MENU .............................................................................21
FUNCTIONS DESCRIPTION.....................................................................24
ALARMS..............................................................................................30
CONFORMITY DECLARATION..................................................................32
INDEX

SE56
4
INTRODUCTION
These operating instructions and description of device functions are provided for the scope
of supply. They could be modified without prior notice. The improper use, possible
tampering of the instrument or parts of it and substitutions of any components not original,
makes the warranty to decay automatically.
The transmitter is to be used only to be coupled directly with a sensor to realize a
measuring device, flow meter, that is to be used for measuring the flow of conductive
liquids in closed pipes with conductivity greater than 5μS/cm.
It is forbidden the reproduction of the present manual and of possible software supplied.
SAFETY INFORMATIONS
Any use other than described here affects the protection provided by the manufacturer and
compromises the safety of people and the entire measuring system and is, therefore, not
permitted.
The manufacturer is not liable for damaged caused by improper or non-designated use.
1) Transport the measuring device to the measuring point in the original packaging. Do
not remove covers or caps until immediately before installation. In case of cartons
package it is possible to place one above the other but no more than three cartons.
In case of wooden package do not place one above the other.
2) Disposal of this product or parts of it must be carried out according to the local
public or private waste collection service.
3) The transmitter must only be installed, connected, commissioned and maintained by
qualified and authorized specialists (e.g. electrical technicians) in full compliance with
the instructions in these Operating Instructions, the applicable norms, legal
regulations and certificates (depending on the application).
4) The specialists must have read and understood these Operating Instructions and
must follow the instructions they contain. If you are unclear on anything in these
Operating Instructions, you must call the service. The Operating Instructions provide
detailed information on the transmitter.

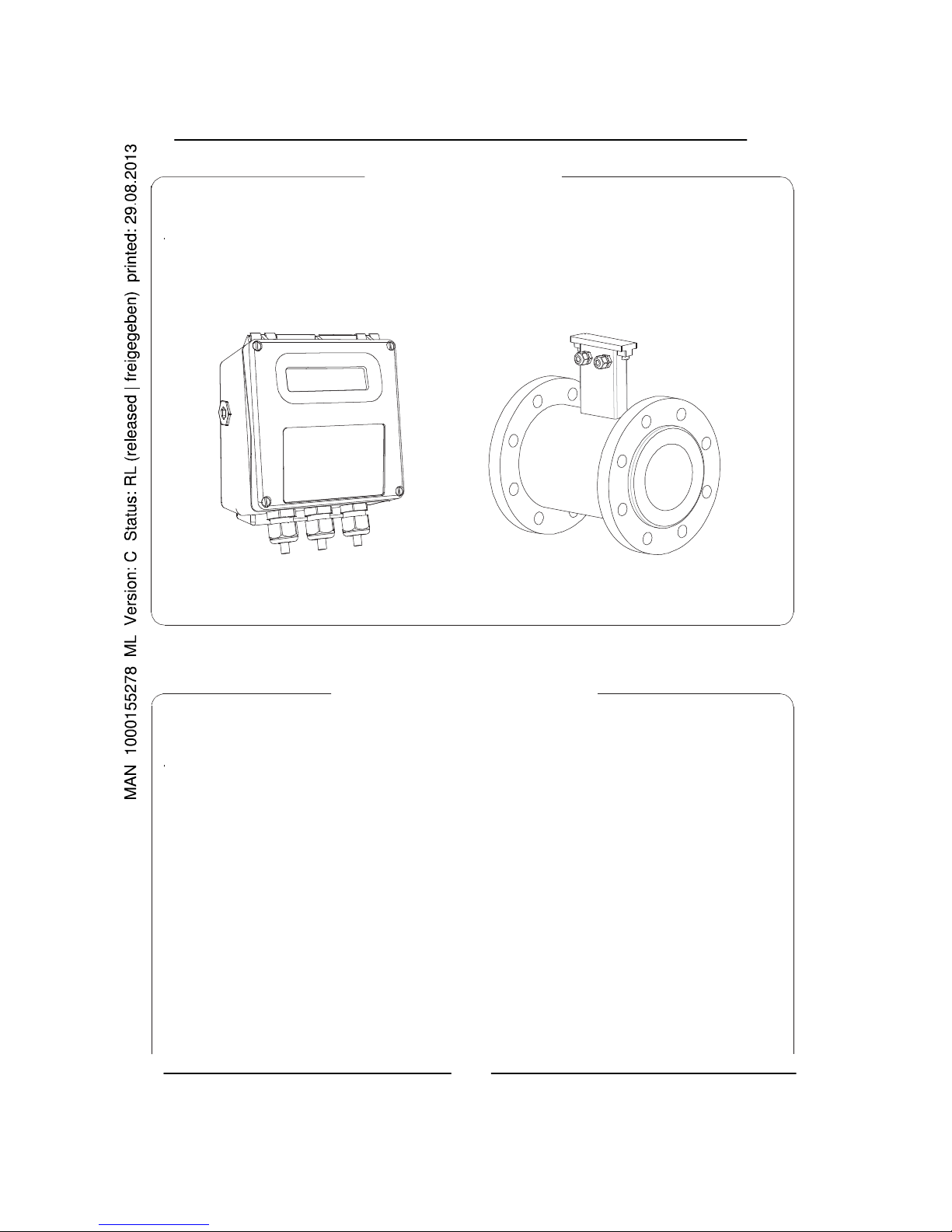

TRANSMITTER SENSOR

SE56
5
5) Repairs may only be performed if a genuine spare parts kit is available and this
repair work is expressly permitted.
6) The transmitter should only be installed after have verified technical data provided in
this operating instructions and on the data plate.
7) Specialists must be carefully during installation and use personal protective
equipment as provided by their security plan about risk assessment.
8) Never mount or wire the transmitter while it is connected to the power supply and
avoid any liquid contact with the instrument internal components.
9) Before connecting the power supply check the safety equipment.
10) For the cleaning of the device use only a damp cloth, and for the
maintenance/repairs contact the service center.
Before starting up the equipment please verify the following:
Power supply voltage must correspond to that specified on the data plate
Electric connections must be completed as described
Ground (earth) connections must be completed as specified
Verify periodically (every 3-4 months):
The power supply cables integrity, wiring and other connected electrical parts
The transmitter housing integrity
The suitable tightness of the sealing elements
The front panel integrity (display and keyboard)
The mechanical fixing of the transmitter to the pipe or wall stand.
SAFETY CONVENTIONS
DANGER
Warning indicates an action or procedure which, if not performed correctly,
can result in injury or a safety hazard. Comply strictly with the instructions
and proceed with care.
WARNING
Caution indicates an action or procedure which, if not performed correctly, can
result in incorrect operation or destruction of the device. Comply strictly with
the instructions.
NOTES
Note indicates an action or procedure which, if not performed correctly, can
have an indirect effect on operation or trigger an unexpected response on the
part of the device.

SE56
6

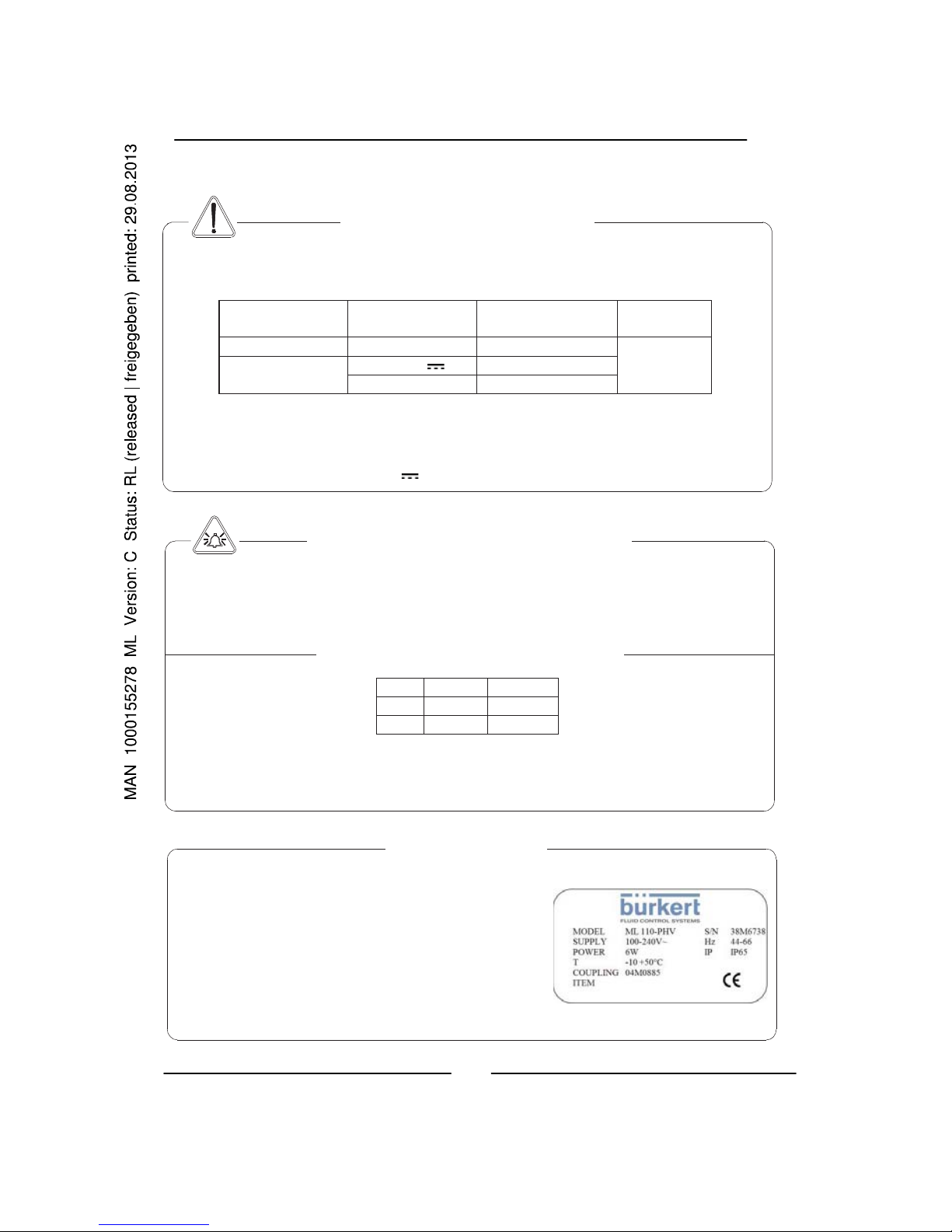

TECHNICAL CHARACTERISTICS
ENVIRONMENTAL USE CONDITIONS
The transmitter can be installed internally or externally
Altitude: from –200m to 2000m (from -656 to 6560 feet)
Humidity range: 0-85% without condensation
OPERATING TEMPERATURE
Consider the operating temperatures more restrictive between transmitter and sensor
*For discontinuous use, a thermostat heat source installation may be necessary.
Data plate
On the data plate there is some technical information:
•MODEL: Transmitter Model
•S/N: Serial Number of the transmitter
•SUPPLY: Main power supply
•Hz: Supply frequency (AC)
•POWER: Maximum power consumption
•IP: Protection grade
•T: Operating temperature
•COUPLING: Serial number of sensor coupled
•ITEM: free for user
Min. * Ma
x
°C -10 50
°
F
14 122
ELECTRIC CHARACTERISTIC
S
Transmitter classification: class I, IP65, installation category (overvoltage) II, rated
pollution degree 2.
Power supply
versions Power supply voltage Power supply frequency Max power
HV 100-240V~ 44-66H
z
6W
LV 18-45
V
/
/
18-45V~ 44-66H
z
Voltage changes must not exceed ±10% of the nominal one.
Input/output insulated up to 500V.
The output 4-20mA (optional) is electrically connected to the ON/OFF outputs and
the output power supply (24V ).

SE56
7
DIMENSIONS
127
129
168
124
TORQUE
S
To guarantee the housing’s IP degree the following torques are required:
cover screws: 0.5Nm
cable glands: 4Nm (in reference conditions)
IF2 cap: 4Nm
Weight: 0.5kg

SE56
8
L(-)
N(+) M3

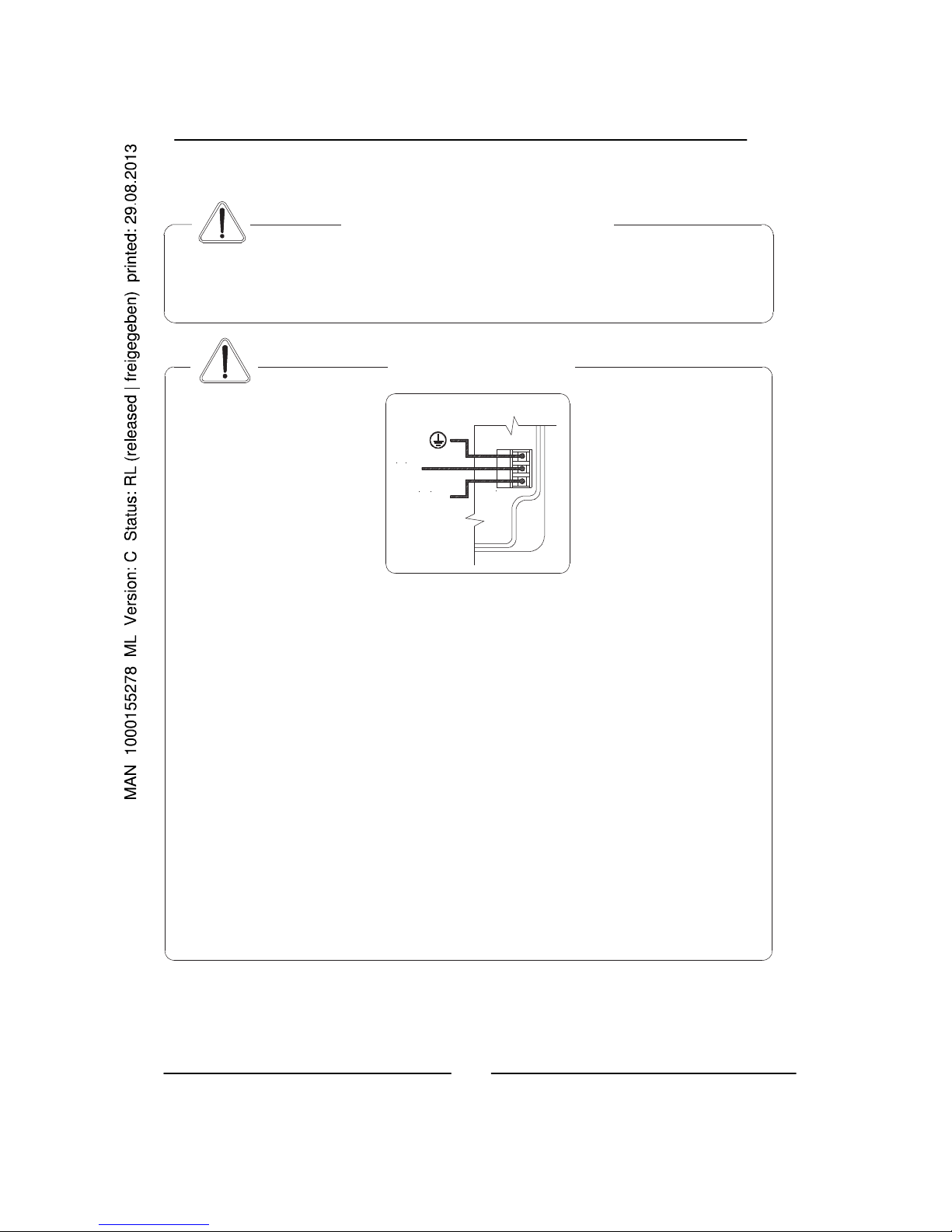

ELECTRICAL CONNECTIONS
A
LWAYS ensure that the transmitter and the sensor are grounded (earthed) correctly.
The grounding of the sensor and transmitter ensures that the equipment and liquid are
equipotential.
Before connecting the power supply, verify that the mains voltage are within the
limits indicated on data plate.
For the connections use only approved conductors, with fire-proof properties, whose
section varies from 0.25mm2to 2.50mm2, based on distance/power; as well fix the
power supply wires with a additional fastening system located close to the terminal.
The power supply line must be equipped with an external protection for overload
current (fuse or automatic line breaker).
Provide nearness the transmitter a circuit breaker easily accessible for the operator
and clearly identified; whose symbols must conform to the electrical safety and local
electrical requirements.
Ensure that the component complies with the requirements of the standard for
electrical safety distance.
The sensor, hardwired inputs and outputs are connected to the transmitter through
terminal blocks located inside the transmitter.
To locate the terminal block loosen the 4 screws on the front cover. When the front
cover is lifted, the terminal block is visible. The terminal block is the hardwire
connection of the transmitter to external equipment, including the sensor.
The following pages give informations on the terminal block numbering, and the
respective connecting of the sensor cables, and inputs/outputs.
GROUNDING INSTRUCTION
S
POWER SUPPLY

SE56
9
INTERNAL VIEW
TRANSMITTER TO SENSOR ELECTRICAL CONNECTIONS
Power supply
1 2345678910
11 12 13 14 15 16 17 18 19 20
IF2 socket
Power supply
Keyboard
123456789
10
11121314151617181920
-
E C
+
SH
OUT2 OUT1 24V
24V
E1
E2
C
4-20mA
ELECTRODES
E C
+
-
BA
RS 485* INPUT
-
+
RS 485* : OPTIONAL, PROVIDED EXLUSIVELY BY THE MANUFACTURER
SH
B2 B1 SH
COILS
TERMINAL BLOCK

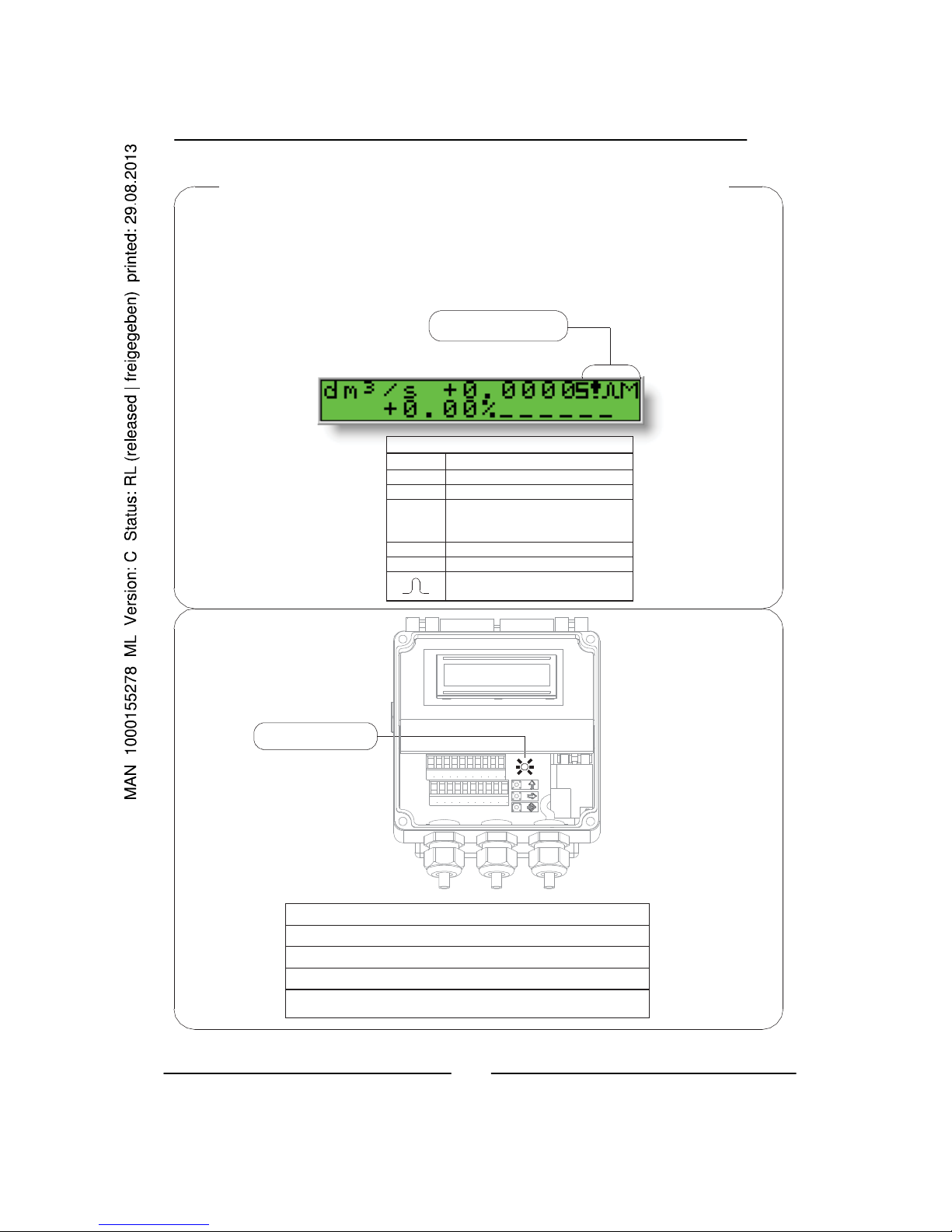

Signalling LED: see display flags and led warning
interpretation section

SE56
10
0-1.5V
3-40V
AUTOCALIB. OFF
T
RESET
0-1.5V
3-40V
Tmin = 100ms
BLOCK
0-1.5V
3-40V
T
0-1.5V
3-40V
SCALE 1
SCALE 2
<18V
18-30V
3/40 Vdc (ON)
0/1.5 Vdc (OFF)
5 (+)
6 (-)
10 K
5
6
20
0
15
+24
10 K
DIGITAL INPUT
INPUT ON/OFF OPERATION
A
uto-calibration
Reset totalizers
Block totalizers
Block totalizers
Totalizers active
Necessary conditions for enabling the function
Necessary conditions for enabling the function
Necessary conditions for enabling the function
Tmin<T<1sec. = autocalibration
T > 1sec. = Auto zero
POS. 5.7 ENABLED (Autozero calibration external
command)
POS. 5.1 to 5.4 ENABLED (partial positive or reverse
flow totalizers reset enable).
POS. 5.5 ENABLED (totalizers counting lock command)
Necessary conditions for enabling the function
Range change
10Hz
20Hz
50Hz
80Hz
150Hz
220ms
110ms
45ms
30ms
15ms
T must be > Tmin
SAMPLE RATE Tmin SAMPLE RATE Tmin
External power supply Internal power supply
POS. 5.8 ENABLED (range change)
Measure lock
Measure blocked
Measure
Necessary condition for enabling the function
POS. 5.6 ENABLED
(
measure lock
)

SE56
11
24V COMMON
+24V INTERNAL
mA
9 (+)
10 (-)
I
4-20mA OUT
Output 4-20m
A
Opto-insulated output
Maximum load: 1000
Maximum voltage without load: 27V
Refresh frequency is the same of the sample
frequency of the connected sensor
Protected against persistent over voltages to
maximum 30V
There is a transmitter load CHECK on the 4–20mA output; to disable this
function set the value "mA v.fault" to 0 (Pos. 4.4)
OUTPUT WIRINGS
NOTE: for the inputs and outputs wirings is recommended the use of shielded cables.
Output on/off 1250H
z

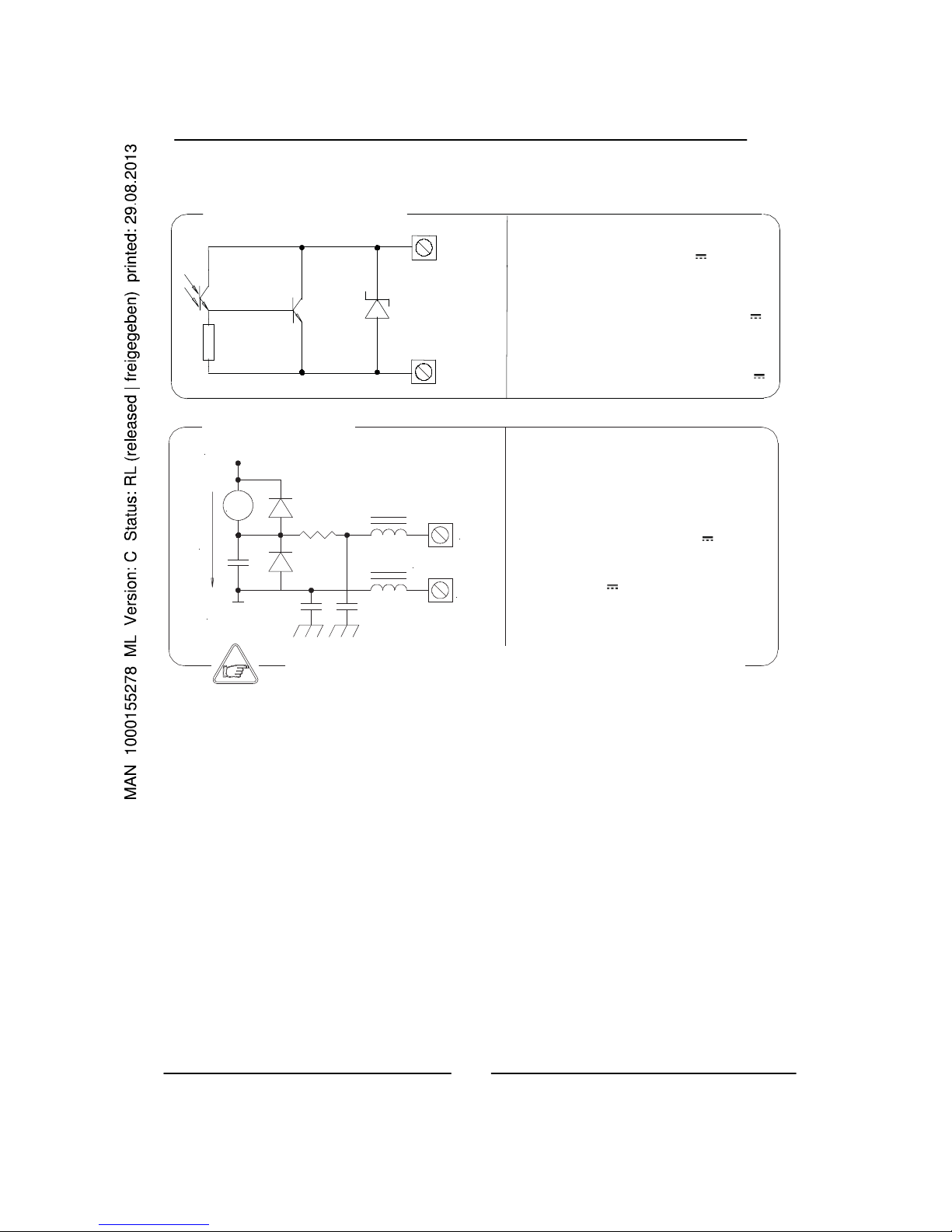

Opto-insulated output with floating collector and
emitter terminals freely connectable
Maximum switching voltage: 40V
Maximum switching current: 100mA
Maximum saturation voltage between collector
and emitter @100mA: 1.2V
Maximum switching frequency (load on the
collector or emitter, RL=470Ω, VOUT=24V ):
1250Hz
Maximum reverse current bearable on the input
during and accidental polarity reversion (VEC):
100mA
Insulation from other secondary circuits: 500V
16 (out1)
18 (out2)
17 (out1)
19 (out2)
43V

SE56
12
1 2 3 4 5 6 7 8 9 10
11 12 13 14 15 16 17 18 19 20
LED INTERPRETATION
PERMANENT LIGHT: initialization
FLASHING LIGHT (1 sec.): normal function
FLASHING LIGHT (<1 sec.): alarm on
The LED signals the alarm status only if the display shows one of
the suitable visualization screens
FLAGS INTERPRETATION
FLAG DESCRIPTION
MAlarm max activated
mAlarm min activated
!
- Interruption coils circuit
- Signal error
- Empty pipe
CCalibration running
SSimulation
Pulse output saturation (reduce
TIME PULSE )
A
t ‘Power on’ of the transmitter, the user will see the following display screen. In the
top right hand corner there may be a range of symbols. The symbols can be
interpreted from the table below. Interpretation of the flashing LED can be made
from the LED interpretation table at the bottom of this page.
DISPLAY FLAGS AND LED WARNING INTERPRETATION
LED
FLAGS

SE56
13
SHORT PRESSING (< 1 SECOND):
Enters/leaves the selected function
Enables the main menu for the transmitter configuration
Cancels the selected function under progress
LONG PRESSING (> 1 SECOND):
Leaves the current function, in the Quick start or Main menus.
Enables the ‘EXECUTE?’ prompt in the Main menu functions, and total reset
request (when enabled) from the required function
Confirms the selected function
SHORT PRESSING (< 1 SECOND):
Moves the cursor rightwards on the input field
Accesses to the following subject in the Quick start or Main menus
Changes the display of the process data
LONG PRESSING (> 1 SECOND):
Moves the cursor leftwards on the input field
Accesses to the previous subject in the Quick start or Main menus
SHORT PRESSING (< 1 SECOND):
Increases the numeric figure or the parameter selected by the cursor
Accesses to the previous subject in the Quick start or Main menus
Batch start/stop (when enabled)
LONG PRESSING (> 1 SECOND):
Decreases the numeric figure or the parameter selected by the cursor
Accesses to the next subject in the Quick start or Main menus

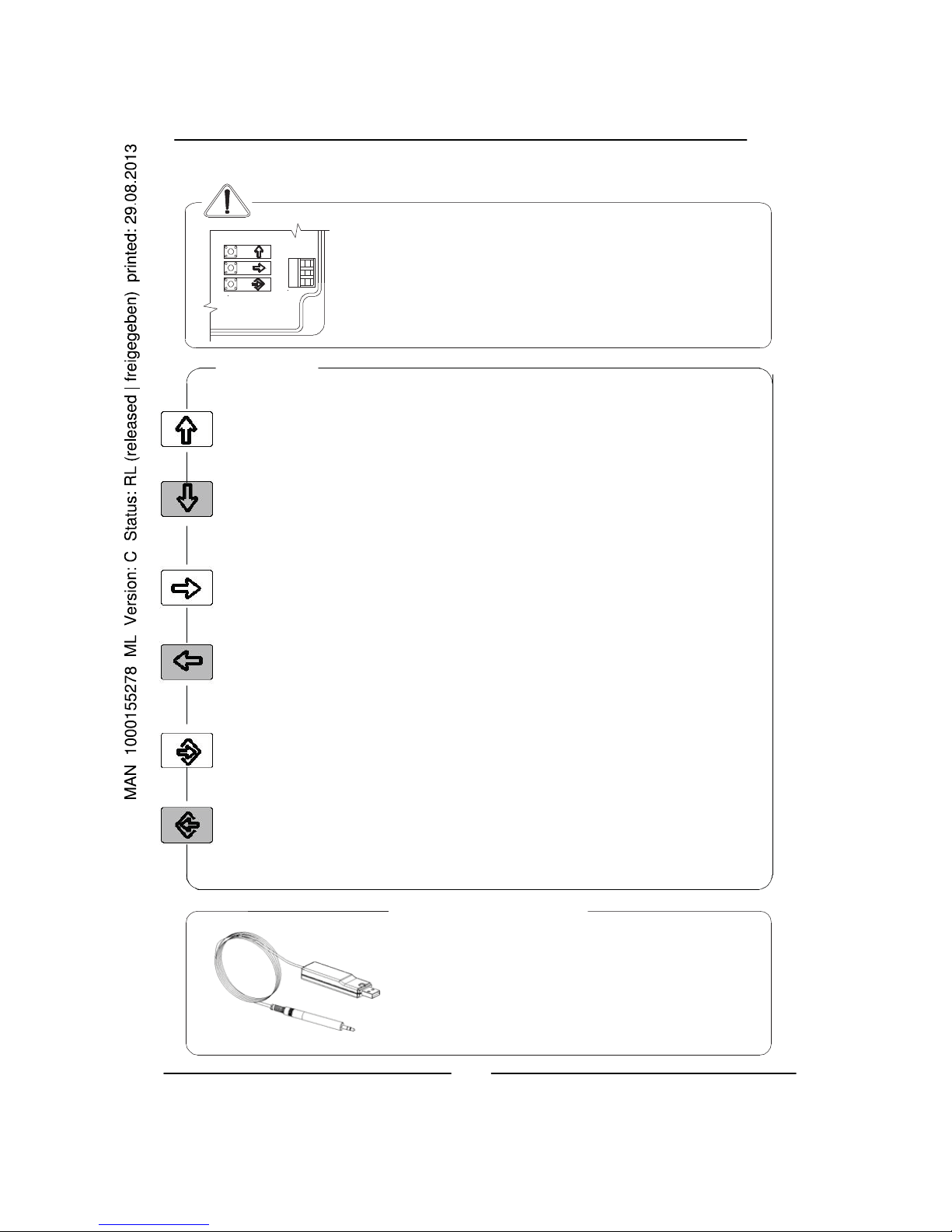

KEYPAD
BLIND CONFIGURATION
For the transmitters without keyboard (blind
configuration), the programming is made
through ISOCON (cable and software needed).
Being the housing closure dependent by the
installer, the IP degree may be compromised, so
follow the torques mentioned.
TRANSMITTER ACCESS
KEYPAD M3
The keypad is accessible by loosening the 4 cover screws and
opening the front cover of the transmitter. Three KEYS are set
aside of the M3 power supply terminal block, allowing the user
to change display visualizations and select functions. Ensure
that the power supply cover is closed.

SE56
14
A
ctive scale
Flow rate visualization
* Direct/Reverse totalizer
visualization
A
lternate visualization * Direct totalizer
Reverse totalizer
Currency value
Alarm description
* Direct Reverse totalizer Flow speed
Flow rate visualization Flow rate visualization
Push keypad button
indicated to move
between pages
Push keypad button
indicated to move
between pages
Push keypad button
indicated to move
between pages
ACCESSING THE FUNCTIONS AT START-UP (Power On)
Example of visualized display pages at start-up
The direct exposure of the transmitter to the solar rays, could damage the liquid crystals display.
CURRENCY FUNCTION ENABLE
* The maximum number shown on the totalizer is 999.999.999 regardless of the number of user selected
decimals (see Pos 2.3). Beyond this value the totalizers are set to zero.
Note: The user will see the
screen displayed (left) at
power on of the transmitter.
Use the keys on the keypad as
indicated centrally on this
page to move between the
screens shown (not all
shown).

SE56
15
The ML 110 allows to show a 5 digit character display for flow rate units; this mean the
maximum flow rate value that can be represented on the display is 99999 (no matter the
positioning of the decimal point). The minimum one is 0.0025.
The representable measure unit depends from sensor flow rate and diameter; the
permitted units are those, set the instrument full scale value, allow to be represented with
a numerical field which the maximum value do not exceed 99999.
Example for DN 300:
- Full scale value: 3m/s
-PERMITTED measure unit (example): l/s (216.00); m3/h (777.60); m3/s (0.2160)
-NOT PERMITTED measure unit (example): l/h (777600)..
FLOW RATE VISUALIZATION

SE56
16
Functions in the main menu transmitter are enabled by the access codes. The information
of this manual is related to all the functions available with the L2 level. All higher level
functions are reserved for servicing and not available.
Description of the L2 access code
(menu “11 Internal data” pos. 11.1)
with code L2 = 00000 (only with this code) you can disable the L2 code request
*with L2 customized (freely chosen by the user) you can program all the functions
up to L2 security level, entering this code whenever you enter the Main menu.
* ATTENTION: take careful note of the customized code you have chosen, there is no way
for the user to retrieve or reset it if lost.
Factory preset access codes
The transmitter is delivered with the default L2 (level 2) access code:
11111
ACCESS CODES

SE56
17
QUICK START MENU
The user has immediate access to the Quick Start menu when the converter is
powered up by pressing the key. If access to the quick start menu does not
occur, then it has been disabled through the function 8.4
See function menu section
Access to all functions

SE56
18
Functions can be accessed by the keyboard in two different ways:
The Quick start menu makes possible to access directly a range of principal
functions for setting the scale reading and display characteristics of the sensor
Quick start menu can be enabled by function 8.4 (menu display)
Through the Main menu it is possible to access functions with the access code
level 2. These control the sensor’s monitoring, data processing, input/output as
well further display options.
The following example shows how to change the Full scale by Quick Start menu; the
following example illustrates how to change the function by the Main menu.
The transmitter configuration menu can be accessed in two different ways:
1) by ISOCON interface
2) by keyboard of transmitter
Isocon is a Windows®software
that allows to set all the
transmitter functions and
personalize the menu (IF2X is
required), see suitable manual for
details.
A
CCESS TO THE CONFIGURATION MENU BY THE KEYBOARD
Factory pr
e
-setting: QUICK START MENU=ON
A
CCESS TO THE CONFIGURATION MENU
A
CCESS TO THE CONFIGURATION MENU BY ISOCON INTERFACE

SE56
19
EXAMPLE: “Quick start menu” function modification. Full scale value 1
(Fs1) from 4dm³/s to 5dm³/s.
Access the function “Fs1” by
pressing the button indicated for less
than 1 second
Push the key repeatedly and rapidly
to move the cursor to the value to
modify
Confirm the new value with a
short press of the key (less
than 1 second)
Long push to leave the quick
start menu and return to the
initial visualization page
Initial visualization page
To increase the value press
the upper key for short
periods of less than 1 second,
to reduce the value press the
upper key for more than 1
second repeatedly
Enter in the “Quick start menu”
The keypad button to be pressed at
each step is indicated by the icon
symbol place on one of the three
keys of the keypad (here lower key)

SE56
20
EXAMPLE: “Main menu” function modification. Full scale value 1 (Fs1) from
4dm³/s to 5dm³/s. (Quick start menu enabled)
Enter in the “Quick start menu”
From any of the start-up
(power on) screens
Access to the “Main Menu”
by pressing the key
indicated
Access the “Scale” menu
with a short key press. Access the function “Fs1”
with a short key press
Change the value by pushing
the button rapidly as many
times as required
Confirm the new value with
a short press of the key
indicated on the keypad
Long push to return to
the main menu groups
Long push to return to
the initialization pages
Initial visualization
p
a
ge
To enter the main menu
input the key code (11111
as default) by increasing
the ‘0’ to ‘1’ and moving to
the next ‘0’ until the key
code is entered
Press the button indicated
to enter the Main menu
page screen from the Quick
menu page
To enter the key code press
the lower key
To move between main
menu function groups press
the arrow key indicated
Move between the
modifiable options by short
pressing the key indicated
on the ke
yp
ad
