English
SE58 S
INDEX
INTRODUCTION 2
SAFETY INFORMATION 2
SAFETY CONVENTION 3
TECHNICAL CHARACTERISTICS 4
TORQUES 6
ELECTRICAL CONNECTIONS 7
GROUNDING 8
POWER SUPPLY 8
OUTPUTS WIRING 9
ACCESS TO THE CONFIGURATION MENU 10
START VISUALIZATION PAGES ON MCP INTERFACE 11
TRANSMITTER ACCESS CODE 12
MANUAL REVIEWS 17


2
English
SE58 S
INTRODUCTION
• These operating instructions and the description of device functions are provided as part of the scope of
supply.
• They could be modified without prior notice. The improper use, possible tampering of the device or parts of
it and substitutions of any components not original, renders the warranty automatically void.
• The flow meter realizes a measure with liquids of conductivity greater than 20µS/cm in closed conduits, and
is composed of a transmitter (described in this manual) and a sensor (refer to the specific manual).
• The transmitter could be coupled directly on the sensor (compact version).
Any other use than the one described in this manual aects the protection provided by the manufacturer and
compromises the safety of people and the entire measuring system and is, therefore, not permitted.
The manufacturer is not liable for damaged caused by improper or non-designated use.
Transport the measuring device to the measuring point in the original packaging. In case of carton packaging it is
possible to place one above the other but no more than three cartons. In case of wooden packaging don’t place
one above the other.
Disposal of this product or parts of it must be carried out according to the local public or private waste collection
service regulations.
The electromagnetic flow meter must only be installed, connected and maintained by qualified and authorized
specialists (e.g. electrical technicians) in full compliance with the instructions in these Operating Instructions, the
applicable norms, legal regulations and certificates (depending on the application).
The specialists must have read and understood these Operating Instructions and must follow the instructions it
contains. If something isn’t clear to you in these Operating Instructions, you must call the Bürkert service. The
Operating Instructions provide detailed information about the device.
SAFETY INFORMATION
TRANSMITTER
SENSOR


3
English
SE58 S
SAFETY CONVENTION
DANGER ELECTRIC
SHOCK
WARNING PRECAUTIONS ATTENTION
• The flow meter should only be installed after having verified technical data provided in this operating
instructions and on the data plate.
• Specialists must take care during installation and use personal protective equipment as provided by any
related security plan about risk assessment.
• Never mount or wire SE58 S while it is connected to the power supply and avoid any liquid contact with the
device’s internal components.
• Before connecting the power supply check the safety equipment.
• Repairs may only be performed if a genuine spare parts kit is available and this repair work is expressly
permitted.
• For the cleaning of the device use only a damp cloth, and for the maintenance/repairs contact the service
center.
Before starting up the equipment please verify the following:
• Power supply voltage must correspond to that specified on the data plate
• Electric connections must be completed as described
• Ground (earth) connections must be completed as specified
Verify periodically (every 3-4 months):
• The power supply cables integrity, wiring and other connected electrical parts
• The housing integrity
• The suitable tightness of the sealing elements
• The front panel integrity (display and keyboard)
• The mechanical fixing of the transmitter to the pipe or wall stand


4
English
SE58 S

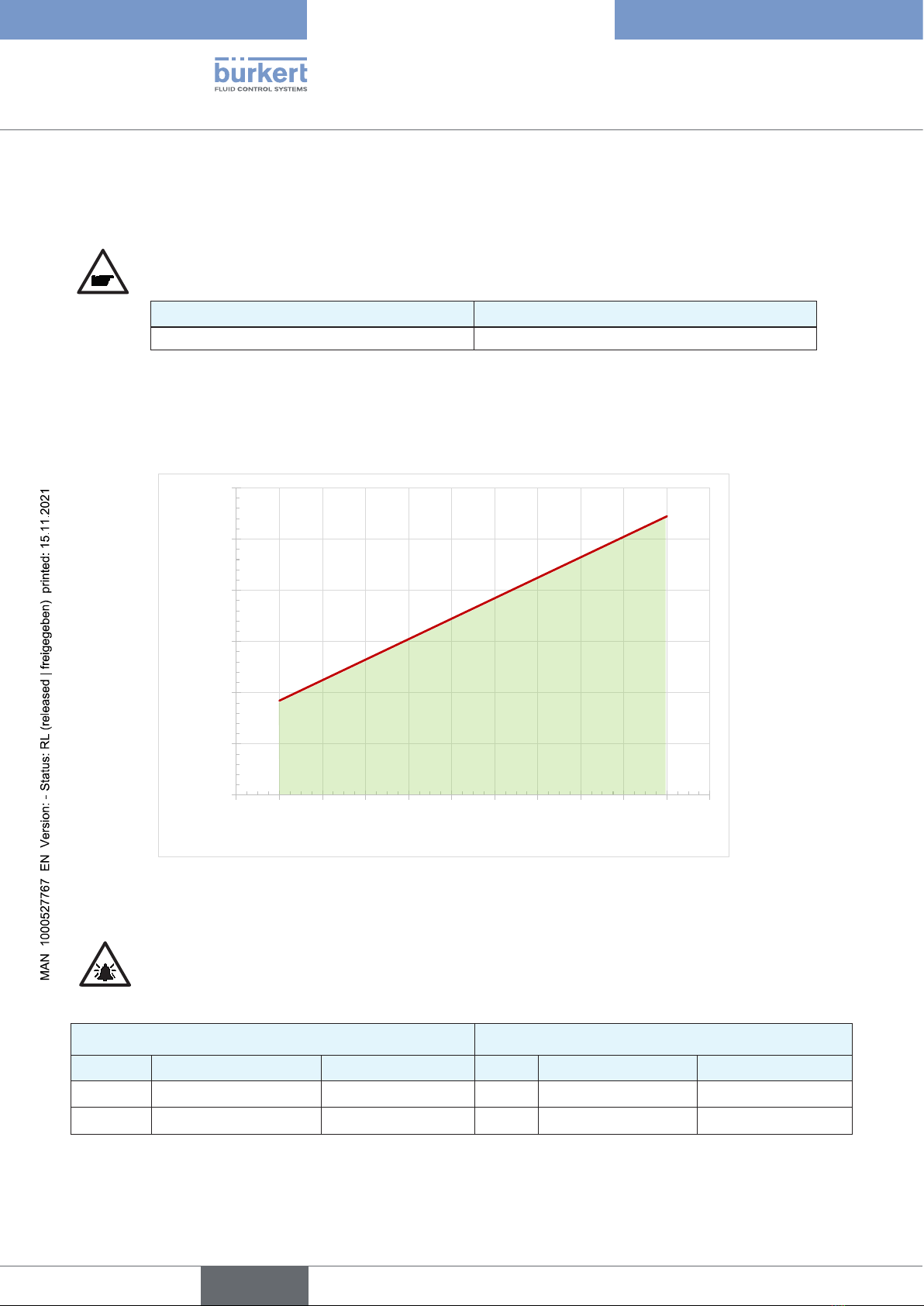

TECHNICAL CHARACTERISTICS
Electrical Characteristic
Device classification: class I, IP67/IP68 installation category II, rated pollution degree 2.
Power supply voltage Power Max
min10 / max30 V DC min10 / max30 V DC
• Voltage variations must not exceed ±10% of the nominal one.
• Digital input/outputs are insulated up to 500V.
• 4-20mA max load: see graph here below; not insulated from power supply.
Environmental Use Conditions
• The device can be installed inside or outside buildings
• Altitude: from –200m to 2000m (from -656 to 5602 feet)
• Humidity range: 0-100% (IP 67)
ENVIRONMENTAL TEMPERATURE LIQUID TEMPERATURE
Min * Max Min* Max
°C -20 60 °C -10 100
°F 14 140 °F 14 212
* For discontinuous use, a thermostat heat source installation may be necessary
0
200
400
600
800
1000
1200
10 12 14 16 18 20 22 24 26 28 30 32
R OUT MAX (Ω)
+VS (V)


5
English
SE58 S
Y
21
FLOW DIRECTION
-
+
Transmitter
Type
SE
58
S
(B0B1A0A)
S/N
AAZ000004
ID
XXXXXX
Power
18-30 V DC 1W
IP
67
MaxTa
60°C
Sensor
Type
SO56 (T10-
3B1A)
S/N
09Y006468
ID
XXXXXX
DN
10
PN
1600 kPa
Liner
PTFE
Conn.
ISO 2852
Electr.
2-AISI316L
IP
67
MaxTm
130 °C
KA
-2.4682
MADE IN ITALY
Transmitter data
Sensor data
Sensor model
Transmitter model
Transmitter serial number
Identification code
Min-Max supply voltage range-supply voltage type-max. power consumption
Identification code
Nominal Diameter
Electrodes number and type
Lining material
Coecent of calibration
Maximum nominal pressure
Process connection
Maximum supported medium temperature
Maximum ambient operation temperatureProtection grade
Protection grade
Sensor serial number
Transmitter data
Sensor data

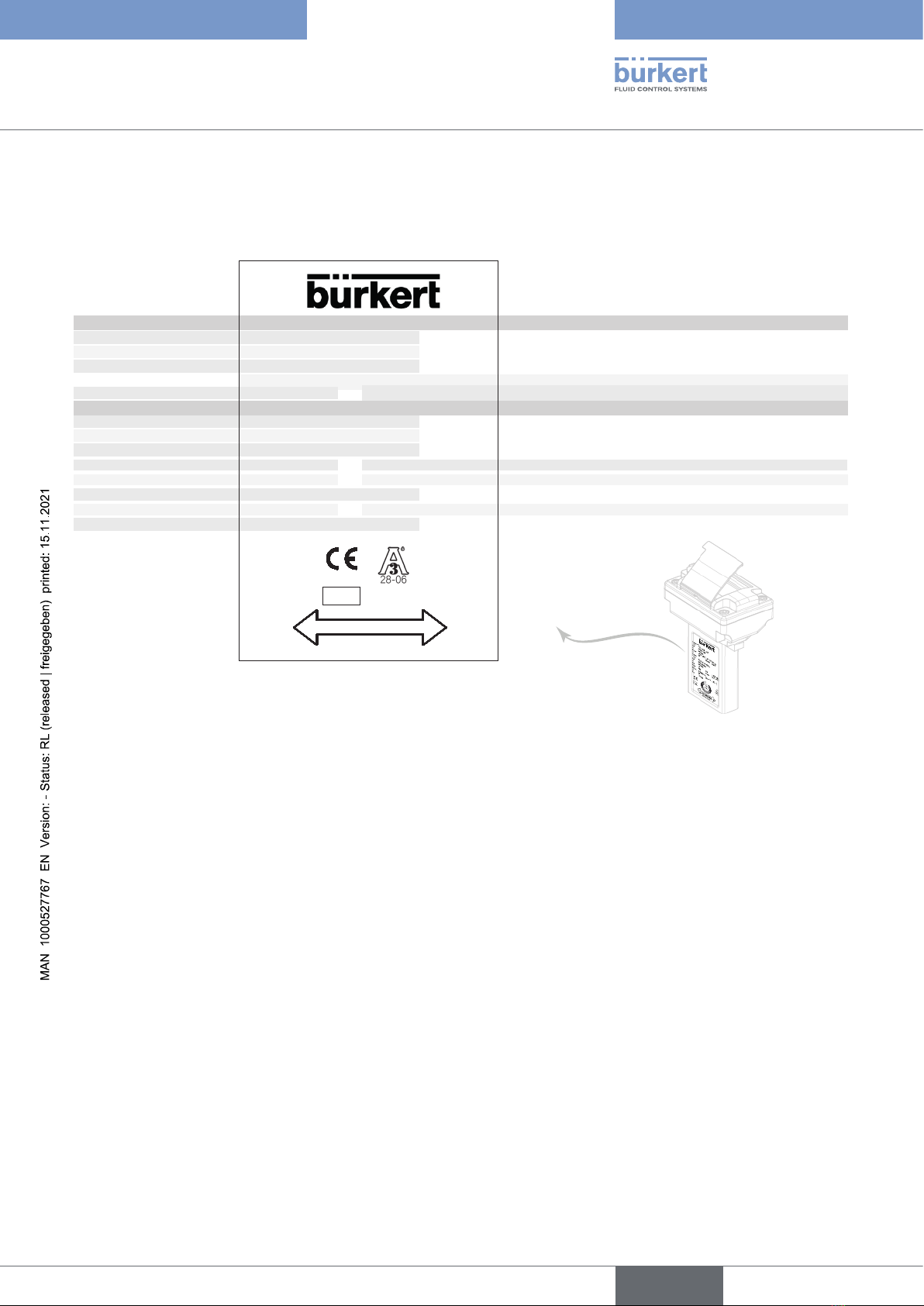

Data Plate
On the data plate there is some technical information


6
English
SE58 S
1
2
3
2
POS.DESCRIPTION TIGHTENING TORQUE Nm
1SCREW M6x16 3.5
2PG9 PLUG 4
3CABLE GLAND PG11 4
TORQUES


7
English
SE58 S
1
2
3
4
5
6
ELECTRICAL CONNECTIONS
1 (+) POWER SUPPLY
2 (+) OUTPUT 1 / INPUT
3 (+) OUTPUT 2 (OPTIONAL)
4 (+) 4-20mA max load:500ΩOUTPUT (OPTIONAL)
5 (-) POWER SUPPLY / OUTPUTS / INPUT
PIN 5 TO BE CONNECT TO THE GROUND
1 (+) POWER SUPPLY
2 (+) OUTPUT 1 / INPUT
3 (+) OUTPUT 2 (OPTIONAL)
4 (+) 4-20mA max load: 500Ω OUTPUT (OPTIONAL)
5 (-) POWER SUPPLY / OUTPUTS / INPUT
6 SHIELD (CONNECT TO GROUND)
PIN 5-6 TO BE CONNECT TO THE GROUND
VERSION WITH CABLE
VERSION WITH CONNECTOR


8
English
SE58 S

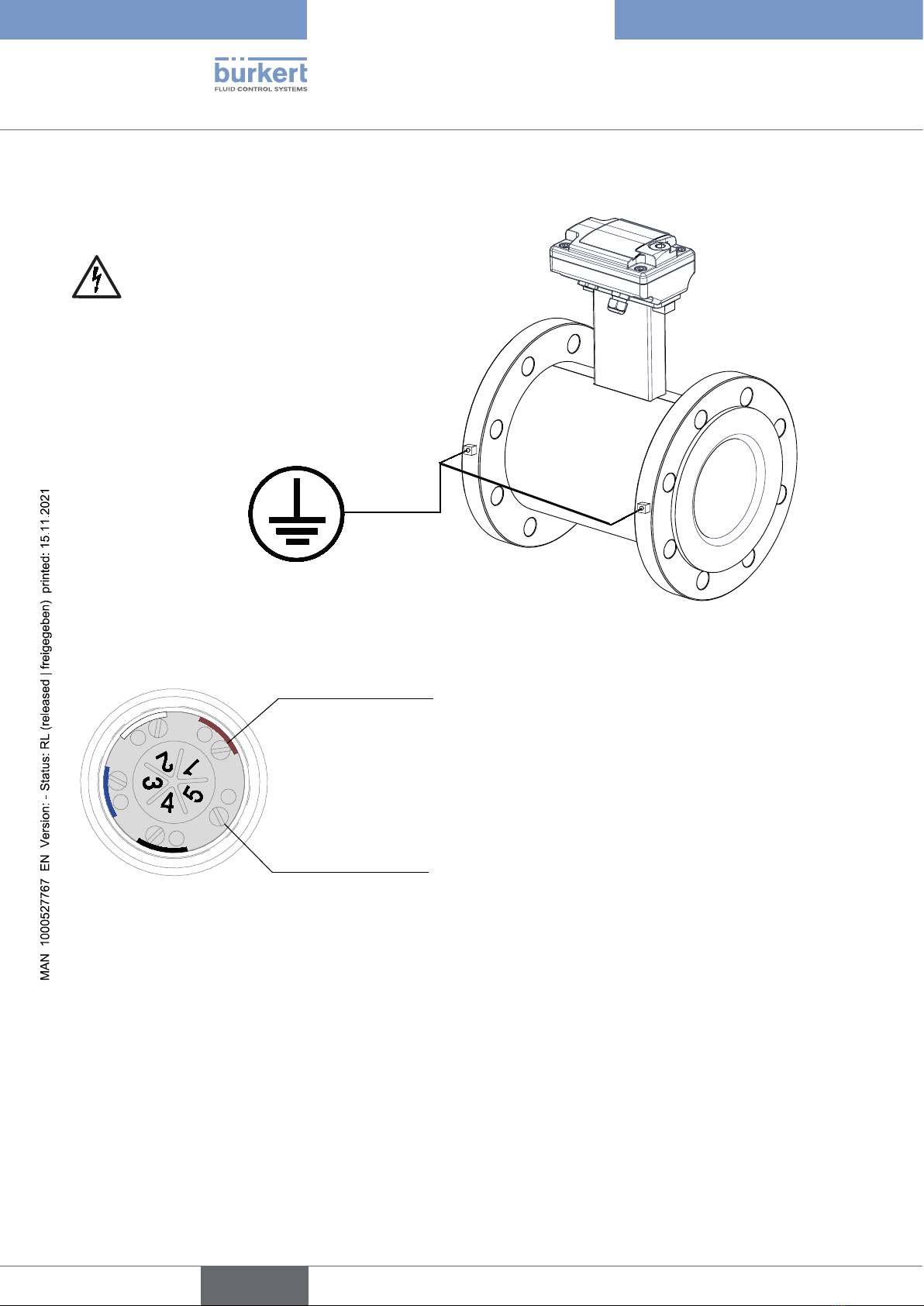

GROUNDING
ALWAYS ensure that the device is
grounded (earthed) correctly. The
grounding ensures that the equipment
and liquid are equipotential.
• Before connecting the power supply, verify that the main voltage is within the limits indicated on data plate.
• For the connections use only approved conductors, with fire-proof properties, whose section varies from
0.25 mm2 to 2.50 mm2, based on distance/power; additionally fix the power supply wires with an additional
fastening system located close to the terminal.
• The power supply line must be equipped with an external protection for overload current (fuse or automatic
line breaker).
• Provide in close proximity the transmitter a circuit breaker easily accessible for the operator and clearly
identified; whose symbols must conform to the electrical safety and local electrical requirements.
• Ensure that the component complies with the requirements of the standard for electrical safety distance.
• Check chemical compatibility of materials used in the connection security systems in order to minimize
electrochemical corrosion.
POWER SUPPLY
POWER SUPPLY +
POWER SUPPLY -


9
English
SE58 S
OUTPUTS WIRING
2 (Out1)
3 (Out2)
5 (-)
24V COMMON
+24V INTERNAL
4-20mA Out
max load: 500 Ω
mA
4 (+)
5 (-)
I
DIGITAL OUTPUTS
ANALOG OUTPUT
• Opto-insulated output
• Maximum switching voltage: 30V
Maximum switching current: 100mA @ 25°C
• Maximum saturation voltage between
collector and emitter @100mA: 1.2V
• Maximum switching frequency (load on the
collector or emitter, RL=470Ω, VOUT=24V ):
1250Hz
• Maximum reverse current bearable on the
input during and accidental polarity reversion
(VEC): 100mA
• Insulation from other secondary circuits:
500V
• Maximum load: see “Electrical
Characteristic” page 4
• Refresh frequency equal to the sample
frequency
• Protected against persistent over
voltages up to 30V
NOTE: shielded cables are recommended for input and output wiring


10
English
SE58 S
ACCESS TO THE CONFIGURATION MENU
You can access the device configuration menu only by MCP. MCP is a software that can be installed on
Microsoft Windows® and allows you to set all the functions of the transmitter and customize the menu. To use
the MCP interface, see its own manual .
To connect the transmitter to the computer, connect the USB cable as shown below.
Remove the PG9 cap.
Connect USB cable type mini B. Verify connection symbol on display.
Data Transmission and MCP Link
Operational


11
English
SE58 S
Electrode 1 resistance
Electrode 2 resistance
Video term. connected
Flow speed
Flow rate graph
Flow rate trend Flow rate value
% full scale
full scale in use (1-2)
Alarms list page
Direct partial totalizer
Reverse partial totalizer
Direct total totalizer
Reverse total totalizer
Total net totalizer
Partial net totalizer
START VISUALIZATION PAGES ON MCP INTERFACE


12
English
SE58 S
TRANSMITTER ACCESS CODE
The access for the device configuration is regulated by six access levels logically grouped.
Every level is protected by a dierent code.
Access Levels 1-2-3-4 Freely configurable by user
Access Code Set : Menu 13 System
The CODE is inserted by MCP.
Depending on the level of access dierent display functions will be
visible. These access levels interact with the “Restricted access”
Restricted Access Set : Menu 13 System
ON
OFF
Values
Restrict = ON: Access permitted only to functions provided for a specific level;
Example: If the operator has a code of access level 3, after having set it, he can change only the functions with
level 3 access.
Restrict = OFF: It enables to change functions for the selected level and ALL the functions with lower access
level.
Example: If the operator has the code of level 3, after having set it, he can change all the functions at level 3 and
those at lower levels.
* WARNING: take careful note of the customized code, since there is no way for the user to retrieve or
reset it if lost.
Factory preset access codes:
• L1: 10000000
• L2: 20000000
• L3: 30000000
• L4: 40000000


13
English
SE58 S
1
125
2
2236
223 7
223 9

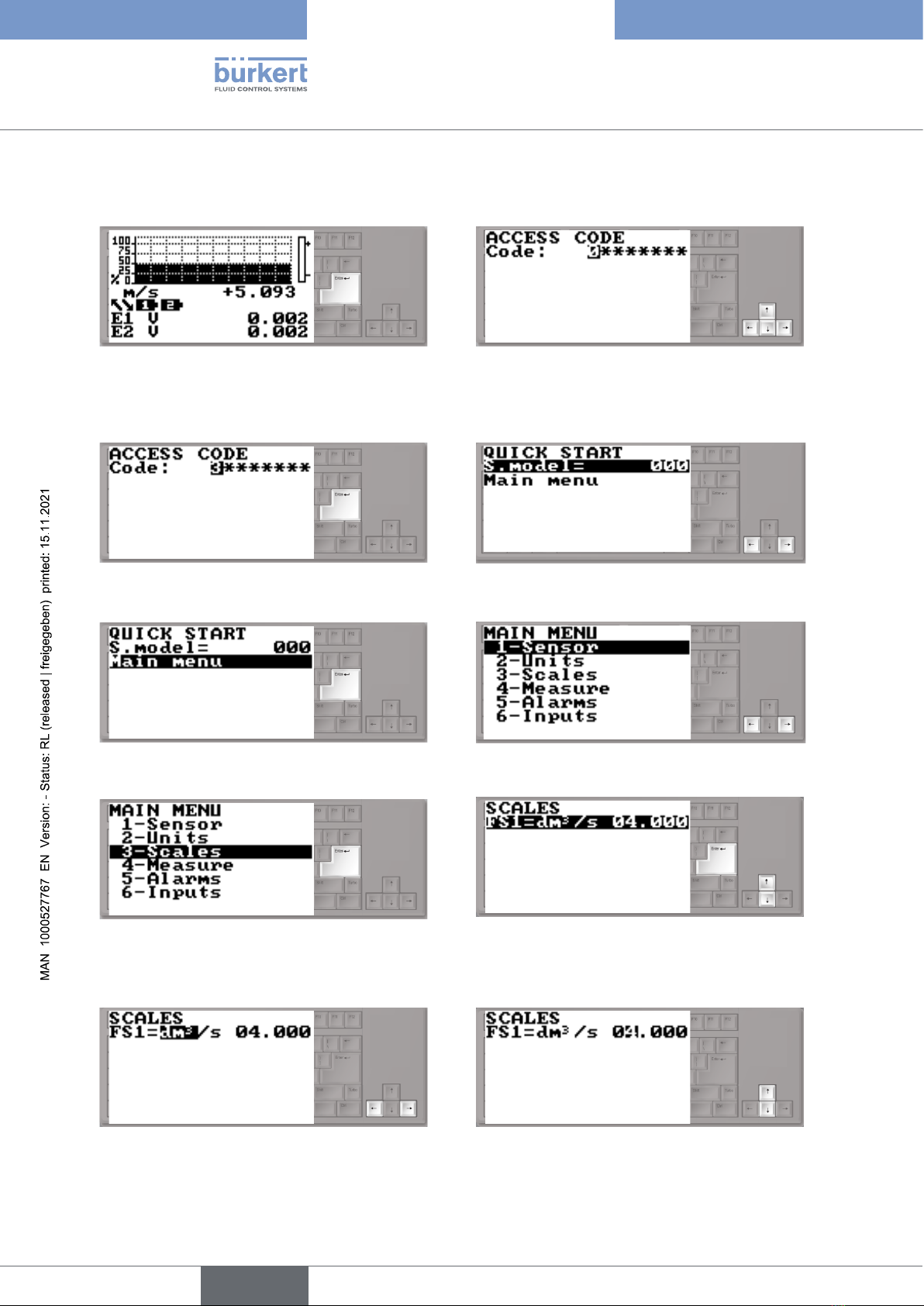

The following example shows how to change the Full scale by Quick Start menu; the second illustrates how to
change the function by the Main menu.
EXAMPLE: modifying the full scale value from 4.0 l/s to 5.0 dm3/s, from the “Quick start menu”
2238
Main Page
Press enter key to access in the
“Quick Start menu”
Select the FS1 function with the arrow keys
Press the enter key to modify the function
3
4
Use the right-left arrow keys to select the character
and the up-down arrow key to assign the numeric
value of the access code
Press the enter key to confirm the access code
Press the indicated arrow keys to select the character Press the arrow keys indicated to change the value
Press the enter button to confirm the changed value Press the esc key to exit from to the “quick start
menu” and return to the main page


14
English
SE58 S
EXAMPLE: modifying the full scale value from 4.0 l/s to 5.0 dm3/s, from the “Main Menu” (quick start menu
enabled)
1
2
3
4
5
6
7
48
49
4 10
Select the Main Menu function with the arrow keys
Press the enter key to access the main menu Select menu 3 with the arrow keys
Press the enter key to access menu 3 Select the FS1 function with the arrow keys and
press the enter key to conrm
Press the indicated arrow keys to select the character Press the indicated arrow keys to change
the value
Press enter key to access in the
“Quick Start menu”
Use the right-left arrow keys to select the
character and the up-down arrow key to assign
the numeric value of the access code
Press the enter key to conrm the access code


15
English
SE58 S
411
4 12
4
13
14 14
Press the enter key to conrm the changed value Press the esc key to exit from the
“quick start menu”
Press the esc key to exit from the menu and return
to the main page
Main Page


16
English
SE58 S
At the end of its lifetime, this product shall be disposed of in full compliance with the environmental regulations
of the state in which it is located.


17
English
SE58 S
MANUAL REVIEWS
REVIEW DATE DESCRIPTION
SE58S_EN_DE_BURKERT_R00_1.02.XXXX 25/02/2021 FIRST EDITION
SE58S_QUICK_EN_BU_R01_1.04.XXXX 08/10/2021 Changes to data relating to digital output

We reserve the right to make technical changes without notice.
Technische Änderungen vorbehalten.
Sous réserve de modifications techniques.
© Bürkert SAS, 2020
