INSTRUCTION MANUAL
TRANSMITTER WITH DISPLAY
SE 56
Version Jun2009/01

SE 56
2
Introduction ___________________________________________p.3
Symbol Used on the manual ________________________________________ p.3
Technical characteristics ________________________________p.4
Electrical characteristics ___________________________________________ p.4
Environmental conditions of use _____________________________________ p.4
Operating temperature_____________________________________________ p.4
Overall dimensions _______________________________________________ p.5
Grounding instructions_____________________________________________ p.6
Transmitter power supply___________________________________________ p.6
Electrical connections _____________________________________________ p. 7
Terminal block M1 for compact, wall-mounted and panel-mounted versions ___ p.7
Electrical connections sensor-transmitter ______________________________ p.8
Inputs/outputs _________________________________________p.9
Optional modules (except relay modules) ______________________________ p.9
Optional relay modules ____________________________________________p.10
Input___________________________________________________________p.11
On/Off output wiring (up to 1250 Hz) - low frequency _____________________p.15
On/Off output wiring (up to 12500 Hz) - high frequency ___________________p.15
Analogical output - 0\4÷20 mA ______________________________________p.15
Start up and maintenance of the devices __________________ p.16
Programming the device________________________________ p.17

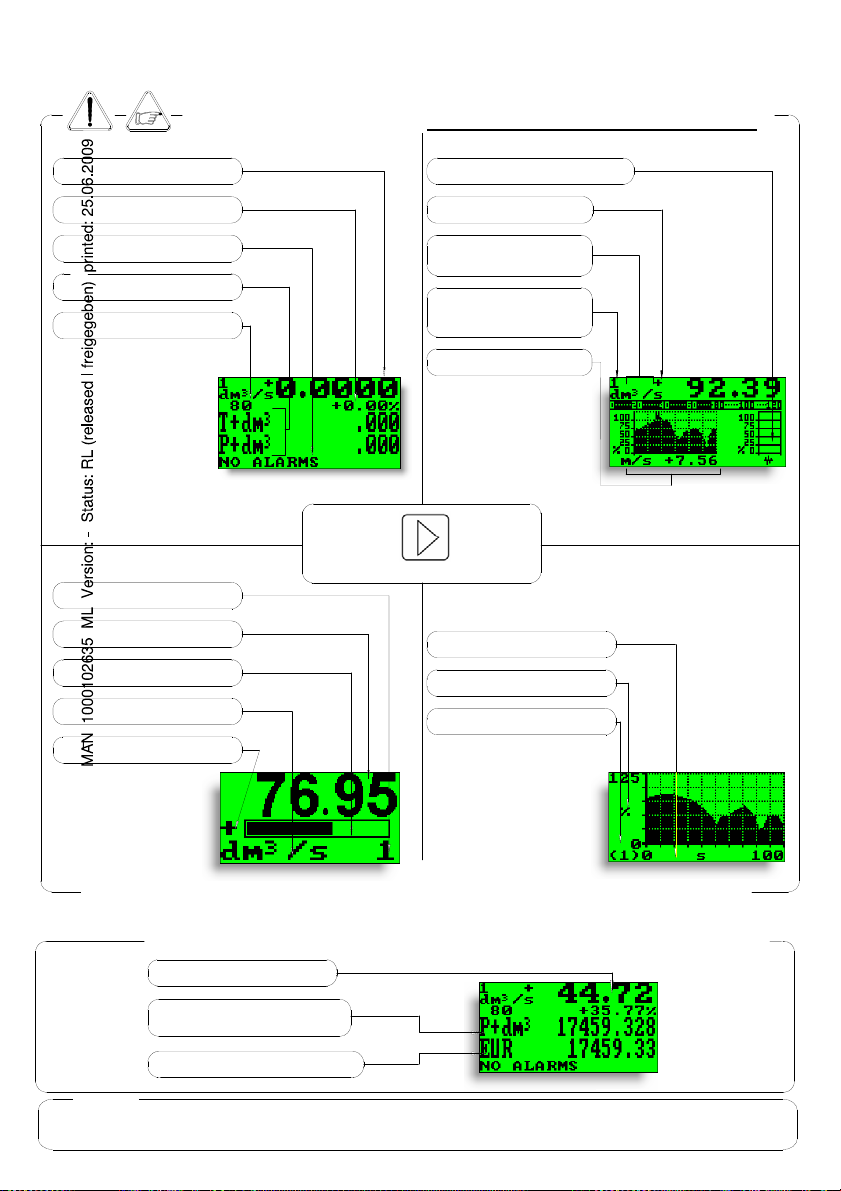

Transmitter visualization pages _____________________________________p.17
Transmitter visualization pages with currency enabled ____________________p.17

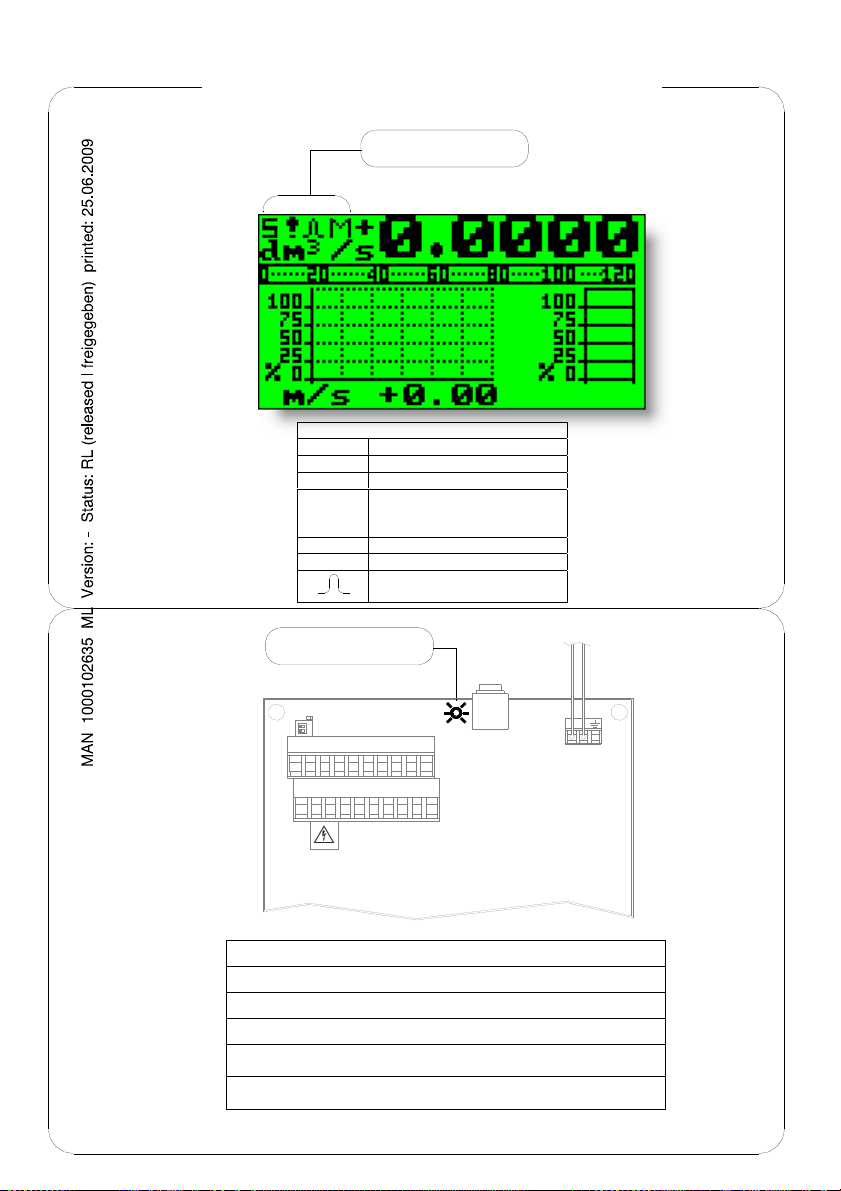

Flags interpretation and led _________________________________________p.18
Transmitter key board _____________________________________________p.19
Transmitter menus _______________________________________________p.20
Access the configuration menus _____________________________________p.21
Access codes____________________________________________________p.26
Block levels _____________________________________________________p.26
Programming functions ________________________________ p.27
Batch _______________________________________________ p.35
Enable batch ____________________________________________________p.35
Programming batch _______________________________________________p.35
Start / stop batch _________________________________________________p.36
Important notes __________________________________________________p.36
Alarm messages ______________________________________ p.37
Causes and actions to be taken______________________________________p.37
error codes _____________________________________________________p.37
APPENDIX 1
Display rotation _______________________________________ p.38
TABLE OF CONTENTS

SE 56
3
SYMBOLS USED IN THE MANUAL
This manual is integral part of the product. Read carefully the instructions contained
since they give important indications for the safe use and maintenance.
Technical information and relative products in this manual could undergo modifications
without any previous notice.
The flow transmitter must be used for what it has been built for. The improper use,
possible modification of the instrument or parts of it and substitutions of any not original
components, automatically invalidate the warranty.
The manufacturer is considered responsible only if the instrument is used in its
original configuration.
ATTENTION
WARNING
PRECAUTIONS
DANGER ELECTRIC SHOCK
INTRODUCTION

SE 56
4
TECHNICAL CHARACTERISTICS
OPERATING TEMPERATURE
TRANSMITTER
Ambient Temp.
Min. Max
°C °F °C °F
-20* -4* 60 140
ENVIRONMENTAL CONDITIONS OF USE
The instrument can be installed inside or outside buildings
Altitude: from –200 to 6000 m (from -656 to 19685 feet)
Humidity range: 0÷100% (IP 67)
ELECTRIC CHARACTERISTICS
Classification of the instrument: class I, IP 67, category of installation II
Power supply
versions Power supply voltage Power supply frequency Pmax Current
max
HV 90÷265 Vac 44÷66 Hz 20W/25VA 0,25 A
LV 18÷45 Vac/dc 0-44÷66 Hz 20W/25VA 1,6 A
LLV 10÷35 Vdc 20 W 1,5 A
INPUT/OUTPUT INSULATION
Inputs/outputs are insulated up to 500V.
The 4-20 mA and +24 Vdc outputs are electrically connected.
* For discontinuous use, the installation of a heating resistance is necessary

SE 56
5
144.0
145.0
67.0
137.0
160.0
80.0
IP65 (OPTIONAL)
72.0
OVERALL DIMENSIONS
138
170
138
146
146
138
170
146
146
230
25
138
COMPACT VERSION
WALL-MOUNTED VERSION
PANEL-MOUNTED VERSION

SE 56
6
L
(+) N
(-)
LN
(+) (-)
M3
M3
Wall-mounted
version

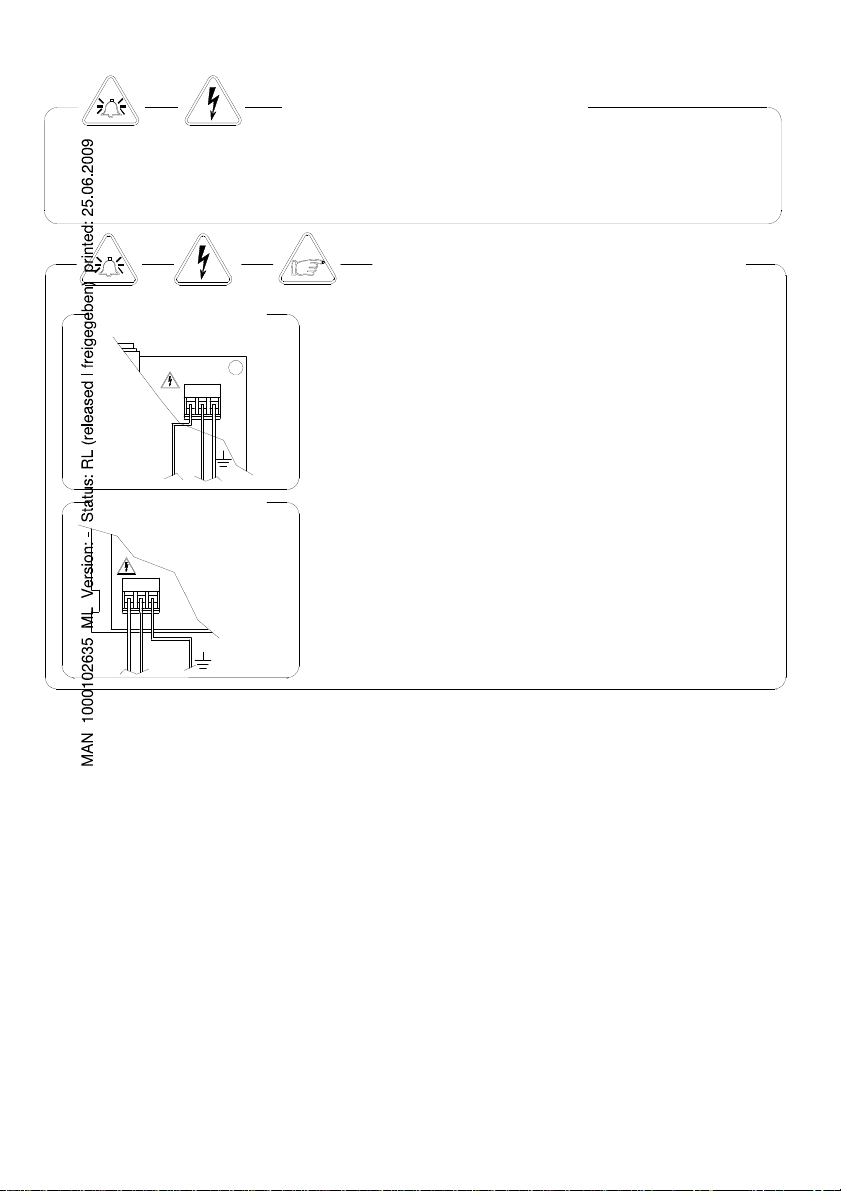

Grounding instructions
TRANSMITTER POWER SUPPLY
Before connecting the power supply, verify that
the mains voltage falls between the limits
indicated on the tag plate
ATTENTION: the transmitters on dc power
supply line are not protected against the
inversions of polarity.
For the wiring use only approved conductors,
with fireproof properties.
The power supply line must be equipped with an
external protection for current overload (fuse or
automatic line breaker with limiting capacity not
greater than 10 A).
In the proximity of the instrument provide a
circuit breaker that must be easily accessible
from the operator and clearly identified.
Panel-mounted
version
For the correct operation of the transmitter is NECESSARY that sensor and liquid are
equipotential, so ALWAYS connect sensor and transmitter to the ground

SE 56
7
Dangerous voltage on blocks 12-13:
60 Vdc Max
250 V max. peak voltage at coil
commutation
M1
M3
1 2 3 45 6 7 8 9 10
11 12 13 14 15 16 17 18 19 20
LOCK
323130292827
262524232221
M2
TERMINAL BLOCK M1 FOR
COMPACT AND WALL-MOUNTED VERSIONS
Dangerous voltage on block 12-13:
60 Vdc Max
250 V max. peak voltage at coil
commutation
Dip switch for block levels
enabling
Signalling LED:
interpretation at page 18
IF2 socket
Power supply
ELECTRICAL CONNECTIONS
TERMINAL BLOCK M1 FOR PANEL-MOUNTED VERSIONS
20 1817161514 131211
10987654321
32 3130 2928 27
26 2524 23 22 21
M1M2
M3
Dip switch for block levels
enabling
IF2 socket
Power supply

SE 56
8
ELECTRICAL CONNECTIONS SENSOR TO TRANSMITTER
WALL-MOUNTED
VERSION TERMINAL BLOCK M1
Sudden movements of the electrodes
cable, can cause noises on measure.
Max length of cable: 20 m
123456789
10
11 12 13 14 15 16 17 18 19 20
E1 E2 CSH + - B
A
+ -
ELECTRODES INPUT RS485 4-20mA
ECEC+SHB2B1SH OUT2OUT124VCOILS 0V
1
2
3
4
11
12
13
E1
E2
C
SH
SH
B1
B2
10 9 8 7 6
1 (E1)
10 (preamp.)
9 (preamp.)
8 (preamp.)
7 (preamp.)
6 (preamp.)
2 (E2)
3 (C)
4 (SH)
11 (SH)
12 (B1)
13 (B2)
5 4 3 2 1
PREAMPLIF
I
ER VERSION
From pin 1 to pin 5 cables
connected to the sensor
From pin 6 to pin 10 cables
connected to the transmitter
Max length of the cable: 500 m

SE 56
9
2 programmable on/off outputs + 1
on/off input
1 programmable on/off output + 1
high frequency output + 1 on/off
input
1 0/4…20mA output + 2
programmable on/off outputs + 1
on/off input
1 RS232 port + 2 programmable
on/off outputs + 1 on/off input
1 RS232 port + 2 programmable
on/off outputs + 1 0/4…20mA output
+ 1 on/off input
Data logger: specific manual
SC: Cable shield, electrically
connected to ground and to the casing
CTS: Input terminal of the signal
“CLEAR TO SEND” of the RS232 port
RD: Input terminal of the signal
“RECEIVE DATA” RS232 port
TD: Output terminal of the signal
“TRANSMIT DATA” of the
RS 232 port
SG: Terminal “SIGNAL GROUND”
common to all signals of the RS232
port
C: Terminal connected with the
COLLECTOR of the transistor of the
on/off output
INPUTS/OUTPUTS (BLOCK M2)
OPTIONAL MODULES
(relay modules at next page)
21 22 23 24 25 26
27 28 29 30 31 32
OUT 3
EC
CTS RD TD SG
RS 232
-+
INP2 EC OUT 4 SC
-+
4..20mA
20
(M1)
LEGEND

SE 56
10
2 relay outputs with 1 NO contact + 1
NC contact each, 2A 60Vac,
60W/125Va
2 relay outputs with 1 NO contact + 1
NC contact each, 2A 250Vac,
60W/125Va
SC: Cable shield, electrically
connected to ground and to the
casing
C: relay – common
NC: Normally closed contact
NO: Normally open contact
INPUTS/OUTPUTS (BLOCK M2) CONT’D
OPTIONAL RELAY
MODULES LEGEND
26 25 24 23 22 21
OUT 4
CNC
NO OUT 3
CNC
NO
32 31 30 29 28 27
SC
21 22 23 24 25 26
OUT 3
NO NC COUT 4
NO NC C
14
(M1)

SE 56
11
INPUT
The functions referring to the inputs can be divided in three groups:
1) Functions only assignable to the input 1 (page 12)
2) Functions that act directly on the inputs independently from the selected input
(page 13)
3) Functions only assignable to the input 1 and only to the input 2 and interacting
with one another (some examples at page 14)
Remember that the activation of any functions of batch automatically disable the other.
The list of such functions is suitable in the tab at page 36.
3/40 Vdc (ON)
0/1,5 Vdc (OFF)
5 (+)
6 (-)
10 K
5
6
20
0
15
+24
10 K
External power supply Internal power supply

SE 56
12
0-1,5 V
3-40 V
AUTOCALIB. OFF
T
RESET
0-1,5 V
3-40 V
Tmin = 100ms
BLOCK
0-1,5 V
3-40 V
T
0-1,5 V
3-40 V

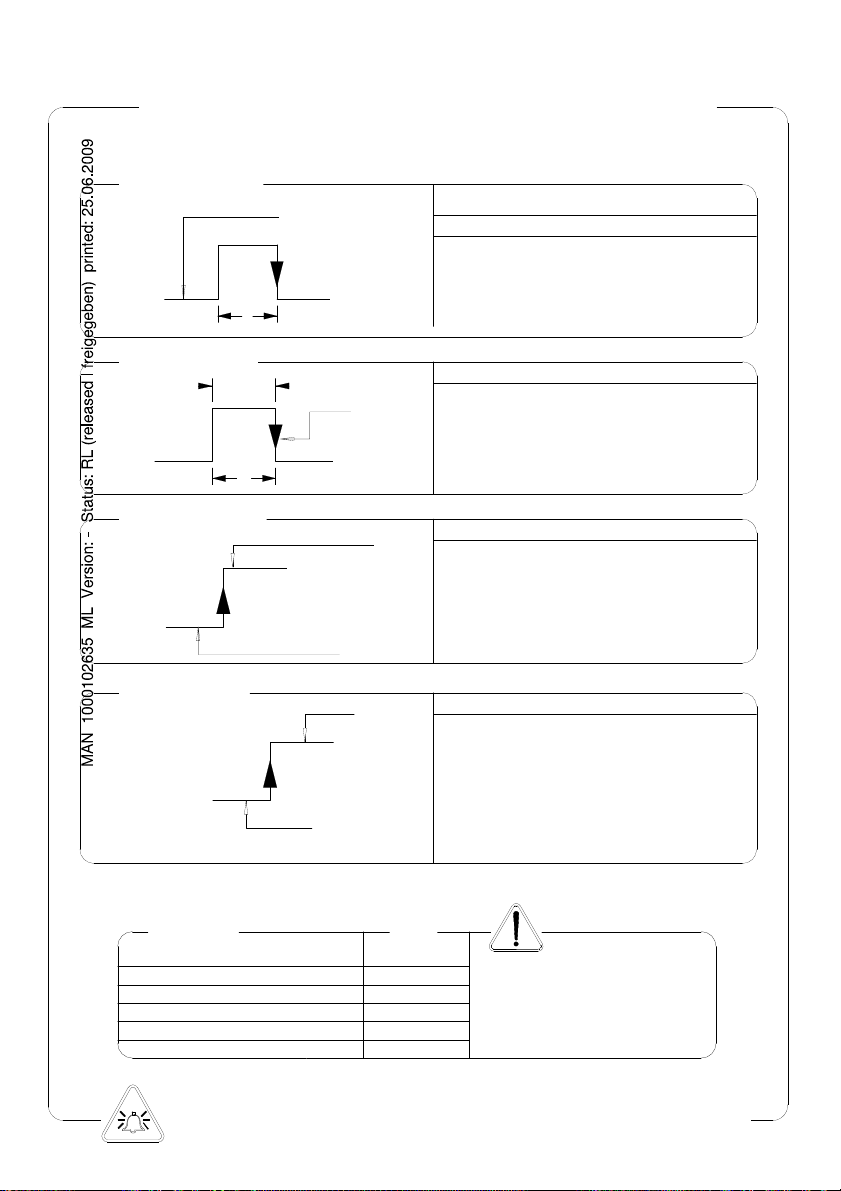

INPUT OPERATION STAGE
(
GENERIC FUNCTIONS
)
OPERATION ON INPUT ON/OFF
10 Hz
20 Hz
50 Hz
80 Hz
150 Hz
220 ms
110 ms
45 ms
30 ms
15 ms
A
TTENTION: time T
must be ≥Tmin
Auto-calibration
Reset totalize
r
s
Hold totalize
r
s
Speed rate Tmin
Hold totalizers
Totalizers active
Necessar
y
conditions for enablin
g
the function
Necessar
y
conditions for enablin
g
the function
Necessar
y
conditions for enablin
g
the function
Tmin<T<1sec. = autocalibration
T > 1 sec. = Auto zero
POS. 5.7 ON
POS. 5.9 (batch on input 1) OFF
POS. 5.10 batch functions assign to input 2
(optional) OFF
POS. 5.1 ÷ 5.4 ON, at least one
N.B.: This function is also assignable to
input 2
POS. 5.6 ON
POS. 12.5 (auto-batch) OFF
POS. 12.7 (batch consent) OFF
POS. 5.9 (batch on input 1) OFF
POS. 5.10 batch functions assign to input 2
(optional) OFF
POS. 6.1-6.4 end-batch functions assigned
to output 2 OFF
POS. 5.8 ON
Necessar
y
conditions for enablin
g
the function
Range change
N.B.: THE FUNCTIONS INDICATED ABOVE ARE ONLY ENABLED ON INPUT 1
Scale 2
Scale 1

SE 56
13
T
T

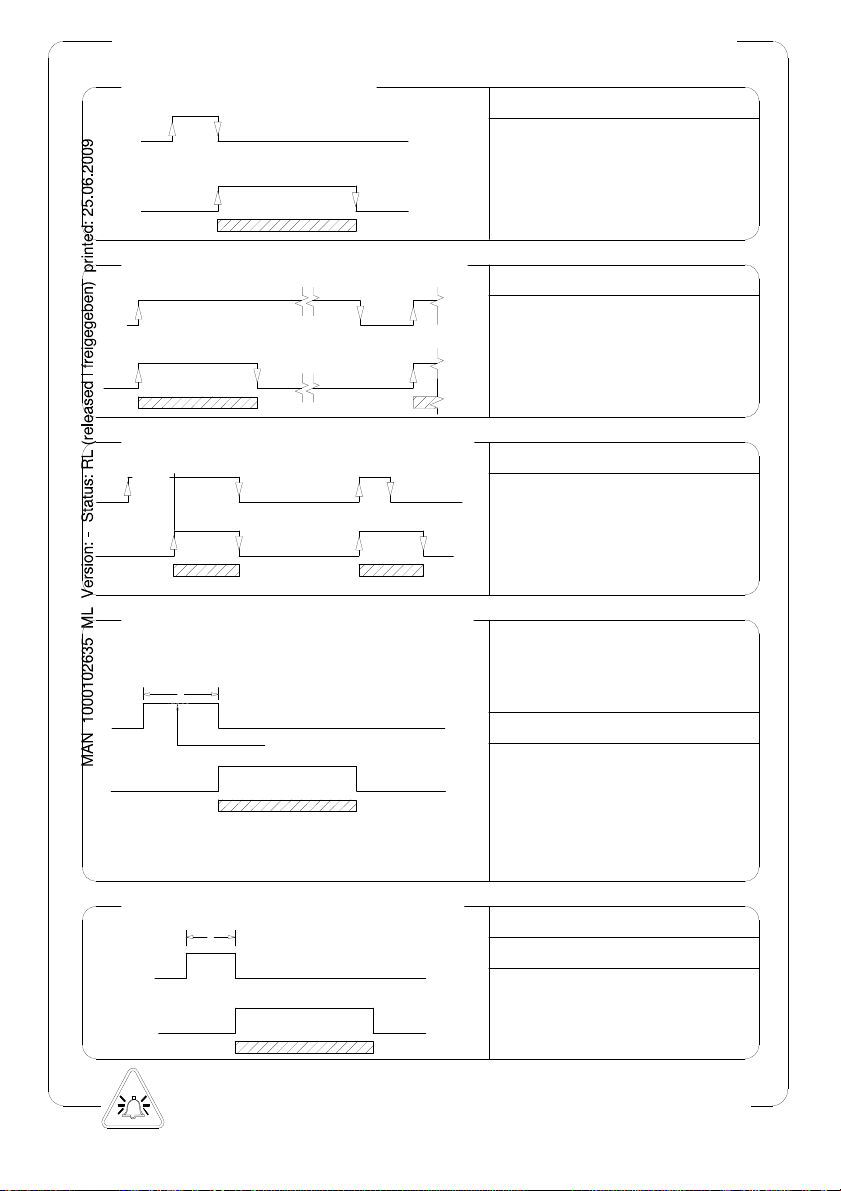

OPERATION STAGE ON INPUT 1 OR 2
(
BATCH FUNCTION
)
Start batch from remote input
Start batch from consent
Start batch from remote input with
auto-batch enabled
POS. 5.9 ON or POS. 5.10 on
“Batch”
POS. 6.1 ÷ 6.4 on “end batch”
Start batch from remote input with
automatic selection of formula 00/03
N.B.: THE ACTIVATION OF BATCH FUNCTIONS ON INPUT 2
PREVENTS THE ACTIVATION OF BATCH FUNCTIONS ON INPUT 1
Necessary conditions for enabling the
function
Necessary conditions for enabling the
f
unction
POS. 5.9 ON or POS. 5.10 on “Batch”
POS. 6.1 ÷ 6.4 on “end batch”
POS. 12.7 (CONSENT MODE) ON
POS. 5.9 ON or POS. 5.10 on “Batch”
POS. 6.1 ÷ 6.4 on ”end batch”
POS. 12.5 (auto-batch) ON
POS. 12.7 (consent mode) OFF
Necessary conditions for enabling the
function
T= 100ms ±50ms for select the formula 00
T= 200ms ±50ms for select the formula 01
T= 300ms ±50ms for select the formula 02
T= 400ms ±50ms for select the formula 03
If « stop batch from remote input » is activated,
the time of input pulse must be > 50ms
POS. 5.9 ON or POS. 5.10 on “Batch” (never
“ME SELECTION”)
POS. 6.1 ÷ 6.4 on “end batch”
POS. 12.6 (automatic selection of formula) ON
POS. 12.7 (consent mode) OFF
Necessary conditions for enabling the
function
Start batch from remote input 1
Reset p+ enabled on remote input 1 T BEETWEEN 1 AND 4 s = RESET TOTALIZER
T<1s = START AND RESET TOTALIZER
Necessary conditions for enabling the
function
POS. 5.9 (batch on input 1) ON
POS. 6.1 ÷ 6.4 on “END BATCH”
POS. 5.2 (reset P+) ON
0-1,5
V
3-40
V
INPUTOUTPUT
Closing
valve
Opening
valve BATCH
INPUTOUTPUT
0-1,5
V
3-40
V
Opening
valve Opening valve
Closing
valve
BATCH
3-40
V
0-1,5
V
5 Sec. <5 Sec.
INPUTOUTPUT
Closing valve
quantity to batch
memorized
Opening
valve Closing
valve
A
UTO-BATCH BATCH
3-40
V
0-1,5
V
Formula selection
Star
t
INPUTOUTPUT
Opening
valve Closing
valve
BATCH
INPUT
OUTPUT
3-40
V
0-1,5
V
Star
t
Opening
valve Closing
valve
BATCH
Star
t

SE 56
14
OPERATION STAGE ON INPUT 1 AND 2 (BATCH FUNCTION)
Start batch on remote input 1
Stop from output selection formula 00 or
01 from remote input 2
Hold totalizer from remote input 1
Start batch from remote input 2
Hold and reset totalizer from remote input 1
Start batch from remote input 2
Consent mode to batch enable
Necessary conditions for enabling the
function
POS. 5.9 ON
POS. 6.1 or 6.4 on END BATCH
POS. 5.10 on “MD SELECTION”
(option)
The hold of the totalizer always
determines the interruption of the
batch. Exciting again the input 2
may have 2 results:
1) T< 1Sec: interrupted batch is
restarted
2) T between 1 and 4 Sec:
interrupted batch is reset.
N.B.: it will be necessary to give a
new start pulse at input 2
(T< 1Sec) to start a new batch
Necessary conditions for
enabling the function
POS. 5.6 (Block totalize) ON
POS. 6.1 OR 6.4 on “END
BATCH”
POS. 5.10 on “Batch” (option)
POS. 5.2 (P+) ON
Holding the totalizer causes the current batch
to be stopped. The function “reset T2 enabled
on descent front” on input 1 resets the
totalizer of the current batch.
Therefore the presence of the consent or a
new pulse on the input 2 determines the start
of a new batch
Necessary conditions for enabling the
f
u
n
c
ti
o
n
POS. 5.6 (Block totalizer) ON
POS. 5.10 on “Batch” (option)
POS. 12.7 (consent mode) ON
POS. 5.2 (P+) ON
3-40
V
0-1,5
V
Star
t
Opening
valve Closing
valve Opening
valve Closing
valve
BATCH FORMULA 00 BATCH FORMULA 01
BATCH FORMULA 00 BATCH FORMULA 01
3-40
V
INPUT 2 OUTPUT INPUT 1
3-40
V
0-1,5
V
Star
t
Star
t
Opening
valve
Closing
valve Opening
valve Closing
valve
NEW BATCH
RESTART INTERRUPTED
BATCH
OUTPUT
OUTPUT INPUT 2INPUT 2
INPUT 1
T<1 Sec.
T between 1 and 4 Sec.
3-40
V
0-1,5
V
Star
t
RESET
T
<1 Sec.
Star
t
Opening
valve Closing
valve Opening
valve
Closing
valve
INTERRUPTED BATCH
0-1,5
V
3-40
V
BLOCK
0-1,5
V
3-40
V
Star
t
INPUT 2
Opening
valve Closing valve
Opening
valve Closing
valve
0-1,5
V
3-40
V
BLOCK RESET T2
INPUT 1 OUTPUT
INTERRUPTED BATCH
NEW BATCHINTERRUPTED BATCH
T
T T

SE 56
15
16 (out1)
18 (out2)
17 (out1)
19 (out2)
43V
30
29
43V
24V COMMON
+24V INTERNAL
0/4..20mA OUT
mA
9 (+)
10 (-)
I
OUT 1/OUT 2 standard - OUT 3/OUT 4 with modules (page 9)
Output on/off 1250 Hz
Opto-insulated output with collector and emitter
terminals floating and freely connectable
Maximum switching voltage: 40 Vdc
Maximum switching current: 100mA
Maximum saturation voltage between collector and
emitter at 100mA: 1,2V
Maximum switching frequency (load on the collector
or emitter, RL=470Ω, VOUT=24Vdc): 1250Hz
Maximum reverse current bearable on the input
during and accidental polarity reversion (VEC):
100mA
Insulation from other secondary circuits: 500 Vdc
Opto-insulated output
Maximum load 1000 ohm
Maximum voltage without load 27 Vdc
Refresh frequency equal to the sample
frequency of the connected sensor
protected against persistent over voltages till
30 Vdc
Opto-insulated output with collector and emitter terminals floating
and freely connectable. In order to get the maximum speed
performances it is necessary to connect the emitter to the
common terminal of the outputs (0V), while the load has to be on
the collector. This output is internally connected to the power
supply source 24 Vdc available on the terminal block.
Maximum switching voltage: 40Vdc
Maximum switching current: 100mA
Maximum saturation voltage between collector and emitter
100mA, load on the collector and internal power supply: 0,3V
Maximum saturation voltage between collector and emitter
100mA, load on the emitter and internal power supply: 3V
Maximum switching frequency, load on the collector and internal
power supply: (RL=470Ω, VOUT=24Vdc): 12500Hz
Maximum switching frequency, load on the emitter or external
power supply: (RL=470Ω, VOUT=24Vdc): 2500Hz
Insulation from the other secondary circuits (except 24V and
4…20mA outputs): 500 Vdc
Only with high frequency
output module
Output on/off 12500 Hz
The transmitter detects a loss of load on the 4÷20mA output; to disable this
function set the value "mA Val. Fault" to 0 ( pag 28 Pos. 4.7)
OUTPUTS WIRING
Output 0-4÷20m
A

SE 56
16
START UP AND MAINTENANCE
OF THE DEVICES
Before starting up the device please verify the following:
Power supply voltage must correspond to that specified in the name plate
Electric connections must be done as described at page 8
Ground connections must be done
Verify periodically:
The integrity of the power supply cables, wiring and other electrical parts connected
The integrity of the instrument’s housing (this must not have bruises or other
damages that may compromise the hermetical sealing)
The tightening of the sealing elements (cable glands, covers, etc.)
The integrity of the front panel (display and keyboard), damages may compromise
the sealing
The mechanical fixing of the instrument on the pipe or on the wall stand

SE 56
17
The direct exposure of the trasnmitter to the solar rays, could damage
the liquid crystals display. N.B. Contrast set see page 32 pos. 8.3
* The maximum digit shown from the totalizer is 999999999 independently from the number
of selected decimal. Beyond this value the totalisers are reset.
Flow rate value
% full scale
Date/time or alarm
Direct / reverse
Sampling rate
Analogical bar of flow rate variations
Flow direction
+
/
-
See: error codes and
interpretation of flags
C=Calibration
S=Simulation
Flow speed
Scale (1=low); (2=high)
Flow rate value
% full scale
Measuring units
Flow direction
Time scale (see Pos. 3.1)
%full scale
Active scale
Flow rate value
Currency value
Total direct
totalize
r
V
ISUALIZATION PAGES
Push to change visualisation
TRANSMITTER VISUALIZATION PAGE WITH CURRENCY FUNCTION
The visualization of the pages can change depending on whether some functions are enabled or
disabled (Pos. 8.4 - 8.8 – 8.10 and batch functions)
NOTE
*

SE 56
18
M1
M3
12345678910
11 12 13 14 15 16 17 18 19 20
LOCK
INTERPRETATION OF THE FLAGS
FLAG DESCRIPTION
M Alarm max activated
m Alarm min activated
! - Interruption coils circuit
- Signal error
- Empty pipe
C Calibration running
S Simulation
Pulse output saturation (reduce
TIME PULSE )
Fla
g
s and LED interpretation
FLAGS
LED
LED INTERPRETATION
LIT: initialisation
FLASHING ( 1 sec.): normal function
FLASHING (<1 SEC.): alarm
Two of the visualization pages described at page 17 show a short
message describing the current alarm
ATTENTION: on the panel-mounted version the LED is not visible

SE 56
19
SHORT PRESS (< 1 SECOND):
Increases the digital value or the parameter selected by the cursor
Goes to the previous menu position
Batch start/stop (when enabled)
LONG PRESS (> 1 SECOND):
Decreases the digital value or the parameter selected by the cursor
Goes to the next menu position
SHORT PRESS (< 1 SECOND):
Moves the cursor rightward on the input field
Goes to the following menu position
Changes the display of the process data
LONG PRESS (> 1 SECOND):
Moves the cursor leftward on the input field
Goes to the previous menu position
SHORT PRESS (< 1 SECOND):
Enters /leaves the selected function
Enables the main menu for the instrument configuration
Cancels the selected function under progress
LONG PRESS (> 1 SECOND):
Leaves the current menu: goes back to previous menu level
Enables the totaliser reset request (when enabled)
Confirms the selected function
KEYBOARD

SE 56
20
QUICK START MENU FUNCTIONS
MENU
Some of the most used functions can be accessed directly using the “Quick start menu”
by pressing the “ENTER” key. The Quick start menu can be disabled by the function 8.6
in the display menu: if the Quick start menu is disabled, pressing the “ENTER” key gives
access to the main menu.
Access to all functions
The above functions “batching setup”, “regulation setup” and “flow measure setup”
instantaneously configures the device by modifying in optimal way all the parameters
referring to the chosen operation. To enable one of the 3 operations select the function
using key “ENTER”, then validate the “EXECUTE?” request by having a long press on
key “ENTER”.
Functions described at page 20 and
following (menus “2-Scales”, “3-
Measure”, “1-Sensor”, “10-Diagnostic”
and “7-Communication”)
Automatic optimization of the parameters
(
see below
)
