Car Solutions IW04-MB14-N User manual

Instruction Manual
High-Definition Link for Mercedes-Benz
Latest Firmware Date 2017 -09 -11
Manual Version Rev. 2.4
Language English
Release Date: 2017 - 09 -11
[email protected] www.car-solutions.com
car-solutions.com

Contents
•Cautions
•Dimension & Exterior
•Components & Optional parts
•Full Installation Diagram
•HDMI Connection Diagram
•Navigation Connection Diagram
•Compatibility Chart for Navigation(GPS) box models
•LVDS Connection Diagram
•Hazard Module Connection
•Body Connector specifications
•Car Compatibility Chart
•Activation by original buttons of C(W205), V(W447) Class

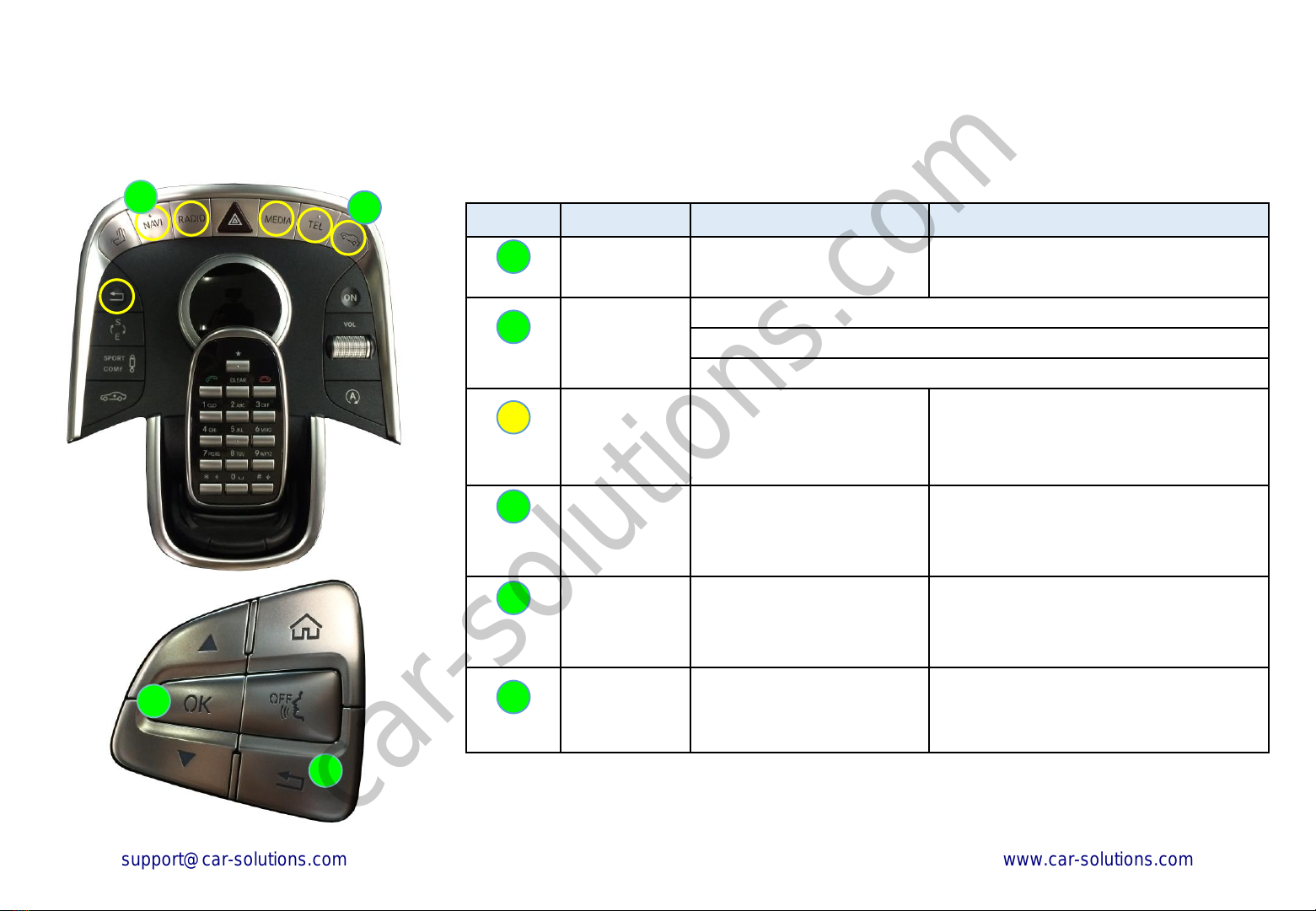

•Activation by original buttons of CLS(W218), B(W246), CLA(C117), E(W212) Class

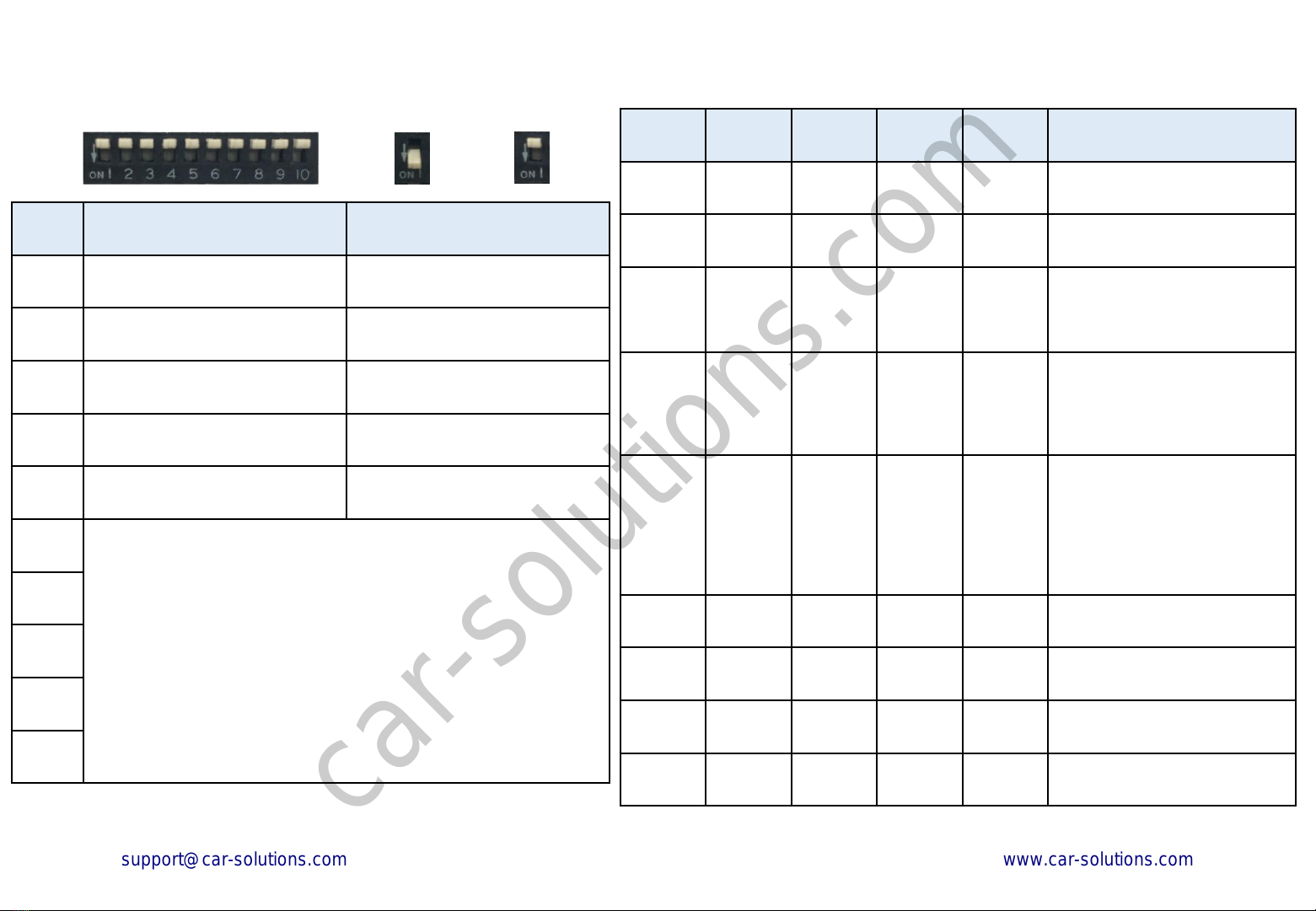

•DIP Switch Settings
•Settings
1. Enter into the setting menu
2. HDMI mode settings
3. NAVI mode settings

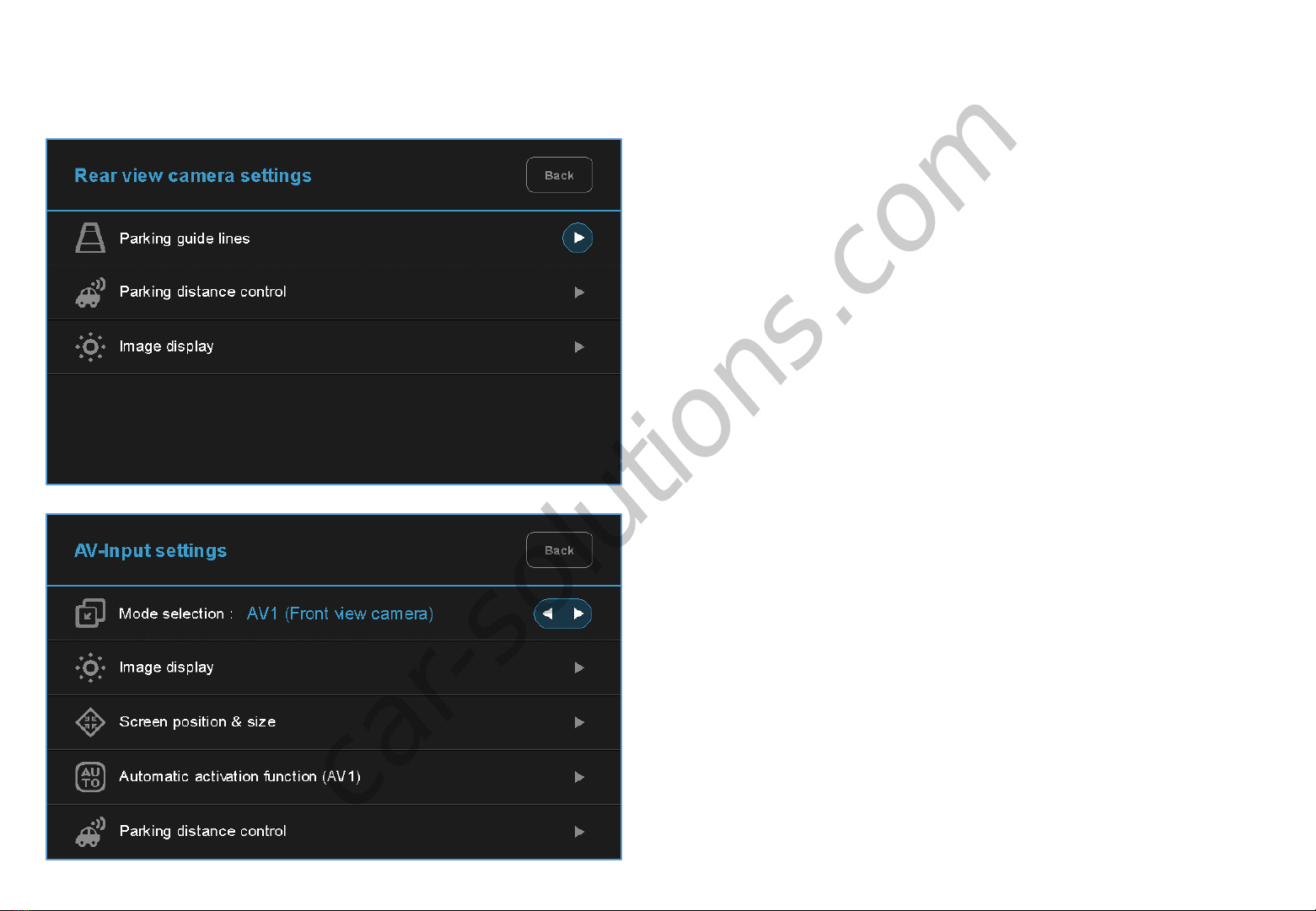

4. Rear view camera settings
5. AV1(Front view camera) settings

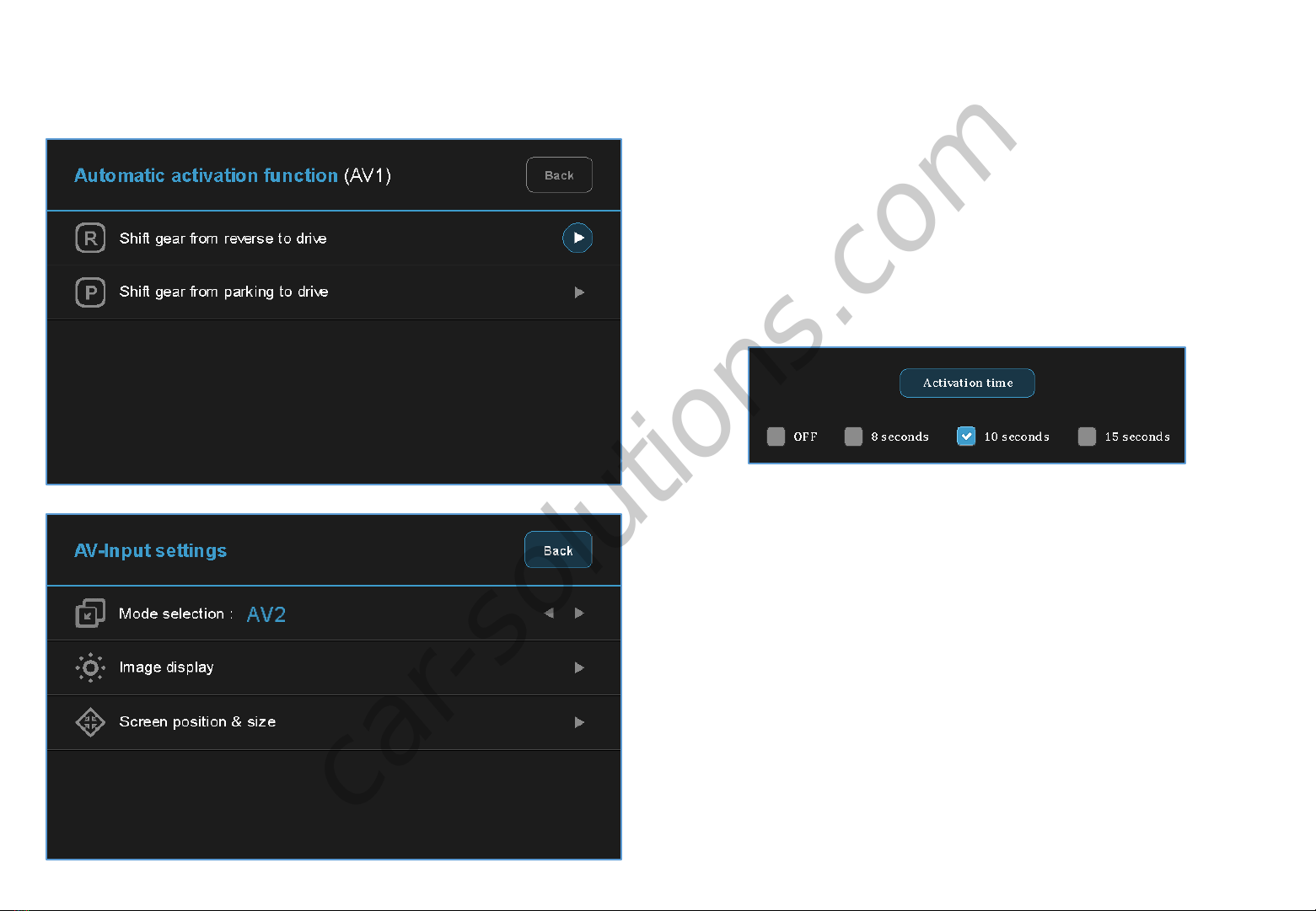

6. Automatic activation function(AV1)
7. AV2 settings
8. Keep the rear camera view
9. System settings
10. System information
11. Information of Dip switch settings
____________________________________________________________ 3
_________________________________________________ 4
_________________________________________ 5
______________________________________________ 6
___________________________________________ 7
______________________________________ 8
____________________ 9
___________________________________________ 10
___________________________________________ 11
_______________________________________ 12
______________________________________________ 13
_______________ 14
__ 15
_________________________________________________ 16
____________________________________ 17
___________________________________________ 18
____________________________________________ 18
_____________________________________ 19
________________________________ 19
______________________________ 20
___________________________________________________ 20
_____________________________________21
_______________________________________________ 22
____________________________________________ 22
______________________________ 23
[email protected]
www.car-solutions.com
car-solutions.com

3
Device related
•You should check the names and colors of each wires exactly, before you connect the wires.
ex) CAN HIGH: White wires / CAN LOW: Blue wires
• The ‘POWER / CAN Cable’ should always be connected last and be disconnected first.
•The 'Mode Switch' is an optional part to change modes forcibly without CAN-BUS.
Generally, the CAN-BUS wires are connected for changing modes by original buttons.
•When the reverse gear is not detected by CAN-BUS,
the 'REVERSE 12V IN wire’ should be spliced with 12V power of reverse light.
HDMI device - related
•HDMI mode accepts general-screen resolution of HDMI devices.
If screen size of HDMI does not fit on the monitor, should adjust screen size & position in 'settings mode'.
•Generally, '5V 1A Power output(5V USB POWER)' is a standard voltage for charging smartphone.
If you need higher voltage than 5V, you should add a separate power supply.
Navigation(GPS) box - related
•When you connect the power wires(B+, ACC) to the navigation(GPS) box,
the ‘NAVI 12V OUT' wire supported by the deviceshould be spliced with anACC wire of navigation box .
•After installation is done, select an applicable navigation(GPS) box model in the 'Navigation model selection
menu' of setting mode.
•The navigation box should be powered off before unplugging the HDMI cable.
Cautions
[email protected] www.car-solutions.com
car-solutions.com

4
ⓐ ⓑ ⓒ ⓓ ⓔ
ⓕ ⓖ ⓗ ⓘ ⓙ

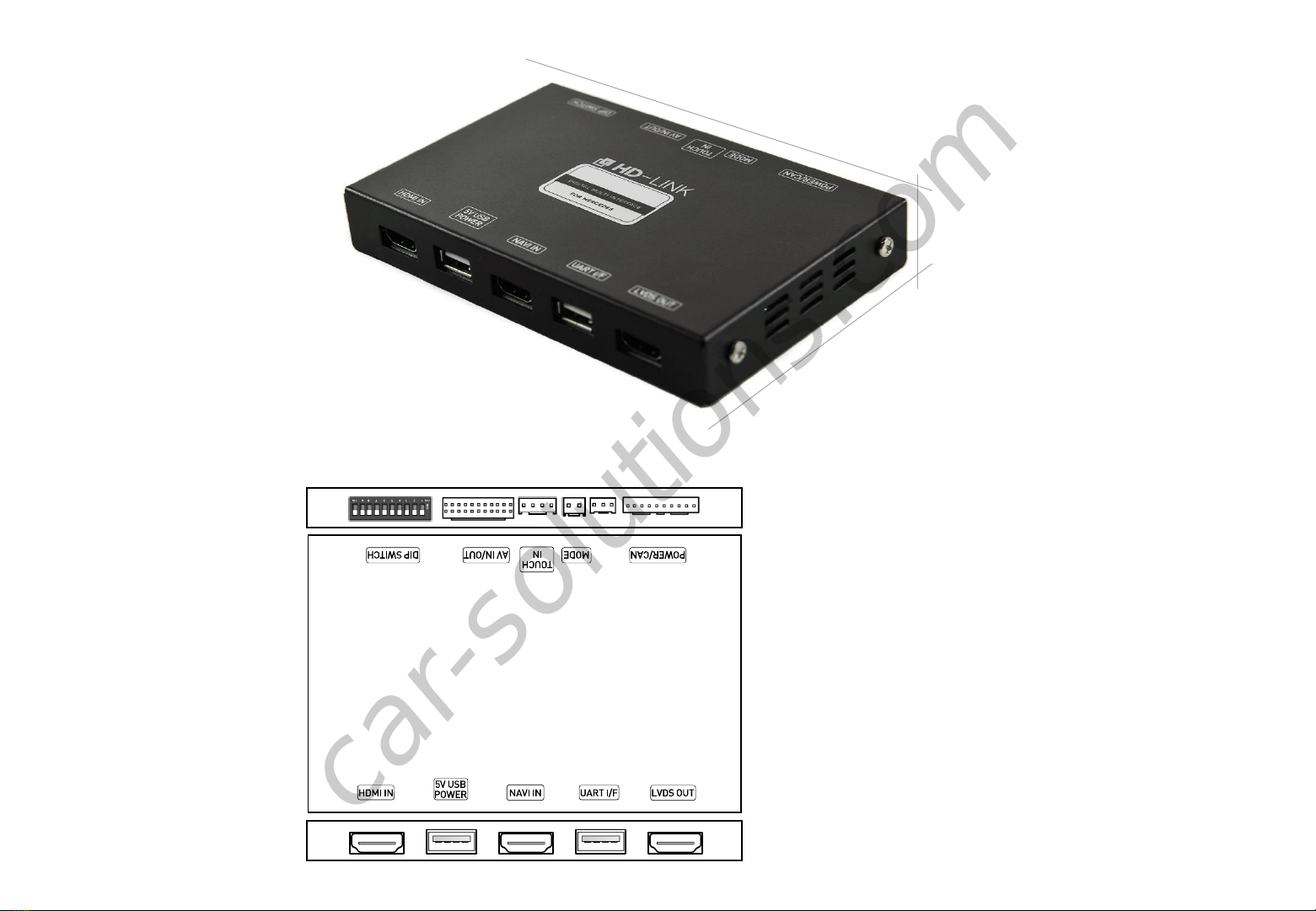

Width: 142 mm
Length: 91 mm
Height: 22 mm
ⓐDIP SWITCH
ⓑAV IN / OUT
ⓒTOUCH IN (Not Used)
ⓓMODE
ⓔPOWER / CAN
ⓕHDMI IN
ⓖ5V USB POWER
ⓗNAVI IN
ⓘUART I/F
ⓙLVDS OUT
Exterior
Dimension
[email protected] www.car-solutions.com
car-solutions.com

5

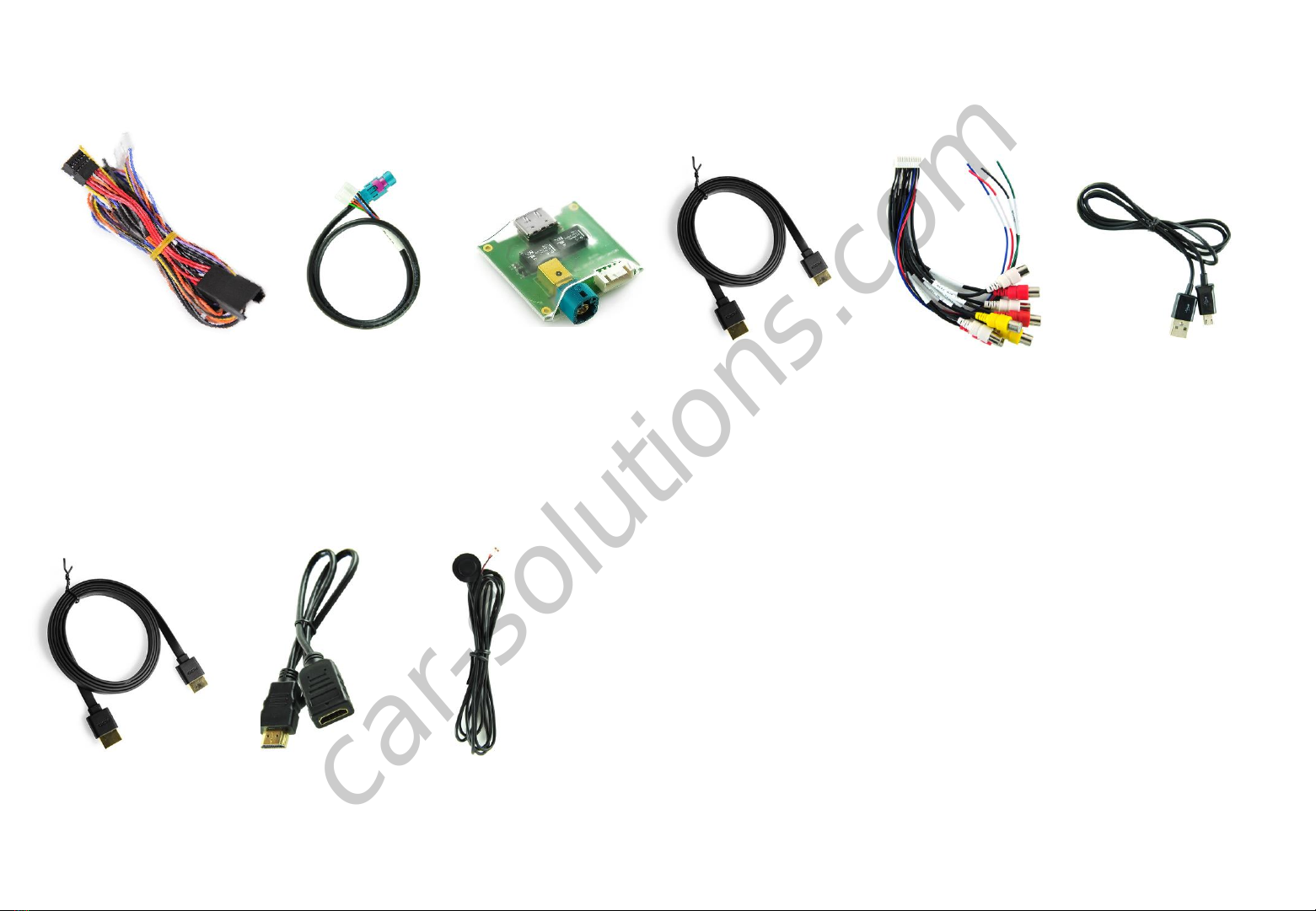

Power / CAN Cable LVDS Cable LVDS PCB HDMI Cable
(For LVDS) AV IN / OUT Cable 5-pin Micro USB Cable
Components
Optional Parts(sold separately)
Mode SwitchHDMI Extender
(For stick type HDMI device)
HDMI Cable
(Male to Male)
[email protected] www.car-solutions.com
car-solutions.com

External Rear View
Camera
Audio(AUX) Output of
Navigation Box
Auxiliary(AUX)
Input of the car
External Front View
Camera
AV device
(ex: DTV Box, Divx)
RV-CAM Video Input
LVDS IN / OUT Connection
DIP S/W Setting
Mode Switch
(optional)
HDMI Device
HDMI
HDMI
HDMI
HDMI USB
FV-CAM Video Input
(AV1)
12V Power Output & GND Output(RV-CAM Power)
NAVI Audio Input
Audio Output
※Optional External Devices
AV-Input(AV2)
Reverse Signal Detection(optional)
Full Installation Diagram
LVDS
IN / OUT
PCB
(Provided LVDS Cable)
(OEM LVDS Cable) 6
Navigation Box
OEM Head Unit
OEM Monitor
(Provided LVDS Cable)
HDMI
HDMI USB
USB
Pin # 12 = GND(Brown)
Pin # 15 = B+ POWER(Red)
Pin # 31 = PAS CAN LOW(Yellow)
“ (Brown) *CLS-Class
Pin # 37 = PAS CAN HIGH(Yellow/White)
“ (Brown/Red)*CLS-Class
Pin # 32 = MON CAN LOW(Black)
Pin # 38 = MON CAN HIGH(Black / White)
COMAND APS NTG 5.0
Original Main-Harness
1
4
5
8
9
12
13
15
16
17
23
22
28
29
35
34
40
31
37
32
38
※CAN HIGH / LOW Pin Specification
NAVI 12V Power Output(NAVI 12V OUT)
GND Output(GROUND)
[email protected] www.car-solutions.com
car-solutions.com

HDMI
HDMI
(Female)
USB
‘Stick Type’ HDMI Devices
HDMI IN 5V USB
POWER NAVI IN UART I/F LVDS OUT
HDMI Device
HDMI IN 5V USB
POWER NAVI IN UART I/F LVDS OUT
HDMI Device
USB
HDMI
HDMI
(Male)
‘Dongle & Adapter’ Type HDMI Devices

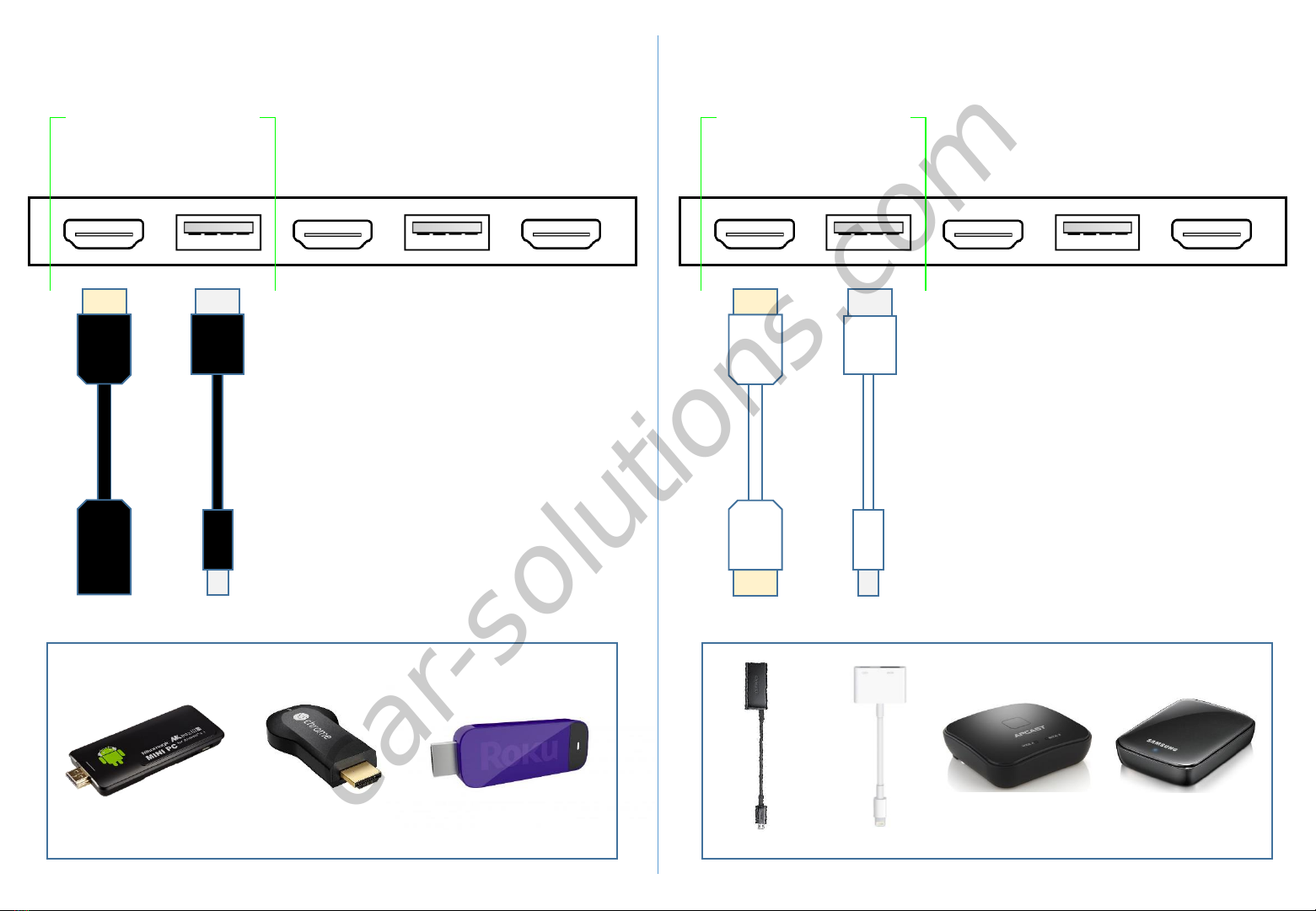

HDMI Connection Diagram
(5V-1A Power output for HDMI Device) (5V-1A Power output for HDMI Device)
(HDMI Extender) (HDMI Cable)
7
[email protected] www.car-solutions.com
car-solutions.com

HDMI IN 5V USB
POWER NAVI IN UART I/F LVDS OUT HDMI IN 5V USB POWER NAVI IN UART I/F LVDS OUT
Navigation Connection Diagram Navigation Connection Diagram
Navigation(GPS) Box Navigation(GPS) Box
8
Microcity - N-Link
HDMI
HDMI
Touch screen panel
USB
USB
(USB cable connecting is for ‘N-Link’ only.)
HDMI
I-NAVI X1 CUBE
Touch screen panel
HDMI
[email protected]
www.car-solutions.com
car-solutions.com

Model Country Dip S/W
(Navigation) Required Parts
MICROCITY
N-Link South Korea -
HDMI Cable
(HDMI to HDMI) USB A-A Cable (USB to USB) Hazard Module (Refer to Page.11)
iNAVI
X1 CUBE South Korea
OFF(↑): 1, 2, 3, 4 HDMI Cable
(HDMI to HDMI)
MYVI
MS1400 Digital South Korea
OFF(↓): 1, 2, 3
ON(↑) : 4 HDMI Cable (HDMI to HDMI)
Compatibility Chart for Navigation(GPS) box models
•This device supports navigation(GPS) box models equipped with 'Digital video output'.
•It does not support the 'RGB video signals'. 9
1 2 3 4
ON
↑
1 2 3 4
OFF
↓
ON
[email protected] www.car-solutions.com
car-solutions.com

HDMI
HDMI
OEM Monitor
HDMI IN 5V USB
POWER NAVI IN UART I/F LVDS OUT
LVDS
IN / OUT
PCB
LCD
Cable
(OEM LVDS Cable)
(Provided LVDS Cable)
10
(Blue ‘DISP port’)
COMAND APS NTG 5.0 - Head Unit

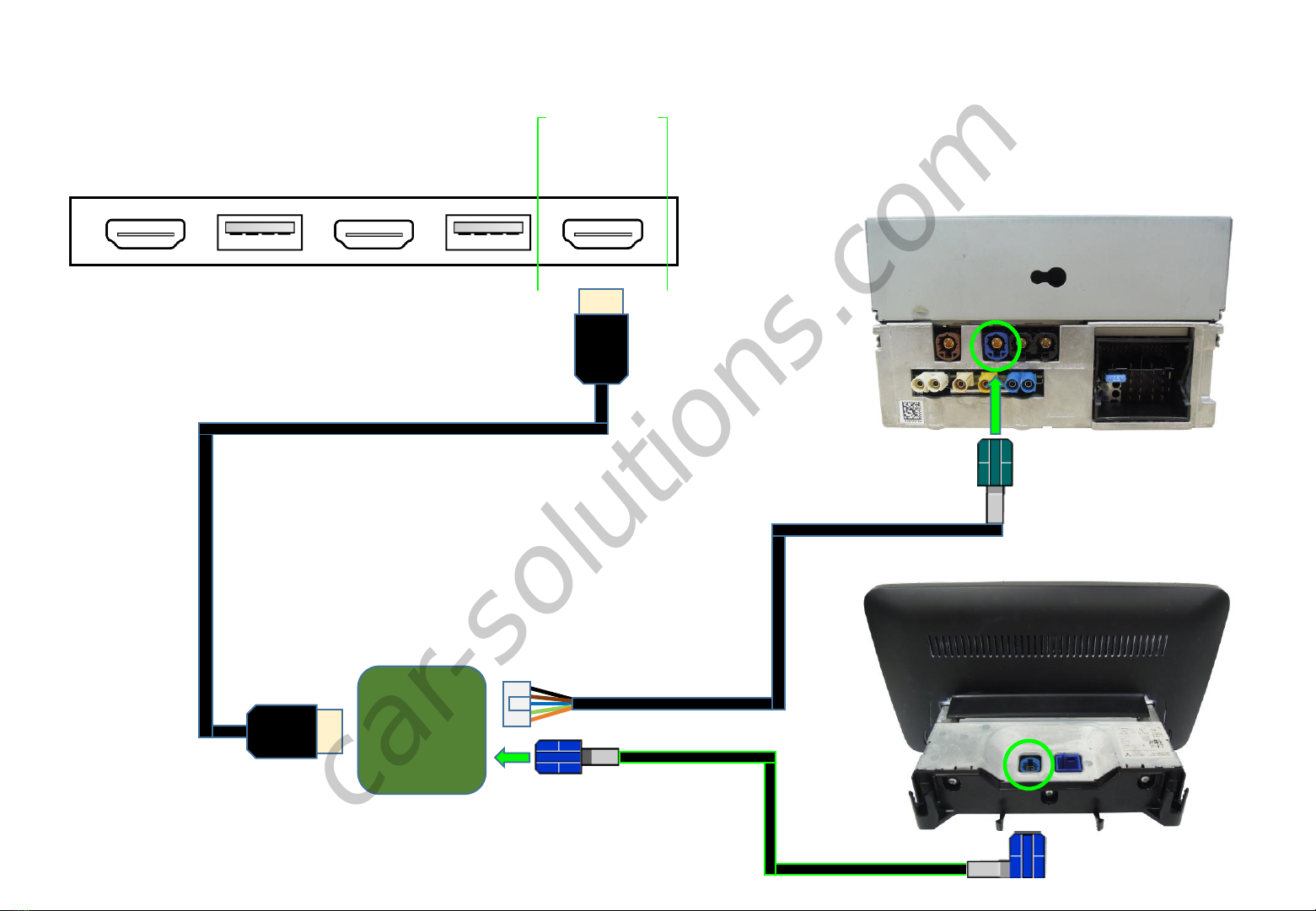

LVDS Connection Diagram
LVDS Connection
•'Genuine(OEM) LVDS connector' should be connected
to 'LVDS IN / OUT PCB'.
• ‘Provided LVDS connector' should be connected to the
‘head unit’ instead to the genuine connector.
[email protected] www.car-solutions.com
car-solutions.com

Hazard Module Connection(‘Smart Drive’ function of ‘N-Link’ Navigation)
POWER / CAN MODE TOUCH-IN AV IN / OUT DIP SWITCH
1234 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19 20 21 22
GROUND
IR OUT
REVERSE 12V IN
REAR 12V
REAR CAMERA
NAVI AUD IN R
NAVI AUD IN L
AUDIO OUT R
AUDIO OUT L
AV1 IN V
AV2 IN V
AV2 IN R
AV2 IN L
11
GND
IR IN
(20 cm)
Hazard button(W205)
8-pin Hazard connector(W205)
Pin # 4 = Hazard(-) (Black/Red)
4 1
8 5
*Hazard Module is just available with ‘Smart Drive function of N-Link’ navigation in South Korea.
BMW/AUDI Hazard Light
Benz Hazard Light
Hazard
Module
(4-Pin)
(100 cm)
New Version Module
[email protected]
www.car-solutions.com
car-solutions.com

POWER / CAN MODE TOUCH-IN AV IN / OUT DIP SWITCH
12 3 4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19 20 21 22
12 3 4 567 8 9 10
1 BATTERY POWER INPUT
2 GND INPUT
3 GND OUTPUT
4 NAVI 12V(ACC) POWER OUTPUT
5 MON CAN HIGH
6 MON CAN LOW
7 -
8 -
9 PAS CAN HIGH
10 PAS CAN LOW
MON CAN H
MON CAN L
BAT +
GROUND GROUND
1RV-CAM VIDEO INPUT 12 GND(RV-CAM VIDEO)
2RV-CAM POWER OUT 13 GND OUTPUT(RV-CAM)
3 REVERSE DETECTION 14 IR OUT
4 NAVI AUX INPUT R 15 GND(NAVI AUX IN R)
5 NAVI AUX INPUT L 16 GND(NAVI AUX IN L)
6 AUDIO OUTPUT R 17 GND(AUDIO OUT R)
7 AUDIO OUTPUT L 18 GND(AUDIO OUT L)
8 AV1 VIDEO INPUT 19 GND(AV1 VIDEO IN)
9 AV2 VIDEO INPUT 20 GND(AV2 VIDEO IN)
10 AV2 AUDIO INPUT R 21 GND(AV2 AUDIO IN R)
11 AV2 AUDIO INPUT L 22 GND(AV2 AUDIO IN L)
GROUND
IR OUT
REVERSE 12V IN
REAR 12V
REAR CAMERA
NAVI AUD IN R
NAVI AUD IN L
AUDIO OUT R
AUDIO OUT L
AV1 IN V
AV2 IN V
AV2 IN R
AV2 IN L
Push Switch
•The colors of each wires can be changed under manufacturer’s circumstance.

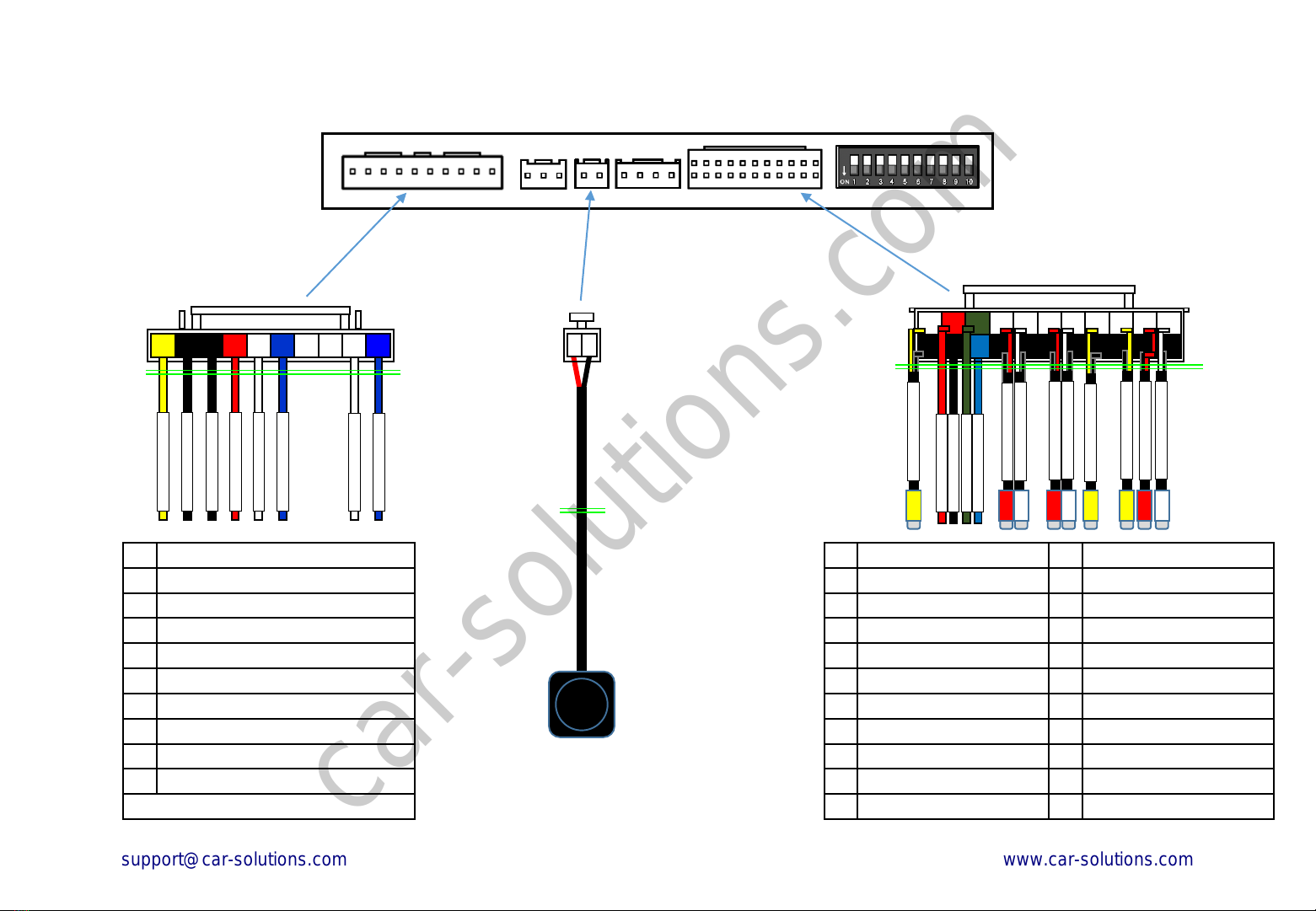

Body Connector specifications
1 2
12
Length: 100 cm Length: 20 cm
Length: 150 cm
PAS CAN H
PAS CAN L
NAVI 12V OUT
[email protected]
www.car-solutions.com
car-solutions.com

Car Models Production
Year Specific Models
A-Class 2016 - W176
CLA-Class 2016 - C117
C-Class 2014 - W205
B-Class 2015 - W246
E-Class 2015 - W212
CLS-Class 2015 - W218
S-Class 2014 - W222
GLA-Class 2015 - X156
GLC-Class 2015 - X253
GLE-Class 2015 - W166
V-Class 2014 - W447
This device is used in
combination with Mercedes-Benz
COMAND APS NTG 5.0(ONLINE)
and AUDIO 20.
This device supports the
Mercedes-Benz original screen
equipped with ‘4-pin LVDS round
connector’ only.
Please check the specification of
original LVDS connector on the
sidelines of a production year.
13

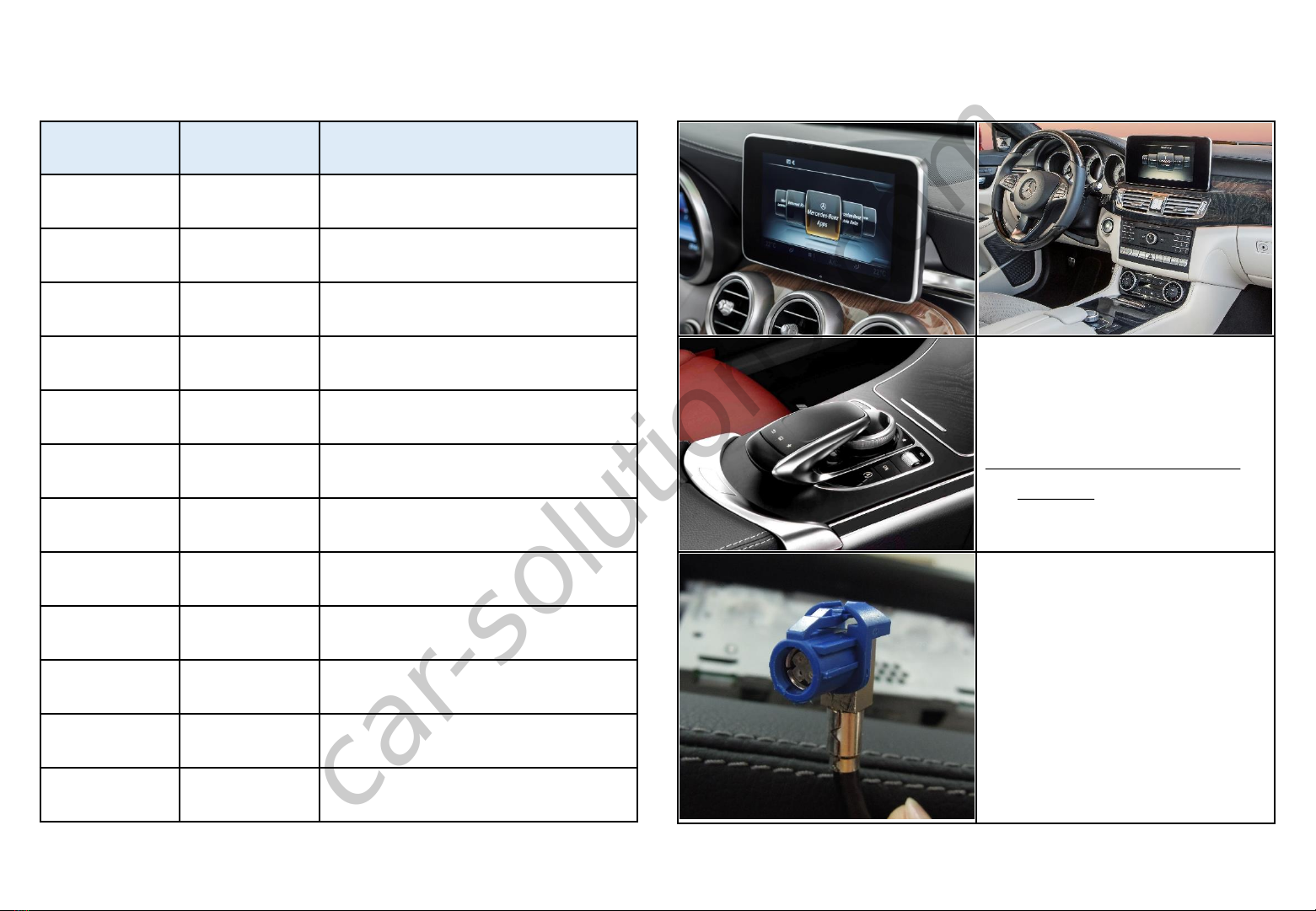

Car Compatibility Chart
[email protected] www.car-solutions.com
car-solutions.com

1
Button Function Operation Remarks
BACK Changing Modes Press the button 2 seconds long. Order: HDMI →NAVI → AV1 → AV2 →OEM
BACK
Shortcut to
each modes
Press the button 2 times. < OEM → NAVI >
Press the button 3 times. < OEM → AV1 >
Press the button 4 times. < OEM → AV2 >
Buttons
marked with
yellow
Back to OEM Press the buttons short. Return to the OEM mode in any modes.
BACK
(Steering
wheel)
Changing mode
to Front View
CAM mode(AV1) Press the button 2 seconds long. It changes the screen from any modes to AV1 mode
directly.
OK
(Steering
wheel)
Reset to factory
default setting
and power. Press the button 10 seconds long. You can use this function when you get in trouble to
see the screen while setting the screen.
Bookmark
Enter into the
setting menu Press the button 5 seconds long. All functions of setting menu is controlled by COMAND controller.
1
3
14
2

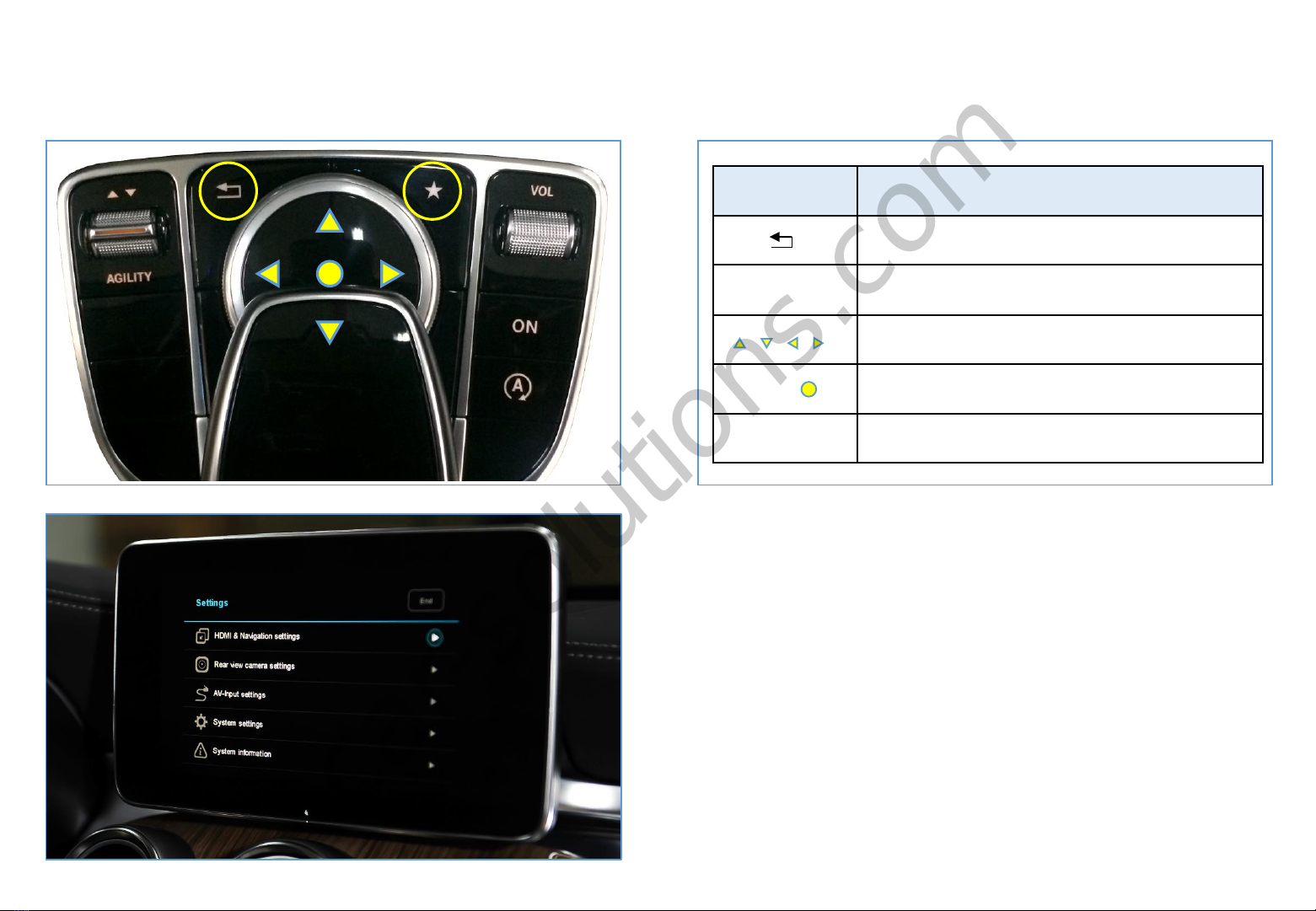

COMAND Controller & Steering wheel buttons
4
2
3
1 4
Activation by original buttons of C(W205), V(W447) Class
[email protected]
www.car-solutions.com
car-solutions.com

1
Button Function Operation Remarks
NAVI Changing Modes Press the button 2 seconds long. Order: HDMI →NAVI → AV1 → AV2 →OEM
NAVI
Shortcut to
each modes
Press the button 2 times. < OEM → NAVI >
Press the button 3 times. < OEM → AV1 >
Press the button 4 times. < OEM → AV2 >
Buttons
marked with
yellow
Back to OEM Press the buttons short. Return to the OEM mode in any modes.
BACK
(Steering
wheel)
Changing mode
to Front View
CAM mode(AV1) Press the button 2 seconds long. It changes the screen from any modes to AV1 mode
directly.
OK
(Steering
wheel)
Reset to factory
default setting
and power. Press the button 10 seconds long. You can use this function when you get in trouble to
see the screen while setting the screen.
CAR
BUTTON
Enter into the
setting menu Press the button 5 seconds long. All functions of setting menu is controlled by COMAND controller.
1
3
15
2
COMAND Controller & Steering wheel buttons
2
3
1
Activation by original buttons of W222(S-Class)
4
4
[email protected]
www.car-solutions.com
car-solutions.com

Pin
No. ON(▼)OFF(▲)
1 HDMI Mode Skip HDMI Mode
2 Navigation Mode Skip Navigation Mode
3 External Rear View Camera Original Rear View Camera
4External Front View
Camera(AV1 Mode) Skip External Front View Camera(AV1 Mode)
5AV2 Mode Skip AV2 Mode
6
Selection of car model
7
8
9
10
16
OFF
ON ON: ▼OFF:▲
No.6 No.7 No.8 No.9 No.10 Car Models
ON(▼)OFF(▲) OFF(▲) OFF(▲) OFF(▲)C(W205) , GLC(X253) , V(W447)
(8.4-inch screen / 960*540)
ON(▼)OFF(▲) OFF(▲) OFF(▲)ON(▼)S-Class(W222)
(12.1-inch wide screen)
ON(▼)OFF(▲) OFF(▲)ON(▼)OFF(▲)
S-Class(W222)
(12.1-inch wide screen)
※Abnormal Screen
(Special case)
ON(▼)OFF(▲) OFF(▲)ON(▼) ON(▼)
GLE(C292)
E(W212),CLS (W218) *Facelift
(7 inch / 800*480, 960*540)
B(W246),CLA (C117) *Facelift
(7 inch, 8 inch screen / 800*480)
ON(▼)OFF(▲)ON(▼) ON(▼) ON(▼)
GLE(C292)
E(W212),CLS (W218) *Facelift
(7 inch / 800*480, 960*540)
B(W246),CLA (C117) *Facelift
(7 inch, 8 inch screen / 800*480)
※Reverse PGS line
ON(▼)OFF(▲)ON(▼)OFF(▲) OFF(▲)C(W205) , GLC(X253) , V(W447)
(7 inch screen / 800*480)
DIP Switch Settings
[email protected]
www.car-solutions.com
car-solutions.com

17
Button Function
Back( ) Back to previous menu when press the button short.
Bookmark(★)
*W205(C-Class) Enter into the setting menu when you press the button
5 seconds long.
Up, Down, Left, Right
( , , , ) Move the menu-pointer and adjust the setting values.
Selection( ) Select the setting menu and setting values.
Settings
1. Enter into the setting menu.
< Press the ‘Bookmark(★)’button 5 seconds long >
- HDMI & Navigation settings
- Rear view camera settings
-AV-input settings
- System settings
- System information
[email protected] www.car-solutions.com
car-solutions.com

Settings
2. HDMI mode settings
- Mode selection: HDMI ↔ NAVI
- Image display
= Adjust the values of brightness and contrast
Red-Green-Blue colors of HDMI display.
- Screen position & size
= Entry Disabled / Not applicable.
3. NAVI mode settings
- Mode selection: NAVI ↔ HDMI
- Image display
= Adjust the values of brightness and contrast
Red-Green-Blue colors of NAVI display.
- Screen position & size
= Entry Disabled / Not applicable
- Navigation model selection
18
[email protected] www.car-solutions.com
car-solutions.com

Settings
4. Rear view camera settings
- Parking guide lines
= Adjust position of parking guide lines and
select the lines ‘ON or OFF’.
- Parking distance control
= Adjust position of parking distance control sensors
to ‘LEFT or RIGHT’ and select the PDC ‘ON or OFF’.
- Image display
= Adjust the values of brightness and contrast
Red-Green-Blue colors of Rear view camera display.
5. AV1(Front view camera) settings
- Mode selection:AV1(Front view camera) ↔ AV2
- Image display
= Adjust the values of brightness and contrast
Red-Green-Blue colors of AV1(Front view camera) display.
- Screen position & size
= Entry Disabled / Not applicable.
- Automatic activation function(AV1)
= * Please refer to next page.
- Parking distance control
= Adjust the position of parking distance control sensors
to ‘LEFT or RIGHT’ and select the PDC ‘ON or OFF’. 19
[email protected] www.car-solutions.com
car-solutions.com

Settings
6. Automatic activation function(AV1)
- Shift gear from reverse to drive
- Shift gear from parking to drive
* When you shift gear ‘from reverse to drive’ or ‘from parking to drive’,
it just works automatically during the activation time you selected.
7. AV2 settings
- Mode selection:AV2 ↔ AV1(Front view camera)
- Image display
= Adjust the values of brightness and contrast
Red-Green-Blue colors of AV2 display.
- Screen position & size
= Entry Disabled / Not applicable.
20
[email protected] www.car-solutions.com
car-solutions.com
