Car Solutions QVI-LVTX-1CH-V6.1 User manual

www.car-solutions.com [e-mail]
Last updated : 2012.03.29
Car Video Interface for
Mercedes-Benz C-Class (W204) 2012
and New E-Class 2012
User Manual
Car-Solutions.com

2
www.car-solutions.com
Contents
1. Before installation
1.1 Main specification 3
1.2 Features 4
1.3 System diagram 5
1.4 Components 6
1.5 Exterior 7
2. Setup
2.1 DIP switch 8
2.2 Remote control
9
2.3.1 OSD (on screen display)
10
2.3.2 OSD (on screen
display)
11
2.4 Factory mode
12
2.5 Parking Guide line setting 13
2.6 Touch Calibration 14
2.7.1 Remote controller button 15
2.7.2 Remote controller button 16
2.8 DVD, DTV model selection 17
2.9 Switching mode via CAN wire 18
3. Troubleshooting 19
Car-Solutions.com

3
1.1 Main specification
www.car-solutions.com
1. Compatibility
2012Y Mercedez-Benz C-class 6.5/ 7 inch , New E-class 5.8 / 6.5 / 7 inch
2. Product composition
Multimedia Interface (made for specific models) * 1ea
Sub-board (made for specific models) * 1ea
3. MULTIMEDIA INTERFACE input s pec.
3 * A/V (NTST&PAL) input
1 * CVBS (rear camera) input. (rear camera source)
1 * Analog RGB (Sync on Green)
1 * LCD input (car system input)
4. MULTIMEDIA INTERFACE output s pec.
1 * LCD output(LCD Operation)
1 * Audio OUTPUT
2 * CVBS OUTPUT(Video Out for installing Headrest monitor)
5. POWER spec.
Input power : 8VDC ~ 16VDC
Consumption power : 4WATT (in maximum level)
6. Switch input mode
- Input video skip function : able to select whether to use the respective input video sources or not via DIP switch.
- Able to change input modes via the remote control.
- Able to switch modes via the Toggle switch.

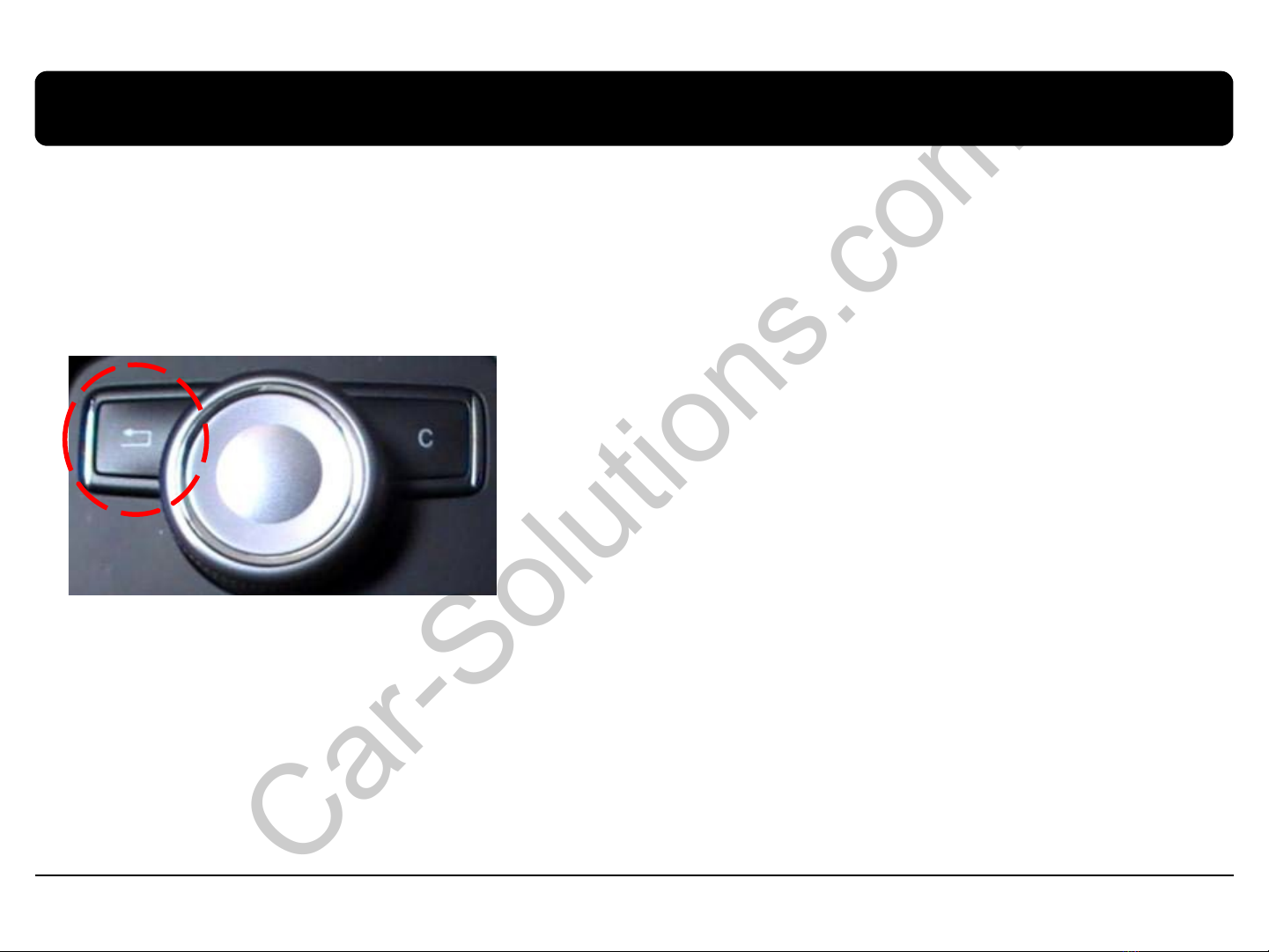

- Able to switch modes via Original button of the car through CAN.
Car-Solutions.com

4
1.2 Features
www.car-solutions.com
- More convenience to install with plug & play (LVDS cable offered)
- Possible to move the displayed position of DVD, Navigation.
- Improved Display Screen (convenience-oriented Interfaces for users)
- Offered Remote controller for OSD settings.
- Add a safe function (show the main screen while driving)
Car-Solutions.com

5

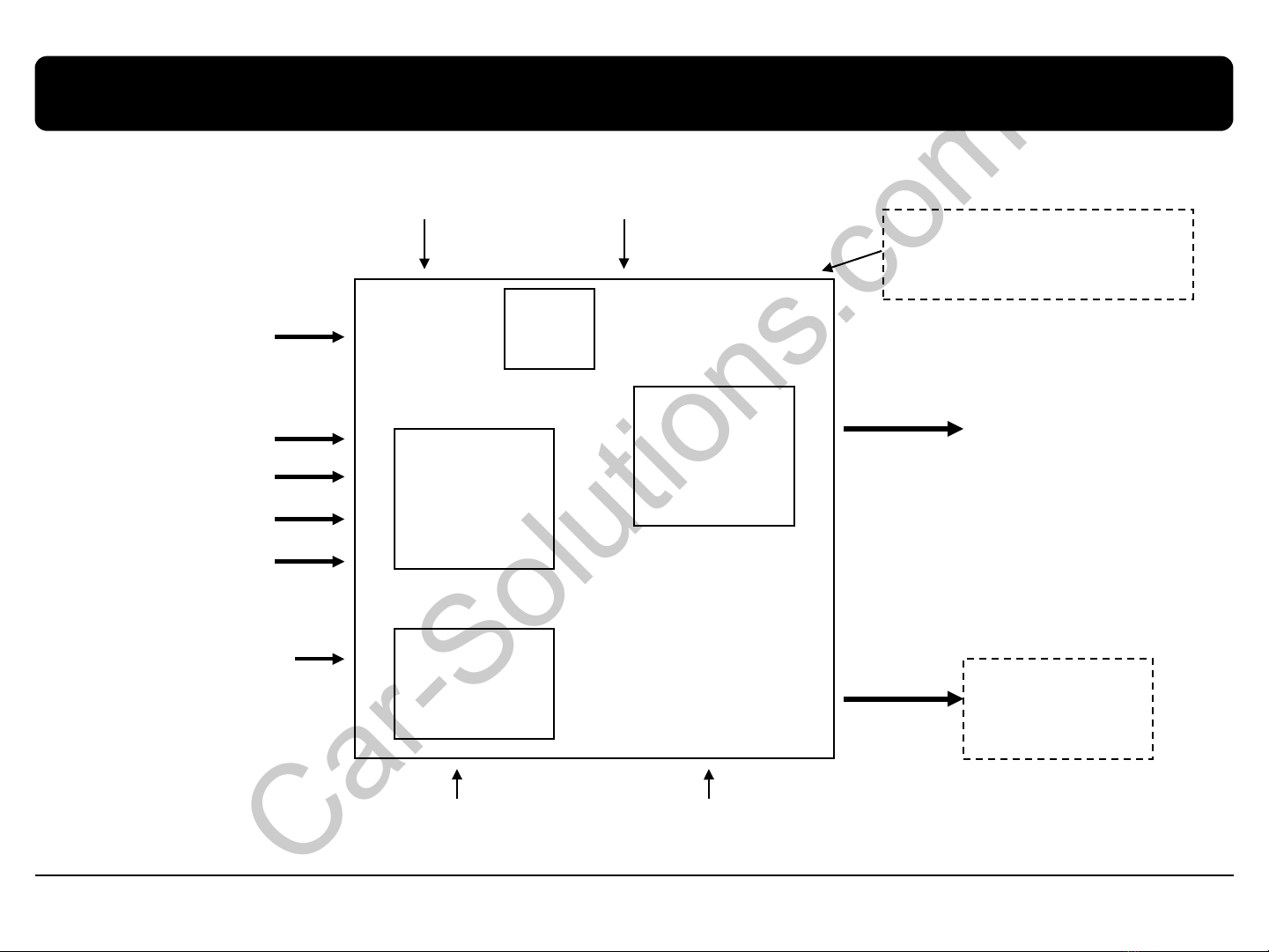

1.3 System diagram
www.car-solutions.com
OSD Keypad Switch for source toggle
OEM Navi Button (Can Interface)
NAVIGATION Input
(Analog RGB)
MCU
A/V 1
A/V 2
A/V 3
VIDEO
CIRCUIT
VIDEO MUX
DISPLAY Car Installation
OEM LCD
CVBS
(Rear camera)
Car Screen Input
(CAR MAIN BOARD)
POWER
CIRCUIT
A/V OUT
HEADREST
MONITOR
Power Input
(+8VDC ~ +16VDC)
Dip S/W
Car-Solutions.com

6
www.car-solutions.com

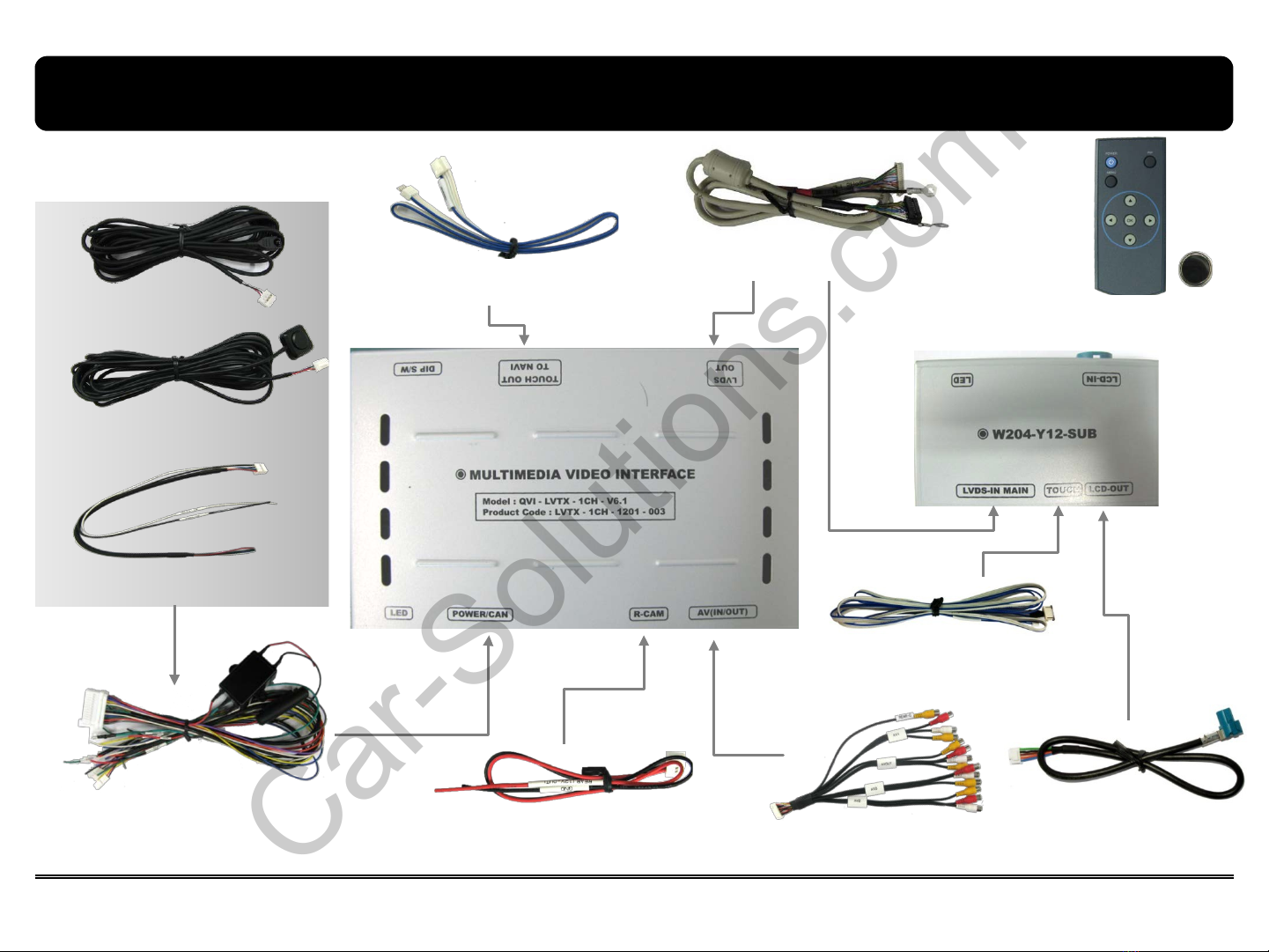

1.4 Components
IR cable *
1ea
(HIRCAB0002)
TOUCH OUT cable *
1ea
(HTOUCH0004)
LVDS cable * 1ea
(HLVDSC0018)
REMOTE CONTROL * 1ea
SUB BOARD* 1ea (REMOTE0001)
MODE cable *
1ea
(HARETC0001)
RGB cable *
1ea
(HNAVIC0004)
TOUCH IN cable *
1ea
(HTOUCH0007)
POWER cable (24P) * 1ea
(HPOWER0011)
REAR CAMERA POWER cable * 1ea
A/V cable * 1ea
(HAVCAB0002)
LCD cable * 1ea
(HLCDCA0007)
Car-Solutions.com

7
1.5 Exterior
www.car-solutions.com
⑤⑥⑦
Dimension - SUB BOARD
- (75*47*20)
Horizontal length 125mm ⑪⑫
Vertical length 105mm
Height 21mm
① LED
② POW ER
③R- CAM
④ AV(IN/OU T)
⑤DIP S witch
①②③④
⑥TOUCH OUT TO NAVI
⑦LVDS OUT
⑧⑨⑩
⑧LVDS-IN
⑨TOUCH
⑩LCD-OUT
⑪LED
⑫LCD-IN
Car-Solutions.com

8

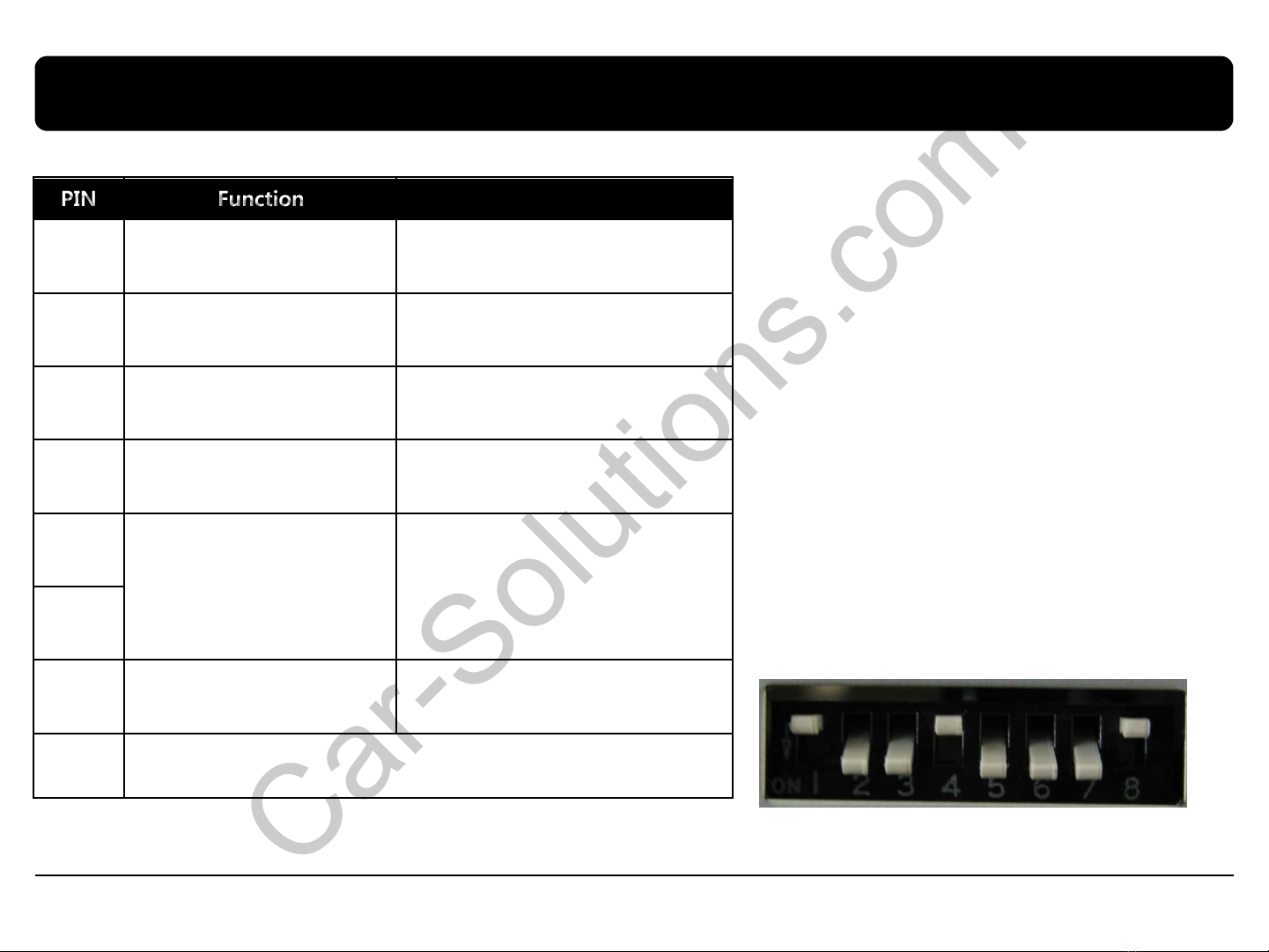

2.1 DIP switch
www.car-solutions.com
PIN Function Dip S/W Selection
1
RGB INPUT MUTE ON : Skipping RGB Mode
OFF : RGB Display
2
A/V 1 MUTE ON : Skipping A/V 1
OFF : A/V1 Display
3
A/V 2 MUTE ON : Skipping A/V 2
OFF : A/V2 Display
4
A/V 3 MUTE ON : Skipping A/V 3
OFF : A/V3 Display
5
Car Models
ON : 6.5 inch (Low-Resolution)
OFF : 7 inch (High-Resolution)
6
7
Rear Mode ON : External Rear Camera
OFF : OEM Rear Camera
8 Dip s/w #8 must be ‘’OFF ’
’
’
※ON : DOWN / OFF : UP
※DIP S/W usage example
- Input Mode : A/V3, Navigation (RGB)
- When original Navigation is not installed
- Rear camera : When to be installed on CVBS 4
▷DIP S/W :1  OFF
▷DIP S/W : 2,3  ON (INPUT MODE SKIP)
▷DIP S/W :4  OFF (displaying A/V3)
▷DIP S/W : 5,6  ON
▷DIP S/W :7  ON (displaying CVBS4)
▷DIP S/W :8  OFF
Car-Solutions.com

9

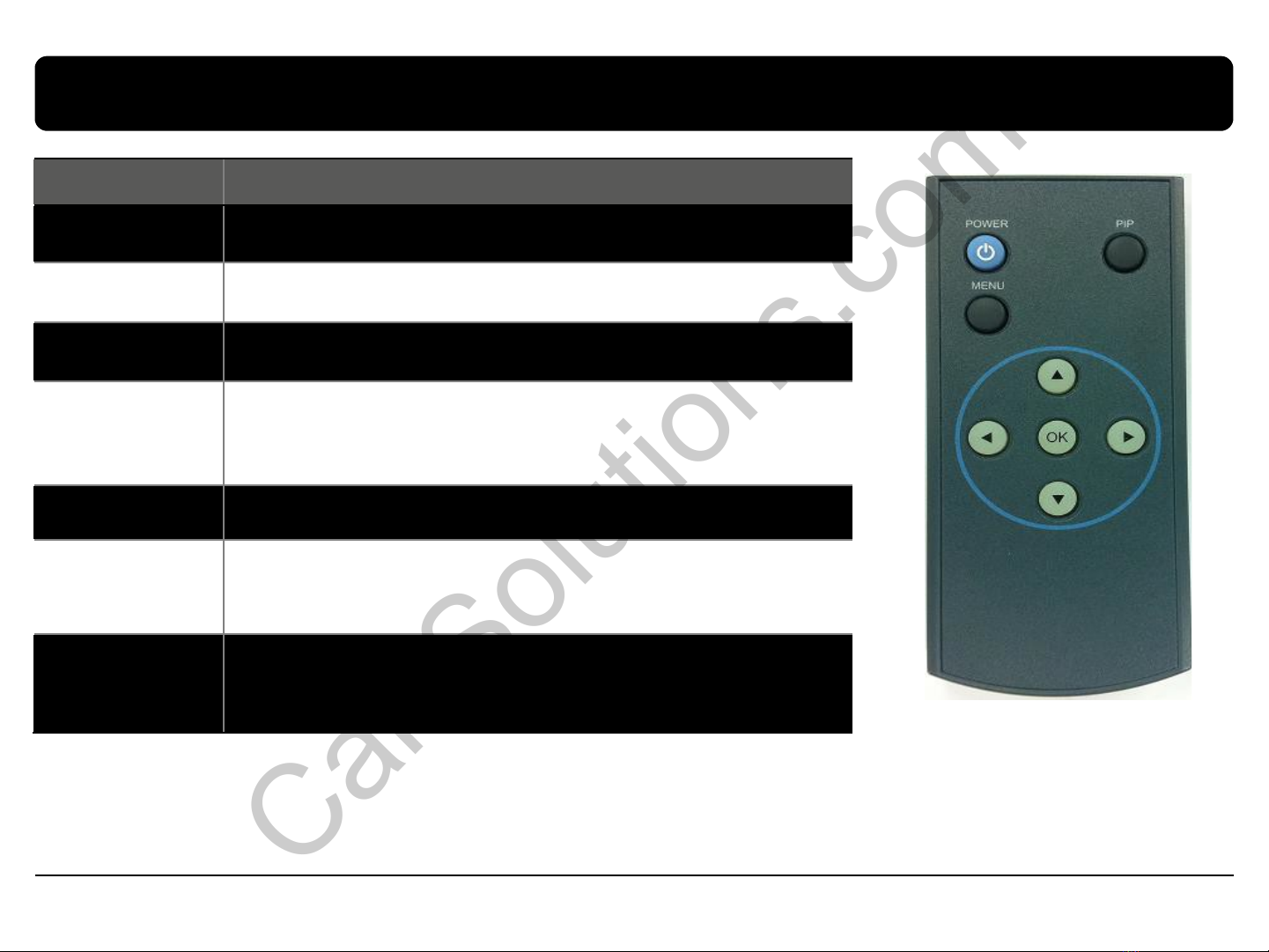

2.2 Remote control
www.car-solutions.com
Key Function
POWER & PIP Unavailable
MENU Activating OSD menu
OK Making a selection, changing image display
▲ Moving upward
▼ Moving downward
◀ Moving leftward
(If you press this button 5 seconds long, you can get access to the
factory mode.)
▶ Moving rightward
(If you press this button 2 seconds long, you can reset all the data
about user environment.)
*FACTORY MODE (Interface setting for installer)
: Operated by pressing ▲→▼→▲→MENU button or press ◀more than 5seconds long on the remote controller.
Car-Solutions.com

10
2.3.1 OSD (on screen display)
www.car-solutions.com
Analog RGB Mode
* BRIGHTNESS
* CONTRAST
* SHARPNESS
* USER IMAGE
: Selecting one among
4 color options.
COLOR
* RED : Adjusting red
* GREEN : Adjusting green
* BLUE : Adjusting blue
* USER COLOR
: Selecting a color option
among set color options
OSD
* LANGUAGE : Choosing
interface language while
changing mode between
A/V and DVD
* TRANS : Adjusting
transparency of OSD
* H_POSITION, V_POSITION :
Positioning OSD menu
UTIL
* FACTORY RESET :
Resetting all the data about
the relevant mode that
applicable to navigation,
DVD mode respectively.
(Impossible to reset of
screen position, only
available for color, OSD
setting)
Car-Solutions.com

11
2.3.2 OSD (on screen display)
www.car-solutions.com
Video mode
* BRIGHTNESS
* CONTRAST
* SATURATION
* HUE
* SHARPNESS
* USER IMAGE
: Selecting one among 4 color options.
OSD
* LANGUAGE : Choosing interface
language while changing mode
between A/V and DVD
* TRANS : Adjusting transparency of
OSD
* H-POSITION
: moving in horizontal direction
* V-POSITION
: moving in vertical direction
UTIL
* FACTORY RESET : Resetting all
th e data about the relevant mode
that applicable to navigation, DVD
mode respectively.
(Impossible to reset of screen
position, only available for color,
OSD setting)
Car-Solutions.com

12

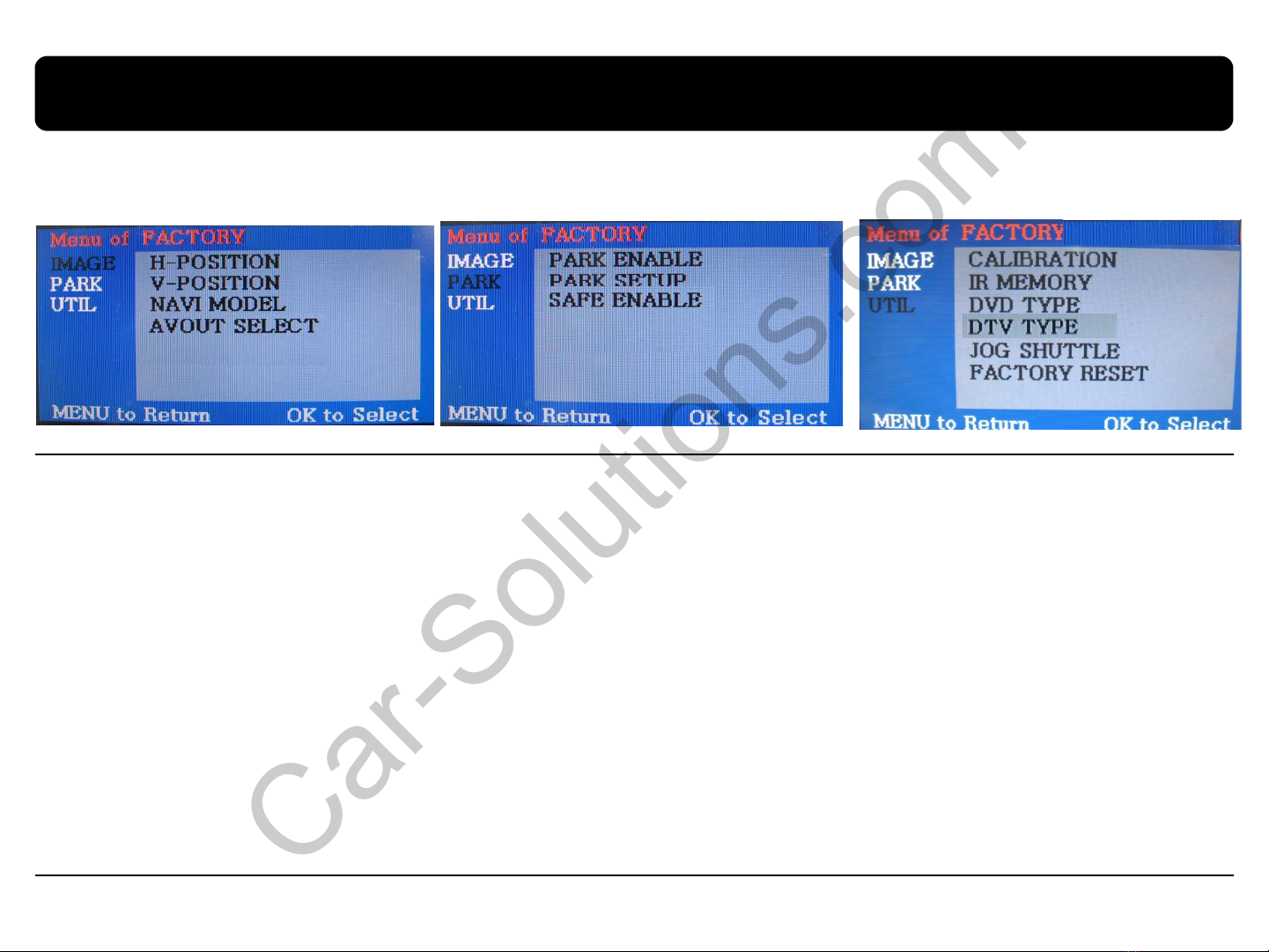

2.4 Factory mode
FACTORY mode –Press ◀button 5 seconds long on the remote controller.
www.car-solutions.com
Adjusting the position of
navigation
* H-POSITION
: moving in horizontal direction
* V-POSITION
: moving in vertical direction
* NAVI MODEL : DEFAULT,
KD900(WVGA), MD7000(WVGA),
MYVI(WVGA),PAPAGO(WVGA)
* AVOUT SELECT : DEFAULT, AV1,
AV2, AV3
PARK
* PARK ENABLE : Setup of rear view
parking guide line
* PARK SETUP : Control over position
of rear view parking guide line
* SAFE ENABLE : To select whether to
use SAFE function(NOT to allow
watch video while driving) or not
UTIL
* CALIBRATION : Touch calibration * IR
MEMORY : To register value of
buttons on the remote controller *
DVD TYPE : Setup for the type of
DVD
* DTV TYPE : Setup for the type of
DTV
* JOG SUTTLE : JOG SUTTLE
ON/OFF setting, Control of DVD ,
DTV, OSD menu ON/OFF se tt ing .
* FACTORY RESET : To reset all the
value in factory mode
Car-Solutions.com

13
2.5 Parking guide line setting
FACTORY mode –Press ◀button 5 seconds long on the remote controller.
www.car-solutions.com
PARK
* PARK ENABLE : Selecting whether to
display the parking guide line or not on
rear gear (default : OFF)
* PARK SETUP : Adjusting the position of
the parking guide line (available in PARK
SETUP -> V-POSITION, H-POSITION)
* SAFE ENABLE : In case of Connecting “
Safe” wire from the power cable to the
hand break,
ENABLE –OEM Picture displays in Drive
gear position
DISABLE –No display locked in any gear
position
PARK - ENABLE
A. If you set ‘PARK ENABLE’ as “
ON” state, there will be the rear
view parking guide line.
(as shown left picture)
B. Press the OK button of remote
controller, ‘’H_POS ’ ’
’will be shown
on the right and control moving
in horizontal direction.
PARK - ENABLE
A. Press the OK button of remote
controller one more, ‘’V_POS ’ ’
’will
be shown on the right and control
moving in vertical direction.
Car-Solutions.com

14
www.car-solutions.com
2.6 Touch calibration
①First of all, press ◀button on remote controller 2
seconds long. Then you can access to the FACTORY mode.
②Register “YES” when the CALIBRATION option is
selected as shown above.
>>>
③Then you can see “touch calibration” on
screen about 2 seconds long as shown above.
After the word “touch calibration” disappear,
touch calibration function will implement. (Just
touch “┼” shape on screen.)
If you succeed, you can see “success”. If not, you
will see “failure”.
Car-Solutions.com

15

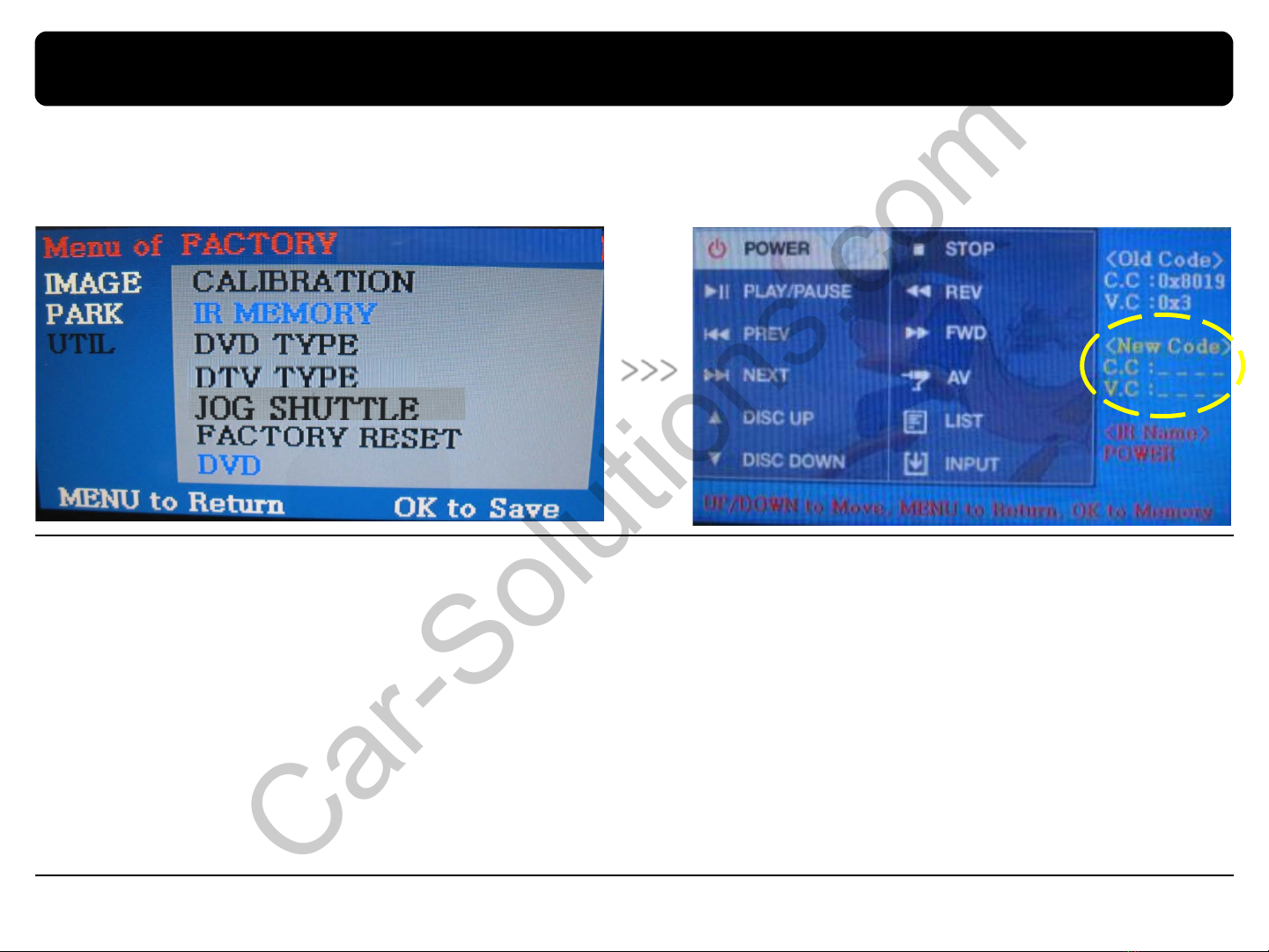

2.7.1 Remote controller button
www.car-solutions.com
Registering value of remote controller buttons?
When you want to control DVD and DTV via touch screen (using OSD menu) with other models besides already
registered option-SANYO and NECVOX, you can register value of DVD and DTV’ s remote controller which you have.
Then you can control DVD and DTV via touch screen.
>>>
①First of all, press ◀button on remote controller 2
seconds long. Then you can access to the FACTORY
mode. And go to IR MEMORY, UTIL.
There are two options in IR MEMORY as shown above;
DTV and DVD.
Then you select AV source that you want to set among
them.
②This is a window for register of DVD’ s remote
controller button value. At the moment just select a
menu that you want to save.
(Select “DTV in options of IR MEMORY” if you want to
save values of DTV’ s remote controller. And follow the
instruction below.)
Instruction>
a. Select “POWER” in OSD menu, then press “OK” on
remote controller. (as shown above)
b. If the marked area flickers as shown above, press
“POWER” button on the remote controller of DVD that
you want to use. (continued in the next page)
Car-Solutions.com

16
2.7.2 Remote controller button
www.car-solutions.com
>>>
Instruction> continued…

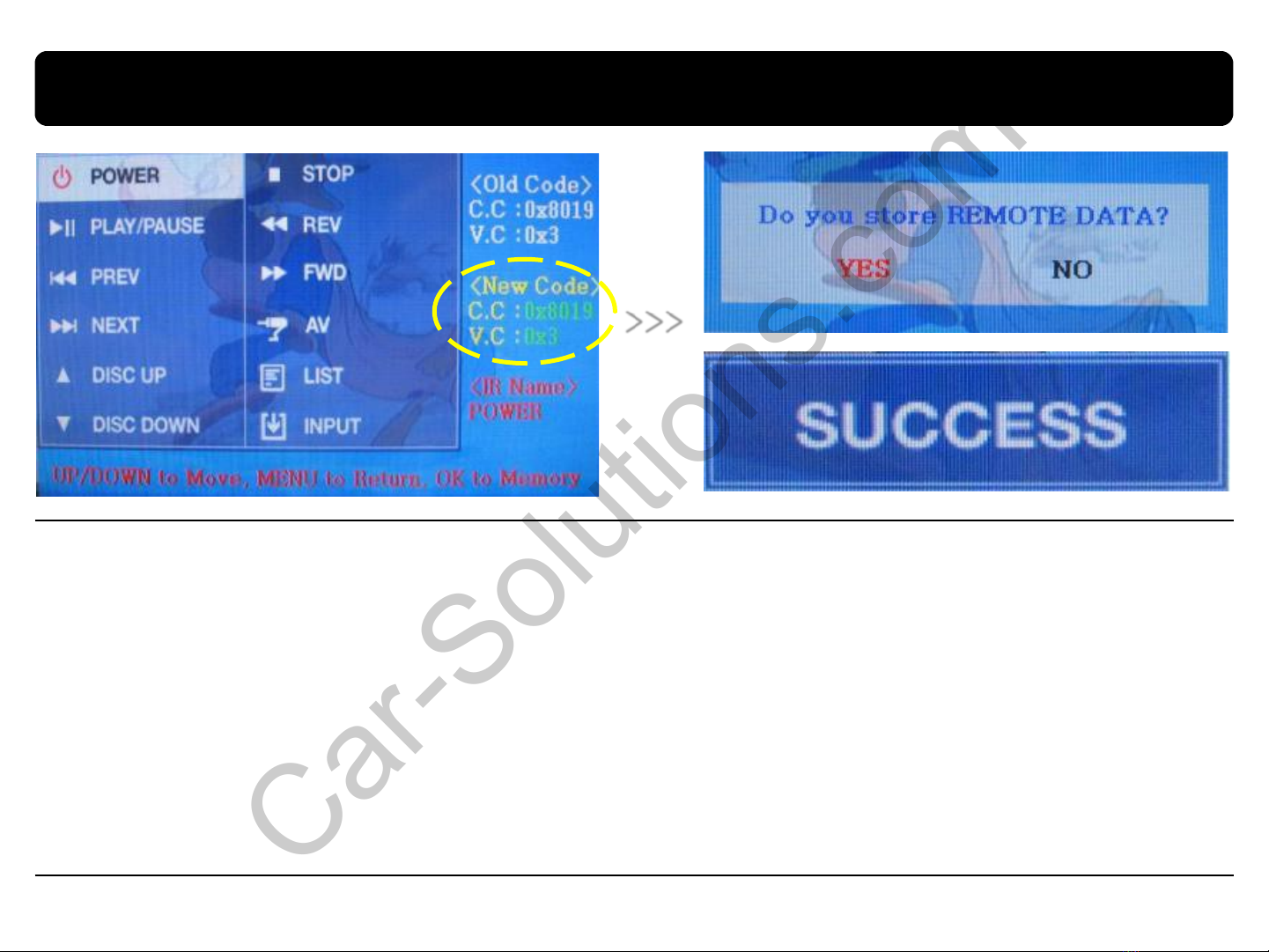

c. The values that you registered will appear as green
text in the marked area on pressing the button. And the
values will be saved automatically.
d. Register remain buttons’ value in OSD menu like the
above-mentioned.
③After register, select “INPUT” in OSD menu and
press “OK”. Then you can see confirmation window as
shown above. At the moment, if you choose “YES”, all
the values that you entered will be saved.
If you select “NO”, the values won’t be saved.
(If data is saved, DVD TYPE and DTV TYPE will be
changed to “USER” automatically.)
If you see “SUCCESS” on screen, the data is saved
clearly and you can control DVD via touch screen. BUT,
you MUST change the option in
DVD(DTV)/UTIL/FACTORY to “USER”. (Refer to page18.)
Car-Solutions.com

17
2.8 DVD, DTV model selection
www.car-solutions.com
DVD TYPE DTV TYPE
UTIL –DVD/DTV TYPE
If DVD/DTV type that you want to use is not NECVOX or SANYO, you have to register values of the remote controller
that you want to use in the “IR MEMORY” section and set the “DVD TYPE”/”DTV TYPE” to “USER”.
Unless you do this process after saving the data, you can NOT control DVD/DTV via touch screen.
DVD TYPE : NEC/SANYO, DV-108, SANYO-1, SANYO-2, USER
DTV TYPE : PIONEER/PANASONIC, USER, CMMB
※If you enter data in ”IR MEMORY” section in FACTORY mode, “DVD TYPE”/ “DTV TYPE” will
automatically be saved to “USER”.
Car-Solutions.com

18
2.9 Switching mode via CAN wire
www.car-solutions.com
After wiring CAN of the car with offered CAN cable, you can switch A/V mode by the Factory button
as below.
W204 7”, 5”(C-Class), W212 5.8”, 7” (E-Class) :
Switching Mode by Return Button of jog shuttle as shown left.
※In W204 7 inch ’s case, the button is written “Return”
Car-Solutions.com

19
www.car-solutions.com
3. Troubleshooting
Q. I can not switch A/V sources
A. Check IR or Ground cable connection. Check LED lamps in the interface, if it is not on, check power cable.
Q. All I got on the screen is black.
A. Check second LED lamp of the interface is on, if not, check A/V sources connected are working well. (Second lamp indicates AV sources
connected works well.) Check interface connection has been done well.
Q. Displayed image color is not proper (too dim or not suitable color)
A. Try to select “INITIAL” in OSD menu, if it does not work, inform to manufacturer.)
Q. I can watch the rear camera on the screen
A. Set the DIP switch #7 as state “ON”.
Q. Unwanted A/V mode is displayed. (A/V source switching order : OEM->RGB->AV1->AV2->AV3)
A. Check DIP Switch Setting.
Q. OEM image is not displayed.
A. Check interface’s LCD In/Out cable connection. If the status keeps on, inform to manufacturer.
Q. Screen only displays white color.
A. Check LCD out cable is connected well, if this status keeps, inform to manufacturer.
Q. After setting PIP function, I got only half OEM image at the right in the screen.
A. This is not an error, just caused by user’s setting mistake, user should set to
“Split Screen” in the OEM menu.
Q. Rear CAM does not appear, when car is in reverse after CAN wiring.
A. Operate “FACTORY MODE” like left picture, then select “UTIL
 Rear Select” If it is set as “LAMP”, change it to “CAN” by remote or keypad.
※LAMP : In case of connecting “Rear-C” wire of Power Cable to Rear Lamp in vehicle.
CAN : In case of detecting Rear Cam thru CAN signal. (CAN must be wired)
Q. After moving gear to “P” or “D” from “Reverse”, I can’t get navigation, but half PDC Image in the screen.
A. Once, you starts driving, the screen displays navigation right away, this is not an system error.
Car-Solutions.com
