CASSIDA CUBE MIXED BILL COUNTER

H

H
This manual contains important information on safety
measures and operational features of the Cassida
Cube Mixed Bill Counter. Please read it carefully
before operating your mixed bill counter and keep it
handy for future reference.

Cassida Cube compact value counter 1
Table of contents:
1. INTRODUCTION____________________________________________________________2
1.1 About the Cassida Cube________________________________________________2
1.2 Box contents____________________________________________________________2
1.3 Front and rear views ____________________________________________________3
1.4 Control panel___________________________________________________________4
1.5 Specications___________________________________________________________5
1.6 Importand safety notes__________________________________________________6
2. GETTING STARTED _________________________________________________________7
2.1 Open the stacker assembly______________________________________________7
2.2 Open and adjust the hopper ____________________________________________8
2.3 Open tilt stand__________________________________________________________8
2.4 Connect the power source______________________________________________9
2.5 Install the battery _______________________________________________________9
3. LOADING BILLS ___________________________________________________________10
4. OPERATION ______________________________________________________________12
4.1 Select Auto/Manual mode _____________________________________________12
4.2 Select counting mode _________________________________________________12
4.3 Printing function _______________________________________________________14
4.4 Select accumulative counting__________________________________________15
4.5 Select batch counting _________________________________________________15
5. SLEEP AND TIME SETTINGS _________________________________________________16
6. TROUBLESHOOTING ______________________________________________________17
6.1 Self-test error message display and solutions_____________________________17
6.2 Defective bill error message display and solutions________________________19
7. MAINTENANCE, WARRANTY AND CONTACT INFORMATION __________________20
7.1 Maintenance__________________________________________________________20
7.2 Warranty ______________________________________________________________20
7.3 Shipping_______________________________________________________________21
7.4 Contact information ___________________________________________________21

Moving money forward
®
2
INTRODUCTION
1.
1.1 About the Cassida Cube
Thank you for choosing the Cassida Cube compact value counter. We hope you
enjoy using it.
The Cassida Cube is the most sophisticated compact mixed value counter on the
market today. It applies the latest technology to give you the ultimate in counting
performance and counterfeit detection.
1.2 Box contents
• Cassida Cube value counter
• AC/DC power adapter
• User manual and quickstart guide
• Cleaning brush
• Print transfer cable
• 2 calibration cards
• USB download cable (optional)
• Micro-printer (optional)
• Micro SD-card (optional)
• Rechargeable battery (optional)
• External LCD display (optional)

Cassida Cube compact value counter 3
1.3 Front and rear views
START

Moving money forward
®
4
1.4 Control panel
START

Cassida Cube compact value counter
START START START
1.5 Specications
Counting speed: 250 bills/min
Hopper capaity: 100 bills
Stacker capacity: 100 bills
Batch size: 100, 50, 25, 20,10 or from 1 to 200 with +1/+10
Display: LCD
Detections: 3D, MG, IR, UV, IMG, RGB
Power input: AC100~240VAC, 50/60 Hz
Power output: DC12V 12.0A
Battery: 2000 mAH
Operating temparture: 32 - 104 °F (0-40 °C)
Storage temprature: -13 - 149 °F (-25 - +65 °C)
Size: 6.6” x 5.9”x 5.9” (170x150x150 mm)
Weight: 4.2 lbs (1.9 kg)
5

Moving money forward
®
6
1.6 Important safety notes
When using this unit, basic safety precautions should always be observed, including the
following:
• Read this manual before operation
• The manual should be available to operator
• Do not use this unit in areas where it may be exposed to water or any other liquids
• Makecertaintheunitisinstalledonaatsurface.Donotoperatethemachineinareas
with high temperature, humidity or smoke, as these conditions may prevent proper
operation.
• This unit is designed for indoor use in a ventilated environment. Keep the machine
away from direct sunlight or strong directional interior lighting and strong magnetic
elds.Thesecouldinterferewiththecounterfeitdetectionsensors.
• During operation, do not touch the moving parts of the unit
• Avoid foreign objects, paper clips, and staples
• Avoid dropping the unit
• Whennishedbesuretherearenobillsinthehopperortransportsystem
• When not using the unit for an extended period of time, disconnect the power cord
from the wall outlet
• Unplugtheunitfromthewalloutletbeforecleaning.Useadampclothorspecically
designed maintenance accessories such as an air duster, soft bristle brush, or cleaning
cards.
• To avoid the risk of electrical shock, do not disassemble this unit. Disassembly will
expose you to dangerous voltages and other safety risks. Incorrect reassembly can
cause electrical shock when the appliance is subsequently used.
• Clean the unit regularly
• Taketheunittoaqualiedtechnicianwhenserviceorrepairisrequired.Donottryto
replaceanypartsyourself.Suppliedsparepartsareintendedforusebyqualiedrepair
personnel only.
Remember the manufacturer is in no way responsible for damage to the unit or injury to the
operator in the event of incorrect operation/care of the unit.

Cassida Cube compact value counter
GETTING STARTED
2.
2.1 Open the stacker assembly
3. Open
4. Extend bill pressing wire guide to its full length
USD=Narrowest setting
Unfold from bottom rear
(for best performance)
1. Open
1. Open
2. Extend to line on label
NOTE: For optimal counting of US currency, the hopper guide should extend no
farther than 16.5 cm (approximately 6.5 inches) from the edge f the Cube. The
bill pressing wire should be extended to its full length. Please follow guidelines
shownontheafxedstickers.
7

Moving money forward
®
8
2.2 Open and adjust the hopper
3. Open
4. Extend bill pressing wire guide to its full length
USD=Narrowest setting
Unfold from bottom rear
(for best performance)
1. Open
1. Open
2. Extend to line on label
2.3 Open tilt stand
3. Open
4. Extend bill pressing wire guide to its full length
USD=Narrowest setting
Unfold from bottom rear
(for best performance)
1. Open
1. Open
2. Extend to line on label

Cassida Cube compact value counter
2.4 Connect the power source
There are two types of power source can be connected to the counter:
- The AC/DC power adapter: convenient for indoor use
- The battery: convenient for portable use

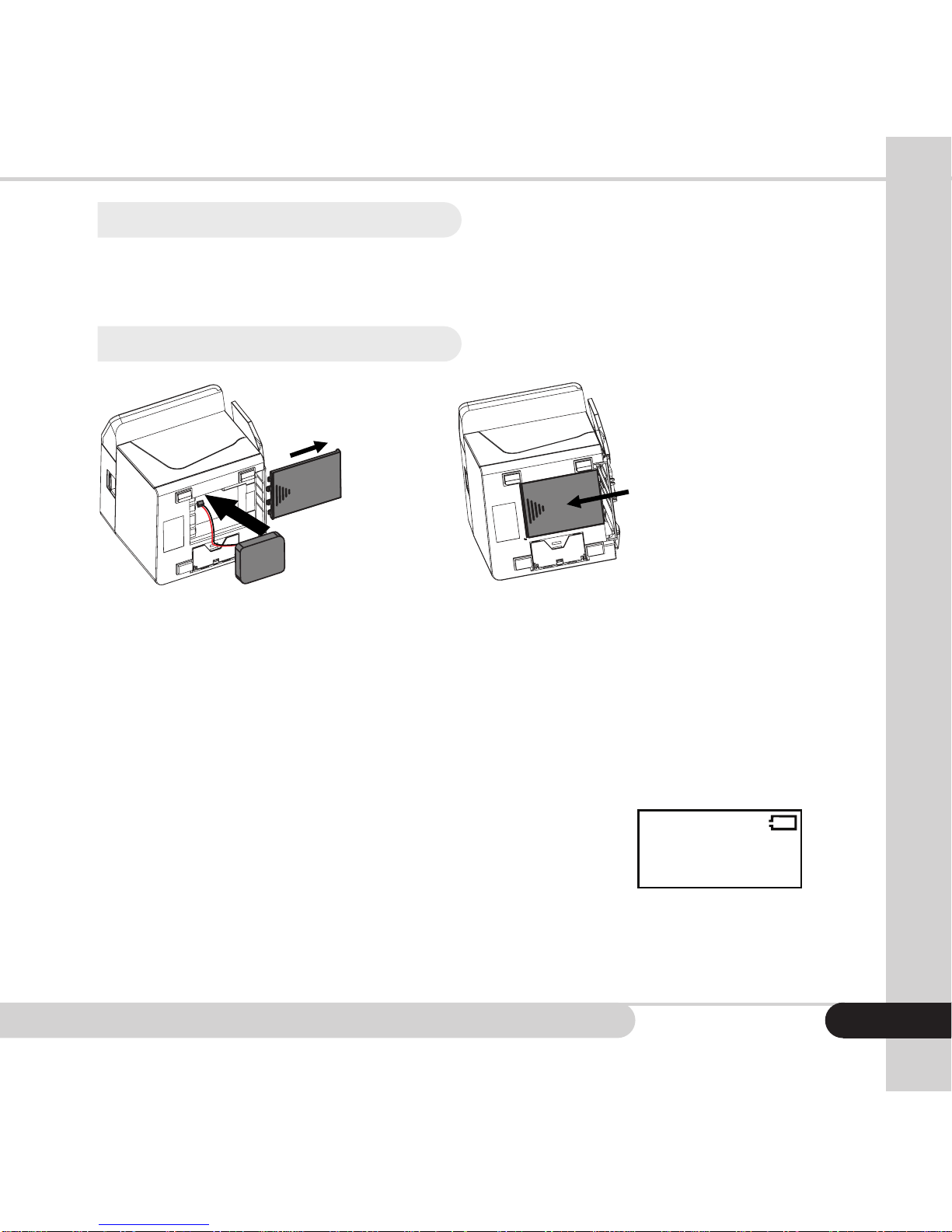

2.5 Install the battery
3. Replace Cover
1. Remove Cover
2. Install Battery
plug in
Beforerstuse,therechargablebatteryshouldbeinstalled
• When the counter connects to the external power supply, it will be charged
automatically. The battery status symbol is displayed on the upper right corner
of the LCD. A solid symbol means the battery is full and an empty symbol means
the battery is insufcient. If the symbol is ashing and changing from solid to
empty, it means the battery is being charged. When the battery is poor, “Low
battery” will be displayed. It means the battery is too low, you should stop
counting and charge the device.
• The battery status symbol will not be displayed
on-screen if a battery is not connected.
• If the device works on a battery, then in working
mode, when the counter idles up to 20 minutes, it will turn off automatically.
Low Battery
9

Moving money forward
®
10
LOADING BILLS
3.
Placethemachineonaatsurface,thenopenthetiltstand,ensuringthatno
strongelectromagneticelds,brightlightorsunshinearecontactingtheCube.
Plugthe electricsocketinto ACelectricsource.Ifyou havepurchasedan external
display, connect it to the external display interface on the back of the counter.
Press
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
for 2 seconds, machine will perform a self-test (see Figure 3-1).
If the self-test is successful, the machine will enter into ready state (see Figure 3-2),
if some error messages are displayed, please deal with them according to the
Troubleshooting in the manual. See section 6.
Low Battery
Figure 3-1
Figure 4-1 Figure 4-2
Figure 3-2
Print...
Ver. 2.10
Self-Test
USD
ADD
PCS:
VAL:
$
0
0
A Bat:---
Mix
Auto mode
USD
ADD
PCS:
VAL:
$
0
0
A Bat:---
Mix USD
ADD
PCS:
VAL:
$
0
0
M Bat:---
Mix
Total
Value
Total
Number
Denomination Piece Value
USD
ADD
PCS:
VAL:
$
10
1000
M B:---
Mix
Piece
PCS: 0
A Bat:---
Count
Time Set
Auto : ON
Sleep Time : 10M
To Select : CUR
To Change : ADD
21:06 2014-04-03
Manual mode
USD
ADD
PCS:
VAL:
$
999
999999
A Bat:---
Mix USD
ADD
PCS:
VAL:
$
0
0
M Bat:---
Mix
215
100
50
20
20
25
0
10
1
1
1
2
5
0 0
0
Total
100
50
20
10
5
2
1
Plug in
USD
ADD
PCS:
VAL:
$
35
175
A Bat:---
Mix USD
ADD
PCS:
VAL:
$
59
384
A Bat:---
Mix
Itisveryimportanttoplacethebillsintothehoppercorrectly,becauserecognition
performance of the bills is highly affected by the arrangement of the bills. Bills
should be placed in a neat stack prior to being placed into the hopper. Please
avoid counting bills that are wet, excessively dirty, spoiled, folded, curled or with
foreign material like clips, bands, etc. It will damage and cause malfunction of
the machine.

Cassida Cube compact value counter
Arrange a stack of bills with smaller denominations in the middle, where possible.
Then set the hopper guide to the position where it just touches the edges of the
bills.WhilestandinginfrontoftheCube,laythebillsatlyonthehopper.The
Cube will begin counting automatically.
When a suspicious bill is detected, the counter will stop immediately and the
machine will emit a beep. The top bill in the stacker is a suspect bill. Remove the
top bill, press
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
and the machine will continue counting.
NOTE: Certain errors, such as double notes, chain notes and passing errors will
cause the Cube to stop automatically. If this occurs, please recount all bills in
the stack
11

Moving money forward
®
12
OPERATION
4.
4.1 Select Auto/Manual mode
To switch between Auto (A) and Manual (M) start modes, enter setting menu by
pressing
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
, then
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
, then press
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
to select Auto mode ON or
OFF.Toconrmandleavethesettingsmenu,press
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
.
In Auto mode “A” will be displayed on the screen. The machine starts counting
automaticaly, when the bills are placed into the hopper.
InManual mode“M”willbedisplayed onthescreen.Themachine startscounting,
when the user presses
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
.
Low Battery
Figure 3-1
Figure 4-1 Figure 4-2
Figure 3-2
Print...
Ver. 2.10
Self-Test
USD
ADD
PCS:
VAL:
$0
0
A Bat:---
Mix
Auto mode
USD
ADD
PCS:
VAL:
$0
0
A Bat:---
Mix USD
ADD
PCS:
VAL:
$0
0
M Bat:---
Mix
Total
Value
Total
Number
Denomination Piece Value
USD
ADD
PCS:
VAL:
$10
1000
M B:---
Mix
Piece
PCS: 0
A Bat:---
Count
Time Set
Auto : ON
Sleep Time : 10M
To Select : CUR
To Change : ADD
21:06 2014-04-03
Manual mode
USD
ADD
PCS:
VAL:
$999
999999
A Bat:---
Mix USD
ADD
PCS:
VAL:
$0
0
M Bat:---
Mix
215
100
50
20
20
25
0
10
1
1
1
2
5
0 0
0
Total
100
50
20
10
5
2
1
Plug in
USD
ADD
PCS:
VAL:
$35
175
A Bat:---
Mix USD
ADD
PCS:
VAL:
$59
384
A Bat:---
Mix
4.2 Select counting mode
A. Piece Count Mode
This mode is used to count the total number of bills. To start this mode, select
“Piece Count” by pressing
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
.
Low Battery
Figure 3-1
Figure 4-1 Figure 4-2
Figure 3-2
Print...
Ver. 2.10
Self-Test
USD
ADD
PCS:
VAL:
$0
0
A Bat:---
Mix
Auto mode
USD
ADD
PCS:
VAL:
$0
0
A Bat:---
Mix USD
ADD
PCS:
VAL:
$0
0
M Bat:---
Mix
Total
Value
Total
Number
Denomination Piece Value
USD
ADD
PCS:
VAL:
$10
1000
M B:---
Mix
Piece
PCS: 0
A Bat:---
Count
Time Set
Auto : ON
Sleep Time : 10M
To Select : CUR
To Change : ADD
21:06 2014-04-03
Manual mode
USD
ADD
PCS:
VAL:
$999
999999
A Bat:---
Mix USD
ADD
PCS:
VAL:
$0
0
M Bat:---
Mix
215
100
50
20
20
25
0
10
1
1
1
2
5
0 0
0
Total
100
50
20
10
5
2
1
Plug in
USD
ADD
PCS:
VAL:
$35
175
A Bat:---
Mix USD
ADD
PCS:
VAL:
$59
384
A Bat:---
Mix

Cassida Cube compact value counter
B. Mixed Count Mode
To start MIXED mode, select “MIX” by pressing
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
. This mode is used to
count a stack of mixed denominations. Total number (PCS) and total value (VAL)
will be displayed on the screen. When operation is complete, press
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
and
the detailed report will be displayed on the screen. Press
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
once again to
return to the main screen.
C. Sort Count Mode
To start SORT mode, select “Sort” by pressing
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
. This mode is used to count
andsortbillsbyonedenominationwhichisautomaticallydeterminedbytherst
passingbill.Therstbillinthehopperdeterminesthesortingdenomination.Ifthe
denominationonthesecondorotherbillsinthestackdiffersfromtherstbill,the
machine will stop and alert the user with a DENOMINATION DIFFERENT warning.
Once the bill with the different denomination is removed from the stacker, press
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
to resume the operation. Total number (PCS) and total value (VAL) will
be displayed on the screen. When operation is complete, press
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
and
the detailed report will be displayed on the screen. Press
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
once again
to return to the main screen.
In Mix and Sort modes, after counting is complete, the machine will provide a
report of all counted bills when
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
is pressed. The detailed report will be
displayed on the screen as follows:
Low Battery
Figure 3-1
Figure 4-1 Figure 4-2
Figure 3-2
Print...
Ver. 2.10
Self-Test
USD
ADD
PCS:
VAL:
$0
0
A Bat:---
Mix
Auto mode
USD
ADD
PCS:
VAL:
$0
0
A Bat:---
Mix USD
ADD
PCS:
VAL:
$0
0
M Bat:---
Mix
Total
Value
Total
Number
Denomination Piece Value
USD
ADD
PCS:
VAL:
$10
1000
M B:---
Mix
Piece
PCS: 0
A Bat:---
Count
Time Set
Auto : ON
Sleep Time : 10M
To Select : CUR
To Change : ADD
21:06 2014-04-03
Manual mode
USD
ADD
PCS:
VAL:
$999
999999
A Bat:---
Mix USD
ADD
PCS:
VAL:
$0
0
M Bat:---
Mix
215
100
50
20
20
25
0
10
1
1
1
2
5
0 0
0
Total
100
50
20
10
5
2
1
Plug in
USD
ADD
PCS:
VAL:
$35
175
A Bat:---
Mix USD
ADD
PCS:
VAL:
$59
384
A Bat:---
Mix
Press any key to exit the report mode automatically. Press
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
to clear the
count memory. 13

Moving money forward
®
14
4.3 Printing function
To connect the Cube to a printer, follow the diagram as shown. The Cassida
Cube has a special print cable that is included with your unit.
When the Cube is connected to a printer,
powerontheCuberst,thenturnonthe
printer, to assure connectivity.
If the printer is connected to the machine, press and hold
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
, “Print...” will
be displayed on the LCD as shown below and the report will be printed. After
printing is completed, the Cube returns to its ready state.
4.4 Select ADD function
When you need to get an accumulative total of what you’re counting, use this
function. Press
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
and “ADD” will be displayed on the lower left side of the
screen. NOTE: Activating ADD zeros out and resets any piece count and value
on screen.
Place bills in the hopper and press
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
to begin counting. The piece count
andvaluewilldisplayonscreen(seegure4-1).Addanadditionalstackofbills
to the hopper and the piece count of the bills and value of the bills will be added
tothepreviouscountjustnished.WithADDactivated,thenumberdisplayedon
screenisthesumtotalofseveralcounts(seegure4-2).
Low Battery
Figure 3-1
Figure 4-1 Figure 4-2
Figure 3-2
Print...
Ver. 2.10
Self-Test
USD
ADD
PCS:
VAL:
$0
0
A Bat:---
Mix
Auto mode
USD
ADD
PCS:
VAL:
$0
0
A Bat:---
Mix USD
ADD
PCS:
VAL:
$0
0
M Bat:---
Mix
Total
Value
Total
Number
Denomination Piece Value
USD
ADD
PCS:
VAL:
$10
1000
M B:---
Mix
Piece
PCS: 0
A Bat:---
Count
Time Set
Auto : ON
Sleep Time : 10M
To Select : CUR
To Change : ADD
21:06 2014-04-03
Manual mode
USD
ADD
PCS:
VAL:
$999
999999
A Bat:---
Mix USD
ADD
PCS:
VAL:
$0
0
M Bat:---
Mix
215
100
50
20
20
25
0
10
1
1
1
2
5
0 0
0
Total
100
50
20
10
5
2
1
Plug in
USD
ADD
PCS:
VAL:
$35
175
A Bat:---
Mix USD
ADD
PCS:
VAL:
$59
384
A Bat:---
Mix
Low Battery
Figure 3-1
Figure 4-1 Figure 4-2
Figure 3-2
Print...
Ver. 2.10
Self-Test
USD
ADD
PCS:
VAL:
$0
0
A Bat:---
Mix
Auto mode
USD
ADD
PCS:
VAL:
$0
0
A Bat:---
Mix USD
ADD
PCS:
VAL:
$0
0
M Bat:---
Mix
Total
Value
Total
Number
Denomination Piece Value
USD
ADD
PCS:
VAL:
$10
1000
M B:---
Mix
Piece
PCS: 0
A Bat:---
Count
Time Set
Auto : ON
Sleep Time : 10M
To Select : CUR
To Change : ADD
21:06 2014-04-03
Manual mode
USD
ADD
PCS:
VAL:
$999
999999
A Bat:---
Mix USD
ADD
PCS:
VAL:
$0
0
M Bat:---
Mix
215
100
50
20
20
25
0
10
1
1
1
2
5
0 0
0
Total
100
50
20
10
5
2
1
Plug in
USD
ADD
PCS:
VAL:
$35
175
A Bat:---
Mix USD
ADD
PCS:
VAL:
$59
384
A Bat:---
Mix

Cassida Cube compact value counter
Low Battery
Figure 3-1
Figure 4-1 Figure 4-2
Figure 3-2
Print...
Ver. 2.10
Self-Test
USD
ADD
PCS:
VAL:
$0
0
A Bat:---
Mix
Auto mode
USD
ADD
PCS:
VAL:
$0
0
A Bat:---
Mix USD
ADD
PCS:
VAL:
$0
0
M Bat:---
Mix
Total
Value
Total
Number
Denomination Piece Value
USD
ADD
PCS:
VAL:
$10
1000
M B:---
Mix
Piece
PCS: 0
A Bat:---
Count
Time Set
Auto : ON
Sleep Time : 10M
To Select : CUR
To Change : ADD
21:06 2014-04-03
Manual mode
USD
ADD
PCS:
VAL:
$999
999999
A Bat:---
Mix USD
ADD
PCS:
VAL:
$0
0
M Bat:---
Mix
215
100
50
20
20
25
0
10
1
1
1
2
5
0 0
0
Total
100
50
20
10
5
2
1
Plug in
USD
ADD
PCS:
VAL:
$35
175
A Bat:---
Mix USD
ADD
PCS:
VAL:
$59
384
A Bat:---
Mix
When the piece count reaches 999+1 or the accumulative value reaches
999999+1, the count and value revert to zero.
Low Battery
Figure 3-1
Figure 4-1 Figure 4-2
Figure 3-2
Print...
Ver. 2.10
Self-Test
USD
ADD
PCS:
VAL:
$0
0
A Bat:---
Mix
Auto mode
USD
ADD
PCS:
VAL:
$0
0
A Bat:---
Mix USD
ADD
PCS:
VAL:
$0
0
M Bat:---
Mix
Total
Value
Total
Number
Denomination Piece Value
USD
ADD
PCS:
VAL:
$10
1000
M B:---
Mix
Piece
PCS: 0
A Bat:---
Count
Time Set
Auto : ON
Sleep Time : 10M
To Select : CUR
To Change : ADD
21:06 2014-04-03
Manual mode
USD
ADD
PCS:
VAL:
$999
999999
A Bat:---
Mix USD
ADD
PCS:
VAL:
$0
0
M Bat:---
Mix
215
100
50
20
20
25
0
10
1
1
1
2
5
0 0
0
Total
100
50
20
10
5
2
1
Plug in
USD
ADD
PCS:
VAL:
$35
175
A Bat:---
Mix USD
ADD
PCS:
VAL:
$59
384
A Bat:---
Mix
4.5 Select batch counting
To select a batch amount, press
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
. When “100” is displayed on the preset
window, it shows the batch function has been turned on. Each time you press
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
, 100, 50, 25, 20, and 10 will be displayed in turn. If the LCD displays
“---”, the batch function is disabled. You also can press or hold
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
to
increase the batch number by 1 or 10. The batch number can be selected in
the range of 1~200. After setting the batch number, load bills on the hopper and
begin counting. When the unit reaches its batch number, the machine will stop
automatically so the batched bills may be removed from the stacker. To turn off
batch counting, press
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
.
Note: Batch counting applies to the number of bills, not the amount.
15

Moving money forward
®
16
SLEEP AND TIME SETTINGS
5.
To adjust the time settings, enter the Settings menu by pressing
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
.
Low Battery
Figure 3-1
Figure 4-1 Figure 4-2
Figure 3-2
Print...
Ver. 2.10
Self-Test
USD
ADD
PCS:
VAL:
$0
0
A Bat:---
Mix
Auto mode
USD
ADD
PCS:
VAL:
$0
0
A Bat:---
Mix USD
ADD
PCS:
VAL:
$0
0
M Bat:---
Mix
Total
Value
Total
Number
Denomination Piece Value
USD
ADD
PCS:
VAL:
$10
1000
M B:---
Mix
Piece
PCS: 0
A Bat:---
Count
Time Set
Auto : ON
Sleep Time : 10M
To Select : CUR
To Change : ADD
21:06 2014-04-03
Manual mode
USD
ADD
PCS:
VAL:
$999
999999
A Bat:---
Mix USD
ADD
PCS:
VAL:
$0
0
M Bat:---
Mix
215
100
50
20
20
25
0
10
1
1
1
2
5
0 0
0
Total
100
50
20
10
5
2
1
Plug in
USD
ADD
PCS:
VAL:
$35
175
A Bat:---
Mix USD
ADD
PCS:
VAL:
$59
384
A Bat:---
Mix
Time Set: Setting time
Auto: Setting Auto/Manual mode
Sleep Time: Setting sleep time (5 minutes, 10 minutes or off)
Changing the set time:
Press
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
to select the desired option.
Press
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
to change the parameter.
Press
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
toselecttheoptiontobemodied.Press
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
(+) and
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
(-) to increase or decrease the parameter’s value.
Press
CUR
Switches between counting currency USD
and Free (for counting coupons or checks)
MODE
Switches between Mix and Sort
ADD
Turns ADD mode on or off
BAT
Cycles through the batch amounts
( 100 / 50 / 25 / 20 / 10 )
+
1/
+
10
Increases batch amounts by 1 or
(press and hold)
10
CLR
Clears the batch amount
PRT
Prints a report (with optional printer)
REP
Displays an on-screen report
MENU
Accesses settings
(Time Set, Auto-Start, and Sleep Time)
Powers the Cube on or off (Press and hold)
START
Starts or continues the count
to save the change and exit.

Cassida Cube compact value counter
TROUBLESHOOTING
6.
6.1 Self-test error message display and solutions
The machine performs a self-test automatically after powering on. If one of the
following error messages is displayed on the LCD, usually it is because the sensor
is blocked by debris, or a jammed bill or. Please use a brush compressed air to
remove dust from the sensor. Remove any jammed bills and restart the machine.
To clean or clear,
turn off machine and
open by lifting tab
17
