ENGLISH
Before use, please read and follow the safety rules and
operating instructions in this manual.
This appliance is intended to be used exclusively for the
storage of wine
1. SAFETY INSTRUCTIONS
For your own safety and for the proper utilization of the
appliance, read this manual carefully, including the
warnings and recommendations, before installing the
appliance and using it for the first time. In order to avoid
damage to the appliance and/or personal injury, persons
using the appliance should be fully familiar with its
operation and safety functions. Keep these
recommendations close to the appliance, for future
reference, and ensure that the document is transferred
with the appliance, if it is sold or in the case of moving.
This will ensure optimum operation of the appliance.
Warnings
- To prevent damage on the door gasket, make sure the
door is fully opened when pulling shelves out of
compartment
- Don not move the appliance while loaded with wine
bottles as you may damage the appliance
- The appliance should be installed in a suitable place to
prevent touching compressor with the hand.
- If the power cord is damaged, it must be replaced by a
qualified person to avoid a hazard.

Safety of children and other vulnerable persons
- This appliance may be used by children aged 8 years
and above, and by persons who are physically, sensorially
or mentally handicapped, or who have not learned to use
the appliance, providing they are supervised by a person
familiar with the appliance and who is aware of the risks
involved. Children should not be allowed to play with the
appliance. User cleaning and servicing operations should
not be carried out by children, unless they are more than
8 years old and are supervised.
- Keep all packaging out of the reach of children, as
there is a risk of suffocation.
- If you decide to scrap the appliance, disconnect it from
the wall socket, cut the connection cable (as close to the
appliance as possible) and remove the door, in order to
prevent children playing with it, with the resulting risk of
electric shock or being trapped inside.
- If an appliance with a magnetic door seal is being
replaced by another appliance with a latch on the door
or on the seal, ensure that the latch is disabled before
selling or scrapping the old appliance.
This will prevent the appliance from being transformed
into a trap for children.
- Keep the appliance and its power cable out of reach of
children less than 8 years old.

General safety
WARNING — This appliance is designed for home use.
WARNING — Never store inflammable substances, such as
aerosols, inside the appliance, as they could leak or release
fluids.
WARNING — A damaged power cable should be
immediately replaced
by the manufacturer or by a qualified retailer, in order to
avoid any risk of electric shock.
WARNING — Keep the ventilation openings well open and
ensure that air can circulate, especially if the appliance is
recessed into a wall.
WARNING — Do not damage the refrigerating circuit.
WARNING — Do not use electrical appliances inside the
compartment, unless they are tolerated by the
manufacturer.
WARNING — The refrigerating and insulating systems
containinflammable gases. When the appliance is
scrapped, it should be deposited at an accredited
collection centre. Do not expose the appliance to fire.
Refrigerating fluid R600a
The refrigerating circuit in the appliance uses refrigerating
isobutane(R600a), which is a highly inflammable natural
gas and is therefore dangerous for the environment.
When transporting or installing the appliance, ensure
that no element of the refrigerating circuit is damaged.
The refrigerating fluid (R600a) is inflammable.

Caution: Fire rise
If the refrigerating circuit is damaged:
-Avoid open flames or any source of combustion.
-Ensure that the room in which the appliance is installed is
well ventilated. It is dangerous to change the specification
of the appliance in any way whatsoever.
Damage to the power cable may cause a short circuit
and/or electric shock.
Electrical safety
- We decline any liability in respect of incidents caused by
poor electrical installation.
- Do not extend the power cable. Do not use an extension
cable, or adapter, or multi-way socket.
- Check that the wall socket is not damaged. A wall socket
in poor condition may cause the appliance to overheat and
explode.
- Check that the wall socket used for the appliance is
properly accessible.
- Never pull on the main power cable.
- Ensure that the appliance is always electrically earthed.
- If the wall socket is loose, do not connect the cable, as
there is a risk of electric shock or fire.
- Do not use the appliance if the interior lighting cover is
not installed.
- Disconnect the appliance before replacing the lighting
bulb.
- The appliance operates on a single phase 220~240 V / 50
Hz power supply.
The appliance must be connected to an earthed wall

socket, in accordance with applicable recommendations.
- Do not attempt to replace a damaged power cable,
contact your after-sales service.
- The power socket must be easily accessible but out of
reach of children.
In case of doubt, contact your installation technician.
Daily utilisation
- Do not store inflammable substances or fluids inside the
appliance.
This would create a risk of explosion.
- Do not operate other electrical equipment inside the
appliance (mixers, whirling rotor for ice cream, etc.).
- When disconnecting the appliance, grip the plug firmly
and do not pull on the cable
- Do not expose the appliance to direct sunlight.
- Keep the appliance away from candles, luminaries and
open flames,in order to avoid fire risk.
- This appliance is only designed to store wines and drinks.
- The appliance is heavy. Be careful when moving it.
- If your appliance is equipped with castors, remember that
these are only designed to facilitate minor movements. Do
not move the appliance over long distances.
- Do not lean or climb on the appliance or its elements.
- In order to avoid falling objects and to prevent damage
to the appliance, do not overload the compartments of the
appliance.
!

Caution! Cleaning and servicing
- Before carrying out servicing, switch off the power supply
and disconnect the appliance.
- When cleaning the appliance, do not use metal objects,
steam systems, volatile fluids, organic solvents or abrasive
substances.
- Do not use sharp or pointed objects to remove ice. Use a
plastic Scraper.
Important information concerning installation!
- To ensure proper electrical connection, follow the
recommendations given in the present manual.
- Unpack the appliance and visually check that it is not
damaged. Do not connect a damaged appliance. Inform
your retailer or point of sale of any damage. In such a case,
keep the packaging.
- It is recommended that the appliance be allowed to settle
for at least 4 hours before connecting the electrical power
supply, so that the compressor fluid feed is correct.
- Proper air circulation is necessary to avoid overheating.
To ensure sufficient ventilation, observe the installation
recommendations Provided.
- In order to avoid fire risk, wherever possible, ensure that
the appliance is not in contact with walls or with any hot
element (compressor, condenser). Observe the installation
recommendations.
- The appliance should not be placed close to radiators or
cooking hot plates or gas rings.
- Check that electrical sockets remain accessible when the
appliance is Installed.

Power saving
To limit the electricity consumption of your appliance:
- Install the appliance in the cool area of the room, away
from heat producing appliances and out of the direct
sunlight.
- Ensure the appliance has adequate ventilation, never
block air vents.
- Don not open the door if not necessary.
- Regularly inspect the door seals and ensure that they are
still closing properly.
Trouble shooting
- Any electrical work should be carried out by a qualified
and skilled technician.
- The appliance should be repaired by an accredited repair
centre, using only original spare parts.
The appliance is designed for home use only. The manufacturer declines any liability whatsoever in cathe case of other
utilisations

2. DESCRIPTION OF APPLIANCE
3. INSTALLATION INSTRUCTIONS
Before using your appliance:
•
Remove inner and outer packaging.
•Before connecting the appliance to the electrical socket, leave it in position for 24 hours. This will
reduce the possibility of malfunction of the refrigeration circuit due to transport.
•Clean the inside using a soft cloth and lukewarm water.
Installing your appliance:
• This appliance should be placed in a well ventilated, dry room.
• Position it in a place with sufficient strength to support its weight when loaded. To ensure that it
is level,adjust the height of the feet underneath.
• To get the best from your appliance with the lowest energy consumption, do not place the
appliance close to a heat source (heater, cooker, etc.), do not expose it to direct sunlight, and do
not place it in a room which is too cold.
• Plug the appliance into an exclusively, easily accessible plug socket. Any questions power and
/or grounding should be directed toward a certified electrician or an authorized service centre.
• To prevent the appliance from heating up, ensure adequate ventilation and never block or cover
the Ventilation holes.
Note:Make sure that the socket and ON/OFF switch are easily accessible after the appliance has
been installed.
1
LED light
2
Carbon filter
3
Evaporator grid
4
Control panel
5
Shelf
6
Door support
7
Plinth
8
Adjustable feet
9
Lower hinge
10
Door
11
Handle
12
Door seal
13
Upper hinge

Installing your wine cooler:
•These wine coolers are designed for free-standing installation, good ventilation is required
around the appliance, in order to dissipate the heat properly and to guarantee efficient cooling at
lower consumption. Sufficient clearance must be created for this purpose:
-
Gap to the back of appliance about 5cm and the side walls each about 10cm.
-
Clearance to the front must be created so that the appliance door can open without being
impeded.
• Position it in a place with sufficient strength to support its weight when loaded. To ensure that it
is level, adjust the height of the feet underneath.
•To get the best from your appliance with the lowest energy consumption, do not place the
appliance close to a heat source (heater, cooker, etc.), do not expose it to direct sunlight, and do
not place it in room which is too cold.
•Connect the appliance to a single socket, Be careful to support it, so that your wine cooler is
perfectly leveled. This will prevent any movement due to instability, generating noise and
vibration, and will ensure that the door seals perfectly.
Built-in installation for model diagram:
Operating your appliance:
Please use the appliance in a room with an ambient temperature between 16 and +38°C in order
to achieve better performance. If the ambient temperature is higher or lower, the performance of
your appliance may be affected and it may not be possible to reach designed temperature.

Description of controls
Upper zone temperature range is 5-12°C and lower zone temperature range is 12-20°C.
- Press and hold for 2 seconds to turn on or turn off the appliance.
- There are two light modes, press and hold for 3 seconds to select light mode.
1. Light on and off mode: The default setting of light will be controlled by sensor and LCD screen will
show , when door is opened, the light will turn on automatically, when door is closed, the light will
be turned off.
2. Light on model: Press and hold for 3 seconds to enter light on mode, when in this mode,
LCD screen will display and light will always be on.
- Press and . to adjust the temperature of the appliance, and each press on the button will
alter the temperature by 1°C. buttons at left of LCD screen will control the temperature
of upper zone, at right of the LCD screen will control the temperature of lower zone.
Important note: after selecting the desired temperature, the display will continue to show the real
temperature inside the equipment, which will vary gradually until it reaches the selected temperature.
- Press and together at the left of LCD screen and hold for 3 seconds to change
temperature display from Celsius to Fahrenheit.
- Press and together at the right of LCD screen and hold for 3 seconds to show the
humidity.

Warning system:
1. Door open alarm: When door has been opened for over 5 minutes, door open alarm will be on and LCD
screen display and beep 3 times every 5 seconds, press any key or close the door to stop the
alarm .
2. Low temperature alarm: When upper zone temperature is below 2°C for over 3 hours, it will beep to
alarm and left side of LCD screen will display ; when lower zone temperature is below
2°C for over 3 hours, it will beep to alarm and right side of LCD screen will display ; Press
any key to stop the beeping alarm.
3. High temperature alarm: When upper temperature is above 25°C for over 6 hours, it will beep to alarm
and left side of LCD screen will display . When lower zone temperature is above 25°C for
over 6 hours, it will beep to alarm and right side of LCD screen will display , press any key to
stop the beeping alarm.
4. Low humidity alarm: When upper zone humidity is less than 40% for over 3 hours, the left side of LCD
screen will display , when lower zone humidity is lower than 40% for 3 hours, the
right side of LCD screen will display , warning mark will disappear when humidity
returns to normal range.
5. High humidity alarm: When lower zone humidity is higher than 80% for over 1 hour, the left side of LCD
will display ,when lower zone humidity is higher than 80% for over 1 hour, the right
side of LCD screen will display , warning mark will disappear when humidity returns
to normal.

Door reversibility:
NOTICE: In the instruction manual bag, there is a left upper hinge and left lower hinge for you
to reverse the door, please follow below instructions
:
1. Unscrew the two screws which fix the door axis onto the lower hinge at the bottom of hinge,
then remove the door.
2. Remove the door axis from door axis hole at the left bottom of the door.
3

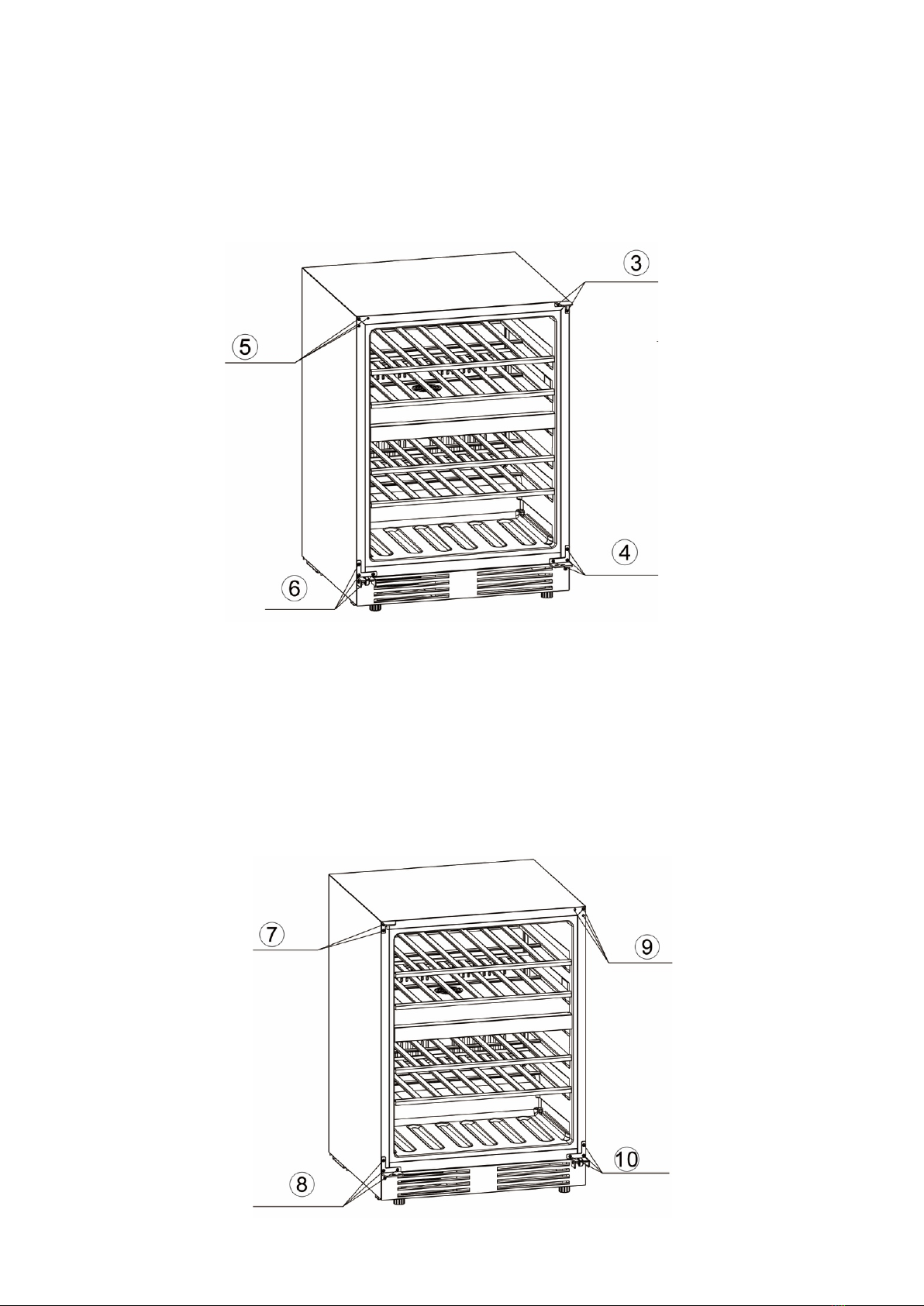

. Remove right upper hinge by unscrewing three screws.

4. Remove right lower hinge by unscrewing three screws.
5. Remove the decorative plastic caps at left upper hinge hole.
6. Remove left door support.
7. Install left upper hinge.
8. Install left lower hinge.
9. Insert decorative caps to cover right upper hinge holes.
10. Install right door support and fix it onto right lower hinge hole.

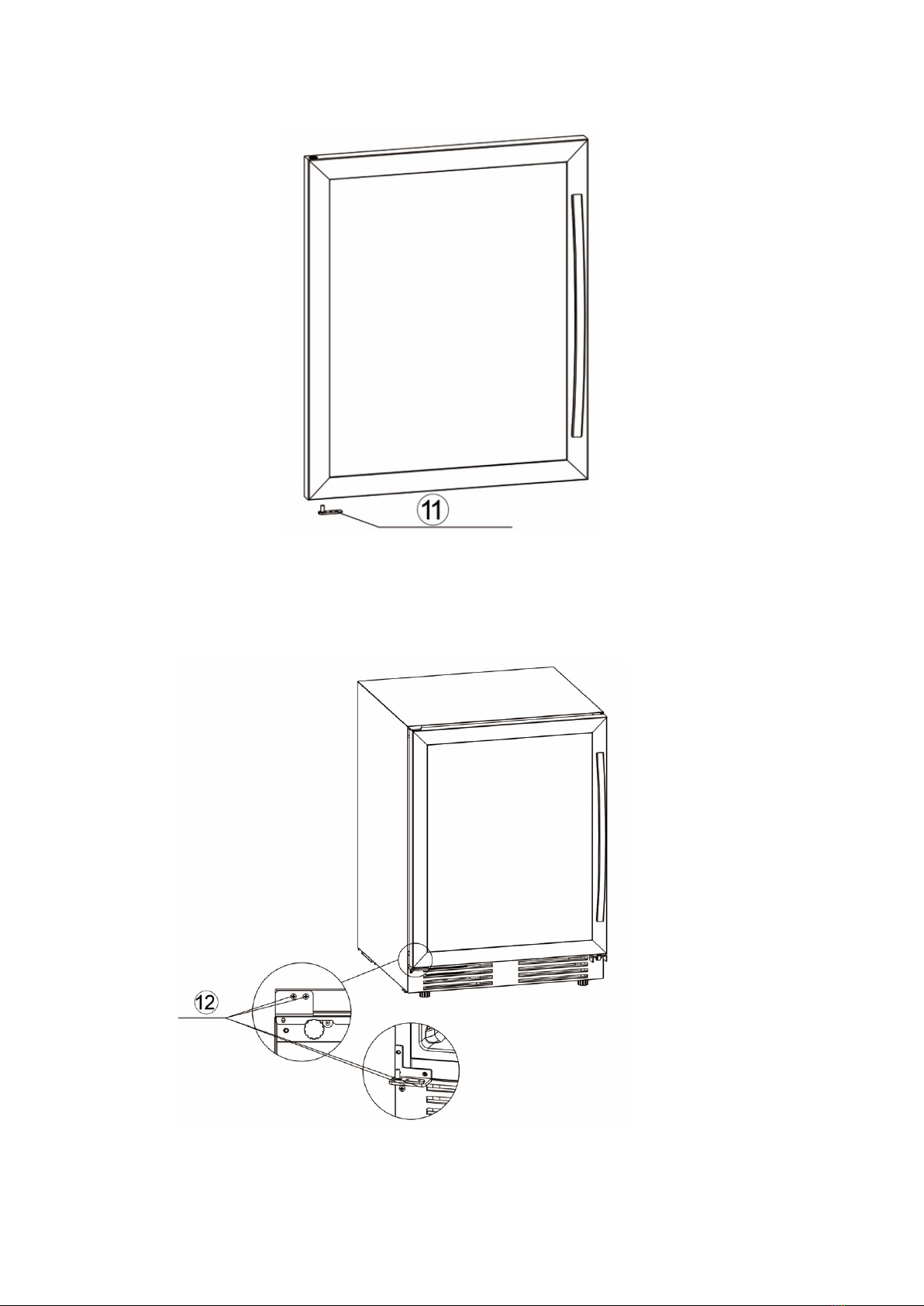

11. Turn the door by 180°, and insert the door axis into bottom door axis hole.
12. Put the door into left upper hinge axis, align the door with lower hinge, and fix door axis to
left lower hinge.
! !

Installing handle:
This appliance is with a stainless steel handle, please follow below instruction to install the handle\
1. Open the door and pull away the door gasket in the area where the handles is to be installed. Th gasket is easily
displaced by hand, no tools are necessary.
2. Insert the washer and screw into door gasket slot, please note the washer must be inside the slot and screws pass
through the door frame.
Screw!and!washer!
must!be!placed!into!
the!door!gasket!slot!
Inner!side!
of!door!
frame!
Outside!of!
door!frame!

4. EQUIPMENT
The climate control system
According to advice from specialists, the ideal temperature for storing wine is around 12°C, within a
bracket of 10 to 14°C. Do not confuse this with service temperature, which varies between 5 and
18°C, depending on the specific nature of the wine.
It is especially important to avoid sudden changes in temperature. Designed by specialists for
oenophiles, this appliance, unlike a simple refrigerator, takes into account the sensitivity of grand
cru wines to sudden variations in temperature by ensuring the close control of a constant average
temperature.
The anti-vibration system:
The refrigeration compressor is equipped with special dampers (silent-blocks) and the inner space is
insulated from the body by a thick layer of polyurethane foam. These characteristics prevent the
transmission of vibration to your wines.
Defrosting:
Your appliance is equipped with an automatic defrost cycle. When a cooling cycle finishes, the
appliance’s refrigerated surfaces are defrosted automatically. The defrost water is channeled into a
condensates evaporation tray which is located in the back of the appliance near the compressor.
The heat produced by the compressor then evaporates the condensates collected in the tray.
5. LOADING
The maximum recommended loading quantities for bottles are given as guidelines and are
indicative only; they provide a quick estimate of the size of the appliance (similar to the capacity of
a refrigerator expressed in litres).
They correspond to tests conducted with a standard bottle: the standard “75 cl light Bordeaux”
bottle - standards apply the geographical origin of each bottle shape (Bordeaux, Burgundy,
Provence, etc.) and a type (traditional, heavy, light, flute, etc.), each with its own diameter and
height.
In reality and in extreme cases, you could store more bottles by stacking the same type of bottle
without using shelves, but a varied cellar comprises a wide variety of bottles and the practical
aspect of everyday cellar management limits its capacity. You will therefore probably load the
appliance a little less than the recommended maximum.
!

6. MAINTENANCE
Before cleaning your appliance (something to be done
regularly), disconnect it by removing the plug or by pulling
the fuse on the circuit.
Before using your appliance for the first time and regularly
after that, we recommend that you clean the inside and
outside (front, sides and top) with warm water mixed with a
gentle cleaning product. Rinse with clean water and allow
to dry before reconnecting. Do not use solvents or
abrasives.
Wash the plastic coating on the steel shelves with a mild
detergent solution and then dry with a soft cloth. Wooden
shelves require no particular maintenance.
When the appliance is switched on for the first time, there
may be a residual odour. In that case, run the appliance
empty for a few hours at the coldest possible temperature.
The cold will kills any odours.
7. STORING YOUR WINE COOLER
If you will not be using your appliance for short periods, leave the control panel with its usual
settings.
During an extended shutdown:
•Remove all bottles from the appliance
•Unplug the appliance
•Thoroughly clean the inside and outside of the appliance
•Leave the door open to prevent condensation, unpleasant odours and mould.
!

8. WHAT TO DO IN THE EVENT OF A POWER CUT
Most power cuts are resolved within a short time. A power cut of 1 or 2 hours will not affect the
temperature in your cellar. To protect your wines during a power cut, avoid opening the door as
much as possible. During very long power cuts, take the necessary measures to protect your wine.
-If the appliance is disconnected or if there is a power cut, you must wait three to five minutes
before re- starting. If you try to re-start before this time, the compressor will only re-start after 3 to 5
minutes (if the temperature requires).
-When switching on for the first time or following a prolonged shutdown, it is possible that when re-
starting, the temperatures selected and those displayed are not the same. This is normal. It will take
a few hours before they stabilise.
9. IF YOU NEED TO MOVE YOUR WINE COOLER
First, disconnect your appliance.
Remove all bottles and secure any loose parts.
To avoid damaging the levelling screws on the feet, screw them tightly into the base.
Move the appliance in an upright position (preferably) or note the direction in which the appliance
may be laid down by looking at its packaging.
10. IN THE EVENT OF A BREAKDOWN
Despite the care we take during production, a breakdown can never be totally ruled out. Before
contacting your retailer’s after-sales department, please check that:
1.the appliance is properly plugged in;
2.there is not a power cut in progress;
3.the breakdown is not one of those described in the table at the end of this manual.
IMPORTANT:
If the mains cable supplied is damaged, it must be replaced by the manufacturer, a centre
approved by the brand or by the retailer. In all cases, it must be replaced by qualified personnel, so
as to avoid any risk of injury.
IF THESE CHECKS REVEAL NOTHING, THEN CONTACT YOUR RETAILER’S AFTER-SALES
DEPARTMENT.
CAUTION!
Unplug the appliance before carrying out any maintenance or repair work.
!
