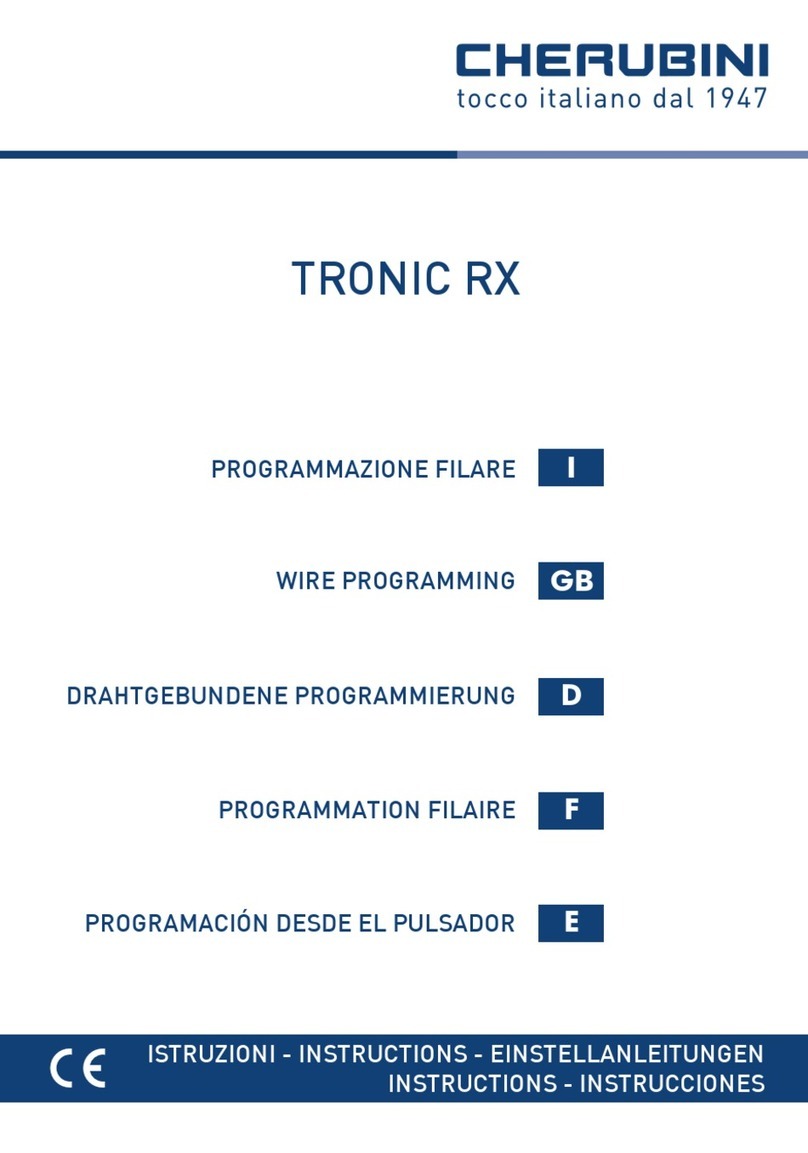

CHERUBINI Tronic RX User manual

ISTRUZIONI - INSTRUCTIONS - EINSTELLANLEITUNGEN
INSTRUCTIONS - INSTRUCCIONES
Tronic RX
I
GB
D
F
E
MOTORE TUBOLARE PER AVVOLGIBILI CON
FINECORSA ELETTRONICO
TUBULAR MOTOR WITH ELECTRONIC LIMIT SWITCH
FOR ROLLING SHUTTERS
ROHRMOTOR FÜR ROLLLADEN MIT
ELEKTRONISCHER ENDLAGENEINSTELLUNG
MOTEUR TUBULAIRE POUR VOLET ROULANT
AVEC FINS DE COURSE ÉLECTRONIQUES
MOTOR TUBULAR PARA PERSIANA CON
FIN DE CARRERA ELECTRÓNICO

25
Table of contents:
How to prepare the motor ........................................................................................p. 26
Instruction xing with clamp ....................................................................................p. 27
Electrical connections ...............................................................................................p. 28
Compatible remote controls / Key to symbols...........................................................p. 29
Command sequences example .................................................................................p. 30
Function open/close programming remote control ..............................................p. 31-32
Setting the rst remote control ................................................................................p. 33
Automatic disabling of the rst remote control setting function ..............................p. 33
Adjustment of the limit switches ..............................................................................p. 33
Setting in mode 1 (manual) ....................................................................................p. 33
Example 1: Setting rst the opening position .................................................................. p. 34
Example 2: Setting rst the closing position ..................................................................... p. 35
Mode 2: limit switch setting (semi-automatic) ......................................................p. 36
Setting a middle position .........................................................................................p. 37
Deleting the middle position ....................................................................................p. 37
Closing force adjustment ..........................................................................................p. 38
Deleting the opening and closing limit switch ..........................................................p. 38
Setting of additional remote controls .......................................................................p. 39
Remote control memory clearing .............................................................................p. 39
Full memory clearing ................................................................................................p. 40
Special functions:
Short-term setting of a remote control .....................................................................p. 41
Setting the A530058 pocket remote control .............................................................p. 42
Electric wiring to motor command with 2 independent buttons ..............................p. 43
Command management from white wire
UP-STOP-DOWN-STOP / UP-DOWN / UP-DOWN “Dead Man”..................................p. 44
Super-sensitivity obstacle detection management during downwards
movements (only for Ø 35 motors) ...........................................................................p. 45
“Furniture” function ............................................................................................p. 45-46
EU Declaration of conformity ................................................................................ p. 113
TRANSLATION OF THE ORIGINAL INSTRUCTIONS
ENGLISH

26
HOW TO PREPARE THE MOTOR
NB: If you use tubes with a round form, the driving pulley must be xed to the tube, and
the installation is to be paid by the person who installs the system. For other tube sections
the tting is optional, but strongly recommended.
1. Insert the adaptor in the nut mating the
groove with the reference notch and push
till they touch.
2. Fix the driving pulley on the motor pin
until the stop pin clicks.
3. Insert the motor fully in the rolling tube.
STOP RING NUT ADAPTOR
DRIVING PULLEY
STOP RING NUT
1
2
3
ENGLISH

27
The clamp allows to x the motor directly on the side-cover bolt
(Ø 12 mm).
The clamp may be used only for motors until maximal torque of
15 Nm.
INSTRUCTION FIXING WITH CLAMP
The bolt has to be in aluminum with minimal Ø 11,5 and maximal Ø 11,9 mm.
Close the screw using an hexagonal key 5 mm.
Closing torque minimal 9 Nm maximal 11 Nm, by keeping the motor as near as
possible to the sidecover.
The clamp is supplied pre-assembled with the tightening of the screw on right
side, in case should be necessary to tighten the screw on the left side go on as
follows:
- remove the screw
- remove the plate
- remove the clamp and reinsert it upside down
- insert the screw from the left side.
2
3
1
1
3
2
ENGLISH

I
28
ELECTRICAL CONNECTIONS
- In order to prevent dangerous situations or malfunctioning, the electrical command
elements wired to the motor must be sized according to the motor’s electrical features.
- Means for disconnection must be incorporated in the xed wiring in accordance with
the national installation standards.
- For outdoor use, provide the appliance with a supply cable with designation H05RN-F
containing at least 2% of carbon.
- If not used, the white wire must be insulated. It is dangerous to touch the white wire
when the motor is powered.
* Optional step by
step - Switch
brown
blue
white
green-yellow
*Installing this switch is optional. The connection can be done differently using the
brown wire or the blue wire.The switch affords the possibility to command the motor in
stepping mode (up, stop, down, stop, up, stop, down, stop..)
ENGLISH

COMPATIBLE REMOTE CONTROLS
29
down
up
KEY TO SYMBOLS
Press button A
Press buttons A and B
at the same time
GIRO
down
stop
up
A
B
C
Skipper
A
B
C
short motor rotation in one
direction
long motor rotation in other
direction
double short rotation
A
+
A B
ENGLISH
A530058 Remote
Control with 4
independent
channels
GIRO GIRO Wall
DISPLAY
Change
channel +
Change
channel -
up
stop
down
A
B
C
UP
DOWN
LED
STOP
GIRO Plus
Display -
Activating/ Deactivating the Sun sensor
Channel selector
LED -
Check the specic
instruction book
Skipper
Skipper
Skipper
Skipper
Skipper
Skipper
Skipper
Skipper
Skipper
Skipper
Skipper
Skipper
LED DISPLAY
GIRO Lux
Activating the
Sun sensor
Deactivating the Sun sensor
Sun sensor is “ON”
Wind sensor
is “ON”
GIRO P-Lux DISPLAY
Change channel
Activating/ Deactivating the Sun sensor
Wind sensor
is “ON”
Sun sensor is “ON”

I
30
COMMAND SEQUENCES EXAMPLE
Most of the command sequences have three distinct steps, at the end of which the
motor indicates if the step has been concluded positively or not, by turning in different
ways. This section is provided to demonstrate the motor indications. The buttons must
be pressed as shown in the sequence, without taking more than 4 seconds between one
step and the next. If more than 4 seconds are taken, the command is not accepted and
the sequence must be repeated.
Command sequence example:
As we can see from the example, when the sequence ends positively, the motor returns to
its starting position in one long rotation. In fact, two short rotations in the same direction
correspond to one long rotation in the opposite direction.The motor returns to the starting
position even when the sequence is not completed; in this case by performing one or two
short rotations.
Example of a wrong sequence:
+
A B B B
Step 1 Step 3Step 2
Step 1
Step 1
> 4 sec repeat the
sequence
repeat the
sequence
Step 2
> 4 sec
+
A B
+
A B B
ENGLISH

31
FUNCTION OPEN/CLOSE PROGRAMMING
REMOTE CONTROL SKIPPER PLUS - SKIPPER LUX - SKIPPER P-LUX
To prevent accidental changes to the programming of the motor during the daily use of
the remote control, the possibility of programming is disabled automatically 8 hours after
sending the last sequence (A+B or B+C).
CHECKING THE STATUS OF THE FUNCTION
To change the status of the function, see the sequences “ENABLE/DISABLE
PROGRAMMING”
Proceed with programming as the instructions booklet
ENABLE PROGRAMMING
DISABLE PROGRAMMING
C
Open
or after
30 sec.
Remove and replace a battery
OPTION 2
OPTION 1
+ +
ABC
Tn
B
+ +
ABC
Tn or after
30 sec.
B
Open
programming
Closed
programming
3 sec
+ +
ABC
Tn or after
30 sec.
B
A
3 sec
Closed
3 sec
ENGLISH

32
FUNCTION OPEN/CLOSE PROGRAMMING
REMOTE CONTROL SKIPPER - SERIES GIRO
To prevent accidental changes to the programming of the motor during the daily use of
the remote control, the possibility of programming is disabled automatically 8 hours after
sending the last sequence (A+B or B+C).
CHECKING THE STATUS OF THE FUNCTION
To change the status of the function, see the sequences “ENABLE/DISABLE
PROGRAMMING”
Proceed with programming as the instructions booklet
ENABLE PROGRAMMING
DISABLE PROGRAMMING
ON
Open
programming
Closed
programming
....
ON
....
.... Closed
Open
ON
or after
30 sec.
or after
30 sec.
1 2 3
OPTION 1
1 2 3
1 2 3 or after
30 sec.
+ +
A B CB
B
C
+ +
A B C
+ +
A B C
A
B
Tn
Tn
Tn
ENGLISH
OPTION 2 OPTION 2 OPTION 2 OPTION 2
Remove a battery
and wait 5 seconds,
or press any button.
2 sec
B

ADJUSTMENT OF THE LIMIT SWITCHES
SETTING IN MODE 1 (manual)
Tronic RX tubular motors have an electronic limit switch system with an encoder. This
system ensures great reliability and precision in keeping the positions. Limit switch
regulation is performed simply with the remote control. During setting, the motor moves
only as long as the up or down button is pressed, stopping when the button is released.At
the end of setting, press either the up or down button briey to move the motor.
The adjustments of the limit switches can be done in different modes depending on
whether the rolling shutter is equipped with lockdown hangers or physical stops.
In this mode it doesn’t matter whether or not the rolling shutter has got physical stops in
the opening position and the lockdown hangers in the closing position. It is possible to
choose whether to set the upper limit or the lower limit rst. The correct rotation direction
will only be identied after the rst position is set so it is sometimes necessary to use the
“up” or “down” button.
33
SETTING THE FIRST REMOTE CONTROL
This operation can only be performed when the motor is new, or after a total delete of
the memory.
T1: First remote control to be set
During this step, power up only one motor at time!
Every time you connect the power supply to the motor, you have 3 hours to store the
rst remote control. After this time, the ability to store the remote control is disabled.
To reset the timer of the function you have to disconnect and reconnect the power
supply to the motor.
AUTOMATIC DISABLING OF THE FIRST
REMOTE CONTROL SETTING FUNCTION
T1T1 T1 (2 sec)
+
A B B B
ENGLISH

SETTING THE OPENING POSITION
SETTING THE CLOSING POSITION
34
EXAMPLE 1:
Setting rst the opening position
If the rolling shutter is completely open, you have rst to drive it down by
around 20 cm.
Hold the button A or C pressed and drive the rolling shutter to the opening position.
With physical stops: press button A or C until the motor stops automatically.
Without physical stops: use the button A or C to drive the rolling shutter to the
necessary opening position.
To set the opening position, press buttons A (up) and B (stop) simultaneously for about 2
seconds, until the motor automatically performs a short “down” movement.
This move is the visual conrmation of the setting operation.
Tn: Already programmed remote control
Pressing now the button C, drive completely down the rolling shutter to the closing position.
With lockdown hangers: press button C until the motor stops automatically.
Without lockdown hangers: use the button A or C to drive the rolling shutter to the
necessary closing position.
To set the closing position, press buttons B (stop) and C (down) simultaneously for about
2 seconds, until the motor automatically performs a short “up” movement.
This move is the visual conrmation of the setting operation.
Tn: Already programmed remote control
Tn (2 sec) conrmTn
?
A
C
+
A B
Tn (2 sec) conrmTn
+
B C
C
ENGLISH

35
SETTING THE CLOSING POSITION
SETTING THE OPENING POSITION
EXAMPLE 2:
Setting rst the closing position
If the rolling shutter is completely closed, you have rst to drive it up by around
20 cm.
Hold the button A or C pressed and drive the rolling shutter to the closing position.
With lockdown hangers: press buttons A or C until the motor stops automatically.
Without lock down hangers: use the button A or C to drive the rolling shutter to the
necessary closing position.
To set the closing position, press buttons B (stop) and C (down) simultaneously for about
2 seconds, until the motor performs automatically a short “up” movement.
This move is the visual conrmation of the setting operation.
Tn: Already programmed remote control
Pressing now button A, drive completely up the rolling shutter to the opening position.
With physical stops: press button A until the motor stops automatically.
Without physical stops: use the buttonA or C to drive the rolling shutter to the necessary
opening position.
To set the opening position, press buttons A (up) and B (stop) simultaneously for about 2
seconds, until the motor automatically performs a short “down” movement.
This move is the visual conrmation of the setting operation.
Tn: Already programmed remote control
Tn (2 sec) conrm
?
A
C
+
B C
Tn
conrm
Tn (2 sec)
Tn
+
A B
A
ENGLISH

36
MODE 2: LIMIT SWITCH SETTING (semi-automatic)
To do the settings in this mode the rolling shutter has to be equipped with lockdown
hangers in the closing position, but the rolling shutter does not need to have physical
stops in the opening position. This mode of setting is helpful in cases where the factory
will set the opening position and the closing position will be set automatically during
the normal use.
In this mode, it’s necessary to set rst the opening position!! (Rolling shutter
open!)
SETTING THE OPENING POSITION
If the shutter is already completely open, you have rst to drive it down by
about 20 cm.
Press button A or C and drive the rolling shutter to the opening position.
With physical stops: press button A or C until the motor stops automatically.
Without physical stops: use buttons A and C to drive the rolling shutter to the necessary
opening position.
To set the opening position, press button B (stop) for about 2 seconds, until the motor
performs a short downwards movement. After this conrmation movement the motor
brings back the rolling shutter to the opening position.
Tn: Already programmed remote control
Now the drive direction is detected and the motor can be disconnected from the power.
The closing position will be set automatically during the normal use. When the motor
is powered up again, the remote control can be used normally. The lower limit switch
position will be set automatically the rst time the rolling shutter stops automatically in
the closing position using the lock down hangers. As the motor looks for a “mechanical”
stop during each way down, if the Obstacle Recognition nds something is blocking the
way (such as a protruding screw in the guide rails), it is necessary to raise the shutter
again, remove the obstacle and to drive the motor back to the closing position to set the
limit.
Tn (2 sec) conrm
?
A
C
B
Tn
ENGLISH

37
SETTING A MIDDLE POSITION
DELETING THE MIDDLE POSITION
This function allows the rolling shutter to be set at a favourite middle position. When
this middle position is memorized, you just press the stop button for 2 seconds and
automatically the motor will move the shutter to this position.
To memorize the middle position, move the rolling shutter to the desired position and then
hold the STOP button down (for about 2 sec) until the motor gives conrmation.
Tn: Already programmed remote control
If you want to delete the middle position, it can be done as described below.
To change this position, it’s also necessary to delete rst the memorized middle position.
Before deleting it’s necessary to drive the motor to the middle position (by pressing button
B for 2 seconds), then press again button B (stop) for about 4 seconds until the motor
conrms the operation by a longer movement.
Tn: Already programmed remote control
Tn (4 sec)
B
Tn (4 sec)Tn (2 sec)
BB
ENGLISH

38
CLOSING FORCE ADJUSTMENT
DELETING THE OPENING AND CLOSING LIMIT SWITCH
This system is the only one of its kind and it
guarantees that rolling shutters (which are
equipped with lockdown hangers) remain perfectly
closed without any danger of the slats suffering
excessive pressure. The system works in all kinds of
applications because of the opportunity of manually
adjusting the closing force.
The Tronic RX is factory set to a closing force of 20 % of the nominal torque. This force
can be changed very easily by the remote control. It can be reduced by 10 % or increased
up to 40 %, depending on the desired result.
Tn: Already programmed remote control
+
B C
A A
C
B
40 %
20 %
10 %
Tn
2 sec
Tn Tn Tn (4 sec)
+
B C + B C + B C
ENGLISH

39
GB
SETTING OF ADDITIONAL REMOTE CONTROLS
REMOTE CONTROL MEMORY CLEARING
Up to 15 remote controls can be set.
Tn: Already programmed remote control
Tx: Additional remote control
It is possible to delete singly all the memorized remote controls. When the last one is
deleted the motor initial condition is restored. The same applies to the single channels
of a multichannel remote control: just select the channel to cancel before performing
the sequence.
Tn: Remote control to be cleared
TnTn Tx (2 sec)
+
A B BB
TnTn Tn (2 sec)
+
A B B
A
ENGLISH

W
H
I
T
E
W
H
I
T
E
40
2) WITH THE WHITE WIRE
Do this operation only in case of emergency, if all remote controls are no longer
operating.To delete the memory we have to access the white wire of the motor.
The sequence of this operation is the following:
1) Disconnect the power supply from the motor, via the main switch for example.
2) Connect the white motor wire to the brown wire (phase) or to the blue wire (neutral).
3) Connect the power supply to the motor, which rotates briey in one direction.
4) Disconnect the power supply from the motor for at least 4 seconds.
5) Connect the power supply to the motor which performs one brief rotation in one
direction after around 4 seconds and then a longer one in the opposite direction.
6) Disconnect the power supply from the motor.
7) Separate the white wire from the brow/blue wire. Insulate the white wire, in an
appropriate way, before reconnecting the power supply.
At this point it is possible to proceed with the setting of the rst remote control.
FULL MEMORY CLEARING
The full memory clearing can be performed in two ways:
1) WITH THE REMOTE CONTROL
Tn: Already programmed remote control
This full memory clearing does not delete the setting of the limit switch.
TnTn Tn (4 sec)
+
A B + A B
B
ENGLISH

SPECIAL FUNCTIONS
41
SHORT-TERM SETTING OF A REMOTE CONTROL
This function makes it possible to store a remote control temporarily, for example, with
the purpose of setting the limit switches during assembly in the factory. A later nal
saving of the remote control will be possible using the appropriate command sequence
(see: “SETTING THE FIRST REMOTE CONTROL”). The operations described below can be
carried out only when the motor has just come out of the factory or after a full memory
clearing (see: “FULL MEMORY CLEARING”). The motor makes the following operations
possible only within the time limits described in order to make sure that the short-term
setting is used only in the installation or factory setting phase and not during daily use.
Power up the motor, make sure that no other motors having an empty memory are
powered up in the same operating range.
Within 30 seconds after start, press the B and C buttons simultaneously until the
motor gives a conrmation signal.
The remote control will remain stored for 5 minutes, while the motor is powered up.
After 5 minutes or when the motor has its power cut off, the remote control will be
cancelled.
T1: First remote control to be set
T1
+
BC
+
B C
ENGLISH

42
SETTING THE A530058 POCKET REMOTE CONTROL
NB: The new pocket remote control can be set only after programming of a previous
remote control as the traditional Cherubini remote controls (Skipper or Giro - 3 buttons
Up-Down-Stop remote control).
HOW TO PROCEED TO SET THE BUTTON ON THE POCKET REMOTE CONTROL
Tn: Already programmed remote control
Tx: Pocket remote control to be set
After to have pressed for minimal 2 seconds one of the 4 buttons on the pocket remote
control, this one will be memorized on the step-by-step mode (UP-STOP-DOWN-STOP).
The following buttons will be not memorized and have to be done with previous described
sequence, and could be used to move additional Tronic RX motors.
DELETING ONE BUTTON ON THE POCKET REMOTE CONTROL
The buttons saved may be deleted individually according to the following sequence:
Tn: Already programmed remote control
Tx: Pocket remote control with button to be deleted
To conrm the operation the motor will do a short shunt and the button, which has to be
pressed for minimal 2 second, will be deleted.
Tn Tn Tx (2 sec)
1
3 4
2
+
A B
+
B C
Tn Tn Tx (2 sec)
1
3 4
2
+
A B
A
ENGLISH
