Chiayo IWR-200 User manual

IWR-200
IWR-220
Infrared Wireless Microphone System
ISO 9001
ISO 14001
OHSAS 18001
GREEN PRODUCT
Operation manual
IS O
14001
REG IS TER ED
O H S A S
18001
REG IS TER ED

-1-
Thank you for purchasing our infrared wireless microphone system. Please be sure to read the
user's manual thoroughly and keep it for future reference.
Cautions
Do not cover the infrared emitter area of the wireless transmitter or the surface of the infrared
sensor.
Since the unit uses infrared reflectance. Do not expose receiver to the black ceiling or wall
because it may reduce the signal reception.
Do not use the transmitter too close to speakers to prevent feedback.
Do not replace the battery when power is on.
Do not install near heat source or in a place subject to direct sunlight, excessive dust,
mechanical vibration or shock.
Do not use two transmitters on one channel at same time because it will cause abnormal
operation.
Parts and functions of receiver
Front panel
1. Power indicator.
2. Channel indicator. channel 1/2 turns GREEN/YELLOW when receiving signals from the
transmitter.
Rear panel
3. Volume control.
4. Audio output.
5. Noise level control. Adjust to HIGH in small rooms such as karaoke and meeting room, to
LOW in larger rooms such as classroom and conference.
6. Output level control. Switch to LINE when connected to the AUX input of the amplifier, to
MIC when connected to MIC jack of the amplifier.
7. External sensor connectors.
8. Power control.
9. DC input.
1 2
4 5 6 8 93 7

ISO 9001｜ISO 14001｜OHSAS 18001
-2-
Operating the system
1. First, find the optimal location with the widest view of the room to install the IR receiver.
2. Connect the receiver to amplifier and speaker.
3. Connect power adaptor into nearby power outlet, and then connect the DC plug of adaptor to
the receiver.
4. Turn on both receiver and amplifier.
5. Switch on the transmitter and the channel indicator(s) will light up.
6. Adjust the volume control of amplifier to comfortable level.
TIP: Reduce the treble slightly if feedback/howling, or operate transmitter further from speakers.

-3-

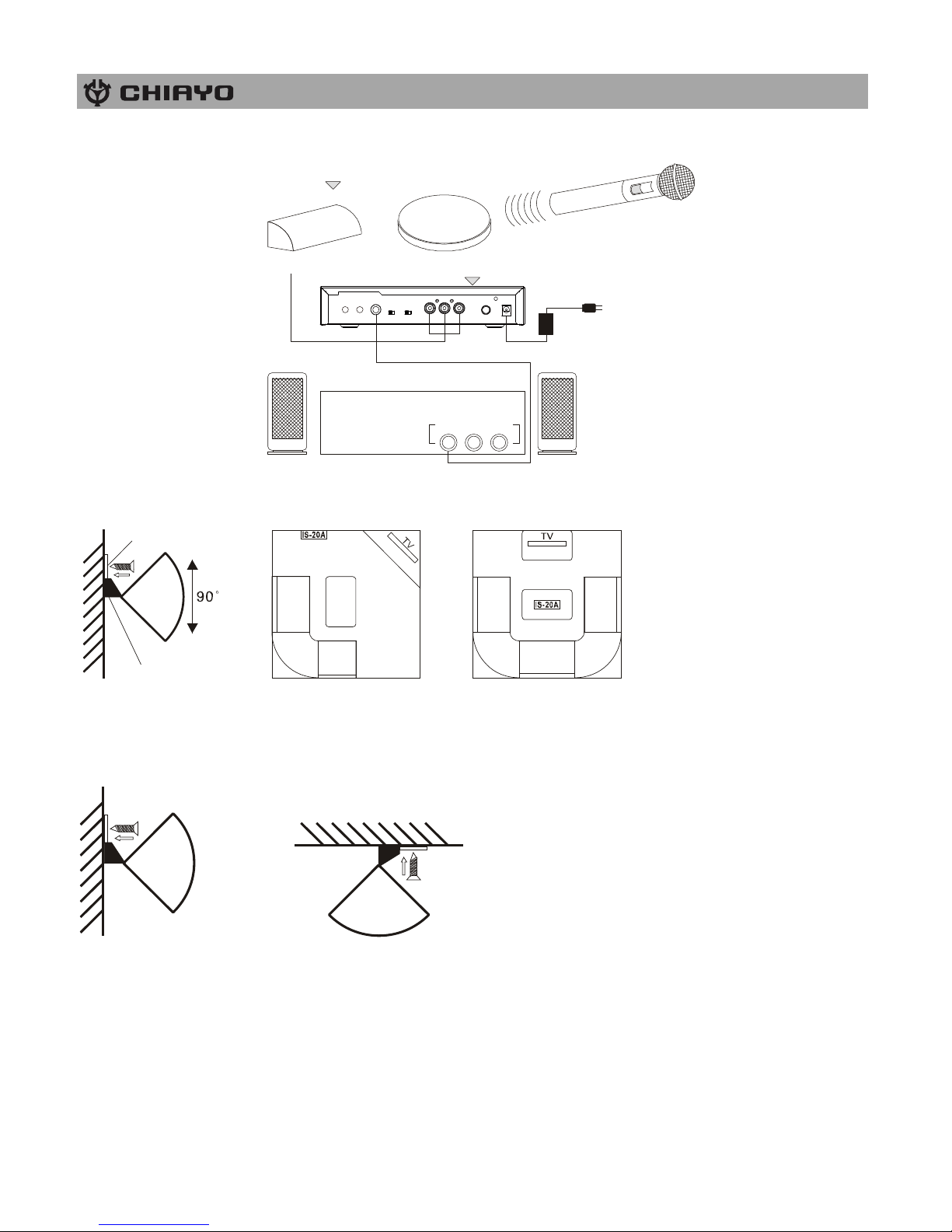

Connections
Installing the external sensor IS-20A (wall/ceiling-mount type)
Find the best position for sensor to be mounted as illustrated for optimal coverage.
Mount the external sensor IS-20A on a wall or ceiling.
(a) Mount (Refer to illustration) the FIXING
HOLDER (wall or ceiling) using a screw
(provided) or two double-coated tapes
(b) Find the best position with wide view of the
room. Mount the sensor on the FIXING
HOLDER on the wall or ceiling.
NOTE: The LED of infrared sensor will turn red
when power on. If not, please check your
connections.
fixing holder with a screw
angle-adjustable shaft
wall mounting
ceiling mounting
External sensor
IS-20A
IWR-220/200 receiver
or
KARAOKAE amplifier
Audio input
AC adaptor
IS-30A

ISO 9001｜ISO 14001｜OHSAS 18001
-4-

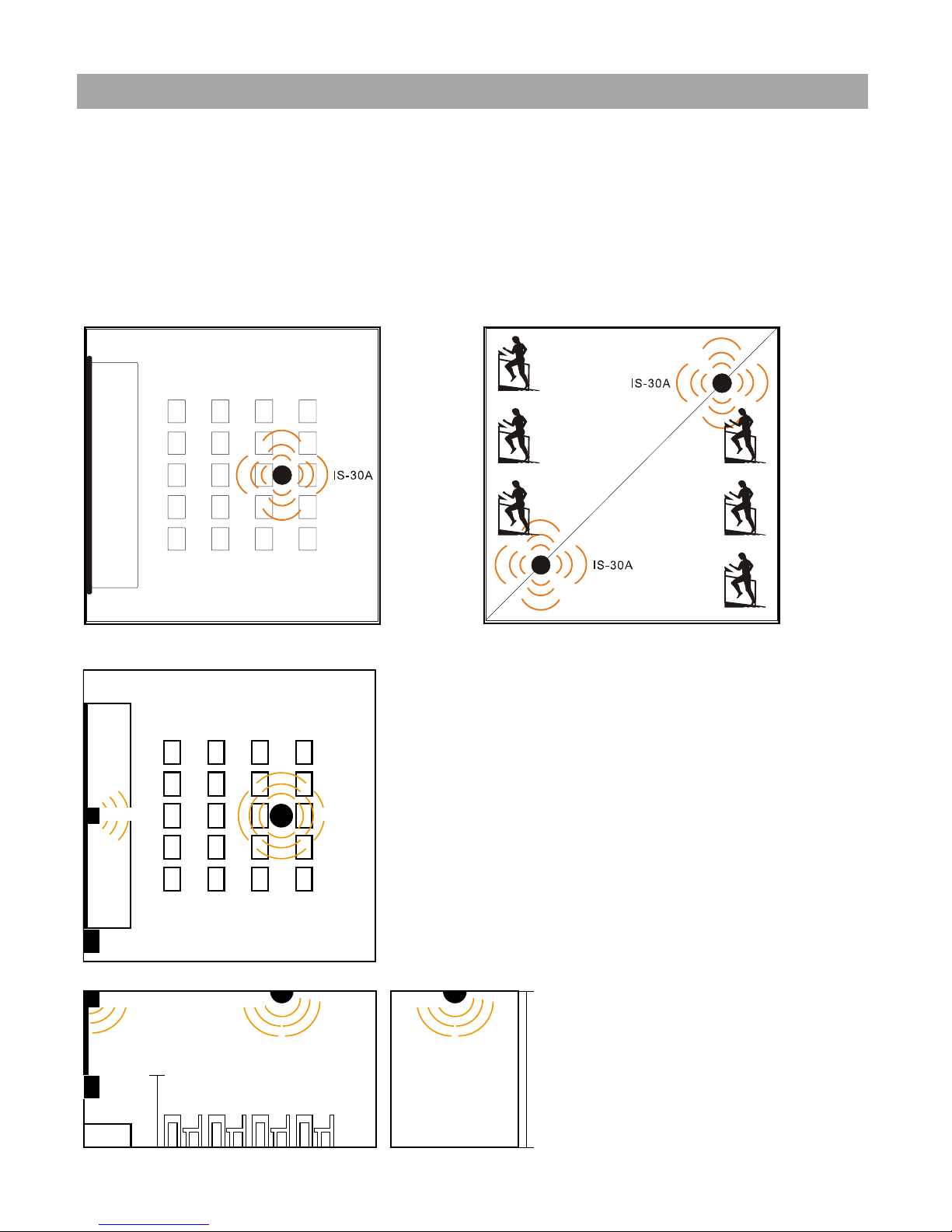

Installing the external sensor IS-30A (ceiling-mount type)
In an ordinary space such as a classroom
In a larger space such as a fitness center
1. Locate the IS-30A sensor in the middle of
the ceiling, as illustrated below
2. Connect the sensor cable to the receiver.
3. Turn on the IR system and amplifier then
operation can be started.
1. Locate 2 or 3 IS-30A sensors on the
suggested positions on the cater-corner of
the ceiling, as illustrated below.
2. Connect all sensor cables to the receiver.
3. Turn on the IR system and amplifier then
operation can be started.
Other sensor installing recommendations
One IS-20A wall sensor＋one IS-30A ceiling sensor
Ex: 10x10 sqm classroom
rostrum
IRX2
IS-30AIS-20A
rostrum
3~3.5m
please be careful
of the angles
1.5m
IRX2
IS-30A IS-30AIS-20A

-5-

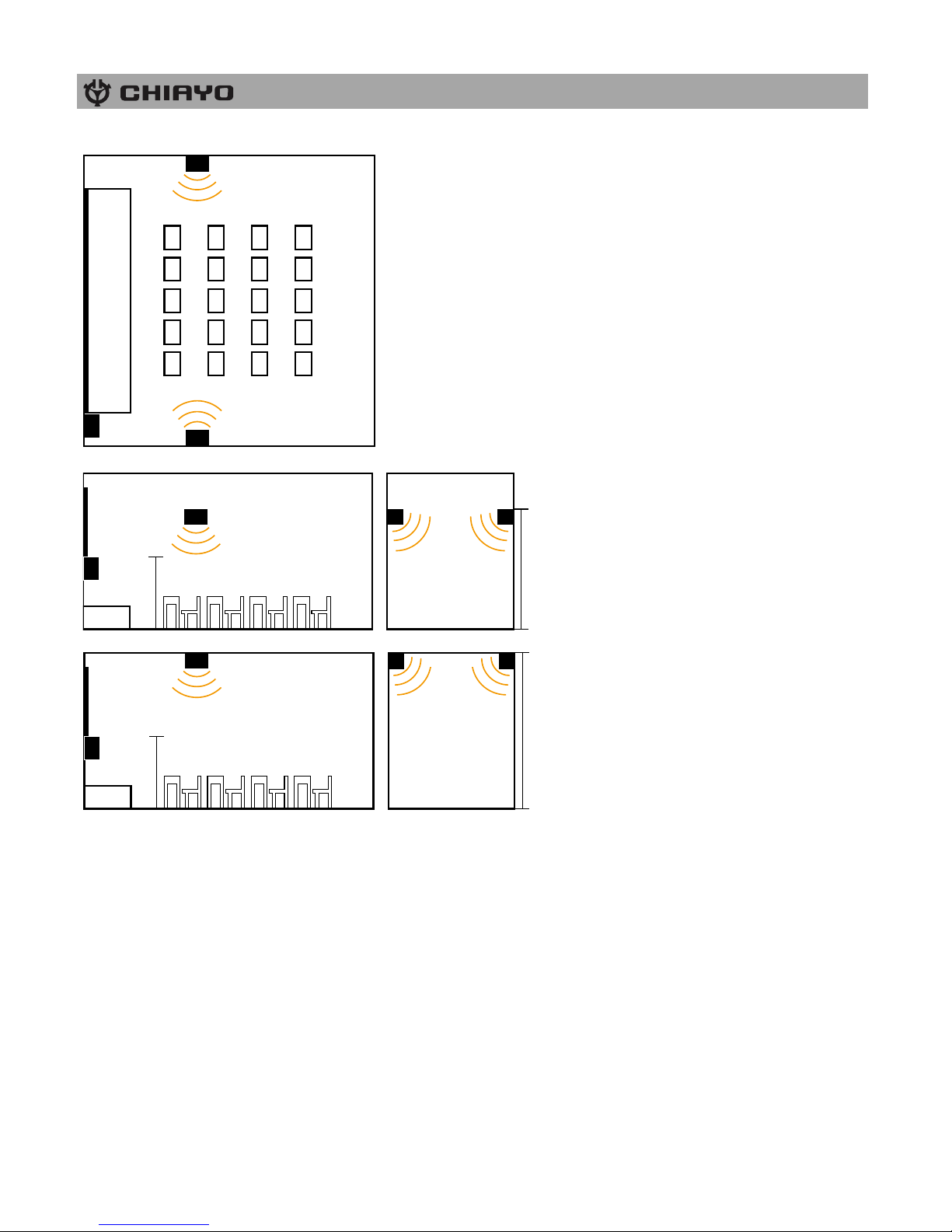

Two IS-20A wall sensors
Ex: 10x10 sqm classroom
rostrum
IS-20A
IS-20A
IRX2
rostrum
IS-20A IS-20A
please be careful
of the angles
1.5m
2.5m
IRX2
IS-20A
1.5m
rostrum
3~3.5m
please be careful
of the angles
IRX2
IS-20A

ISO 9001｜ISO 14001｜OHSAS 18001
-6-
Handheld/Pendant IR Transmitter IWH-401
Parts and functions
1. Cartridge screen.
2. Infrared emitter. IR ray radiates from here. Do not block or hold this part of the body.
3. Anti-rolling color ring.
4. Status LED: Bicolor LED will glow when switch is put to ON.
Green: Battery is full and transmitter is in normal mode.
Red: Battery is weak and will shut off soon. Please charge the battery.
5. Power switch: Slide to turn transmitter on or off.
6. Battery compartment. Turn the battery cover counterclockwise and pull out. Make sure the
transmitter is turned off when installing or replacing batteries. Install the new battery
according to its correct polarity. IWH-401 uses only 1 AA battery to operate.
7. Channel selector. Channel A: 2.08MHz, Channel B: 2.54MHz
8. Sensitivity control. Clockwise to increase sensitivity level. Factory preset is max level.
9. Charging contact, workable with HC-40 (single-unit) / HC-402 (dual-unit) charger.
Please note: This transmitter has a unique inbuilt safety feature to protect from
overcharging the battery. It incorporates a special charging function enabled when 1cm of
the PVC cover of the battery’s negative end is removed by 1cm. Any rechargeable batteries
used must be used this way for safe charging.
10.Pendant holder. Place IWH-401 through this holder and it can be used as a pendant
transmitter.
Battery installation/charging
Unscrew the battery cover and install 1 AA battery. Please make sure the battery type is
rechargeable if it's to be used with the charger. It can be charged without being removed from
the transmitter. If the transmitter is to be left unused for a long period of time, please remove
the battery until next use.
One Alkaline battery or 1cm-
negative-peeled AA NiMH battery
1
2
3
4
5
6
7
8
9

-7-

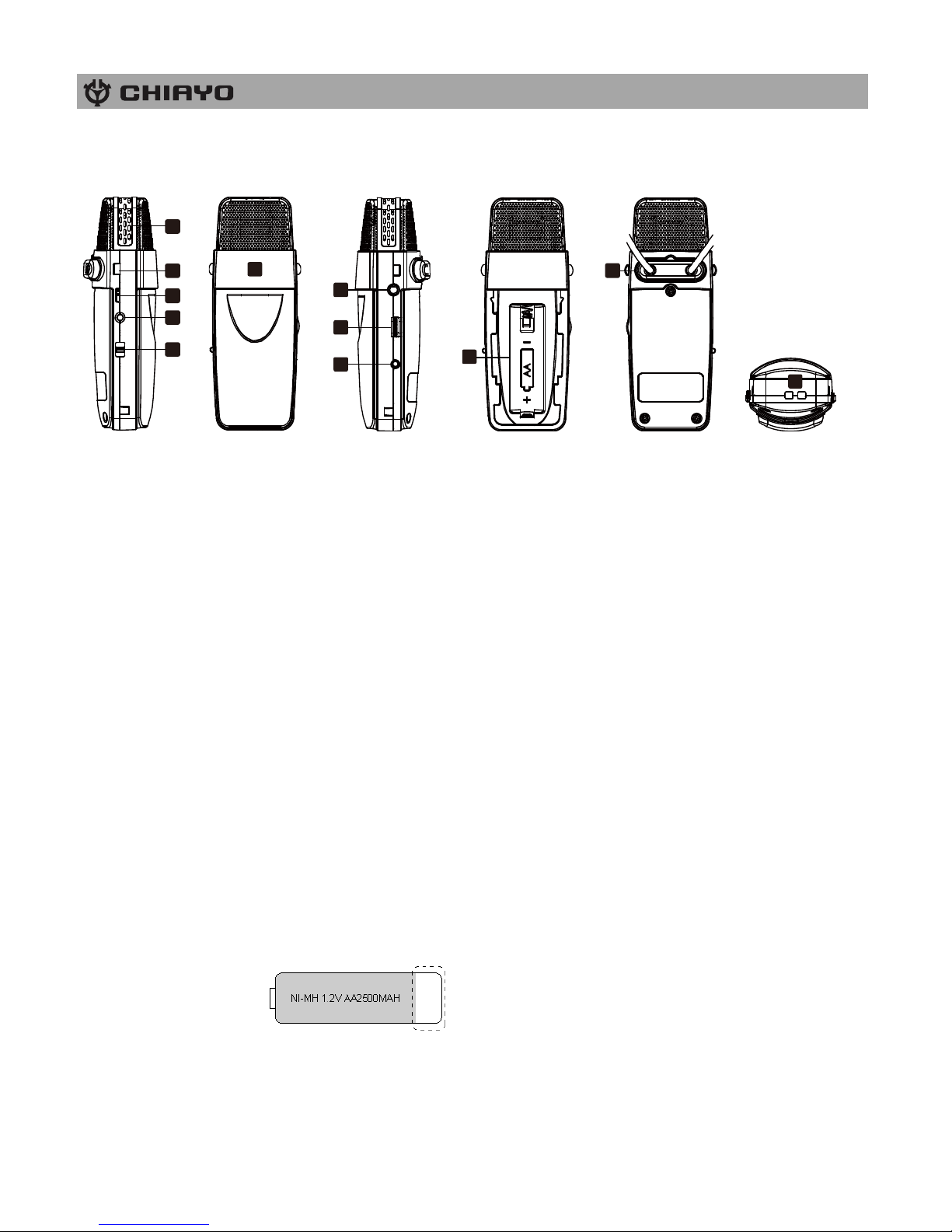

Handheld/Pendant IR Transmitter ITX2
Parts and functions
1. Cartridge screen.
2. Release buttons of pendant holder.
3. Channel selector. Channel A: 2.08MHz, Channel B: 2.54MHz
4. Bicolor status LED.
Green: Battery full.
Red: Battery weak and needs recharging.
5. Power on-off/audio mute switch.
6. Infrared emitter. IR ray radiates from here. Do not block or hold this part of the body.
7. Line input (Φ3.5mm) for external audio input.
8. Volume control.
9. Mic input (Φ2.5mm) for external headset or lavalier microphone.
10.Battery compartment. ITX2 uses only 1 AA battery to operate.
11.Pendant holder.
12.Charging contact, workable with HC-42 (single-unit) / HC-422 (dual-unit) charger..
Please note: This transmitter has a unique inbuilt safety feature to protect from overcharging
the battery. It incorporates a special charging function enabled when 1cm of the PVC cover
of the battery’s negative end is removed by 1cm. Any rechargeable batteries used must be
used this way for safe charging.
Battery installation/charging
Press and slide off the battery cover and install 1 AA battery. Please make sure the battery
type is rechargeable if it's to be used with the charger. It can be charged without being
removed from the transmitter. If the transmitter is to be left unused for a long period of time,
please remove the battery until next use.
One Alkaline battery or 1cm-
negative-peeled AA NiMH battery
1
2
3
4
5
6
7
8
9
10
11
12

ISO 9001｜ISO 14001｜OHSAS 18001
-8-
Handheld IR Transmitter IWH-301
Parts and functions
1. Cartridge screen.
2. Status LED: Bicolor LED will glow when switch is put to ON:
Green: Battery is full and transmitter is in normal mode.
Red: Battery is weak and will shut off soon. Please charge the battery.
3. Power switch: Slide to turn transmitter on or off.
4. Infrared emitter. IR ray radiates from here. Do not block or hold this part of the body.
5. Battery compartment. Turn the battery cover counterclockwise and pull out. Make sure the
transmitter is turned off when installing or replacing batteries. Install the new battery
according to its correct polarity. IWH-301 uses only 2 AA batteries to operate.
6. Sensitivity control. Clockwise to increase sensitivity level. Factory preset is max level.
7. Channel selector. Channel A: 2.08MHz, Channel B: 2.54MHz
8. Charging contact, workable with HC-20+ charger..
Please note: This transmitter has a unique inbuilt safety feature to protect from overcharging
the battery. It incorporates a special charging function enabled when 1cm of the PVC cover
of the battery’s negative end is removed by 1cm. Any rechargeable batteries used must be
used this way for safe charging.
Battery installation/charging
Unscrew the battery cover and install 2 AA batteries. Please make sure the battery type is
rechargeable if it's to be used with the charger. It can be charged without being removed from
the transmitter. If the transmitter is to be left unused for a long period of time, please remove
the battery until next use.
Two Alkaline batteries or 1cm-
negative-peeled AA NiMH battery
1
2
3
4
5
6
7
8

-9-
Pendant IR Transmitter IWM-402
Parts and functions
1. Mic in (Φ2.5mm). Headset or lavalier microphone.
2. Power switch.
3. Charging port.
4. IR emitter area. IR ray radiates from here. Do not block or hold this part of the body.
5. Status LED: Bicolor LED will glow when switch is ON.
Green: Battery is full and transmitter is in normal mode.
Red: Battery is weak and will shut off soon. Please charge the battery.
6. Mute. Press this button to mute/resume audio transmission.
7. Volume control.
8. Line in (Φ3.5mm), for external audio input.
9. Channel selector. Channel A: 2.08MHz, Channel B: 2.54MHz
10.Battery compartment. IWM-402 uses only 1 AA battery to operate.
11.Charging contact, workable with HC-40 (single-unit) / HC-402 (dual-unit) charger.
This transmitter has a unique inbuilt safety feature to protect from overcharging the battery.
It incorporates a special charging function enabled when 1cm of the PVC cover of the
battery’s negative end is removed by 1cm. Any rechargeable batteries used must be used
this way for safe charging.
Battery installation/charging
Open the battery compartment and on install 1 AA battery. Please make sure the battery type
is rechargeable if it's to be used with the charger. It can be charged without being removed
from the transmitter. If the transmitter is to be left unused for a long period of time, please
remove the battery until next use.
One Alkaline battery or 1cm-
negative-peeled AA NiMH battery
1
2
3
4
5
6
7
8
9
10
11

ISO 9001｜ISO 14001｜OHSAS 18001
-10-
