1Overview
This guide is designed to help you quickly set up and use your
Cisco IP Phone 7905 series. For information on accessing more
complete phone documentation over the Web, see the “Related
Documentation” section on page 9.
2Connecting Your
Cisco IP Phone 7905 Series
Your system administrator or a technician will probably
connect your new Cisco IP Phone to the corporate IP telephony
network. If that is not the case, connecting your phone is easy.
Procedure
Follow the steps below. Refer to Figure 1 to locate ports on the
back of your phone.
Warning Read the installation instructions before you
connect the system to its power source.
Before You Begin
Verify that your system administrator is ready for you to
connect your Cisco IP Phone to the network.
Be sure to read the “Safety Notices” section on page 9 before
connecting or using your phone.
Step 1 Connect your Cisco IP Phone to the corporate IP
telephony network. Use the Ethernet cable included
with your phone to connect the network port on the
back of your phone to the Ethernet port in your
workspace.

3
Note If your Ethernet cable has a cover over the RJ-45
connector, the cover can cause the phone to be
unsteady, and the phone may rock from side to side.
PullthecablecoverbacktoexposetheRJ-45connector
to avoid this.
Step 2 Connect the handset to the handset port. Ensure that
the end of the cord with the longer uncoiled section is
connected to the body of the phone.
Step 3 Connect the DC power supply connector from the
adaptor to the 5Vdc jack on the back of the phone.
Caution Only use the 5Vdc power adapter that was
provided with the phone.
Step 4 Use the power cord to connect the power supply to a
standard power outlet in your workspace.
After you connect the Cisco IP Phone to its power source, a
start-up process begins. After several minutes, the phone’s LCD
displays a neutral “ready” screen. The details on your screen
might vary, but a ready screen typically displays the date and
time, your extension number, and available soft keys. Startup is
complete and your phone is ready to use.
Tip Soft keys point to feature options displayed along the
bottom of your LCD screen. Soft keys are
flexible—they change depending on the status of your
phone. For example, you can see one set of soft key
options when you pick up the handset, and another set
when the phone is not in use.

4
Figure 1 Cisco IP Phone 7905 Series Cable Connections
1Power cable with wall socket plug
2Power supply with 5Vdc power connector. Only use the
5Vdc power adapter that was provided with the phone.
3Handset port
4Network port (10/100 SW)
72192
3
12
4

5
3Introducing Your
Cisco IP Phone 7905 Series
A Cisco IP Phone 7905 series is a full-feature telephone that
provides voice communication over an IP (Internet Protocol)
network. This phone functions much like a traditional phone,
allowing you to place and receive telephone calls. It also
supports features that you have come to expect from a
telephone—such as speed dialing, redial, and conference calling.
A Road Map to Your Cisco IP Phone 7905
Refer to the following illustration and table to identify the keys
and parts on your Cisco IP Phone 7905 series.

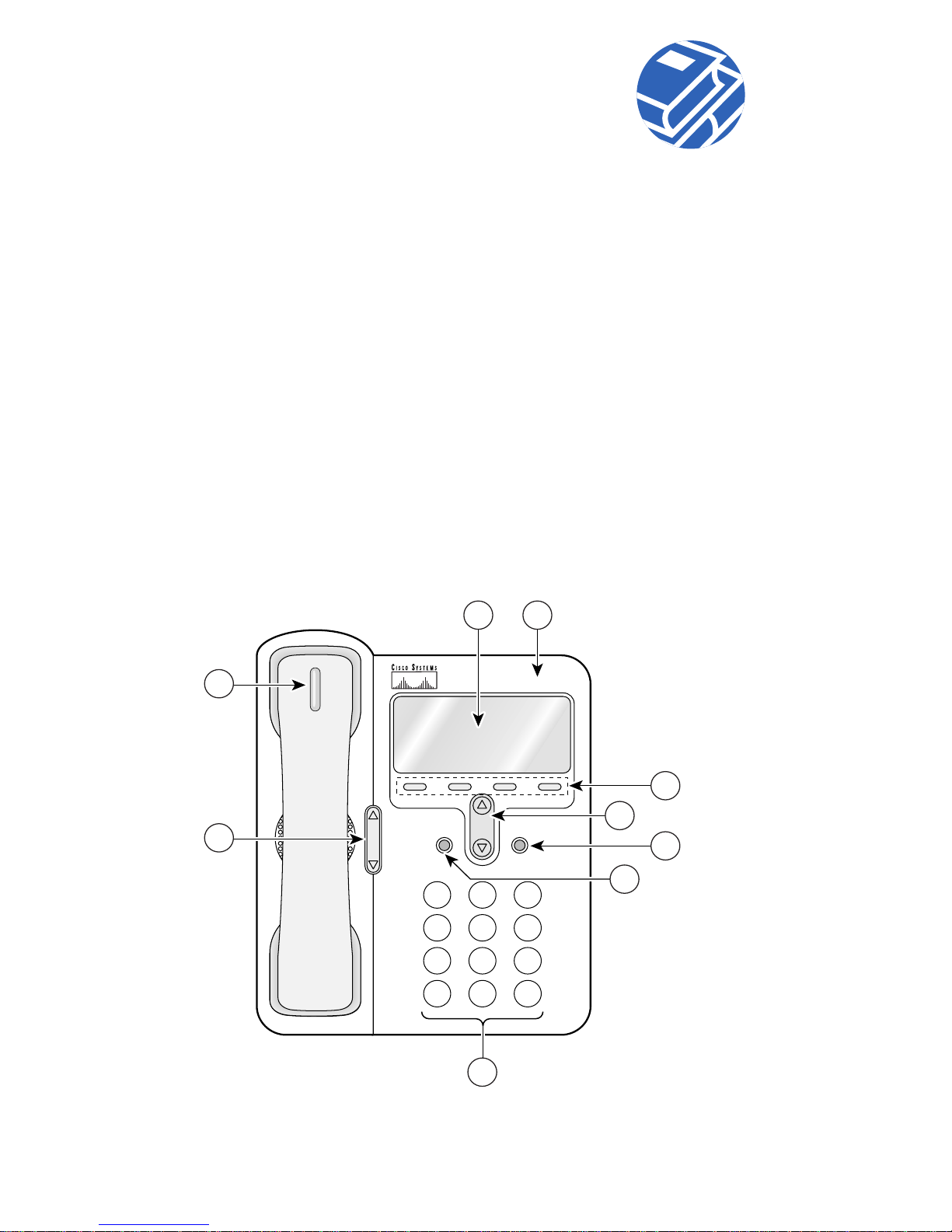

Figure 2 Cisco IP Phone 7905 Series Features
12
ABC
3
DEF
45
JKLGHI
6
MNO
78
TUVPQRS
9
WXYZ
*
0
OPER
#
72193
9
8
7
1 2
43
5
6

6
The main features of your Cisco IP Phone 7905 Series are
defined in the following table.
1LCD screen Displays features such as the time, date,
your phone number, caller ID, line/call
status and soft key tabs.
2Cisco IP Phone
series type Indicates the Cisco IP Phone Series to which your phone belongs.
3Soft keys Enables you to engage any of the
functions displayed on the
corresponding LCD tabs. Soft key
functionschangedependingonthestatus
of the phone (for example, if the phone
is active or idle).
4Navigation
button Enables you to scroll through text and select features displayed on the LCD
screen.
5Services button Provides access to phone services (if
available).
6Hold button Places the active call on hold.

7
4Tips for Using Your Phone
Thefollowingsections provide brief instructions for some of the
features available to you.
•How Do I Adjust the Handset Volume?, page 7
•How Do I Adjust the Ringer Volume?, page 8
•How Do I Change the LCD Contrast?, page 8
•How Do I Place a Call on Hold?, page 8
How Do I Adjust the Handset Volume?
To adjust the volume on the handset, press the up or down
Volume button when the handset is in use.
7Dial pad Works exactly like the dial pad on a
traditional telephone.
8Volume button Increases or decreases volume for the
handset. Also controls the ringer volume
(if on-hook).
9Handset with
indicator light Functions like a traditional handset. The lightstrip atthetop ofthehandset blinks
when the phone rings and remains lit to
indicate a new voice mail message
(depending on your message system).

8
How Do I Adjust the Ringer Volume?
To change the volume used by the ringer, press the up or down
Volume button while the handset is in its cradle. Continue
pressing the Volume button to adjust the volume to the desired
level.
This setting is automatically saved.
How Do I Change the LCD Contrast?
To change the LCD contrast:
Step 1 Press the Services button.
Step 2 Select Settings from the Services menu.
Step 3 Select Contrast from the Settings menu.
Step 4 Press the Up or Down soft keys to set the desired
display contrast.
Step 5 Press the Save soft key to accept your changes.
How Do I Place a Call on Hold?
To place a call on hold, press the Hold button. The Hold button
will light red. To return to the call, press the lit Hold button
again.
Note Because engaging the Hold feature can generate music
or a beeping tone, avoid putting a conference call on
hold.

9
5Where to Find More Information
Your system administrator should be your first point of contact
if you have problems installing or using your
Cisco IP Phone 7905 series.
Related Documentation
User guides and other documentation for your
Cisco IP Phone 7905 series is available on the Web from the
following site:
http://www.cisco.com/univercd/cc/td/doc/product/voice/
c_ipphon/7905_ip/index.htm
6Safety Notices
Pleaseread the following sectionsbeforeinstalling or using your
Cisco IP Phone.
These safety notices apply to phones in the
Cisco IP Phone 7905. For translated versions and compliance
information, refer to the Regulatory Compliance and Safety
Information for the Cisco IP Phone 7905 that is included with
your phone and is accessible via the Web at the following URL:
http://www.cisco.com/univercd/cc/td/doc/product/voice/
c_ipphon/7905_ip/7905rcsi.htm
Caution Using a cell or mobile phone in close proximity to
a Cisco IP Phone might cause interference.
Caution Only use the 5Vdc power adapter that was
provided with the phone.

10
Warning Definition
Warning This warning symbol means danger .
You are in a situation that could
causebodilyinjury.Beforeyouwork
on any equipment, be aware of the
hazards involved with electrical
circuitry and be familiar with
standard practices for preventing
accidents. To see translations of the
warnings that appear in this
publication, refer to the
Regulatory
Compliance and Safety Information
document that accompanied this
device.
Waarschuwing
Dit waarschuwingssymbool
betekent gevaar. U verkeert in
een situatie die lichamelijk
letsel kan veroorzaken. Voordat
u aan enige apparatuur gaat
werken, dient u zich bewust te
zijn van de bij elektrische
schakelingen betrokken risico's
en dient u op de hoogte te zijn
van standaard maatregelen om
ongelukken te voorkomen. Voor
vertalingen van de
waarschuwingen die in deze
publicatie verschijnen, kunt u
het document
Regulatory
Compliance and Safety
Information
(Informatie over
naleving van veiligheids- en
andere voorschriften)
raadplegen dat bij dit toestel is
ingesloten.

11
Varoitus
Tämä varoitusmerkki merkitsee
vaaraa. Olet tilanteessa, joka voi
johtaa ruumiinvammaan. Ennen
kuin työskentelet minkään
laitteiston parissa, ota selvää
sähkökytkentöihin liittyvistä
vaaroista ja tavanomaisista
onnettomuuksien
ehkäisykeinoista. Tässä
julkaisussa esiintyvien
varoitusten käännökset löydät
laitteen mukana olevasta
Regulatory Compliance and
Safety Information
-kirjasesta
(määräysten noudattaminen ja
tietoa turvallisuudesta).
Attention
Ce symbole d'avertissement
indique un danger. Vous vous
trouvez dans une situation
pouvant causer des blessures ou
des dommages corporels. Avant
de travailler sur un équipement,
soyez conscient des dangers
posés par les circuits
électriques et familiarisez-vous
aveclesprocédurescouramment
utilisées pour éviter les
accidents. Pour prendre
connaissance des traductions
d’avertissements figurant dans
cette publication, consultez le
document
Regulatory
Compliance and Safety
Information
(Conformité aux
règlements et consignes de
sécurité) qui accompagne cet
appareil.

12
Warnung
Dieses Warnsymbol bedeutet
Gefahr.Siebefindensichineiner
Situation, die zu einer
Körperverletzung führen könnte.
Bevor Sie mit der Arbeit an
irgendeinem Gerät beginnen,
seien Sie sich der mit
elektrischen Stromkreisen
verbundenen Gefahren und der
Standardpraktiken zur
Vermeidung von Unfällen
bewußt. Übersetzungen der in
dieser Veröffentlichung
enthaltenen Warnhinweise
finden Sie im Dokument
Regulatory Compliance and
Safety Information
(Informationen zu behördlichen
VorschriftenundSicherheit),das
zusammen mit diesem Gerät
geliefert wurde.
Avvertenza
Questo simbolo di avvertenza
indica un pericolo. La situazione
potrebbe causare infortuni alle
persone. Prima di lavorare su
qualsiasi apparecchiatura,
occorre conoscere i pericoli
relativi ai circuiti elettrici ed
essere al corrente delle pratiche
standard per la prevenzione di
incidenti. La traduzione delle
avvertenze riportate in questa
pubblicazione si trova nel
documento
Regulatory
Compliance and Safety
Information
(Conformità alle
norme e informazioni sulla
sicurezza) che accompagna
questo dispositivo.

13
Advarsel
Dette varselsymbolet betyr fare.
Du befinner deg i en situasjon
somkanføretilpersonskade.Før
du utfører arbeid på utstyr, må du
vare oppmerksom på de
faremomentene som elektriske
kretser innebærer, samt gjøre
deg kjent med vanlig praksis når
det gjelder å unngå ulykker. Hvis
du vil se oversettelser av de
advarslene som finnes i denne
publikasjonen, kan du se i
dokumentet
Regulatory
Compliance and Safety
Information
(Overholdelse av
forskrifter og
sikkerhetsinformasjon) som ble
levert med denne enheten.
Aviso
Este símbolo de aviso indica
perigo. Encontra-se numa
situação que lhe poderá causar
danos físicos. Antes de começar
a trabalhar com qualquer
equipamento,familiarize-secom
os perigos relacionados com
circuitos eléctricos, e com
quaisquer práticas comuns que
possam prevenir possíveis
acidentes. Para ver as traduções
dos avisos que constam desta
publicação, consulte o
documento
Regulatory
Compliance and Safety
Information
(Informação de
Segurança e Disposições
Reguladoras) que acompanha
este dispositivo.

14
¡Advertencia!
Este símbolo de aviso significa
peligro. Existe riesgo para su
integridad física. Antes de
manipular cualquier equipo,
considerar los riesgos que
entraña la corriente eléctrica y
familiarizarse con los
procedimientos estándar de
prevención de accidentes. Para
ver una traducción de las
advertencias que aparecen en
esta publicación, consultar el
documento titulado
Regulatory
Compliance and Safety
Information
(Información sobre
seguridad y conformidad con las
disposiciones reglamentarias)
que se acompaña con este
dispositivo.
Varning!
Denna varningssymbol
signalerar fara. Du befinner dig i
en situation som kan leda till
personskada. Innan du utför
arbete på någon utrustning
måste du vara medveten om
farorna med elkretsar och känna
till vanligt förfarande för att
förebygga skador. Se
förklaringar av de varningar som
förkommer i denna publikation i
dokumentet
Regulatory
Compliance and Safety
Information
(Efterrättelse av
föreskrifter och
säkerhetsinformation), vilket
medföljer denna anordning.

15
Warning Ultimate disposal of this product should be
handled according to all national laws and
regulations.
Warning Do not work on the system or connect or
disconnect cables during periods of lightning
activity.
Warning To avoid electric shock, do not connect safety
extra low voltage (SELV) circuits to telephone
network voltage (TNV) circuits. LAN ports contain
SELV circuits, and WAN ports contain TNV
circuits. Some LAN and WAN ports use RJ-45
connectors. Use caution when connecting cables.
The following warnings apply when you use the external power
supply with the Cisco IP Phone 7905 Series:
Warning This product relies on the building's installation
for short-circuit (over current) protection. Ensure
that a fuse or circuit breaker no larger than 120
VAC, 15A U.S. (240 VAC, 10A international) is used
on the phase conductors (all current-carrying
conductors).
Warning The device is designed to work with TN power
systems.

Printed in the USA on recycled paper containing 10% postconsumer waste.
78-14390-01
DOC-7814390=
Copyright © 2003 Cisco Systems, Inc. All rights reserved. CCIP, CCSP, the Cisco Arrow logo, the Cisco
Powered Network mark, Cisco Unity, Follow Me Browsing, FormShare, and StackWise are trademarks of
Cisco Systems, Inc.; Changing the Way We Work, Live, Play, and Learn, and iQuick Study are service marks
of Cisco Systems, Inc.; and Aironet, ASIST, BPX, Catalyst, CCDA, CCDP, CCIE, CCNA, CCNP, Cisco, the
Cisco Certified Internetwork Expert logo, Cisco IOS, the Cisco IOS logo, Cisco Press, Cisco Systems, Cisco
Systems Capital, the Cisco Systems logo, Empowering the Internet Generation, Enterprise/Solver,
EtherChannel, EtherSwitch, Fast Step, GigaStack, Internet Quotient, IOS, IP/TV, iQ Expertise, the iQ logo,
iQ Net Readiness Scorecard, LightStream, MGX, MICA, the Networkers logo, Networking Academy,
Network Registrar, Packet,PIX, Post-Routing, Pre-Routing, RateMUX, Registrar, ScriptShare, SlideCast,
SMARTnet, StrataView Plus, Stratm, SwitchProbe, TeleRouter, The Fastest Way to Increase Your Internet
Quotient, TransPath, and VCO are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the
U.S. and certain other countries.
All other trademarks mentioned in this document or Web site are the property of their respective owners.
The use of the word partner does not imply a partnership relationship between Cisco and any other
company. (0304R)
