Your Phone
Cisco Unified IP Phone 8961
The Cisco Unified IP Phone 8961 provides these features:
• Phone connections
• Footstand
• Phone-display viewing angle
• Buttons and hardware
• Phone screen
• Power-save mode
• Handset rest
Phone Connections
Your system administrator can help you connect your phone to the corporate IP telephony network.

2OL-19963-01

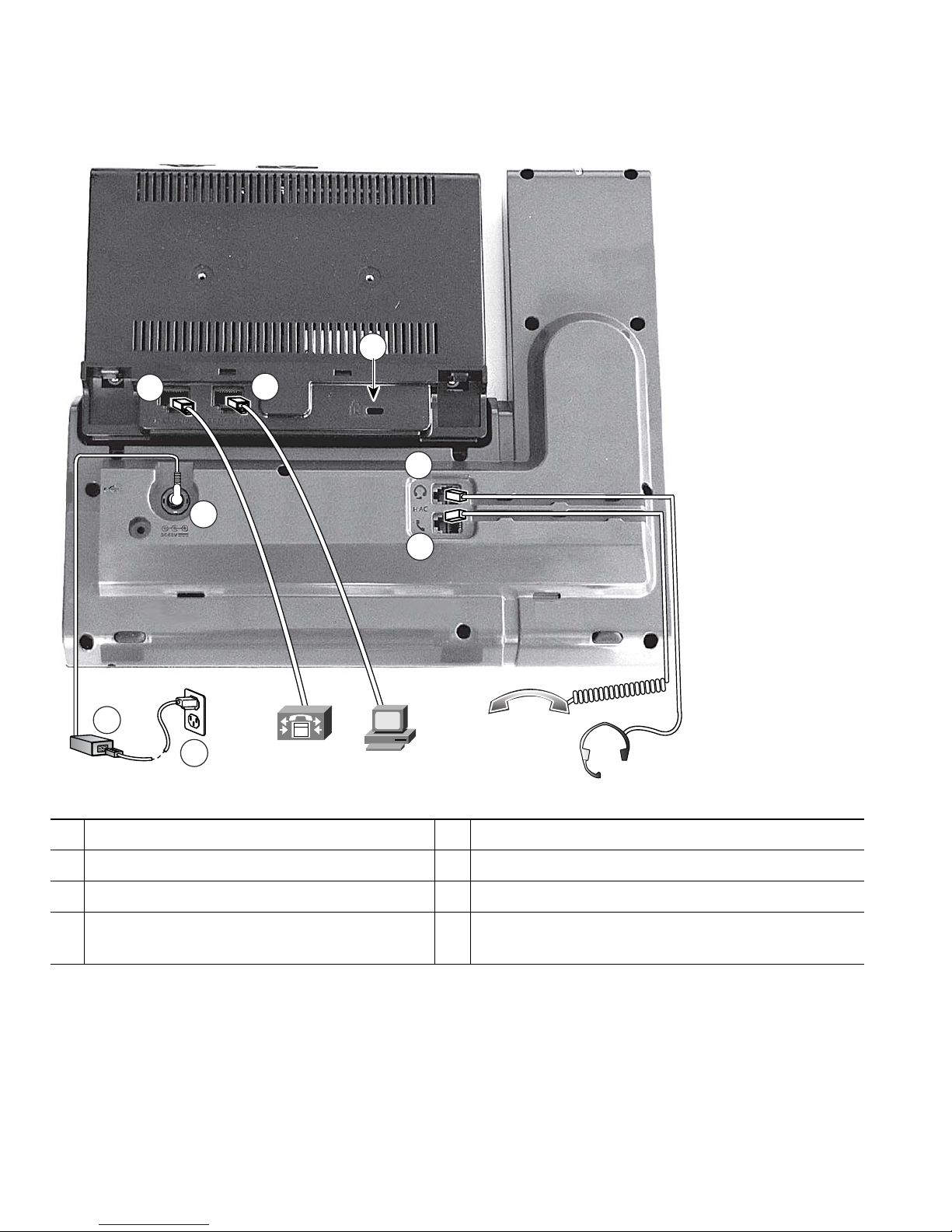

1DC adapter port (DC48V) 5Computer port (10/100/1000 PC)
2AC-to-DC power supply (optional) 6Handset port
3AC power wall plug (optional) 7Analog headset port (headset optional)
4Network port (10/100/1000 SW) with
IEEE 802.3af and 802.3at power enabled
8Anti-theft security lock connector
(lock optional)
276320
8
ComputerNetwork
ComputerNetwork
2
3
45
6
7
1
ComputerNetwork
ComputerNetwork

Your Phone
Cisco Unified IP Phone 8961, 9951, and 9971 User Guide for Cisco Unified Communications Manager 7.1(3) (SIP) 3
Note Each USB port supports a maximum of five supported and nonsupported devices that are
connected to the phone. Each device connected to the phone is included in the maximum
device count. For example, your phone can support five USB devices (such as three Cisco
Unified IP Color Key Expansion modules, one hub, and one other standard USB device) on
the side port and five additional standard USB devices on the back port. (Many third-party
USB products count as several USB devices.) For more information, see your
system administrator.
1USB port 2Cisco Unified IP Color Key Expansion Module connector

4OL-19963-01
Footstand
If your phone is placed on a table or desk, connect the footstand to the back of the phone.
1Insert the curved connectors into the
lower slots.
2Lift the footstand until the connectors
snap into the upper slots.
1
1
22
22
1
1
193118

Your Phone
Cisco Unified IP Phone 8961, 9951, and 9971 User Guide for Cisco Unified Communications Manager 7.1(3) (SIP) 5
Phone Display Viewing Angle
The viewing angle of the phone display can be adjusted according to your preference.
Change Display Viewing Angle
Hold the handset and cradle with your left hand, hold the right side of the bezel (to the right of the
display) with your right hand, and then move your hands back and forth in opposite directions to
adjust the angle. (The Cisco Unified IP Phone 9971 is shown for illustrative purposes.)

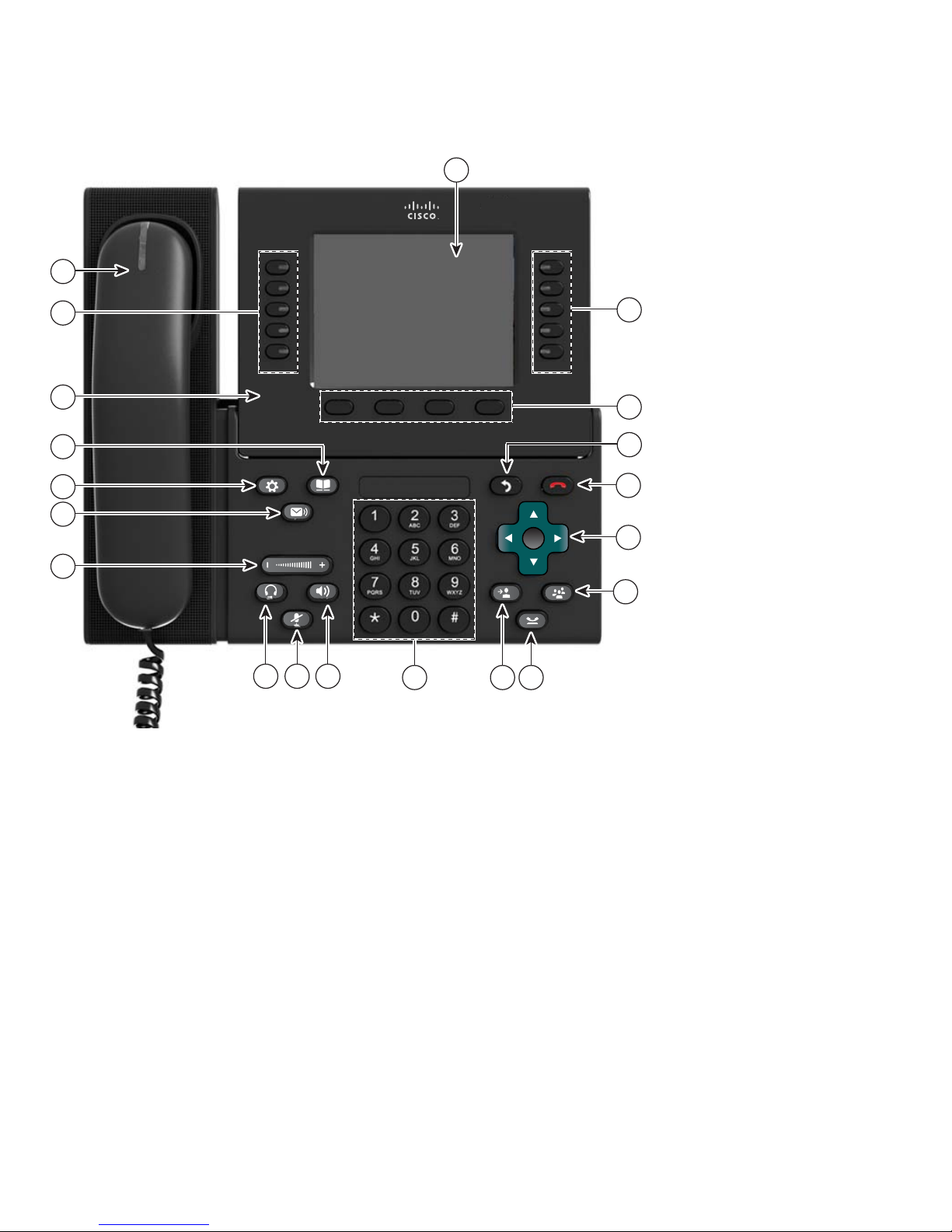

Buttons and Hardware
Your phone provides quick access to your phone lines, features, and call sessions:
• Use the feature buttons (on the left) to view calls on a line or access features such as speed dial or
All Calls.
• Use the call session buttons (on the right) to perform tasks such as making a call, answering a call,
or resuming a held call. Each call on your phone is associated with a session button.
193119

6OL-19963-01
1
8
12 1113 10 9
14
18
20
19
15
16
17
5
6
7
2
3
4
194674

Your Phone
Cisco Unified IP Phone 8961, 9951, and 9971 User Guide for Cisco Unified Communications Manager 7.1(3) (SIP) 7
1Phone screen Shows information about your phone, including directory number, call
information (for example caller ID, icons for an active call or call on
hold) and available softkeys.
2Session buttons Each represents a call session and takes the default action for that
session. For example, pressing the session button for a ringing call
answers the call, while pressing the session button for a held call
resumes the call.
Color LEDs reflect the call state. LEDs can flash (blink on and off
rapidly), pulse (alternately dim and brighten), or appear solid (glow
without interruption).
• Flashing amber —Ringing call. Pressing this button answers
the call.
• Solid green —May be a connected call or an outgoing call
that is not yet connected. If the call is connected, pressing this
button displays the call details or the participants of a conference
call. If the call is not yet connected, pressing this button ends
the call.
• Pulsing green —Held call. Pressing this button resumes the
held call.
• Solid red —Shared line in-use remotely. Pressing this button
allows you to barge in on the call (if Barge is enabled).
• Pulsing red —Shared line call put on hold remotely. Pressing
this button resumes the held call.
Icons next to the session buttons indicate an action for that session. For
example, pressing the session button with a Missed Calls icon displays
your missed calls, and pressing the session button with a Voicemail
icon accesses your voice messaging system.
(The position of the session buttons can be reversed with the position
of the programmable feature buttons on phones that use a locale with
a right-to-left reading orientation, such as Hebrew and Arabic.)
3Softkey buttons Allow you to access the softkey options (for the selected call or menu
item) displayed on your phone screen.
4Back button Returns to the previous screen or menu.
5Release button Ends a connected call or session.

8OL-19963-01
6Navigation pad and
Select button
The four-way Navigation pad allows you to scroll through menus,
highlight items, and move within a text input field.
The Select button (center of the Navigation pad) allows you to select a
highlighted item.
The Select button is lit (white) when the phone is in power-save mode.
7Conference button Creates a conference call.
8Hold button Places a connected call on hold.
9Transfer button Transfers a call.
10 Keypad Allows you to dial phone numbers, enter letters, and choose menu
items (by entering the item number).
11 Speakerphone button Selects the speakerphone as the default audio path and initiates a new
call, picks up an incoming call, or ends a call. During a call, the button
is lit green.
The speakerphone audio path does not change until a new default
audio path is selected (for example, by picking up the handset).
If external speakers are connected, the Speakerphone button selects
them as the default audio path.
12 Mute button Toggles the microphone on or off during a call. When the microphone
is muted, the button is lit red.
13 Headset button Selects the headset as the default audio path and initiates a new call,
picks up an incoming call, or ends a call. During a call, the button is
lit green.
A headset icon in the phone screen header line indicates the
headset is the default audio path. This audio path does not change
until a new default audio path is selected (for example, by picking up
the handset).
14 Volume button Controls the handset, headset, and speakerphone volume (off-hook)
and the ringer volume (on-hook).
Silences the ringer on the phone if an incoming call is ringing.
15 Messages button Auto-dials your voicemail system (varies by system).

Your Phone
Cisco Unified IP Phone 8961, 9951, and 9971 User Guide for Cisco Unified Communications Manager 7.1(3) (SIP) 9
16 Applications button Opens/closes the Applications menu. Depending on how your system
administrator sets up the phone, use it to access applications such as
call history, preferences, and phone information.
17 Contacts button Opens/closes the Contacts menu. Depending on how your system
administrator sets up the phone, use it to access personal directory,
corporate directory, or call history.
18 Phone display Can be positioned to your preferred viewing angle.
19 Programmable feature
buttons
Each corresponds to a phone line, speed dial, and calling feature.
Pressing a button for a phone line displays the active calls for that line.
If you have multiple lines, you may have an All Calls button that
displays a consolidated list of all calls from all lines (oldest at the top).
Then, it is recommended that you keep your phone in the All
Calls view.
Color LEDs indicate the line state:
• Amber —Ringing call on this line
• Green —Active or held call on this line
• Red —Shared line in-use remotely
(The position of the programmable feature buttons can be reversed
with the position of the session buttons on phones that use a locale
with a right-to-left reading orientation, such as Hebrew and Arabic.)
20 Handset with light strip The handset light strip lights up to indicate a ringing call (flashing red)
or a new voice message (steady red).

10 OL-19963-01
Phone Screen
The way that your system administrator set up your phone determines what is displayed on your
phone screen.

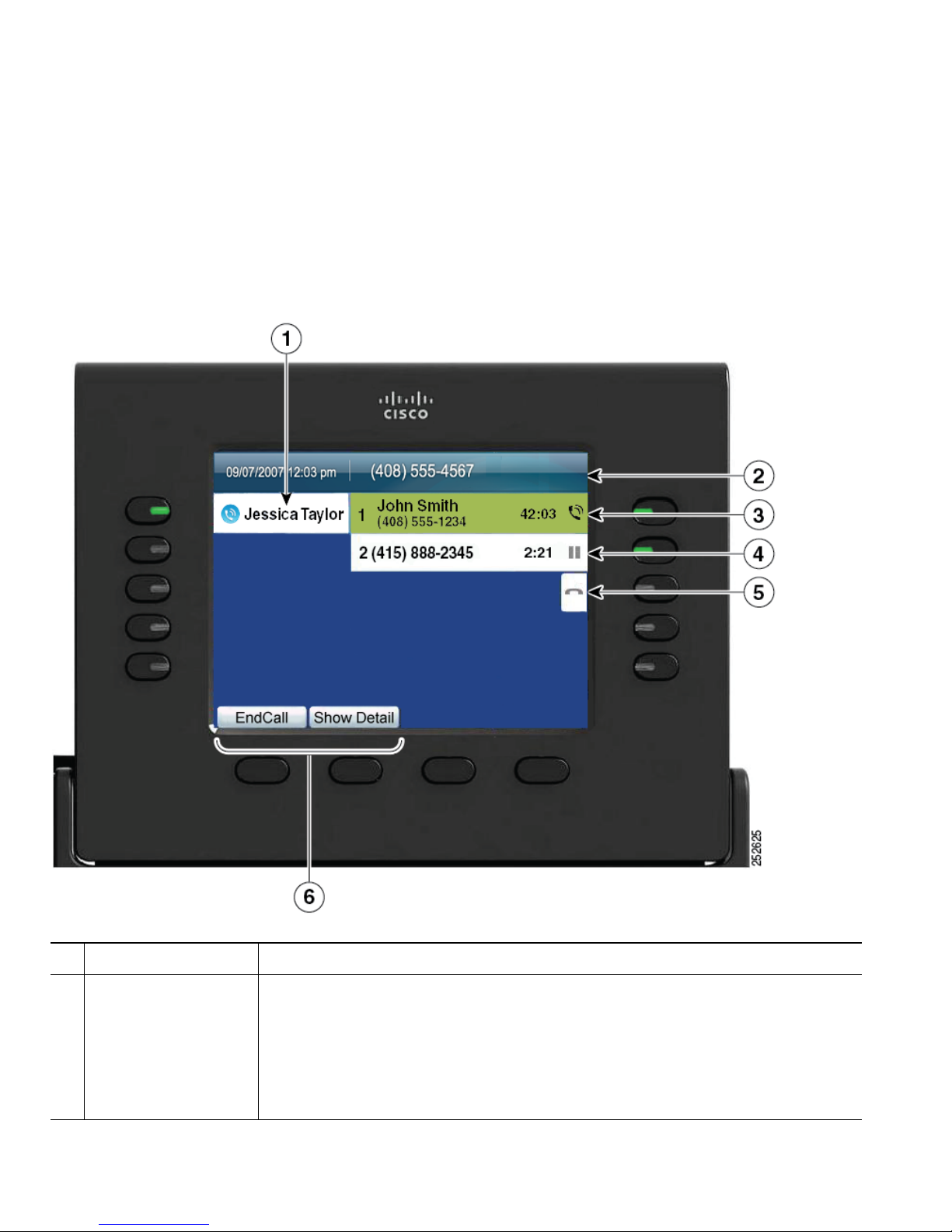

Phone with Single Line
1Line label Displays the line phone information.
2Header Displays the date and time, and information (such as phone number) about
the selected line.
(If you are on a call and highlight the header instead of a call, the softkeys
that display are the same as those that display when the phone is idle. This
is useful, for example, if you want to access the Forward All or New Call
softkeys while you are on a call.)
