Cleveland
™
Project ________________________________
Item __________________________________
Quantity_______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
1333 East 179 St.,
Cleveland, Ohio,U.S.A. 44110
Tel: [phone]
Fax: [phone]
Web Site:www.ClevelandRange.com
Email: [e-mail]
GAS KETTLES
Cleveland Standard Features
nSelf-contained gas tilting kettle is easily installed, only needs
agas connection and a 115 volt outlet.
nPrecise, consistent temperature control, less than 1ºC
temperature variance (ideal for simmering). Operating
temperature range from 145ºF-260ºF (63ºC-127ºC).
n"Splash-Proof" Solid-State Control Panel for temperature, Low
Water Safety, and Power "On/Off" Switch. Accurate L.E.D.
Indicators for Heat Cycle and Low Water Warning.
nKettle and all exterior surfaces are a 304 Stainless Steel with
a #4 finish.
nEnergy efficient (65%), high performance gas-fired heating
system for fast heat-up and recovery time:
nTwenty-five gallon model with 90,000 BTU firing rate and
58,500 BTU directly applied to the product.
nSupplied with Gas Pressure Regulator.
nStandard for natural gas operation.
nLarge pouring lip for easier,faster,pouring. Heavy-duty
Rolled Rim design provides strong reinforcement, prevents
damages from abuse.
n"Splash-Proof" rear-mounted pressure/vacuum gauge.
nSteam jacket permanently filled with treated distilled water;
venting and/or refilling is not required.
n50 psi Steam Jacket Rating. Safety Valve mounted toward
rear of kettle to avoid tampering.
nAutomatic Electronic Spark Ignition System.
nSupplied with cord and plug for 115 volt controls.
nTilt Mechanism of roller bearings and case hardened
self-locking worm and segment gear.
nSupport Legs with level adjustable feet, flanged for floor
bolting.
nTypical approvals include AGA, CSA, CE, NSF and ASME.
Options & Accessories
p316 Stainless Steel Liner (316)
pPropane Gas Option (LP)
pKettle Markings (KM)
pSpring Assist Cover (CHS)
pLift OffCover (CL)
pBasket Strainer (BS and TBS)
Shall be CLEVELAND, Gas Kettle, self-contained, tilting, Model KGL-25-T;25
gallons, natural or LP gas, 2/3 Steam Jacketed, Type 304 Stainless Steel and
supports. Jacket rated at 50psi with Safety Valve. Complete with "Splash-
Proof" Solid-State Water Level, Temperature, and Safety Low Water Power
Cut-Off, including L.E.D. Indicators for Heat Cycle and Low Water Warning.
pMeasuring Strip (MS)
pFood Strainer (FS)
pHot and cold water faucet (DPK), or cold water (SPK).
Requires faucet bracket (FBKT)
p2" Tangent Draw-Off Valve (TD2)
pKettle Accessory Kit (KAK) includes:
pClean-up Brush (CB) p36˝ Kettle Paddle (KP)
p36˝ Kettle Whip (KW) p36˝ Kettle Brush
pDraw-OffBrush (DB) p24 oz. Ladle (KL)
pCorrectional Packages
ShortForm Specifications
MODEL:cKGL-25-T

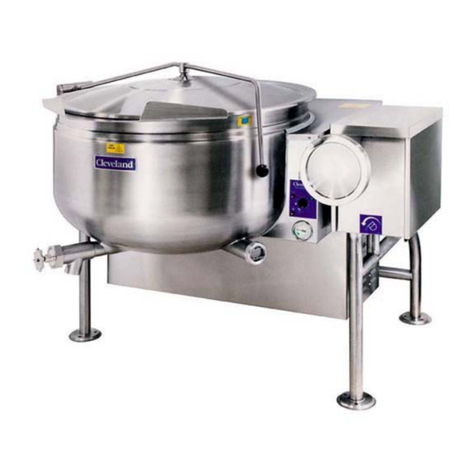

Shown with optional Spring Assisted
Cover and 2" Tangent Draw-Off Valve
LEG TYPE, GAS-FIRED KETTLES
TILTING, 2⁄3 STEAM JACKETED
“SPLASH PROOF SERIES”
25 GALLONS (100 LITERS)
SECT. IX PAGE 3
0707

SPECIFICATIONS OVERALL DEPTH
NOTES
FOOT LOCATION &
FLOOR DRAIN DETAIL
FLANGED
FOOT DETAIL
9/16"
14
mm
120º
TYP
1" (25
mm)
MAX. ADJUSTMENT
1 5/8" (42 mm) Ø
7/16" (11 mm) Ø
3 HOLES ON
3 1/8" (80
mm) Ø
B.C.D.
4 7/8"
124
Ø mm
NOTES:
Cleveland Range reserves right of design improvement or modification, as warranted.
Many regional, state and local codes exist and it is the responsibility of the owner and installer to comply with the codes.
Installation of backflow preventers, vacuum breakers and other specific coder requirements is the responsibility of the owner and installer.
Cleveland Range equipment is built to comply with applicable standards for manufacturers. Included among those approval agencies are U.L., A.G.A., NSF, ASME/N.Bd., CSA, CGA, ETL and others.
(NOT TOSCALE)
SECT.IX PAGE 4
0707
Litho in U.S.A.
•CAPACITIES: (in 4 oz. servings, other sizes may be
calculated)
25gallons / 100 liters .... 426 servings
