CM 646 Series User manual

83885 Manual No. 646-J
®
CYC ONE
HAND HOIST
AND OW HEADROOM
TRO EY HOIST
®
perating, Maintenance &
Parts Manual
HAND HOIST
Rated Loads
Hand Hoists ¼ through 10 tons.
Low Headroom Trolley Hoists:
½ through 6 tons
Follow all instructions and warnings or
inspecting, maintaining and operating this hoist.
The use of any hoist presents some risk of personal injury
or property damage. That risk is greatly increased if proper
instructions and warnings are not followed. Before using
this hoist, each operator should become thoroughly familiar
with all warnings, instructions, and recommendations in this
manual.
Retain this manual for future reference and use.
Forward this manual to the hoist operator.
Failure to operate the equipment as directed in the manual
may cause injury.
Before using the hoist, fill in the information below. Model and
serial numbers are stamped into the aluminum hoist housing.
Model Number
Serial Number
Purchase Date
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

THE WARRANTY STATED BEL W IS GIVEN IN PLACE F
ALL THER WARRANTIES, EXPRESS R IMPLIED, F MER-
CHANTABILITY, FITNESS F R A PARTICULAR PURP SE, R
THERWISE, N PR MISE R AFFIRMATI N F FACT
MADE BY ANY AGENT R REPRESENTATIVE F SELLER
SHALL C NSTITUTE A WARRANTY BY SELLER R GIVE
RISE T ANY LIABILITY R BLIGATI N.
Seller warrants that on the date of delivery to carrier the goods
are free from defects in workmanship and materials.
SELLER’S S LE BLIGATI N IN THE EVENT F BREACH
F WARRANTY R C NTRACT R F R NEGLIGENCE R
THERWISE WITH RESPECT T G DS S LD SHALL BE
EXCLUSIVELY LIMITED T REPAIR R REPLACEMENT,
F. .B. SELLER’S P INT F SHIPMENT, F ANY PARTS
WHICH SELLER DETERMINES T HAVE BEEN DEFECTIVE
or if Seller determines that such repair or replacement is not fea-
sible, to a refund of the purchase price upon return of the goods
to Seller.
Any action against Seller for breach of warranty, negligence or
otherwise, must be commenced within one year after such cause
of action occurs.
N CLAIM AGAINST SELLER F R ANY DEFECT IN THE
G DS SHALL BE VALID R ENF RCEABLE UNLESS
BUYER’S WRITTEN N TICE THERE F IS RECEIVED BY
SELLER WITHIN NE YEAR FR M THE DATE F SHIPMENT.
Note: When ordering parts, always furnish hoist model and serial number,
motor horsepower, voltage, phase, frequency and rated capacity of hoist on
which the parts are to be used.
For the location of the nearest Authorized Repair Station, Contact CM, (see
inside front cover).
LIMITATION OF WARRANTIES, REMEDIES AND DAMAGES
Seller shall not be liable for any damage, injury or loss arising out
of the use of the goods if, prior to such damage, injury or loss,
such goods are (1) damaged or misused following Seller’s delivery
to carrier; (2) not maintained, inspected, or used in compliance
with applicable law and Seller’s written instructions and recommen-
dations; or (3) installed, repaired, altered or modified without com-
pliance with such law, instructions or recommendations.
UNDER N CIRCUMSTANCES SHALL SELLER BE LIABLE F R
INCIDENTAL R C NSEQUENTIAL DAMAGES AS TH SE
TERMS ARE DEFINED IN SECTI N 2-715 F THE UNIF RM
C MMERCIAL C DE.
INDEMNIFICATION AND SAFE OPERATION
Buyer shall comply with and require its employees to comply with
directions set forth in instructions and manuals furnished by Seller
and shall use and require its employees to follow such instructions
and manuals and to use reasonable care in the use and mainte-
nance of the goods. Buyer shall not remove or permit anyone to
remove any warning or instruction signs on the goods. In the event
of personal injury or damage to property or business arising from
the use of the goods, Buyer shall within 48 hours thereafter give
Seller written notice of such injury or damage. Buyer shall cooper-
ate with Seller in investigating any such injury or damage and in
the defense of any claims arising therefrom.
If Buyer fails to comply with this section or if any injury or damage
is caused, in whole or in part, by Buyer’s failure to comply with
applicable federal or state safety requirements, Buyer shall indem-
nify and hold Seller harmless against any claims, loss or expense
for injury or damage arising from the use of the goods.
WAR I G
Alterations or modifications of equipment and use of non-
factory repair parts can lead to dangerous operation and
injury.
TO AVOID I JURY:
• Do not alter or modify equipment.
• Do use only factory provided replacement parts.
!
Printed in USA
1-04-06
2006 CM and oist
COLUMBUS M KINNON CORPORATION
INDUSTRIAL PRODUCTS DIVISION
140 JOHN JAMES AUDUBON PARKWAY
AMHERST, NEW YORK 14228-1197
®
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

i
CM HOIST PARTS AND SERVICE ARE AVAI AB E IN THE UNITED STATES AND IN CANADA
As a CM oist user, you are assured of reliable repair and parts services through a network of Master Parts Depots and
Service Centers that are strategically located in the United States and Canada. These facilities have been selected on
the basis of their demonstrated ability to handle all parts and repair requirements promptly and efficiently.
Below is a list of the Master Parts Depots in the Unites States and Canada. To quickly obtain the name of the U.S. Service
Center located nearest you, call [phone]. Fax: [phone]. In the following list, the Canadian Service Centers are
indicated.
UNITED STATES
MASTER PARTS DEPOT CANADIAN
SERVICE CENTERS
CA IFORNIA
OTTO SYSTEMS, INC.
12010 Bloomfield Ave.
Sante Fe Springs, CA 90670
562/462-1612 or 800/596-7392
Fax [phone]
or
7656 Las Positas Road
Livemore, CA 94551
925/245-8800
Fax [phone]
CO ORADO
MATERIALS ANDLING EQUIPMENT CO.
1740 W. 13th Ave.
Denver, CO 80204
303/573-5333 or 800/873-5333
Fax [phone]
GEORGIA
ACE INDUSTRIES, INC.
6295 McDonough Drive
Norcross, GA 30093
770/441-0898 or 800/733-2231
Fax [phone]
I INOIS
COLUMBUS McKINNON C ICAGO
10321 Werch Drive
Woodridge, IL 60517
877/511-3170
Fax [phone]
INDIANA
ORNER ELECTRIC COMPANY, INC.
1521 East Washington Street
Indianapolis, IN 46201
317/639-4261
Fax [phone]
IOWA
VMI OIST & CRANE SERVICES
901 17th Street NE
Cedar Rapids, IA 52406
319/365-4662
Fax [phone]
KANSAS
INDEPENDENT ELECTRIC MAC INERY
4425 Oliver Street
Kansas City, KS 66106
913/362-1155
Fax [phone]
OUISIANA
BEERMAN PRECISION, INC.
4206 oward Ave.
New Orleans, LA 70125
504/486-9391
Fax [phone]
MASSACHUSETTS
ABEL DISTRIBUTORS, INC.
50 Parker Street, Unit 2
Newburyport, MA 01950
978/463-0700
Fax [phone]
NEW JERSEY
S UPPER-BRICKLE EQUIPMENT CO.
2394 Route 130, Suite C
Dayton, NJ 08810
732/438-3888
Fax [phone]
NEW YORK
VOLLAND ELECTRIC EQUIPMENT CO.
75 Innsbruck Drive
Buffalo, NY 14227
716/656-9900
Fax [phone]
NORTH CARO INA
TEAM SESCO
2225 Freedom Drive
Charlotte, NC 28208
704/372-4832 or 800/487-3726
Fax [phone]
OHIO
MAZZELLA LIFTING TEC NOLOGIES
21000 Aerospace Parkway
Cleveland, O 44142
440/239-5700 or 800/362-4601
Fax [phone]
PENNSY VANIA
AMICK ASSOCIATES, INC.
11 Sycamore Street
Carnegie, PA 15106-0529
412/429-1212 or 800/445-9456
Fax [phone]
RAM MOTORS & CONTROLS, INC.
5460-B Pottsville Pike
Leesport, PA 19533
610/916-8000 or 877/916-8018
Fax [phone]
TEXAS
ABEL EQUIPMENT CO., INC.
3710 Cavalier Drive
Garland, TX 75042
972/272-7706
Fax [phone]
YDRAULIC EQUIPMENT SERVICES, INC.
1021 North San Jacinto Street
ouston, TX 77002
713/228-9601
Fax [phone]
WISCONSIN
TRESTER OIST & EQUIPMENT, INC.
W136 N4863 Campbell Drive
Menomonee Falls, WI 53051
262/790-0700 or 800/234-6098
Fax [phone]
A BERTA
BENNETT & EMMOTT, LTD.
18131 118th Avenue
Edmonton, Alberta T5S 1M8
403/454-9000
Fax [phone]
**COLUMBUS McKINNON, LTD.
10311-174th Street
Edmonton, Alberta T5S 1 1
800/263-1997
Fax [phone]
BRITISH CO UMBIA
FLECK BROT ERS, LTD.
4084 McConnel Court
Burnaby, British Columbia V5A 3N7
MANITOBA
KING’S ELECTRIC MOTORS, INC.
633 Tyne Avenue
Winnipeg, Manitoba R2L 1J5
204/663-5332
Fax [phone]
NOVA SCOTIA
*W & A MOIR
95 Ilsley Ave.
Burnside Park, Nova Scotia B3B 1L5
902/468-7720
Fax [phone]
ONTARIO
*R & W OIST REPAIR, LTD.
790 Redwood Square
Units 5, 6, & 7
Oakville, Ontario L6L 6N3
905/825-5500
Fax [phone]
*TORONTO ELECTRIC OIST
SALES & SERVICE
9 CoDeco Court
North York, Ontario M3A 1A1
416/386-0820
Fax [phone]
*MASLACK SUPPLY, LTD.
488 Falconbridge Road
Sudbury, Ontario P3A 4S4
705/566-1270
Fax [phone]
*COLUMBUS McKINNON, LTD.
P.O. Box 1106
10 Brook Road, North
Cobourg, Ontario K9A 4W5
905/372-0153
Fax [phone]
QUEBEC
* ERCULES SLING & CABLE
3800 TransCanada ighway
Pointe-Claire, Quebec 9R 1B1
514/428-5511
514/48631-5511
Fax [phone]
*LEGER PALANS ET OUTILLAGES, INC.
7995-17th Ave.
Montreal, Quebec 1Z 3R2
514/376-3050
Fax [phone]
**ARE ALSO MASTER PARTS DEPOTS
**MASTER PARTS DEPOT ONLY
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

SAFETY PRECAUTIONS
Each Cyclone and oist and Low eadroom Trolley oist is built in accordance with the specifications contained herein
and at the time of manufacture complies with our interpretation of applicable sections of the American Society of
Mechanical Engineers Code B30.16 “Overhead oist” and the Occupational Safety and ealth Act.
The safety laws for elevators and for dumbwaiters may specify construction details that are not necessarily
incorporated in CM industrial hoist. We recommend the use of equipment that meets state and national safety
codes. Columbus McKinnon Corporation cannot be responsible for applications other than those for which CM
equipment is recommended.
THIS SYMBO POINTS OUT IMPORTANT SAFETY INSTRUCTIONS WHICH IF NOT FO OWED
COU D ENDANGER THE PERSONA SAFETY AND/OR PROPERTY OF YOURSE F AND OTHERS.
READ AND FO OW A INSTRUCTIONS IN THIS MANUA AND ANY PROVIDED WITH THE
EQUIPMENT BEFORE ATTEMPTING TO OPERATE YOUR CYC ONE HOIST.
Consult Columbus McKinnon Corporation for any usage of Cyclone oists that do not involve raising of the load on the lower hook, or usage of
Cyclone oists in the inverted position. Using hoists, without special precautions, in such applications may cause an accident that could result in injury
and/or property damage.
Improper operation of a hoist can create a potentially
hazardous situation which, if not avoided, could result
in death or serious injury. To avoid such a potentially
hazardous situation, the operator shall:
1. NOT operate a malfunctioning or unusually performing
hoist.
2. NOT operate the hoist until you have thoroughly read and
understand this manufacturer’s Operating, Maintenance and
Parts Manual.
3. NOT operate a hoist which has been modified without the
manufacturer’s approval or certification to be in conformity
with applicable OS A regs.
4. NOT lift or pull more than rated load for the hoist.
5. NOT use damaged hoist or hoist that is Not working properly.
6. NOT use hoist with twisted, kinked, damaged, or worn load
chain.
7. NOT use the hoist to lift, support, or transport people.
8. NOT lift loads over people and make sure all personnel remain
clear of the supported load.
9. NOT attempt to lengthen the load chain or repair damaged load
chain.
10. Protect the hoist’s load chain from weld splatter or other damaging
contaminants.
11. NOT use load chain as a sling or wrap load chain around load.
12. NOT apply the load to the tip of the hook or to the hook latch.
13. NOT apply load unless load chain is properly seated in the chain
wheel(s) or sprocket(s).
14. NOT apply load if bearing prevents equal loading on all load
supporting chains.
15. NOT operate beyond the limits of the load chain travel.
16. NOT leave load supported by the hoist unattended unless specific
precautions have been taken.
17. NOT allow the chain or hook to be used as an electrical or welding
ground.
18. NOT allow the chain or hook to be touched by a live welding
electrode.
19. NOT remove or obscure the warnings on the hoist.
20. NOT operate a hoist which has Not been securely attached to a
suitable support.
21. NOT operate a hoist unless load slings or other approved single
attachments are properly sized and seated in the hook saddle.
22. NOT operate a hoist when it is restricted from forming a straight
line from hook to hook in the direction of loading.
23. NOT lift loads that are Not balanced and that the holding action is
Not secure, taking up slack carefully.
24. NOT operate a hoist unless all persons are and remain clear of the
supported load.
25. Report malfunctions or unusual performances of a hoist, after it
has been shut down until repaired.
26. NOT operate a hoist on which the safety placards or decals are
missing or illegible.
27. Be familiar with operating controls, procedures, and warnings.
ii
!
!
!
WARNING
Improper operation of a hoist can create a potentially
hazardous situation which, if not avoided, could result
in minor or moderate injury. to avoid such a potentially
hazardous situation, the operator shall:
1. Maintain a firm footing or be otherwise secured when
operating the hoist.
2. Check brake function by tensioning the hoist prior to
each lift or pulling operation.
3. Use hook latches. Latches are to retain slings, chains, etc.
under slack conditions only.
4. Make sure the hook latches are closed and not supporting
any parts of the load.
5. Make sure the load is free to move and will clear all
obstructions.
6. Avoid swinging the load or hook.
7. Inspect the hoist regularly, replace damaged or worn
parts, and keep appropriate records of maintenance.
8. Use the hoist manufacturer’s recommended parts when
repairing the unit.
9. Lubricate load chain per hoist manufacturer’s recommen-
dations.
10. NOT use the hoist load limiting or warning device to
measure load.
11. NOT operate except with manual power.
12. NOT permit more than one operator to pull on a single
hand chain at the same time. More than one operator is
likely to cause hoist overload.
13. NOT allow your attention to be diverted from operating
the hoist.
14. NOT allow the hoist to be subjected to sharp contact with
other hoists, structures, or objects through misuse.
15. NOT adjust or repair the hoist unless qualified to perform
such adjustments or repairs.
CAUTION
!
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

iii
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

FOREWORD
This manual contains important information to help you properly install, operate and maintain your Cyclone Hoist for maximum
performance, economy and safety.
Please study its contents thoroughly before putting your hoist into operation. By practicing correct operating procedures and by
carrying out the recommended preventive maintenance suggestions, you will experience long, dependable and safe service.
After you have completely familiarized yourself with the contents of this manual, we recommend that you carefully file it for future
reference.
The information herein is directed to the proper use, care and maintenance of the Cyclone Hoist and does not comprise a hand-
book on the broad subject of rigging. igging can be defined as the process of lifting and moving heavy loads using hoists and
other information, we recommended consulting a standard textbook on the subject.
A copy of this manual is packed with each Cyclone Hand and Low Headroom Trolley Hoist.
SAFETY PRECAUTIO S
MasterPartsDepots..............................i
Do’sandDoNot’s ...............................ii
Hoist Safety is Up To You . . . . . . . . . . . . . . . . . . . . . . . . .iii
Foreward ......................................1
GE ERAL I FORMATIO
Specifications ..................................2
Hooks.........................................3
CM epair/ eplacement Policy . . . . . . . . . . . . . . . . . . . .3
OPERATIO A D I STALLATIO
UnpackingInformation ...........................3
OperatingInstructions ...........................3
TrolleyInstallation ...............................4
OPERATI G A D SAFETY PROCEDURES ............5
I SPECTIO
Inspection ..................................5
FrequentInspections .........................6
PeriodicInspections ..........................6
HookInspection .............................7
LoadChain .................................7
HandChain .................................8
MAI TE A CE
Lubrication..................................8
ecommended Spare Parts . . . . . . . . . . . . . . . . . . . .8
ExteriorFinish ...............................8
Disassembly ................................9
Assembly ...................................9
eeving ................................11-14
CuttingChains..............................14
Testing ....................................14
Troubleshooting .............................15
PARTS LIST
OrderingInformation .........................16
Cyclone Hand Hoist Parts List . . . . . . . . . . . . . .17-22
Cyclone Low Headroom
Trolley Hoist Parts List . . . . . . . . . . . . . . . . . . . . .23-27
LIST OF TABLES
1FrequentInspection .............................6
2PeriodicInspection ..............................6
3Min.HoistLoads&Pulls.........................10
LIST OF ILLUSTRATIONS
1Cyclone Available Models . . . . . . . . . . . . . . . . . . . . . . . .2
2Cyclone Low Headroom Trolley Hoist . . . . . . . . . . . . . . .3
3HookStylesAvailable ............................3
4aising and Lowering Hook . . . . . . . . . . . . . . . . . . . . . . .3
5Trolley Spacer Arrangement . . . . . . . . . . . . . . . . . . . . . . .4
6CycloneHandHoist .............................5
7LatchHookOpening.............................7
8LatchlokHookOpening ..........................7
9GagingLoadChainWear .........................7
10 BrakeAssembly ................................9
11 LoadLimiterAssembly ...........................9
12 Load Limiter Calibration . . . . . . . . . . . . . . . . . . . . . . . . .10
13 Bearing etainer Screws . . . . . . . . . . . . . . . . . . . . . . . .10
14 HoistHanger ..................................10
15 HookMounting ................................11
16 eeving ¼-½-1 Ton Hoists . . . . . . . . . . . . . . . . . . . . . . .11
17 eeving 1½-10 Ton Hoists . . . . . . . . . . . . . . . . . . . . . . .12
18 eeving3-4TonHoists ..........................12
19 eeving5-6TonHoists ...........................13
20 eeving8TonHoists .............................13
21 eeving10TonHoists ............................14
22 CuttingChainbyNicking..........................14
23 Cutting Chain with Bolt Cutter . . . . . . . . . . . . . . . . . . . . . .14
24 OrderingInformation .............................16
25 Cyclone Hand Hoist Exploded View . . . . . . . . . . . . . .21-22
26 Cyclone Low Headroom Trolley
Hoist Parts List Drawing . . . . . . . . . . . . . . . . . . . . . . . .23-25
TABLE OF CONTENTS
PAGE PAGE
1
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

2
GENERAL INFORMATION
SPECIFICATIONS
CM Cyclone Hand Hoists
The Cyclone and oist is a highly versatile tool
that can be used to lift loads. The hoist has alu-
minum frame, handwheel, handwheel cover and
gear cover to provide dependable strength at mini-
mum weight. The internal gears are made of high
grade, heat treated steel. Shielded ball bearings are
used at each rotating point in the mechanism. Latch
type, heat treated, forged steel upper and lower
hooks are standard. The load chain is strong and
durable oistaloy®. A pawl and ratchet, dry-operat-
ing, Weston-type friction brake supplies very posi-
tive load control and will suspend the load at any
point. A Load Limiter is provided on every unit. As a
result, the application of an excessive overload dis-
engages the driving handwheel and prevents hoist-
ing. Note that the Load Limiter is not intended for
use as a scaling device. Removal of the excess load
automatically restores normal hoisting action (see
Figure 1 for specifications of available models).
Cyclone ow Headroom Trolley Hoists
The Cyclone Low eadroom Trolley oists (Figure 2,
page 3) are a combination of the Cyclone and oist
built integral with a rugged trolley to provide better
headroom than that obtained with the standard hoist
and trolley. The basic hoist is similar to the Cyclone
and oist except the frame, aluminum on the 1/2
through 3 ton units and cast iron on the 4 through 6
ton units, which is designed to provide low headroom
and attachment to the trolley. The trolley has a
rugged frame, cast iron on the 1/2 through 1 ton
units, and steel plates on the 1 1/2 through 6 ton
units. Crowned tread, flanged trackwheels are
provided to minimize rolling friction. ardened,
pressed steel ball bearing wheels are used on the 1/2
and 1 ton units. ardened, cast iron wheels with
Timken bearings are used on the 1 1/2 through 6 ton
units. Trolleys are adjustable for operation on various
American standard beams and the 1 1/2 through 6 ton
units are available in a geared type trolley.
Figure 1. Cyclone Hand Hoist, Available Models
1/4 to 2 Ton 3 & 4 Ton 5 & 6 Ton 8 Ton 10 Ton
Maximum
Capacity (Tons) ¼ ½ 1 1½ 2 3 4 5 6 8 10
Code 4621 4622 4624 4625 4626 4627 4628 4629 4630 4631 4632
DC Code 64621 64622 64624 64625 64626 64627 64628 64629 64630 64631 64632
Standard Lift (Ft.) 8 8 8 8 8 8 8 8 8 8 8
Net Weight (Lbs.) 33 33 36 59 60 84 91 122 127 207 219
Shipping Weight
(Lbs.)
35 35 38 63 64 91 98 129 134 237 244
Shortest Distance
Between ooks (In.)
12 7/8 12 7/8 14 17 5/16 17 5/16 21½21½24¼ 25¼ 35½35½
Chain Overhauled to
Lift Load 1 Foot (Ft.)
22½ 22½ 30 40½52 81 104 156 156 208 260
Lift Load 1 Foot (Ft.)
Chain Pull to
Lift Full Load (Lbs.)
23 46 69 80 83 85 88 75 90 89 95
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

UNPACKING INFORMATION
After removing the hoist from the carton, check to
be sure there has been no damage in shipment.
Before cutting the cord ties on multiple-reeved
units, be sure that all strands of chain are straight
with no twist (due to a capsized hook block). If
length of lift is to be modified, follow disassembly
and assembly instructions for correct procedure.
OPERATING INSTRUCTIONS
After mounting and before placing in service,
check the hoist for proper operation. On multi-
reeved units, be sure that all strands of chain are
straight with no twist (due to a capsized hook
block).
The CM Cyclone and oist must always be rigged
to lift in a straight line from hook to hook (see
Figure 4). The hoist must always be free to swivel
on the upper hook. Under no condition should the
hoist be allowed to bear on any support when in
use as this would cause bending of the hook or
frame and damage the unit.
HOOKS
Type of hooks supplied on the Cyclone oists are
shown in Figure 3.
CM REPAIR/REP ACEMENT PO ICY
All Columbus McKinnon (CM) Cyclone and oists
and Low eadroom Trolley oists are thoroughly
inspected and performance tested prior to shipment.
If any properly maintained Cyclone oist develops a
performance problem due to a material or workman-
ship defect, as verified by CM or an authorized service
station, repair or replacement of the unit will be
made to the original purchaser without charge. This
repair/replacement policy applies only to Cyclone
oists installed, maintained and operated as outlined
in this manual, and specifically excludes parts subject
to normal wear, abuse, improper installation, improp-
er or inadequate maintenance, hostile environmental
effects, and unauthorized repairs/modifications.
We reserve the right to change materials or design if
in our opinion, such changes will improve our prod-
uct. Abuse, repair by an unauthorized person, or use
of non-CM replacement parts voids the guarantee and
could lead to dangerous operation. For full Terms of
Sale, see Sales Order Acknowledgement. Also, refer to
the back cover for Limitations of Warranties, Remedies
and Damages and, Indemnification and Safe Operation.
3
To Lower ook
Pull on This
Part of
and Chain
To Raise ook
Pull on This
Part of
and Chain
Figure 4. Raising and Lowering ook
Figure 2.
Cyclone Low eadroom Trolleys oists
OPERATION AND INSTALLATION
With Geared Trolley
With Plain Trolley
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

4
TRO EY INSTA ATION
Operating the trolley hoist on a beam that has no rail
stops may allow the trolley hoist to fall off the end of
the beam.
To Avoid Injury:
Install rail stops at each end of the beam on which
the trolley hoist is to operate.
The railstops must be positioned so as to not exert
impact force on the hoist portion of the unit or the
trolley wheels. They must contact the ends of the
trolley side frames.
Due to the variations in beam flange widths, it is sug-
gested that the beam flange width be measured to
determine the exact distribution of spacer washers.
The distance between trackwheel flanges (dimension
“X”) should be 1/8 to 3/16 inch greater than the
beam flange width for straight runway beams, and
3/16 to 1/4 inch greater than the beam flange width
if runway system includes sharp curves. Also, the use
of other than CM supplied washers may result in
trackwheel to beam flange variations and thus Figure
5 will not apply.
Assemble the trolley on the beam by sliding one side
out far enough to allow the wheels to clear the
beam flange. Draw side frames together and tighten
nuts securely (do not over tighten) and then install
the cotter pins.
If washer spacing recommendations are not followed,
trolley hoist may fall from beam.
To Avoid Injury:
Measure the actual beam flange on which the trolley
hoist is to operate and use figure 5 to determine the
arrangement of the spacer washers for that flange
width.
Immediately after installation, operate trolley with a
capacity load over the entire length of runway or
monorail system to be sure that all adjustments and
operations are satisfactory.
When applying a load, it should be directly under
the trolley. Avoid off center loading of any kind.
Side loading may spread trolley side frames.
On systems with curves, the edges of the rail at the
curved sections should be lightly lubricated with
grease.
An excessively worn beam flange may fail and
allow the trolley hoist to fall from the beam.
To Avoid Injury:
Periodically inspect the beam flange for wear.
Replace beam if flange is worn.
WARNING
!
4”x 7.7
4”x 9.5
5”x 10.0
5”x 14.7
6”x 12.5
6”x 17.2
7”x 15.3
7”x 20.0
8”x 18.4
8”x 23.0
10”x 25.4
10”x 35.0
12”x 31.8
12”x 35.0
12”x 40.8
12”x 50.0
15”x 42.9
15”x 50.0
18”x 54.7
18”x 70.0
20”x 65.4
20”x 75.0
24”x 79.9
2-5/8
2-3/4
3
3-1/4
3-3/8
3-5/8
3-5/8
3-7/8
4
4-1/8
4-5/8
5
5
5-1/8
5-1/4
5-1/2
5-1/2
5-5/8
6
6-1/4
6-1/4
6-3/8
7
S-Beam Number of Spacers
Size Flange 1/2-1 Ton 1 1/2-2 Ton 3 Ton 4-5-6 Ton
A
4
4
2
0
10
9
8
7
6
5
2
0
0
B
0
0
2
4
0
1
2
3
4
5
8
10
10
C
0
1
2
3
0
2
2
3
4
5
8
10
10
D
4
3
2
1
10
8
8
7
6
5
2
0
0
A
13
12
11
10
9
8
5
3
3
3
2
0
0
B
0
1
0
1
2
3
6
8
8
8
9
11
11
C
0
1
0
1
2
3
6
8
8
9
10
11
11
D
13
12
11
10
9
8
5
3
3
2
1
0
0
A
11
10
9
8
5
3
3
3
2
0
0
B
0
1
2
3
6
8
8
8
9
11
11
C
0
1
2
3
6
8
8
9
10
11
11
D
11
10
9
8
5
3
3
2
1
0
0
A
18
17
14
12
12
12
11
9
9
8
6
4
4
3
0
B
0
1
4
6
6
6
7
9
9
10
12
14
14
15
18
C
0
1
4
6
6
7
8
9
9
10
12
13
13
14
18
D
18
17
14
12
12
11
10
9
9
8
6
5
5
4
0

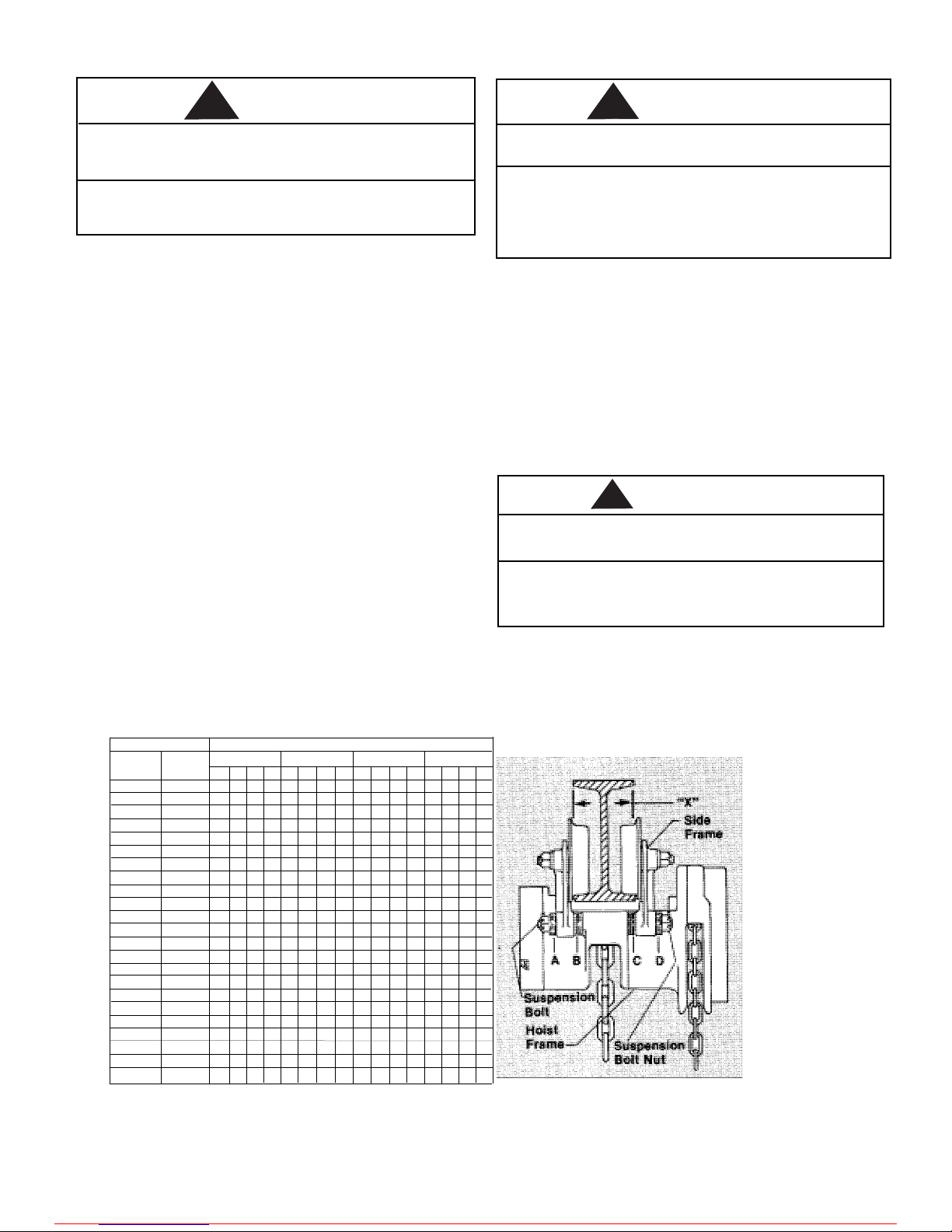

FIGURE 5. Trolley Spacer Arrangement
WARNING
WARNING
!
!
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

OPERATING AND SAFETY PROCEDURES
For safety precautions and a list of do’s and do not’s
for safe operation of hoists, refer to page ii.
The Cyclone and oist (see Figure 6) must always
be rigged to lift in a straight line from hook to
hook. The hoist must always be free to swivel on
the upper hook. Under no condition should the
hoist frame or hanger be allowed to bear on any
support when in use as this would cause bending of
the hook or frame and damage the unit.
When preparing to lift or move a load, be sure that
the attachments to both hooks are firmly seated in
the saddles of the hooks. Avoid off center loading
of any kind especially loading on the point of the
hook.
When lifting, raise the load only enough to clear
the floor or support, and check to be sure brake will
hold load and that attachments to the load are
firmly seated. Continue the lift only after you are
assured the load is free of all obstructions.
Do not load beyond the rated capacity of the hoist.
Overloading can cause immediate failure of some
load carrying part or result in damage causing fail-
ure at less than rated capacity. When in doubt, use
the next larger capacity of Cyclone oist.
Do not wrap load chain around the load or bring
the load in contact with the hoist. Doing this will
result in the loss of the swivel effect of the hook
which could cause twisted chain and a jammed lift-
wheel. The chain could be damaged at the hook.
Rail stops must be installed for all trolleys operating
on open end beams. These stops must be positioned
to exert impact force on the trolley side frames only.
Do not use this or any other overhead materials
handling equipment for lifting persons.
Stand clear of all loads and avoid moving a load over
the heads of any people. Warn any people of your
intention to move a load in their area.
Do not leave the load suspended in the air unattended.

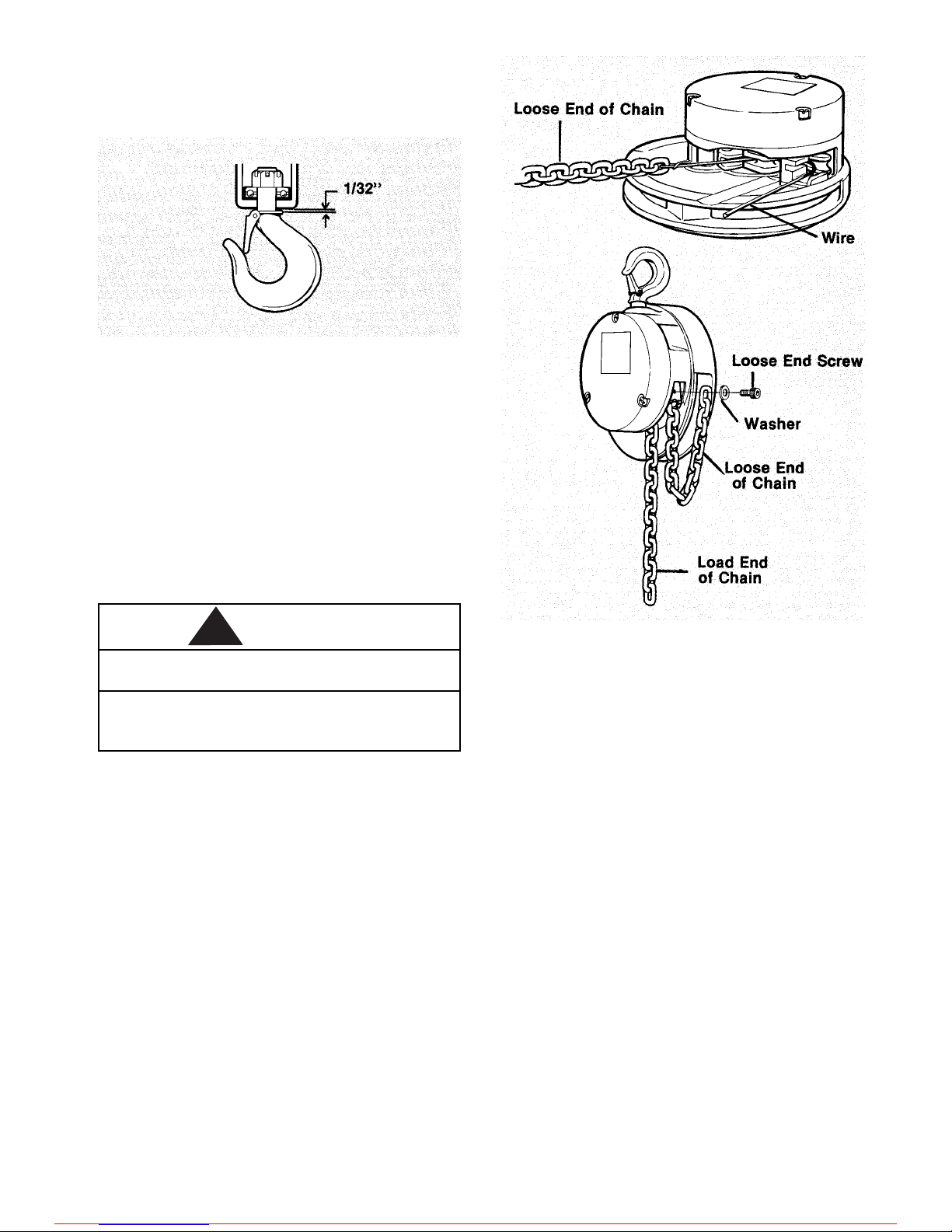

Do not lower the hook to a point where the chain
becomes taut between the liftwheel and loose end
screw. (See Troubleshooting, Item 5C).
The Cyclone and oist and Cyclone Low eadroom
Trolley oist have been designed for manual
operation only.
Power operation may result in structural damage or
premature wear that may cause a part to break and
allow the load to fall.
To Avoid Injury:
Operate Cyclone and and Trolley oists using hand
power only.
To maintain continuous and satisfactory operation, a
regular inspection procedure must be initiated to
replace worn or damaged parts before they become
unsafe. Inspection intervals must be determined by
the individual application and are based on the type
of service to which your hoist will be subjected and
the degree of exposure to wear, deterioration or
malfunction of the critical components.
The type of service to which the hoist is subjected
can be classified as “Normal”, “ eavy” and “Severe”.
Normal Service: involves operation with randomly
distributed loads within the rated load limit, or
uniform loads less than 65% of rated load for not
more then 25% of the time.
Heavy Service: involves operating the hoist within
rated load limit which exceeds normal service.
Severe Service: is normal or heavy service with
abnormal operating conditions.
Following are the recommended, minimum intervals
of inspection. When the unit is subjected to extra
heavy usage or dusty, gritty, moist, or other adverse
atmospheric conditions, shorter time intervals must
be assigned. During the Periodic Inspection, inspection
must be made of all parts for unusual wear, corrosion
effect or damage in addition to those specifically
mentioned.
Before working on the hoist, review the disassembly
and assembly information on pages 9 through 14.
INSPECTION
FIGURE 6. Cyclone Hand Hoist
5
!
WARNING
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

6
Minimum Inspection Schedule
Frequent Inspections: These inspections are
visual examinations by the operator or other des-
ignated personnel. Records of such inspections are
not required. The frequent inspections are to be
performed monthly for normal service, weekly to
monthly for heavy service, and daily to weekly for
severe service and they should include those items
listed in Table 1.
Periodic Inspections: These inspections are visu-
al inspections of external conditions by an appoint-
ed person. Records of periodic inspections are to
be kept to provide the basis for continuing evalua-
tion of the condition of the hoist.
Periodic inspections are to be performed yearly for
normal service, semi-annually for heavy service and
quarterly for severe service and they are to include
those items listed in Table 2.
Any parts that are deemed unserviceable are to be
replaced with new parts before the unit is returned
to service. It is very important that the unserviceable
parts be destroyed and properly disposed of to
prevent their possible future use as a repair item.
TYPE OF SERVICE
Normal Heavy Severe
TYPE OF SERVICE
Normal Heavy Severe
ITEM
a) Brake for evidence of slippage.

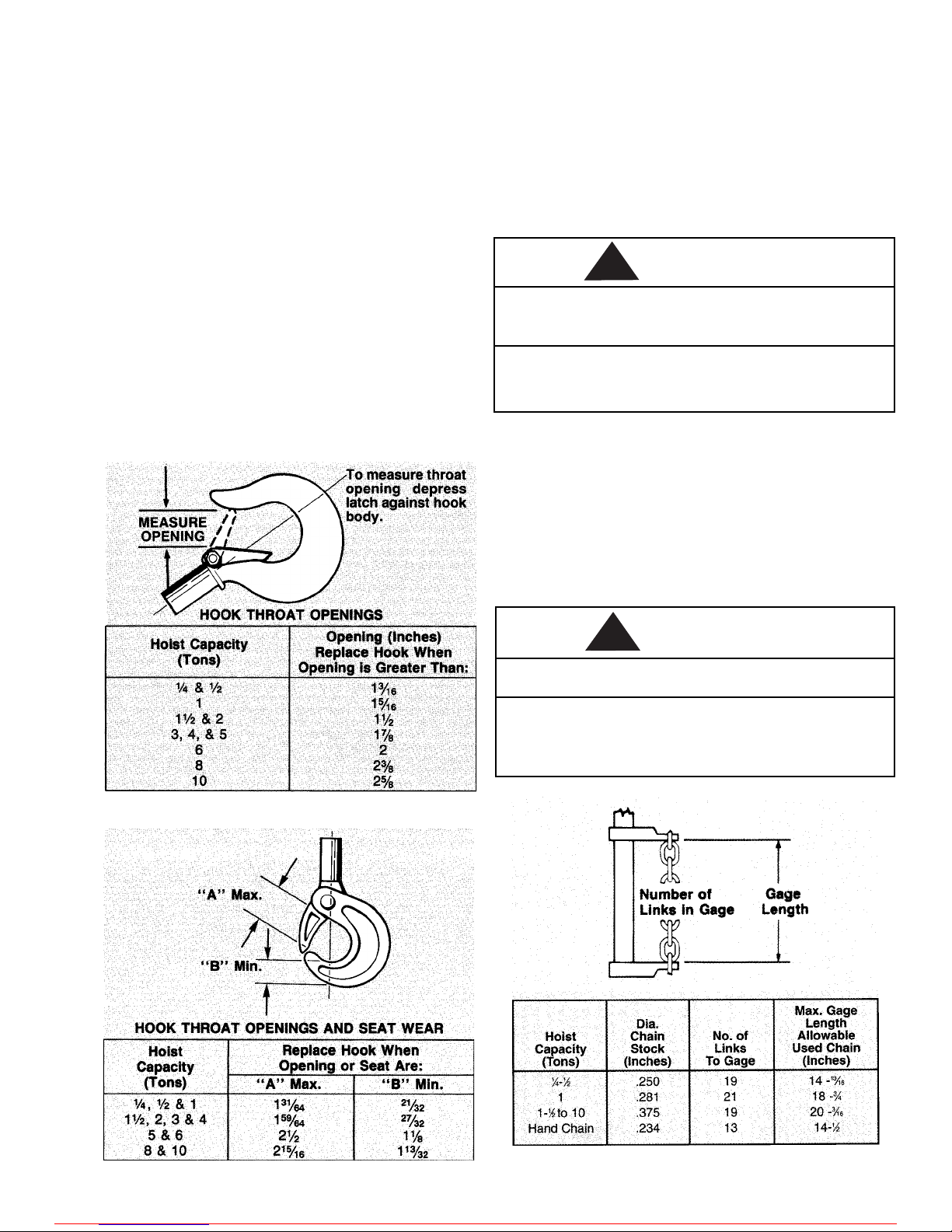

b) ooks for damage, cracks or excessive throat opening, latch
engagement and latch operation - see page 7.
c) Inspect load chain for adequate lubrication, signs of wear,
damaged links or foreign matter - see page 7.
d) Inspect reeving of the load chain to make sure it is proper -
see page 11.
ITEM
a) Frequent inspections per Table 1.
b) External evidence of loose bolts or nuts.
c) External evidence of worn, corroded, cracked or distorted hook
blocks, suspension bolts, gears, pins, bearings, hand chain wheel,
frames, hoist hanger, load chain guide, hook block pin on 1/4
thru 2 ton units, dead end pin on 3, 4, 8 and 10 ton units, and
dead end screw on 5 and 6 ton units.
d) External evidence of damage to hooks, hook nuts or collars and
hook nut or collar pins.
e) External evidence of damage or excessive wear of the pockets of
the liftwheel, handwheel, hook block sheaves and hanger sheaves.

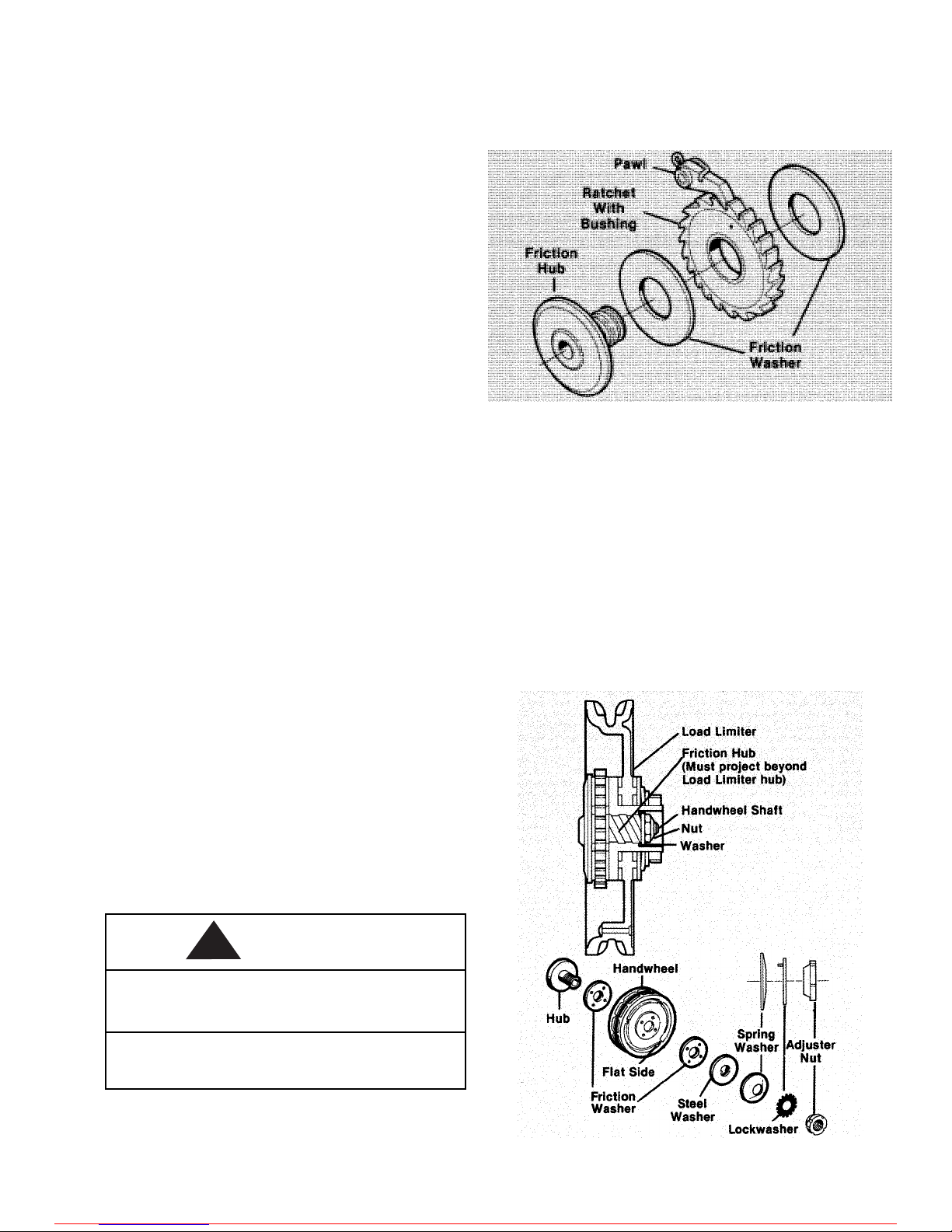

f) External evidence of worn, glazed or oil contaminated friction
discs, scoring of handwheel hub, ratchet, and friction hub.
g) External evidence of worn pawl and ratchet teeth; corroded,
stretched or broken pawl spring.
h) Supporting structure and trolley, if used, for continued ability to
support the imposed loads.
i) Inspect trolley wheels for external wear on the tread and flange,
and for wear on the internal bearing as evidenced by looseness
on the stud.
j) Warning label and tube for absence or illegibility.
k) Check for proper connections at dead end and loose end of load
chain.
l) Load Limiter components for corrosion.
Monthly
Weekly
to
Monthly
Daily
to Weekly
Table 1 Minimum Frequency Inspections
Table 2 Minimum Periodic Inspections
Yearly
Twice a Year
Every 3 Months
Any deficiencies are to be corrected before returning the
hoist to service. Operating a hoist with worn or damaged
parts or a malfunctioning hoist may result in serious
personal injury to the operator, nearby personnel and/or
property damage.
Also, the external conditions may show the need for dis-
assembly to permit a more detailed inspection which, in
turn, may require the use of nondestructive type testing.
PREVENTIVE MAINTENANCE
In addition to the above inspection procedure, a preventive
maintenance program should be established to prolong
the useful life of the hoist and maintain its reliability and
continued safe use. The program should include the
periodic inspections with particular attention being paid
to the lubrication of various components using the
recommended lubricants.
WARNING
!
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

HOOK INSPECTION
ooks damaged from chemicals, deformation or
cracks, or that have more than a 10 degree twist
from the plane of the unbent hook or excessive
opening or seat wear must be replaced.
Also, on latch type hooks, hooks that are opened
and allow the latch to disengage the tip, must be
replaced.
Any hook that is twisted or has excessive throat
opening indicates abuse or overloading of the unit.
Other load sustaining components of the hoist
should be inspected for damage.
Check to assure latch is not damaged or bent and
that it operates properly with sufficient spring
pressure to keep the latch tightly against the tip of
the hook and allow the latch to spring back to the
tip when released. If the latch does not operate
properly, it should be replaced.
The charts below (Figures 7 and 8) should be used
to determine when the hook must be replaced.
OAD CHAIN
Cleaning and Inspection
First clean the load chain with a non-acid or non-caustic
type solvent, then slack the chain and make a link-by-link
inspection for nicks, gouges, twisted links and excessive
wear or stretching. Worn chain should be gaged through-
out its entire length and replaced if beyond serviceable
limits. Also, these chains are specially heat treated and
hardened and should never be repaired.
Using other than a CM supplied load chain may cause
the chain to jam and this, in turn may break the chain
and allow the load to drop.
To Avoid Injury:
Use only oistaloy®load chain in the Cyclone and
and Low eadroom Trolley oists.
Gaging oad Chain Wear
To determine if the load chain should be continued in
service, check gage lengths as indicated in Figure 9.
Chain worn beyond length indicated, nicked, gouged
or twisted should be replaced before returning the
hoist to service. Chain should be clean, free of twists
and pulled taut before measuring. To aid in checking
gage length, CM can provide a chain gage. This can
be obtained by ordering chain gage part number 3191.
Worn load chain may break suddenly without visual
deformation.
To Avoid Injury:
Never use load chain for any other purposes such as
slings or tow chains. Cut worn chain into short
lengths to eliminate use after disposal.
FIGURE 7. atch Hook Opening
FIGURE 8. atchlok Hook Opening FIGURE 9. Gaging oad Chain Wear
7
WARNING
WARNING
!
!
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

Note that worn chain can be an indication of
worn hoist components. For this reason, the
hoists chain guide, hook blocks and liftwheel
should be examined for wear and replaced as
necessary when replacing worn chain.
The proper installation of the load chain is
covered in the section on reeving, (see Pages
11 through 14.
HAND CHAIN
and chain should be cleaned, inspected and gaged in
the same manner as load chain. It is not hardened and
can be cut with a hacksaw.
The hoist hand chain contains one unwelded connecting
link. This link can be placed in a vise and twisted open
to facilitate changing chain length. Additional connecting
links can be made by cutting the weld side of a standard
link.
Care must be taken to assure that there is no twist in
the hand chain loop.
MAINTENANCE
UBRICATION
The lubricants used in and recommended for the
Cyclone and and Trolley oists may contain haz-
ardous materials that mandate specific handling and
disposal procedures.
To Avoid Contact and Contamination:
andle and dispose of lubricants only as directed
in applicable material safety data sheets and in
accordance with applicable local, state and federal
regulations.
NOTE: To assure extra long life and top per-
formance, be sure to lubricate the various
parts of Cyclone Hoist using the lubricants
specified below. If desired, these lubricants
may be purchased from CM. Refer to page 19
for information on ordering the lubricants.
OAD CHAIN
Lubricate chain with a light coat of Lubriplate®, Bar
and Chain Oil (Fiske Bros. Refining Co.) or equal
lubricant. Be sure the lubricant reaches the bearing
surface between the links. Remove excess oil from
the chain.
Used motor oils contain known carcinogenic materials.
To Avoid Health Problems:
Never use used motor oils as a chain lubricant.
Only use Lubriplate®Bar and Chain Oil 10-R as a
lubricant for the load chain.
The hoist normally requires no additional lubri-
cation except when a unit has been disassem-
bled for cleaning or repairs (see page 9).
NOTE: The brake is designed to operate dry.
Do not use any grease or lubricant on the
braking surfaces. On reassembly when
lubricating parts adjacent to the brake, do
not use an excessive amount of lubricant
which could seep onto the brake surfaces.
oad imiter. Place a small amount of stay-put lubri-
cant such as Moly-Duolube Style 69 ( ercules Packing
Co.) on load limiter handwheel threads. Do not allow
lubricant to contact brake surfaces or friction surfaces
of load limiter.
Gears. Lubricate the gears with Texaco Novatex #2 or
equal, 3 ounces for the 1/4-1 ton units and 4 ounces for
the 1 1/2-10 ton units. Spread some grease on gear
teeth, place the balance in gear housing in contact
with the gears.
Geared Trolleys. Upon installation and once a month
lubricate trackwheel gears and pinion with Texaco
Novatex #2 or an equivalent heavy cup grease or
graphite grease.
Brake. The brake parts should be thoroughly cleaned
(by wiping with a cloth - not by washing with a
solvent) and inspected for wear or scoring. The friction
surfaces of the handwheel, ratchet and friction hub
must be smooth and free from any score marks. When
friction washers are visibly worn to a thickness of 0.100
inches or less, scored excessively, or coated with foreign
matter, replace with new washers. Keep washers and
brake surfaces clean and dry.
RECOMMENDED SPARE PARTS. Refer to page 20 for
the list of recommended spare parts.
EXTERIOR FINISH
The exterior surfaces of the hoist and trolleys have a
durable, scratch resistant baked powder coating.
Normally, the exterior surfaces can be cleaned by wip-
ing with a cloth. owever, if the finish is damaged,
compatible touch-up paint can be purchased from CM.
Refer to page 19 for information on ordering the
paint.
WARNING
WARNING
!
!
8
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

DISASSEMB Y
Care must be exercised in disassembly of the
hoist to assure proper assembly. The following
pins have tapered splines and can only be
removed by tapping on the end opposite the
splined grooves.
ower Hook Block, Upper Hook Collar
and Dead End Pins
When removing or installing the Lower ook
Block Pins (646-29J or 646-129J) on the 1/4 thru 2
ton units, the Upper Collar Pins (646-1E or 646-
101E) on the 1/4 thru 2 ton units and the Dead
End Pins (646-259) on the 3, 4, 8 and 10 ton units,
care must be taken so as to prevent damaging
the pin and/or the part into which the pin is driven.
These pins are tapered groove pins and as a
result, they can only be removed and installed in
one direction. To remove the pin, a drift and
hammer (or slow acting press) are required. For
the lower hook block pins, a V-block will also be
necessary. The drift should be the same diameter
as the pin (5/16” diameter for the 1/4 thru 1 ton
units and 7/16” diameter for the 1 1/2, 2, 3, 4, 8
and 10 ton units) and it should be placed on the
small end of the pin. The small end of the pin is
the end opposite the end on which the 3 grooves
are visible. Place the drift on the small end of
the pin and drive the pin out using a hammer or
slow acting press. When removing the pin from
the lower hook block, the hook block should be
placed in a V-block.
To re-install the pin, the parts must be arranged
the same as they were when the pin was
removed. To do this, use the small end of the pin
as a gauge. After it is determined which end of
the hole is the largest, arrange the parts so that
the large holes are aligned and insert the small
end of the pin into the hole. Push the pin in by
hand until it stops and then use a hammer or
slow acting press to drive the pin into position
so that the end of the pin is flush with the
outside surface of the hook block body, upper
hook collar or hoist hanger.
Using other than the CM supplied, high
strength pins may cause the pin to break and
allow the hoist and/or load to fall.
To Avoid Injury:
Use only the special high strength pin as
supplied by CM.
ASSEMB Y
Consideration must be given to the following
when assembling the hoist:
Brake. Assemble the brake components per Figure 10.
Check the ratchet to be sure the bushing is flush with
or below the surface on both sides. When installed, the
teeth must face as shown in Figure 10 and engage the
pawl. Do not lubricate. The brake operates dry.
FIGURE 10. Brake A embly
oad imiter. Place a small amount of stay-put lubri-
cant such as Moly-Duolube Style 69 ( ercules Packing
Co.) on Load Limiter handwheel threads to lubricate
the friction hub at assembly. Do not allow lubricant to
contact brake surfaces or friction surfaces of Load
Limiter.
The handwheel shaft nut and washer must tighten
against the friction hub, not the Load Limiter (see
Figure 11). the Load Limiter must be free to revolve
slightly on the friction hub. If the Load Limiter is
disassembled, it must be recalibrated before being
placed in service.
FIGURE 11. oad imiter Assembly
9
WARNING
!
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

Components must be assembled in the order
shown with the friction washers seated on the
handwheel projections. andwheel, spring wash-
er, lockwasher and nut must face as shown.
Tighten the adjuster nut hand tight, then turn
clockwise one notch. A NOTC is turning the nut
sufficient to bring a slot in the nut and a tang of
the lockwasher in line. The next notch brings a
different slot and tang in line.
Do not bend the lockwasher tang at this time.
The Load Limiter
must be calibrated
after assembly.
Calibration. Install
the Load Limiter
(see Figure 11) and
hand chain but not
the handwheel
cover. Mount the
hoist where a load
greater than that
shown in Table 3
can be applied.
Connect a straight
spring scale to the
hand chain so that
a pull can be
applied in the
hoisting direction.
FIGURE 12. oad imiter Calibration
Table 3 Minimum Hoist oads & Pull
Hoist
Capacity
(Tons)
1/4
1/2
1
1 1/2
2
3
4
5
6
8
10
Minimum
oad
(Pounds)
650
1,300
2,600
3,900
5,200
7,800
10,400
13,000
15,600
20,800
26,000
Average Pull
To Slip oad imiter
(Pounds)
33
67
100
113
117
118
121
106
127
133
139
With the load chain taut, apply a steady pull to
the scale to slip the handwheel one revolution
(approx. 2 ft. of hand chain travel - see Figure
12). Record several pull values and obtain the
average. Disregard the initial “break free” pull -
use only values obtained after the handwheel has
started to slip. When properly adjusted, the
average pull should be as indicated in Table 3.
If the average pull is low, turn the adjuster nut
one notch clockwise and repeat the pull opera-
tion. Do this until the correct value is obtained,
then bend the lockwasher tang into the locknut
notch. Load Limiter is now ready for service.
If the handwheel does not slip or the pull is too
high, back off the adjuster nut and start over.
After the proper calibration is obtained, install
the handwheel cover.
Bearing Retainer Screws. Whenever the bearing
retainer screws have been removed and replaced,
they must be locked in place by prick punching the
head (see Figure 13). Always use new spots for locking.
FIGURE 13. Bearing Retainer Screw
Hoist Hanger. The oist anger and oist are not
bolted together to form a rigid unit but can move
relative to each other.
When installing a new hoist hanger screw (646-234A),
tighten the screw firmly and back off one flat (1/6
turn). Then:
3 and 4 ton hoists: Install hoist hanger set screw
(646-233B).
5 to 10 ton hoists: Using the hole in the end of the
hoist hanger as a guide, drill a 0.250 to 0.256 inch
diameter hole through the hoist hanger screw and the
other side of the hoist hanger. Complete the assembly
by driving the hoist hanger screw pin (646-234D) into
hole so that the end of the pin is flush with the end of
the hoist hanger (see Figure 14).
FIGURE 14. Hoist Hanger
10
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

Hooks. Both upper and lower hooks must be free
to swivel. Those that are held by nuts must be
adjusted to provide 1/32” clearance as shown in
Figure 15 before the hook nut pin is inserted.
FIGURE 15. Hook Mounting
ower Hook Thrust Bearings. The 1/4 thru 6
ton lower hook thrust bearings are mounted with
the outer shell down (see Figure 15).
Hand Chain. and chain must have an odd
number of links.
Join the ends with the “hand chain connecting
link”(646-45) so that there is no twist in the
completed chain loop. The connecting link must
be completely closed so that it will seat in the
handwheel the same as the welded links.
REEVING
Improper installation (reeving) of the load
chain can result in a dropped load.
To Avoid Injury:
Reeve and attach the ends of the load in
accordance with the following instructions.
1/4-1/2-1 Ton Hoists
Attach approximately 20 inches of wire to the
loose end of the load chain. Feed the wire around
the liftwheel as shown in Figure 16 until the first
link starts over it. The first and third links must
stand on edge with the weld away from the lift-
wheel. After the chain has been started, pull the
hand chain or turn the handwheel in the hoisting
direction until about 2 feet of load chain has
passed over the liftwheel.
If it becomes difficult to pull the hand chain in
the hoisting direction, pull it in the lowering
direction to release the load chain. Start over. This
will prevent the load chain from being jammed
between the liftwheel and frame.
Remove the wire and attach the loose end of
chain to the hoist using the loose end screw and
washer (see Figure 16). The chain must not be
twisted between the liftwheel and loose end screw.
FIGURE 16. Reeving ¼-½-1 Ton Hoists
Mount hoist in a vertical position and check that the
lower hook is on the same side of the liftwheel as the
upper hook and in line with it.
1 1/2-2 Ton Hoists
Attach approximately 20 inches of wire to the loose
end of the load chain. Feed the wire around the lift-
wheel as shown in Figure 17 until the first link starts
over it. The first link must lay flat on the liftwheel.
The second link must stand on edge with the weld
away from the liftwheel. After the chain has been
started, pull the hand chain or turn the handwheel in
the hoisting direction until about 2 feet of load chain
has passed over the liftwheel.
If it become difficult to pull the hand chain in the
hoisting direction, pull it in the lowering direction to
release the load chain. Start over. This will prevent the
load chain from being jammed between the liftwheel
and frame.
Remove the wire and attach the loose end of chain to
the hoist using the loose end screw, washer and lock-
washer (see Figure 17). The chain must not be twisted
between the liftwheel and loose end screw.
Mount hoist in a vertical position and check that the
lower hook is on the same side of the liftwheel as the
upper hook and in line with it.
WARNING
!
11
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

12
3-4 Ton Hoists
Load chain must have an even number of links.
Check at each stage of assembly to be sure chain
has no twist.
Attach approximately 20 inches of wire to one end
of the load chain. Feed the wire around the lift-
wheel as shown in Figure 17 until the first link starts
over it. The first link must lay flat on the liftwheel.
The second link must stand on edge with the weld
end away from the liftwheel. After the chain has
been started, pull the hand chain or turn the hand-
wheel in the hoisting direction until about 2 feet of
load chain has passed over the liftwheel.
If it becomes difficult to pull the hand chain in
the hoisting direction, pull it in the lowering
direction to release the load chain. Start over.
This will prevent the load chain from being
jammed between the liftwheel and frame.
Remove the wire and attach the loose end of
chain to the hoist using the loose end screw,
washer and lockwasher (see Figure 17).
Mount hoist in a vertical position. Operate in
the hoisting direction until the remaining load
end of chain is approximately 5 feet long. Reeve
load end of chain as shown in Figure 18 in the
following sequence.
1. Down around the lower hook block sheave.
2. Up the the hoist hanger.
Secure chain end to hoist hanger with dead end
pin. The first link around the hook block sheave
must stand on edge (be upstanding).
FIGURE 17. Reeving 1½-10 Ton Hoists
FIGURE 18. Reeving 3-4 Ton Hoists
5-6 Ton Hoists
Load chain must have an even number of links. Check
at each stage of assembly to be sure chain has no twist.
Attach approximately 20 inches of wire to one end of
the load chain. Feed the wire around the liftwheel as
shown in Figure 17 until the first link starts over it. The
first link must lay flat on the liftwheel. The second link
must stand on edge with the weld away from the lift-
wheel. After the chain has been started, pull the hand
chain or turn the handwheel in the hoisting direction
until about 2 feet of load chain has passed over the
liftwheel.
If it becomes difficult to pull the hand chain in the
hoisting direction, pull it in the lowering direction to
release the load chain. Start over. This will prevent the
load chain from being jammed between the liftwheel
and frame.
Remove the wire and attach the loose end of chain
to the hoist using the loose end screw, washer and
lockwasher (see Figure 17).
Mount hoist in a vertical position. Operate in the
hoisting direction until the remaining load end of chain
is approximately 10 feet long. Reeve load end of chain
as shown in Figure 19 in the following sequence.
1. Down around the lower hook block sheave.
2. Up around the hoist hanger sheave.
3. Down the lower hook block.
Dead End Pin
Loose End of Chain
Hand Chain omitted
for clarity
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

Place end of chain in slot in top of hook block
and secure in place with hook block screw, lock-
washer and nut. The first link around the hook
block and hanger sheaves must stand on edge
(be upstanding).
FIGURE 19. Reeving 5-6 Ton Hoists
8 Ton Hoists
Load chain must have an even number of links.
Check at each stage of assembly to be sure chain
has no twist.
Attach approximately 20 inches of wire to one
end of the load chain. Feed the wire around the
liftwheel as shown in Figure 17 until the first link
starts over it. The first link must lay flat on the
liftwheel. The second link must stand on edge
with the weld away from the liftwheel. After the
chain has been started, pull the hand chain or
turn the handwheel in the hoisting direction
until about 2 feet of load chain has passed over
the liftwheel.
If it becomes difficult to pull the hand chain in
the hoisting direction, pull it in the lowering
direction to release the load chain. Start over.
This will prevent the load chain from being
jammed between the liftwheel and frame.
Remove the wire and attach the loose end of
chain to the hoist using the loose end screw,
washer and lockwasher (see Figure 17).
Mount hoist in a vertical position. Operate in the
hoisting direction until the remaining load end
of chain is approximately 15 feet long.
Reeve load end of chain as shown in Figure 20 in the
following sequence.
1. Down around the lower hook block sheave.
2. Up around the hoist hanger sheave.
3. Down around the second hook block sheave.
4. Up the the hoist hanger.
Secure end of chain to the chain anchor with the dead
end pin. The first link around the hook block sheaves
must stand on edge and the first link around the hoist
hanger sheave must lay flat.
Loose End of Chain
Hand Chain omitted
for clarity
FIGURE 20. Reeving 8 Ton Hoists
10 Ton Hoists
Load chain must have an odd number of links. Check at
each stage of assembly to be sure chain has no twist.
Attach approximately 20 inches of wire to one end of
the load chain. Feed the wire around the liftwheel as
shown in Figure 17 until the first link starts over it. The
first link must lay flat on the liftwheel. The second link
must stand on edge with the weld away from the lift-
wheel. After the chain has been started, pull the hand
chain or turn the handwheel in the hoisting direction
until about 2 feet of load chain has passed over the lift-
wheel.
If it becomes difficult to pull the hand chain in the hoist-
ing direction, pull it in the lowering direction to release
the load chain. Start over. This will prevent the load
chain from being jammed between the liftwheel and
frame.
Remove the wire and attach the loose end of chain to
the hoist using the loose end screw, washer and lock-
washer (see Figure 17).
Hand Chain omitted
for clarity
Loose End of Chain
Dead End Pin in
Chain Anchor
13
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

FIGURE 21. Reeving 10 Ton Hoists
Mount hoist in a vertical position. Operate in the
hoisting direction until the remaining load end
of chain is approximately 20 feet long. Reeve
load end of chain as shown in Figure 21 in the
following sequence.
1. Down around the lower hook block sheave.
2. Up around the hoist hanger sheave.
3. Down around the second hook block sheave.
4. Up around the second hoist hanger sheave.
5. Down to the lower hook block.
Secure end of chain to the hook block with the
dead end pin. The first link around the hook block
sheaves must lay flat and the first link around the
hoist hanger sheaves must stand on edge.
Cutting Chains
oistaloy®load chain is hardened for wear
resistance and is difficult to cut. owever, the
following methods are recommended when
cutting a length of new chain from stock or cutting
off a length of worn chain.
FIGURE 22. Cutting Chain by Nicking
(1) Use a grinder and nick the link on both sides
(see Figure 22), then secure the link in a vise
and break off with a hammer.
(2) Use a 7 inch minimum diameter by 1/8 thick
abrasive wheel (of type recommended by wheel
supplier) that will clear adjacent links.
(3) Chain may also be cut using a bolt cutter (see
Figure 23) similar to the .K. Porter No. 0590MTC
with special cutter jaws for cutting hardened
chain (1 inch long cutting edge).
FIGURE 23. Cutting Chain with a Bolt Cutter
Cutting chain can produce flying particle.
To Avoid Injury:
•Wear eye protection.
• Provide a shield, such as a heavy rag, over the chain
to prevent flying particles.
TESTING
Prior to initial use, all altered or repaired hoists or used
hoists that have not been operated for the previous 12
months shall be tested by the user for proper opera-
tion.
Test the unit first in the unloaded state and then with
a light load of 50 pounds times the number load sup-
porting parts of load chain to be sure it operates prop-
erly and the brake holds the load when the hand chain
is released; then test with a load of *125% of rated
capacity by or under the direction of an appointed per-
son and a written report prepared for record purposes.
After this test, the function of the Load Limiter is to be
tested (see Table 3, page 10).
*If load limiter prevents lifting of a load of 125% of rated capacity, reduce load
to rated capacity.
NOTE: For additional information on inspection
and testing, refer to the current issue of ASME
B30.16 “Overhead Hoists” obtainable from ASME
Order Department, 22 aw Drive, Box 2300,
Fairfield, NJ 07007-2300, U.S.A.
WARNING
!
14
Dead End Pin
Hand Chain omitted
for clarity
Loose End of Chain
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

TROUBLESHOOTING
For disassembly and assembly follow instructions on pages 9 through 14. Always test the Cyclone oist under
load after reassembly of any parts to be sure it operates properly and holds the load when the hand chain is
PROB EM
1 oist is hard to
operate in either
direction.
2. oist is hard to
operate in the
lowering direction.
3. oist is hard to
operate in the hoisting
direction.
4) oist will not operate
in either direction.
5) oist will not operate in
the lowering direction.
6. oist will not operate
in the hoisting direction.
7. oist will not hold load
in suspension.
CAUSE MAY BE
A) Load chain worn long to gage, thus
binding between liftwheel and chain
guide.
B) Load chain rusty, corroded or clogged up
with foreign matter such as cement or
mud.
C) Load chain damaged.
D) Liftwheel clogged with foreign matter or
worn excessively, causing binding between
the liftwheel and chain guide.
E) and chain worn long to gage, thus
binding between handwheel and cover.
F) andwheel clogged with foreign mater or worn.
G) Liftwheel or gear teeth deformed.
A) Brake parts corroded or coated with
foreign matter.
B) Chain binding.
A) Chain binding.
B) Chain twisted. (3 ton capacity or larger).
C) Overload.
A) Liftwheel gear key or friction hub key
missing or sheared.
B) Gears jammed.
A) Locked brake due to a suddenly applied
load, shock load, or load removed by
means other than by operating unit in
the lowering direction.
B) Chain binding.
C) Lower hook all the way out. Load chain
fully extended.
A) Chain binding.
A) Lower hook or load side of chain on
wrong side of liftwheel.
B) Ratchet assembled in reverse.
C) Pawl not engaging with ratchet.
D) Ratchet teeth or pawl worn or broken.
E) Worn brake parts.
F) Oily, dirty or corroded brake friction surfaces.
REMEDY
A) Check gage of chain (see Page 7). Replace
if worn excessively.
B) Clean by tumble polishing or using a non-
acid or non-caustic type solvent. Lubricate
with Lubriplate®Bar and Chain Oil 10-R
(Fiske Bros. Refining Co.) or equal lubricant.
C) Check chain for gouges, nicks, bent or
twisted links. Replace if damaged.
D) Clean out pockets. Replace if worn
excessively.
E) Check gage of chain (see Page 8).
F) Clean out pockets. Replace if worn excessively.
G) Excessive overload has been applied.
Replace damaged parts.
A) Disassemble brake and clean thoroughly.
(By wiping with a cloth - not by washing
in a solvent). Replace washers if gummy,
visibly worn or coated with a foreign
matter. Keep washers and brake surfaces
clean and dry.
B) See Items 1A, 1B and 1C.
A) See Items 1A, 1B and 1C.
B) Rereeve chain on 3 and 4 ton unit, if both
chains are twisted, capsize hook block
through loop in chain until twists are
removed. Caution - do not operate unit in
hoisting direction with twisted chain or
serious damage will result.
C) Reduce load or use correct capacity hoist.
A) Install or replace key.
B) Inspect for foreign matter in gear teeth.
A) With hoist under load keep chain taut,
pull sharply on hand chain in the lowering
direction to loosen brake.
B) See Items 1A, 1B and 1C.
C) Chain taut between the liftwheel and loose end
screw. Operate unit in hoisting direction only.
A) See Items 1A, 1B and 1C.
A) Lower hook must be on same side of lifwheel
as upper hook.
B) Ratchet must be assembled as shown in Figure 10.
C) Pawlspringmissingorbroken.Pawlbindingonpawl
stud.Replacespringandcleansopawloperatesfreely
andengagesproperlywithratchet.Donotoil.
D) Replace pawl and/or ratchet.
E) Replace brake parts which are worn.
F) See item 2A.
15
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com
