Crestron Flex UC-C100-Z User manual

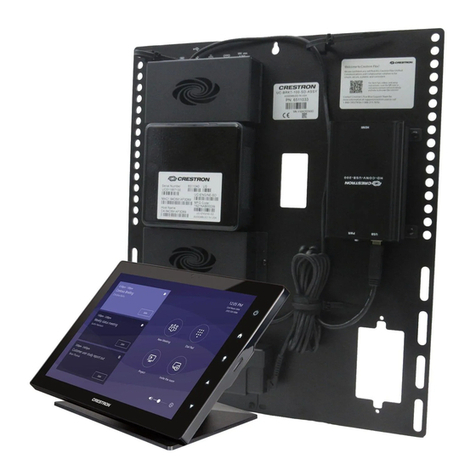

The UC-C100-Z Crestron Flex integrator kit provides customizable video
conference solution for use with Zoom Rooms™ software. It supports up
to three video displays and features a tabletop touch screen and a UC
bracket assembly.
The latest firmware must be loaded onto the touch screen prior to
operation. Refer to the touch screen's product page (resources tab) to
download the latest device firmware. The latest UC-C100-Z firmware is
installed using the auto update feature.
Minimum Requirements:
lA certified USB Camera (not included)
lA certified, AEC-enabled USB speakerphone or DSP device (not
included)
lA video display (not included) connected to the UC Engine. A second
or third display is optional.
lA Zoom Rooms account or activation code (not included)
In the Box
Tabletop Touch Screen Device
1 10.1 in. Tabletop Touch Screen (6510821)
1 Grommet, Cable, Closed (2055455)
1 Grommet, Cable, Open (2055456)
1 Cover, Cable compartment (2055457)
UC Bracket Assembly
1 UC Bracket Assembly with UC Engine and HDMI® content
ingest (UC-BRKT-200-S-Z-ASSY, 6512690)
2 Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5mm x
12.7mm) (2052565)
1 Key, Anchor (4529654)
1 Power cord (2053985)
2 Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo
(2052567)
4 Tie Wrap (2047935)
Additional Items
1 PoE injector (6502429)
2 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)
1 Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)
1 Cable, HDMI, 20 ft (6.1 m) (6503567)
1 Cable, HDMI, 6 ft (1.8 m) (6503565)
1
UC-C100-Z QuickStart
Crestron Flex Video Conference System Integrator Kit for Zoom Rooms™ Software

Mount the UC Bracket Assembly
Mount the UC Bracket Assembly to VESA® compliant display devices, a
wall, or other building structure. Anchors and screws are supplied for
installation on walls 3/8 in. (9.5mm) to 3/4 in. (19mm) thickness.
CAUTION: Preinstalled screws may protrude from the back of the
UC Bracket Assembly. Exercise caution when handling the UC
Bracket Assembly to avoid scratching or damaging surfaces.
NOTE: The integrated cable tie wraps are reusable. Avoid damaging
the cable tie wraps.
2
UC-C100-Z QuickStart
Crestron Flex Video Conference System Integrator Kit for Zoom Rooms™ Software

Connect
System Overview
When connections are complete, the system appears as shown below. Refer to Make Connections for detailed connection instructions.
3
UC-C100-Z QuickStart
Crestron Flex Video Conference System Integrator Kit for Zoom Rooms™ Software

Make Connections
1. Make UC Engine and touch screen connections as shown in the following illustration.
4
UC-C100-Z QuickStart
Crestron Flex Video Conference System Integrator Kit for Zoom Rooms™ Software

2. Connect a USB audio source (accessory) and displays to the UC Engine.
5
UC-C100-Z QuickStart
Crestron Flex Video Conference System Integrator Kit for Zoom Rooms™ Software

3. Connect a camera (not included) to the UC Engine as shown in the image below. Do not connect the camera to any of the other USB ports.
6
UC-C100-Z QuickStart
Crestron Flex Video Conference System Integrator Kit for Zoom Rooms™ Software

4. Connect a laptop to the content ingest device (HD-CONV-USB-200).
5. Bundle the cables to the bracket assembly with the integrated cable tie wraps. The cable tie wraps are reusable.
7
UC-C100-Z QuickStart
Crestron Flex Video Conference System Integrator Kit for Zoom Rooms™ Software

Configure
Apply Power
Press the power button on the bottom of the UC Engine and apply
power to all of the other devices in the system. The connected display
device will show a pairing code.
Log In to the Zoom Rooms Service
1. Tap Touch Here to Enable a Specific Application on the bottom of the
screen. A list of applications is displayed.
2. Tap Zoom Rooms and then tap Confirm. The touch screen will reboot.
3. Enter the pairing code shown on the display to pair the touch screen
with the UC Engine. The Zoom Rooms controller app is displayed.
4. Log in to the Zoom Rooms service with an activation code or Zoom
Rooms Credentials (email and password).
lActivation Code:
a. Tap Enter Activation Code.
b. Enter the 16-digit activation code provided by the
administrator to activate the Zoom Room that is assigned to
the activation code. The Zoom Rooms Conference Room screen
is shown on the display.
lSign In:
a. Tap Sign In.
b. Enter the Zoom Room credentials and tap Sign In.
c. Select the conference room name from the list and tapNext.
The Zoom Rooms Conference Room screen is shown on the
display.
5. Tap Settings. If a password is required, enter the password (the
default password is "1234"). The Settings screen is displayed.
6. Tap Microphone and select the USB audio device as the source.
7. Tap Speaker and select the USB audio device as the source.
8. Tap Meet Now to exit.
Configure the System
Connect a USB keyboard and mouse (sold separately) to a USB port on
the UC Engine to configure system features. For detailed information on
using Zoom Rooms, refer to the Zoom Rooms Help Center.
Visit the Product Page
Scan the QR code to visit the product page.
UC-C100-Z
www.crestron.com/model/6511590
8
