Crestron Mercury CCS-UC-1 User manual

CCS-UC-1
SIP Endpoint with Cisco®Unified
Communications Manager 10.5
Configuration Guide
Crestron Electronics, Inc.

Crestron product development software is licensed to Crestron dealers and Crestron Service Providers (CSPs) under a limited non-exclusive,
non-transferable Software Development Tools License Agreement. Crestron product operating system software is licensed to Crestron
dealers, CSPs, and end-users under a separate End-User License Agreement. Both of these Agreements can be found on the Crestron
website at www.crestron.com/legal/software_license_agreement.
The product warranty can be found at www.crestron.com/warranty.
The specific patents that cover Crestron products are listed at patents.crestron.com.
Certain Crestron products contain open source software. For specific information, please visit www.crestron.com/opensource.
Crestron, the Crestron logo, AirMedia, Crestron Toolbox, and Crestron Mercury are either trademarks or registered trademarks of Crestron
Electronics, Inc. in the United States and/or other countries. Bugzilla is either a trademark or registered trademark of the Mozilla Foundation in
the United States and/or other countries. Cisco is either a trademark or registered trademark of Cisco Systems, Inc. in the United States
and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the
entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others.
Crestron is not responsible for errors in typography or photography.
This document was written by the Technical Publications department at Crestron.
©2017 Crestron Electronics, Inc.

Configuration Guide – DOC. 7993A Contents
•
i
Contents
Introduction 1
Audience................................................................................................................. 1
Topology................................................................................................................. 1
Software Requirements........................................................................................... 2
Hardware Requirements ......................................................................................... 2
Product Description ................................................................................................ 2
Summary ................................................................................................................ 2
Features Supported ................................................................................... 2
Features Not Supported............................................................................. 3
Known Issues and Limitations................................................................................. 3
Crestron Mercury Configuration 4
Setup ...................................................................................................................... 4
Configuring the device ............................................................................................ 4
Configuring the SIP Parameters .............................................................................. 7
Cisco UCM Configuration 8
Configure the End User........................................................................................... 8
Configure Region for G729 ................................................................................... 10
Configure a SIP Profile .......................................................................................... 11
Configure Phone Security Profile ........................................................................... 15
Configure the Crestron Mercury Device as a Third-party SIP Device ..................... 16
Configure Media Resource Group and Media Resource Group List ...................... 22
Configure Trunks................................................................................................... 24
Cisco UCM- PSTN Gateway Trunk Configuration .................................... 24
Cisco UCM - Unity Connection Trunk Configuration................................. 29
Configure Route Patterns...................................................................................... 33
Voice Mail Configuration........................................................................................ 40
Configure Voice Mail Pilot and Voice Mail Profile on Cisco UCM .............. 40
Configuration on Unity Connection - Add New Phone System ................. 42
Configure a Voice Mail User ..................................................................... 46

ii
•
Contents Configuration Guide – DOC. 7993A

Configuration Guide – DOC. 7993A CCS-UC-1: SIP Endpoint with Cisco UCM 10.5
•
1
CCS-UC-1: SIP Endpoint with Cisco
Unified Communications Manager
10.5
Introduction
This configuration guide describes the necessary procedure to configure the Crestron
Mercury™ device to register to the Cisco®Unified Communications Manager as a basic SIP
endpoint.
Audience
This document is intended for users attempting to configure and use the Crestron Mercury
devices as SIP endpoints registering to the Cisco Unified Communications Manager (Cisco
UCM).
Topology
The network topology for the Crestron Mercury endpoint to interop with the Cisco UCM is
shown below.
SIP Endpoint Integration with Cisco UCM - Reference Network

2
•
CCS-UC-1: SIP Endpoint with Cisco UCM 10.5 Configuration Guide – DOC. 7993A
The lab network consists of the following components:
•Cisco UCM cluster for voice features
•Cisco SIP phones
•Crestron Mercury devices as SIP endpoints
Software Requirements
•Cisco Unified Communication Manager v 10.5.2.13900-12
•Cisco Unity Connection v 10.5.2.13900-12
•Crestron Mercury device v 1.3353.00029
Hardware Requirements
•Cisco UCS-C240-M3S VMWare Host running ESXi 5.5
•Cisco 3845 as PSTN Gateway
•Cisco phone models: 8961 (SIP), 8945 (SIP)
•Crestron Mercury devices (2)
Product Description

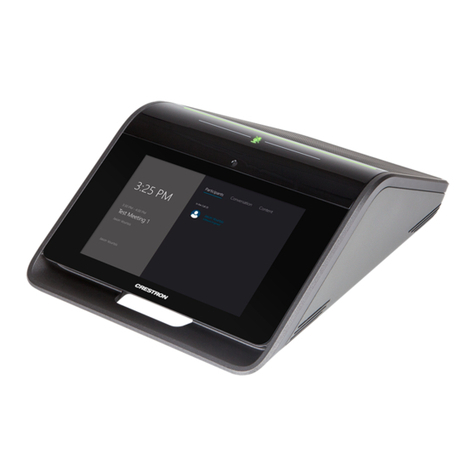

The Crestron Mercury device is a complete solution for conference rooms. It acts as an
all-in-one touch screen, speakerphone and AirMedia®product for conference rooms
that integrate microphones and speakers into the user interface at the table.
Crestron Toolbox™ software is used to discover and control all Crestron devices on the
network.
The Crestron Mercury web interface is used to control the Crestron Mercury devices on
the network.
Summary
The Crestron Mercury devices were configured on the Cisco UCM as basic SIP endpoints
since they support only a single line/extension. The devices successfully registered to the
Cisco UCM with digest authentication.
The sections below describe supported and unsupported features on a Crestron Mercury
device.
Features Supported
•Registration with digest authentication
•Basic Calls with G729, G722, G711u, and G711a codecs
•Caller ID (limited to only calling number)
•DTMF support
•Early media support
•Retrieval of a parked call

Configuration Guide – DOC. 7993A CCS-UC-1: SIP Endpoint with Cisco UCM 10.5
•
3
•Transferee in a call transfer
•Conference participant
•Member of hunt group
•Voice mail access and interaction
Features Not Supported
•Caller ID presentation with name and number display
•Call hold and resume
•Call forwarding on the device (Forwarding can be configured on the PBX for the DN
assigned to the endpoint.)
•Call waiting
•Conference
•Initiating attended call transfer
•Initiating semi-attended call transfer
•Initiating blind call transfer
•Configuration of shared line on device
•Initiating call park
•Do Not Disturb (DND)
Known Issues and Limitations
•The Crestron Mercury device does not allow calls to be placed or accepted as long
as the SIP server is unreachable and the device is un-registered. This causes an
established active call to be dropped in a scenario where there is a PBX network
outage due to the device losing its registration status. This issue is tracked via
Crestron’s Bugzilla™ software Defect: 128016.
•Caller ID is not supported on the Crestron Mercury device. Currently, only the
calling party number is displayed as the caller ID. This issue is tracked via
Crestron’s Bugzilla software Defect: 119006.
•The active call timer on the Crestron Mercury device does not reflect the correct call
duration. The active call duration includes the time for which the unit was being
alerted also. This issue is tracked via Crestron’s Bugzilla software Defect: 124001.
•The first ringback heard on Crestron Mercury device is stuttered. It resembles a mix
of local and remote ringback. This issue is tracked via Crestron’s Bugzilla software
Defect: 122421.
•On the Crestron Mercury web user interface, there is currently no notification
provided to the user when certain mandatory configurations are missing. This issue
is tracked via Crestron’s Bugzilla software Defect: 125193.
•On the Crestron Mercury web user interface, a configuration of DHCP OFF on the
Network configuration page mandates configuration of both the adapters. The user
is unable to save changes unless both the adapters are configured and is notified of
an invalid IP against the default of 0.0.0.0 for an unused adapter. This issue is
tracked via Crestron’s Bugzilla software Defect: 126236.

4
•
CCS-UC-1: SIP Endpoint with Cisco UCM 10.5 Configuration Guide – DOC. 7993A
•On the Crestron Mercury device, for certain called numbers that cannot be reached
or are invalid, the user only hears a reorder tone and does not have the option to
disconnect the call except by pressing the call button again. This issue is tracked
via Crestron’s Bugzilla software Defect: 122633.
Crestron Mercury Configuration
Setup
The LAN port of the Crestron Mercury device needs to be connected to one PoE+ port to
power it up and network for connectivity with the Cisco UCM. The PoE+ switch that is used
should have the LLDP functionality enabled for the device to power up and be completely
functional. By default, the “poeplus” configuration is set to Off on the device.
Configuring the device
To configure the Crestron Mercury device, follow this procedure:
1. Access the web GUI for the device by using an http session with the device’s IP
address. 10.80.10.100 was used in this example as the device IP. The initial page
that displays is shown below.
Crestron Mercury Configuration: Login to Web GUI
2. Click
Sign In
and log in to the device. For information on device administration,
refer to the CCS-UC-1 Supplemental Guide (Doc. 7844) at
www.crestron.com/manuals.
The Status screen that appears displays basic information on the device.

Configuration Guide – DOC. 7993A CCS-UC-1: SIP Endpoint with Cisco UCM 10.5
•
5
Crestron Mercury: Status
The device can be configured from the
Network
page.
3. On the web GUI, navigate to
Network
.

6
•
CCS-UC-1: SIP Endpoint with Cisco UCM 10.5 Configuration Guide – DOC. 7993A
Crestron Mercury Configuration: Network Setting: DHCP Off: Static IP Configured
4. Enter the following parameters in the
Adapter 1
section to configure the Crestron
Mercury device.
•
DHCP
: Either of the two can be chosen:
oObtain an IP address automatically
oUse the following IP address
For the test, a static IP was configured.

IP address
: 10.80.10.100was used in this example.

Subnet Mask
: 255.255.255.0 was used in this example.

Default Gateway
: 10.80.10.1 was used in this example.

DNS Server 1
: 10.64.1.3 was used in this example.
5. Click
Save Changes
.

Configuration Guide – DOC. 7993A CCS-UC-1: SIP Endpoint with Cisco UCM 10.5
•
7
Configuring the SIP Parameters
1. On the web GUI, navigate to
Device
>
SIP Calling
Crestron Mercury Configuration: SIP Calling Parameters
2. Enable the check box for
Enable SIP
.
3. Configure the
Server IP Address
: Enter the IP Address of the primary Cisco UCM
node. 10.80.10.2 was used in this example.
4. Configure the
Port
: 5060was used in this example.
5. Configure the
Server Username
: Enter the end user configured on Cisco UCM for
this device. Mercury_2600 was used in this example.
6. Configure the
Server Password
: Enter the password as configured on Cisco UCM
for this end user.
7. Configure the
Local Extension
: Enter the directory number that was configured for
this device on Cisco UCM. 2600 was used in this example.
8. Leave all other fields at their default values.
9. Click
Save Changes
.
Once the device successfully registers with the Cisco UCM, the
SIP Server Status
updates
its status to show Online.

8
•
CCS-UC-1: SIP Endpoint with Cisco UCM 10.5 Configuration Guide – DOC. 7993A
Cisco UCM Configuration
This section describes the Cisco UCM configuration necessary to integrate the Crestron
Mercury device as a basic SIP endpoint.
NOTE:
It is assumed that the general installation and basic Cisco UCM configuration have
already been administered.
Configure the End User
To configure the end user, follow this procedure:
1. Navigate to
User Management
>
End User
.
2. Click
Add New
. The End User configuration window appears.
Cisco UCM: End User configuration

Configuration Guide – DOC. 7993A CCS-UC-1: SIP Endpoint with Cisco UCM 10.5
•
9
3. Configure
User ID
: Enter a unique end user identification name. Two users were
configured for this example for the Crestron Mercury devices: Mercury_2600 and
Mercury_2602.
4. Configure
Password
: Enter any password. This same password will be entered on
the device for the SIP Server Password. 123456 was used in this example.
5. Confirm
Password
: Re-enter the same password entered above.
6. Configure the
Last Name
: Enter the end user’s last name.
7. Configure the
Digest Credentials
: Enter a string of alphanumeric characters.
8. Confirm the
Digest Credentials
: Re-enter the digest credentials configured above.
9. Click
Save
. All of the configured users are listed .
Cisco UCM: End Users configured for all Mercury devices

10
•
CCS-UC-1: SIP Endpoint with Cisco UCM 10.5 Configuration Guide – DOC. 7993A
Configure Region for G729
To test the device capabilities with G729, a separate region with the G.729 codec as
preference needs to be configured. This new region needs to be assigned to the default
device pool.
To configure a new region, perform the following procedure.
1. Navigate to
System
>
Region Information
>
Region
.
2. Click
Add New
.
Cisco UCM: Region Configuration
3. Configure a
Name:
G729 was used in this example.
4. Click
Save
.
5. On the screen that follows, select the newly added region in the lower pane and
select the
Maximum Audio bit Rate
from the drop-down menu as 8kbps (G.729).
6. Click
Save
.

Configuration Guide – DOC. 7993A CCS-UC-1: SIP Endpoint with Cisco UCM 10.5
•
11
Configure a SIP Profile
For the example, a new SIP profile,
Standard SIP Profile_Crestron
, was configured and
assigned to the trunk used for PSTN calls.
To add a new SIP profile, follow this procedure.
1. Navigate to
Device
>
Device Settings
>
SIP Profile
.
Cisco UCM: SIP Profile Configuration (1/4)
2. On the screen that appears, click
Add New
and configure the SIP Profile.
a. Assign a
Name
. Standard SIP Profile_Crestron was used for this example.

12
•
CCS-UC-1: SIP Endpoint with Cisco UCM 10.5 Configuration Guide – DOC. 7993A
Cisco UCM: SIP Profile Configuration (2/4)

Configuration Guide – DOC. 7993A CCS-UC-1: SIP Endpoint with Cisco UCM 10.5
•
13
Cisco UCM: SIP Profile Configuration (3/4)

14
•
CCS-UC-1: SIP Endpoint with Cisco UCM 10.5 Configuration Guide – DOC. 7993A
Cisco UCM: SIP Profile Configuration (4/4)
b. Configure
Early Offer support for voice and video calls
as Best Effort (no
MTP inserted).
3. Retain all other default configurations.
4. Click
Save
, and then click
Apply Config
.

Configuration Guide – DOC. 7993A CCS-UC-1: SIP Endpoint with Cisco UCM 10.5
•
15
Configure Phone Security Profile
For the example, a phone security profile was configured for the Crestron Mercury device
with digest authentication enabled.
To configure the common Phone Security Profile, perform the following procedure.
1. Navigate to
System
>
Security
>
Phone Security Profile
.
2. Click
Add New
.
Cisco UCM: Phone Security Profile Configuration for Crestron Mercury
3. Configure a
Name
: Crestron was used in this example.
4. Configure
Transport Type
: TCP+UDP.
5. Check the
Enable Digest Authentication
check box.
6. Configure
SIP Phone Port:
5060.
7. Click
Save
.

16
•
CCS-UC-1: SIP Endpoint with Cisco UCM 10.5 Configuration Guide – DOC. 7993A
Configure the Crestron Mercury Device as a Third-party SIP Device
To configure the Crestron Mercury device as a third-party SIP device, follow this procedure:
1. Navigate to
Device
>
Phone.
2. Click
Add New
.
Cisco UCM: Phone Configuration: Add Crestron Mercury Device as Third-party SIP Device (1/2)
3. Select
Product Type
as
Third-party SIP Device (Basic)
.
4. Click
Next
.
5. Configure
MAC Address:
Enter MAC address of the device.
6. Select
Device Pool
as
Default
.
7. Select
Phone Button Template
as
Third-party SIP Device (Basic)
.
8. Select
Owner User ID:
select the End User configured earlier from the drop-down
menu. Mercury_2600 was selected in this example for the first Crestron Mercury
device, and Mercury_2602 for the second Crestron Mercury device.
