Crestron DM-NVX-D30 User manual

DM-NVX-D30/E30(C)
DM NVX® 4K60 4:4:4 HDR Network AV
Decoder
Web Interface Configuration Guide
Crestron Electronics, Inc.

Original Instructions
The U.S. English version of this document is the original instructions.
All other languages are a translation of the original instructions.
Crestron product development software is licensed to Crestron dealers and Crestron Service Providers (CSPs) under a
limited nonexclusive, nontransferable Software Development Tools License Agreement. Crestron product operating
system software is licensed to Crestron dealers, CSPs, and end-users under a separate End-User License Agreement.
Both of these Agreements can be found on the Crestron website at www.crestron.com/legal/software_license_
agreement.
The product warranty can be found at www.crestron.com/warranty.
The specific patents that cover Crestron products are listed at www.crestron.com/legal/patents.
Certain Crestron products contain open source software. For specific information, visit www.crestron.com/opensource.
Crestron, the Crestron logo, Crestron Toolbox, DM NAX, DM NVX, and DM NVX Director are either trademarks or
registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. macOS and Safari are
either trademarks or registered trademarks of Apple, Inc. in the United States and/or other countries. Chrome is either a
trademark or registered trademark of Google Inc. in the United States and/or other countries. HDMI and the HDMI logo
are either trademarks or registered trademarks of HDMI Licensing LLC in the United States and/or other countries.
Active Directory, Microsoft Edge, and Windows are either trademarks or registered trademarks of Microsoft Corporation
in the United States and/or other countries. Firefox is either a trademark or a registered trademark of the Mozilla
Foundation in the United States and/or other countries. Other trademarks, registered trademarks, and trade names
may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron
disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography
or photography.
©2022 Crestron Electronics, Inc.

Contents
Introduction 1
Web Interface Overview 1
Access the Web Interface 1
Access Web Interface with a Web Browser 1
Access Web Interface With Crestron Toolbox™ Software 2
Status 4
Device 5
Network 6
DM NVX Director 6
DM NAX (AES67) Audio 7
Control System 7
Input (DM-NVX-E30 Only) 8
Output (DM-NVX-D30 Only) 9
Settings 10
System Setup 11
Stream 16
DM NAX (AES67) Audio 20
Subscriptions 22
Routing 23
Inputs 24
Outputs 24
IR Ports 25
Security 26
Current User 28
Users 29
Create New Local User 30
Add Active Directory User 30
Delete User 31
View User Details 31
Update User Details 32
Groups 33
Create Local Group 34
Add Active Directory Group 34
Delete a Group 35
View Group Details 35
802.1x Configuration 36
Configure DM-NVX-D30/E30(C) for 802.1X Authentication: 37
Web Interface Configuration Guide — Doc. 8874D Contents • i

ii • Contents Web Interface Configuration Guide — Doc. 8874D

Web Interface Configuration Guide — Doc. 8874D DM-NVX-D30/E30(C) • 1
Introduction
The DM-NVX-D30/E30(C) is a reliable compact decoder that supports HDR10 and HDCP 2.2 and
transports 4K60 4:4:4 video over standard Gigabit Ethernet with no perceptible latency or loss of
quality.
Web Interface Overview
The web interface of the DM-NVX-D30/E30(C) allows you to view status information for the
DM-NVX-D30/E30(C) and configure its network and device settings.
Access the Web Interface
The web interface is accessed from a web browser. The following table lists various operating
systems and the corresponding supported web browsers.
OPERATING SYSTEM SUPPORTED WEB BROWSERS
Windows® operating system Chrome™ web browser, version 31 and later
Firefox® web browser, version 31 and later
Microsoft Edge® web browser
macOS® operating system Safari® web browser, version 6 and later
Chrome™ web browser, version 31 and later
Firefox® web browser, version 31 and later
Operating System and Supported Web Browsers
To access the user interface, do either of the following:
lOpen it directly in a web browser.
lOpen a web browser from within the Crestron Toolbox™ application.
Access Web Interface with a Web Browser
1. Enter the IP address of the DM-NVX-D30/E30(C) into a web browser.
NOTE: To obtain the IP address, press the Setup button on the front panel of the DMF-
CI-8 chassis of the DM-NVX-D30/E30(C). The IP address will appear on a display
connected to the HDMI® output.

2 • DM-NVX-D30/E30(C) Web Interface Configuration Guide — Doc. 8874D
2. Enter your credentials in the Device Administration dialog (note that the user name and
password are case sensitive). The default user name is admin , and the default password is
admin .
NOTE: For enhanced security, it is recommended that the default password be changed.
Device Administration Login Page
3. Click Sign In.
Access Web Interface With Crestron Toolbox™ Software
To access the user interface by opening a web browser within the Crestron Toolbox™ application,
do the following:

Web Interface Configuration Guide — Doc. 8874D DM-NVX-D30/E30(C) • 3
1. Open the Crestron Toolbox™ application.
2. From the Tools menu, select Device Discovery Tool. You can also access the Device
Discovery Tool by clicking the Device Discovery Tool button in the Crestron Toolbox
toolbar. The DM-NVX-D30/E30(C) is discovered and is listed in the device list on the left
side of the screen. The associated host name, IP address, and firmware version are also
displayed.
NOTE: If there is security software running on the computer, a security alert might be
displayed when the Crestron Toolbox application attempts to connect to the network.
Make sure to allow the connection, so that the Device Discovery Tool can be used.
3. In the Device Discovery Tool list, double-click your DM-NVX-D30/E30(C) device.
4. Enter your credentials in the Authentication dialog that opens, and then click Log In.
Authentication Dialog Box
5. Click the Web Configuration button in the Configuration page displayed on the left side of
the Device Discovery Tool.

4 • DM-NVX-D30/E30(C) Web Interface Configuration Guide — Doc. 8874D
Status
The Status page is the first page that is displayed when opening the web interface of the DM-
NVX-D30/E30(C). It displays general information about the DM-NVX-D30/E30(C) (such as
model name, serial number, and firmware version), current network settings (such as host name
and IP address, etc.), as well as information about the connection to the control system.
The Status page can be accessed at any time by clicking the Status tab in the navigation bar of
the web user interface of the DM-NVX-D30/E30(C).
DM-NVX-D30 Status Page

Web Interface Configuration Guide — Doc. 8874D DM-NVX-D30/E30(C) • 5
DM-NVX-E30 Status Page
Device
Displays the Model,Serial Number, and Firmware Version of the DM-NVX-D30/E30(C).
Status Page - Device
Click on + More Details to see additional information about the DM-NVX-D30/E30(C).

6 • DM-NVX-D30/E30(C) Web Interface Configuration Guide — Doc. 8874D
Network
Displays the Host Name,Domain Name,DHCPEnabled,IPAddress,DNS Servers,Default
Gateway,Link Active,Mac Address, and Subnet Mask of the DM-NVX-D30/E30(C).
NOTE: By default, the host name of DM-NVX-D30/E30(C) consists of the model name
followed by the MAC address of the device. For example, DM-NVX-D30/E30(C)- .

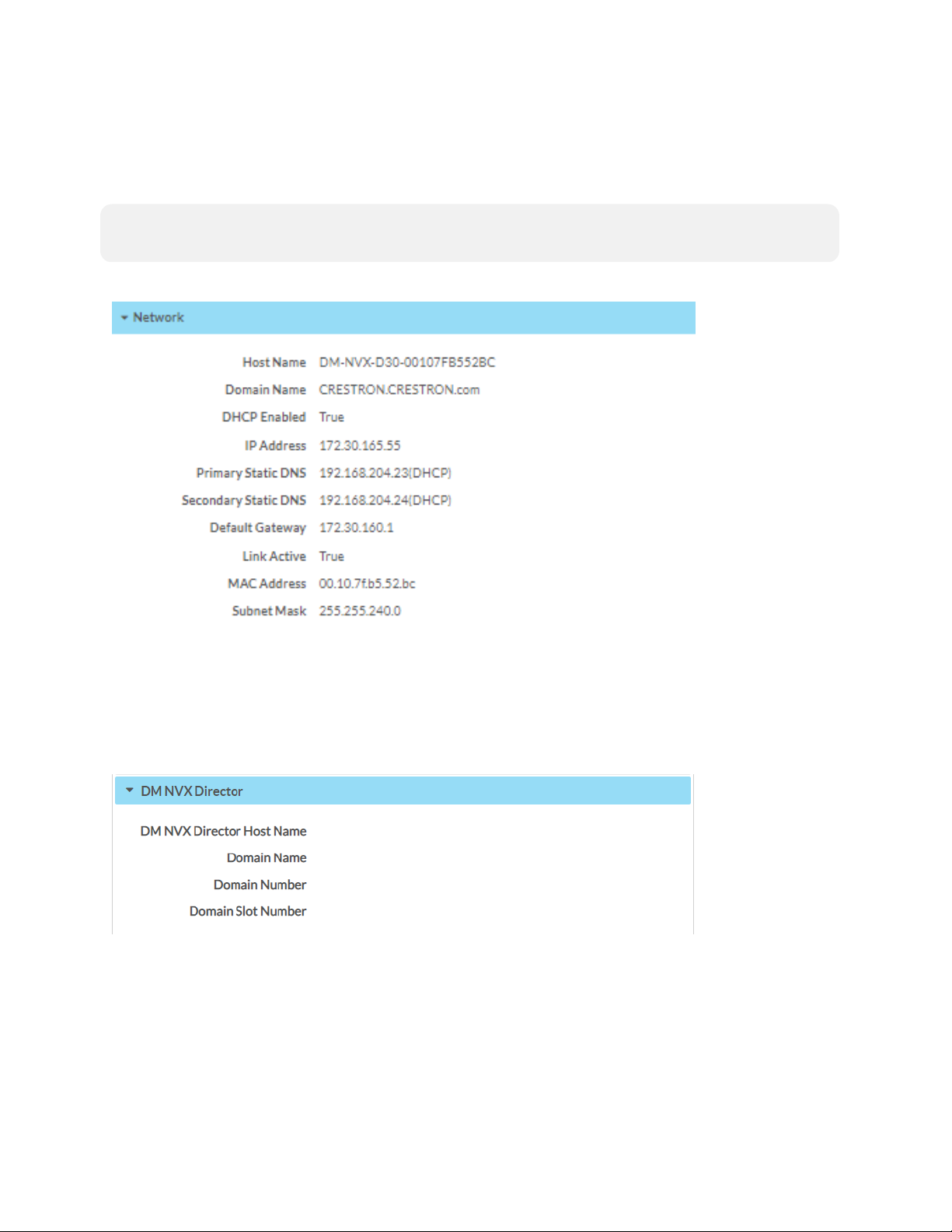

Status Page - Network
DM NVX Director
Displays the settings of the DM NVX Director® virtual switching appliance. Note that the fields
below will not be populated when using XiO-Director v 1.0.
Status Page - DM NVX Director
lDM NVX Director HostName: Displays the host name of the DM-NVX-Director.
lDomain Name: Displays the domain name of the DM-NVX-Director.
lDomain Number: Displays the domain number of the DM-NVX-Director.
lDomain Slot Number: Displays the domain slot number of the DM-NVX-Director.

Web Interface Configuration Guide — Doc. 8874D DM-NVX-D30/E30(C) • 7
DM NAX (AES67) Audio
Displays the following DM NAX™ audio information for both DM NAX (AES67) Transmit and DM
NAX (AES67) Receive audio channels.
Status Page - DM NAX (AES67) Audio
lStatus: Displays the status of the stream.
lDM NAX (AES67) Audio Mode: Will display under either DM NAX (AES67) Transmit or DM
NAX (AES67) Receive depending on the mode set. By default, the mode is set to Automatic
which will add +1 to the outgoing video stream multicast address. For example, if the Video
multicast address is 239.8.0.0, the DM NAX (AES67) Multicast address will be 239.8.0.1.
The mode can also be set to Manual (which will allow setting the multicast address in the
field below) or Disabled.
lMulticast Address: Sets the multicast address. This is only available when Mode is set to
Manual.
lPort: Sets the port number. Available when Mode is set to Manual.
Control System
Displays the following connection information.

8 • DM-NVX-D30/E30(C) Web Interface Configuration Guide — Doc. 8874D
Status Page - Control System
lEncrypt Connection: Displays ON if the connection is encrypted or OFF if it is not.
lIP ID: Displays the IP ID of DM-NVX-D30/E30(C).
lRoom ID: Displays the Room ID of the control system.
lIP Address/Hostname: Displays the IP address and Hostname of the control system.
lType: Always set to Peer.
lServer Port: Displays the server port. The default port is set to 41794.
lConnection: Always displays Gway.
lStatus: The status will be either OFFLINE or ONLINE.
Input (DM-NVX-E30 Only)
Displays the following input information.
Status Page - Input
lName: Displays the name of the input.
lSync Detected: Displays whether sync is detected (Yes) or not (No).
lResolution: Displays the resolution.
lSource HDCP: Displays the status of the source HDCP.
lSource Content Stream Type: Displays the stream type of the source content.
lInterlaced: Displays whether the stream is interlaced (Yes) or not (No).
lAspect Ratio: Displays the aspect ratio.
lAudio Format: Displays the audio format.
lAudio Channels: Displays the number of audio channels.

Web Interface Configuration Guide — Doc. 8874D DM-NVX-D30/E30(C) • 9
Output (DM-NVX-D30 Only)
Displays the following output information.

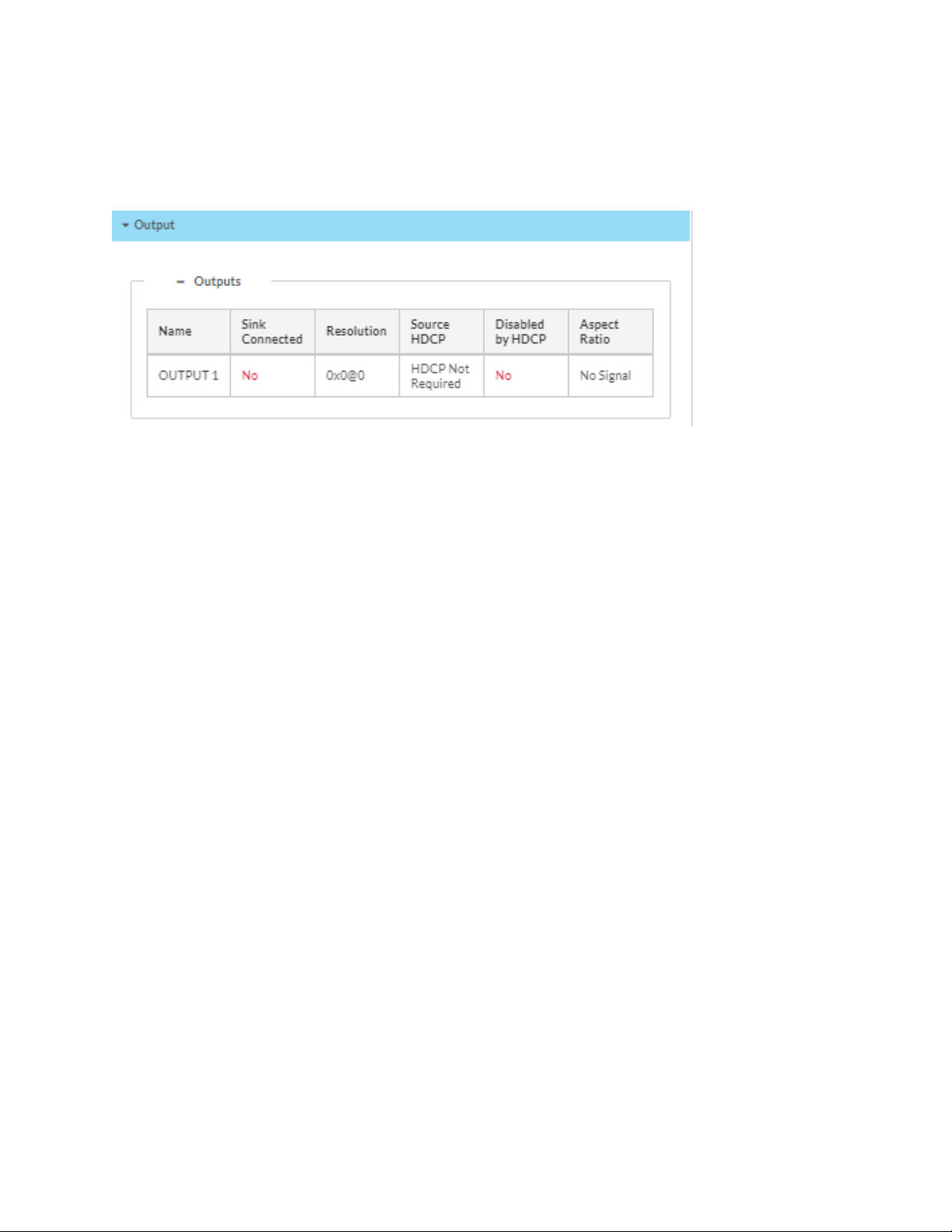

Status Page - Output
lName: Displays the name of the output.
lSink Connected: Displays whether a sink is connected (Yes) or not (No).
lResolution: Displays the resolution.
lSource HDCP: Displays the status of the source HDCP.
lDisabled by HDCP: Displays whether the source is disabled by HDCP (Yes) or not (No).
lAspect Ratio: Displays the aspect ratio.

10 • DM-NVX-D30/E30(C) Web Interface Configuration Guide — Doc. 8874D
Settings
The Settings page is used to configure the DM-NVX-D30/E30(C).
The Settings page can be accessed at any time by clicking the Settings tab in the navigation bar
of the web user interface of the DM-NVX-D30/E30(C).

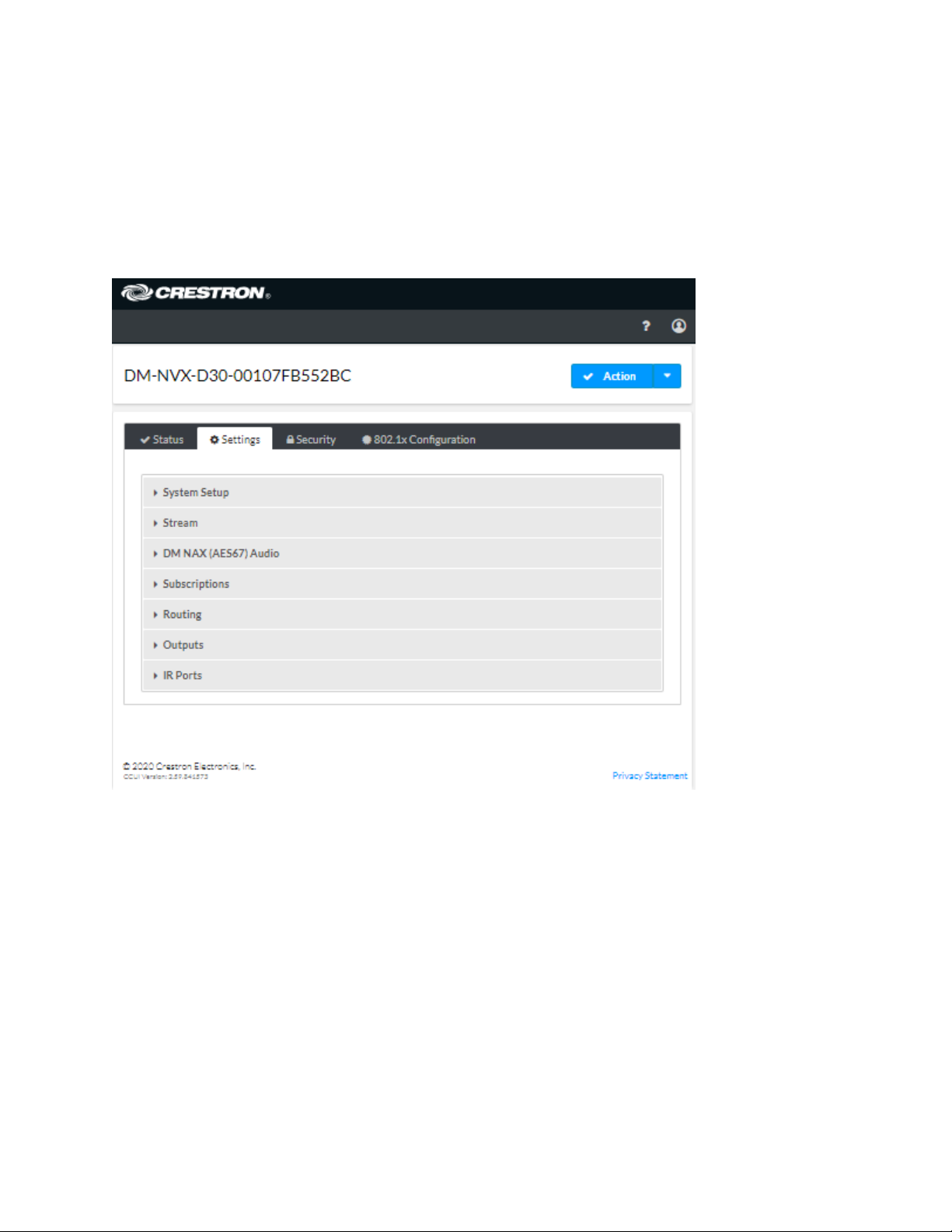

DM-NVX-D30 Settings Page

Web Interface Configuration Guide — Doc. 8874D DM-NVX-D30/E30(C) • 11
DM-NVX-E30 Settings Page
System Setup
The System Setup settings allow you to configure the following system settings for the DM-
NVX-D30/E30(C).

12 • DM-NVX-D30/E30(C) Web Interface Configuration Guide — Doc. 8874D
Settings Page - Network
The Network settings allow you to configure the Host Name,Domain Name, and DNS Servers of
the DM-NVX-D30/E30(C).
NOTE: By default, the host name of DM-NVX-D30/E30(C) consists of the model name
followed by the MAC address of the device. For example, DM-NVX-D30/E30(C)-
00107F7C6544.
Adapter 1: Enable or disable DHCP. The IPAddress,Subnet Mask,Default Gateway,Link Active,
and Mac Address of the DM-NVX-D30/E30(C) are also displayed.
Settings Page - Network Interface
Network Interface: Select either V2 or V3 for IGMP Support.
Settings Page - Cloud Settings

Web Interface Configuration Guide — Doc. 8874D DM-NVX-D30/E30(C) • 13
Cloud Configuration Service Connection: Toggle the switch to enable or disable Cloud
Configuration Service Connection.
Settings Page - RS-232 Port Settings
Configure the RS-232 port settings of the DM-NVX-D30/E30(C) in the RS-232 Port Settings
section of the screen.
lBaud Rate: Select the baud rate from the drop-down menu.
lHardware Flow Control: Select the hardware flow control from the drop-down menu.
lData Bits: Select the data bits from the drop-down menu.
lParity: Select the parity from the drop-down menu.
lSoftware Flow Control: Select the software flow control from the drop-down menu.
lStop Bits: Select the stop bits from the drop-down menu.

14 • DM-NVX-D30/E30(C) Web Interface Configuration Guide — Doc. 8874D
Settings Page - Auto Update
To automatically update the controls provided on the web interface of DM-NVX-D30/E30(C), do
the following:
1. Move the Auto Update slider to the enabled position. By default, the auto update
functionality is set to enabled.
2. Enter a path to the update cloud in the Custom URL Path field.
If you wish to schedule auto update to occur on certain days of the week, click the Day of
Week drop-down and select the desired option (available options are as follows: Daily,
Sunday, Monday, Tuesday, Wednesday, Thursday, Friday, Saturday) and then enter time
of the day when the auto update will start in the Time of Day field.
If you wish to specify polling interval, enter a value in the Poll Interval field. Click the
Update Now button to force an update immediately.
Settings Page - Date/Time

Web Interface Configuration Guide — Doc. 8874D DM-NVX-D30/E30(C) • 15
Configure the date and time settings of the DM-NVX-D30/E30(C) in the Configure Date/Time
section of the screen.
1. Move the Time Synchronization slider to the desired position to specify whether time
synchronization will be enabled or disabled. By default, time synchronization is enabled.
2. In the Time Server field, enter the URL of the NTP or SNTP server.
3. Click Synchronize Now to perform time synchronization between the device's internal
clock and the time server.
4. Click on the Time Zone drop-down to select the applicable time zone.
5. In the Time (24hr Format) field, enter current time in 24-hour format.
6. In the Date field, enter the current date.
Settings Page - Discovery Config
Move the Discovery Agent slider to enabled or disabled to specify if the DM-NVX-D30/E30(C) is
discoverable or not. When Discovery Agent is enabled, the DM-NVX-D30/E30(C) is displayed in
the Available Streams list of other receivers.
If you would like to use a custom TTL value, select the Custom TTL option and then enter the
value in the TTL field.
Settings Page - Control System
1. Toggle Encrypt Connection to specify whether to use encryption. By default, Encrypt
Connection is disabled.
Note that when encryption is enabled, the Control System Username and Control System
Password fields are displayed to provide login information.
2. Enter the Room ID in the Room ID field.
3. Select the IP ID of the DM-NVX-D30/E30(C) in the IP ID drop-down list. Valid values range

16 • DM-NVX-D30/E30(C) Web Interface Configuration Guide — Doc. 8874D
from 03 to FE in hexadecimal notation.
4. Enter the IP address or hostname of the control system in the IP Address/Hostname field.
Stream
Settings Page - Stream
lDevice Name: Displays the name of the DM-NVX-D30/E30(C).
lStream Location: Displays the location of the stream.
lMulticast Address: Displays the multicast address.
lStatus: Displays the status of the device, for example, 'Stream stopped', 'Stream
started', 'Connecting', etc.
lResolution: Displays the resolution of an incoming stream.
lPreview: Displays a preview thumbnail of the stream.
Settings Page - Services
