The DM-TX-200-2G and the DM-TX-400-3G are DM®CAT transmitters and
switchers that install in a double-gang or a triple-gang electrical box (respectively) to
provide a convenient interface for computers and high-definition AV sources as part
of a complete DigitalMedia™ system.
With both HDMI®and RGB inputs, the DM-TX-200-2G and DM-TX-400-3G are
ideal for wall, lectern, and floor box applications in a boardroom, classroom, or
residence to provide an input for a laptop computer or similar source. The
DM-TX-400-3G includes additional input connections for SPDIF and analog AV
sources. Both transmitters connect to any DM-MD series DigitalMedia switcher or
DM-RMC-100 Room Controller (all sold separately) via a single DM cable.
Features and Functions
•DigitalMedia transmitter and multimedia interface
•Built-in 2x1 (DM-TX-200-2G) or 4x1 (DM-TX-400-3G) AV switcher
•DM CAT output supports up to 450 foot (137 meter) cable length1
•2-gang (DM-TX-200-2G) or 3-gang (DM-TX-400-3G) wall mount
design
•Available colors include black or white
•Provides HDMI, RGB, component, and composite video inputs2
•Supports DVI and DisplayPort Multimode sources3
•Includes S/PDIF, RCA, and mini-TRS audio inputs4
(Continued on following page)
1. For DigitalMedia CAT wiring, use DM-CBL DigitalMedia Cable. Up to two DM Repeaters (Model
DM-DR, sold separately) may be required. Refer to the latest version of the Crestron DigitalMedia
Design Guide (Doc. 4789) for complete wiring guidelines. It is available from the Crestron Web site
(www.crestron.com/dmresources).
2. Composite video inputs only available on DM-TX-400-3G.
3. HDMI requires an appropriate adapter or interface cable to accommodate a DVI or DisplayPort
Multimode signal. CBL-HD-DVI and CBL-DP-HD interface cables available separately.
4. S/PDIF and RCA audio inputs only available on DM-TX-400-3G.
Operations & Installation Guide – DOC. 6949B Wall Plate DigitalMedia™ CAT Transmitters: DM-TX-200-2G/400-3G •1

Wall Plate DigitalMedia™ CAT Transmitters Crestron DM-TX-200-2G/400-3G
Features and Functions
(Continued)
•Provides onboard auto-switching capability
•Includes USB HID (human interface device) keyboard/mouse port
•Affords single-wire connection to a DM-RMC-100 or DM-MD
switcher (both sold separately)
•Detects and reports detailed video and audio input information
•Performs automatic AV signal format management via EDID
•Enables device control via CEC
•Easy setup and diagnostics tools via software
•Extends the life of analog-based AV systems
DigitalMedia
As the leader in HDMI and control system technologies, Crestron®has developed
DigitalMedia, the first complete HD AV distribution system that takes HDMI to a
higher level, and allows virtually any mix of AV sources to be distributed throughout
the home, office, school, or virtually any other facility.
DigitalMedia distributes uncompressed digital video and audio signals up to 450 feet
(137 meters) using DM cable1. DigitalMedia thoughtfully manages all of the
different signals and devices, matching each source’s output to the capabilities of the
selected display(s) without using scaling or compression. Every signal is preserved
in its native video resolution and audio format, ensuring a pure, lossless signal path
throughout.
Multimedia Computer/AV Interface
The DM-TX-200-2G provides simple switching between two inputs. The
DM-TX-400-3G provides versatile switching between four different video and audio
inputs. The HDMI input supports HDCP and handles WUXGA computer resolutions
and 1080p60 HDTV with multi-channel lossless audio. The HDMI input can also
handle DVI and DisplayPort Multimode signals using an appropriate adapter or
dongle2. The RGB input handles all analog RGB signals up to WUXGA 1920x1200
pixels, as well as component video up to 1080p603. A mini-TRS stereo audio input is
also provided to accept analog audio signals from an unbalanced line-level or
headphone output. On the DM-TX-400-3G, both digital and analog audio signals are
supported via HDMI, S/PDIF, and RCA inputs.
Used with a single DM-RMC-100 Room Controller and optional Crestron Control
System (both sold separately), the DM-TX-300-2G and DM-TX-400-3G afford very
simple solutions for extending a multimedia computer or AV signal to a single
display up to 450 feet (137 m) away1. As part of a larger system using a DM-MD
series switcher, multiple DM-TX-200-2G and DM-TX-400-3Gs may be installed to
enable the distribution of several sources at different locations to feed multiple
displays throughout any room or larger facility.
1. For DigitalMedia CAT wiring, use DM-CBL DigitalMedia Cable. Up to two DM Repeaters (Model
DM-DR, sold separately) may be required. Refer to the latest version of the Crestron DigitalMedia
Design Guide (Doc. 4789) for complete wiring guidelines.
2. HDMI requires an appropriate adapter or interface cable to accommodate a DVI or DisplayPort
Multimode signal. CBL-HD-DVI and CBL-DP-HD interface cables available separately.
3. The RGB input can accept component, composite, and S-video signals via direct interface to
Crestron MPS Series products, or through an appropriate adapter (not included). Input sync detection
is not provided for composite or S-video signal types through the RGB connection.
2 •Wall Plate DigitalMedia™ CAT Transmitters: DM-TX-200-2G/400-3G Operations & Installation Guide – DOC. 6949B

Crestron DM-TX-200-2G/400-3G Wall Plate DigitalMedia™ CAT Transmitters
Keyboard/Mouse Extender
When connected to a DM-MD series switcher, the DM-TX-200-2G and
DM-TX-400-3G function as keyboard/mouse extenders, allowing a USB HID
(Human Interface Device) compliant keyboard and/or mouse at the podium or
conference table to control a computer or other host device located at the central
equipment rack.
EDID Format Management
The DM-TX-200-2G and DM-TX-400-3G allow for management of the EDID
(Extended Display Identification Data) information that passes between the display
devices and input sources in the system. Using Crestron Toolbox™ software, the
format and resolution capabilities of each device can be assessed and managed
through the DM-TX-200-2G or DM-TX-400-3G, ensuring reliable operation by
instructing sources to output only the resolutions and formats that can be handled by
the displays and system wiring.
CEC Embedded Device Control
The primary objective of every Crestron system is to enable precisely the control
desired for a seamless user experience. DigitalMedia provides an alternative to
conventional IR and RS-232 device control by harnessing the CEC (Consumer
Electronics Control) signal embedded in HDMI. Through its connection to the
control system, the DM-TX-200-2G or DM-TX-400-3G provides a gateway for
controlling the connected source device right through the HDMI connection,
potentially eliminating the need for any dedicated control wires or IR probes.
Through proper CEC signal management, DigitalMedia allows you to take control of
each device in the system as you like.
Simple Wall Mount Design

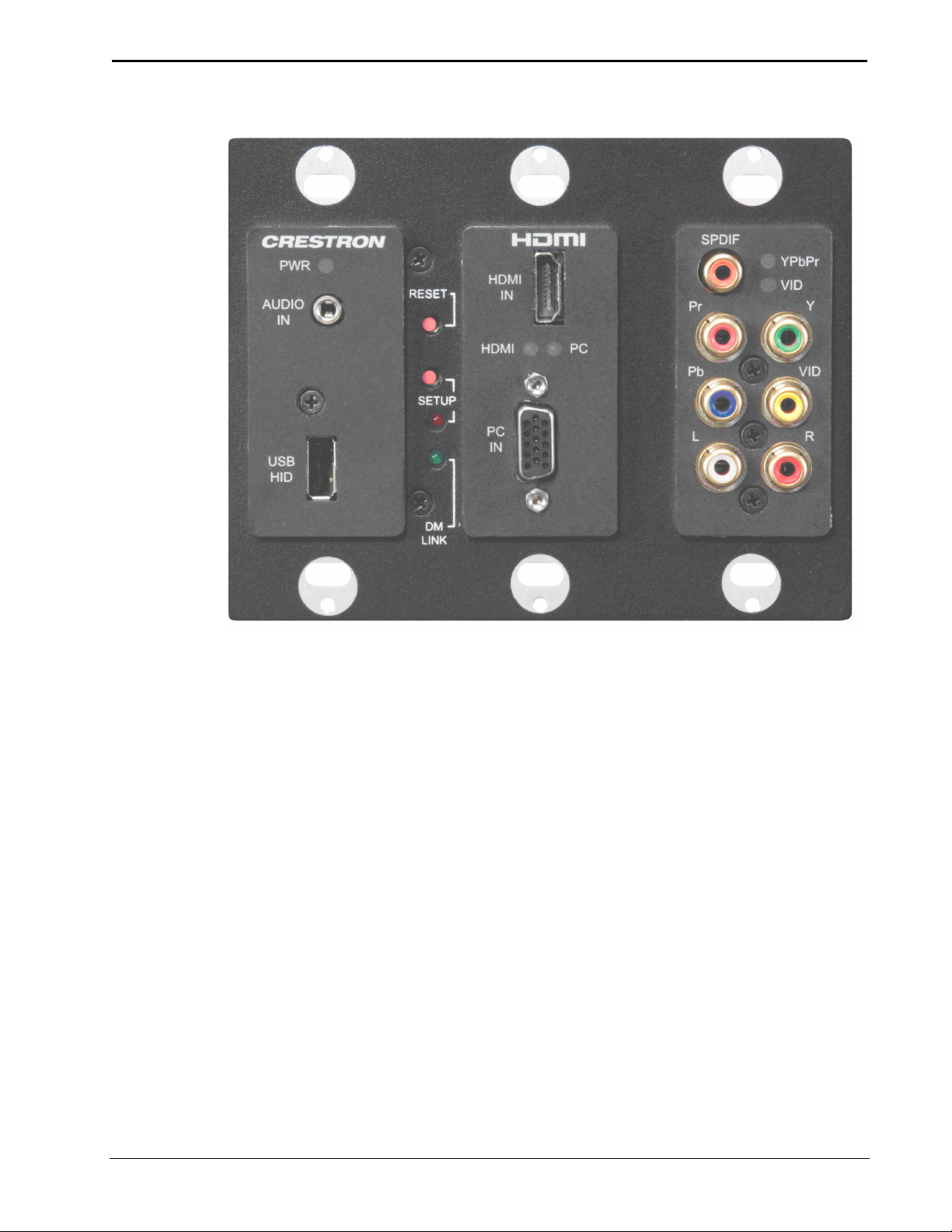

The DM-TX-200-2G and DM-TX-400-3G are designed to be wall mounted using a
standard electrical box or plaster ring. The DM cable is terminated at the rear of the
transmitter using screw terminals. An array of indicators on the front of the
DM-TX-200-2G and DM-TX-400-3G provide for easy setup and troubleshooting,
verifying the status of connections and signal activity at a glance. Advanced
configuration is enabled through Crestron Toolbox software.
A Digital Upgrade for Legacy Systems
The DM-TX-200-2G and DM-TX-400-3G also afford perfect signal converters for
integrating DigitalMedia with analog-based systems like Crestron MPS,
QuickMedia®, and the CEN-RGBHV Series (all sold separately). A simple HD15
VGA cable connected between the output of an MPS system and the input of the
DM-TX-200-2G or DM-TX-400-3G allows every RGB, component, S-video, and
composite video input on the MPS to be converted to DigitalMedia*. Analog audio
is converted similarly through a simple unbalanced stereo audio cable. The
HDMI input may also be used to expand the input capabilities of the MPS system to
handle digital AV sources.
* The RGB input can accept component, composite, and S-video signals via direct interface to
Crestron MPS Series products, or through an appropriate adapter (not included). Input sync detection
is not provided for composite or S-video signal types through the RGB connection.
Operations & Installation Guide – DOC. 6949B Wall Plate DigitalMedia™ CAT Transmitters: DM-TX-200-2G/400-3G •3

Wall Plate DigitalMedia™ CAT Transmitters Crestron DM-TX-200-2G/400-3G
Applications
The following diagram shows a DM-TX-200-2G and a DM-TX-400-3G in a typical
application.
DM-TX-200-2G and DM-TX-400-3G in a Typical Application
4 •Wall Plate DigitalMedia™ CAT Transmitters: DM-TX-200-2G/400-3G Operations & Installation Guide – DOC. 6949B

Crestron DM-TX-200-2G/400-3G Wall Plate DigitalMedia™ CAT Transmitters
Specifications
Specifications for the DM-TX-200-2G and DM-TX-400-3G are listed in the
following table.
DM-TX-200-2G and DM-TX-400-3G Specifications
SPECIFICATION DETAILS
Video
Switcher
DM-TX-200-2G 2x1 combination digital/analog switch,
Crestron QuickSwitch HD®
DM-TX-400-3G 4x1 combination digital/analog switch,
Crestron QuickSwitch HD
Input Signal Types HDMI, DVI1, DisplayPort Multimode1,
RGB, component (YPbPr)2, S-video
(Y/C)2, composite2
Output Signal Type DM CAT (DigitalMedia over twisted-pair
copper wire)
Formats HDMI, DVI, HDCP content protection
support, RGBHV up to UXGA/WUXGA,
HDTV up to 1080p60, NTSC or PAL
Input Resolutions
HDMI & DVI, Progressive 640 x 480 @ 60 Hz
720 x480 @ 60 Hz (480p)
720 x 576 @ 50 Hz (576p)
800 x 600 @ 60 Hz
848 x 480 @ 60 Hz
852 x 480 @ 60 Hz
854 x 480 @ 60 Hz
1024 x 768 @ 60 Hz
1024 x 852 @ 60 Hz
1024 x 1024 @ 60 Hz
1280 x 720 @ 50 Hz (720p50)
1280 x 720 @ 60 Hz (720p60)
1280 x 768 @ 60 Hz
1280 x 800 @ 60 Hz
1280 x 960 @ 60 Hz
1280 x 1024 @ 60 Hz
1360 x 768 @ 60 Hz
1365 x 1024 @ 60 Hz
1366 x 768 @ 60 Hz
1400 x 1050 @ 60 Hz
1440 x 900 @ 60 Hz
1600 x 900 @ 60 Hz
1600 x 1200 @ 60 Hz
1680 x 1050 @ 60 Hz
1920 x 1080 @ 24 Hz (1080p24)
1920 x 1080 @ 25 Hz (1080p25)
1920 x 1080 @ 50 Hz (1080p50)
1920 x 1080 @ 60 Hz (1080p60)
1920 x 1200 @ 60 Hz
2048 x 1080 @ 24 Hz
2048 x 1152 @ 60 Hz
plus any other resolution allowed by
HDMI up to 165 MHz pixel clock
(Continued on following page)
Operations & Installation Guide – DOC. 6949B Wall Plate DigitalMedia™ CAT Transmitters: DM-TX-200-2G/400-3G •5

Wall Plate DigitalMedia™ CAT Transmitters Crestron DM-TX-200-2G/400-3G
DM-TX-200-2G and DM-TX-400-3G Specifications (Continued)
SPECIFICATION DETAILS
Video
Input Resolutions (Continued)
HDMI & DVI, Interlaced 720 x 480 @ 30 Hz (480i)
720 x 576 @ 25 Hz (576i)
1920 x 1080 @ 25 Hz (1080i25)
1920 x 1080 @ 30 Hz (1080i30)
plus any other resolution allowed by
HDMI up to 165 MHz pixel clock
RGB 640 x 480 @ 60 Hz
720 x 480 @ 60 Hz (480p)
720 x 576 @ 50 Hz (576p)
800 x 600 @ 60 Hz
848 x 480 @ 60 Hz
1024 x 768 @ 60 Hz
1280 x 720 @ 50 Hz (720p50)
1280 x 720 @ 60 Hz (720p60)
1280 x 768 @ 60 Hz
1280 x 800 @ 60 Hz
1280 x 960 @ 60 Hz
1280 x 1024 @ 60 Hz
1360 x 768 @ 60 Hz
1366 x 768 @ 60 Hz
1400 x 1050 @ 60 Hz
1440 x 900 @ 60 Hz
1600 x 1200 @ 60 Hz
1680 x 1050 @ 60 Hz
1920 x 1080 @ 24 Hz (1080p24)
1920 x 1080 @ 50 Hz (1080p50)
1920 x 1080 @ 60 Hz (1080p60)
1920 x 1200 @ 60 Hz
2048 x 1080 @ 24 Hz
2048 x 1152 @ 60 Hz
Component2480i
576i
480p
576p
720p50
720p60
1080i25 (1125 lines)
1080i30
1080p30
1080p50 (1125 lines)
1080p60
Composite and S-video2480i
576i
Output Resolutions Matched to inputs
Analog-To-Digital Conversion 10-bit 165 MHz per each of 3 channels
(Continued on following page)
6 •Wall Plate DigitalMedia™ CAT Transmitters: DM-TX-200-2G/400-3G Operations & Installation Guide – DOC. 6949B

Crestron DM-TX-200-2G/400-3G Wall Plate DigitalMedia™ CAT Transmitters
DM-TX-200-2G and DM-TX-400-3G Specifications (Continued)
SPECIFICATION DETAILS
Audio
Switcher
DM-TX-200-2G 2x1 combination digital/analog switch
DM-TX-400-3G 4x1 combination digital/analog switch,
limited audio breakaway
Input Signal Types HDMI, DisplayPort Multimode1, S/PDIF
coaxial3, analog stereo
Output Signal Type DM CAT
Formats
HDMI Dolby®Digital, Dolby Digital EX, DTS®,
DTS-ES, DTS 96/24, Up to 8ch PCM
SPDIF3Dolby Digital, Dolby Digital EX, DTS,
DTS-ES, DTS 96/24, 2ch PCM
Analog Stereo 2-channel
Analog-To-Digital Conversion 24-bit 48 kHz
Performance (Analog)
Frequency Response 20 Hz to 20 kHz ±0.75 dB
S/N Ratio >90 dB, 20 Hz to 20 kHz A-weighted
THD+N <0.05% @ 1 kHz
Stereo Separation >90 dB
Communication
DigitalMedia DM CAT, DMNet, HDCP management,
EDID format management, CEC
USB Supports USB HID class devices
Power Requirements
DMNet Power Usage
DM-TX-200-2G 10 Watts (0.42 Amps @ 24 Volts DC)
DM-TX-400-3G 12 Watts (0.5 Amps @ 24 Volts DC)
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% RH (non-condensing)
Heat Dissipation
DM-TX-200-2G 35 BTU/Hr
DM-TX-400-3G 40 BTU/Hr
Enclosure
Construction Metal with black or white finish
(Continued on following page)
Operations & Installation Guide – DOC. 6949B Wall Plate DigitalMedia™ CAT Transmitters: DM-TX-200-2G/400-3G •7

Wall Plate DigitalMedia™ CAT Transmitters Crestron DM-TX-200-2G/400-3G
DM-TX-200-2G and DM-TX-400-3G Specifications (Continued)
SPECIFICATION DETAILS
Enclosure (continued)
Flush Wall Mount
DM-TX-200-2G 2-gang mountable in a standard
electrical box (2 1/2 inch (64 mm) deep
minimum);
Requires decorator style faceplate (not
included)
DM-TX-400-3G 3-gang mountable in a standard
electrical box (2 1/2 inch (64 mm) deep
minimum);
Requires decorator style faceplate (not
included)
Dimensions
DM-TX-200-2G
Height 4.12 in (105 mm)
Width 3.50 in (89 mm)
Depth 2.53 in (64 mm)
DM-TX-400-3G
Height 4.12 in (105 mm)
Width 5.30 in (135 mm)
Depth 2.53 in (64 mm)
Weight
DM-TX-200-2G 11 oz (285 g)
DM-TX-400-3G 15 oz (408 g)
Available Accessories
CBL-AUDIO Crestron Certified Mini-TRS Stereo
Audio Interface Cable
CBL-DP-HD Crestron Certified DisplayPort to HDMI
Interface Cable
CBL-HD Crestron Certified HDMI Interface Cable
CBL-HD-DVI Crestron Certified HDMI to DVI Interface
Cable
CBL-RCA3Crestron Certified RCA Composite Video
Interface Cable
CBL-RCA23Crestron Certified RCA Stereo Audio
Interface Cable
CBL-RCA33Crestron Certified RCA Component
Video Interface Cable
CBL-VGA Crestron Certified Computer VGA
Interface Cable
CBL-VGA-AUD Crestron Certified Computer VGA
Interface Cable with Audio
DM-CBL DigitalMedia Cable
DM-CONN DigitalMedia Cable Connectors
DM-DR DigitalMedia Repeater
1. HDMI requires an appropriate adapter or interface cable to accommodate a DVI or DisplayPort
Multimode signal. CBL-HD-DVI and CBL-DP-HD interface cables available separately.
8 •Wall Plate DigitalMedia™ CAT Transmitters: DM-TX-200-2G/400-3G Operations & Installation Guide – DOC. 6949B

Crestron DM-TX-200-2G/400-3G Wall Plate DigitalMedia™ CAT Transmitters
2. The RGB input can accept component, composite, and S-video signals via direct interface to
Crestron MPS Series products, or through an appropriate adapter (not included). Input sync detection
is not provided for composite or S-video signal types through the RGB connection.
3. DM-TX-400-3G only.
NOTE: Crestron software and any files on the Web site are for authorized Crestron
dealers and Crestron Authorized Independent Programmers (CAIP) only. New users
may be required to register to obtain access to certain areas of the site (including the
FTP site).
Physical Description
This section provides information on the connections, controls and indicators
available on your DM-TX-200-2G and DM-TX-400-3G.
DM-TX-200-2G Physical View
Operations & Installation Guide – DOC. 6949B Wall Plate DigitalMedia™ CAT Transmitters: DM-TX-200-2G/400-3G •9

Wall Plate DigitalMedia™ CAT Transmitters Crestron DM-TX-200-2G/400-3G
DM-TX-400-3G Physical View
10 •Wall Plate DigitalMedia™ CAT Transmitters: DM-TX-200-2G/400-3G Operations & Installation Guide – DOC. 6949B

Crestron DM-TX-200-2G/400-3G Wall Plate DigitalMedia™ CAT Transmitters

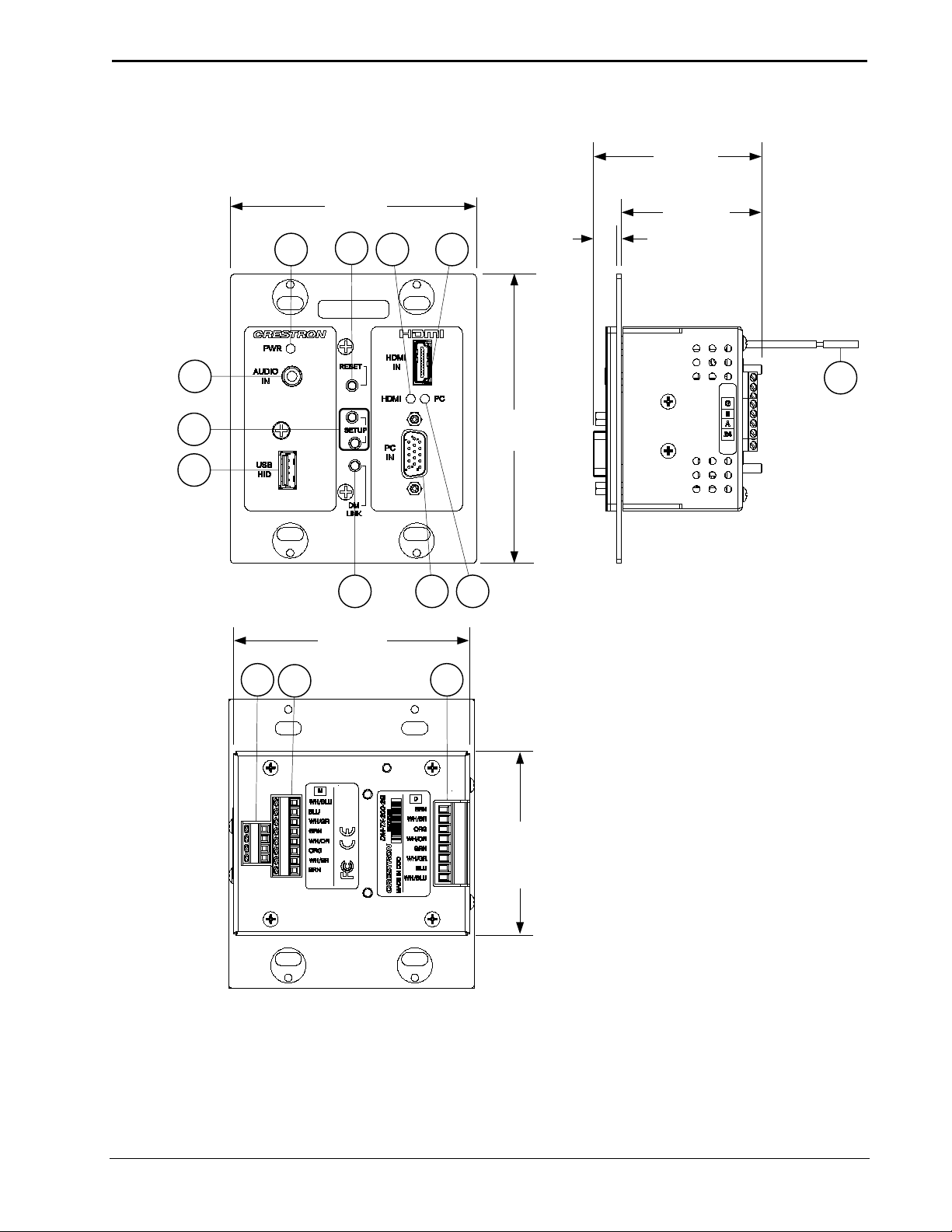

DM-TX-200-2G Overall Dimensions (Front, Right & Rear Views)
3.50 in
(89 mm)
4.12 in
(105 mm)
3.37 in
(86 mm)
2.63
(67 mm)
2.53 in
(64 mm)
2.00 in
(51 mm)
0.34 in
(9 mm)
6
7
1
5
8
24
9
3
11
13
10
12 14
Operations & Installation Guide – DOC. 6949B Wall Plate DigitalMedia™ CAT Transmitters: DM-TX-200-2G/400-3G •11

Wall Plate DigitalMedia™ CAT Transmitters Crestron DM-TX-200-2G/400-3G
DM-TX-400-3G Overall Dimensions (Front, Right & Rear Views)
5.30 in
(135 mm)
4.12 in
(102 mm)
0.34 in
(9 mm)
2.53 in
(64 mm)
2.00 in
(51 mm)
2.63 in
(67 mm)
5.18 in
(132 mm)
6
7
1
5
8
2 4
9
3
11
13
10
12 14
17
19
15
18
20
16
12 •Wall Plate DigitalMedia™ CAT Transmitters: DM-TX-200-2G/400-3G Operations & Installation Guide – DOC. 6949B

Crestron DM-TX-200-2G/400-3G Wall Plate DigitalMedia™ CAT Transmitters
Connectors, Controls & Indicators
# CONNECTORS,
CONTROLS &
INDICATORS
DESCRIPTION
1 PWR LED
(1) Green LED, indicates operating power
supplied via DMNet
2 RESET (1) Miniature recessed push button for
hardware reset
3 HDMI LED
(1) Green LED, indicates HDMI input is
selected
4 HDMI IN
(1) 19-pin Type A HDMI female;
HDMI digital video/audio input;
Also supports DVI and DisplayPort
Multimode1
5 AUDIO IN
(1) 3.5 mm TRS mini phone jack;
Unbalanced stereo line-level audio input;
Input Impedance: 10k Ω;
Input Level: 2 Vrms maximum
6 SETUP
(LED and BUTTON)
(1) Red LED and (1) miniature recessed
push button for Ethernet auto-discovery
7 USB HID
(1) USB Type A female;
USB 1.1 host port for connection of a
mouse/keyboard or other USB HID-compliant
device
8 DM LINK LED (1) Green LED, indicates connection to a
downstream DM device
9 PC IN
(1) DB15HD female, RGB (VGA) or
component (YPbPr) video input2;
Formats: RGBHV, RGBS, RGsB, YPbPr;
Input Levels: 0.5 to 1.5 Vp-p with built-in DC
restoration;
Input Impedance: 75 Ω;
Sync Input Type: Autodetect RGBHV, RGBS,
RGsB, YPbPr;
Sync Input Level: 3 to 5 Vp-p;
Sync Input Impedance: 1k Ω
10 PC LED (1) Green LED, indicates PC input is
selected
11 GROUNDING WIRE (1) Flying lead, chassis ground connection3
12 G B A 244
(1) DMNet port composed of (4) captive
screw terminals;
Connects to DMNet port of a DM switcher,
receiver/room controller, or other DM device
via DM-CBL cable5, 6
(Continued on following page)
Operations & Installation Guide – DOC. 6949B Wall Plate DigitalMedia™ CAT Transmitters: DM-TX-200-2G/400-3G •13

Wall Plate DigitalMedia™ CAT Transmitters Crestron DM-TX-200-2G/400-3G
Connectors, Controls & Indicators (Continued)
# CONNECTORS,
CONTROLS &
INDICATORS
DESCRIPTION
13 M
(1) DM CAT output composed of (8) captive
screw terminals with (1) grounded strain
relief;
Connects to DM CAT input of a DM switcher,
receiver/room controller or other DM device
via the yellow “M” cable of DM-CBL cable5;
Uses the 568-B wiring standard.
14 D
(1) DM CAT output composed of (8) captive
screw terminals with (1) grounded strain
relief;
Connects to “D” DM CAT input of a DM
switcher, receiver/room controller or other
DM device via the blue “D” cable of DM-CBL
cable5;
Uses the 568-B wiring standard.
15 SPDIF7
(1) RCA female;
S/PDIF coaxial digital audio input;
Input Impedance: 75 Ω
16 YPbPrLED7(1) Green LED, indicates YPbPrinput is
selected
17 VID LED7(1) Green LED, indicates VID input is
selected
18 Y, Pb, Pr7
(3) RCA female comprising (1) component
(YPbPr) video input;
Input Level: 1 Vp-p nominal;
Input Impedance: 75 Ωnominal
19 VID7
(1) RCA female, composite video input;
Input Level: 1 VP-P nominal;
Input Impedance: 75 Ωnominal
20 L, R7
(2) RCA female;
Unbalanced stereo line-level audio input;
Maximum Input: 2 Vrms;
Input Impedance: 15k Ω
1. HDMI requires an appropriate adapter or interface cable to accommodate a DVI or DisplayPort
Multimode signal. CBL-HD-DVI and CBL-DP-HD interface cables available separately.
2. The RGB input can accept component, composite, and S-video signals via direct interface to
Crestron MPS Series products, or through an appropriate adapter (not included). Input sync detection
is not provided for composite or S-video signal types through the RGB connection.
14 •Wall Plate DigitalMedia™ CAT Transmitters: DM-TX-200-2G/400-3G Operations & Installation Guide – DOC. 6949B

Crestron DM-TX-200-2G/400-3G Wall Plate DigitalMedia™ CAT Transmitters
3. A grounding lead is provided for connection to earth ground (building steel). This ground connection
is recommended to provide a common ground reference for signals provided to the DM-TX-200-2G
and DM-TX-400-3G, and to reduce the incidence of possible damage to the unit from static
discharge.
4. Refer to the following table for the G B A 24 connector pinouts.
GBA24
PIN # SIGNAL DESCRIPTION WIRE COLOR
G Ground DC Ground Black
B DMNet- DMNet Grey
A DMNet+ DMNet Orange
24 24V DC DC Power Red
5. For DigitalMedia CAT wiring, use DM-CBL DigitalMedia Cable. Up to two DM Repeaters (Model
DM-DR, sold separately) may be required. Refer to the latest version of the Crestron DigitalMedia
Design Guide (Doc. 4789) for complete wiring guidelines.
6. DMNet wiring is not compatible with Cresnet wiring. DMNet wiring cannot be daisy chained.
7. DM-TX-400-3G only.
Operations & Installation Guide – DOC. 6949B Wall Plate DigitalMedia™ CAT Transmitters: DM-TX-200-2G/400-3G •15

Wall Plate DigitalMedia™ CAT Transmitters Crestron DM-TX-200-2G/400-3G
Setup
Network Wiring
When wiring the DM network, consider the following:
NOTE: DMNet wiring and Cresnet®wiring are not compatible.
•Use Crestron Certified Wire.
•Use Crestron power supplies for Crestron equipment.
•Provide sufficient power to the system.
CAUTION: Insufficient power can lead to unpredictable results or damage
to the equipment. Please use the Crestron Power Calculator to help calculate
how much power is needed for the system (www.crestron.com/calculators).
•For DigitalMedia CAT wiring, use DM-CBL DigitalMedia Cable. Up to
two DM Repeaters (model DM-DR, sold separately) may be required. Refer
to the latest version of the Crestron DigitalMedia Design Guide (Doc. 4789)
for complete wiring guidelines.
For more details, refer to “Check Network Wiring” on page 34.
Identity Code
NOTE: In the SIMPL™ Windows program, when a DM-TX-200-2G or
DM-TX-400-3G is dropped onto an input card of a DM switcher, its IP ID is
assigned automatically and does not require additional programming. Use the
information below when a DM-TX-200-2G or DM-TX-400-3G is dropped directly
into an Ethernet slot on the control system in SIMPL Windows, without a DM
switcher.
The IP ID is set within the DM-TX-200-2G’s and DM-TX-400-3G’s IP table using
Crestron Toolbox. For information on setting an IP table, refer to the Crestron
Toolbox help file. The IP IDs of multiple DM-TX-200-2G and DM-TX-400-3G
devices in the same system must be unique.
When setting the IP ID, consider the following:
•The IP ID of each unit must match an IP ID specified in the SIMPL
Windows program.
•Each device using IP to communicate with a control system must have a
unique IP ID.
16 •Wall Plate DigitalMedia™ CAT Transmitters: DM-TX-200-2G/400-3G Operations & Installation Guide – DOC. 6949B
