Crux Logic ACPBM-77Y User manual

Smart-Play
Power/Video Harness
USB Extension Cable Microphone
ACPBM-77Y
Smart-Play Integration with Rear-View Camera Input for
E & F Series BMW Vehicles with CIC Infotainment Systems
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.0724191 of 13
- Smart-Play Integraon system allows connecon of Android and other devices to the iDrive infotainment system.
- Control Apps using smartphone’s voice control feature or the factory iDrive Knob.
- Adds aermarket rear view camera input.
- Picture-in-picture mode combining aer-market rear-view picture with factory parking sensor graphics.
- Built-in on-screen display and setup.
- 1 trigger output (+12V max. 1A) for the camera power.
*NOTE: Android Phones must have a rmware version of 8 and above.
PRODUCT FEATURES:
PARTS INCLUDED:
ACPBM-77Y Module Power/CAN Harness 1 (E-Series) Power/CAN Harness 2 (F-series)
ACPBM-77Y Vehicle Harness 3.5mm to RCA Adapter Smart-Play Interface Module
NOTE:
This kit has two seperate POWER/CAN harnesses. Only use the harness that’s designed for your
vehicle.
POWER/CAN 1 - E-Series Trims
POWER/CAN 2 - F-Series Trims
LVDS 1 Cable (to vehicle) LVDS 2 Cable (to radio)

Setting the DIP switches of the Interface Box.
DIPs 1 and 2 on the back of the interface-box is used to set the monitor size. DIP 3 must be set to OFF.
After each change of the DIP switch settings you have to execute a power reset of the interface box!
Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.072419
2 of 13
INSTALLATION DIAGRAM:
R
INTERFACING SOLUTIONS
ACPBM-77Y
DIP SWITCH SETTINGS:
+12V Switching
Output 1 (Pink Wire)
Rear-View
Camera
(Not Included)
Back of Headunit
CRUX LVDS 1
Cable
CRUX LVDS 2
Cable
*If using OEM Back-up
camera, leave REAR CAM
input unoccupied.*
Pink factory
LVDS Cable
*If installing after-market Back-Up
camera, use the pink wire to provide power to
to the camera, if not, please ignore this connection*
ACPBM-77Y
Vehicle Harness
UART
POWER/VIDEO
Smart-Play Module
Vehicle Auxiliary
Input (AUX input)
Female RCA to
3.5mm jack
Male L & R RCA
Outputs (Audio)
AUX
POWER / CAN
FRONT
CAM
REAR
CAM
FW
UPDATE
Smartphone Cable
USB Input
OR
12V Green Output 2
to ACC power
(on Smart-Play Harness)
Power/CAN
Harness
iDrive Knob
Retention Cable
ACPBM-77Y Module
ACC Power
Ground
Constant
LVDS
IN
LVDS
OUT
v. 123
ON
Intelligent Solution
LVDS OUT
LVDS IN
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.040119
2 of 12
INSTALLATION DIAGRAM:
R
INTERFACING SOLUTIONS
DIP SWITCH SETTINGS:
VEHICLE / SCREEN SIZE DIP 1 DIP 2 DIP 3
CIC-E (E-Series) / 6.5” OFF OFF
CIC-E (E-Series) / 8.8” OFF ON
CIC-F (F-Series) / 7” ON OFF
CIC-F (F- Series) / 10.2” ON ON
VRFBM-77EF
Front and Rear View Integration Interface
for Select BMW Vehicles with CIC Navigation Systems
BM-77EF Module
LVDS1 Cable
4-Pin HSD
Female LVDS
Vehicle Harness
BM-77EF
Harness
Power/CAN or
Power/CAN2
Harness
Back of Headunit
+12V Switching
Output 1 (Pink Wire)
Front
Camera
(Not Included)
Rear-View
Camera
(Not Included)
+12V Switching Output 2 (Green Wire)
Reverse Gear Signal Input
+12V (White Wire)
Female Quadlock
Vehicle Harness
OR
DVD Player (Not Included)
Portable
Video
Player
(Not Included)
LVDS2 Cable
NOTES:
1. The Interface is installed behind the headunit and needs a constant +12V power source.
Smart-Play Integration with Rear-View Camera Input for
E & F Series BMW Vehicles with CIC Infotainment Systems
Refer to P. 7 for the CAN com-
municaon wiring for F-Series
vehicles, if needed.

Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.072419
3 of 13
R
INTERFACING SOLUTIONS
ACPBM-77Y
INSTALLATION INSTRUCTIONS:

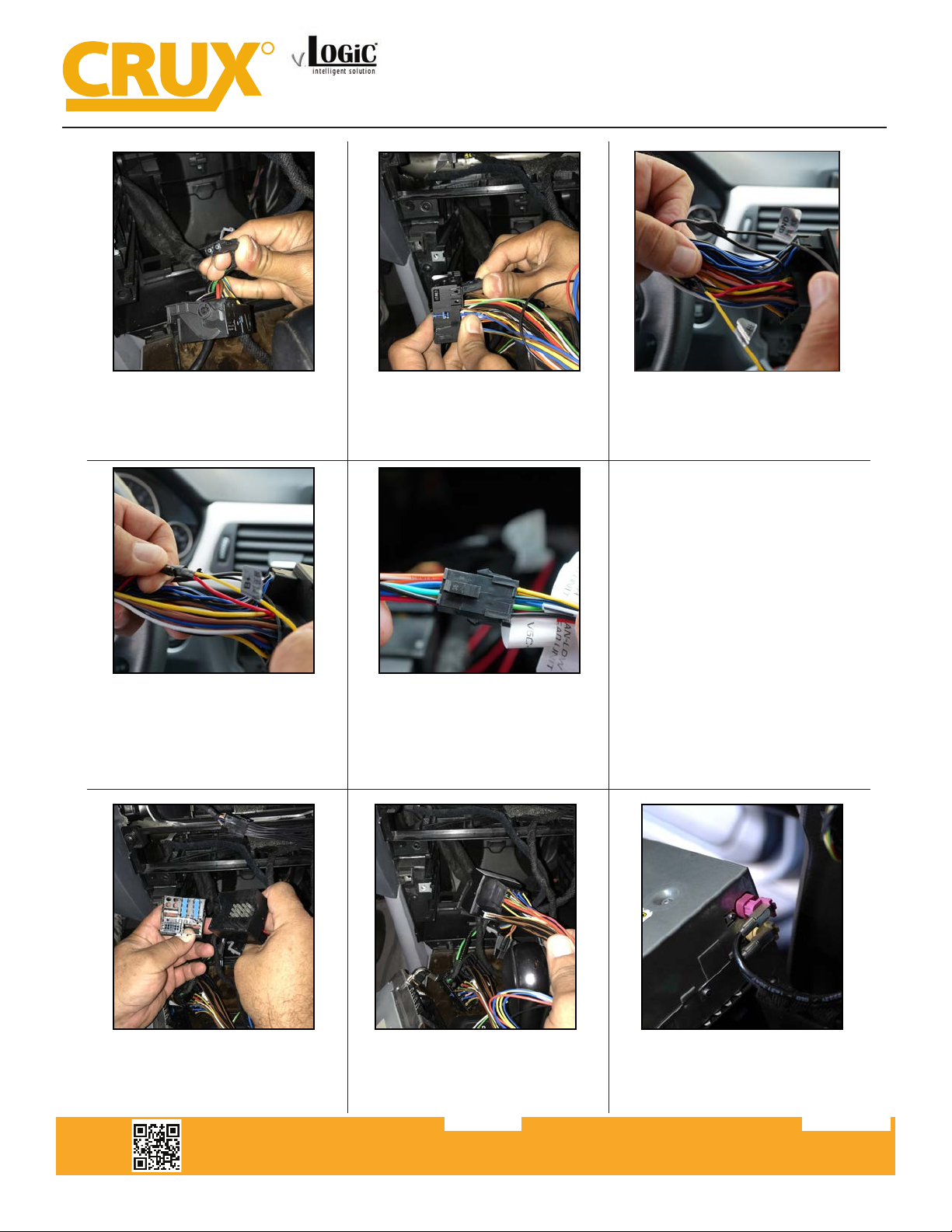

1. Installaon is done behind the front
panel.
2. Carefully remove the dashboard
front panel using a trim removal tool.
3. Carefully remove the hazard/door-
unlock panel and unplug the harness.
4. Remove the push-to-start panel and
its connector to fully take o the front
panel.
5. Remove the A/C control panel using
a trim removal tool, along with the
cables connected to it.
6. Carefully remove the Headunit
panel.
7. Remove the 4 screws bracing the
Headunit.
8. Remove the Headunit to gain access
to its backside.
9. Unplug the Quadlock connector
from behind the radio.
Smart-Play Integration with Rear-View Camera Input for
E & F Series BMW Vehicles with CIC Infotainment Systems

Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.072419
4 of 13
R
INTERFACING SOLUTIONS
ACPBM-77Y
10. Unplug the 2-pin ber opc cable
from the factory Quadlock connector.
11. Plug in the 2-pin ber opc connec-
tor to the ACPBM-77Y harness (Female
side).
12. Tap the Black GND wire from the
Smart-Play Power/Video harness to the
black Ground wire on the ACPBM-77Y
vehicle harness (Male Side).
15. Tap the RED ACC wire from the
Smart-Play Power/Video harness to the
green +12V output on the ACPBM-77Y
harness.
13. Tap the Yellow constant wire from
the Smart-Play Power/Video harness to
the Red constant wire on the ACPBM-
77Y vehicle harness (Male Side).
14. Connect the male 8-pin connector
from the ACPBM-77Y to the female
8-pin connector on the Power/CAN
harness.
*Make sure you use the correct Power/CAN har-
ness for your vehicle trim (refer to NOTE on p.1)*
16. Plug the factory Quadlock connec-
tor in to the male side of the ACPBM-
77Y harness.
17. Plug in the female side of the
ACPBM-77Y harness to the Headunit.
18. Unplug the PINK LVDS factory cable
from the Headunit.
Smart-Play Integration with Rear-View Camera Input for
E & F Series BMW Vehicles with CIC Infotainment Systems

Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.072419
5 of 13
R
INTERFACING SOLUTIONS
ACPBM-77Y
19. Connect the LVDS 2 cable in place
of the PINK LVDS factory cable.
20. Connect the factory PINK LVDS
cable to the male end of the LVDS 1
cable (CYAN colored connector).
21. Plug the otherside of the LVDS 1
cable into to the LVDS OUT port on
the ACPBM-77Y module. And plug the
otherside of the LVDS 2 cable into the
LVDS IN port on the same module.
22. If your vehicle is an F-series trim,
we will need to access the CAN data
from beneath the iDrive knob. This
only applys to you if you are using the
Power/CAN 2 Harness. If you are in-
stalling on an E-series trim (Power/CAN
1) you can skip steps 23 - 28.
Refer to P. 7 for the wiring diagram for
the F-series if needed.
23. Carefully remove the center trim
using a trim removal tool to get under-
neath the iDrive knob.
24. Your vehicle may have a 4-pin or
10-pin connector for the iDrive knob.
Remove the iDrive connector.
25. Using a pin removal tool, remove
the Green(CAN LO Pin 4) and Orange/
Green(CAN HI Pin 3) wires from the
iDrive connector.
Both 4 & 10 pin connectors have the same pin posions.
26. Insert the two pins (Orange/Green
--> Pin1 & Green --> Pin2) into the
empty 2-pin connector aatched to the
Yellow/Black & Blue/Black wires from
the Power/CAN 2 harness.
27. Insert the Yellow (CAN HI) --> Pin3
and Blue (CAN LO) ---> Pin4 wires into
the 4-pin iDrive connector (inplace
of the Green & Orange/Green wires
removed earlier).
Smart-Play Integration with Rear-View Camera Input for
E & F Series BMW Vehicles with CIC Infotainment Systems

28. Plug in the the modied iDrive con-
nector back into the port underneath
the iDrive knob.
29. Plug the Video Out from the Smart-
Play Power/Video harness into the
FRONT CAM input on the module.
30. Plug the otherside of the LVDS 1
cable into to the LVDS OUT port on
the ACPBM-77Y module. And plug the
otherside of the LVDS 2 cable into the
LVDS IN port on the same module.
31. If installing an aermarket back-up
camera, plug the camera’s video out
to the REAR CAM input on ACPBM-77Y
module. Use the PINK power output 1
wire provided on the Power/CAN har-
ness to power the camera. An image
is displayed in step 26. If retaining an
OEM camera or if you’re not installing
a back-up camera, skip steps 25 and 26.
32. Tap the camera power wire to the
PINK power output 1 wire.
33. Connect the audio out RCAs from
the Power/Video harness to the RCA
inputs on the 3.5mm to RCA adapter.
34. Plug in the 3.5mm jack into the
vehicle’s factory AUX input.
35. Mount the microphone to a loca-
on of your choice.
36. Connect the 3.5mm microphone
jack to the MIC input on the Power/
Video harness.
Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.072419
6 of 13
R
INTERFACING SOLUTIONS
ACPBM-77Y
Smart-Play Integration with Rear-View Camera Input for
E & F Series BMW Vehicles with CIC Infotainment Systems

Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.072419
7 of 13
R
INTERFACING SOLUTIONS
ACPBM-77Y
37. Connect the white wire with the
4-pin connector from the Power/CAN
harness to the UART port on the Smart-
Play module.
38. Connect the USB extenon cable to
the USB input on the Power/Video har-
ness for easier access when connecng
your smart-phone or USB.
39. Connect the Power/Video harness
to the POWER/VIDEO port on the
Smart-Play module.
41. Check the OSD sengs and make sure they match those on the next page.
Test the Back-Up camera. Put gear in reverse and check for rear camera image on
screen. Go to Smart-Play mode and test for funconality.
Once the cameras and Smart-Play validaon is complete, mount the ACPBM-77Y
and Smart-Play modules. And nally, reinstall all the components to their original
set-up.
40. Test the communicaon. Turn on
the ignion and check if LEDs are on.
Smart-Play Integration with Rear-View Camera Input for
E & F Series BMW Vehicles with CIC Infotainment Systems
Female 10-Pin
iDrive Connector
CAN-Low Pin 4 (Green)
CAN-High Pin 3 (Green/Orange)
CAN-Low (Blue)
CAN-High (Yellow)
F-Series
Power/CAN2
Harness
ACPBM-77Y Module
CAN Connecon for F-Series

Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.072419
8 of 13
R
INTERFACING SOLUTIONS
ACPBM-77Y
OSD Menu
Use the following buons to enter the ACPBM-77Y OSD Menu:
BMW

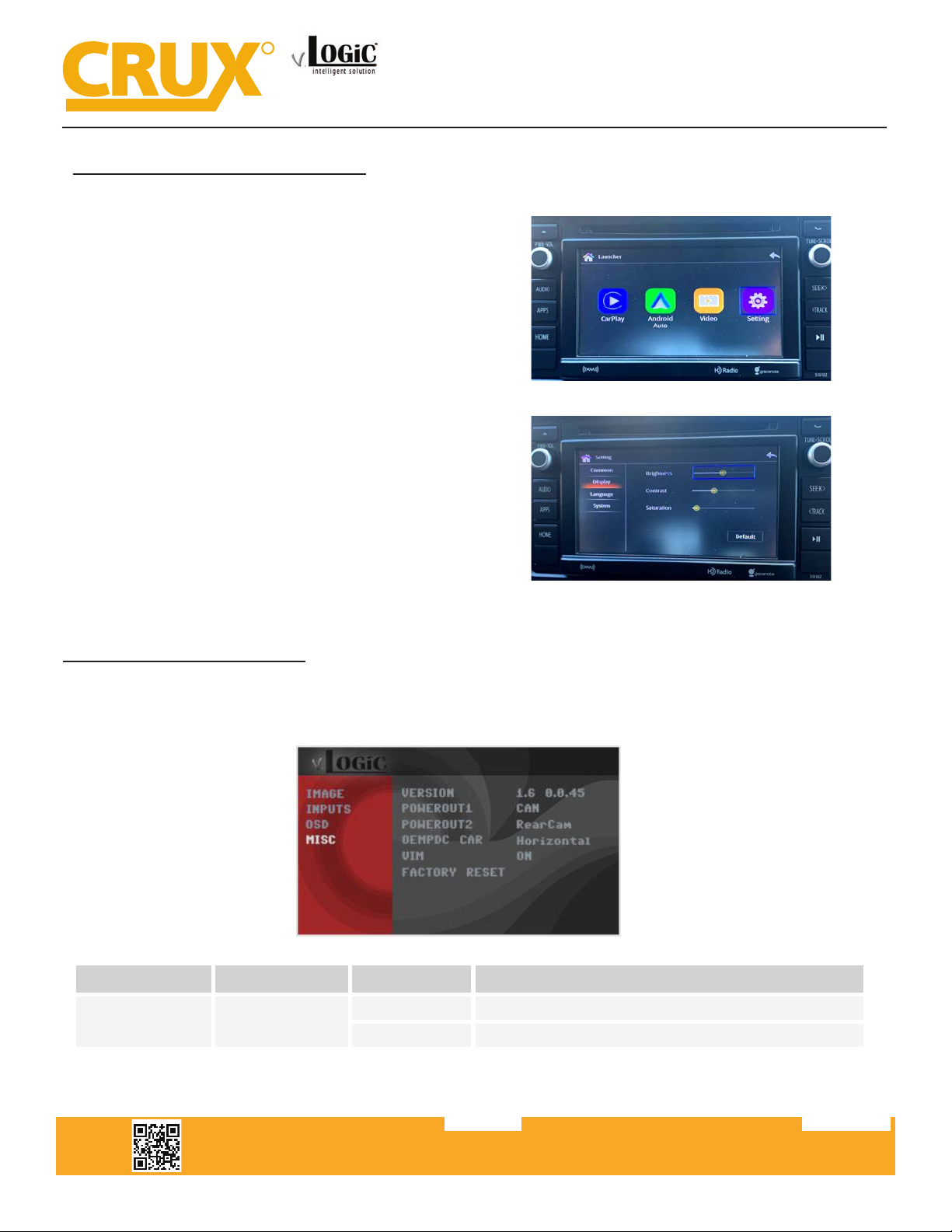

OSD SETTINGS:
To ensure that Smart-Play works, make sure
these input sengs are in eect:
FRONTCAM (FVC) = SmartPhone
To retain the factory Back-Up Camera:
REARCAM (RVC) = OEM
To acvate an aermarket Back-Up Camera:
REARCAM (RVC) = ON
Press the menu button to
change the video sources
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.070919
11 of 13
R
INTERFACING SOLUTIONS
ACPAD-81Y
Smart-Play Integration with Multi Camera Inputs & USB Player
for AUDI Vehicles with MMI MIB/MIB2 Systems
OSD Menu Menu Item
OSD
POS. X 0-xxx
POS. Y 0-xxx
Size Small Small OSD menu window
Large Large OSD menu windows
Osd TimeOut 2-20
Info Version X.XX.XX Displays the current SW-version
Factory Reset
CONNECTING THE SMART-PLAY INTERFACE:
plugged in to the USB port using the smartphone’s OEM charger/data cable. The USB port on the
ACPBM-77Y can be used to charge the Apple device or play videos or music from a USB thumb drive.
to the next enabled input. If all inputs are enabled the order is:
Rear CAM > Video Input (Smart-Play) > Repeat ...

ACPBM-77Y
To exit the Smart-Play menu, hold the “Menu” button for 3-5 sec.
Switch the vehicle’s audio source to the AUX source. This will allow us to hear the Smart-Play audio

Smart-Play Integration with Rear-View Camera Input for
E & F Series BMW Vehicles with CIC Infotainment Systems
NOTE: To exit back-up camera
image, press the iDrive button once
Use knob to navigate menu
and make selections
Hold for 3 sec to enter
OSD menu
to exit, hold for 3 sec
Hold for 3 sec to enter
Smart-Play menu
to exit, hold for 3 sec

Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.072419
9 of 13
R
INTERFACING SOLUTIONS
ACPBM-77Y
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.070919
12 of 13
R
INTERFACING SOLUTIONS
ACPAD-81Y
Smart-Play Integration with Multi Camera Inputs & USB Player
for AUDI Vehicles with MMI MIB/MIB2 Systems
1. Picture above shows the HOME screen of the Smart-
with a USB thumb drive plugged in to the USB port.
2. Using the iDrive knob of the vehicle, navigate the
cursor to the Bluetooth icon (scrolling right). Image above
will appears on the screen the BT device name and
pairing code (0000).
device and connect to “CRUX Smart-Play_XXXX”.
4. Once the ACPBM-77Y has connected via Bluetooth, it
5. Use the iDrive knob to navigate the cursor to the 6. Image above shows the “Home Screen” once the
smartphone is connected.
Smart-Play Integration with Rear-View Camera Input for
E & F Series BMW Vehicles with CIC Infotainment Systems
NOTE:
Make sure the audio source on the factory system is set to AUX mode (not AM/FM/Bluetooth). Also, if your smart-
phone is set to automatically connect to your factory bluetooth, make sure you void the connection. One way is to forget the
device (your vehicle) on your phone. This will avoid Smart-Play connection interferences. If you are using the wireless feature
and notice degraded audio or video quality, switch to the wired alternative, for it is a higher quality connection, unlike bluetooth.

Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.072419
10 of 13
R
INTERFACING SOLUTIONS
ACPBM-77Y
Video-In-Motion Function
It is possible to ac�vate and deac�vate the video-in-mo�on in the OSD menu “MISC” (Opera�on of the OSD:
see chapter “OSD-Opera�on”).
OSD-Menu
Menu Item
Setting
Description
MISC VIM
ON
Video-In-Mo�on ac�vated
OFF
Video-In-Mo�on deac�vated
NOTE: The Video-In-Mo�on func�on is permanently ac�ve without disturbing the naviga�on performance.
Selecting the Interface as Current AV Source
BMW 2-Button iDrive Mini 2-Button iDrive
A Long press of the Menu-button will select the interface as current video source.
A Short press of the CD Button or the MENU Button will switch the video sources (cameras or other video
source). Each short press will switch to the next enabled input. If all inputs are enabled the order is:
FRONT CAM

REAR CAM

…
Inputs which are not enabled are skipped.
CCC Navigation Screen
10 / 10
Rev.040816
Smart-Play Integration with Rear-View Camera Input for
E & F Series BMW Vehicles with CIC Infotainment Systems
Display sengs for Smart-Play
Adjust brightness, contrast, and saturaon for a more dened image.
To get to the Display menu, scroll to the SETTING icon in
the Smart-Play HOME menu, and select it.
Once in the SETTING menu, scroll to the Display submenu
and adjust the brightness, contrast, and saturaon to
your desired values.

Conguring the Trigger Outputs
You can congure the +12V trigger outputs in the OSD menu under MISC. The PINK wire (12V OUTPUT
1) is Power Out 1 for the cameras and Power Out 2 is for the Smart-Play module.
OSD Menu Menu Item Seng Descripon
Opon
Power Out 1
(PINK)
CAN +12V when the interface is on (red LED on)
ACC +12V when ignion is on
Cam +12V when camera input is acvated
(manually or automacally)
Power Out 2 CAN Smart-Play power on.
OFF Trigger output deacvated
Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.072419
11 of 13
R
INTERFACING SOLUTIONS
ACPBM-77Y
Tip: We recommend for all camera to use power out seng “Cam” and for Smart-Play the power out
seng of “CAN”.
Smart-Play Integration with Rear-View Camera Input for
E & F Series BMW Vehicles with CIC Infotainment Systems
Power out sengs for Rear Aermarket Camera and Smart-Play
(Use the PINK (12V Output 1) wire to power the Rear camera)
In the OSD Menu under MISC, set “POWEROUT1” to
CAM. And set “POWEROUT2” to CAN.
CAM
CAN

Image Sengs
The camera picture can be set in the OSD menu. For this seng
you must rst acvate the camera level and push the “MENU“
buon for 2 seconds to acvate the sengs menu. With the
rotaon knob you can select and change the “Brightness”,
“Contrast”, “Saturaon”, Hue” and “Sharpness”. Click “Exit” to
leave the sengs menu.
Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.072419
12 of 13
R
INTERFACING SOLUTIONS
ACPBM-77Y
OSD Sengs
You can change the basic conguraons of the interface in the OSD (on screen display).
OSD Menu Menu Item Seng Descripon
OSD
POS. X 0-xxx Horizontal posion of the OSD
POS. Y 0-xxx Vercal posion of the OSD
Size Small Small OSD menu window
Large Large OSD menu windows
Osd TimeOut 2-20 Time seng for automac OSD shuto
Info Version X.XX.XX Displays the current SW-version
Opon 1 Factory Reset Reset to factory default sengs
Note: The picture sengs will be retained for every camera input separately.
Smart-Play Integration with Rear-View Camera Input for
E & F Series BMW Vehicles with CIC Infotainment Systems

Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.072419
13 of 13
R
INTERFACING SOLUTIONS
ACPBM-77Y
VEHICLE APPLICATIONS:
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.040119
12 of 12
R
INTERFACING SOLUTIONS
VRFBM-77EF
Front and Rear View Integration Interface
for Select BMW Vehicles with CIC Navigation Systems
VEHICLE APPLICATIONS:
1 SERIES
2007 - 2011 1 Series 3-door hatchback
2007 - 2013 1 Series 2-door Coupe (1M)
2004 - 2012 1 Series (5-door)
3 SERIES
2005 - 2011 3 Series Sedan
2005 - 2011 3 Series Wagon
2006 - 2013 3 Series Coupe
2007 - Up
2005 - 2011 3 Series Sedan
2005 - 2011 3 Series Wagon
2006 - 2013 3 Series Coupe
2007 - Up
5 SERIES
2011-Up 5 Series
2012-Up 5 Series Sports Wagon
Each short press will switch to the next enabled input. If all inputs are enabled the order is:
FRONT CAM REAR CAM …
6 Series
2011-Up 6 Series
7 Series
2008-Up 7 Series
2009-Up 7 Series long wheel
X SERIES
2009 - Up X1 Sports Vehicle
2012-Up X3 Sports Vehicle
Z SERIES
2009 - Up Z4 Roadster
Your vehicle must have this CIC infotainment system to use this product.
Smart-Play Integration with Rear-View Camera Input for
E & F Series BMW Vehicles with CIC Infotainment Systems
BMW
