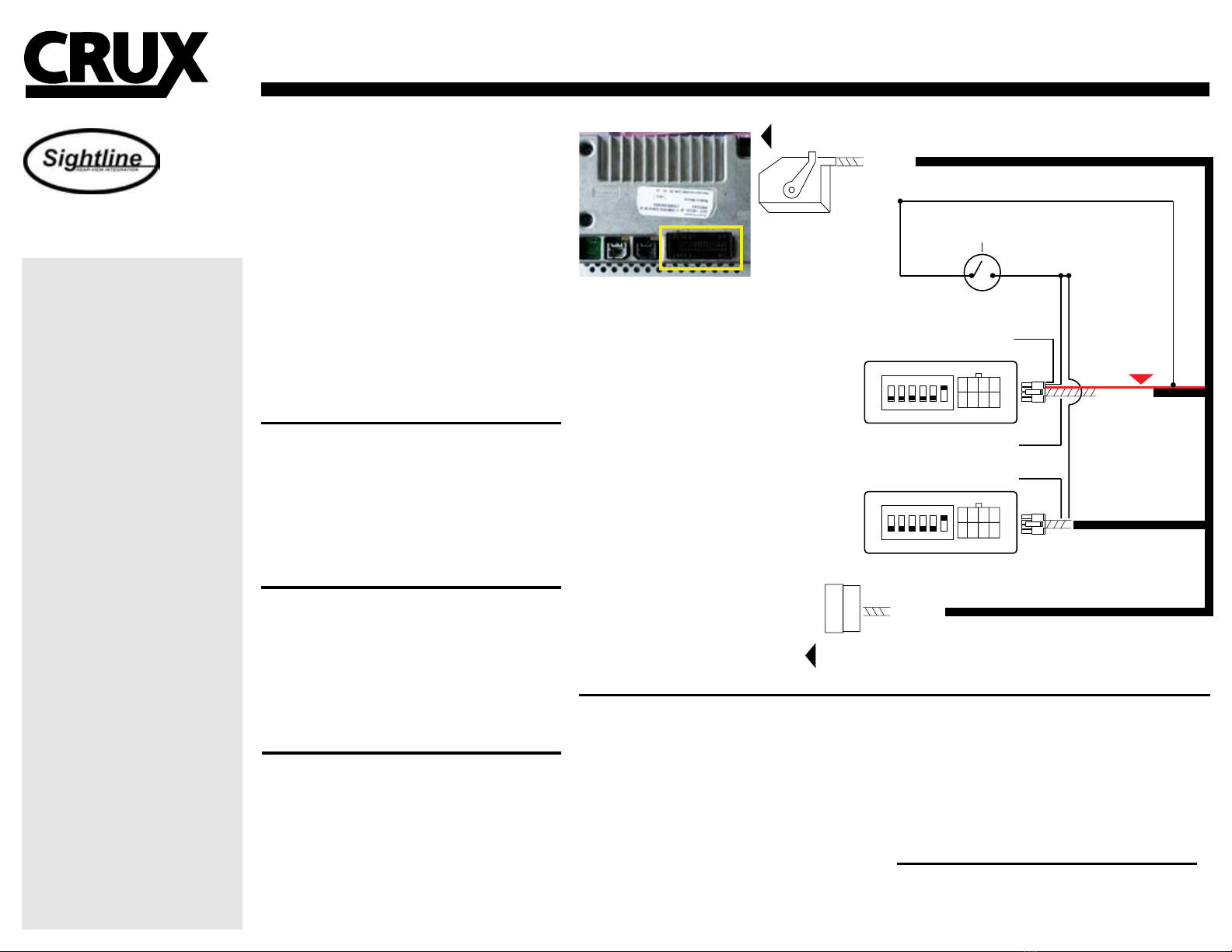

TO FACTORY
DISPLAY HARNESS
8-PIN
(male plug)
WHITE/ OPTIONAL
12V OUTPUT
54-PIN
(female plug)
54-PIN
(male plug)
8-PIN
(male plug)
DISPLAY
4 5 6
ON
1 2 3
4 5 6
ON
1 2 3
------------------
------------------
------------------
BOTH GREEN/ 12V POWER SWITCH
(SAME FUNCTION AS DIP 1)
NON-PERMANENT
12V
MUST USE
TOGGLE SWITCH
(INCLUDED)
WHITE/ OPTIONAL
12V OUTPUT
C-500
INTERFACE
C-125
INTERFACE
WHITE/ OPTIONAL
12V OUTPUT
RED
12V CONSTANT
SEE PAGE 2
FOR TOGGLE SWITCH
USE (INCLUDED)
TAP RED WIRE FOR 12V CONSTANT
(TO BE USED FOR TOGGLE SWITCH)
SAFETY WARNING:
THIS INTERFACE IS DESIGNED TO ACTIVATE VIDEO IN-
MOTION TO ALLOW THE PASSENGER ACCESS TO THE
ADDRESS INPUT WHILE THE VEHICLE IS IN-MOTION. THIS
INTERFACE MAY CAUSE AN ERROR WHEN SERVICED AT
THE OEM DEALER. BE AWARE THAT MOST DEALERS
WILL ATTEMPT TO VOID THE MANUFACTURERS
WARRANTY WHEN INSTALLING ANY AFTERMARKET
EQUIPMENT. IMPROPER USE OF THIS INTERFACE BY THE
DRIVER MAY RESULT IN CITATION. DRIVER MUST KEEP
FULL ATTENTION ON THE ROAD AND RESPONSIBILITY
ON THE SAFETY OF THEIR PASSENGERS.
INTERFACING SOLUTIONS
VIDEO IN-MOTION ACTIVATION FOR SELECT FORD MyFord Touch RADIOS 2013-UP
FORD
2013 - 2015 F150
2013 - 2015 F150 Raptor
2013 - 2015 F250
2013 - 2015 F350
2013 - 2015 F450
2013 - 2015 F550
Installer must use Toggle Switch for
VIM Control. (See diagram on page 2)
WORKS FOR ALL:
MyFord Touch Radios
SONY AND NON-SONY SYSTEMS
Activating the VIM will aect the GPS
System.
(May cause delay in location updates)
C-125 & C-500 MODULE:
SW: 2.0.3
WORKS FOR ALL:
MyFord Touch Radios
SONY AND NON-SONY SYSTEMS
VIMFD-95F We recommend reading this installation guide rst before starting any
work. Following these instructions from “Start” to” Finish” will ensure
a smooth and hassle free installation. We oer telephone support M-F
9:00 AM – 5:00 PM PDT at 1 (855) 822-1348. We are here to help.
PARTS INCLUDED:
(1) FD-95 C-500 Interface
(1) FD-95 C-125 Interfaces
(1) FD-95 T-Harness
(1) Toggle Switch
(1) Instruction
PRECAUTIONS:
- Remove the negative side of the battery to avoid any short circuits
during the installation.
- Do not install the interface near any major components or near the
HVAC system. This may cause damage or overheating to the vehicle.
- Do not disconnect the airbag connection behind the radio panel.
PRELIMINARY:
Please read the entire manual before installing this interface.
This interface does not activate DVD reader.
INSTALLING THE INTERFACE:
1. Remove the factory display to gain access to the factory connectors.
2. Remove the 54-Pin connector from behind the display.
3. Make the T-Harness connections behind the factory display.
(if the connectors do not match please contact tech support)
4. Connect both Interfaces to an 8-Pin connector. No orientation.
4. Set the dip switches as needed on both interfaces. (See below)
5. Test the Navigation address input while the car is in-motion to verify
the VIM is active.
As an option we have provided a 12v output wire from our
interface, as the vehicle does not provide a 12v source.
Not all vehicles support this feature.
INSTALLATION OVERVIEW
Rev. 012115
TROUBLE SHOOTING
1. No video display while in-motion.
- Make sure the dip switches are in the correct position.
- Start the vehicle and drive more than 10 feet.
CONNECT BEHIND
THE DISPLAY
(Not The Radio)
SETTING THE DIP SWITCHES
Dip 1: Set to OFF.
Dip 2,3,4: Not Used
Dip 5: Place to the OFF position on both interfaces.
Dip 6: Place to the ON position on both interfaces.
Activating the VIM will effect the GPS System.
(May cause delay in location updates)
FOR DIP SWITCH SETTINGS
SEE ATTACHED
SLIP SHEET
(Page 2)
BACK OF FACTORY
DISPLAY
(Not The Radio)
MUST USE TOGGLE SWITCH TO
ACTIVATE VIM
