Crux RVCMZ-72 User manual

MAZDA
For 2013 - UP Vehicles
with Touchscreen Monitors
Important: This interface des not require the
installer to tap for REVERSE signal. The switching
will occur automatically.

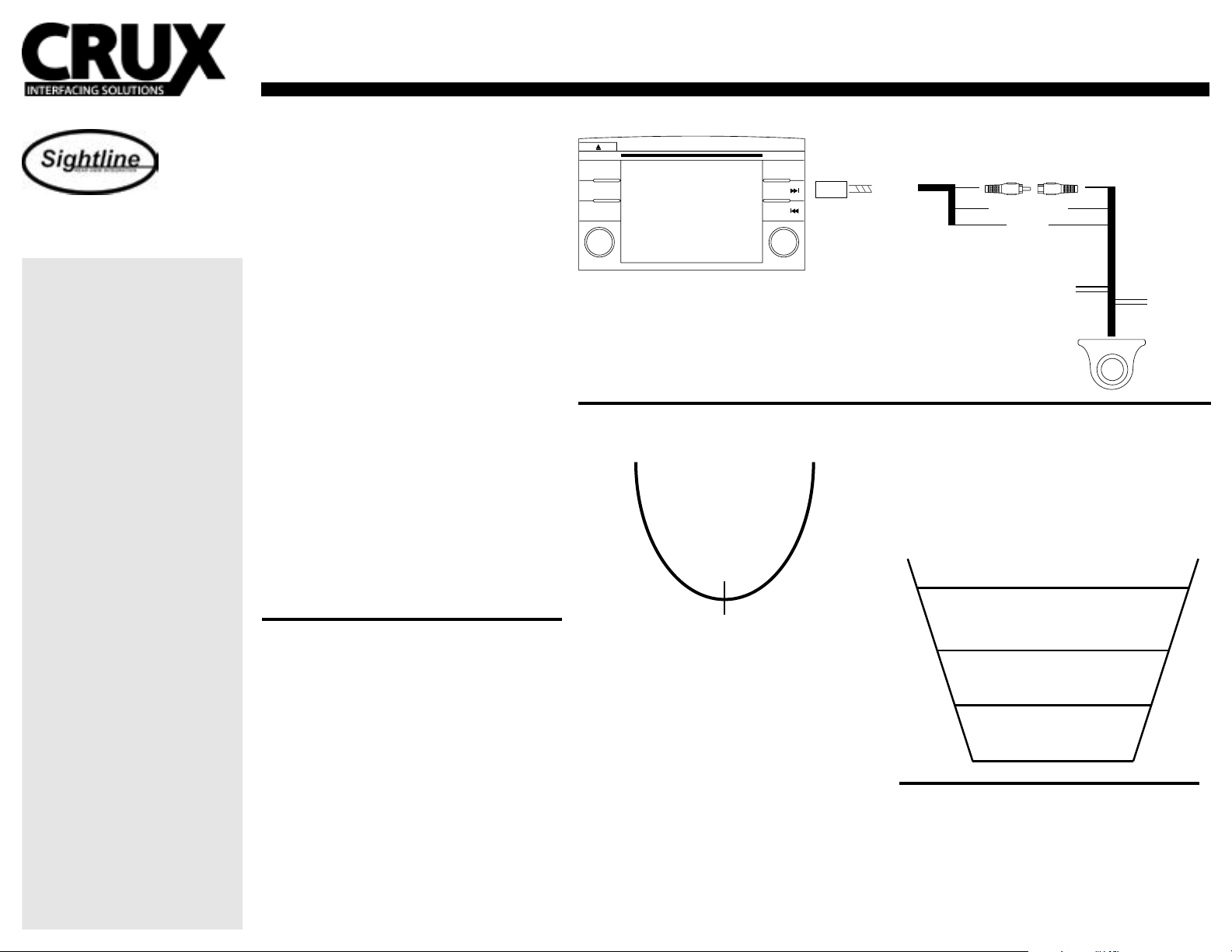

RVCMZ-72 CAMERA CONNECTIONS
TROUBLE SHOOTING
1. No video display while in reverse.
- Make sure the trunk is closed, as this will dis-engage
the camera while in reverse.
The parking lines are there to assist you while reversing.
What the lines mean:
Yellow Line: CLEAR
Purple Line: GETTING CLOSE
Red Line: WARNING - VERY CLOSE
To remove the parking lines simply cut the GREEN wire located near
the 4 pin tail connector in the truck.
RED
PURPLE
YELLOW
We recommend reading this installation guide rst before starting any
work. Following these instructions from “Start” to” Finish” will ensure
a smooth and hassle free installation. We oer telephone support M-F
9:00 AM – 5:00PM PDT at 1 [phone]. We are here to help.
PARTS INCLUDED:
(1) Rear Camera (MZ-72)
(1) 15 ft. Extension
(1) MZ-72 Harness
(1) Instruction
Camera Specications:
- Lens Angle 170 Degrees
- Resolution 420
- NTSC/ PAL
- Reference Lines
- Waterproof
- Pixels 656 x 492
PRECAUTIONS:
- Remove the negative side of the battery to avoid any short circuits
during the installation.
- Do not install the interface near any major components or near the
HVAC system. This may cause damage or overheating to the vehicle.
- Do not disconnect the airbag connection behind the radio panel.
PRELIMINARY:
Please read the entire manual before installing this interface.
TOOLS NEEDED:
- Hex Screw Set
- Drill Gun
- Panel Remover
INSTALLING THE CAMERA AND CABLE
1. Remove the rear panel between the Mazda logo and license plate
using a panel removal tool.
2. Drill a 5/8 size hole in the location
3. Fish the wires through the drilled hole and through the pass through
into the trunk/cargo area.
4. Remove the factory radio to gain access to the factory connectors.
5. Route the wires towards the radio and make the power and video
connections. Tap power and ground at the cigarette lighter.
NOTE: DO NOT CONNECT A REVERSE TRIGGER WIRE TO THE
MZ-72 HARNESS, THE RADIO DISPLAY WILL SWITCH
AUTOMATICALLY WHEN THE REVERSE GEAR IS ENGAGED.
REAR-VIEW INTEGRATION w/ CAMERA FOR MAZDA VEHICLES (w/FACTORY MONITOR) 2013-UP
Camera Power (+6V)
Ground
FACTORY
RADIO
4-PIN
(female plug)
VIDEO
CONNECTION
15 ft
(extention)
GREEN*
(Parking Grid)
CONNECT TO ACTIVAT
E
WHITE*
(Reverse Image)
CONNECT TO REVERSE
AUDIO
PHONE
NAV
SETUP
SEEK
SEEK
VOL TUNE/FILE
ACC POWER
FOR CAMERA
IS PROVIDED FROM
THE 4-PIN HARNESS
*NOTE: Changes to the image
will take effect after power is cycled.
REVERSE IMAGE
If the camera angle is inverted (upside down), please cut the WHITE
wire located near the 4 pin tail connector in the trunk.
PARKING LINE
CUT HERE
WHITE WIRE
Rev. 030315

MAZDA
For 2013 - UP Vehicles
with Touchscreen Monitors
Important: This interface des not require the
installer to tap for REVERSE signal. The switching
will occur automatically.
RVCMZ-72
REAR-VIEW INTEGRATION w/ CAMERA FOR MAZDA VEHICLES (w/FACTORY MONITOR) 2013-UP
Rev. 030315
COMPATIBLE RADIO:
