Dancover ARROW GH120025 User manual

01-03-2022
Manual
for

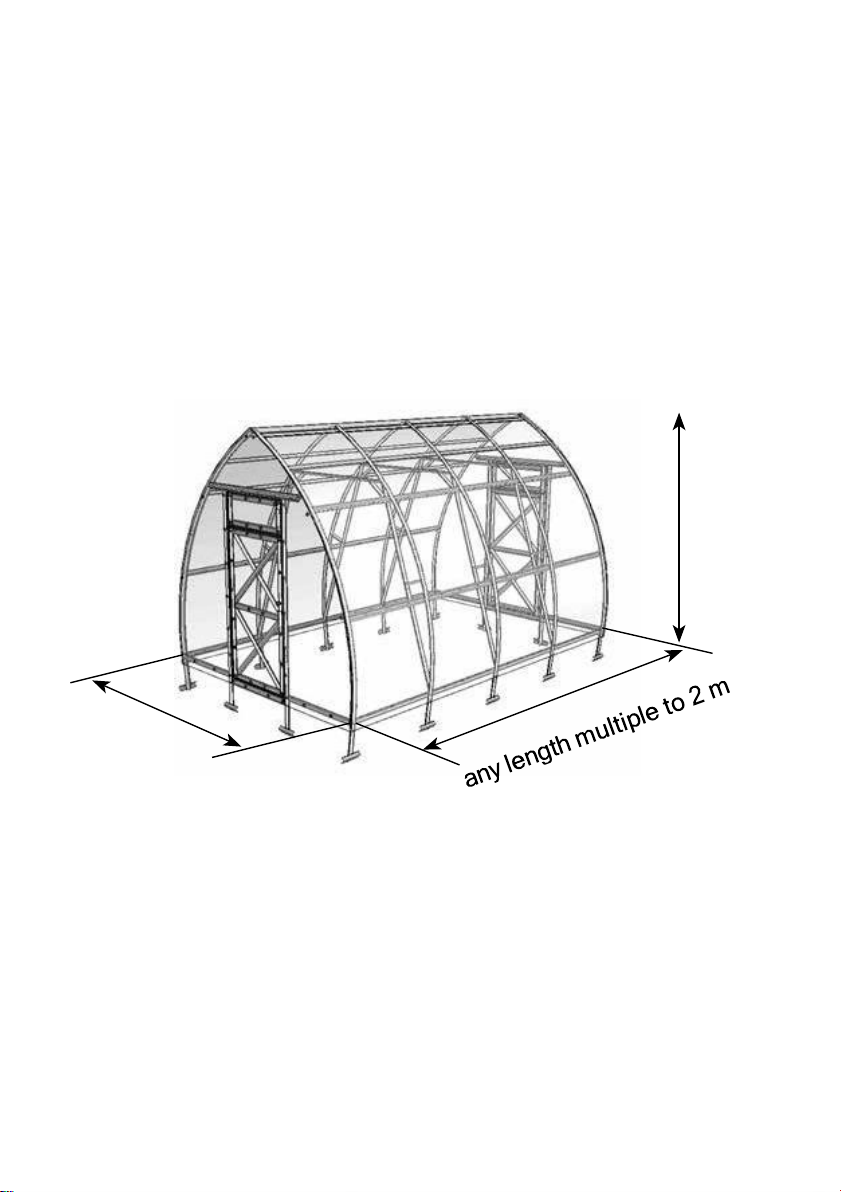

Greenhouse ARROW

Height 2.47 m
width 2.6 m

Technical certificate «ARROW»
2

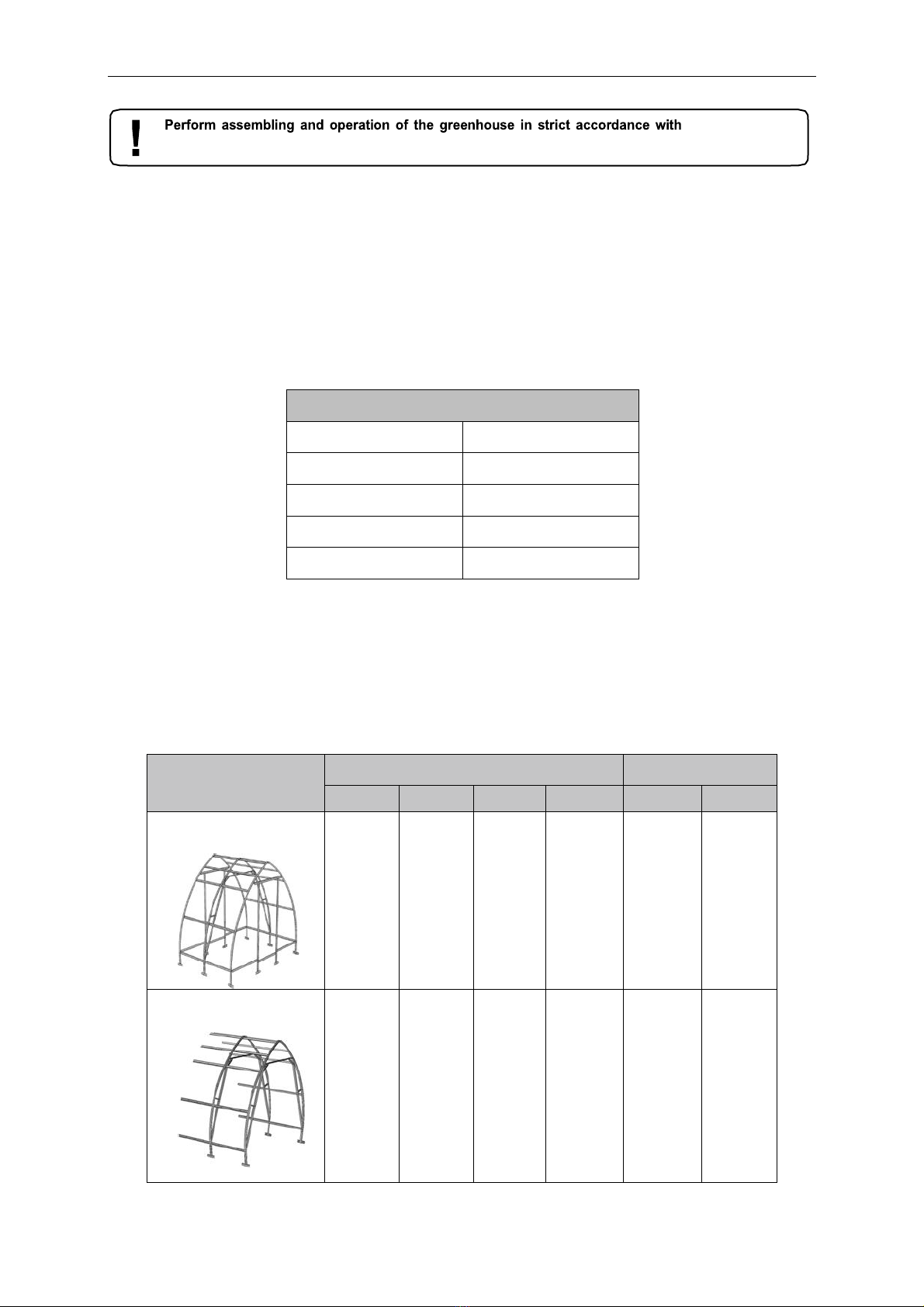

Description
Greenhouse Arrow is intended to create the microclimate favorable for growing garden and
allotment crops in gardens and household plots. The area of covered ground depends on
the length of the greenhouse (Table 1). The high of the installed greenhouse frame is 2.5 m,
and the width of 2.6 m is optimal for two garden beds inside. The greenhouse may be of
different length depending on the customer’s wish. The required length of the greenhouse
can be attained by purchasing additional “Extension” packages each adding 2 m to the
base length 2 m (Table 2).
Table 1
Parameters of greenhouse
Length
m
covered area
m2
2 m
5.2 m2
4 m
10.4 m2
6 m
15.6 m2
8 m
20.8 m2
The greenhouse frame is made of zinc-coated iron and assembled with screws and nuts.
The greenhouse is fixed to the ground by digging special supports into the soil or by joining
it to a foundation slab with fastening hooks. The supply package includes everything you
need for fastening the cover surfaces. Cover surface sheets are supplied following the
customer’srequest. The greenhouse has two door openings and two ventilating windows in
the oppositeends. Side ventilating windows are supplied following the customer’s request.
ARROW
Base Box
Ext. Box
1/4
2/4
3/4
4/4
1/2
2/2
BASE
1
1
1
1
-
-
EXTENTION
-
-
-
-
1
1
the manual and
operating rules stated inthe tehnical certificate. Please keep this technical certificate for further
reference.

Technical certificate «ARROW»
3
Operation rules
Before assembling please check to ensure all parts shown in the supply set have been
received. When installing the greenhouse or using a third party, the buyer should check
theassembly quality to ensure compliance with the assembly manual instructions.
Install the greenhouse at least 2 metres from buildings and at least 2 metres from the
canopy of trees.
The greenhouse is designed to withstand the wind speed no more than 24 m/sec.
In winter, coverage of greenhouse should not be removed provided that snow load is limited.
Should greenhouse be unattended all winter period, buyer should either remove the
coverageor estimate possible snow load. Ultimate load for the frame having complete box with
installed drawbars and side braces appears under 450 kg snow cover per 1 m2of
horizontal ground surface corresponding to 2.25 m fresh snow layer or 1.1 m packed snow
layer.
Cleaning and washing polycarbonate panels
1. Rinse the panel with warm water.
2. Wash the panel with a mild soap solution or household detergent and warm water, using a
soft cloth or sponge to remove dirt.
3. Rinse with cold water and wipe with a soft cloth.
Do not use abrasives or highly alkaline cleaning agents to clean polycarbonate panels.
Dry wiping of the surface will damage the protective layer of the glazing and shorten its
effective life. Do not rub the surface of polycarbonate panels with brushes, metallic fabric
or other abrasive materials. When disinfecting a greenhouse from pathogens of fungal
and bacterialdiseases, do not apply sulfur candles to avoid corrosion of the frame.
Warranty liabilities
Claim submission period is 24 months from the date of purchase.Warranty does not apply to
cases if:
1. Installation of the structure in violation of the requirements of the instructions.
2. Violation of the operating rules.
3. Misuse of the structure.
4. The presence of corrosion traces on the cutoffs of parts, because this does not affect
theperformance of the structure.
5. Greenhouse deformations due to excess of snow load stated in the technical certificate
ofthe greenhouse.
6. Greenhouse deformations due to soil movement.
7. Floods, hurricanes, and other natural disasters.

Technical certificate «ARROW»
4
STANDARD SUPPLY SET
BOX 1/4
№
marking
view
denomination
length,
m
q-ty, pcs
1
4Н
Bottom arc
1.5 m
6
2
4В
Upper arch
1.5 m
6
3
8
Upper door opening stand
1.5 m
4
4
12
Door vertical element
1.49 m
4
5
PK
Profile
1.05 m
4
BOX 2/4
№
marking
view
denomination
length,
m
q-ty, pcs
6
1
Stand
0.35 m
10
7
3
Support
0.2 m
10
8
5
Butt end upper strainer
1.22 m
2
9
6
Butt end lower strainer
0.82 m
6
10
7
Bottom door opening stand
0.47 m
4
11
9
Horizontal strainer
1.27 m
1
12
10
Side brace
1.06 m
4
13
11
Brace spreader
0.25 m
2
14
13
Door horizontal part
0.67 m
6
15
16
Butt end strap
1.28 m
2
16
17
Door strap for the latch
0.15 m
4
17
18
Reinforcement nogging piece
0.32 m
2
18
-
Reinforcement end
0.74 m
4
19
-
Ridge cover plate
1.14 m
2

Technical certificate «ARROW»
5
BOX 2/4
20
-
Hinge strip
3.6 m
1
21
-
Door strip
10 m
1
22
-
Butt end strip
6 m
2
23
-
Angle
20
24
-
Сorner of arcs
3
25
-
Bracket
8
26
-
Top metal fastening band
3
27
-
Bottom metal fastening band
6
28
-
Hinge
8
29
-
Semi finished rotator (with 2 elastic headers)
4
30
-
Tube bend spinner
1
31
-
Handle
8
32
-
Pin
4
33
-
Adhesive tape
1
34
-
Double sided tape
1
35
M4x10 screw
10
36
M5x10 screw
378
37
M5x14 screw
22
38
M5x35 screw
108
39
M4x35 screw
8
40
M5x50 screw
12
41
4.8x13 self
drilling screw
8
42
M6х60 bolt
6

Technical certificate «ARROW»
6
BOX 2/4
43
M4 nut
20
44
M5 nut
14
45
M6 nut
612
46
6 washer
6
47
32х5 washer
12
BOX 3/4
№
marking
view
denomination
length,
m
q-ty, pcs
48
2
Balk
0.96 m
20
49
14
Small door diagonal
0.9 m
4
50
15
Large door diagonal
0.97 m
4
51
19
Window horizontal element
0.67 m
4
52
20
Window vertical element
0.31 m
2
53
-
Hook for door and small
windows
-
4
BOX 4/4
2000
1050
base roof and
side walls
6 pcs.
2 pcs.
2 pcs.
2 pcs.
2 pcs.

Technical certificate «ARROW»
7
BOX EXTENSION
BOX 1/2
№ marking view denomination length, m
quantity,
pcs
1
2
Balk 0.96 m
20
2
4Н
Bottom arc 1.5 m
4
3
4В
Upper arch 1.5 m
4
4
1
Stand 0.35 m
4
5
3
Support 0.2 m
4
6
9
Horizontal strainer 1.27 m
2
7
10
Side brace 1.06 m
8
8
11
Brace spreader 0.25 m
4
9
18
Reinforcement nogging piece 0.25 m
4
10
-
Ridge cover plate 1.14 m
2
11
P
Profile 1.0 m
4
12
- Сorner of arcs 2 2
13
-
Top metal fastening band 2
2
14
- Bottom metal fastening band 4 4
15 -
Double sided tape
1 1
16
M4x10 screw
4
17 M5x10 screw
172
18 M5x14 screw
4
19 M4x35 screw
8
20 M5x35 screw
16
21 М6х60 bolt
4
22 M4 nut
12
23 M5 nut
192

Technical certificate «ARROW»
8
BOX 1/2
BOX 2/2
24 M6 nut 4
25 6 washer
8
26 32х5 washer
16
2000
1000
Extension roof
and side walls
6 pcs.

Technical certificate «ARROW»
9

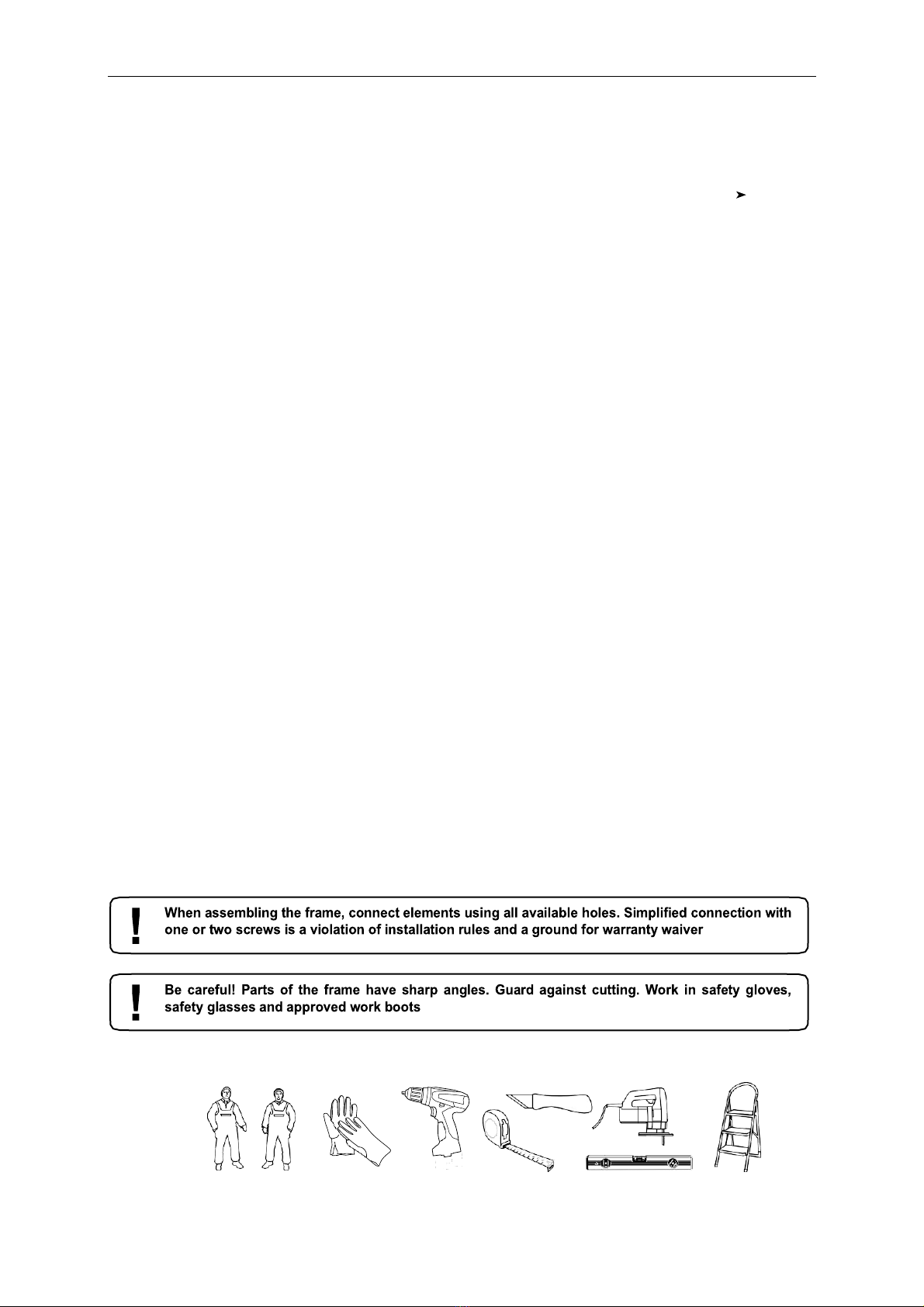

Introduction
Connect elements using profiles, screws and nuts. In this case, no matter whatelement is on top.
Legend:
- Arrow indicates this side up.
Be careful not to damage elements, because they don’t have enough rigidity before final assembling.
Use supports (for example, chairs) on temporary stages of installation for uniform lifting of frame
assembled. To coincide holes in complicated joints use a nail of 5 mm diameter or a drift pin with
tapered end.
Some parts of the frame have free holes resulted from elements’ uniformity.
Cellular polycarbonate panels are installed with a certain surface, which has a protective layer,
outside (towards the sun). The protective layer usually has a side with the inscriptions on the
transportation film. The other side of the film is transparent. Mark the protective side of the sheet in
each panel because after removing the transportation film, the sides of the panel do not visually
differ. The transportation film should be removed from both surfaces before fixing the glazing on the
frame.
It is necessary to stick the adhesive tape over the open polycarbonate shearing surfaces.

General view of the EXTENSIONfor greenhouse Arrow
Greenhouse Arrow extended
by any number of Extensions:
1If the greenhouse is mounted on a foundation (seepara. 4.4), the elements1and 3
are not assembled and are not mounted in the subsequent assembly.
№6
1
box 2
1pc.
№7
3
box 2
1pc.
3
13
1
Х6
3
Х4
1
1
3
№27 box 2
1pc.
2pc.
М5х10 М5
box 2
box 2
2pc.
М5х10 М5
box 2
1pc.
М4х10 М4
10
General view of the frame, greenhouse Arrow

№2
4В
box 1
2pc.
№8
5
box 2
1pc.
4В
4В
5
2.1
4В
4В
4В 4В
4В
5
inside view
№24
1pc.
М5х10
2pc.
М5
box 2
4pc.
М5х10 М5
box 2box 2
№1
4Н
box 1
2pc.
4В 4В
5
4Н
4Н
8
8
4В
4Н
5
8
2.2
box 2
2pc.
М5х10 М5
4pc.
М5х10 М5
box 2
№23 box 2
2pc.
№23 2
2pc.
box
№3
8
box 1
2pc.
5
4В
4Н
4Н
№23 box 2
2pc.
box 2
2pc.
М5х10 М5
М5х10 М5
box 2
3pc.
№25 box 2
1pc.
11

4В
4В
5
4Н
4Н
88
7
7
6
6
6
1
1
1
1
8
7
1
7
6
6
1
4Н
6
Х2
2.3
4pc.
М5х10 М5
box 2
№32 box 2
1pc.
6pc.
М5х10 М5
box 25pc.
М5х10 М5
box 2
№10
7
2
2pc.
box №9
6
box 2
3pc.
4В
4В
4В
4В
4Н
4Н
1
1
4В
4Н
1
4Н
1
4Н
3.1 №2
4В
box 1
2pc.
№1
4Н
box 1
2pc.
№24 box 2
1pc.
2pc.
М5х10 М5
box 2
box 2
2pc.
М5х10 М5
2pc.
М5х10 М5
box 2
box 2
4pc.
М5х10 М5
12

11
4Н
3.2
18
10
10
10
11
10 11
9
18
9
18 10 Х1
2pc.
М5х10 М5
box 2
6pc.
М5х10 М5
box 2
№17
18
box 2
2pc.
№12
10
box 2
4pc.
№11
9
box 2
1pc.
№13
11
box 2
2pc.
4.1
2
2
2
2
2
2
2
2
2
1
4Н
2
6-1
4В
2
4Н
2
2
10
1
№48
2
box 3
10 pc.
2pc.
М5х10 М5
box 2
2pc.
М5х10 М5
box 22pc.
М5х10 М5
box 2
11
10
10
4pc.
М5х10 М5
box 2
13

2
2
2
2
2
2
22
2
2
4.2
2
4Н 10
2
1
№48
2
box 3
10 pc.
2pc.
М5х10 М5
box 2
4.3
!
L1=L2
60.
21
L- the length of a greenhouse
through the arcs’central axes
N - quantity of greenhouse’s
sections
L=2000+2000хN (mm)
1000 1000
1000 1000
859 858 859
LT=2060+2000хN (mm)
14

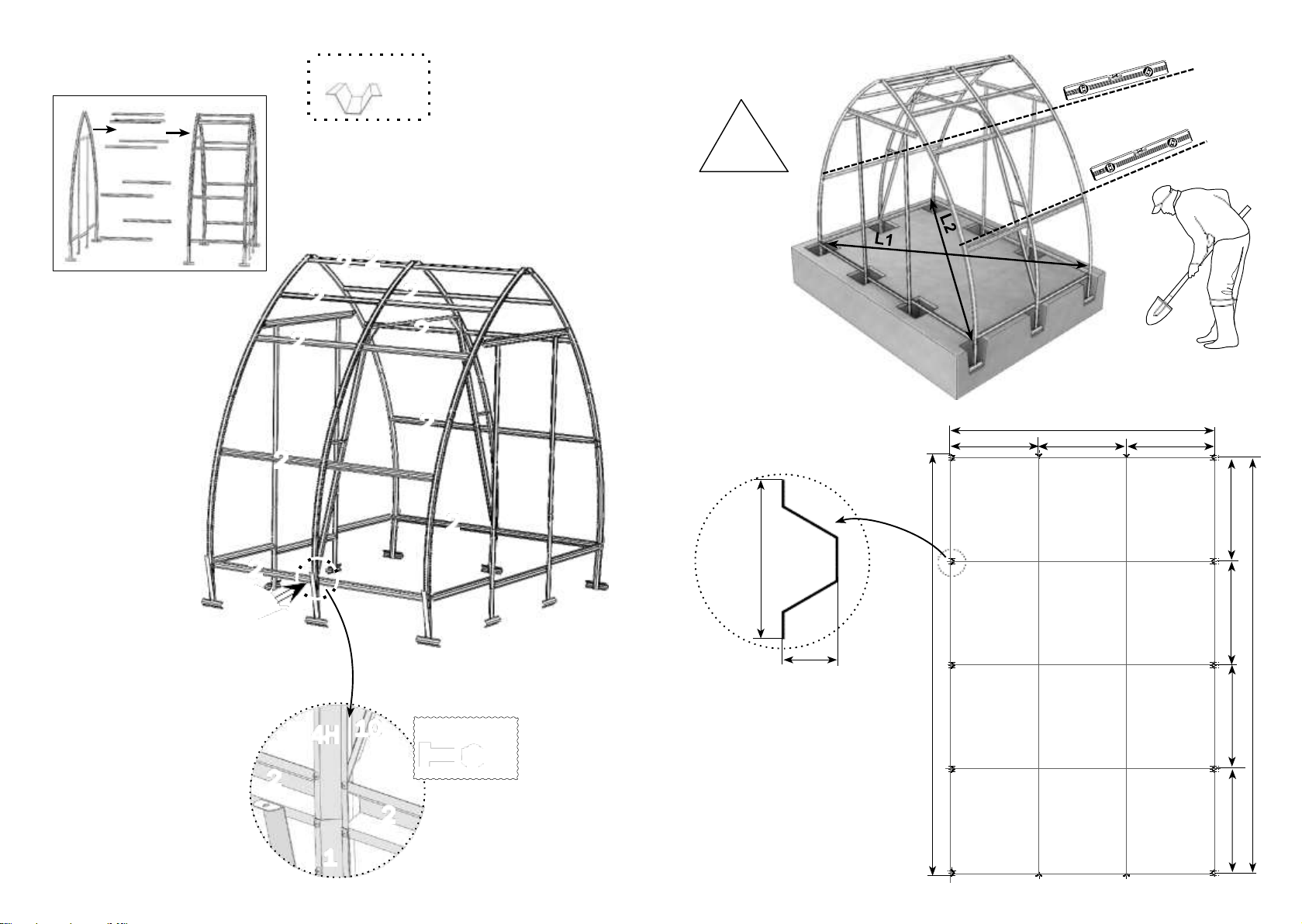

The arrangement plan stands of the greenhouse on the foundation
for greenhouse Arrow . 2577
4.4

20
20
19
19
5.1 №52
20
box 3
2pc.
№51
19
box 3
2pc.
19
20
2pc.
М5х10 М5
box 2
19
20
2pc.
М5х10 М5
box 2
19
20
19
20
2pc.
М5х10 М5
box 2
2pc.
М5х10 М5
box 2
5
№28 box 2
1pc.
box 2
2pc.
М5х10 М5
17
2pc.
М5х10 М5
box 2
№23
1pc.
box 2
Fasten pieces of cover surface on the ventilating window with washers , letting
the cover surface out in one side , covering the cellular structure beforehand
.2 (by sticking scotch tape on it). Weather strips are installed along the contour of
ventilating windows.
4pc.
М5х14 М5
box 2
17
№28 box 2
1pc.
№16
17
box 2
1pc.
20
19
20..25 mm
20
№21 box 2
0.3 m
№21 box 2
0.8 m
2pc.
№20 box 2
0.3 m
box 3
1pc.
5х32
№31 box 2
2pc.
№32
1pc.
box 2
М5х35 5х32 М5
15
box 2
8pc.

6.1 №4
12
box 1
2pc.
№14
13
box 2
3pc.
15
15
14
14
13
13
13
1212
box 2
2pc.
М5х10 М5
box 2
4pc.
М5х10 М5
5pc.
М5х10 М5
box 2
№49
14
box 3
2pc.
№50
15
box 3
2pc.
15 14
2pc.
М5х10 М5
box 2
14
13
12
4pc.
М5х10 М5
box 2
6pc.
М5х10 М5
box 2
6Fasten pieces of cover surfaceon the doorwith washers, letting the cover surface
.2 out in one side, covering the cellular structure beforehand (by sticking scotch tape
on it). Weather strips are installed along the contour of doors.
2pc.
М5х10 М5
box 2
13
20..25mm
12
№21 box 2
1.5 m
М5х35 5х32 М5
box 2
18 pc.
№28 box 2
1pc.
12
№20
m
1.5
box 2
№16
17
1pc. 4pc.
М5х14 М5
box 2box 2
№21 box 2
0.8 m
2pc.
№23 box 2
1pc.
17
17
box 3
1pc.
5х32
№31 box 2
2pc.
№32 box 2
1pc.
2pc.
М5х10 М5
box 2
№28
1pc.
box 2
16

Avoid over-tightening screws that fasten the polycarbonate in order
not to damage the polycarbonate sheet and destroy its structure
7Mount side pieces of coverage.Holding a piece of coverage, fasten it with screws and
washers by elements 6, 7, 8 and by angles using tap screws with washers. Holes for
.1 screws are drilled by boring bit of 5 mm diameter from inside of greenhouse through
holes in frame elements.
Mount cellular polycarbonate strictly facing sun with a side having
protective layer (by all means, clarify it under purchase or before
mounting). Protective layer usually is on the side with inscriptions on
transport film. On the other side of sheet film is clear. Transport film is
removed from both sides immediately before fastening coverage on the
frame.
protective layer
5х32
box 2
1pc.
М5х35 5х32 М5
box 2
1pc.
№23 box 2
1pc.
1pc.
box 2
М5х10 5х32 М5
№53 box 3
1pc.
2
8
inside view
1pc.
М5х10 М5
box 2
№18 box 2
2pc.
box 2
1pc.
М5х35 5х32 М5
Install reinforcing elements of door opening.
17

Use a knife to smooth the cover surface according to the arches 4Н and
4В, and then install weather strips.
№22
6m
box 2
4В
4Н
7.3
7.2
Place the butt end strap 16 onto butt end cover surface and fasten it onto part 5
through the surface. Under part 16 there is a joint between parts of butt end cover
surfaces.
№15
16
box 2
1pc. М5х50 М5
box 2
18
1pc.
16 5

Cellular polycarbonate shall be installed strictly defined side out
(towards the sun), which has a protective layer. The protective layer is
usually at the side with the inscriptions on the transport film. The film
on the other side of sheet is transparent. After marking the sheet, but
prior to its cutting, make a mark on the protected side of the sheet
for each piece: after removal of the transport film sheet sides are
not visually different. The transport film is stripped from both sides
immediately before fixing the cladding on the frame.
Sections of polycarbonate
with open honeycombs
should be covered by
adhesive tape.
9.1
Rotator for locking the window is installing similarly
8Insert wire rotator for door closing in free holes (against the stop) through elements
12 and 17 by straight end from inside.
Use straightpart of the tube runningto bend rotator in the opposite direction. Setelastic
header on the rotator.
This construction allows to push the door in the closed position, being both outside and
inside the greenhouse.
1) 2) 3)
1.
17
2.
№29 box 2
1pc.
№29 box 2
1pc.
№30 box 2
1pc.
№29 box 2
1pc.
17
1.
2.
1) 2)
3)
№29 box 2
1pc.
№29 box 2
1pc.
№29 box 2
1pc.
№30 box 2
1pc.
19
