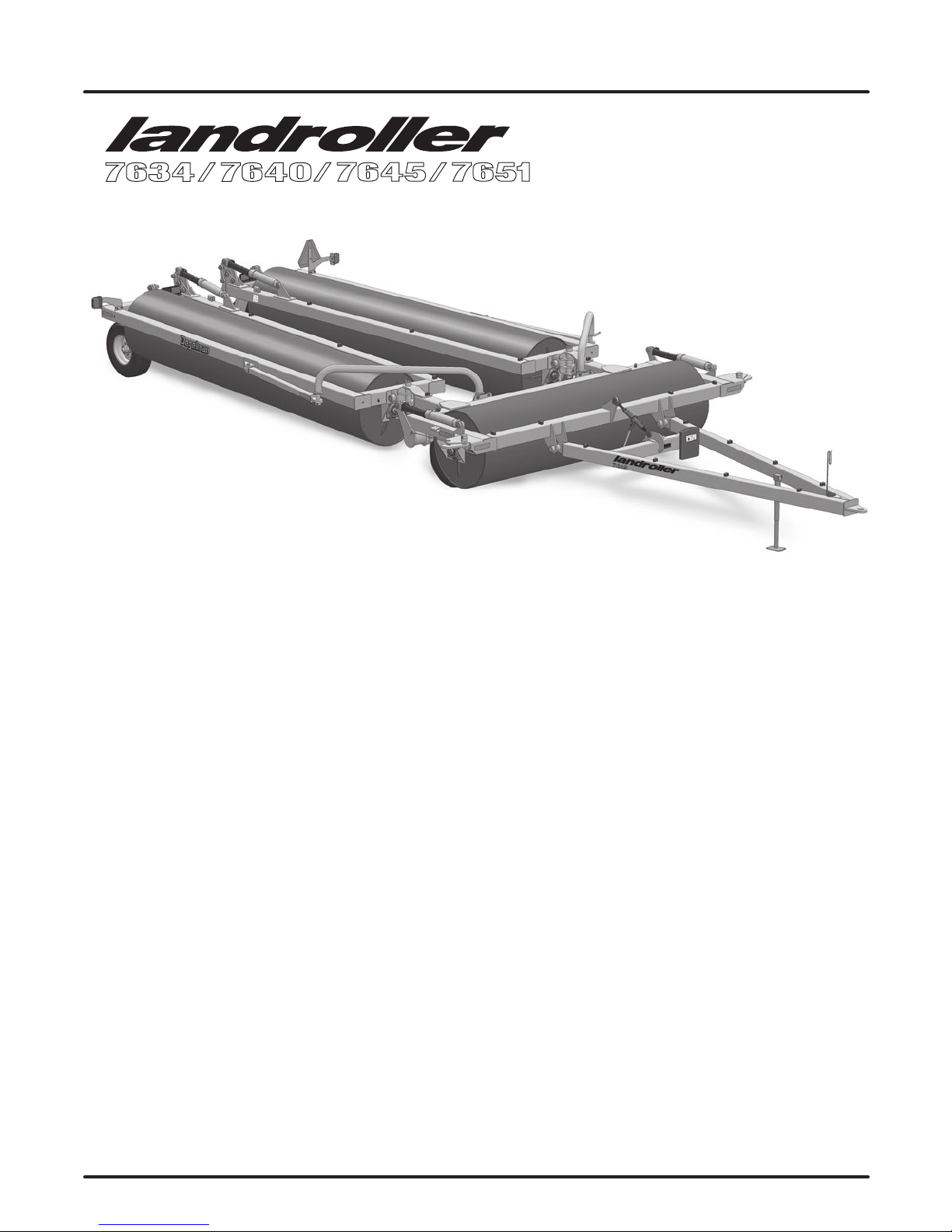

TRI-PLEX
LANDROLLER
LR7634, LR7640, LR7645, LR7651
OPERATOR & PARTS
MANUAL
DEGELMAN INDUSTRIES LTD.
BOX 830-272 INDUSTRIAL DRIVE,
REGINA, SK, CANADA, S4P 3B1
FAX [phone] PH 306.543.4447
1.800.667.3545 DEGELMAN.COM
142630 v1.5

IMPORTANT:
READ MANUAL
DEGELMAN INDUSTRIES LTD.
BOX 830-272 INDUSTRIAL DRIVE,
REGINA, SK, CANADA, S4P 3B1
FAX [phone] PH 306.543.4447
1.800.667.3545 DEGELMAN.COM
TABLE OF CONTENTS - OPERATORS SECTION
Introduction 1
Safety 2
Operation 4
Transport to Field Position 7
Field to Transport Position 8
Service & Maintenance 9
Service / Maintenance Checklist 11

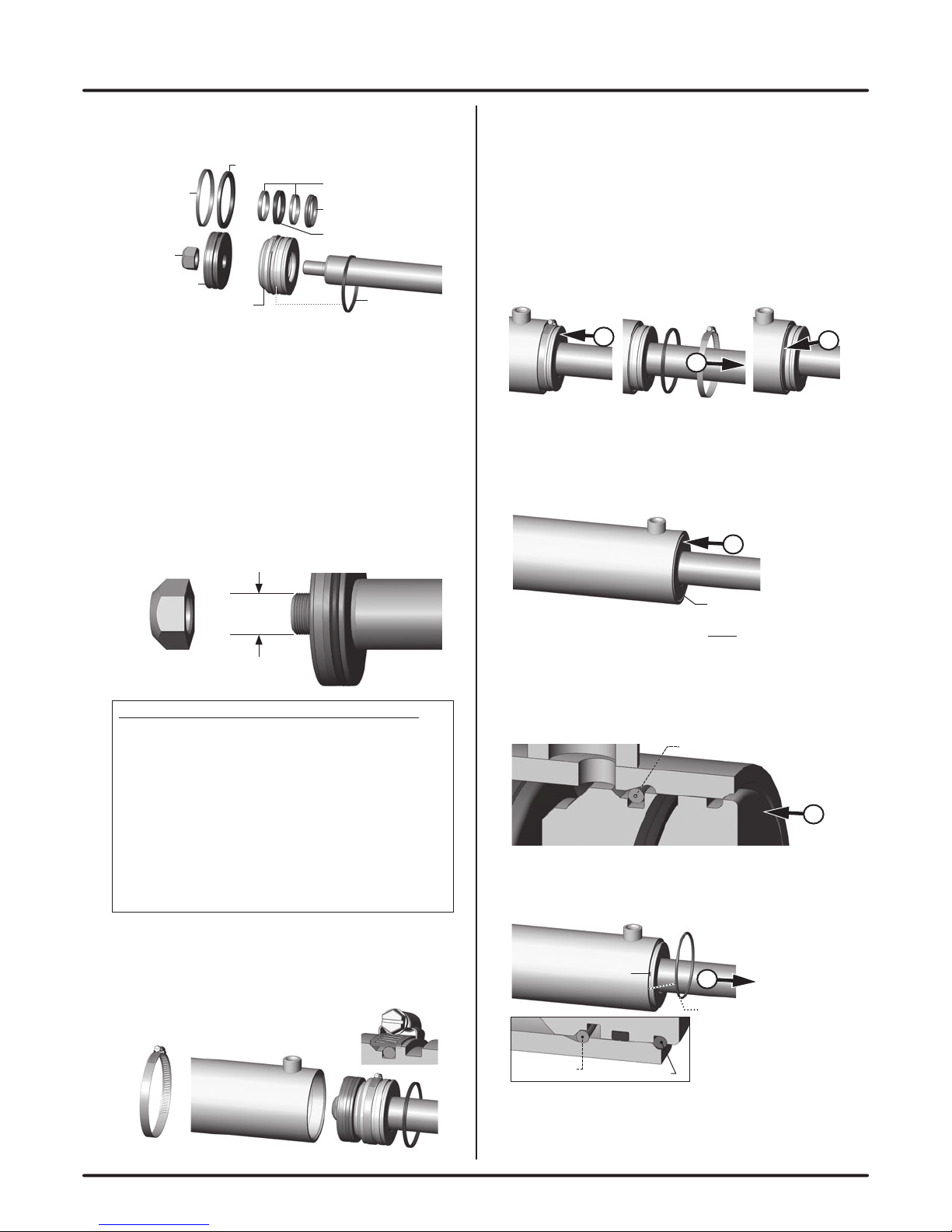

Repair - Hydraulic Cylinder 12
Repair - Autofold Cable Tension 15
Repair - Wheel Hub 16
Repair - Bearing Installation 17
Troubleshooting 18
PARTS SECTION
Hitch Frame Components 19
Center Section Components 20
Swing Arm & Cross Joint Components 21
Wing Frame Components 22
Endwheel Components 23
Hubs & Spindles, Cylinders 24
Hydraulic & Electrical Routing 25
Warranty 27

-1-
142630 - Landroller Tri-Plex (21-November-2018)
Introduction
OPERATOR ORIENTATION - The directions left, right, front and rear, as mentioned throughout the manual,
are as seen from the tractor drivers’ seat and facing in the direction of travel.
CONGRATULATIONS on your choice of a Degelman Landroller to complement your farming operation. It
has been designed and manufactured to meet the needs of a discerning agricultural market for increasing
yields for high quality pulse crops and preparing the perfect bed for haying, grasses and silage. Degelman
rollers provide a smooth and level surface for faster, easier harvest operations and better seed-to-soil
contact. Use this manual as your first source of information about this machine.
Safe, efficient and trouble free operation of your Degelman Landroller requires that you and anyone else
who will be operating or maintaining it, read and understand the Safety, Operation, Maintenance and
Troubleshooting information contained within this manual.
Keep this manual handy for frequent reference and to pass on to new operators or owners. Call your
Degelman Dealer if you need assistance, information, or additional copies of the manual.

-2-
142630 - Landroller Tri-Plex (21-November-2018)
CAUTION
DANGER
WARNING
The Safety Alert Symbol identifies important safety
messages applied to the Landroller and in this
manual. When you see this symbol, be alert to the
possibility of injury or death. Follow the
instructions provided on the safety messages.
The Safety Alert Symbol means:
ATTENTION!
BECOME ALERT!
YOUR SAFETY IS INVOLVED!
DANGER: Indicates an imminently hazardous situation
that, if not avoided, WILL result in death or serious injury
if proper precautions are not taken.
WARNING: Indicates a potentially hazardous
situation that, if not avoided, COULD result in death or
serious injury if proper precautions are not taken.
CAUTION: Indicates a potentially hazardous situation
that, if not avoided, MAY result in minor or moderate
injury if proper practices are not taken, or, serves as a
reminder to follow appropriate safety practices.
Why is SAFETY important to YOU?
3 BIG Reasons:
•Accidents Can Disable and Kill
•Accidents Are Costly
•Accidents Can Be Avoided
Note the use of the Signal Words: DANGER, WARNING, and CAUTION with the safety messages.
The appropriate Signal Word has been selected using the following guidelines:
SAFETY ALERT SYMBOL
SIGNAL WORDS
Safety

-3-
142630 - Landroller Tri-Plex (21-November-2018)
1. Read and understand the Operator’s
Manual and all safety signs before
operating, maintaining or adjusting
the Landroller.
2. Install and properly secure all shields and
guards before operating. Use hitch pin with a
mechanical locking device.
3. Have a first-aid kit available for use
should the need arise and know
how to use it.
4. Have a fire extinguisher available
for use should the need arise and
know how to use it.
5. Wear appropriate protective gear. This list
includes but is not limited to:
• A hard hat
• Protective shoes with slip resistant soles
• Protective glasses or goggles
• Heavy gloves
• Wet weather gear
• Hearing protection
• Respirator or filter mask
6. Clear the area of people, especially small
children, and remove foreign objects from the
machine before starting and operating.
7. Do not allow riders.
8. Stop tractor engine, set park brake, remove
ignition key and wait for all moving parts to
stop before servicing, adjusting, repairing or
unplugging.
9. Review safety related items with all operators
annually.
YOU are responsible for the safe operation and
maintenance of your Degelman Landroller.
YOU must ensure that you and anyone else who
is going to operate, maintain or work around
the Landroller be familiar with the operating and
maintenance procedures and related SAFETY
information contained in this manual.
This manual will take you step-by-step through
your working day and alerts you to all good safety
practices that should be adhered to while operating
this equipment.
Remember, YOU are the key to safety. Good safety
practices not only protect you but also the people
around you. Make these practices a working
part of your safety program. Be certain that
EVERYONE operating this equipment is familiar
with the recommended operating and maintenance
procedures and follows all the safety precautions.
Most accidents can be prevented. Do not risk injury
or death by ignoring good safety practices.
• Landroller owners must give operating
instructions to operators or employees
before allowing them to operate the
Landroller, and at least annually thereafter
per OSHA regulation 1928.51.
• The most important safety device on this
equipment is a SAFE operator. It is the
operator’s responsibility to read and
understand ALL Safety and Operating
instructions in the manual and to follow
these. All accidents can be avoided.
• A person who has not read and
understood all operating and safety
instructions is not qualified to operate the
machine. An untrained operator exposes
himself and bystanders to possible serious
injury or death.
• Do not modify the equipment in any way.
Unauthorized modification may impair the
function and/or safety and could affect the
life of the equipment.
• Think SAFETY! Work SAFELY!
Safety
SAFETY GENERAL SAFETY

-4-
142630 - Landroller Tri-Plex (21-November-2018)

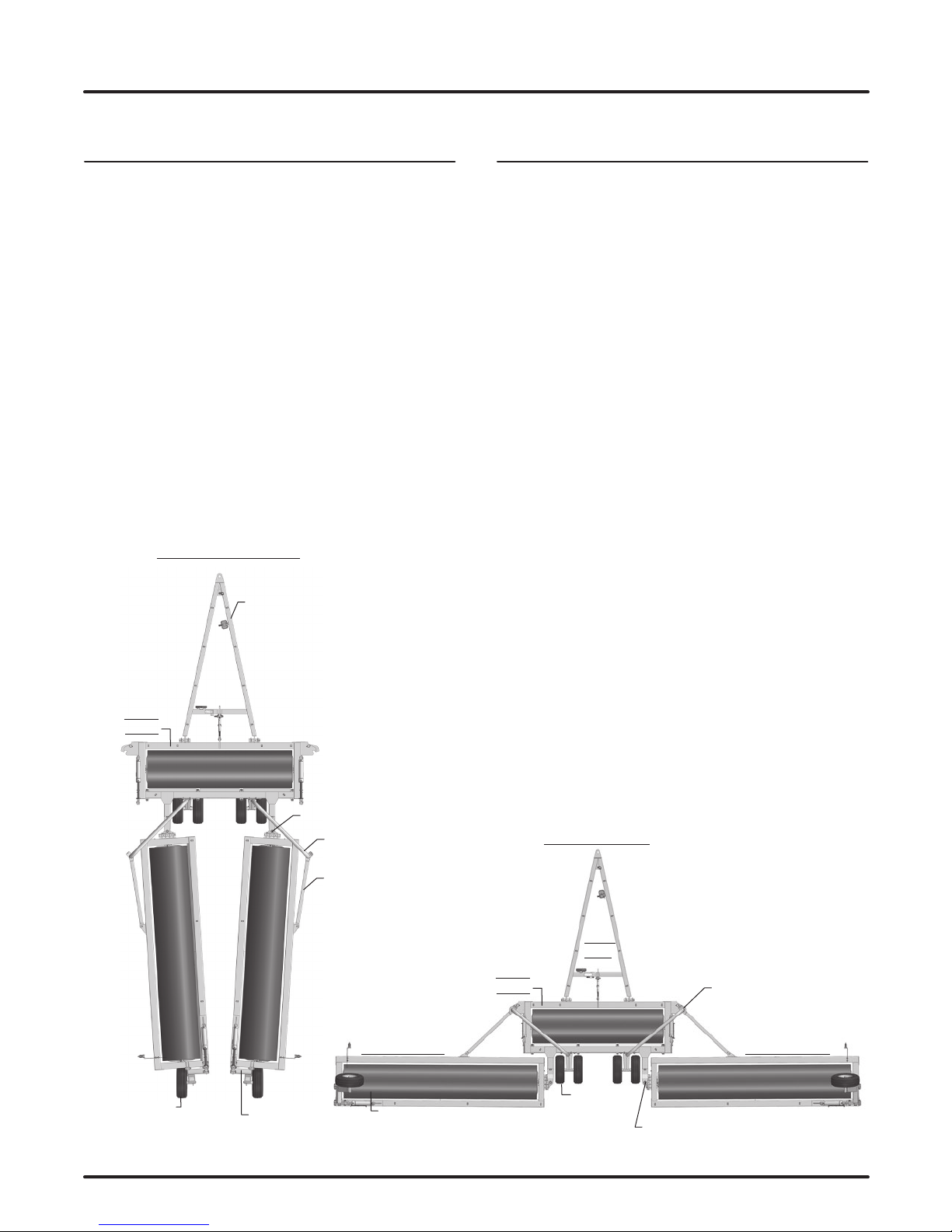

Endwheel Cylinder
Center
wheels
Front
Hitch
Center
Frame
LH Wing Frame RH Wing Frame
Field Position
Cross Joint
Swing Arm
Auto-Fold Latch
Endwheel Endwheel
Strut
Front
Hitch
Frame
Center
Frame
Transport Position
Cross Joint
Truss Arm
Auto-fold
Swing Arm
The Degelman Landroller is designed to
provide a smooth and level surface.
It is the responsibility of the owner or
operator to read this manual carefully to
learn how to operate the machine safely.
Safety is everyone’s business. By following
safe operating practices, a safe environment
is provided for the operator and bystanders.
By following the operating instructions
in conjunction with a good maintenance
program your machine will provide many
years of trouble-free service.
Operation
TO THE NEW OPERATOR OR OWNER
1. Read and understand the Operator’s Manual
and all safety signs before using.
2. Stop tractor engine, set park brake, remove
ignition key and wait for all moving parts to
stop before servicing, adjusting, repairing or
unplugging.
3. Keep hands, feet, hair and clothing away from
all moving and/or rotating parts.
4. Do not allow riders on the Landroller tractor
during operation or transporting.
5. Keep all shields and guards in place when
operating (if applicable).
6. Clear the area of all bystanders, especially
children, before starting.
7. Do not operate machine on overly steep side
hills or slopes.
8. Be careful when working around or
maintaining a high-pressure hydraulic system.
Ensure all components are tight and in good
repair before starting.
9. Clean all reflectors, lights and the SMV sign
before transporting on a highway or public
road. Be sure to check with local highway
authorities and comply with their lighting
requirements.
OPERATING SAFETY

-5-
142630 - Landroller Tri-Plex (21-November-2018)
Although there are no operational restrictions on
the Landroller when it is new, there are some checks
that should be done when using the machine for the
first time, follow this procedure:
IMPORTANT:It is important to follow the Break-In
procedures especially those listed in the “Before using”
section below to avoid damage:
A. Before using:
1. Read Safety Info. & Operator’s Manual.
2. Complete steps in “Pre-Operation Checklist”.
3. Lubricate all grease points.
Note: Do NOT grease the bearings on the roller ends
as they come pre-lubricated and sealed from the factory
(even though some previous spherical bearing units
may have had grease fittings, do not grease them.)
4. Check all bolt tightness.
B. After operating for 2 hours:
1. Check all hardware. Tighten as required.
2. Check all hydraulic system connections.
Tighten if any are leaking.
BREAK-IN
Before operating the machine and each time thereafter,
the following areas should be checked off:
1. Lubricate the machine per the schedule outlined in
the “Maintenance Section”.
2. Use only a tractor with adequate power to pull the
Landroller under ordinary operating conditions.
3. Ensure that the machine is properly attached to
the tractor using a drawbar pin with provisions
for a mechanical retainer. Make sure that a
retainer such as a Klik pin is installed.
NOTE: It is important to pin the draw bar in the
central location only.
4. Before using, inflate tires to:
Center Tires - All models
9.5L x15 - 8 PLY: 60 PSI (414 kPa) - or -
9.5L x15 - 6 PLY: 36 PSI (248 kPa) (alternate tire)
Endwheel Tires - LR7634, LR7640, LR7645 Models
9.5L x15 - 8 PLY: 60 PSI (414 kPa) - or -
9.5L x15 - 6 PLY: 36 PSI (248 kPa) (alternate tire)
Endwheel Tires - LR7651 Model
12.5L x15 - 12 PLY: 90 PSI (620 kPa)
5. Ensure that a safety chain is installed on the hitch.
6. Check oil level in the tractor hydraulic reservoir.
Top up as required.
7. Inspect all hydraulic lines, hoses, fittings and
couplers for tightness. Tighten if there are leaks.
Use a clean cloth to wipe any accumulated
dirt from the couplers before connecting to the
tractor’s hydraulic system.
PRE-OPERATION CHECKLIST
It is important for both personal safety and
maintaining good operational condition of the
machine that the pre-operational checklist be
followed.
Operation

-6-
142630 - Landroller Tri-Plex (21-November-2018)
The Landroller should always be parked on a level,
dry area that is free of debris and foreign objects.
Follow this procedure to hook-up:
1. Clear the area of bystanders and remove
foreign objects from the machine and working
area.
2. Make sure there is enough room to back the
tractor up to the trailer hitch.
3. Start the tractor and slowly back it up to the
hitch point.
4. Stop the tractor engine, place all controls in
neutral, set park brake and remove ignition key
before dismounting.
5. Use the jack to raise or lower the hitch to align
with the drawbar.
6. Install a drawbar pin with provisions for a
mechanical retainer such as a KLIK pin.
Install the retainer.
7. Install a safety chain between the tractor and
the hitch.
8. Connect the hydraulics. To connect, proceed as
follows:
• Use a clean cloth or paper towel to clean the
couplers on the ends of the hoses. Also clean
the area around the couplers on the tractor.
Remove the plastic plugs from the couplers and
insert the male ends.
• Be sure to match the pressure and return line to
one valve bank.
9. Connect lights (electrical socket plug) to tractor.
10. Raise the hitch jack and rotate it 90º to place in
its stowed position.
11. When unhooking from the tractor, reverse the
above procedure.
HOOK-UP / UNHOOKING
Operation
RIDERS
1. Read and understand ALL the information in
the Operator’s Manual regarding procedures
and SAFETY when operating the Landroller in
the field/yard or on the road.
2. Check with local authorities regarding
machine transport on public roads. Obey all
applicable laws and regulations.
3. Always travel at a safe speed. Use caution
when making corners or meeting traffic.
4. Make sure the SMV (Slow Moving Vehicle)
emblem and all the lights and reflectors
that are required by the local highway and
transport authorities are in place, are clean
and can be seen clearly by all overtaking and
oncoming traffic.
5. Keep to the right and yield the right-of-way to
allow faster traffic to pass. Drive on the road
shoulder, if permitted by law.
6. Always use hazard warning flashers on
tractor when transporting unless prohibited
by law.
7. Always use a pin with provisions for a
mechanical retainer and a safety chain when
attaching to a tractor or towing vehicle.
TRANSPORT SAFETY
Use the following guidelines while transporting the
Landroller:
1. Use a safety chain.
2. Ensure all transport locks are securely in place.
3. Be sure hazard lights are flashing and SMV
decal is visible.
4. MAXIMUM RECOMMENDED TRANSPORT
SPEED: 30 km/h or 19 mph. (Road Conditions.
Field speeds may be lower.)
IMPORTANT: UNDER NO CIRCUMSTANCES
SHOULD THERE EVER BE RIDERS WHILE THE
LANDROLLER IS IN TRANSPORT.
TRANSPORTING

-7-
142630 - Landroller Tri-Plex (21-November-2018)
1-1/4”
6. Lift the drums off the ground.
7. Slowly back-up the landroller
spreading the wings until they
are almost fully in field position.
8. Fully lower the drums to the ground and raise
endwheel struts by closing the hydraulic cylinders.
9. Continue backing up until Swing-Arms lock in place.
10. The roller is now in field ready position.
Operation
TRANSPORT TO FIELD POSITION
180°
2 31
1. Drive the landroller onto
level ground so it is
straight behind the tractor.
2. Remove all five red
transport bars. (4 located
on cylinders, and 1 on
float hitch). You may need
to activate (extend) the hydraulic cylinders to
allow removal of the cylinder transport bars.
Place the transport bars onto the storage
brackets provided and secure with lock-pin.
3. Raise the floatation plate to allow an 1-1/4”
gap using the ratchet jack to place it into field
“float” position. Float position will allow the
hitch pole to contour more effectively and
prevent strain and possible damage to the
machine.
4. Lower the roller drums
to the ground and
raise the endwheel
struts so the wheels
are slightly off the
ground.
5. Remove the endwheel spindle pins. Rotate the
bent spindle axles 180°to angle the wheels.
Replace and secure the spindle pins.

-8-
142630 - Landroller Tri-Plex (21-November-2018)
FIELD TO TRANSPORT POSITION
1. On level ground, extend cylinders to fully lift
rollers off ground. (This will tighten autofold
cables and open the “Swing Arm” latches.)
2. Drive forward until roller wing trail behind.
3. Lower drums to ground and slightly raise
endwheel struts so wheels are off the ground.
4. Remove the endwheel spindle pins. Rotate
the bent spindle axles 180°to straighten the
wheels. Replace and secure the spindle pins.
Operation
180°
2 31
5. Fully extend lift cylinders raising the drums off the
ground.
6. Install the 4 cylinder transport bars onto the cylinder
shafts and secure.
7. Close the floatation plate using the Ratchet jack and
secure into transport position with the red transport
pin.
8. Follow necessary safety procedures outlined in
Transport Safety section of the manual.

-9-
142630 - Landroller Tri-Plex (21-November-2018)
1. Review the Operator’s Manual and all safety
items before working with, maintaining or
operating the Landroller.
2. Stop the tractor engine, set park brake, remove
ignition key and wait for all moving parts to
stop before servicing, adjusting, repairing or
unplugging.
3. Keep hands, feet, clothing and hair away from
all moving and/or rotating parts.
4. Clear the area of bystanders, especially
children, when carrying out any maintenance
and repairs or making any adjustments.
5. Place safety stands or large blocks under the
frame before removing tires or working beneath
the machine.
6. Be careful when working around or maintaining
a high-pressure hydraulic system. Wear proper
eye and hand protection when searching for
a high pressure hydraulic leak. Use a piece
of wood or cardboard as a backstop when
searching for a pin hole leak in a hose or a
fitting.
7. Always relieve pressure before disconnecting or
working on hydraulic system.
MAINTENANCE SAFETY
1. Always place all tractor hydraulic controls in
neutral before dismounting.
2. Make sure that all components in the hydraulic
system are kept in good condition and are
clean.
3. Replace any worn, cut, abraded, flattened or
crimped hoses and metal lines.
4. Do not attempt any makeshift repairs to the
hydraulic lines, fittings or hoses by using tape,
clamps or cements. The hydraulic system
operates under extremely high-pressure.
Such repairs will fail suddenly and create a
hazardous and unsafe condition.
5. Wear proper hand and eye
protection when searching
for a high-pressure hydraulic
leak. Use a piece of wood
or cardboard as a backstop
instead of hands to isolate
and identify a leak.
6. If injured by a concentrated high-pressure
stream of hydraulic fluid, seek medical attention
immediately. Serious infection or toxic reaction
can develop from hydraulic fluid piercing the
skin surface.
7. Before applying pressure to the system, make
sure all components are tight and that lines,
hoses and couplings are not damaged.
• Think SAFETY! Work SAFELY
HYDRAULIC SAFETY
Service & Maintenance

-10-
142630 - Landroller Tri-Plex (21-November-2018)
Service & Maintenance

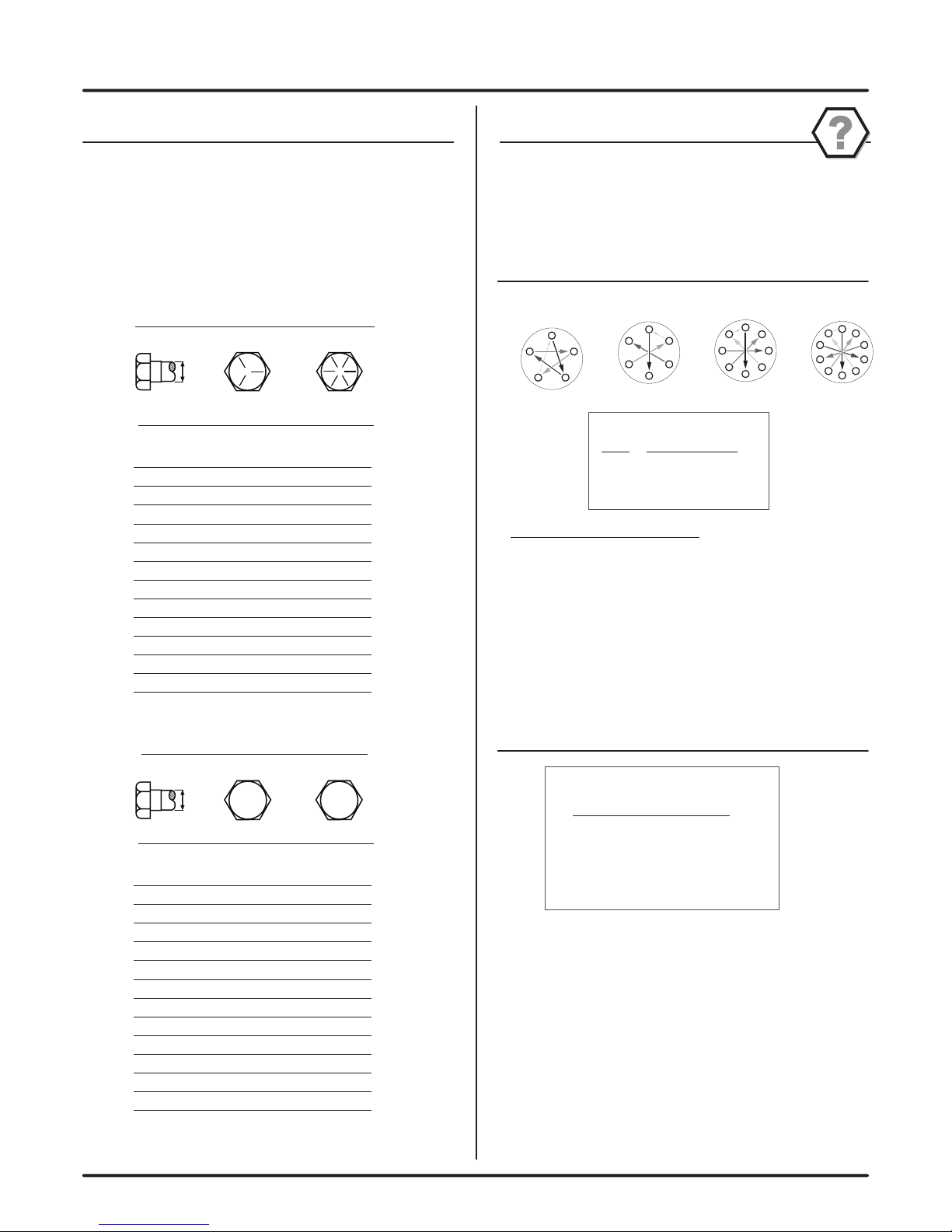

TORQUE SPECIFICATIONS
CHECKING BOLT TORQUE
The tables shown below give correct torque values
for various bolts and capscrews. Tighten all bolts to
the torques specified in chart unless otherwise noted.
Check tightness of bolts periodically, using bolt torque
chart as a guide. Replace hardware with the same
strength (Grade/Class) bolt.
IMPERIAL TORQUE SPECIFICATIONS
(based on “Zinc Plated” values)
SAE-5 SAE-8
Size Grade 5 Grade 8
lb.ft (N.m) lb.ft (N.m)
1/4” 7 (10) 10 (14)
5/16” 15 (20) 20 (28)
3/8” 25 (35) 35 (50)
7/16” 40 (55) 60 (80)
1/2” 65 (90) 90 (120)
9/16” 90 (125) 130 (175)
5/8” 130 (175) 180 (245)
3/4” 230 (310) 320 (435)
7/8” 365 (495) 515 (700)
1” 550 (745) 770 (1050)
1-1/8” 675 (915) 1095 (1485)
1-1/4” 950 (1290) 1545 (2095)
1-3/8” 1250 (1695) 2025 (2745)
1-1/2” 1650 (2245) 2690 (3645)
METRIC TORQUE SPECIFICATIONS
(based on “Zinc Plated” values)
8.8 10.9
Size Class 8.8 Class 10.9
lb.ft (N.m) lb.ft (N.m)
M6 7 (10) 10 (14)
M8 16 (22) 23 (31)
M10 30 (42) 45 (60)
M12 55 (75) 80 (108)
M14 90 (120) 125 (170)
M16 135 (185) 195 (265)
M18 190 (255) 270 (365)
M20 265 (360) 380 (515)
M22 365 (495) 520 (705)
M24 460 (625) 660 (895)
M27 675 (915) 970 (1315)
M30 915 (1240) 1310 (1780)
M33 1250 (1695) 1785 (2420)
M36 1600 (2175) 2290 (3110)
Wheel Tightening Procedure
1. Install and hand tighten nuts/bolts.
2. Tighten to approx 20% Torque value using the
10 Bolt Star or CrissCross pattern shown above.
3. Tighten to Full Torque value using the Star or
CrissCross pattern.
4. If applicable, install Rear Locknuts using Wheel
Torque Values.
Wheel Nut/Bolt Torque
Size lb.ft (N.m)
9/16 120-130 (165-175)
5/8 185-190 (250-260)
3/4 280-300 (380-405)
BOLT PATTERNS
2
1
6
53
4
6 BOLT PATTERN
2
1
34
57
8
8 BOLT PATTERN
1
2
34
5
5 BOLT PATTERN
1
2
3
46
5
79
10 8
10 BOLT PATTERN
WHEEL NUT & WHEEL BOLT TORQUE
Tightening Flare Type Tube Fittings
1. Check flare and flare seat for defects that might
cause leakage.
2. Align tube with fitting before tightening.
3. Lubricate connection and hand tighten swivel
nut until snug.
4. To prevent twisting the tube(s), use two
wrenches. Place one wrench on the connector
body and with the second tighten the swivel nut
to the torque shown.
Hydraulic Fitting Torque*
Size lb.ft (N.m)
1/2 34 (46)
3/4 75 (100)
7/8 90 (122)
* The torque values shown are based on
lubricated connections as in reassembly.
HYDRAULIC FITTING TORQUE
HARDWARE/HOSE SPECIFICATIONS
Unless otherwise stated:
• Hardware - Hex, Plated GR5 UNC or P8.8 (metric)
• Hydraulic Hoses - 3/8 & 1/2, ends come with
3/4 JIC female swivel.

-11-
142630 - Landroller Tri-Plex (21-November-2018)
Service & Maintenance
GREASING
Grease: Use an SAE multipurpose grease with
extreme pressure (EP) performance. Also acceptable
is an SAE multipurpose lithium.
1. Use only a hand-held grease gun for all
greasing.
2. Wipe grease fitting with a clean cloth before
greasing, to avoid injecting dirt.
3. Replace and repair broken fittings immediately.
4. If fittings will not take grease, remove and clean
thoroughly. Also clean lubricant passageway.
Replace fitting if necessary.
5. Inject grease until you see grease being
expelled from the bearing or bushing areas.
Note: Do NOT grease the bearings on the roller ends
as they come pre-lubricated and sealed from the factory
(even though some previous
spherical bearing units may
have had grease fittings, do
not grease them.)
SERVICE MAINTENANCE CHECKLIST
(Note: Do NOT grease roller end bearings)
Maintenance Check - 10 Hours
• Hydraulic fluid leaks
• Damaged hoses
• Check tire pressure:
Center Tires - All models
9.5L x15 - 8 PLY: 60 PSI (414 kPa) - or -
9.5L x15 - 6 PLY: 36 PSI (248 kPa) (alt.)
Endwheel Tires - LR7634, LR7640, LR7645 Models
9.5L x15 - 8 PLY: 60 PSI (414 kPa) - or -
9.5L x15 - 6 PLY: 36 PSI (248 kPa) (alt.)
Endwheel Tires - LR7651 Model
12.5L x15 - 12 PLY: 90 PSI (620 kPa)
Grease Points - 25 Hours
• Front Hitch Frame Pins
• Floatation Plate Pin
• Cast Bearings (not roller end bearings)
• Swing-Arm Holders
• Cylinder Pins
• Cross Joint Pins
Grease Points - 50 Hours
• Endwheel Strut & Linkage Pins
• Hubs & Spindles
• Working points & pins
• Safety signs clean
Annually
• Bolt tightness
• Wheel bearings
• Latch mechanism
• Cable assembly
Use the Maintenance Checklist provided for regular
service intervals and keep a record of all scheduled
maintenance:
Keep safety decals and signs clean and legible at
all times. Replace safety decals and signs that are
missing or have become illegible. Safety decals
or signs are available from your Dealer Parts
Department.
SAFETY DECALS & REFLECTORS
142383 - Decal, Caution, 1-6 Point Safety (1)
142422 - Decal, Danger - Stay Clear Crush (1)
142454 - Decal, Important, Float Plate Position (1)
142387 - Decal, Remove Red Bar (4)
142557 - Decal, Reflector Amber - 2 x 9 (8)
142556 - Decal, Reflector Red - 2 x 9 (3)
142650 - Decal, Reflector Fluorescent - 2 x 9 (3)
142492 - Decal, Patent - Bent Axle (2)
142455 - Decal, Endwheel Positioning (2)
142008 - Decal, Degelman (3)
142594 - Decal, Landroller - 7634 (2) or
142463 - Decal, Landroller - 7640 (2) or
142571 - Decal, Landroller - 7645 (2) or
142595 - Decal, Landroller - 7651 (2)
Previous:
142280 - Decal, Reflector Red - 2 x 6-1/4 (2)

-12-
142630 - Landroller Tri-Plex (21-November-2018)
Service & Maintenance
5
HYDRAULIC CYLINDER REPAIR
c) Use a screwdriver or a finger to hold one end
of the ring in the groove while fitting the other
end of the ring into the groove. The tips should
snap in together. Ensure it is secure and fully
seated before the next step.
IMPORTANT: It is important to ensure the
removal ring is completely in the groove
before pulling the rod out. If the ring sticks out
it will get stuck between the head and tube.
Note: Excessive force will not overcome a
jammed ring and could damage the cylinder.
b) Completely remove rod and head from tube.
6. a) Extend the rod to pull head out of tube. If the
rod does not pull out easily, push the head back
in and ensure the ring is properly in the groove.
Replace ring if necessary.
7
7. Remove plastic removal ring from the cylinder
tube.
6
Plastic Ring
Inner Wire Ring
5. Take the plastic removal ring from the seal kit:
a) Straighten the ring and remove any kinks or
excessive curl to make installation easier and
prevent it from falling out.
b) Insert the removal ring into the internal
groove with the feathered
end pointing into the tube.
1. Retract the rod assembly.
2. Remove the external steel wire ring.
REPAIRING A WIRE RING CYLINDER
3. Remove any dirt that may have accumulated on
the cylinder head.
4. Using the mallet and punch, push the head
into the cylinder tube until the
internal tube groove
is fully exposed.
This will also move the
internal wire ring into
its removal position.
4
2
External Ring
Inner Ring
Initial Ring Positions
4
Internal Groove
Inner Ring
Outer
Wire Ring
(Removed)
v1.0
Set Screw
Locking Ring
Wire Ring
Threaded
Head
Threaded
Head
Types of Cylinders
(Wire Ring / Threaded Head)
PREPARATION
When cylinder repair
is required, clean off
unit, disconnect hoses
and plug ports before
removing cylinder.
When removed, open
the cylinder ports and
drain the cylinder's
hydraulic fluid.
Examine the type of
cylinder. Make sure
you have the correct
tools for the job.
You may require the
following tools:
• Proper Seal Kit
• Rubber Mallet
• Screwdriver
• Punch
• Pliers
• Emery cloth
• Torque Wrench

-13-
142630 - Landroller Tri-Plex (21-November-2018)
Service & Maintenance
11. b) Tighten the band clamp to ensure the wire
ring is fully seated. Then, loosen the clamp
approx. 1/2 a turn to allow band clamp to slide
during final assembly.
17
b) Pull out Head for
Wire Ring Groove
a) Extend Rod
Forward
c) Install External
Wire Ring
9. a) Inspect and replace all of the seals with new
components.
b) Inspect the inside of the cylinder barrel,
piston, rod and other polished parts for burrs
and scratches. Smooth areas as needed with an
emery cloth.
c) During re-assembly of head/gland assembly,
leave the outer O-Ring Dual Seal loose on the
rod to re-install at a later step.
10. Replace piston and torque the locknut to
required value. (Refer to chart below)
11. a) Install the supplied band clamp to compress
the inner wire ring on the head/gland assembly
so it will fit into the tube.
Note: Make sure the cam of the band clamp is
not overtop of the gap in the ring.
12. Lubricate the cylinder tube and piston seals.
13. Insert the piston into the tube. Tap the cylinder
head into the tube until the clamp slides over
and the inner wire ring is inside the tube.
16
Flush with edge
16. Tap the head the rest of the way until the end is
flush with the tube.
IMPORTANT: The head/gland must be inserted until
it is flush with the tube to allow the inner wire ring to
snap into its seated position in the internal cylinder
groove. Failure to insert the head flush as shown will
result in the head and rod assembly coming out of
the tube when pressure is applied to the cylinder.
17. Pull the rod out to expose the external wire ring
groove in cylinder head, and then install the
external ring.
18. Before using the cylinder, ensure that you double
check your work.
14. Loosen the clamp and remove.
15. Install the O-Ring Dual seal.
13
14
15
External Ring
Inner Ring
LOCKNUT SIZE (PISTON) TORQUE VALUE
3/8 - 24 UNF 25-30 lb.ft (35-42 N.m)
1/2 - 20 UNF 40-60 lb.ft (55-80 N.m)
5/8 - 18 UNF 95-105 lb.ft (130-140 N.m)
3/4 - 16 UNF 175-225 lb.ft (240-305 N.m)
7/8 - 14 UNF 200-275 lb.ft (270-370 N.m)
1 - 14 UNF 300-380 lb.ft (405-515 N.m)
1 1/8 - 12 UNF 400-500 lb.ft (540-675 N.m)
1 1/4 - 12 UNF 500-600 lb.ft (675-810 N.m)
1 1/2 - 12 UNF 700-800 lb.ft (950-1085 N.m)
1 3/4 - 12 UNF 800-900 lb.ft (1085-1220 N.m)
16
Inner Wire Ring is pushed back
into the internal
Tube Groove
8. Remove locknut, piston and head from rod.
Wiper Seal
Wear Ring
Wear Ring
Locknut
Piston
Head/Gland
U-Cup Rod Seal
Piston Seal (2pcs)
O-Ring
Dual Seal
O.D. Threads =
Locknut Size

-14-
142630 - Landroller Tri-Plex (21-November-2018)
Service & Maintenance
REPAIRING A THREADED HEAD CYLINDER
Barrel
Rod
Assembly
Lock
Nut
Gland
End
Cap
Set Screw
Piston
Seal
Dual Seal
Wiper
Seal
U-Cup
Seal
Wear
Ring
Wear Ring
Piston
DISASSEMBLY
1. Loosen Set Screw and turn off end cap.
2. Carefully remove piston/rod/gland assemblies.
3. Disassemble the piston from the rod assembly
by removing lock nut.
NOTE: DO NOT clamp rod by chrome surface.
4. Slide off gland assembly & end cap.
5. Remove seals and inspect all parts for damage.
6. Install new seals and replace damaged parts with
new components.
7. Inspect the inside of the cylinder barrel, piston, rod
and other polished parts for burrs and scratches.
Smooth areas as needed with an emery cloth.
REASSEMBLY
1. Reinstall rod through end cap & gland assembly.
2. Secure piston to rod with lock nut. Torque lock nut
to proper value (refer to chart on previous page
for proper torque value).
3. Lube inside of barrel, piston seals, and gland seals
with hydraulic oil.
4. With cylinder body held gently in a vise, insert
piston, gland, end cap and rod combination using
a slight rocking motion.
5. Apply Loctite anti-seize before installing cylinder
end cap.
6. Torque cylinder end cap to 440 lb.ft (600 N.m).
7. Tighten Set Screw on end cap to 6 lb.ft (8 N.m).
Set Screw Style
Barrel
Rod
Assembly
Lock
Nut
End
Cap
Locking
Ring
Piston
O-Rings
Flat Washer
Rod Seal
Wear Ring
Rod Wiper Seal
Piston Seals
(Style may vary,
"5 Part Seal" shown)
Pin Assembly
Shoulder Bolt
REPAIRING A THREADED HEAD CYLINDER
DISASSEMBLY
1. Loosen Locking Ring and turn off end cap.
2. Carefully remove piston, rod and end cap.
3. Disassemble the piston from the rod assembly
by removing lock nut.
NOTE: DO NOT clamp rod by chrome surface.
4. Slide off end cap.
5. Remove seals and inspect all parts for damage.
6. Install new seals and replace damaged parts with
new components.
7. Inspect the inside of the cylinder barrel, piston, rod
and other polished parts for burrs and scratches.
Smooth areas as needed with an emery cloth.
REASSEMBLY
1. Reinstall rod through end cap.
2. Secure piston to rod with lock nut. Torque lock nut
to proper value (refer to chart on previous page
for proper torque value).
3. Thread lock ring fully onto barrel.
4. Lube inside of barrel and piston seals with
hydraulic oil.
5. With cylinder body held gently in a vise, insert
piston, end cap and rod combination using a
slight rocking motion.
6. Turn end cap fully against lock ring then back off
end cap to align ports.
7. Tighten Locking Ring against end cap using a
punch and hammer.
Locking
Ring Style

-15-
142630 - Landroller Tri-Plex (21-November-2018)
Service & Maintenance
TIRE SPECIFICATIONS
Center Tires - All models
9.5L x15 - 8 PLY: 60 PSI (414 kPa) - or -
9.5L x15 - 6 PLY: 36 PSI (248 kPa) (alternate tire)
Endwheel Tires - LR7634, LR7640, LR7645 Models
9.5L x15 - 8 PLY: 60 PSI (414 kPa) - or -
9.5L x15 - 6 PLY: 36 PSI (248 kPa) (alternate tire)
Endwheel Tires - LR7651 Model
12.5L x15 - 12 PLY: 90 PSI (620 kPa)
1. Failure to follow proper procedures when
mounting a tire on a wheel or rim can produce
a blow out which may result in serious injury or
death.
2. Do not attempt to mount a tire unless you have
the proper equipment and experience to do the
job.
3. Have a qualified tire dealer or repair
serviceman perform required tire maintenance.
TIRE SAFETY
The landroller should be carefully prepared for
storage to ensure that all dirt, mud, debris and
moisture has been removed.
Follow this procedure when preparing to store:
1. Wash the entire machine thoroughly using a
water hose or pressure washer to remove all
dirt, mud, debris or residue.
2. Inspect all parts to see if anything has become
entangled in them. Remove the entangled
material.
3. Lubricate all grease fittings to remove moisture
(except spherical bearings - refer to pg.11)
4. Inspect all hydraulic hoses, fittings, lines and
couplers. Tighten any loose fittings. Replace any
hose that is badly cut, nicked or abraded or is
separating from the crimped end of the fitting.
5. Touch up all paint nicks and scratches to prevent
rusting.
6. Oil the exposed rams on the hydraulic cylinder
to prevent rusting.
7. Select an area that is dry, level and free of
debris.
STORAGE
AUTOFOLD LATCH ADJUSTMENT
If the Autofold Latch will no longer fully open
enough to release the Swing Arm for transport, this
may be due to the slight stretching of the autofold
cable. To Adjust:
1) Place Landroller into Field Position (wings
out) with the Swing Arm in the latched (secured)
position.
2) Lower the wheels raising the drums off the
ground. (This should open the Autofold latch in
order for the Swing Arms to release. If the latch
does not open enough to allow the swing arm(s) to
release, continue to the next step.)
3) Adjust the nut on the Eyebolt until the latch is
open just enough for the Swing Arm to clear. This
should be the correct amount of tension for the
cable.
Autofold
Latch
Autofold Cable
Nut Eye bolt

-16-
142630 - Landroller Tri-Plex (21-November-2018)
COMMON HUB & SPINDLE
COMPONENTS
Spindle
Inner
Cone
Dust
Seal
Hub
Outer
Cone
Slotted
Nut &
Cotter Pin
Dust
Cap
Flat
Washer
Inner
Cup
Outer
Cup

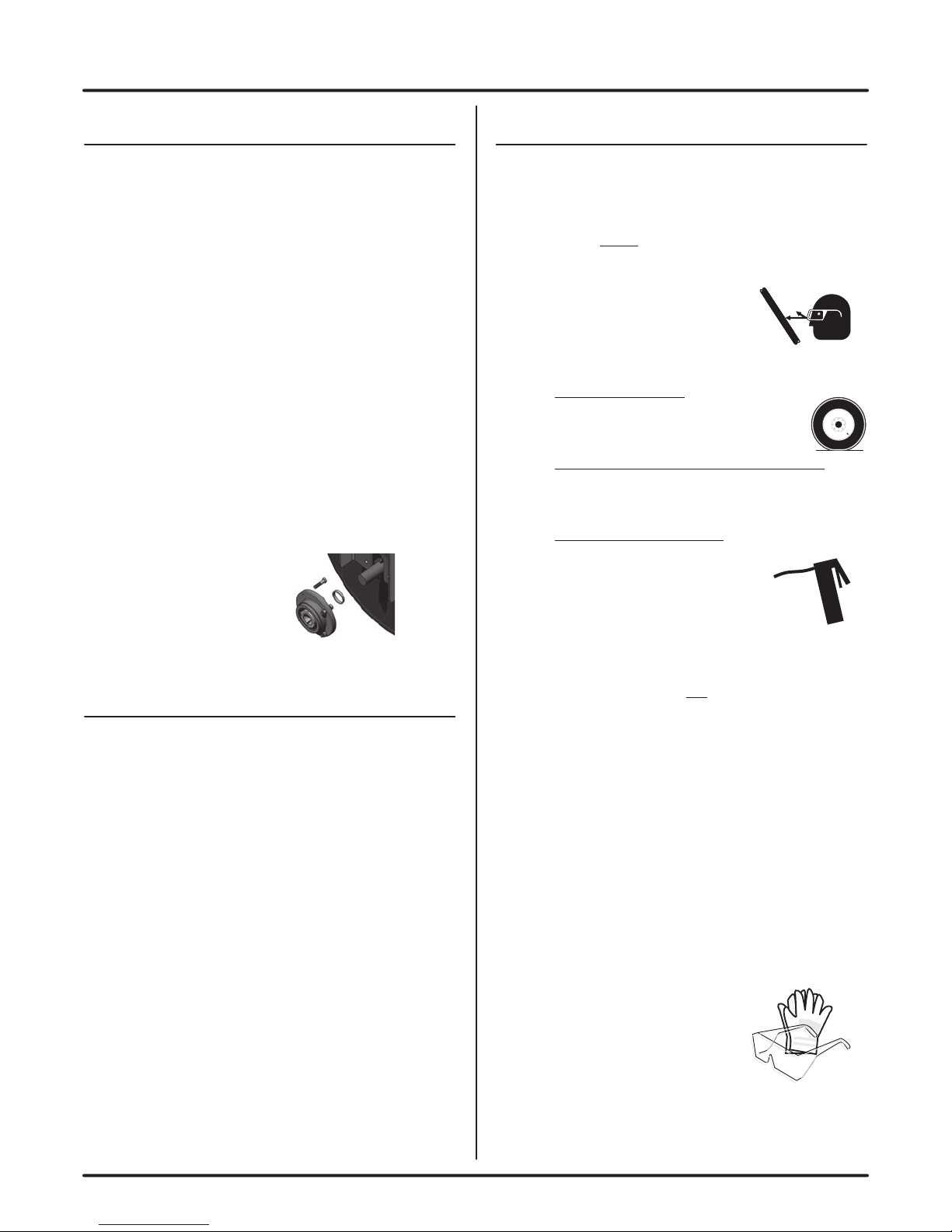

Service & Maintenance
DISASSEMBLY
1. Remove dust cap.
2. Remove cotter pin from nut.
3. Remove nut and washer.
4. Pull hub off spindle.
5. Dislodge the inner cone bearing and dust seal.
6. Inspect cups that are press fitted into hub for
pits or corrosion and remove if necessary.
7. Inspect and replace defective parts with new
ones.
ASSEMBLY
1. If cups need replacing, be careful to install
them gently and evenly into hub until they
are fully seated.
2. Apply a thick wall of grease inside hub.
Pack grease in cones.
3. Install inner cone and dust seal as
illustrated.
4. Position hub onto spindle and fill
surrounding cavity with grease.
5. Assemble outer cone, washer and nut.
6. Tighten nut while rotating hub until there is
a slight drag.
7. Turn nut back approximately 1/2 turn to
align cotter pin hole with notches on nut.
8. Install cotter pin and bend legs sideways
over nut.
9. Fill dust cap half full of grease and gently
tap into position.
10. Pump grease into hub through grease
fitting until lubricant can be seen from dust
seal.
WHEEL HUB REPAIR
IMPORTANT:Be sure to block up
unit securely before removing tires.
