Delfield F18DR User manual

Short Form Specifications
Exterior top is one-piece, 16-gauge stainless steel, with integral 2.12”
(5.4cm) high square nosing on front. Top has a mechanically cooled refrig-
erated raised rail at rear with openings to accommodate 1/6 size pans.
Pans and adapter bars are provided by others. Pans are recessed .38” in
the front for easy access and 3.38” in the rear for proper cooling (see cross
section). Rail interior is 22-gauge stainless steel. Raised rail openings have
20-gauge stainless steel hinged removable lids. Unit is equipped with sep-
arate expansion valve and on/off switch for refrigerated rail. Temperature
in top opening to maintain 33°F (1°C) to 41°F (5°C), at 86°F ambient room
temperature, meeting NSF7 requirements.
Exterior Back and Bottom are 24-gauge galvanized steel. Exterior ends
are finished with 18-gauge galvanized steel.
Base Interior is 22-gauge stainless steel back and bottom. Base interior
ends and door frames are thermoformed ABS plastic. Base is insulated with
1.5” (3.8cm) high density foamed in place polyurethane.
Door(s) have a 22-gauge stainless steel exterior front, with thermoformed
ABS plastic interior liner, black recessed handle and snap in magnetic gas-
ket which is easily replaceable. Each interior door section has (1) remov-
able epoxy coated wire shelf.
Base has a blower coil assembly with expansion valve located behind door
mullion. Base is equipped with independently controlled thermostat and
solenoid valve. On/off switch for unit is located behind the hinged panel.
Unit is mounted on 6.13” (15.6cm) high adjustable stainless steel legs.
Electrical connections are 115 volt, 60 Hertz, single phase. Unit must
be hard wired.
Refrigeration System Components — HFC-404A
Optional Accessories & Modifications
906A Stainless steel end
505H Stainless steel back
505F Laminate facing (full front)
906E Laminate end
905A Laminate back
1030A Cutting board (Sanalite or composite)
109 Condensate evaporator (1 per coil) for base
107F Tray rack
102 Drawers
A-(2) 19” in lieu of one door
B-(2) 27” in lieu of one door
C-(2) 32” in lieu of one door
E-(3) 19” in lieu of one door
F-(3) 27” in lieu of one door
G-(3) 32” in lieu of one door
H-(2) 24” in lieu of one door
J-(3) 24” in lieu of one door
108 Locks
120F Cold pan drain
213 *220V/50 cycle
* Inclusion of this option will alter the
electrical specifications of the unit
31.5” (80cm) Deep Remote Quick Glance Rail
The Delfield Company, P.O. Box 470, Mt Pleasant, MI 48804-0470, U.S.A. • [phone] • Fax [phone] • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2001 The Delfield Company. All rights reserved. Printed in U.S.A.
PROJECT
ITEM #
QUANTITY DATE
APPROVAL
F18DR
¤

The Delfield Company, P.O. Box 470, Mt Pleasant, MI 48804-0470, U.S.A. • [phone] • Fax [phone] • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2001 The Delfield Company. All rights reserved. Printed in U.S.A.
F18DR
31.5” (80cm) Deep Remote Quick Glance Rail
Thermostat control for rail behind
hinged panel (hinged left)
19" REF’D 27" REF’D
43.75
6.13 7.63
36.00
2.5
Thermostat control for rail behind
hinged panel (hinged left)
19" REF’D 19" REF’D
43.75
6.13 7.63
36.00
2.5
Thermostat control for rail behind
hinged panel (hinged left)
27" REF’D 27" REF’D
43.75
6.13 7.63
36.00
2.5
Thermostat control for rail behind
hinged panel (hinged left)
32" REF’D 32" REF’D
43.75
6.13 7.63
36.00
2.5
Thermostat control for rail behind
hinged panel (hinged left)
27" REF’D
43.75
6.13 7.63
36.00
27" REF’D19" REF’D
2.5
Thermostat control for rail behind
hinged panel (hinged left)
27" REF’D
43.75
6.13 7.63
36.00
27" REF’D 27" REF’D
2.5

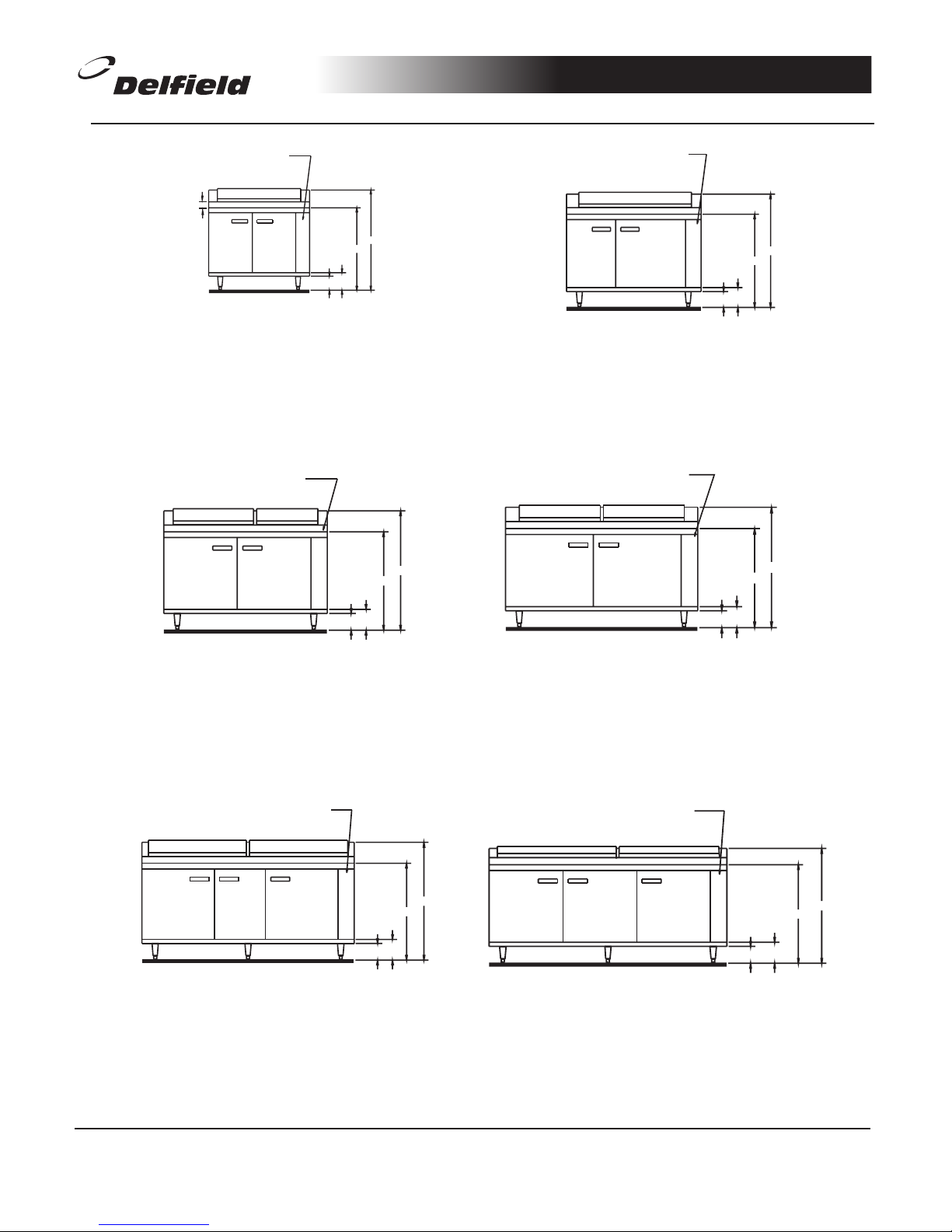

ELEVATION VIEW
F18DR44
ELEVATION VIEW
F18DR52
ELEVATION VIEW
F18DR60
ELEVATION VIEW
F18DR70
ELEVATION VIEW
F18DR79
ELEVATION VIEW
F18DR87

44.00" LG Mech. cooled NSF-7 style
raised rail sized to accommodate (10)
1/6 size pans 6" deep. Provide with
hinged removable cover, adjustable
pan clips and (2) 1/2" adapter bars
(pans and adapter bars by others)
31.50
6.00
38.00
44.00
52.00" LG Mech. cooled NSF-7 style
raised rail sized to accommodate (12)
1/6 size pans 6" deep. Provide with
hinged removable cover, adjustable
pan clips and (2) 1/2" adapter bars
(pans and adapter bars by others)
31.50
6.00
46.00
52.00
60.00" LG Mech. cooled NSF-7 style
raised rail sized with (2) openings
sized to accommodate (8) 1/6 size
pans 6" deep. Provide with hinged
removable cover, adjustable pan clips
(pans and adapter bars by others)
31.50
6.00
60.00
54.00
70.00" LG Mech. cooled NSF-7 style
raised rail sized to accommodate (8) 1/6
size pans 6" deep each. Provide with
hinged removable covers, adjustable pan
clips. (pans and adapter bars by others)
31.50
6.00
70.00
64.00
79.00" LG Mech. cooled NSF-7 style
raised rail with (2) openings sized to
accommodate (10) 1/6 size pans 6" deep
each. Provide with hinged removable
covers, adjustable pan clips. (pans and
adapter bars by others)
31.50
6.00
79.00
73.00
87.00" LG Mech. cooled NSF-7 style
raised rail with (2) openings sized to
accommodate (12) 1/6 size pans and (10)
1/6 size pans 6" deep Provide with
hinged removable covers, adjustable pan
clips, (pans and adapter bars by others)
31.50
6.00
87.00
81.00
PLAN VIEW
F18DR44
PLAN VIEW
F18DR52
PLAN VIEW
F18DR60
PLAN VIEW
F18DR70
PLAN VIEW
F18DR79
PLAN VIEW
F18DR87
F18DR
31.5” (80cm) Deep Remote Quick Glance Rail
The Delfield Company, P.O. Box 470, Mt Pleasant, MI 48804-0470, U.S.A. • [phone] • Fax [phone] • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2001 The Delfield Company. All rights reserved. Printed in U.S.A.

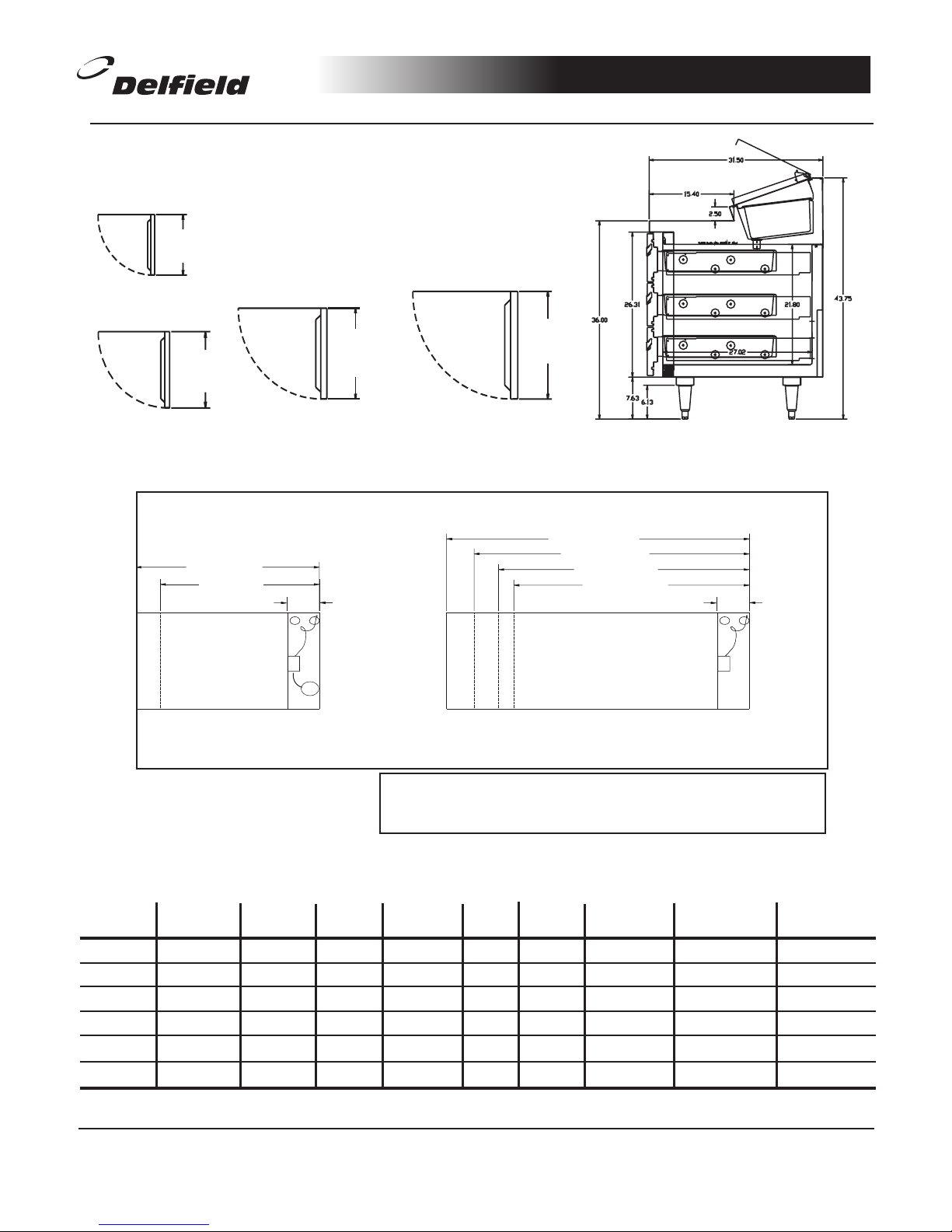

MECHANICAL DETAIL
J
J
R D R D
Techanical Data–Standard Unit
MODEL NUMBER OF NUMBER 0F STORAGE SHELF AREA SHIP WEIGHT BTU DESIGN LOAD EVAP. CAP.
NUMBER DOORS PANS CU. FT. SQ. FT. H.P.* AMPS LBS/KG BASE/RAIL BTU /°TD
F18DR44
(2) 19” 10 9.49 5.12 1/4 3.0 485/220 547/441 120/19
F18DR52
19” & 27 12 11.81 6.51 1/3 3.0 540/245 625/529 120/23
F18DR60
(2) 27” 14 14.14 7.90 1/3 5.0 620/281 703/617 120/26
F18DR70
(2) 32” 16 17.05 9.64 1/2 5.0 700/317 800/794 120/32
F18DR79
(2) 27” & 19” 20 18.68 10.29 1/2 5.0 735 /333 962/882 240/36
F18DR87
(3) 27” 22 21.30 11.85 3/4 5.0 765/347 1032/970 240/39
*Recommended horsepower
NOTE; UNOBSTRUCTED AIRFLOW MUST BE MAINTAINED TO
INSURE UNIT PERFORMANCE AND MAINTAIN WARRANTY.
End View
All Models
17"
43.1 cm
Clearance
22"
55.9 cm
Clearance
25"
63.5 cm
Clearance
19" (48.3 cm)
Door
24" (61 cm)
Door
27" (68.6 cm)
Door
30"
76.2 cm
Clearance
32" (81.3 cm)
Door
52" (132.1cm)
44" (111.8cm)
6"
(15.2cm)
31.5"
(80 cm)
87" (221cm)
79" (201cm)
70" (177.8cm)
60" (152.4cm)
6" (15.2cm)
31.5"
(80 cm)
J=JUNCTION BOX
R= REFRIGERATION LINES 1/4" LIQUID, 38" SUCTION
D=DRAIN 1/2"
C
The Delfield Company, P.O. Box 470, Mt Pleasant, MI 48804-0470, U.S.A. • [phone] • Fax [phone] • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2001 The Delfield Company. All rights reserved. Printed in U.S.A.
DS18DR 07/01
F18DR
31.5” (80cm) Deep Remote Quick Glance Rail
