Mobile Self-Contained Cold Pan Serving Counters
SHCR-B
SH2CR-62-B
with optional double-service flip-up sneezeguard,
stainless steel fold-down tray slide and stainless
steel fold-down work shelf
Short Form Specifications
Exterior body is constructed of 18-gauge stainless steel side panels and 14-gauge galvanized bottom.
All exterior side panels are reinforced with overlapping corners and are welded in place. All body
cutouts are reinforced with 14-gauge galvanized channel supports.
Exterior top is constructed of 14-gauge stainless steel, welded, ground and polished into one integral
unit. Top has one to four electrically heated, recessed, die-stamped stainless steel hot food warmers. Each
warmer accommodates a 12.75” x 20.75” x 6” (32.4cm x 52.7cm x 15.2cm) deep pan.
Heated food warmers are constructed of die-stamped stainless steel. Each heated food warmer is
individually equipped with a heating element rated at 1000 watts for 120 volt or 208/230 volt, 60 Hertz,
single phase service and wired to an adjustable control switch and indicator light in the control panel.
Heated food warmers are interwired to a maximum 10’ (3m) long cord with grounded plug for 115 volt
or 208/230 volt, 60 Hertz, single phase electrical service.
The refrigerated cold pan is 7” (17.8cm) deep and constructed of stainless steel. The cold pan is
separated from the exterior top by a thermal break. Copper refrigeration tubing is attached to the
sides and bottom of the cold pan and is fully insulated with foamed in place polyurethane insulation.
Cold pan is equipped with a 1” (2.5cm) I.P.S. drain with a drain valve located at the bottom of the
unit. Temperatures of 33°F (1°C) to 41°F (5°C) are maintained with pans recessed 3” (7.6cm) at 86°F
ambient room temperature. Pans rest on a stainless steel bracket. (Pans by others.)
Refrigeration system uses HFC-404A and has a self-contained 115 volt, 60 Hertz, single phase hermetically
sealed condensing unit with adjustable cold pan pressure control. Unit is wired with a 3-wire, grounded,
maximum 10’ (3m) cord and plug. Unit has an on/off switch for the cold pan mounted on the exterior..
Casters: Unit is mounted on 5” (12.7cm) diameter swivel casters with non-marking polyolefin tires and
plate brakes. Overall height of caster assembly is 6.00” (15.2cm).
Optional Accessories & Modifications
A) 12” (30.5cm) wide stainless steel fold-down tray slide
C) 10” (25.4cm) wide three bar fold-down tray slide
D) 10” (25.4cm) wide composite fold-down cutting board
E) 10” (25.4cm) wide stainless steel fold-down work shelf
F) Line-up interlock device
G) Glass front counter protector
H/I) Two tier (H) or three tier (I) display with stainless steel or glass shelves and sneeze guards
HD) Double service two tier display with sneezeguard
J) 12” (30.5cm) wide 18-gauge stainless steel overshelf
KS/KD) Single (KS) or double(KD) service flip-up sneezeguards
LI) *Incandescent light fixtures
M/MB) *Radiant (M) and bullet style (MB) heat lamps
P) Open understorage with shelf
Q) *120V/60Hz/1ø, 15 amp convenience outlet with 10 amp breaker
QQ) Drains from food wells, plumbed to common valve
ST) Stainless steel trim strips
U) 14” x 30” (35.6cm x 76.2cm) stainless steel end drop shelf
V) Adjustable stainless steel legs available in lieu of casters
• Adapter bars (specify length)
• Laminate exterior panels in lieu of stainless steel.
* Inclusion of these options will alter the electrical specifications of the unit

The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • [phone] • Fax [phone] • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2002 The Delfield Company. All rights reserved. Printed in U.S.A.
SSSHCRB 02/02
SHCR-B
Mobile Self-Contained Cold Pan Serving Counters
50"
127cm
21.62"
54.9cm
11.87"
30.1cm
7"
17.8cm
DEEP
7"
17.8cm
DEEP
7"
17.8cm
DEEP
26"
66cm
7"
17.8cm
DEEP
26"
66cm
60"
152.4cm
21.62"
54.9cm
26"
66cm 11.87"
30.1cm
74"
188cm
21.62"
54.9cm
39"
99m 11.87"
30.1cm
74"
188cm
21.62"
54.9cm
11.87"
30.1cm
26"
66cm
30"
76.2cm
96"
243.8cm
21.62"
54.9cm
65"
165cm 11.87"
30.1cm
19.87"
50.5cm
96"
243.8cm
21.62"
54.9cm
11.87"
30.1cm
52"
132.1cm
30"
76.2cm
96"
243.8cm
21.62"
54.9cm
11.87"
30.1cm
19.87"
50.5cm
39"
99cm
30"
76.2cm
96"
243.8cm
21.62"
54.9cm
11.87"
30.1cm
19.87"
50.5cm
26"
66cm
7"
17.8cm
DEEP
7"
17.8cm
DEEP
7"
17.8cm
DEEP
7"
17.8cm
DEEP
7"
17.8cm
DEEP

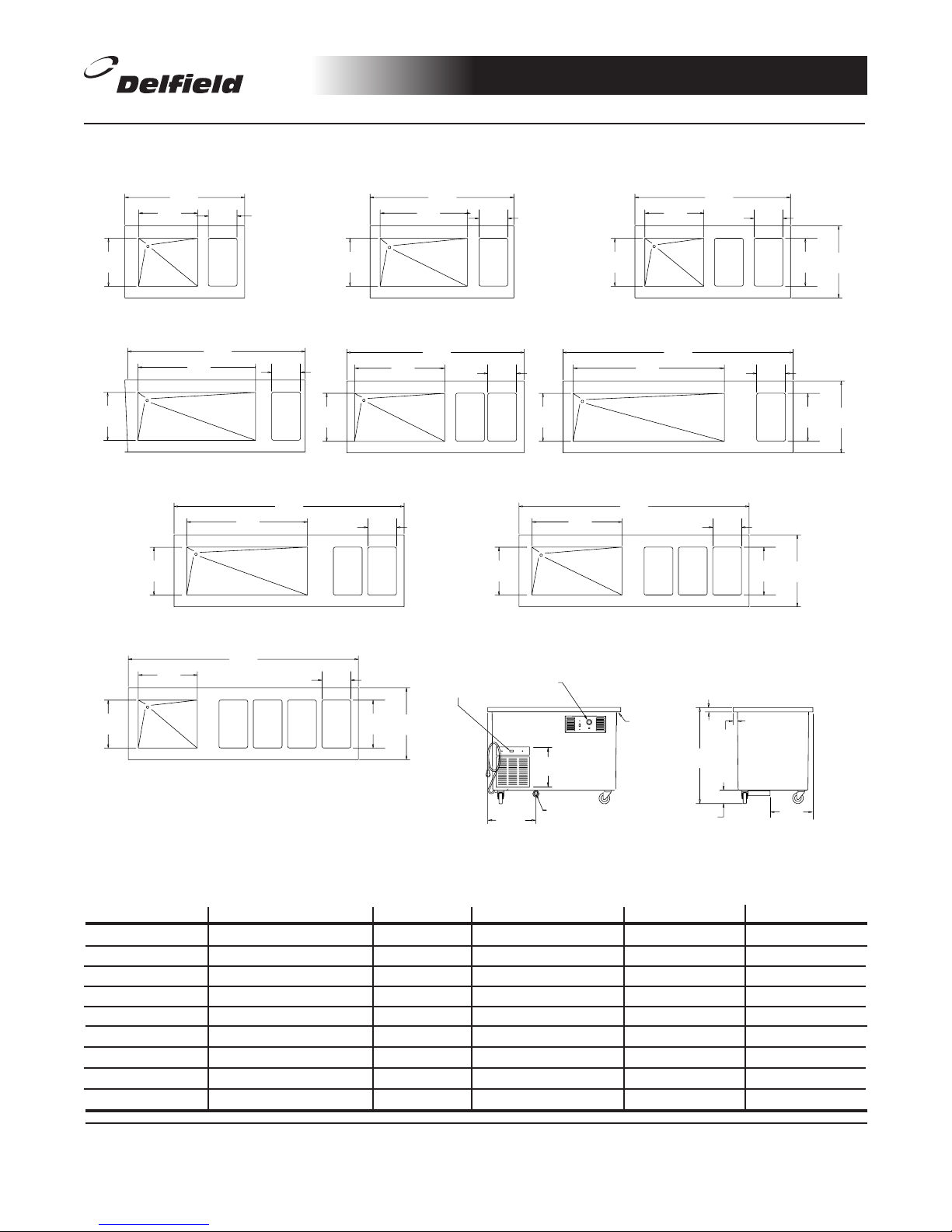

PLAN VIEW
SHCR-50-B
PLAN VIEW
SHCR-60-B
30"
76.2cm
62'
157.5cm
21.62"
54.9cm
11.87"
30.1cm
19.87"
50.5cm
PLAN VIEW
SH2CR-62-B
PLAN VIEW
SHCR-74-B
PLAN VIEW
SHCR-96-B
PLAN VIEW
SH2CR-74-B
PLAN VIEW
SH2CR-96-B
PLAN VIEW
SH4CR-96-B
PLAN VIEW
SH3CR-96-B
0.93"
.24cm
DRAIN VALVE
20"
51cm
COLD PAN ON/OFF SWITCH
FOOD WELL CONTROL 1.62"
4.1 cm
36"
91.4cm
6"
15.2cm
1.62"
4.1cm
TYPICAL ELEVATION VIEW
ALL SHCR MODELS
TYPICAL PLAN VIEW
ALL SHCR MODELS
13"
33cm
POWER
SUPPLY
LOCATOIN
15"
????cm
Mechanical Data–Standard Unit
MODEL NUMBER VOLTAGE 60 HZ/ 1 Ø AMP HORSEPOWER NEMA PLUG SHIP WEIGHT
SHCR-50B
120 16.0 1/4 5-20P 475 lbs/ 216 kg
SHCR-60B
120 16.0 1/4 5-20P 575 lbs/ 261 kg
SHCR-74B
120 16.0 1/4 5-20P 688 lbs/ 312 kg
SHCR-96B
120 16.0 1/4 5-20P 730 lbs/ 331 kg
SH2CR-62B
120/208-230 18.0 1/4 14-30P 575 lbs/ 261 kg
SH2CR-74B
120/208-230 18.0 1/4 14-30P 690 lbs/ 313 kg
SH2CR-96B
120/208-230 18.0 1/4 14-30P 740 lbs/ 336 kg
SH3CR-96B
120/208-230 23.0 1/4 14-30P 750 lbs/ 340 kg
SH4CR-96B
120/208-230 29.0 1/4 14-50P 760 lbs/ 345 kg
