N8100-FA: DROP-IN SELF-CONTAINED FORCED AIR REFRIGERATED COLD PANS
Project __________________________
Item____________________________
Quantity _________________________
CSI Section 11400
N8100-FA
Drop-In Self-Contained Forced Air Refrigerated Cold Pans
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfield.com
Phone: [phone]
Fax: [phone]
Email: info@delfield.com
Approval _________________
Date____________________

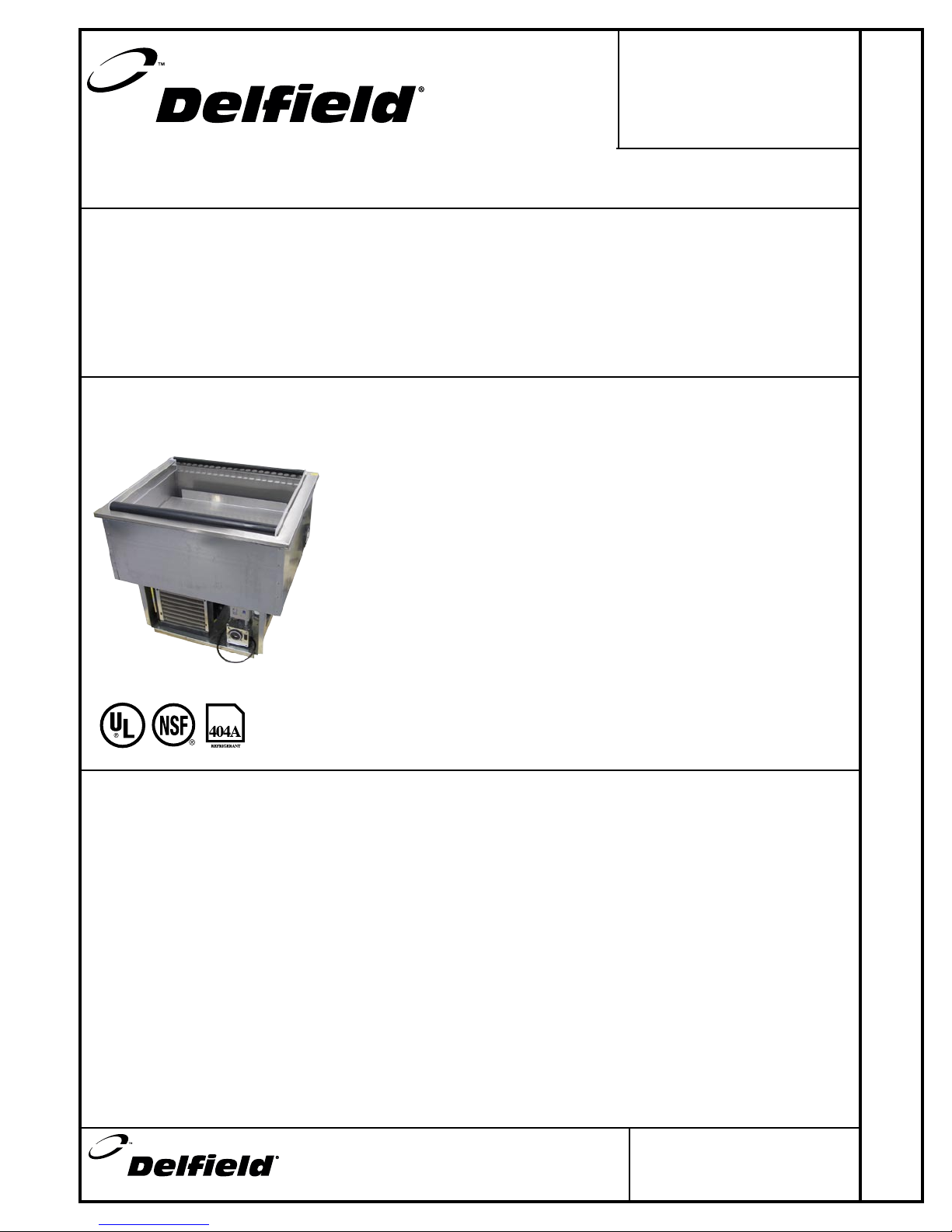

N8144-FA
SPECIFICATIONS
Top: is one-piece 20-gauge stainless steel. Interior
liner is 22-gauge stainless steel and is creased to
1” I.P.S. (2.54cm) diameter drain. A stainless steel
bracket, flush with the top, to accommodate 12” x 20”
(30.5cm x 50.8cm) pans 4” (10.2cm) or 6" (15.2cm)
deep supplied by others. Product temperatures of
33°F (1°C) to 41°F (5°C) are maintained at 86°F
(30°C) ambient room temperature, meeting NSF 7
requirements. Adapter bars are standard.
Sides and bottom: are insulated with high-density
closed-cell polyurethane. Exterior housing is 24-gauge
galvanized steel.
Refrigeration: system uses HFC-404A refrigerant.
Condensing unit is suspended below the cold pan on
a 16-gauge steel frame. Temperature controlled by a
low pressure control with separate On/Off power switch
and defrost timer. Unit is supplied with expansion valve.
Evaporator coil cools pans by air flowing over and under
pans.
A stainless steel louver is provided for field installation;
cutout dimension is 11” x 22” (27.94cm x 55.88cm).
A second opening at the rear of the cabinet should be
provided at installation to allow for proper air circulation.
Air Curtain assembly is removable without the use of
tools.
Electrical system is 115/60c/1ph with NEMA 5-15
plug on the N8131-FA, N8144-FA and N8157-FA models.
The N8169-FA and N8182-FA models come with a NEMA
5-20 plug.
MODELS
 N8131-FA 31” forced-air refrigerated cold pans
 N8144-FA 44” forced-air refrigerated cold pans
 N8157-FA 57” forced-air refrigerated cold pans
OPTIONS AND ACCESSORIES
 Custom sizes and styles
 Single or double service flip-up sneezeguards
 Relocated compressor
 230/50/1 electrical
STANDARD FEATURES
• NSF-7 certified
• Black air deflectors to guide airscreen over flush
mount pans
• On/Off power switch, defrost timer and low
pressure controls
• Environmentally friendly HFC-R404A refrigerant
• Push-in flange gasket standard
 N8169-FA 69” forced-air refrigerated cold pans
 N8182-FA 82” forced-air refrigerated cold pans

ELEVATION VIEW
N8131-FA
N8100-FA: Drop-In Self-Contained Forced Air Refrigerated Cold Pans
Model #__________
CSI Section 11400
Printed in the USA.
04/07
DS8100FA
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfield.com
Phone: [phone]
Fax: [phone]
Email: info@delfield.com
Mechanical Data — Standard Unit
MODEL
NUMBER
COUNTER CUTOUT
DIMENSIONS
# OF 12” X 20”
PANS HELD
VOLTS/HERTZ/
PHASE AMPS H.P.
NEMA
PLUG
SHIP WEIGHT
LBS/KG
REFRIG.
CHARGE
N8131-FA
30.2” x 25.5” (76.71cm x
64.77cm)
2 115/60/1 8.0 1/4 5-15P 165/75
16oz
N8144-FA
42.95” x 25.5” (109.09cm x
64.77cm)
3 115/60/1 10.0 1/2 5-15P 175/79
32oz.
N8157-FA
55.7” x 25.5” (141.48cm x
64.77cm)
4 115/60/1 10.0 1/2 5-15P 225/102
32oz.
N8169-FA
68.45” x 25.5” (173.86cm x
64.77cm)
5 115/60/1 15.0 3/4 5-20P 235/106 48oz.
N8182-FA
81.20” x 25.5” (206.25cm x
64.77cm)
6 115/60/1 15.0 3/4 5-20P 255/116
48oz.
31.25"
(79.37 cm)
26.6"
(67.71 cm)
44.00
(112.09 cm)
26.66"
(67.71 cm)
56.74"
(144.12 cm)
26.66"
(67.71 cm)
69.50"
(176.53 cm)
26.6"
(67.71 cm)
82.25
(208.91 cm)
26.6"
(67.71 cm)
26.62"
(67.6 cm)
26.62"
(67.6 cm) 26.62"
(67.6 cm)
28.62"
(72.7 cm)
28.62"
(72.7 cm)
29.95"
(76.07 cm)
55.45"
(140.84 cm)
42.7"
(108.46 cm)
13.72"
(34.85cm)
68.2"
(173.23 cm)
25.25"
(64.14 cm)
21.97"
(55.81cm)
80.95"
(205.61 cm)
PLAN VIEW
N8131-FA
PLAN VIEW
N8144-FA
PLAN VIEW
N8157-FA
PLAN VIEW
N8169-FA
PLAN VIEW
N8182-FA
ELEVATION VIEW
N8144-FA
ELEVATION VIEW
N8157-FA
ELEVATION VIEW
N8169-FA
ELEVATION VIEW
N8182-FA
RIGHT END VIEW
ALL MODELS
15.6"
(39.62 cm)
12.92"
(32.82 cm)
13.69
(34.8 cm)
12.92"
(32.82 cm)
13.69
(34.8 cm)
12.92"
(32.82 cm)
13.69
(34.8 cm)
12.92"
(32.82 cm)
15.69
(39.9 cm)
12.92"
(32.82 cm)
15.69
(39.9 cm)
