DIEBOLD NIXDORF CS 5500 User manual

Diebold Nixdorf CS 5500
Front-load Lobby Cash Dispenser
Operating Guide
TP-821763-001F PD 7326
October 2017

Copyright protection is claimed for each revision listed in the document history, as of the date indicated.
Any trademarks, service marks, product names or company names not owned by Diebold Nixdorf, Incorporated,
formerly known as Diebold, Incorporated or its subsidiaries (collectively “Diebold Nixdorf”) that appear in this
document are used for informational purposes only and Diebold Nixdorf claims no rights thereto, nor does such use
indicate any affiliation with or any endorsement of Diebold Nixdorf or Diebold Nixdorf products by the owners
thereof.
This document contains proprietary information. If the document pages state the information is confidential
(or words of similar import), then this document is intended solely for the use of the copyright owner's
employees or other personnel expressly authorized in writing by the copyright owner. Other uses of this
information without the express written consent of the copyright owner are prohibited. This document should
be treated as confidential material for security reasons. Any unauthorized disclosure or use of confidential
material may violate Section 1832 of Title 18 of the United States Code as well as other laws, and may be
punishable by fine and imprisonment.
The information contained in this document is subject to change without notice. When using the document for system
implementation, please call your authorized sales or service representative for any applicable changes.
This document and the information contained herein are provided AS IS AND WITHOUT WARRANTY. In
no event shall the copyright owner or its suppliers be liable for any special, indirect, or consequential damages
of any nature resulting from the use of information in this manual.
No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any
means: electronic, mechanical, photocopying, recording, or otherwise, without prior written permission from the
copyright owner.
Your use of this document and/or any of the information contained herein constitutes your agreement to all of the
terms stated on this page.
Diebold Nixdorf continually strives to improve its products. If you would like to comment on the accuracy, clarity,
organization or value of this document, please contact us at [e-mail] or address
correspondence to:
Diebold Nixdorf, Inc.
Att: Documentation Services 9-B-16
5995 Mayfair Road
North Canton, OH 44720
ii
Copyright ©Diebold, Incorporated (9/2014, 8/2015, 12/2015, 3/2016) - All Rights Reserved
Copyright ©Diebold Nixdorf, Inc. (4/2017, 10/2017) - All Rights Reserved
TP-821763-001F

Document History
Document Number Date Remarks
TP-821763-001A 9/2014 Original Edition
TP-821763-001B 8/2015 Revised Figure 2-12
TP-821763-001C 2/2016 Added options for the basic power system and two-cassette
ActivDispense. Updated figures.
TP-821763-001D 3/2016 Added information about the business-hour safe
TP-821763-001E 4/2017 Added Radio Interference Label and warning in Section 1.7 .
TP-821763-001F 10/2017 Updated information about the enhanced biometric fingerprint
reader. Updated the system name to Diebold Nixdorf CS 5500.
Updated all references of "terminal" to "system".
iii
Copyright ©Diebold, Incorporated (9/2014, 8/2015, 12/2015, 3/2016) - All Rights Reserved
Copyright ©Diebold Nixdorf, Inc. (4/2017, 10/2017) - All Rights Reserved
TP-821763-001F

Contents
Section1 Introduction ............................................ 1-1
1.1 ProductDescription ....................................... 1-1
1.2 BeforePerformingMaintenanceProcedures .......................... 1-5
1.3 MaintenanceTasks ....................................... 1-5
1.4 UsingthisManual ........................................ 1-5
1.5 GeneralSafetyPrecautions ................................... 1-6
1.6 WarningandCautionLabels .................................. 1-7
1.7 RadioInterferenceLabel .................................... 1-8
1.8 Terminology ........................................... 1-8
Section2 DevicesintheCashDispenser ................................... 2-1
2.1 AccessPointsusedbytheConsumer .............................. 2-1
2.1.1 FasciaMirror ...................................... 2-3
2.1.2 MotorizedCardReaderSlot .............................. 2-3
2.1.3 DipCardReader .................................... 2-3
2.1.4 SecureCardReader .................................. 2-3
2.1.5 FingerprintReader(optional) ............................. 2-3
2.1.6 EnhancedBiometricFingerprintReader(optional) .................. 2-3
2.1.7 ConsumerKeypad ................................... 2-3
2.1.8 HeadphoneJack .................................... 2-4
2.1.9 FunctionKeypads ................................... 2-4
2.1.10 ConsumerDisplay ................................... 2-4
2.1.11 PrinterSlot ....................................... 2-4
2.1.12 DispenserSlot ..................................... 2-4
2.1.13 Lead-throughIndicators ................................ 2-4
2.2 DevicesUsedbytheConsumer ................................. 2-6
2.2.1 MotorizedCardReader ................................ 2-8
2.2.2 DipCardReader .................................... 2-9
2.2.3 SecureCardReader(optional) ............................. 2-10
2.2.4 ReceiptPrinter ..................................... 2-11
2.2.5 FingerprintReader(optional) ............................. 2-12
2.2.6 EnhancedBiometricFingerprintReader(optional) .................. 2-13
2.2.7 2DBarcodeScanner(optional) ............................ 2-14
2.2.8 ContactlessCardReader(optional) .......................... 2-15
2.3 DevicesUsedbytheOperator ................................. 2-19
2.3.1 PowerSupply ...................................... 2-19
2.3.1.1 ActivPowerSystem ............................. 2-22
2.3.1.2 BasicPowerSystem ............................ 2-23
2.3.1.3 MaintenanceModeSwitch ......................... 2-23
2.3.2 ConsumerDisplay ................................... 2-24
2.3.3 MaintenanceKeyboardandMouse .......................... 2-25
2.3.4 DiskDrives ....................................... 2-25
2.4 DevicesintheSafe ....................................... 2-26
2.4.1 Dispenser ........................................ 2-27
2.4.2 DivertCassetteandDivertBin ............................. 2-29
2.4.3 DispenseCassettes ................................... 2-30
2.4.4 SecureSafeDoorLock ................................. 2-31
2.4.5 AlarmSensors ..................................... 2-32
2.4.6 SeismicDetectors ................................... 2-32
2.4.7 HeatThermostat .................................... 2-33
Section3 MaintenanceProcedures ...................................... 3-1
3.1 TouchPointsontheCashDispenserandDevices ....................... 3-2
3.2 OpeningtheTopChassis .................................... 3-3
iv
Copyright ©Diebold, Incorporated (9/2014, 8/2015, 12/2015, 3/2016) - All Rights Reserved
Copyright ©Diebold Nixdorf, Inc. (4/2017, 10/2017) - All Rights Reserved
TP-821763-001F

Contents
3.3 ClosingtheTopChassis ..................................... 3-4
3.4 OpeningtheLowerFascia ................................... 3-5
3.5 ClosingtheLowerFascia .................................... 3-6
3.6 OpeningandClosingtheDooroftheSafe ........................... 3-7
3.6.1 OpeningMechanicalCombinationLocks(withoutmechanicalkeylock) ....... 3-8
3.6.2 ClosingMechanicalCombinationLocks(withoutmechanicalkeylock) ....... 3-10
3.6.3 OpeningMechanicalCombinationLocks(withmechanicalkeylock) ........ 3-12
3.6.4 ClosingMechanicalCombinationLocks(withmechanicalkeylock) ......... 3-14
3.6.5 OpeningElectronicCombinationLocks(withoutmechanicalkeylock) ....... 3-16
3.6.6 ClosingElectronicCombinationLocks(withoutmechanicalkeylock) ........ 3-17
3.6.7 OpeningElectronicCombinationLocks(withmechanicalkeylock) ......... 3-18
3.6.8 ClosingElectronicCombinationLocks(withmechanicalkeylock) .......... 3-19
3.7 AccessingtheDispenser .................................... 3-20
3.8 AccessingtheMaintenanceKeyboardandMouse ....................... 3-22
3.9 AccessingtheMotorizedCardReader,theReceiptPrinterandtheProcessor ......... 3-22
AppendixARelatedDocumentation ...................................... A-1
AppendixBCleaningtheExterioroftheSystem ............................... B-1
Glossary .................................................. Glossary-1
Figures
Figure1-1 CS5500Front-loadLobbyCashDispenser ........................... 1-2
Figure1-2 TaiwanClassALabel ...................................... 1-8
Figure2-1 AccessPointsusedbytheConsumer .............................. 2-2
Figure2-2 Lead-throughIndicators ..................................... 2-5
Figure2-3 ConsumerDevicesintheTopChassis .............................. 2-7
Figure2-4 MotorizedCardReader ..................................... 2-8
Figure2-5 DipCardReader ......................................... 2-9
Figure2-6 SecureCardReader ....................................... 2-10
Figure2-7 ReceiptPrinter .......................................... 2-11
Figure2-8 FingerprintReader ....................................... 2-12
Figure2-9 EnhancedBiometricFingerprintReaderModule ........................ 2-13
Figure2-10 2DBarcodeScanner ....................................... 2-14
Figure2-11 ContactlessCardReader .................................... 2-16
Figure2-12 PowerSupply .......................................... 2-20
Figure2-13 ConsumerDisplay ........................................ 2-24
Figure2-14 MaintenanceKeyboardandMouse ............................... 2-25
Figure2-15 DevicesintheSafe ........................................ 2-26
Figure2-16 ActivDispense .......................................... 2-28
Figure2-17 Divert/RetractCassetteandDivertBin ............................. 2-29
Figure2-18 DispenseCassettes ........................................ 2-30
Figure2-19 SafeDoorLocks ......................................... 2-31
Figure2-20 SeismicDetector ......................................... 2-32
Figure2-21 HeatThermostat ......................................... 2-33
Figure3-1 ExamplesofTouchPointsontheDispenser ........................... 3-2
Figure3-2 OpeningtheTopChassis .................................... 3-3
v
Copyright ©Diebold, Incorporated (9/2014, 8/2015, 12/2015, 3/2016) - All Rights Reserved
Copyright ©Diebold Nixdorf, Inc. (4/2017, 10/2017) - All Rights Reserved
TP-821763-001F

Figures
Figure3-3 ClosingtheTopChassis ..................................... 3-4
Figure3-4 OpeningtheLowerFascia .................................... 3-5
Figure3-5 ClosingtheLowerFascia .................................... 3-6
Figure3-6 LocksandHandlesontheDooroftheSafe ........................... 3-7
Figure3-7 OpeningtheSafeDoor(mechanicallockwithoutkeylock) ................... 3-9
Figure3-8 ClosingtheSafeDoor(mechanicallockwithoutkeylock) ................... 3-11
Figure3-9 OpeningtheSafeDoor(mechanicallockwithkeylock) .................... 3-13
Figure3-10 ClosingtheSafeDoor(mechanicallockwithkeylock) ..................... 3-15
Figure3-11 OpeningSafeDoor(electroniclockswithoutkeylock) ..................... 3-16
Figure3-12 ClosingtheSafeDoor(electroniclockswithoutkeylock) ................... 3-17
Figure3-13 OpeningtheSafeDoor(electroniclockswithkeylock) ..................... 3-18
Figure3-14 ClosingtheSafeDoor(electroniclockswithkeylock) ..................... 3-20
Figure3-15 AccessingtheDispenser ..................................... 3-21
Figure 3-16 Accessing the Motorized Card Reader, the Receipt Printer and the Processor ......... 3-23
vi
Copyright ©Diebold, Incorporated (9/2014, 8/2015, 12/2015, 3/2016) - All Rights Reserved
Copyright ©Diebold Nixdorf, Inc. (4/2017, 10/2017) - All Rights Reserved
TP-821763-001F

Section 1
Introduction

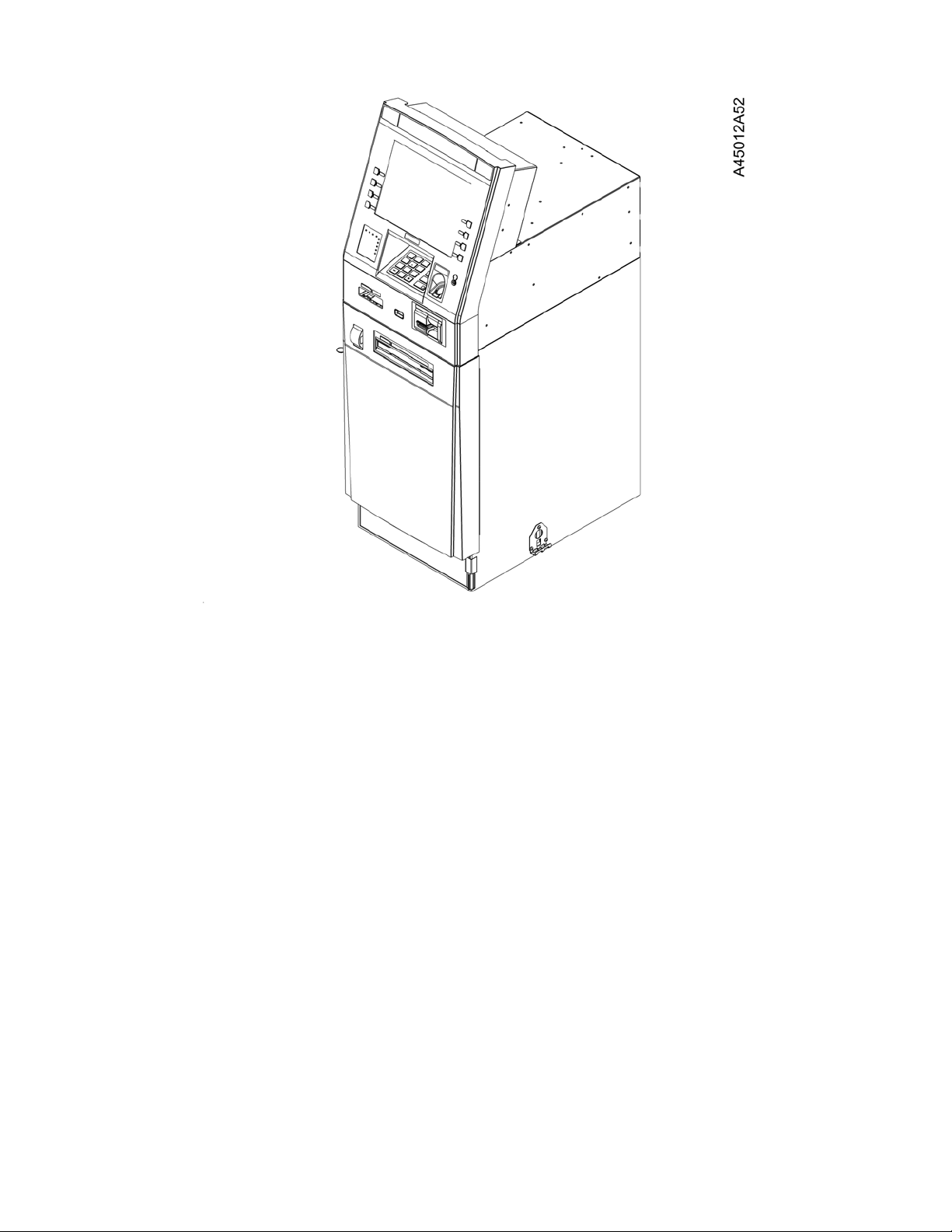

1.1 Product Description
The CS 5500 front-load cash dispenser is a free-standing system that dispenses
cash and printed receipts to the consumer. Supplies are replenished and service is
performed from the front of the cash dispenser.
The cash dispenser is installed in interior locations, such as bank lobbies,
transportation terminals, department stores, or work locations. With different
configurations, the cash dispenser is designed for 24-hour service or for
business-hour service only.
NOTE
UL 291 3.4 BUSINESS HOUR SERVICE is defined as a
product that is available during business hours only, is under
observation by responsible persons, and is emptied of all
valuables at the close of business.
1-1
Copyright ©Diebold, Incorporated (9/2014, 8/2015, 12/2015, 3/2016) - All Rights Reserved
Copyright ©Diebold Nixdorf, Inc. (4/2017, 10/2017) - All Rights Reserved
TP-821763-001F

View A System with 13 mm UL Safe
Figure 1-1 CS 5500 Front-load Lobby Cash Dispenser (sheet 1 of 3)
1-2
Copyright ©Diebold, Incorporated (9/2014, 8/2015, 12/2015, 3/2016) - All Rights Reserved
Copyright ©Diebold Nixdorf, Inc. (4/2017, 10/2017) - All Rights Reserved
TP-821763-001F

ViewB Systemwith40mmCENSafe
Figure 1-1 CS 5500 Front-load Lobby Cash Dispenser (sheet 2 of 3)
1-3
Copyright ©Diebold, Incorporated (9/2014, 8/2015, 12/2015, 3/2016) - All Rights Reserved
Copyright ©Diebold Nixdorf, Inc. (4/2017, 10/2017) - All Rights Reserved
TP-821763-001F

View C System with 6 mm UL Business Hour Safe
Figure 1-1 CS 5500 Front-load Lobby Cash Dispenser (sheet 3 of 3)
1-4
Copyright ©Diebold, Incorporated (9/2014, 8/2015, 12/2015, 3/2016) - All Rights Reserved
Copyright ©Diebold Nixdorf, Inc. (4/2017, 10/2017) - All Rights Reserved
TP-821763-001F

1.2 Before Performing Maintenance Procedures
The operator should be familiar with the features on the cash dispenser and the
maintenance plan before performing maintenance procedures.
Standard and Optional Equipment
The cash dispenser might not have all the features described in this manual.
Refer to the documents listed in Appendix A for more information.
Maintenance Plans
Consult with the manager at the institution to verify which maintenance plan
the institution is using.
1.3 Maintenance Tasks
Daily maintenance includes the following tasks:
• Retrieving jammed, retained or captured cards
• Replenishing printer paper
• Removing jammed paper
• Replacing printer cartridges
• Removingjammedcash
1.4 Using this Manual
This manual provides the following information:
• A description of devices (Section 2)
• Maintenance procedures (Section 3)
• Related documentation (Appendix A)
• Cleaning the exterior of the cash dispenser (Appendix B)
1-5
Copyright ©Diebold, Incorporated (9/2014, 8/2015, 12/2015, 3/2016) - All Rights Reserved
Copyright ©Diebold Nixdorf, Inc. (4/2017, 10/2017) - All Rights Reserved
TP-821763-001F

1.5 General Safety Precautions
Strictly observe the following safety precautions during
maintenance to avoid damaging the equipment, severe
personal injury, or death.
• Be careful about wearing loose clothing or jewelry that
could become caught in the equipment.
• Prevent long hair getting caught in the equipment.
• Never insert screwdrivers, pens, or other instruments
into any part of the cash dispenser, modules or devices.
Severe bodily injury, death from electrical shock, or
equipment damage could occur.
• Always turn off the cash dispenser before removing or
installing modules.
1-6
Copyright ©Diebold, Incorporated (9/2014, 8/2015, 12/2015, 3/2016) - All Rights Reserved
Copyright ©Diebold Nixdorf, Inc. (4/2017, 10/2017) - All Rights Reserved
TP-821763-001F

1.6 Warning and Caution Labels
Strictly observe the following safety warnings or caution labels to reduce the
risk of severe personal injury, or death.
Label Definition Safety Concern
Electrical shock
hazard
An electrical shock hazard exists in the area
of the label. Do not remove covers. Remove
power before servicing.
Warning or danger
A personal injury can occur. Look for nearby
warning label (electrical shock, pinch point,
moving machinery, high temperature hazard)
or refer to the module or ATM operating
guideforthespecific hazard.
Pinch point
An area that can pinch (or cut) you exists in
the area of this label. Keep your hands and
fingers clear of pinch points.
Moving machinery
hazard
Moving parts that can snag or pull clothing,
hair, skin, or jewelry into the mechanism
are present in the area of this label. Keep
clothing, hair, skin, and jewelry out of the
mechanism.
High temperature
hazard
High temperatures that can cause pain or
burns are present in the area of this label.
Do not touch until cooled.
1-7
Copyright ©Diebold, Incorporated (9/2014, 8/2015, 12/2015, 3/2016) - All Rights Reserved
Copyright ©Diebold Nixdorf, Inc. (4/2017, 10/2017) - All Rights Reserved
TP-821763-001F

1.7 Radio Interference Label
This is a class A product. In a domestic environment this
product may cause radio interference, in which case the user
might be required to take adequate measures.
A warning label (see Figure 1-2) is included on ATMs available in Taiwan to
meet Taiwan Class A regulatory requirements for radio frequency interference.
Figure 1-2 Taiwan Class A Label
1.8 Terminology
The glossary at the back of this document lists terminology that is commonly
used with this product.
1-8
Copyright ©Diebold, Incorporated (9/2014, 8/2015, 12/2015, 3/2016) - All Rights Reserved
Copyright ©Diebold Nixdorf, Inc. (4/2017, 10/2017) - All Rights Reserved
TP-821763-001F

Section 2
Devices in the Cash Dispenser
This section describes the devices in the cash dispenser. The cash dispenser
might not have all the devices described in this section. Some devices are either
optional or are mutually exclusive and cannot be used with other devices.
Refer to the documents listed in Appendix A for more information.
2.1 Access Points used by the Consumer
Access points used by the consumer are shown in Figure 2-1 and described in
Section 2.1.1 through Section 2.1.13.
2-1
Copyright ©Diebold, Incorporated (9/2014, 8/2015, 12/2015, 3/2016) - All Rights Reserved
Copyright ©Diebold Nixdorf, Inc. (4/2017, 10/2017) - All Rights Reserved
TP-821763-001F

1Fasciamirror 9 Enhanced biometric fingerprint reader
2Camera 10 Dip card reader slot
3Camera cover 11 Motorized card reader slot
4Consumer display 12 Dispenser slot
5Function keys 13 2D barcode scanner
6 Task light 14 Receipt printer slot
7Speakers 15 Consumer keypad
8 Headphone jack 16 Contactless card reader
9 Fingerprint reader 17 Upper fascia lock
Figure 2-1 Access Points used by the Consumer
2-2
Copyright ©Diebold, Incorporated (9/2014, 8/2015, 12/2015, 3/2016) - All Rights Reserved
Copyright ©Diebold Nixdorf, Inc. (4/2017, 10/2017) - All Rights Reserved
TP-821763-001F

2.1.1 Fascia Mirror
Mirrors at the top of the fascia help consumers monitor the surroundings while
they use the cash dispenser.
2.1.2 Motorized Card Reader Slot
The motorized card reader is a mechanically operated device. The consumer
inserts an ATM card into the slot. The card reader automatically pulls the card
into the cash dispenser and returns it when the transaction is completed.
2.1.3 Dip Card Reader
The dip card reader is a manually operated device that reads magnetic stripe
cards and memory chip cards. The consumer inserts an ATM card in the card
slot and then removes the card to begin the transaction. The dip card reader
cannot retract, capture, or retain cards.
2.1.4 Secure Card Reader
The secure card reader is a mechanically operated device. The consumer inserts
an ATM card, long edge first, into the slot. The card reader automatically pulls
the card into the cash dispenser and returns it when the transaction is completed.
2.1.5 Fingerprint Reader (optional)
The fingerprint reader is mounted in the bezel of the PIN pad. The consumer
places a finger on the glowing window and the reader automatically scans the
fingerprint. A red flash indicates that an image of the fingerprint has been
captured. The scanned data is encrypted before it is sent over the USB interface.
2.1.6 Enhanced Biometric Fingerprint Reader (optional)
The enhanced biometric fingerprint reader is mounted on the bezel of the
enhanced encrypting PIN pad and uses active tamper detection. The reader
automatically scans the fingerprint when the consumer places their finger on the
window of the reader. The scanned data is hardware encrypted before being
sent to the processor.
2.1.7 Consumer Keypad
During the transaction the cash dispenser prompts the consumer to enter
information on the keypad, which uses an integrated security module and an
encrypting PIN pad to secure information about the transaction.
2-3
Copyright ©Diebold, Incorporated (9/2014, 8/2015, 12/2015, 3/2016) - All Rights Reserved
Copyright ©Diebold Nixdorf, Inc. (4/2017, 10/2017) - All Rights Reserved
TP-821763-001F

2.1.8 Headphone Jack
Consumers can use headphones to receive voice guidance. The fascia speakers
are turned off when the headphones are plugged into the jack.
2.1.9 Function Keypads
The consumer can use the four function keys on each side of the consumer
display to make selections that correspond to information on the display.
2.1.10 Consumer Display
The consumer display is a monitor used by the consumer to perform transactions.
2.1.11 Printer Slot
The consumer can receive a printed receipt at the end of a transaction through
the printer slot.
2.1.12 Dispenser Slot
The consumer receives bank notes and other dispensable media through the
dispenser slot.
2.1.13 Lead-through Indicators
Lead-through indicators are lights on the fascia of the cash dispenser that can be
amber or red, depending on the hardware status. Lead-through indicators guide
consumers to the next step in the transaction.
2-4
Copyright ©Diebold, Incorporated (9/2014, 8/2015, 12/2015, 3/2016) - All Rights Reserved
Copyright ©Diebold Nixdorf, Inc. (4/2017, 10/2017) - All Rights Reserved
TP-821763-001F

1Exampleofaguidelight
2 Motorized card reader
3 Dip card reader
4Dispe
nser
5Receipt printer
Figure 2-2 Lead-through Indicators
2-5
Copyright ©Diebold, Incorporated (9/2014, 8/2015, 12/2015, 3/2016) - All Rights Reserved
Copyright ©Diebold Nixdorf, Inc. (4/2017, 10/2017) - All Rights Reserved
TP-821763-001F

2.2 Devices Used by the Consumer
The following devices are used by the consumer:
Device Refer to...
Motorized card reader Section 2.2.1
Dipcardreader Section 2.2.2
Secure card reader Section 2.2.3
Receipt printer Section 2.2.4
Fingerprint reader (optional) Section 2.2.5
Enhanced biometric fingerprint reader (optional) Section 2.2.6
2D barcode scanner (optional) Section 2.2.7
Contactless card reader (optional) Section 2.2.8
Consumer display Section 2.3.2
The location of each device is shown in Figure 2-3.
2-6
Copyright ©Diebold, Incorporated (9/2014, 8/2015, 12/2015, 3/2016) - All Rights Reserved
Copyright ©Diebold Nixdorf, Inc. (4/2017, 10/2017) - All Rights Reserved
TP-821763-001F
