Directed DS3+ User manual

Designed by Installers for Installers
INSTALLATION GUIDE
DS3+ / DS4+
2018 Acura ILX (Smart Key). 933.HONDA9 2.03.195.3
© 2021 Directed, Vista CA
This product is intended for installation by a professional installer only! Attempts to install this
product by a person other than a trained professional may result in severe damage to a vehicle’s
electrical system and components.

Introduction 3
Vehicle function compatibilities 4
Pre-installation and application warnings 5
Installation 6
Wiring diagram with T-Harness (THHON9) with vehicle takeover 6
Optional starter disable connection with T-Harness (THHON9) with vehicle takeover 7
THHON9 T-Harness modifications 8

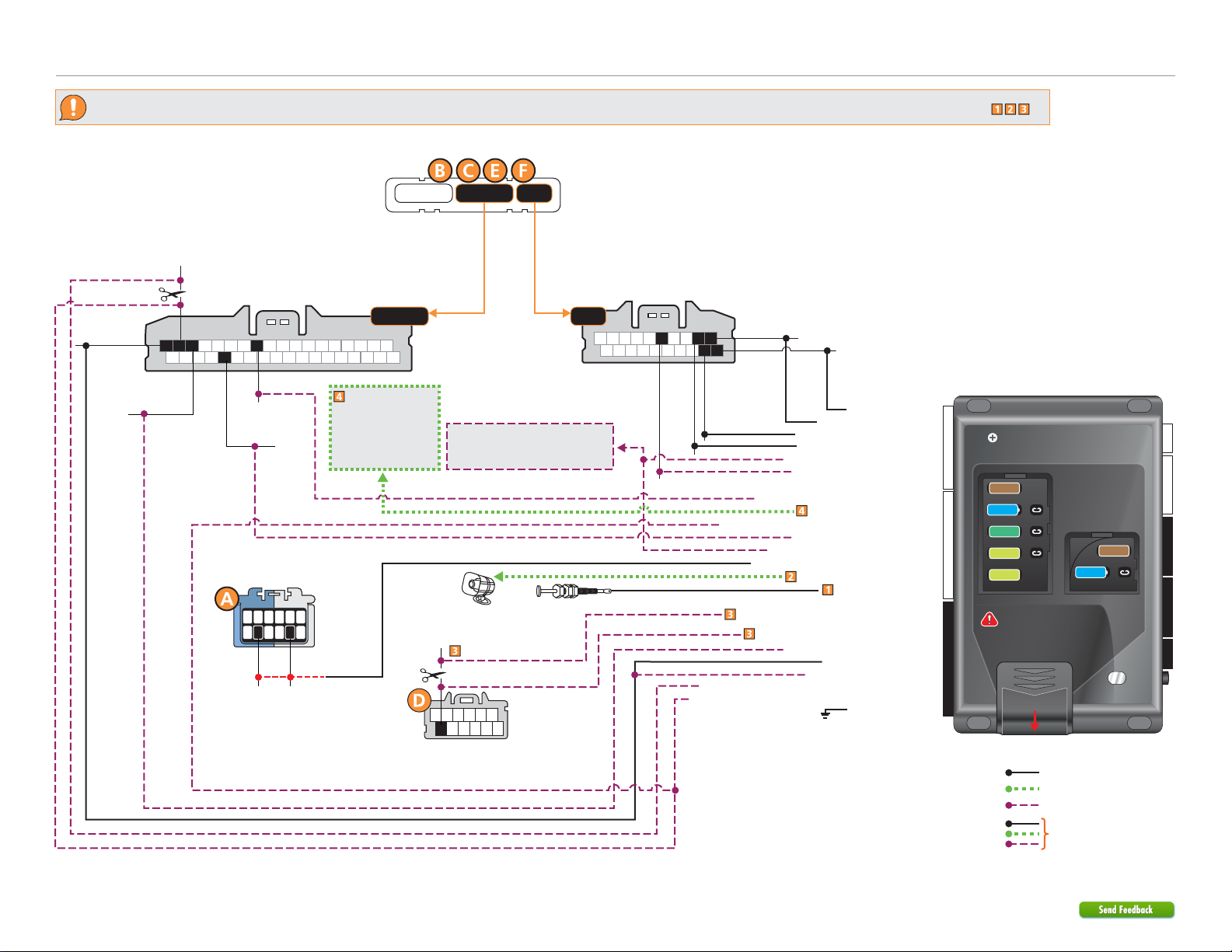

Wiring diagram with vehicle takeover 13
Vehicle takeover additional connections 14
Wiring diagram with T-Harness (THHON1) without vehicle takeover 15
Wiring diagram without vehicle takeover 16
Locating components in the vehicle 17
Vehicle connections 18
Module programming 22
Module programming for convenience features only (skip transponder) 24
Module programming for security-only installations 25
Pairing remotes 26
Connecting the module 26
8556T Temperature Sensor 26
8504D Combo Sensor 26
RF Systems 26
When used in conjunction with SmartStart 27
D2D port configuration 27
Manual transmission 28
LED diagnostics and troubleshooting 29
Soft reset 31
Hard reset 31
Tach learning procedure (not needed with Virtual Tach) 32
Initializing Virtual Tach (not needed with hardwired or data tach applications) 32
Limited lifetime consumer warranty 33
Quick Reference Guide 34
Contents

3933.HONDA9 2.03.195.3 2018 Acura ILX (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Introduction
This guide provides information on the installation of the DS3/DS3+ and DS4/DS4+ modules as a digital solution. Using these modules in a
digital configuration require the module to be flashed with vehicle specific firmware. Refer to our website (www.directechs.com) and click on
the DIRECTLINK text in the header for additional information.
DS3/DS3+ and DS4/DS4+ modules provide an all-in-one solution for most modern vehicles, and include remote start, keyless entry, security,
and immobilizer bypass capabilities. T-harnesses may also be used in many applications for easy installation.
The following methods are available to configure modules:
• Web: www.directechs.com (DS3/DS3+ and DS4/DS4+)
• Desktop Application: Directlink DT (DS3/DS3+ and DS4/DS4+)
• Mobile Device: Directlink App (DS4/DS4+ only)
When Flashing via Directlink DT (Desktop app) or via the Web, an XKloader2 will be required.
To configure via Web or DirectLink DT (mobile app):
1. Disconnect the main module from any (+) 12V power source.
2. Connect the module to your computer using the XKLoader2.
3. Follow the steps in the pop-up window that will be displayed when the module is detected.
Notes:
•Flashing via web is only possible using Internet Explorer on Windows 8, 8.1, and 10.
•This method is not compatible with any other browser (Edge, Chrome, Firefox, etc.)
•When using Windows 11 or newer, Directlink DT is mandatory.
The DS4/DS4+ module is designed to be configured using the DirectLink application through mobile devices.
To download the DirectLink mobile application, visit the Google Play or Apple store. They can also be
configured via Web and DirectLink DT. The DS4/DS4+ features are built in Bluetooth® 4.0, allowing you to
configure and control your system. The DS3/DS3+ module is not equipped with Bluetooth®, therefore is not
compatible with the DirectLink app for mobile devices.
To configure via DirectLink DT (mobile app):
1. Follow and complete the wiring diagram(s) related to your installation through the app.
2. When installation is complete, select Configure DS4/DS4+.
3. Follow the on-screen instructions.
FLASH REQUIRED!
FLASH REQUIRED!
4 White

4933.HONDA9 2.03.195.3 2018 Acura ILX (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Vehicle function compatibilities
This section lists all the functions compatible with this vehicle for the installation illustrated in this guide.
Note: The telematics features listed below (with an asterisk) ONLY apply when using SmartStart.
Arm Factory Security
Disarm Factory Security
Door Lock Control
Door Unlock
Driver Priority Unlock
Trunk / Hatch Release
Control of aftermarket alarm with OEM remote
* Fuel Level
Key2GO
* Odometer
Immobilizer Bypass-Data No Key Req'd
3x LOCK START (Start control using OEM Remote)
3x LOCK STOP (Stop control using OEM Remote)
Accessory Activation
Ignition Activation
RAP Shut Down (Retained ACC Power)
Remote Start Takeover
SmartStart
Start (Crank) Activation
Tach / RPM Output
Entry Monitoring ALL Door Pins
Entry Monitoring Hood Pin
Entry Monitoring Trunk/Hatch Pin
Factory Alarm Trigger Monitoring
Brake Status (foot brake)
Door Locks Status
E-Brake Status
Ignition Status

5933.HONDA9 2.03.195.3 2018 Acura ILX (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Pre-installation and application warnings
START HERE This section highlights important information for this specific firmware and will assist in pricing accordingly, as
well as bringing awareness to any operational or vehicle limitations.
Compatibilities and Requirements
T-Harness
compatible
THHON9 - with vehicle takeover
OR
THHON1 - without vehicle takeover
AUX
Keys
required for
programming 1Keys required
for operation 0
Vehicle Takeover Refer to the Quick Reference Guide section for more details.
Firmware notes
IMPORTANT: Do NOT turn vehicle ignition ON with ANY vehicle connectors disconnected, including during module
programming. Failure to do so may result with errors in the instrument cluster or hidden error messages.
IMPORTANT: Modifications to the THHON9 are required. Refer to the THHON9 T-Harness modification section for proper use of
the THHON9 T-Harness for steps and connection details.
The optional Plug & Play THHON9 & THHON1 T-Harnesses are sold separately.
All T-Harness wires NOT listed in the diagram are NOT required for the installation. Loose wires such as Siren Output and Hood Input
may need to be pulled from the tapped section of the T-harness. Refer to the "wiring diagram with T-Harness" for more information on
connections and installation instructions.
Key2GO may be required if the interface does not program using the traditional method. Refer to the "Module programming" section
for more information.
All connectors are displayed from the wire side (unless specified otherwise).
It is important to check that the fuses are positioned correctly in the module. Proper fuse positioning is displayed on each wiring
diagram.
Refer to the "Vehicle connections" following the installation diagram.
Footnotes
[1] The installation of an aftermarket hood pin is ONLY required on vehicles that are NOT equipped with a factory hood pin or NOT
supported in data.
[2] The siren is only required when enabling the security features during module flashing.
[3] The steering lock connection is ONLY required if the connector is present in the vehicle.
[4] For Security only installations, refer to the "Optional starter disable connection" section.
[5] When using an external relay, use a 1N4002 diode or larger. Directed Part No. 8616 Mini Relays must be used for this connection.
Refer to the "8616 wire and color reference" on the installation diagram.
[6] The PTS wire is mandatory in vehicles equipped with a manual transmission; otherwise it is ONLY required for Pit Stop/Idle mode
shutdown.

6933.HONDA9 2.03.195.3 2018 Acura ILX (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
Violet/Black
Starter Disable loop.

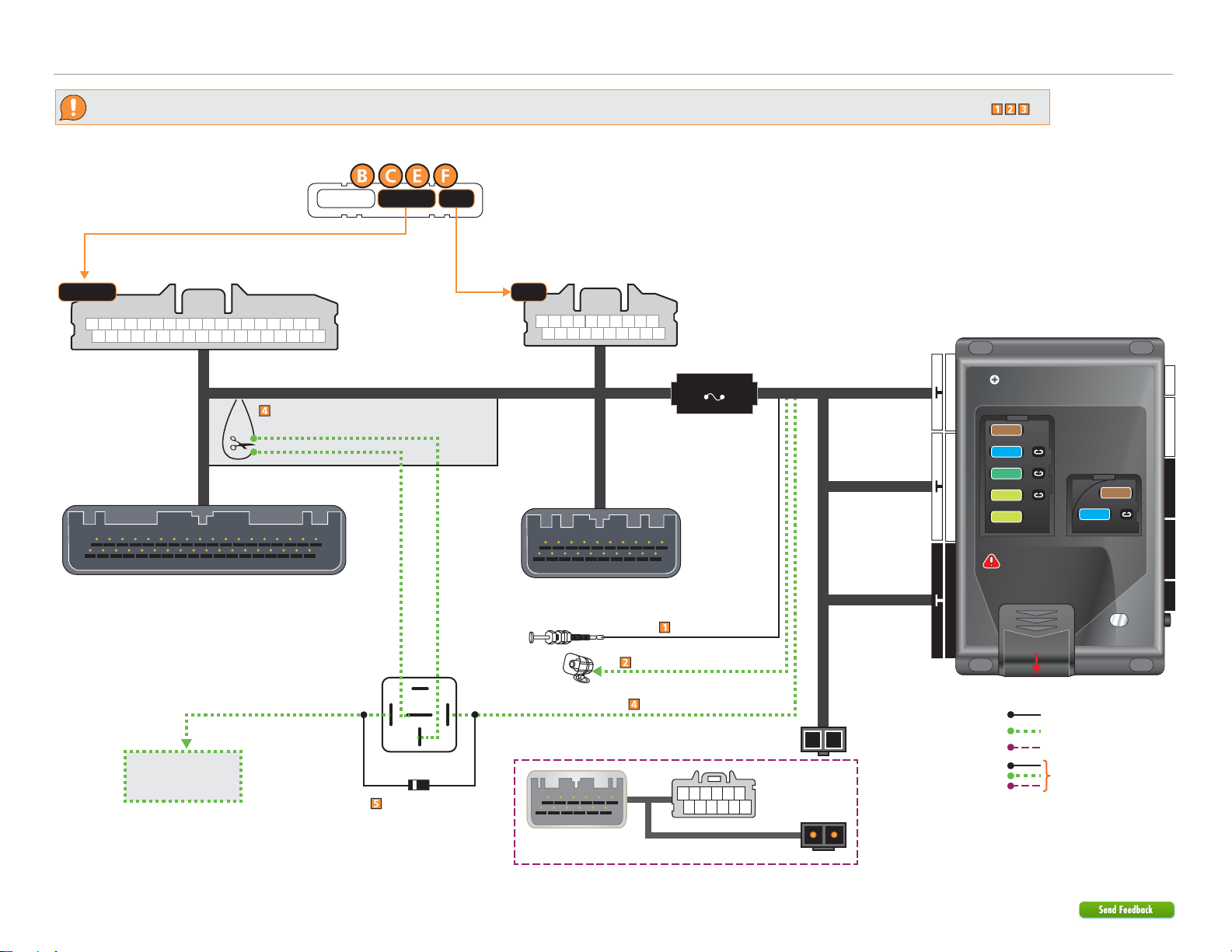

Wiring diagram with T-Harness (THHON9) with Vehicle Takeover
THHON9
(optional t-harness)
Keyless Access Control Unit
(gray 20-pin connector)
Keyless Access Control Unit
(gray 36-pin connector)
8-pin White Connector
22-pin White Connector
12-pin Black Connector
Relay Pack
5A Fuse Inside
(black, 2-pin connector)
(black, 2-pin connector)
Steering Lock Module
(12-pin gray connector
under steering column)
Ignition Interrupt 5
(-) Parking Lights Output: Lt. Blue/Black
(-) GWA Output: Red/White
Siren
Hood Pin
Refer to the
Optional Starter Disable
Connection section for relay
and connection details. (+) Siren Output: Brown/Red
(-) Hood Input: Gray
Security Only
Mandatory Connections
Remote Start Only
Legend:
Remote Start + Security
22 812
4 2442
Slide to open
A module can also be used for
this installation.
IMPORTANT:
Position the
fuses correctly!
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3/PK LIGHT (15A) (+)
5
5
30
20
20
15
15
Modifications are
required in this
section of the
THHON9 T-Harness.
(-) Parking Lights:
pin 8 OR pin 11
Headlight Switch
(blue or white connector)
123456
711 8 91012
•Modifications to the THHON9 are required. Refer to the THHON9 T-Harness modifications section for proper use of the THHON9 T-Harness for steps and connection details.
•Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
Modifications are
required in this
section of the
THHON9 T-Harness.
12
12
Keyless Acces Control Unit
(Refer to the Vehicle connections
section for the location of this unit.)
Connect

7933.HONDA9 2.03.195.3 2018 Acura ILX (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
For the Optional Starter Disable connection ONLY:
Cut the Violet/Black loop.
Optional starter disable connection with T-Harness (THHON9) with Vehicle Takeover
THHON9
(optional t-harness)
8-pin White Connector
22-pin White Connector
12-pin Black Connector
(-) GWA Output: Red/White
For Starter Disable
connect to the vehicle’s
true ignition.
(+) Ignition
86 85
30
87a
87
1A Diode (1N4002+)
Keyless Access Control Unit (C)
(gray 20-pin connector)
Keyless Access Control Unit (B)
(gray 36-pin connector)
Relay Pack
5A Fuse Inside
Siren
Hood Pin
(+) Siren Output: Brown/Red
(-) Hood Input: Gray
Not used for Security Only installations.
Security Only
Mandatory Connections
Remote Start Only
Legend:
Remote Start + Security
22 812
4 2442
Slide to open
A module can also be used for
this installation.
IMPORTANT:
Position the
fuses correctly!
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3/PK LIGHT (15A) (+)
5
5
30
20
20
15
15
12
12
Keyless Acces Control Unit
(Refer to the Vehicle connections
section for the location of this unit.)

8933.HONDA9 2.03.195.3 2018 Acura ILX (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
THHON9 T-Harness modifications
IMPORTANT: The following modifications MUST be done before connecting it to the vehicle.
Required: THHON9 T-Harness
Note: The small gray connector shown highlighted in redred does not require any modifications.
Step 1 Remove the cloth tape near the relay pack to expose additional wiring.

9933.HONDA9 2.03.195.3 2018 Acura ILX (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Step 2 Identify the White wire in the exposed wire section of the THHON9 T-Harness shown below and pull out the White wire.
Step 3 Remove the cloth tape on the relay pack.
White wireWhite wire

10 933.HONDA9 2.03.195.3 2018 Acura ILX (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Step 4 Remove part of the shrink wrap on the relay pack, as well as the tie wrap and cloth tape to expose additional wiring.
Step 5 Pinpoint the Lt. Green/White wire in the exposed section. Connect the loose White wire to the loose Lt. Green/White wire.
Step 6 Identify the exposed White and White/Brown wires and connect them together as shown.

11 933.HONDA9 2.03.195.3 2018 Acura ILX (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Step 7 Identify the four (4) Dk. Blue/Black wires on the PCB labeled RC1, RC2, RC3 and RC4.
Step 8 Cut the Dk. Blue/Black wires labeled RC3 & RC4, then isolate them as they are no longer needed.
Step 9 Identify and cut the Dk. Blue/Black wire on the PCB labeled RC2.
RC4RC4
RC3RC3
RC2RC2
RC1RC1

12 933.HONDA9 2.03.195.3 2018 Acura ILX (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Step 10 Pinpoint the loose Violet/Brown MUX wire of the THHON9 T-Harness.
Step 11 Connect the Violet/Brown MUX wire to the Dk. Blue/Black wire labeled RC2 as shown.
Step 12 Place a new tie wrap and ensure all connections are well taped and secure.
IMPORTANT! Ensure that all connections are done properly and taped.

13 933.HONDA9 2.03.195.3 2018 Acura ILX (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
Wiring diagram with Vehicle Takeover
Siren
Hood Pin
(-) Hood Input: Gray: 21
(+) Siren Output: Brown/Red: 11
Immobilizer Data: Yellow/Black: 8
(-) Takeover 1 Output: Dk. Blue/Black: 9
Takeover 2 Output: Violet/Brown: 6
HS CAN Low 2: Tan: 1
HS CAN High 2: Tan/Black: 2
HS CAN High 1: Orange/Green: 4
HS CAN Low 1: Orange/Brown: 3
(-) Parking Lights Output: Lt. Blue/Black: 10
(+) 12V Input : Red: 6 & 12
(-) Ground: Black: 10
(-) Push-to-Start Output: Lt. Green/Black: 1
(+) Starter Output: Violet/Black: 8
(+) Takeover Ignition Output (conn. side): White: 7
(+) 12V Input: Lt. Green/Red: 7
10
20
1
11
2
12
3
13
4
14
56
15161718
789
19
Immo. Data:
Pin 5
B-CAN
Low:
Pin 11
B-CAN
High:
Pin 1
F-CAN
Low:
Pin 12
F-CAN
High:
Pin 2
12
20 19
3
21
4
22
56
24 23
78
26 25
9
27
10
2829
11
12
30
13
31
14
32
15
33
16
34
17
35
18
36
(+) Ignition: Pin 17
(+) 12V:
Pin 18
(-) PTS: Pin 11
(+) Accessory:
Pin 16
Ignition Interrupt (vehicle side): Blue/White: 1
Ignition Interrupt (connector side): Blue: 3
Keyless Access Control Unit
(gray connector)
Keyless Access Control Unit
(gray connector)
(-) GWA Output: Red/White: 4
12
Cut
Steering Lock Module
(gray connector under steering column)
Ignition Interrupt 5: Pin 12
Refer to the
Optional starter
disable connection
section for relay
and connection
details.
(+) Ignition Output/Interrupt (vehicle side): Lt. Green: 8
(+) Ignition Interrupt (connector side): Lt. Green/White: 9
Cut
(+) Starter:
Green or Lt.Blue,
pin 32
(+) Accessory Output: White: 5 & 11
Refer to the next page for the
mandatory relay connections
for Vehicle takeover.
Security Only
Mandatory Connections
Remote Start Only
Legend:
Remote Start + Security
22 812
4 2442
Slide to open
A module can also be used for
this installation.
IMPORTANT:
Position the
fuses correctly!
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3/PK LIGHT (15A) (+)
5
5
30
20
20
15
15
Headlight Switch
(blue or white connector)
(-) Parking Lights:
pin 8 OR pin 11
123456
711 8 91012
12
1
2
Keyless Acces Control Unit
(Refer to the Vehicle connections
section for the location of this unit.)

14 933.HONDA9 2.03.195.3 2018 Acura ILX (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
Vehicle takeover additional connections
Security Only
Mandatory Connections
Remote Start Only
Legend:
Remote Start + Security
22 812
4 2442
Slide to open
A module can also be used for
this installation.
IMPORTANT:
Position the
fuses correctly!
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3/PK LIGHT (15A) (+)
5
5
30
20
20
15
15
(+) 12V Input : Red: 6 & 12
(-) Ground: Black: 10
12
20 19
3
21
4
22
56
24 23
78
26 25
9
27
10
2829
1112
30
13
31
14
32
15
33
16
34
17
35
18
36
(+) 12V: Pin 18
(-) Takeover 2 Output: Violet/Brown: 6
(-) Takeover 1 Output: Dk. Blue/Black: 9
(+) Ignition Interrupt 4:
pin 30
(+) Ignition
Interrupt 1:
pin 34
87a87
85 86
30
Cut
1A Diode (1N4002+)
87a87
85 86
30
Cut
1A Diode (1N4002+)
8616
Mini
Relay
8616
Mini
Relay
Keyless Access Control Unit
(gray connector)
87a87
Orange
8616 wire and color reference
Brown
Yellow
Black Red
85 86
30
8616
Mini
Relay
5A Fuse
2Keyless Acces Control Unit
(Refer to the Vehicle connections
section for the location of this unit.)
2
•Hardwire installations - required for takeover. For T-Harness installations, DO NOT make connections on this diagram, they have relays built-in.
•Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).

15 933.HONDA9 2.03.195.3 2018 Acura ILX (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
Wiring diagram with T-Harness (THHON1 Rev. 1 & 2) without Vehicle Takeover
12-pin
Black Connector
THHON1 Rev. 1 & 2 (Optional T-Harness)
When using a T-Harness and the
OEM Remote Keyless Entry does
NOT operate when a vehicle is
remote started, cut and tape
the White wire in pin 5 of the
Black 12-pin harness.
Optional connection for THHON1 Rev. 1 ONLY
for THHON1 Rev. 2 ONLY:
Cut the White loop. Cut
(-) Parking Lights: Lt. Blue/Black
Siren
Hood Pin
(-) Hood Input: Gray
(+) Siren Output: Brown/Red
Refer to the Optional starter
disable connection section for
relay and connection details.
(-) GWA Output: Red/White
Security Only
Mandatory Connections
Remote Start Only
Legend:
Remote Start + Security
22-pin White Connector
12-pin Black Connector
8-pin White Connector
22 812
4 2442
Slide to open
A module can also be used for
this installation.
IMPORTANT:
Position the
fuses correctly!
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3/PK LIGHT (15A) (+)
5
5
30
20
20
Keyless Access Control Unit
(gray 20-pin connector)
Keyless Access Control Unit
(gray 36-pin connector)
(-) Parking Lights:
pin 8 OR pin 11
Headlight Switch
(blue or white connector)
123456
711 8 91012
1
1
2
2
Keyless Acces Control Unit
(Refer to the Vehicle connections
section for the location of this unit.)

16 933.HONDA9 2.03.195.3 2018 Acura ILX (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
Wiring diagram without Vehicle Takeover
If the OEM Remote Keyless Entry does
NOT operate when a vehicle is remote
started, disconnect Accessory 2.
Siren
Hood Pin (-) Hood Input: Gray: 21
(+) Siren Output: Brown/Red: 11
Immobilizer Data: Yellow/Black: 8
(-) Parking Lights Output: Lt. Blue/Black: 10
(+) 12V Input : Red: 6 & 12
(-) Ground: Black: 10
(-) Push-to-Start Output: Lt. Green/Black: 1
(+) Accessory 2 Output: White: 7
(+) Starter Output: Violet/Black: 8
(+) Ignition Output: Lt. Green: 8
(+) 12V Input: Lt. Green/Red: 7
10
20
1
11
2
12
3
13
4
14
56
15161718
789
19
Immo. Data:
Pin 5
B-CAN
Low:
Pin 11
B-CAN
High:
Pin 1
F-CAN
Low:
Pin 12
F-CAN
High:
Pin 2
12
20 19
3
21
4
22
56
24 23
78
26 25
9
27
10
2829
11
12
30
13
31
14
32
15
33
16
34
17
35
18
36
(+) Ignition: Pin 17
(+) 12V: Pin 18
(-) PTS: Pin 11
(+) Starter: Pin 32
(+) Accessory 2: Pin 15
(+) Accessory 1: Pin 16
Ignition Interrupt (vehicle side): Blue/White: 1
Ignition Interrupt (connector side): Blue: 3
(+) Accessory 1 Output: White: 5 & 11
Ignition Interrupt:
Pin 34
Keyless Access Control Unit
(gray connector)
Cut
Refer to the
Optional starter
disable connection
section for relay and
connection details.
(-) GWA Output: Red/White: 4
HS CAN Low 2: Tan: 1
HS CAN High 2: Tan/Black: 2
HS CAN High 1: Orange/Green: 4
HS CAN Low 1: Orange/Brown: 3
Keyless Access
Control Unit
(gray connector)
Security Only
Mandatory Connections
Remote Start Only
Legend:
Remote Start + Security
22 812
4 2442
Slide to open
A module can also be used for
this installation.
IMPORTANT:
Position the
fuses correctly!
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3/PK LIGHT (15A) (+)
5
5
30
20
20
15
15
(-) Parking Lights:
pin 8 OR pin 11
Headlight Switch
(blue or white connector)
123456
711 8 91012
1
1
2
2
Keyless Acces Control Unit
(Refer to the Vehicle connections
section for the location of this unit.)

17 933.HONDA9 2.03.195.3 2018 Acura ILX (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Locating components in the vehicle
Acura ILX (Smart Key) 2016-2020 right of steering column
above glove box
left of steering column
right of steering column
above glove boxAcura MDX (Smart Key) 2014-2020
Acura RDX (Smart Key) 2016-2018
Acura RLX (Smart Key) 2016-2018
Acura TLX (Smart Key) 2015-2020
Vehicle Keyless Access Control Unit Location
behind instrument cluster
behind instrument cluster
above gas pedal
above glove box
above glove box
Honda Fit (Smart Key) 2015-2020
Honda HR-V (Smart Key) 2016-2021
Honda Odyssey (Smart Key) 2014-2017
Honda Pilot (Smart Key) 2016-2020
Honda Ridgeline (Smart Key) 2017-2019
Vehicle Keyless Access Control Unit Location
22 812
4 2442
86 85
30
87a
87
Refer to the
Vehicle connections
section for wire
and connector
details.
(-) Ground When Armed (GWA) Output: Red/White: 4
Starter (vehicle side)
Starter (connector side)
(+) Ignition
Ignition
(vehicle side)
Cut
Security Only
Mandatory Connections
Remote Start Only
Legend:
Remote Start + Security
Optional starter disable connection
1A Diode (1N4002+)
Important! When flashing your module for Security Only, the Ground When
Armed (GWA) function is pre-configured. When flashing your module for Remote
Start & Security, you must manually assign the designated output to Anti Grind (AG)
Starter Kill. (Applicable to CORE 194+.)
When using an external relay, use a 1N4002 diode or larger.

18 933.HONDA9 2.03.195.3 2018 Acura ILX (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Vehicle connections
The connection information listed below is specific to the 2018 Acura ILX (Smart Key). Refer to “Pre-installation and application warnings” for a list of important notes.
Data harness, 8-pin white connector (H1)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color Connection
H1/1 Tan (Data) HS CAN Low 2 Keyless Access Control Unit right of steering column, gray 20
pin plug, pin 11
Data Blue (B-CAN) Mandatory
H1/2 Tan/Black (Data) HS CAN High 2 Keyless Access Control Unit right of steering column, gray 20
pin plug, pin 1
Data Pink (B-CAN) Mandatory
H1/3 Orange/Brown (Data) HS CAN Low 1 Keyless Access Control Unit right of steering column, gray 20
pin plug, pin 12
Data Red (F-CAN) Mandatory
H1/4 Orange/Green (Data) HS CAN High 1 Keyless Access Control Unit right of steering column, gray 20
pin plug, pin 2
Data White (F-CAN) Mandatory
H1/5 Lt. Green No Connection No Connection
H1/6 Violet/Brown (-) Takeover 2 Output - Required for
installations with vehicle takeover ONLY.
Must use (2) 8616 mini relays.
Must use (2) 1N4002 diode or larger.
5A fuse to 12V.
Keyless Access Control Unit right of steering column, gray 36
pin plug, pin 30
Cut Red Remote Start
Only
H1/7 Orange/Black No Connection No Connection
H1/8 Yellow/Black (Data) Immo. Data Keyless Access Control Unit right of steering column, gray 20
pin plug, pin 5
Data Gray Remote Start
Only
Analog input/output harness, 22-pin white connector (H2)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color Connection
H2/1 Lt. Green/Black (-) PTS Output [6] Keyless Access Control Unit right of steering column, gray 36
pin plug, pin 11
- Green Remote Start
Only
H2/2 Blue/White (-) Clutch Activation Output No Connection
H2/3 Dk. Green/Black (-) Lock Output No Connection
H2/4 Red/White (-) Ground When Armed (GWA) Output [4] Starter:
Keyless Access Control Unit right of steering column, gray 36
pin plug, pin 32
Ignition:
Keyless Access Control Unit right of steering column, gray 36
pin plug, pin 17
Must use a relay.
Must use a 1N4002 diode or larger.
+
+
Yellow
White
Security Only
H2/5 Brown/Black (-) Horn Output Horn Switch-Clock Spring or Dash Fuse Box, white 38 pin plug
(C), pin 35
- Orange to Pink Optional
H2/6 Brown/White (-) AUX 1 Output No Connection

19 933.HONDA9 2.03.195.3 2018 Acura ILX (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color Connection
H2/7 White (+) Takeover Ignition Output or (+) Accessory 2
Output
- Required for installations with vehicle takeover ONLY.
Keyless Access Control Unit right of steering column, gray 36
pin plug, pin 17
- Required for installations without vehicle takeover ONLY.
Keyless Access Control Unit right of steering column, gray 36
pin plug, pin 15
+
+
White
Violet
Remote Start
Only
H2/8 Violet/Black (+) Starter Output Keyless Access Control Unit right of steering column, gray 36
pin plug, pin 32
+ Yellow Remote Start
Only
H2/9 Dk. Blue/Black (MUX) Takeover 2 Output - Required for
installations with vehicle takeover ONLY.
Must use (2) 8616 mini relays.
Must use (2) 1N4002 diode or larger.
5A fuse to 12V.
Keyless Access Control Unit right of steering column, gray 36
pin plug, pin 34
Cut Yellow Remote Start
Only
H2/10 Lt. Blue/Black (-) Parking Light Output Headlight Switch, white 12 pin plug, pin 8 - Gray Mandatory
H2/11 Brown/Red (+) Siren Output [2] Security Only
H2/12 Pink (+) Ignition Sense Input No Connection
H2/13 Violet (+) Door Trigger Input No Connection
H2/14 Brown (+) Brake Input No Connection
H2/15 White/Blue (-) Activation Input No Connection
H2/16 Red/Blue (-) Headlight Detection Input No Connection
H2/17 Black/White (-) E-Brake Input No Connection
H2/18 Orange/Black (+) Instant Trigger Input No Connection
H2/19 Blue (-) Trunk Trigger Input No Connection
H2/20 Green (-) Door Trigger Input No Connection
H2/21 Gray (-) Hood Switch Input [1]
H2/22 Violet/White (AC) Tach Input No Connection
Main harness, 12-pin black connector (H3)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color Connection
H3/1 Blue/White Relay N.C. Ignition Interrupt (vehicle side) [3] Required for installations with vehicle takeover ONLY.
Steering Lock Module under steering column, gray 12 pin plug,
pin 12
Required for installations without vehicle takeover ONLY.
Keyless Access Control Unit right of steering column, gray 36
pin plug, pin 34
Cut
Cut
Yellow (if equipped)
Yellow
Remote Start
Only
H3/2 Blue/Red Relay N.O. No Connection No Connection
H3/3 Blue Relay COM Ignition Interrupt (conn. side) [3] Required for installations with vehicle takeover ONLY.
Steering Lock Module under steering column, gray 12 pin plug,
pin 12
Required for installations without vehicle takeover ONLY.
Keyless Access Control Unit right of steering column, gray 36
pin plug, pin 34
Cut
Cut
Yellow (if equipped)
Yellow
Remote Start
Only

20 933.HONDA9 2.03.195.3 2018 Acura ILX (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color Connection
H3/4 White/Brown Relay N.C. (+) Accessory Interrupt 1 (connector
side)
No Connection
H3/5 White Relay COM (+) Accessory Output Keyless Access Control Unit right of steering column, gray 36
pin plug, pin 16
+ Gray Remote Start
Only
H3/6 Red (+) 12 Volt Input Keyless Access Control Unit right of steering column, gray 36
pin plug, pin 18
+ Green (10A) Mandatory
H3/7 Lt. Green/Red Relay N.O. (+) 12 Volt Input Keyless Access Control Unit right of steering column, gray 36
pin plug, pin 18
+ Green (10A) Remote Start
Only
H3/8 Lt. Green Relay COM (+) Ignition Output/Interrupt
(vehicle side)
Keyless Access Control Unit right of steering column, gray 36
pin plug, pin 17
+ White Mandatory
H3/9 Lt. Green/White Relay N.C. Ignition Interrupt (conn. side) Keyless Access Control Unit right of steering column, gray 36
pin plug, pin 17
Required for installations with vehicle takeover ONLY.
+ White Remote Start
Only
H3/10 Black (-) Ground (chassis ground) Mandatory
H3/11 White Relay COM (+) Accessory Output Keyless Access Control Unit right of steering column, gray 36
pin plug, pin 16
+ Gray Remote Start
Only
H3/12 Red (+) 12 Volt Input Keyless Access Control Unit right of steering column, gray 36
pin plug, pin 18
+ Green (10A) Mandatory
Relay harness, 10-pin white connector (H4)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color Connection
H4/1 N/A No Connection No Connection
H4/2 Red/Black (+) 12 Volt Input No Connection
H4/3 Pink/Black Flex Relay (pin 87a) No Connection
H4/4 Pink/White (+) Flex Relay Output No Connection
H4/5 Red (+) 12 Volt Input No Connection
H4/6 Green Starter Input (conn. side) No Connection
H4/7 Violet (+) Starter Output (vehicle side) No Connection
H4/8 Orange (+) Accessory Output No Connection
H4/9 Red/White (+) 12 Volt Input No Connection
H4/10 Pink (+) Ignition Input/Output No Connection
RF Port harness, 2-pin white connector (H5)
Module
Conn./Pin Color Description
H5/1 N/A RF Loop
H5/2 N/A RF Loop
