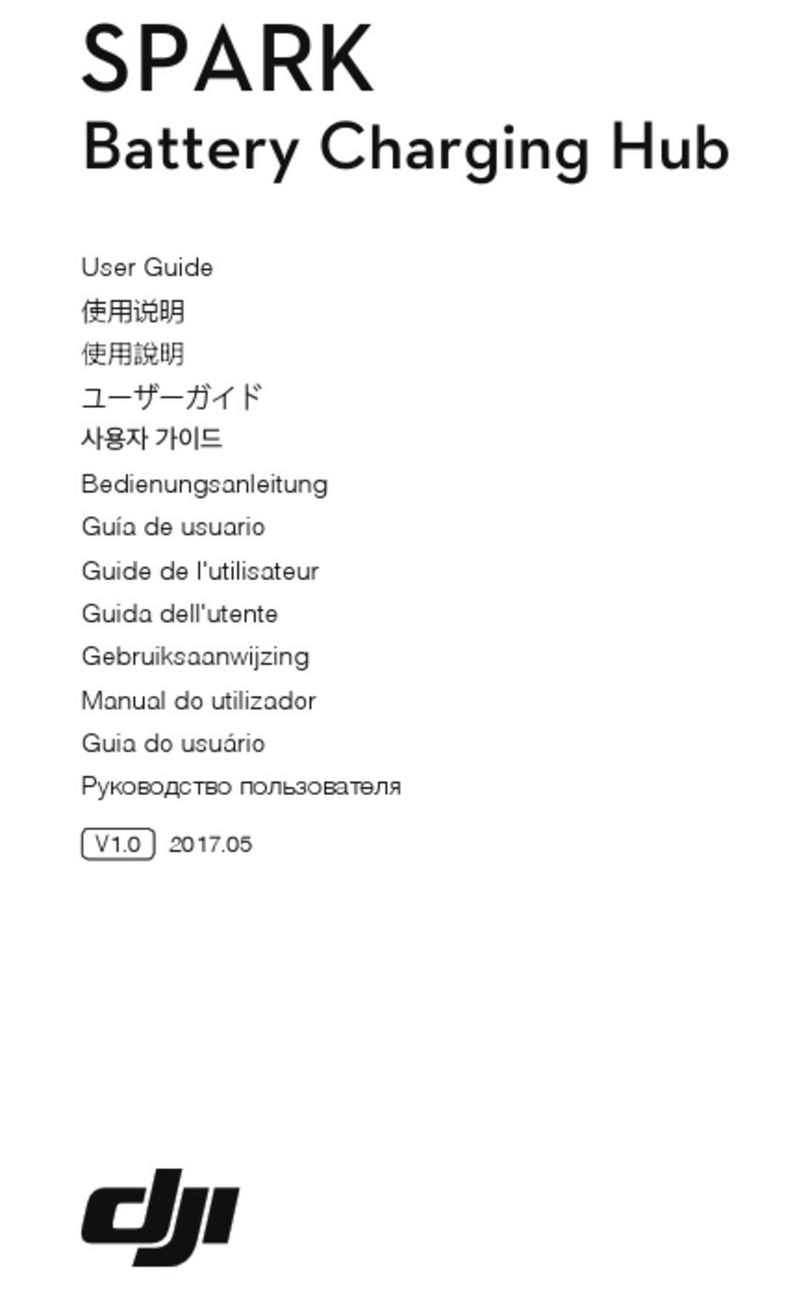

dji SPARK S1CH User manual

SPARK
Battery Charging Hub
User Guide
1~ffli~BJ3
ff ffl ~~ Bf.j
... J ..•... +f ...... fj' /( )...;'
....... ... ... :
A~-~-X~ 7rOI c
Bedienungsanleitung
Guia
de usuario
Guide
de l'utilisateur
Guida dell'utente
Gebruiksaanwijzing
Manual
do utilizador
Guia
do usuario
PyKOBOACTBO noJlb30BaTen~
( V1.0 ) 2017.05

Disclaimer
Thank you for purchasing
SPARKTM
Intelligent Flight Battery Charging
Hub
(hereinafter referred to as 'Product'). Read this disclaimer
carefully before using this Product.
By
using this Product, you hereby
agree to this disclaimer and signify that you have read it fully. Please
use this Product in strict accordance with the manual and be sure to
pay attention
to
the Warning.
SZ
OJI
TECHNOLOGY CO
..
LTD.
and
its affiliated companies assume no liability for damage(s) or injuries
incurred directly or indirectly from improper use of this Product.
Misuse includes, but
is
not limited to, using unapproved chargers,
charging
unapproved
batteries
.
short-circuiting
,
overheating
,
modifying
the Product, or
touching
the terminals with skin or
metal. Refer to the Disclaimer and Safety Guidelines, Intelligent
Flight Battery Safety Guidelines, and User Manual for applicable
information not herein contained.
DJI™
is a trademark of
SZ
DJI
TECHNOLOGY
CO
.,
LTD.
(abbreviated
as "DJI") and its affiliated companies. Names of products, brands,
etc.,
appearing
in
this
manual
are
trademarks
or
registered
trademarks of their respective owner companies. This Product and
manual are copyrighted by
DJI
with all rights reserved. No part ofthis
Product or manual shall be reproduced
in
any form without the prior
written consent or authorization of
OJ
I.
This disclaimer is
produced
in various languages. In the event
of
divergence
among
different
versions, the
Chinese
version
shall prevail when the Product in question is purchased in China,
and English version shall prevail when the Product
in
question is
purchased
in
any other region.
Warning
1. The Charging Hub is only compatible with the battery chargers
specified
in
"Specifications".
2.
The Charging Hub is only compatible with MB1-1480mAh-11.4V
Intelligent Flight Batteries. DO NOT attempt to use the Charging
Hub with other battery models.
2

3.
Ensure
the
battery
temperature
is
within
the
appropriate
temperature range when
in
use.
4.
The Charging Hub will intelligently limit the charging current if the
battery temperature
is
low to prevent a hazard, which may prolong
the charging time.
5. Place the Charging Hub on a flat and stable surface when
in
use.
Ensure the device is properly insulated
to
prevent fire hazards.
6.
DO NOT touch the metal terminals
on
the Charging Hub.
7.
If
there
is
any noticeable buildup, wipe the metal terminals with a
clean, dry cloth.
Introduction
The Spark Intelligent Flight Battery Charging Hub is designed for
charging the Spark Intelligent Flight Battery. When used with the
specified Spark Battery Charger,
it
can charge up to three Intelligent
Flight Batteries in sequence,
or
even simultaneously,
based
on
their power levels and cell voltage for efficient, optimized charging.
When the battery temperature is low, the Charging Hub will limit
the charging current to prevent a hazard and to prolong the battery
service life.
Overview
1
2
3
~
·
-·-··-
~
.5
1. Firmware
Up
date
Port 3.
Ctla
rging Port
(M;cro USB)
·1.
Status LED
2.
Battery
Slot Track 5.
Power
Port
3

Using
the
Charging Hub
Follow the instructions below to use the Charging Hub. Example:
Spark Battery Charger
(F1
CSO
Version 2).
1.
Connecting to a Power Source
Connect the Spark Battery Charger to a power outlet (1
00-240V 50-
60Hz), then connect the Charging Hub to the Spark Battery Charger.
•
2.
Connecting the Batteries
Align the battery with the Battery Slot Track and put the battery
in
as
shown below. Then push the battery
in
to make it properly inserted.
The Charging Hub will intelligently charge batteries
in
sequence, or
even simultaneously, based on their power levels and cell voltage for
efficient, optimized charging. It is normal that there are one or more
batteries being charged at the same time due to differences
in
power
levels, battery cell voltage, and battery temperature. Please check
the Status LED to monitor charging.
Refer to "Status LED Indicator Descriptions" for more information
about
the Status LED
indicator's
blinking
patterns. The Battery
Level Indicators will turn off when charging is complete. Detach the
batteries from the Charging Hub.
>
4

• Please
make
sure
the
batteries
are
correctly
inserted
before charging.
• DO NOT cover the Charging Hub when
in
use.
Status LED Indicator Descriptions
·
stattiS
_·
•:
..
_
tJ
_·
··
-~H
..
.
···
..
·,
,
.,.
·•·.
·_
..
·•
..
·.
··.
··:.:
•
·•••.·.
,
...
:..
_
·.·=·
..
:•:.:::.·
.:_
..
·:
.·
.•
...
·
....•.
.
•·
..
:
..
=
..
•·
....
·.·.·.·.o
..
·
•·
..
·
•.·
..
·•·
..
··
.•.
~
.·
..
••
...
·•.:
..
·
:.
·
..
·
.-.
·.
:
.·.
·
.·
.·
..
~ ·.·.·.·
.
·.·.
··.•
..
·
..
·
.·.·.
:
..
·-
..
·.···.··.
:-..·
..
··.
•
..
:
··
.·
·
..
··
..·.
·.
•·.·
..
•.·.·
..
•.•
.·
..
:.:
......
·
..
···.•.···
-··
··
··.·
···,
•:.:::::::
:;•:t.·.
•::
::::;:::••.:::
...
;::=.=•
·
··
•·•
,::•:
·:-=_,
...
.
Wj
~~
:
~
~
:
~
:
'
.·:::·:::==?:·:.
·?::.=.::=:
·:·:::
:::/::·:
_;:;,:::.'.\:=:·-
:
:·:
·:-
:
..
·=··
::::.-_:_::-:.::::::
=.:.::>
~-:-:
·.G··.
;
;
- ·
.
~
Pulsing Green
·.
(t
-Solid Green
"'.-
...
.
.i
.:'"
CR; -Solid Red
·,t·-
Solid Yellow
Updating Firmware
Charging.
Fully Charged.
Power supply or battery error.
Check components.
Charging Hub connected correctly.
Please
insert batteries.
OJI
will release firmware updates when available. Refer to the official
OJI
website and follow the instructions below to update the firmware.
1.
Download the latest firmware update program from the official
OJ
I
website. (http://www.dji.com/spark/info#downloads)
2.
Turn
on
the Charging Hub, then connect
it
to a computer using a
Micro USB cable.
3.
Run
the firmware update program. Press the update button and
wait for the process to finish.
4.
The Charging Hub will automatically restart when the update has
been successfully completed.
5. Repeat this process
if
,for any reason, the firmware update fails.
5

Specifications
Model
.··
Compatible Battery Charger
Comp~tibl~
Battery
Model
Operating Temperature Range
..
.
·
..
·
~
'
.
1nput
Voltage
Input Current
Weight·
Charge Time*
(Three Batteries)
S1CH
Spark Battery Charger
(F1C50 Version 2)
MB1-1480mAh-11.4 V
32° to 104° F (0° to 40° C)
13.05 v
3.83A
67.
2g
Spark Battery Charger
(F1
C50 Version 2):
Approx. 90 minutes
*
Charging time was tested in a lab environment at room temperature (25° C).
To
be
taken as reference
only
.
This
content
is
subject
to
change.
Download
the
latestversion
from
http://www
.dji.com/spark
SPARK
and DJI are trademarks
of
DJI.
Copyright © 2017
DJI
All Rights Reserved.

If you have any questions about this document,
please contact
DJI
by
sending a message to
[email protected].
~~~~~~~~G~~~~m~,~~ct~~
Et!rlbBftill*~ftifJ:
[email protected]o
YC.
BZ
.S01568.
01
Printed in China.
