dji CP.MA.00000660.01 User manual

User Manual 2022.05
v1.0

2
©2022 DJI All Rights Reserved.
https://s.dji.com/guide23
Searching for Keywords
Search for keywords such as “battery” and “install” to nd a topic. If you are using Adobe Acrobat
Reader to read this document, press Ctrl+F on Windows or Command+F on Mac to begin a
search.
Navigating to a Topic
View a complete list of topics in the table of contents. Click on a topic to navigate to that section.
Printing this Document
This document supports high resolution printing.
Using this Manual
Legend
Important Hints and Tips Reference
Read Before the First Use
Read the following documents before using the DJITM RC.
1. Product Information
2. User Manual
It is recommended to watch all tutorial videos on the ocial DJI website and read product information
before using for the rst time. Refer to this user manual for more information.
Video Tutorials
Go to the address below or scan the QR code to watch the DJI RC tutorial videos, which demonstrate
how to use the DJI RC safely.

3
©2022 DJI All Rights Reserved.
Using this Manual 2
Legend 2
Read Before the First Use 2
Video Tutorials 2
Product Prole 4
Introduction 4
Overview 5
Preparing the Remote Controller 6
Charging the Battery 6
Mounting 6
Activating the Remote Controller 7
Remote Controller Operations 8
Checking the Battery Level 8
Powering On/O8
Linking the Remote Controller 8
Controlling the Aircraft 9
Controlling the Gimbal and Camera 12
Customizable Buttons 12
Status LED and Battery Level LEDs Description 13
Remote Controller Alert 13
Touchscreen 14
Home 14
Operations 15

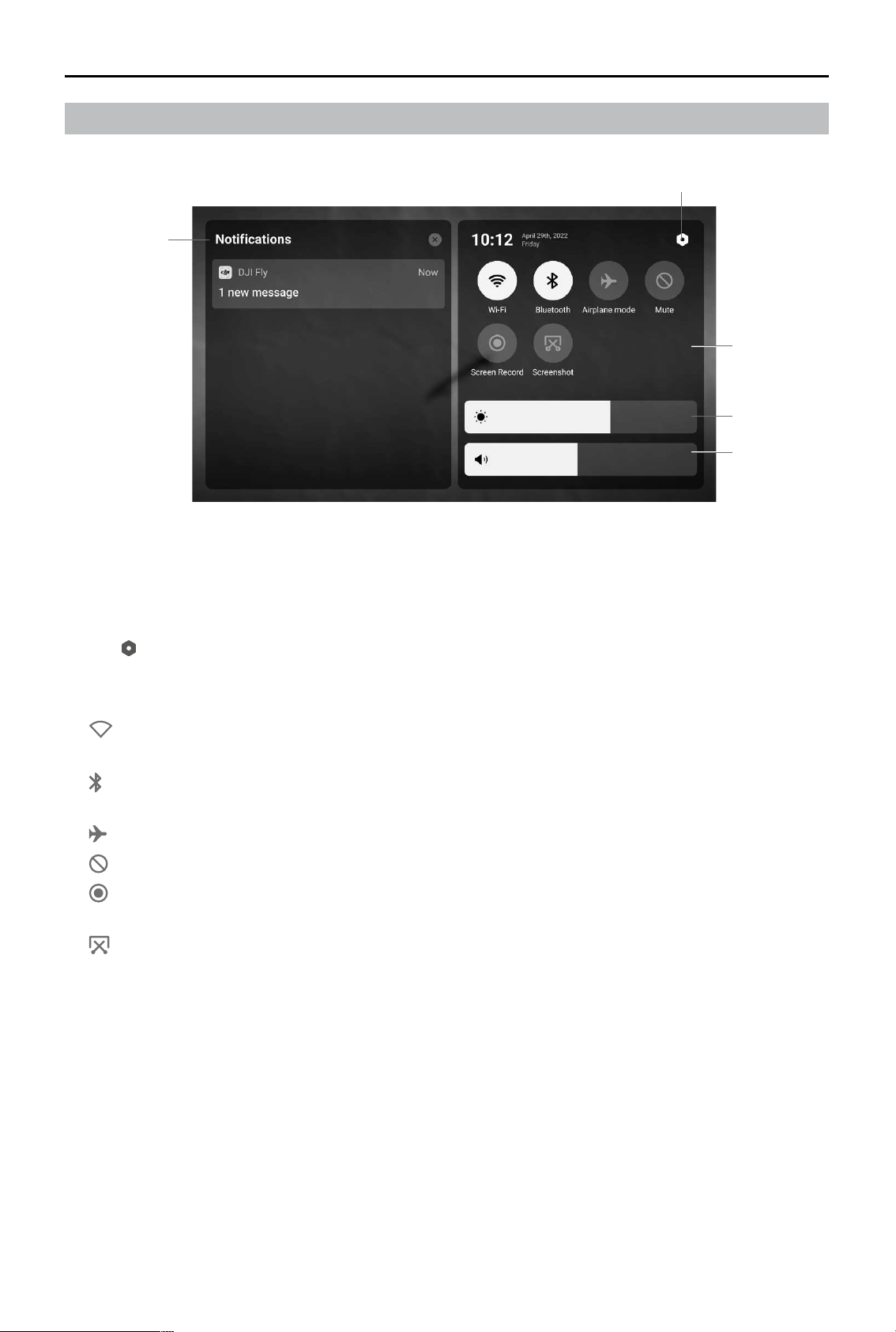

Quick Settings 16
Calibrating the Compass 17
Firmware Update 17
Appendix 18
Specications 18
Contents

4
©2022 DJI All Rights Reserved.
Product Prole
Introduction
The DJI RC remote controller features OCUSYNC™ image transmission technology, which transmits
a live HD view from the camera of an aircraft supporting the OcuSync technology. [1] The remote
controller is equipped with a wide range of controls and customizable buttons, enabling users to easily
control the aircraft and remotely change aircraft settings at a distance of up to 15 km. [2] The remote
controller works at both 2.4 and 5.8 GHz and is capable of selecting the best transmission channel
automatically. The remote controller has a maximum operating time of four hours. [3] The remote
controller is pre-installed with the DJI Fly app, enabling users to check the ight status and set ight
and camera parameters. The mobile devices can connect directly to the aircraft via Wi-Fi for image
transmission, enabling users to download photos and videos from the aircraft camera to the mobile
device. Users can enjoy faster and more convenient downloads without using the remote controller.
Touch Screen: The built-in 5.5-in bright 700 cd/m2screen boasts a resolution of 1920×1080 pixels.
Multiple Connection Options: The Android operating system comes with a variety of functions, such as
Bluetooth and GNSS. Users can connect to the internet via Wi-Fi.
Extended Storage Capability: The remote controller supports a microSD card to cache photos and
videos, enabling users to preview the photos and videos on the remote controller. [4]
Reliable in More Environments: The remote controller can operate normally within a wide temperature
range from -10° to 40° C (14° to 104° F).
[1] When used with dierent aircraft hardware congurations, the remote controller will automatically select the
corresponding rmware version to update and support the following transmission technologies enabled by
the hardware performance of the linked aircraft models:
a. DJI Mini 3 Pro: O3
b. DJI Mavic 3: O3+
[2] The maximum transmission distance (FCC) was tested in a wide-open area with no electromagnetic
interference at an altitude of approximately 400 ft (120m).
a. The maximum transmission distance (FCC) is 15 km when linked with DJI Mavic 3.
b. The maximum transmission distance (FCC) is 12 km when linked with DJI Mini 3 Pro.
[3] The maximum operating time was tested in a lab environment and is for reference only.
[4] It is recommended to insert a microSD card.

DJI RC User Manual
5
©2022 DJI All Rights Reserved.
Overview
11. Gimbal Dial
Controls the tilt of the camera.
12. Record Button
Press once to start or stop recording.
13. Camera Control Dial
For zoom control.
14. Focus/Shutter Button
Press halfway down on the button to auto
focus and press all the way down to take a
photo.
15. Speaker
Outputs sound.
11
15
12
13
14
16
17 18
123
4
7
8
9
10
56
1. Control Sticks
Use the control sticks to control the movement
of the aircraft. The control sticks are removable
and easy to store. Set the ight control mode
in DJI Fly.
2. Status LED
Indicates the status of the remote controller.
3. Battery Level LEDs
Displays the current battery level of the remote
controller.
4. Flight Pause/Return to Home (RTH) Button
Press once to make the aircraft brake and
hover in place (only when GNSS or Vision
Systems are available). Press and hold to
initiate RTH. Press again to cancel RTH.
5. Flight Mode Switch
Switch between Cine, Normal, and Sport
mode.
6. Power Button
Press once to check the current battery level.
Press, and then press and hold to power the
remote controller on or off. When the remote
controller is powered on, press once to turn
the touchscreen on or o.
7. Touchscreen
Touch the screen to operate the remote
controller. Note that the touchscreen is not
waterproof. Operate with caution.
8. USB-C Port
For charging and connecting the remote
controller to your computer.
9. microSD Card Slot
For inserting a microSD card.
10. Host Port (USB-C)
Reserved.
16. Control Sticks Storage Slot
For storing the control sticks.
17. Customizable C2 Button
Switch between recentering the gimbal and
pointing the gimbal downward. The function
can be set in DJI Fly.
18. Customizable C1 Button
Switch between recentering the gimbal and
pointing the gimbal downward. The function
can be set in DJI Fly.

6
©2022 DJI All Rights Reserved.
Preparing the Remote Controller
Charging the Battery
Use a USB-C cable to connect a USB charger to the USB-C port of the remote controller. The battery
can be fully charged in about 1 hour and 30 minutes with a maximum charging power of 15 W (5V/3A).
It is recommended to use a USB Power Delivery charger.
Recharge the battery at least every three months to prevent over discharging. The battery depletes
when stored for an extended period.
Mounting
Remove the control sticks from the storage slots on the remote controller and screw them into place.
Make sure the control sticks are rmly mounted.

DJI RC User Manual
7
©2022 DJI All Rights Reserved.
Activating the Remote Controller
Internet
The remote controller needs to be activated before using for the rst time. Make sure the
remote controller can connect to the internet during activation. Follow the steps below to
activate the remote controller.
1. Power on the remote controller. Select the language and tap “Next”. Carefully read the terms of use
and privacy policy and tap “Agree”. After conrming, set the country/region.
2. Connect the remote controller to the internet via Wi-Fi. After connecting, tap “Next” to continue and
select the time zone, date, and time.
3. Log in with your DJI account. If you do not have an account, create a DJI account and log in.
4. Tap “Activate” on the activation page.
5. After activating, select if you would like to join the improvement project. The project helps to improve
the user experience by sending diagnostic and usage data automatically every day. No personal data
will be collected by DJI.
Check the internet connection if the activation fails. If the internet connection is normal, please try to
activate the remote controller again. Contact DJI Support if the issue persists.

8
©2022 DJI All Rights Reserved.
Remote Controller Operations

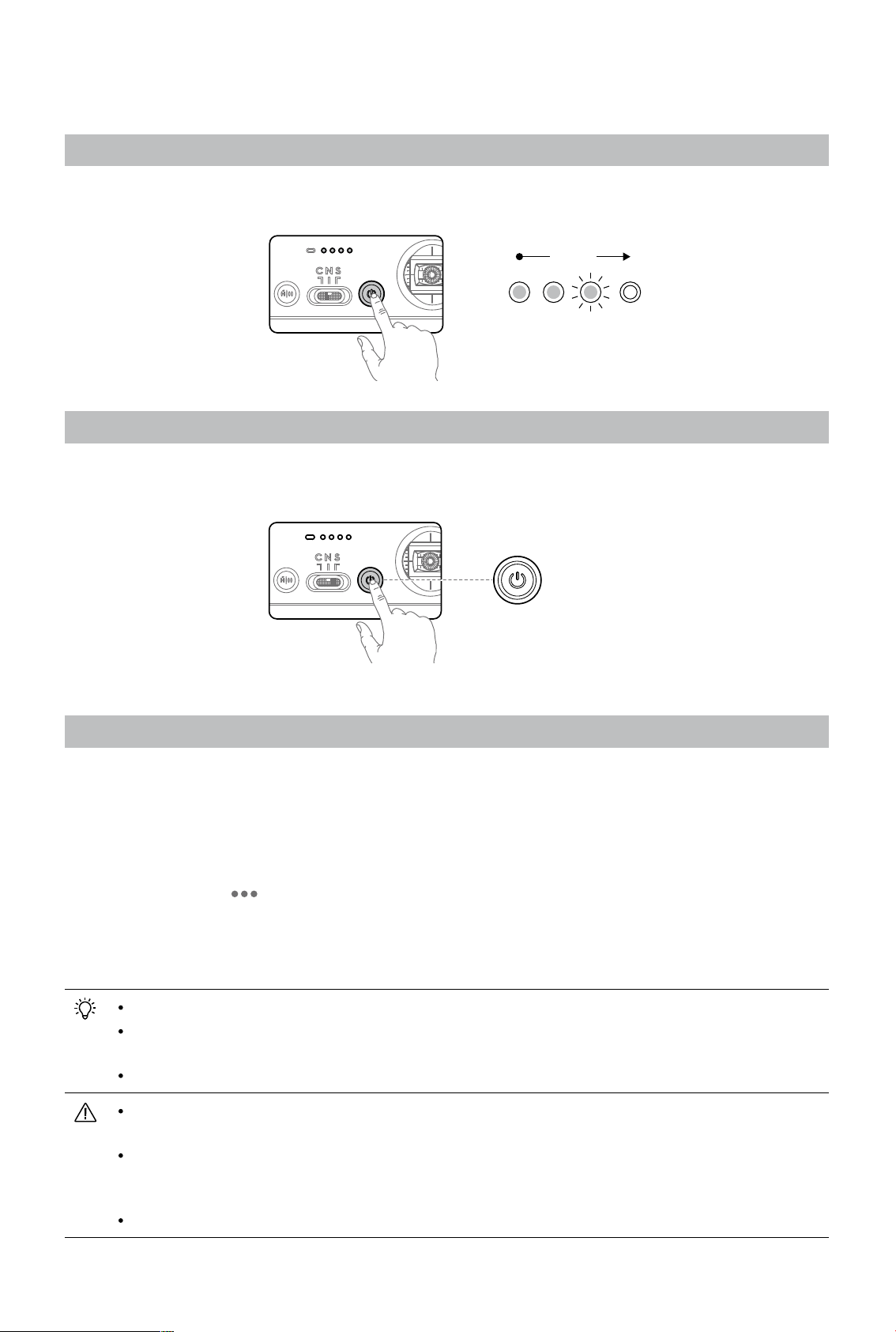

Checking the Battery Level
Press the power button once to check the current battery level.
Powering On/O
Press and then press again and hold to power the remote controller on or o.
Linking the Remote Controller
The remote controller is already linked to the aircraft when purchased together as a combo. Otherwise,
follow the steps below to link the remote controller and the aircraft after activation.
1. Power on the aircraft and the remote controller.
2. Launch DJI Fly.
3. In camera view, tap and select Control and then Pair to Aircraft (Link).
4. Press and hold the power button on the aircraft for more than four seconds. The aircraft will beep
once when it is ready to link. After the linking is successful, the aircraft will beep twice and the battery
level LEDs of the remote controller will appear on and solid.
Make sure the remote controller is within 0.5 m of the aircraft during the linking.
The remote controller will automatically unlink from an aircraft if a new remote controller is linked to
the same aircraft.
Turn oBluetooth and Wi-Fi of the remote controller for optimal video transmission.
Fully charge the remote controller before each ight. The remote controller sounds an alert when the
battery level is low.
If the remote controller is powered on and not in use for ve minutes, an alert will sound. After six
minutes, the remote controller automatically powers o. Move the control sticks or press any button
to cancel the alert.
Fully charge the battery at least once every three months to maintain the battery’s health.
HighBatteryLow

DJI RC User Manual
9
©2022 DJI All Rights Reserved.

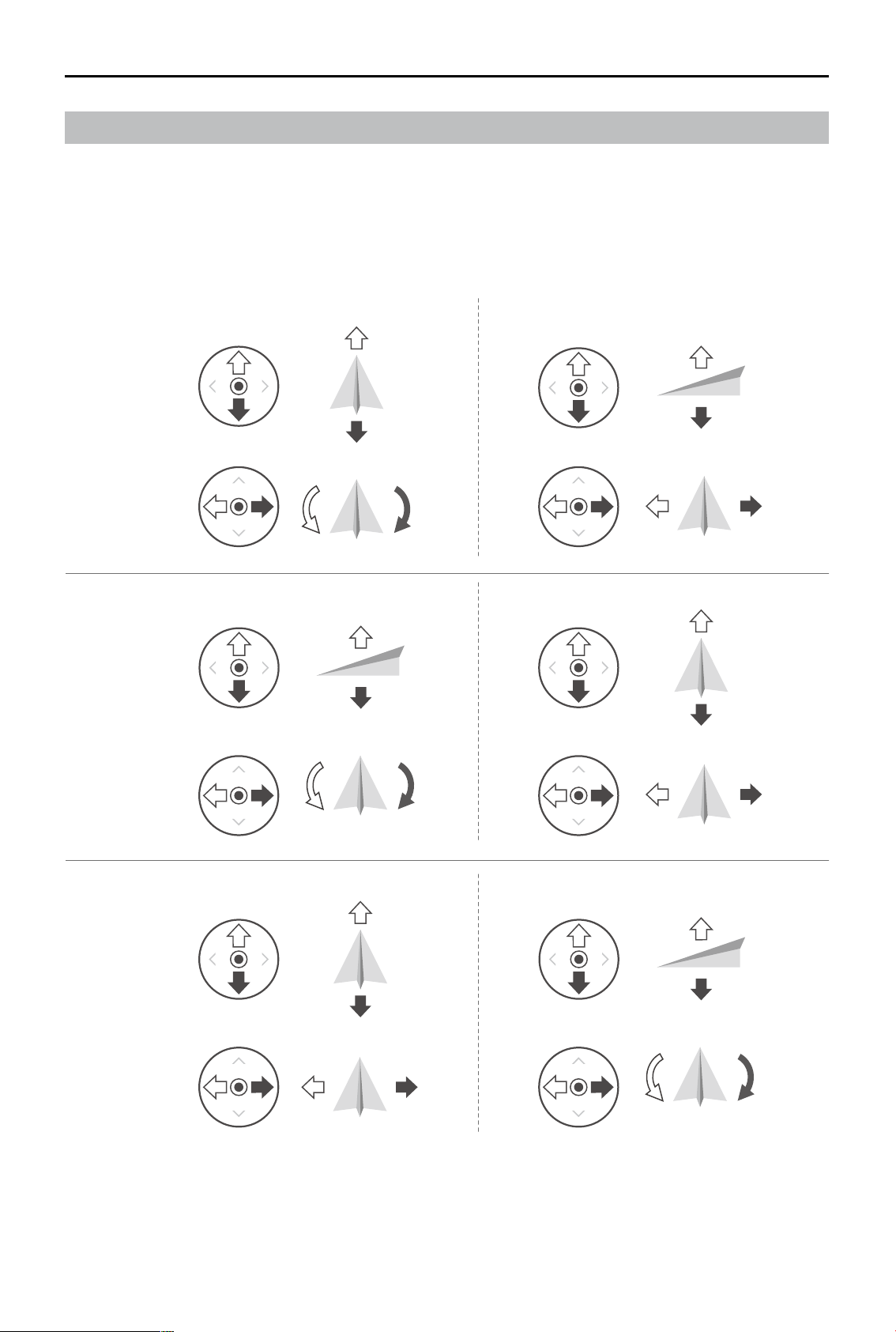

Controlling the Aircraft
The control sticks control the aircraft’s orientation (pan), forward/backward movement (pitch), altitude
(throttle), and left/right movement (roll). The control stick mode determines the function of each control
stick movement. Three preprogrammed modes (Mode 1, Mode 2, and Mode 3) are available and
custom modes can be congured in DJI Fly.
The default control mode of the remote controller is Mode 2. In this manual, Mode 2 is used as the
example to illustrate how to use the control sticks.
Right StickLeft Stick
Turn RightTurn Left
Up
Down
RightLeft
Up
Down
Turn RightTurn Left
RightLeft
Forward
Backward
Left Stick Right Stick
Forward
Backward
Right Stick
Up
Down
Forward
Backward
Left Stick
Turn RightTurn Left
RightLeft
Mode 2
Mode 1
Mode 3

DJI RC User Manual
10
©2022 DJI All Rights Reserved.

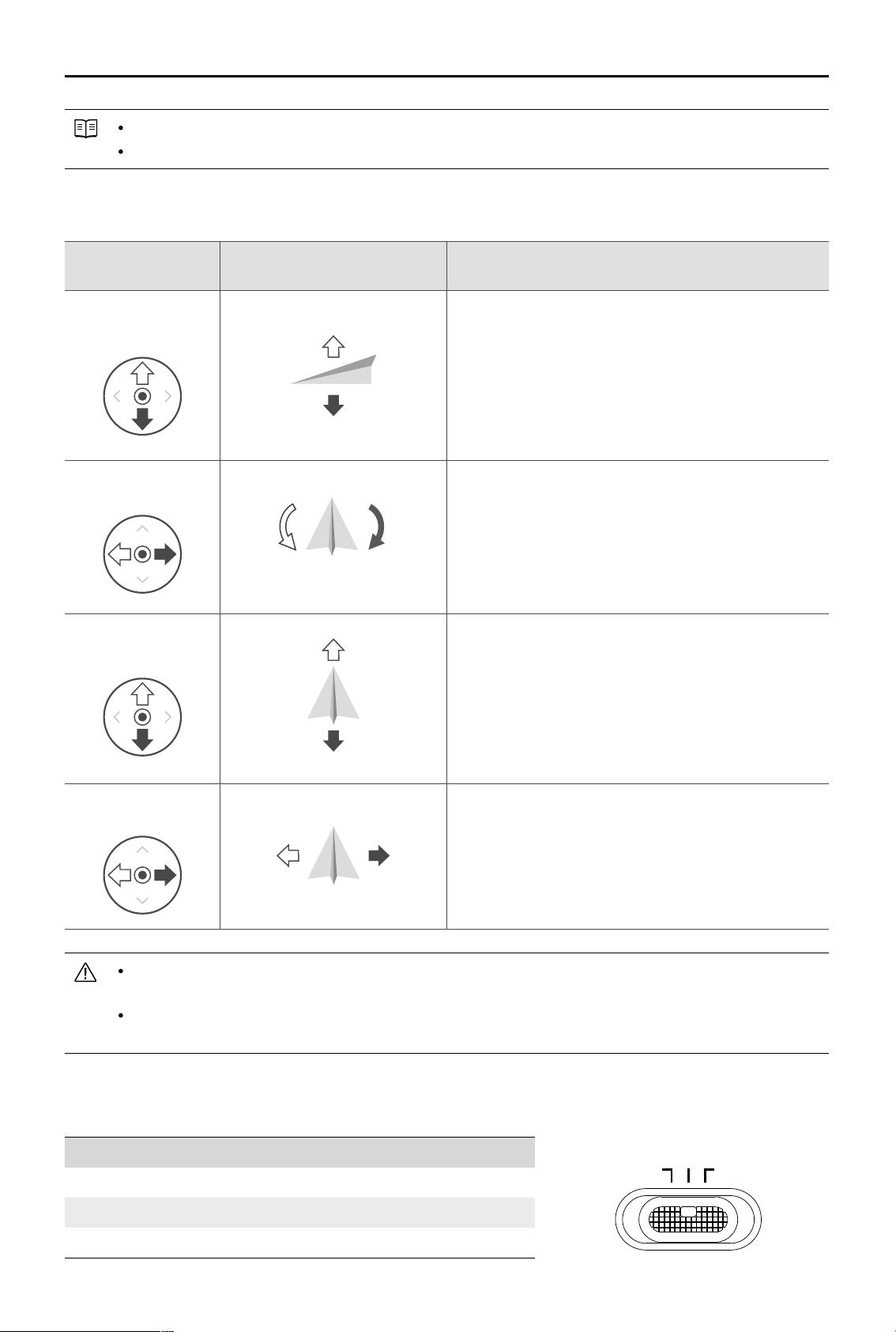

Stick Neutral/Center Point: Control sticks are in the center.
Moving the control stick: The control stick is pushed away from the center position.
The gure below explains how to use each control stick. Mode 2 has been used as an example.
Remote Controller
(Mode 2) Aircraft Remarks
Left Stick UP
Down
Moving the left stick up or down changes the
aircraft’s altitude. Push the stick up to ascend and
down to descend. The more the stick is pushed
away from the center position, the faster the
aircraft will change altitude. Push the stick gently
to prevent sudden and unexpected changes in
altitude.
Left Stick
Turn RightTurn Left
Moving the left stick to the left or right controls
the orientation of the aircraft. Push the stick left to
rotate the aircraft counter-clockwise and right to
rotate the aircraft clockwise. The more the stick is
pushed away from the center position, the faster
the aircraft will rotate.
Right Stick
Forward
Backward
Moving the right stick up and down changes the
aircraft’s pitch. Push the stick up to y forward
and down to y backward. The more the stick is
pushed away from the center position, the faster
the aircraft will move.
Right Stick
RightLeft
Moving the right stick to the left or right changes
the aircraft’s roll. Push the stick left to y left and
right to y right. The more the stick is pushed
away from the center position, the faster the
aircraft will move.
Keep the remote controller away from magnetic materials to avoid it being aected by magnetic
interference.
To avoid damage, it is recommended that the control sticks are removed and stored in the storage
slot on the remote controller during transportation or storage.
Flight Mode Switch
Toggle the switch to select the desired ight mode.
Position Flight Mode
C Cine Mode
N Normal Mode
SSport Mode
C N S
