Dogtra 1400NCP Series User manual

Copyright c 2006 Dogtra Company
REMOTE CONTROLLED
DOG TRAINING COLLARS
OWNER’S MANUAL
www.dogtra.com
2006 -

1
CONTENTS
MAIN FEATURES
PRODUCT SAFETY AND HEALTH STATEMENTS
COLLAR PACKAGE CONTENTS
DESCRIPTION OF TRANSMITTER PARTS
DESCRIPTION OF COLLAR / RECEIVER
PARTS
BATTERY CHARGER
CHARGING THE BATTERIES
TESTING YOUR
COLLAR
OPERATING INSTRUCTIONS
ACCESSORIES
WARRANTY AND REPAIR INFORMATION
2
3
4
5
13
18
19
22
24
28
29

2
MAIN FEATURES
3
PRODUCT SAFETY AND HEALTH STATEMENTS
Easy-to-use, ergonomic transmitter.
Rheostat dial that allows for gradual
increases in stimulation intensity with no
jumps between levels.
The has
a 1/2-mile range.
Two-dog models allow the trainer to control
two different dogs from one transmitter.
Waterproof collar/receiver and water-
resistant transmitter.
No external antenna on the collar receiver.
Rechargeable, user-replaceable Ni-MH
batteries.
One-charger system allows the transmitter
and receiver(s) to be charged at the same
time.
Over 3000 different identity codes to
prevent conflicts with other e-collars.
MAIN FEATURES
PRODUCT SAFETY AND HEALTH STATEMENTS
e-collars use state-of-the-art micro-
technology.
If the constant button is held down for more
than 12 seconds, an automatic power-down
circuit will activate.
A filtering system prevents unwanted
reception from outside sources.
e-collars are intended for the sole use
of training dogs.
Dogs should be in good health during any e-
collar training.
e-collars are not intended for use on
dogs that weigh less than 12 pounds or are less
than 6 months old.
Discontinue use if signs of irritation begin to
appear on the dog’s skin around the neck
caused by the rubbing action of the collar strap
and/or contact points.
Do not attempt to test dogtra e-collars on
humans or other animals.

4
PACKAGE CONTENTS
5
TRANSMITTER
Transmitter
Receiver (two collar receivers for
two-dog models)
Battery charger and splitter cable
Test light
Owner’s manual
COLLAR
PACKAGE CONTENTS DESCRIPTION OF
TRANSMITTER PARTS

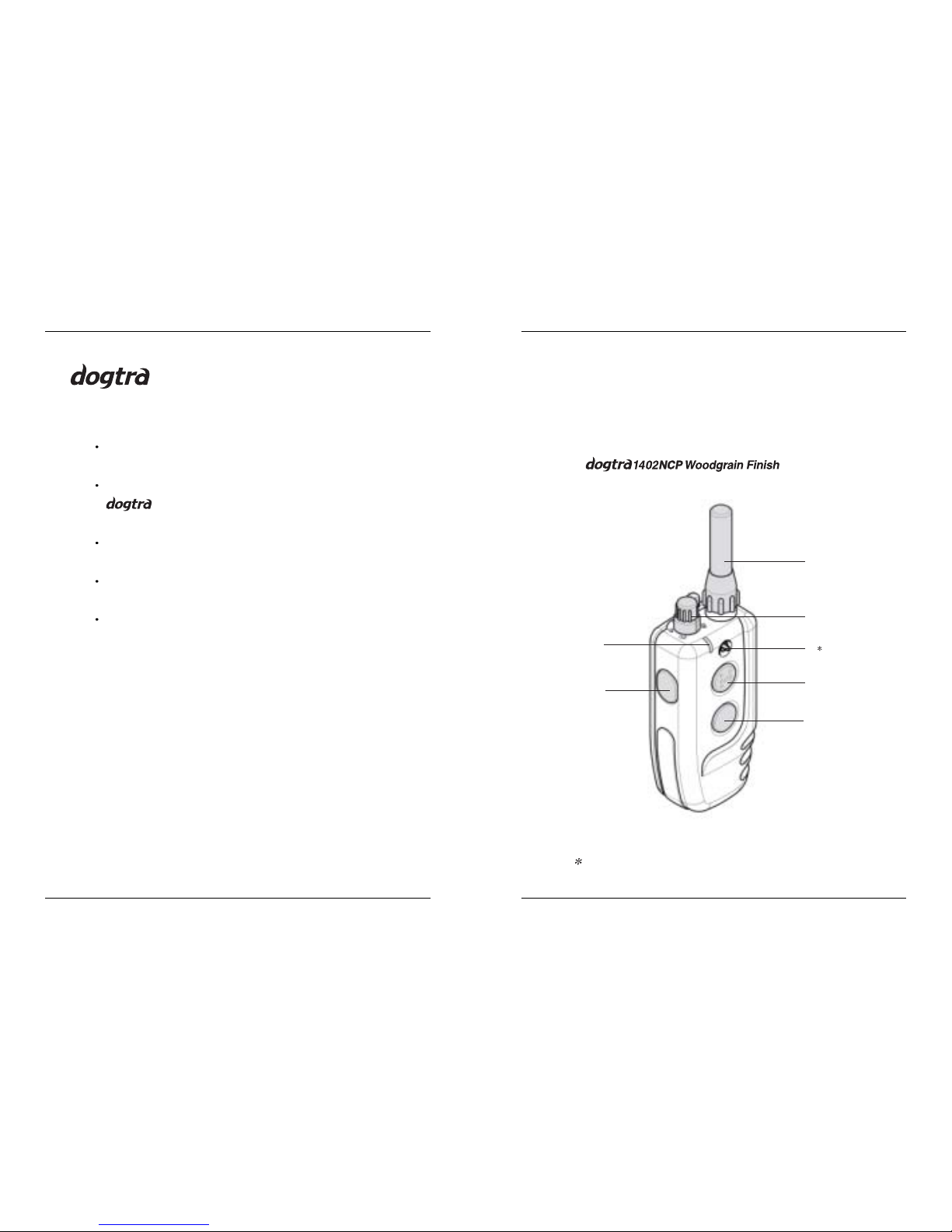

transmitter
Antenna
Indicator Light
“Nick” Button
“Pager” Button
“Constant” Button
Intensity
Selection Dial
Selection Switch
indicates optional switch for 2-dog models

6
TRANSMITTER
7
TRANSMITTER

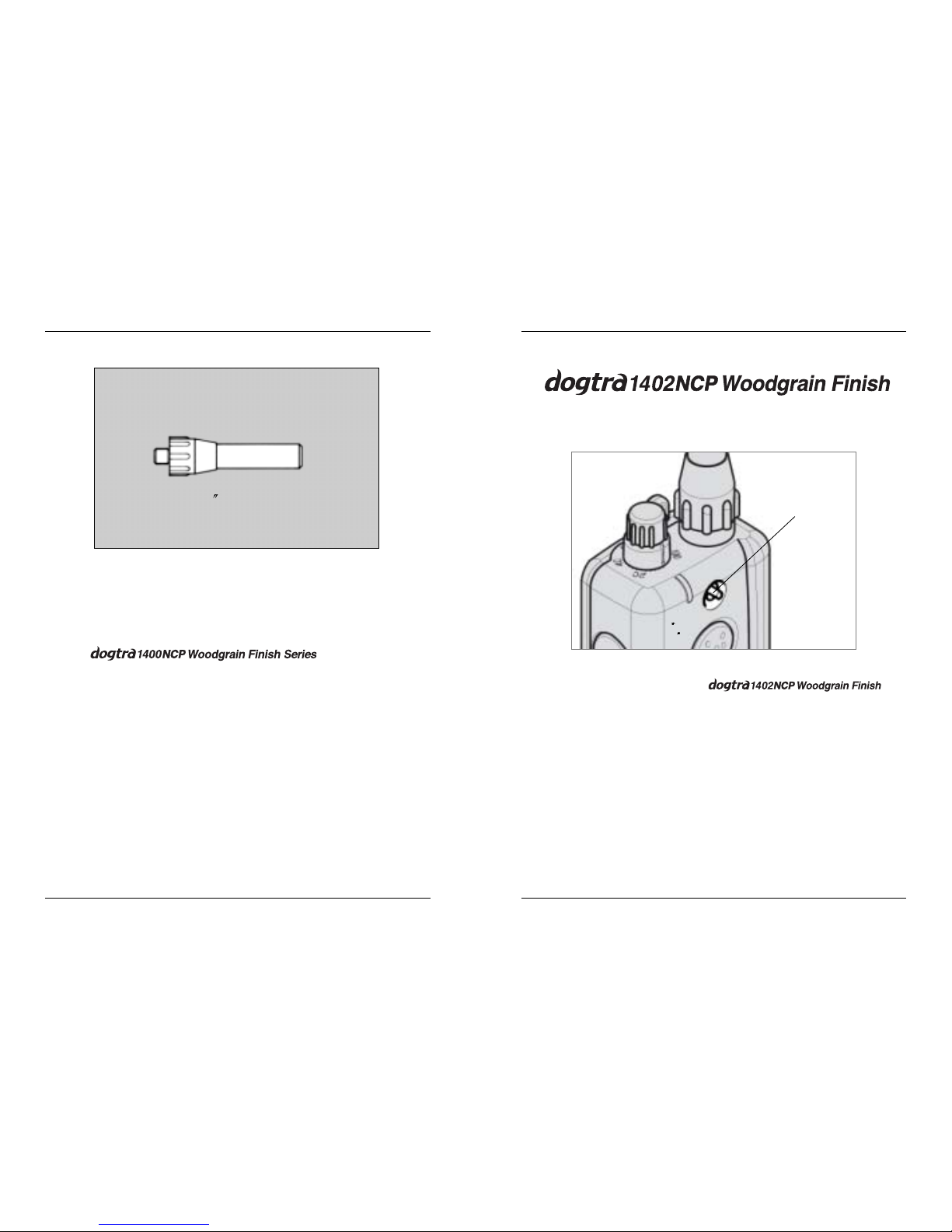

Transmitter Antenna
A short 2” antenna is supplied with the
transmitter.
The antenna should be screwed into the top
of the transmitter to ensure that the signals are
sent properly to the collar receiver and that
maximum range is attained.
2Antenna
Selection Switch on the
The two-dog models have a toggle switch
on the face of the transmitter located above the
“Nick” button. The toggle switch allows for
selection of either collar.
Set the toggle switch on the brown position
to select the brown collar and the tan position to
select the tan collar.
TWO-DOG MODELS
Brown
Tan
Collar
Selection Switch
(2-dog models)

8
TRANSMITTER
9
TRANSMITTER

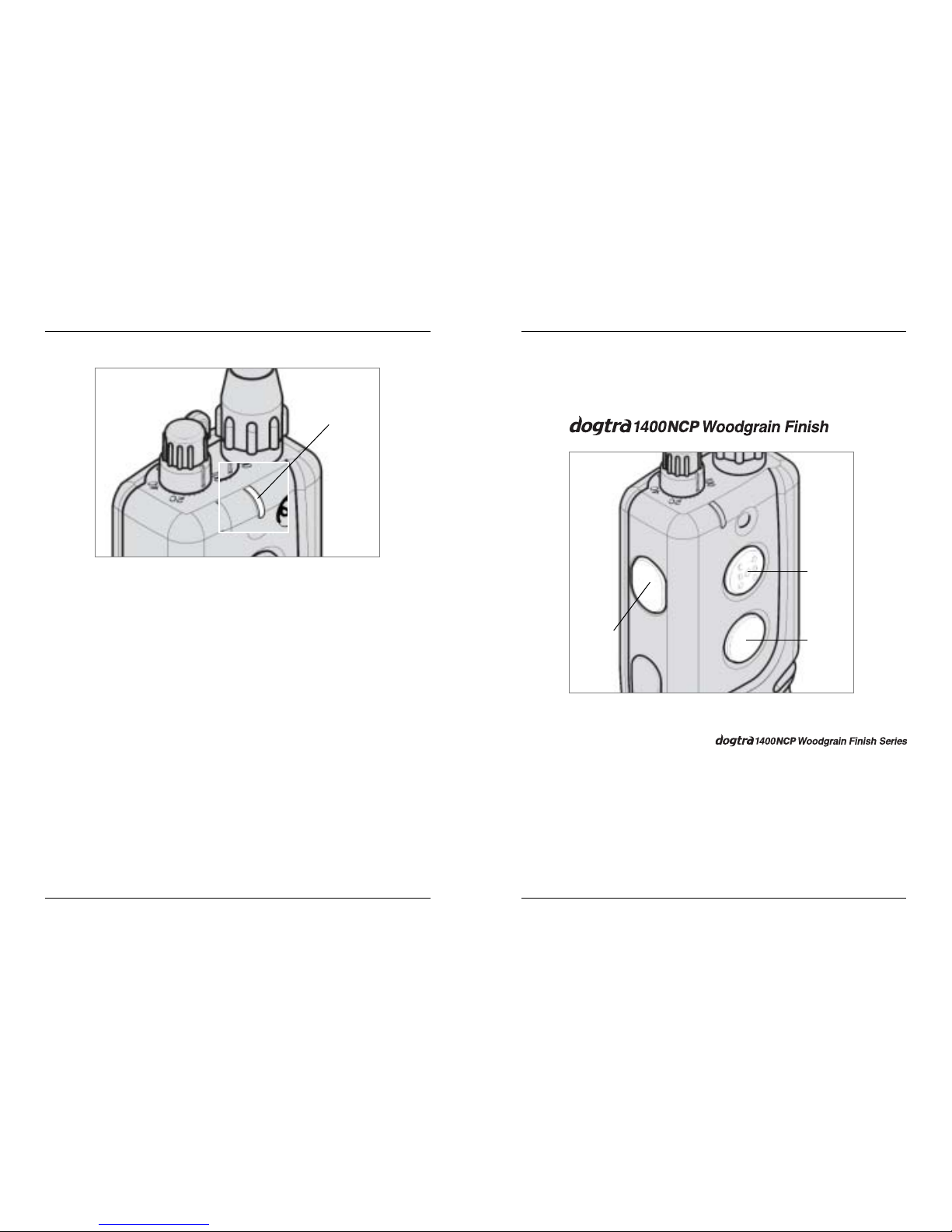

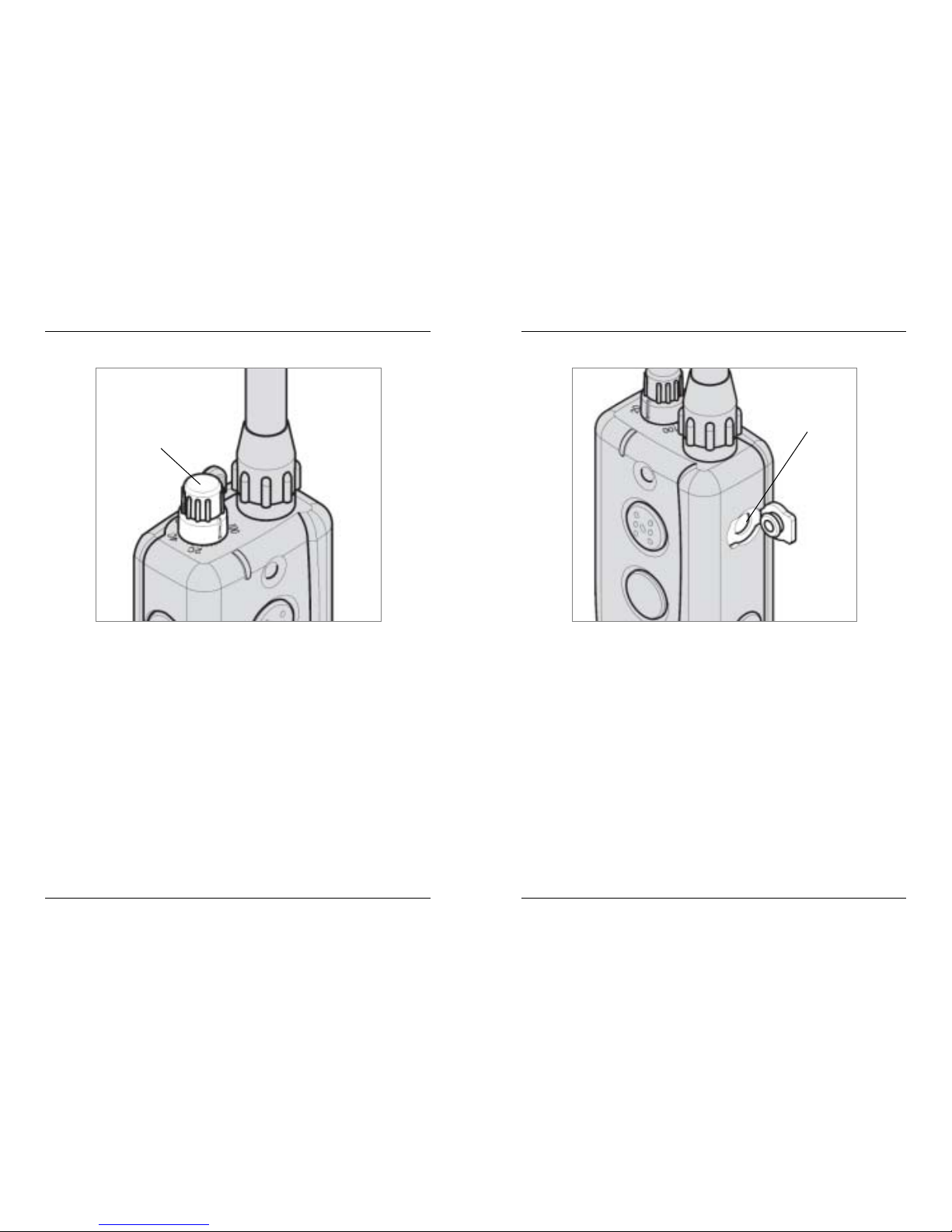

Intensity Selection Dial
The intensity selection dial is located on the
top of the transmitter: (0) being the lowest level
and (100) being the highest.
Transmitter Battery Charging Receptacle
Located on the side of the transmitter, the
receptacle is covered by a rubber plug. Insert
one end of the battery charging cable into the
receptacle to charge the battery. (See Battery
Charging Procedure on page 21.)
After charging is completed, close the
receptacle with its rubber plug to make sure dirt
or water does not get inside.
Transmitter
Charging
Receptacle
Intensity
Selection Dial

10
TRANSMITTER
11
BUTTON FUNCTION
The transmitter for
has three buttons (two on the face of the transmitter
and one on the side).
BUTTON FUNCTION
Constant
Pager
Nick
Transmitter Indicator Light (LED window)
The transmitter indicator light is located near
the intensity selection dial. When a button on the
transmitter is pushed, the light comes on to
indicate that the transmitter is being activated.
The color of the light indicates the status of
battery life. The LED glows green when the
battery is fully charged and turns to amber when
battery life is getting low. When the LED emits a
blinking red light, the battery needs to be
recharged.
green = full charge, amber = medium charge
red = needs charge
LED

13
COLLAR / RECEIVER
12
BUTTON FUNCTION
“Nick” Button
When the “Nick” button is pushed the
receiver emits a single, rapid pulse of electrical
stimulation.
“Constant” Button
Pressing the “Constant” button gives
continuous stimulation as long as the button is
pushed, for up to twelve seconds. If the button is
not released after twelve seconds, the stimulation
will automatically turn off as a safety feature.
The collar will be ready to be reactivated once
the button has been released.
“Pager” Button
Pressing the “Pager” button on the side of the
transmitter causes the collar to vibrate. This is a
great way of communicating with your dog using
non-electrical stimulation.
DESCRIPTION OF

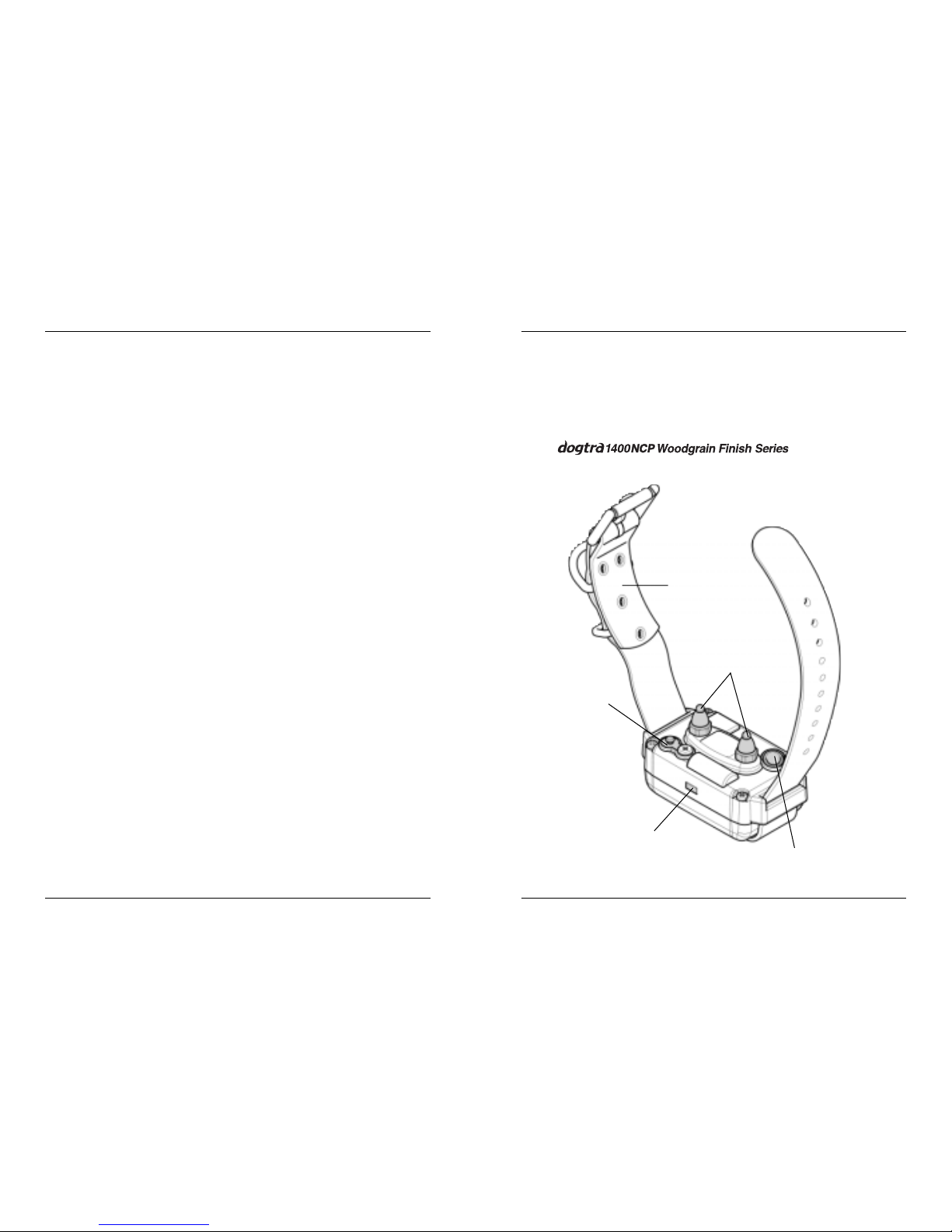

COLLAR / RECEIVER PARTS

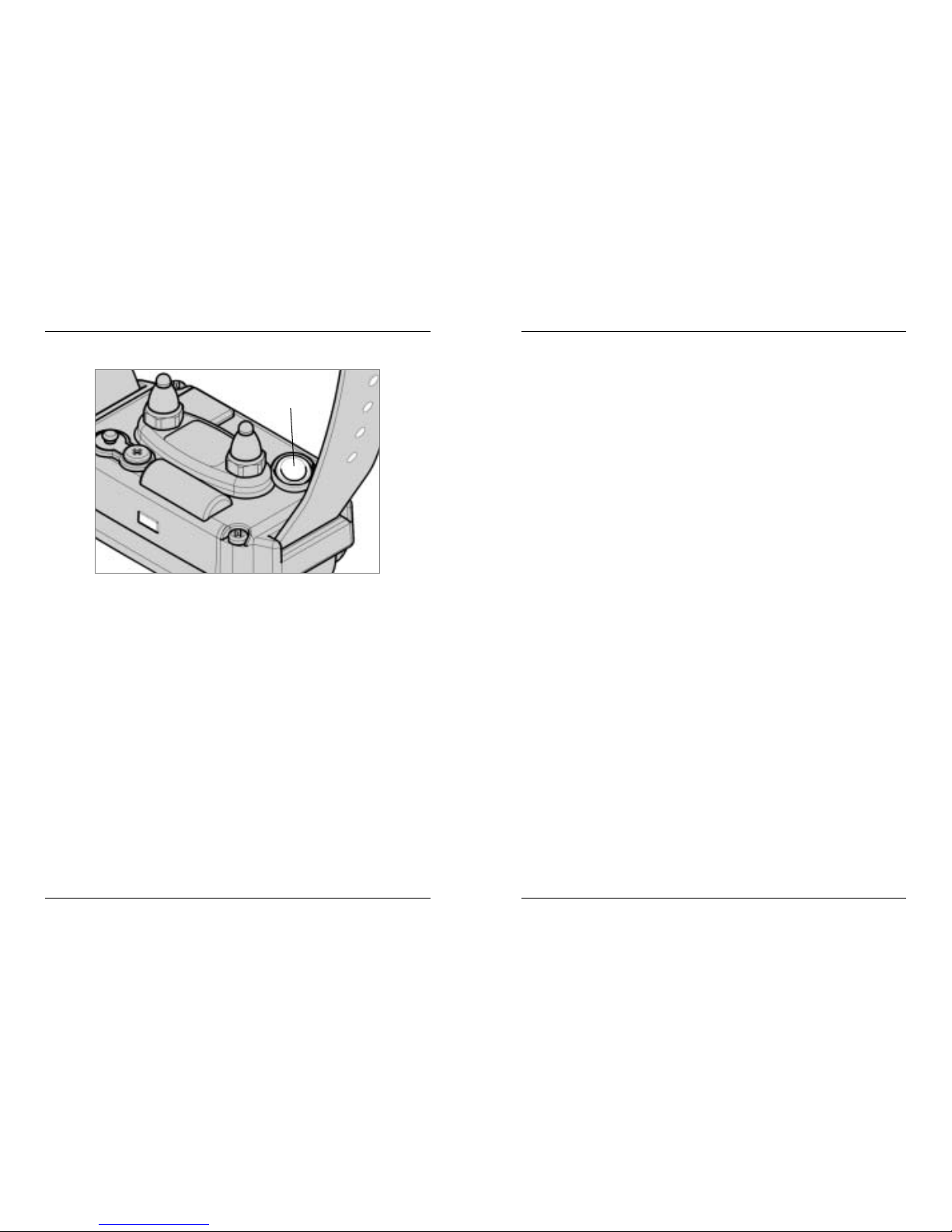

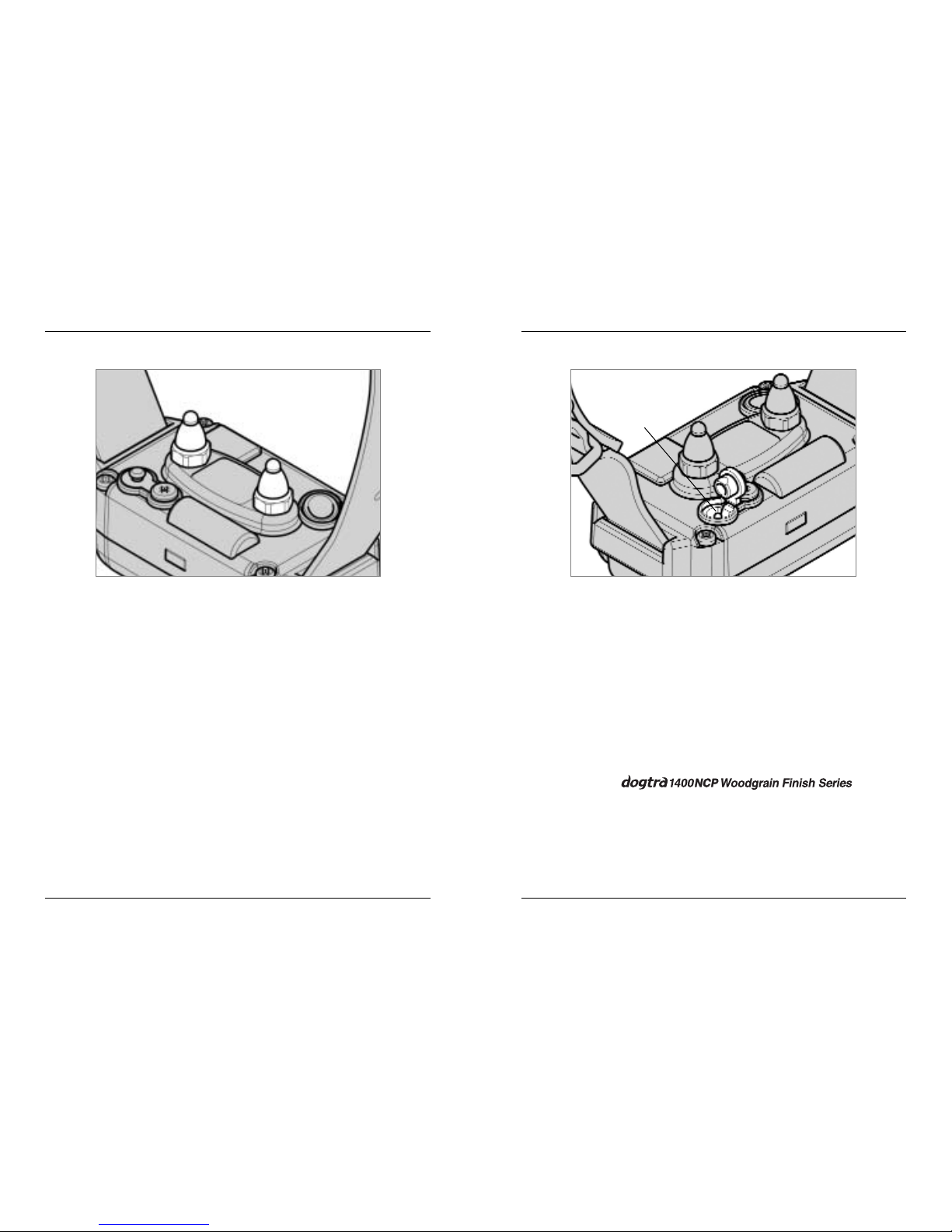

Power On/Off Switch
Contact Points
Indicator Light
Battery
Charging
Receptacle
and Cover
Collar strap
collar

14
COLLAR / RECEIVER
15
COLLAR / RECEIVER
Turning On the Collar Receiver
The ON/OFF button is on the bottom of the
receivers. Push and hold the button for two
seconds until the LED light, located on the front
of the collar, starts blinking. The indicator light
will blink once every 2 seconds after the color is
turned on. The color of the light indicates the
status of battery life. The LED glows green when
the battery is fully charged and turns to amber
when battery life is getting low. When the LED
emits a blinking red light, the battery needs to be
recharged.
green = full charge, amber = medium charge
red = needs charge
When the “Constant” button on the
transmitter is pushed, the collar indicator light
will glow steadily as long as you hold the button
down, for up to twelve seconds. When the
“Nick” button is pushed, the light comes on for a
fraction of a second.
ON/OFF Button

16
COLLAR / RECEIVER
17
COLLAR / RECEIVER
Receiver Battery Charging Receptacle
On the inside of the collar, next to the collar
strap, is a battery charging receptacle with a
rubber cover plug.
Internal Antenna
The
has no external antenna on the collar receiver.
The antenna is inside the collar receiver.
Receiver
Charging
Receptacle
Fitting The Collar On The Dog
The collar should be fitted so that the
stainless steel contact points press firmly against
the dog’s skin.
A loose fit can allow the collar to move
around on the dog’s neck. When this happen the
contact points may rub the skin and cause
irritation. If the collar is too loose, electrical
contact will be inconsistent and your corrections
will be inconsistent also.

18
BATTERY CHARGER
19
CHARGING THE BATTERIES
uses Ni-MH (Nickel-Metal-Hydride)
batteries that do not set a memory and can be
charged on a regular basis without harm to the
battery. There is no need to completely drain the
batteries between charges. However, doing so
will help to extend the overall lifetime of the
batteries.
1. Charge the batteries for 14 hours before
using the collar for the first time.
CHARGING THE BATTERIES
The battery charger and charging cables allow
you to charge both the transmitter and receiver at
the same time. The battery charger is designed
for a 120-volt wall outlet. (European 230-volt
AC chargers and 12-volt field charger for your
automobile are also available.)

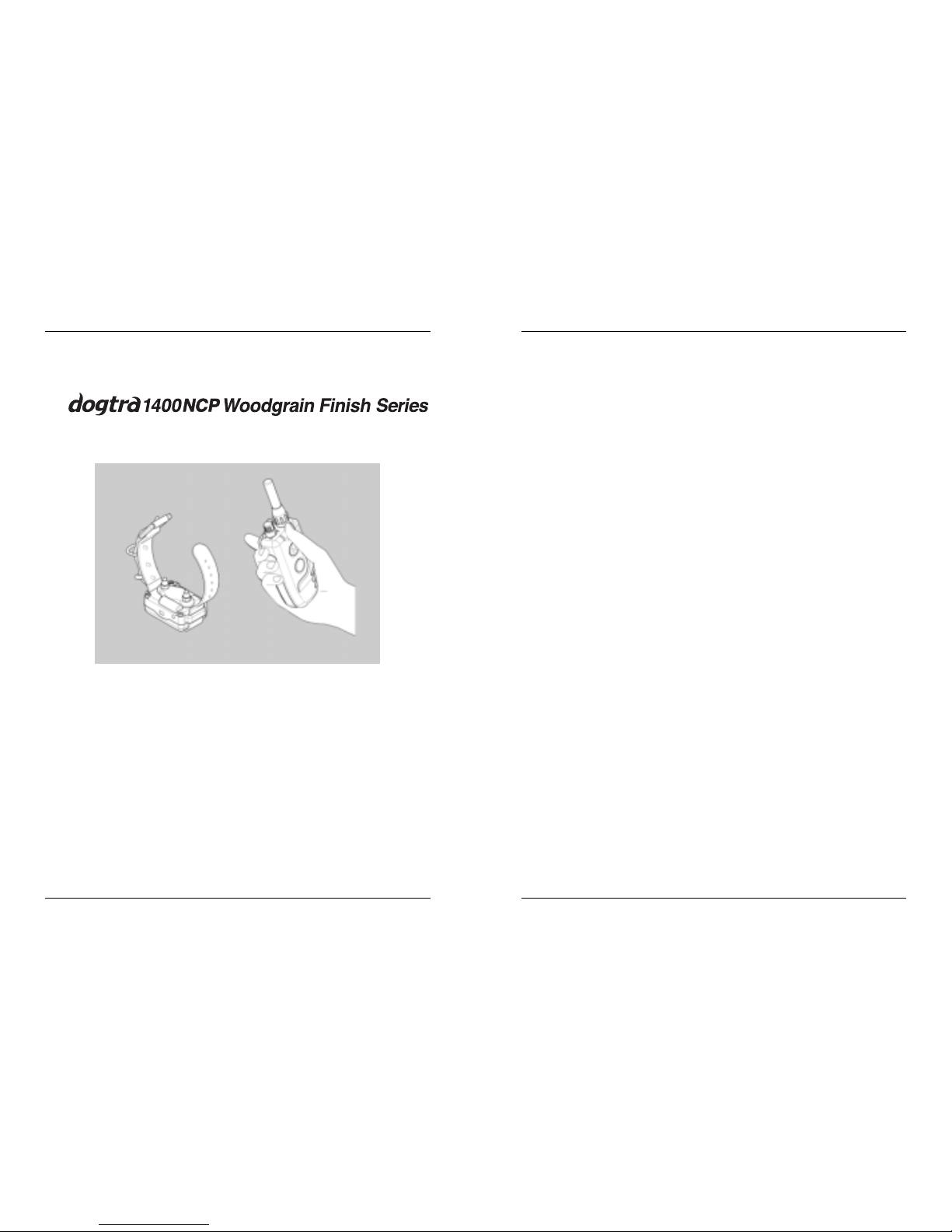

To use the battery charger for the two-dog
unit, combine both sets of battery charging
(splitter) cables as shown. This enables you to
charge the transmitter and both receivers at the
same time.
BATTERY CHARGER
Charging Cable
120 volt
Charger
Two-dog unit only

20
CHARGING THE BATTERIES
21
CHARGING THE BATTERIES
Battery Charging Procedure
1. Attach the charging cables to both the
transmitter and receiver(s), as shown on
page 19.
2. Plug the charger into a 120-volt wall outlet
or, if using the accessory field charger,
plug into a cigarette lighter. (Use a 230-
volt European charger for Europe.) When
properly plugged in, all indicator lights
should glow red.
The receiver automatically turns off when
you insert the charging cable into the
battery-charging receptacle on the receiver.
3. After charging, cover the battery charging
receptacles with the rubber plugs on the
transmitter and receiver.
4. The battery is fully charged with a 14-hour
charge. The lights will stay red during the
charging process. They DO NOT turn
green when fully charged. Charging the
batteries for more than 14 hours at one time
will not extend battery life.
2. Do not charge the batteries near any
flammable substances.
3. Fully charge the batteries for 14 hours if
the collar is to be stored without use for a
period of a month or more.
4. Recharge the battery if :
- the indicator light on the collar is emitting
a red color
- the indicator light on the transmitter or
receiver will not come on
- the indicator light on the transmitter or
receiver comes on momentarily but will
not stay on when the “Constant” button is
pushed

22
TESTING
23
TESTING
2. Watch the test light as you push the “Nick”
button on the transmitter. It should light for
just a moment.
3. Watch the test light as you push the
“Constant” button on the transmitter. It
should glow brightly. As a safety feature,
the collar receiver will automatically shut
off stimulation if the constant button is
depressed for twelve seconds or longer.
4. Change the intensity dial on the transmitter
clockwise and then counterclockwise. The
test light should glow brighter with higher
levels of stimulation and dimmer with
lower levels.
NOTE : It is normal for the test light not to
come on if the intensity level is set below
level ten.
5. Pressing the “Pager” button on the side of
the transmitter causes the collar to vibrate
for up to twelve seconds. The collar will
reactive when you push the button again.
1. Turn the collar on by pressing the button
on the back side of the collar receiver.
The indicator light will come on for a
moment then blink once every two
seconds, showing that the collar is ready
to use. (If the indicator light is not green
but amber or red, the batteries need to be
charged.) Place the test light on the
contact points of receiver and hold it
there.
TESTING YOUR
COLLAR

24
OPERATING
25
OPERATING
Intensity selection
To select the intensity level, start on the zero
(0) setting. Gradually increase the level until you
get a response from the dog that would be
equivalent to a quick pull or jerk with a leash.
Remember that you will need to adjust the
setting (upward or downward) as the dog’s
attitude changes, especially during times of
increased excitement or distraction.
Prolonged use of the Pager (12 seconds or
longer) will drain the batteries more quickly.
Fitting the collar
The collar strap should be adjusted so that
the contact points are held firmly against the
dog’s skin. If the collar is too loose, irritation
may result from the contact points rubbing
against the skin.
If the dog has a heavy coat, move the
receiver up and down to work the contact points
down into the coat.
ATTENTION!
Avoid having the dog wear the collar with
the contact points in the same place for more
than two hours at a time. Leaving the points
on the same spot for extended periods of time
can cause skin irritation. If the dog is to wear
the e-collar for long periods, occasionally
reposition the collar so that the contact points
are moved to a different spot on the dog’s
neck.
OPERATING INSTRUCTIONS

27
RECEPTION
26
OPERATING
Reception
The

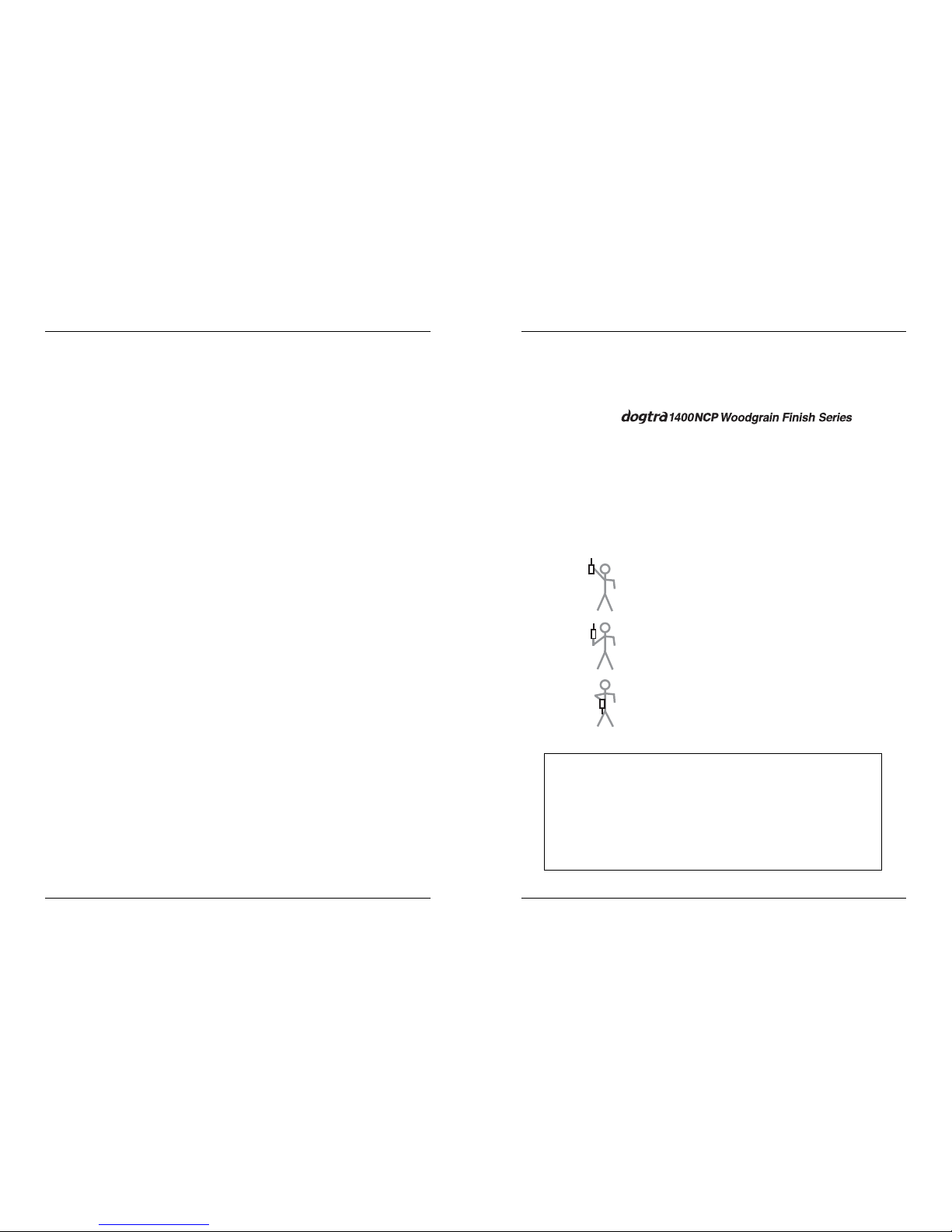

collar has a half-mile range. Depending on the
way you use your transmitter, the transmitting
range may vary. Hold the transmitter away
from your body and avoid touching the antenna
to get the greatest range.
Maximum Range
Typical Range
Minimum Range
If your finger touches the antenna near the
dial on the top of the transmitter, the actual
range may be reduced. Additional
environmental factors may also affect the
range of your unit.
Maintenance
The receiver and collar strap should be
cleaned periodically with detergent and water to
prevent malfunction.
Always clean and rinse the collar thoroughly
with tap water after use in salt water. Be sure the
charging receptacle is completely dry before
inserting the battery charger into the transmitter
or receiver.

28
ACCESSOREIS
Warranty Repair
provides the original
purchaser a LIMITED LIFETIME WARRANTY
for the 1400NCP Woodgrain Finish Series on
parts from the date of the original purchase.
Labor is covered for two years after purchase.
Once the labor warranty has expired, all repairs
will incur a variable labor charge depending on
the extent of work required.
Batteries, or the labor to replace them, are not
covered under the warranty after the first year.
To Qualify for the Limited Lifetime
Warranty:
Fill out the warranty registration card that
came with your Dogtra unit and mail it in along
with a copy of your purchase receipt within 30
days of purchase. Or, you can register your
product online at www.dogtra.com. If
WARRANTY AND
REPAIR INFORMATION
29
WARRANTY
The following items may be purchased
separately:
European Charger
Designed for use with 230V AC electrical
outlets in Europe.
Field Auto Charger
Designed for use with the 12-volt cigarette
lighter in your car.
ACCESSORIES

31
REPAIR
30
REPAIR
completed in a timely manner on a first-come,
first-served basis. Dogtra is not responsible for
loss of training time or inconvenience while the
unit is in our warehouse for repair work.
A copy of the sales receipt showing purchase
date is required before warranty work is begun.
Write a note briefly explaining the problem
and include your name, address, city/state/zip
code, daytime phone number and evening phone
number. Or, you can visit our web site at
www.dogtra.com to fill out a Service Request
Form. If repair costs are not covered under
warranty, we will call you for credit card
information once the work has been completed.
For any questions concerning your dogtra
products call us Toll Free at 1-888-811-9111,
Pacific Time.
Send repair units to :
Dogtra Company / Repairs
22912 Lockness Avenue
Torrance, CA 90501
U.S.A.
registration is not completed within 30 days of
purchase and/or the product is resold, the warranty
will become void and all repairs will be subject to
applicable labor fees.
Dogtra DOES NOT replace defective units or
provide refunds after 30 days from date of
purchase.
Dogtra’s warranty DOES NOT cover repairs or
replacement due to misuse, improper maintenance
or lost units. Water damage on models that are not
waterproof is NOT covered under warranty. All
replacement cost for either the transmitter or
receiver is the owner’s responsibility.
The warranty is void if the unit has been altered
or an unauthorized person has attempted repair
work.
Return shipping for warranty work is the
owner’s responsibility. The cost for shipping (via
regular ground service) back to the customer is
covered by Dogtra Co. within the continental
United States. Any expedited shipping service will
be at the owner’s expense. All repairs are
