Dometic MSI2312T User manual

MSI2312T, MSI2324T,
MSI3512T, MSI3524T
Sine wave inverter
Installation and Operating Manual. . . . . . . .9
Sinus-Wechselrichter
Montage- und Bedienungsanleitung. . . . . 31
Onduleur sinusoïdal
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . .54
Convertidor de ondas seno
Instrucciones de montaje y de uso . . . . . . .77
Conversor sinusoidal
Instruções de montagem e manual de
instruções. . . . . . . . . . . . . . . . . . . . . . . . . .100
Inverter sinusoidale
Istruzioni di montaggio e d’uso . . . . . . . .123
Sinus ondulator
Montagehandleiding en
gebruiksaanwijzing . . . . . . . . . . . . . . . . . .146
Sinus ensretter
Monterings- og betjeningsvejledning. . . 170
Sinus växelriktare
Monterings- och bruksanvisning . . . . . . . 192
Sinus vekselretter
Monterings- og bruksanvisning. . . . . . . . 214
Sinus -vaihtosuuntaaja
Asennus- ja käyttöohje . . . . . . . . . . . . . . . 236
Синусоидальный инвертор
Инструкция по монтажу и эксплуатации 258
Przetwornica sinusoidalna
Instrukcja montażu i obsługi. . . . . . . . . . . 283
Sínusový menič napätia
Návod na montáž a uvedenie
do prevádzky. . . . . . . . . . . . . . . . . . . . . . . 306
Sinusový měnič
Návod k montáži a obsluze . . . . . . . . . . . 328
Szinuszos inverter
Szerelési és használati útmutató . . . . . . . 350
NEG -
LCM CAN1 CAN2
RESET
S1
S2
S3
S4
S5
S6
S7
S8
ENB
ENB
JUMP
1 2
POS +
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
ENERGY & LIGHTING
SINEPOWER
MSI2300-3500--IO-16s.book Seite 1 Mittwoch, 3. August 2016 5:46 17

MSI2300-3500--IO-16s.book Seite 2 Mittwoch, 3. August 2016 5:46 17

SinePower

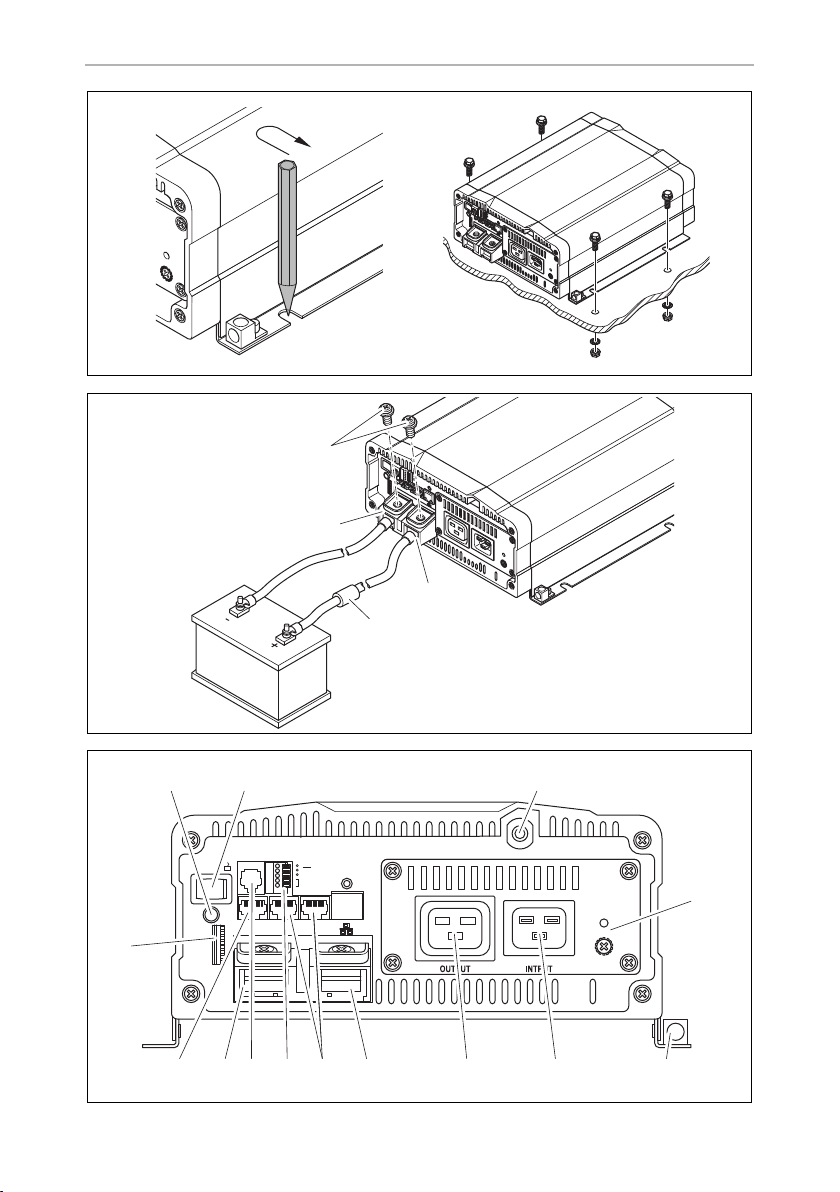

3
NEG -
LCM CAN1 CAN2
RESET
S1
S2
S3
S4
S5
S6
S7
S8
ENB
ENB
JUMP
1 2
POS +
1
32
1
NEG-
LCM CAN1 CAN2
RESET
S1
S2
S3
S4
S5
S6
S7
S8
ENB
ENB
JUMP
1 2
POS+
25 cm
25 cm
2
MSI2300-3500--IO-16s.book Seite 3 Mittwoch, 3. August 2016 5:46 17

SinePower
4
NEG -
LCM CAN1 CAN2
RESET
S1
S2
S3
S4
S5
S6
S7
S8
ENB
ENB
JUMP
1 2
POS +
AB
3
NEG -
LCM CAN1 CAN2
RESET
S1
S2
S3
S4
S5
S6
S7
S8
ENB
ENB
JUMP
1 2
POS +
1
2
3
4
4
AC OUTPUT
AC
INPUT
AC
OUTPUT
CAN1
BREAKER
NEG -
LCM CAN2
RESET
ON OFF
S1
S2
S3
S4
S5
S6
S7
S8
GND
ENB
ENB
JUMP
1 2
POS +
3 2
9
4
1
5
7 81013
14
1112
6
5
MSI2300-3500--IO-16s.book Seite 4 Mittwoch, 3. August 2016 5:46 17

SinePower
5
Input
230 Vw
Output
230 Vw
N
MSI
DC
Input
DC
230 Vw
FI 2
RCD
FI 1
RCD
PE L1
N
PE
L1
N
PE
L1
N
PE
L1
7
2
654
1 3
6
MSI2300-3500--IO-16s.book Seite 5 Mittwoch, 3. August 2016 5:46 17

SinePower
6
AC
INPUT
AC INPUT / N
AC INPUT / L
AC
OUTPUT
AC OUTPUT / N
AC OUTPUT / L
GND
GND
gr/ge
bk
wt
br
bl
LLNN
7
ENB
GND
OFF
ON
OFF:INV.
ON:INV.
8
GND
ENB
HI:INV. ON
(TR ON)
LOW:INV. OFF
(TR OFF)
TR
9
ENB
BAT+
BAT–
OFF
ON
OFF:INV.
ON:INV.
0
DC POWER
GND
ENB
+
–
OFF
ON
OFF:INV.
ON:INV.
a
MSI2300-3500--IO-16s.book Seite 6 Mittwoch, 3. August 2016 5:46 17

SinePower
7
AC OUTPUT
AC
INPUT
AC
OUTPUT
AC OUTPUT
AC
INPUT
AC
OUTPUT
AC OUTPUT
AC
INPUT
AC
OUTPUT
CAN1 CAN2
CAN2
NEG(–) POS(+)
NEG(–) POS(+)
NEG(–) POS(+)
CAN1
rtsw
rtsw rtsw
A
BC
rt
rt
11
b
MSI2300-3500--IO-16s.book Seite 7 Mittwoch, 3. August 2016 5:46 17

SinePower
8
AC OUTPUT
AC
INPUT
AC
OUTPUT
CAN1
BREAKER
NEG -
LCM CAN2
RESET
ON OFF
S1
S2
S3
S4
S5
S6
S7
S8
GND
ENB
ENB
JUMP
1 2
POS +

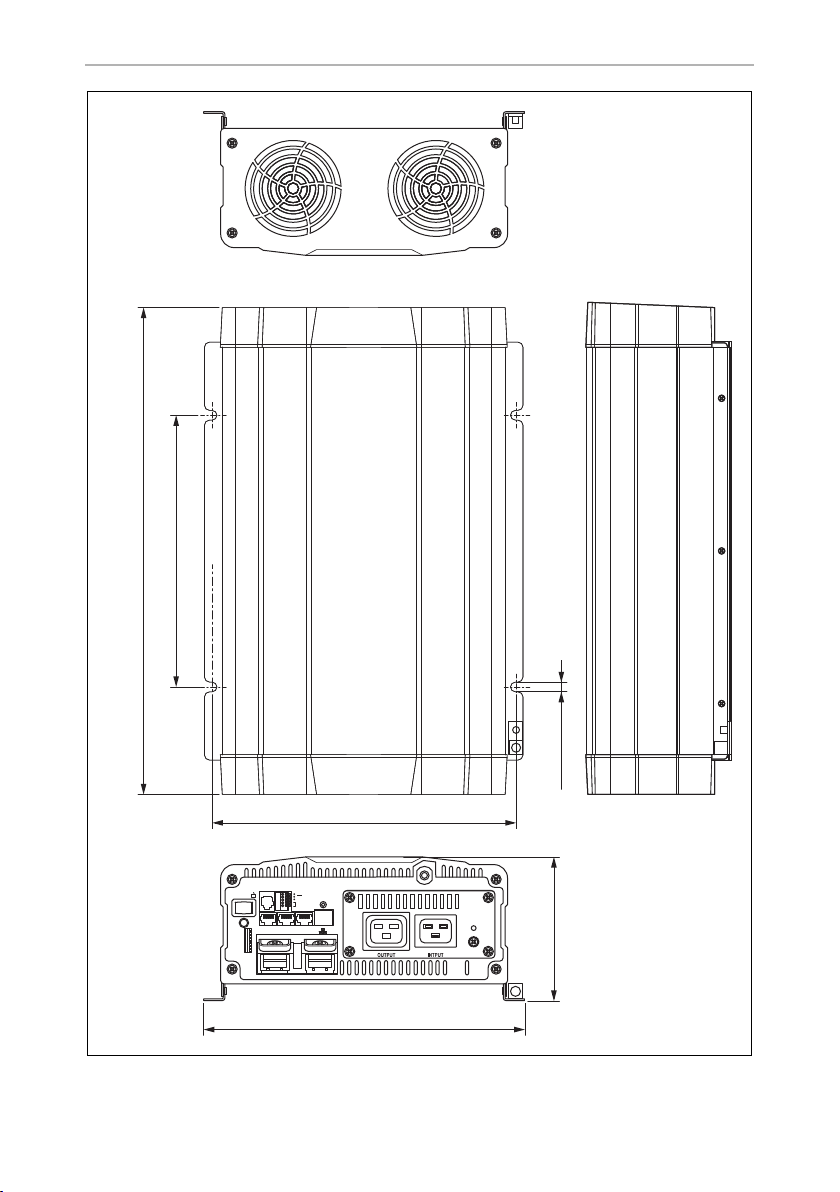

268,6 mm
Ø8,5 mm
283 mm
MSI2300: 436 mm MSI3500: 496 mm
240 mm
128,4 mm
c
MSI2300-3500--IO-16s.book Seite 8 Mittwoch, 3. August 2016 5:46 17

EN
SinePower
9
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
2 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
5 Target group for this manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
6 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
7 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
8 Fitting the inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
9 Connecting the inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
10 Using the inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
11 Cleaning and caring for the inverter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
12 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
13 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
14 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
15 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
MSI2300-3500--IO-16s.book Seite 9 Mittwoch, 3. August 2016 5:46 17

EN
Explanation of symbols SinePower
10
1 Explanation of symbols
!
A
I
2 General safety instructions
2.1 General safety
The manufacturer accepts no liability for damage in the following cases:
•Faulty assembly or connection
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
!WARNING!
•Only use the device as intended.
•Do not operate the device in a damp or wet environment.
•Do not operate the device near any flammable materials.
•Do not operate the device in areas that are potentially explosive.
•Maintenance and repair work may only be carried out by qualified per-
sonnel who are familiar with the risks involved and the relevant regula-
tions.
•People (including children) whose physical, sensory or mental capac-
ities or whose lack of experience or knowledge prevent them from
using this product safely should not use it without the supervision or
instruction of a responsible person.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
MSI2300-3500--IO-16s.book Seite 10 Mittwoch, 3. August 2016 5:46 17

EN
SinePower General safety instructions
11
•Electrical devices are not toys
Always keep and use the device out of the reach of children.
2.2 Safety when installing the device
!WARNING!
•Installing the device may only be performed by qualified personnel
who are familiar with the guidelines and safety precautions to be
applied.
•If electrical devices are incorrectly installed on boats, corrosion dam-
age might occur. The device should be installed by a specialist
(marine) electrician.
ANOTICE!
•Ensure that the device is standing firmly.
The device must be set up and fastened in such a way that it cannot tip
over or fall down.
•Do not expose the device to a heat source (such as direct sunlight or
heating). Avoid additional heating of the device in this way.
•If cables have to be fed through metal walls or other walls with sharp
edges, use ducts or tubes to prevent damage.
•Do not lay cables which are loose or bent next to electrically conduc-
tive material (metal).
•Do not pull on the cables.
•Do not lay the 230 V mains cable and the 12/24 V DC cable in the
same duct.
•Fasten the cables securely.
•Lay the cables so that they cannot be tripped over or damaged.
2.3 Operating the device safely
!WARNING!
•Operate the device only if you are certain that the housing and the
cables are undamaged.
•Even after the fuse triggers, parts of the inverter remain live.
•Always disconnect the power supply when working on the device.
MSI2300-3500--IO-16s.book Seite 11 Mittwoch, 3. August 2016 5:46 17

EN
Scope of delivery SinePower
12
ANOTICE!
•Make sure the air inlets and outlets of the device are not covered.
•Ensure good ventilation. The inverter produces dissipated heatwhich
has to be diverted.
•Do not connect the 230 V output of the inverter (fig. 57, page 4) to
a different 230 V source.
3Scopeofdelivery
4Accessories
5 Target group for this manual
The electrical installation (chapter “Connecting the inverter” on page 17) is intended
for professionals who are familiar with the applicable regulations of the country in
which the equipment is to be installed and/or used.
All other chapters are intended for the users.
No. in
fig. 1,
page 3
Designation
1 Sine wave inverter
2 Connection cable with safety coupling
(for 230 Vwoutput)
3 Connection cable with safety plug
(for 230 Vwsupply)
– Operating manual
Designation Ref. no.
Remote control MCR7 9600000090
Remote control MCR9 9600000091
MSI2300-3500--IO-16s.book Seite 12 Mittwoch, 3. August 2016 5:46 17

EN
SinePower Intended use
13
6 Intended use
!
The wave inverter converts direct current of
•12 Vg(MSI2312T, MSI3512T)
•24 Vg(MSI 2324T, MSI3524T)
into a 200 – 240 V AC supply of 50 Hz or 60 Hz.
7 Technical description
The inverters can be operated wherever
•a 12 Vgconnection (MSI2312T, MSI3512T)
•a 24 Vgconnection (MSI2324T, MSI3524T)
is available. The light-weight and compact construction of this device allows for easy
installation in mobile homes, commercial vehicles or motor and sailing yachts.
The output voltage corresponds to the household voltage from the socket (pure sine
wave, THD < 3%).
Please observe the values for constant output power and peak output power as indi-
cated in chapter “Technical data” on page 29 . Never connect devices that have a
higher power requirement.
I
The inverter has various protective mechanisms.
•Overvoltage shutdown: The inverter shuts itself off when the voltage exceeds
the cut-off value. It restarts when the voltage returns to the restart value.
•Undervoltage shutdown: The inverter shuts itself off when the voltage sinks
below the cut-off value. It restarts when the voltage rises to the restart value.
•Excess temperature shutdown: The inverter switches off when the tempera-
ture inside the device or the temperature on the cooling element exceeds a cut-
off value. It restarts when the voltage rises to the restart value.
WARNING!
Never use the inverter on vehicles where the positive terminal of the
battery is connected to the chassis.
NOTE
Note when connecting devices with an electrical drive (such as power
drills and refrigerators), that they often require more power than is
indicated on the type plate.
MSI2300-3500--IO-16s.book Seite 13 Mittwoch, 3. August 2016 5:46 17

EN
Technical description SinePower
14
•Overloading and short circuit shutdown: The LED on the inverter indicates
an operating fault (constant red light) when an excess load is connected or a short
circuit has occurred. The fuse in the device must be pressed in again by hand after
it is triggered by excess current.
•Incorrect polarity protection: The incorrect polarity protection prevents the
wrong polarity when connecting the inverter.
I
The inverters have a 230 Vwsocket and a connection terminal for permanent
connection.
Due to the voltage synchronisation with the AC input voltage, the inverter is suitable
for operating sensitive consumers which react to an irregular voltage supply.
The device can also be configured with a PC via an RS-232 interface and using the
DIP switches on the device.
The inverter can be switched to an energy-saving mode to prevent the connected
battery from discharging too quickly.
Parallel operation allows up to three inverters (of the same model) to run at the same
time.
The inverter can be easily controlled using the remote control (accessory).
NOTE
The individual values are found in the chapter “Technical data” on
page 29.
MSI2300-3500--IO-16s.book Seite 14 Mittwoch, 3. August 2016 5:46 17

EN
SinePower Technical description
15
7.1 Control elements
Control elements of the inverter (fig. 5, page 4)
7.2 Connections
I
Connections of the inverter (fig. 5, page 4)
Item Description Description
1 Dip switch Makes settings on the inverter (such as mains
voltage, mains frequency, energy-saving
mode).
2 LED See chapter “Status indications” on page 23
3 Main switch
“ON/OFF/REMOTE” switch
Switches the device on, off or to operation via
the remote control (accessory)
4 Fuse Protects the inverter from overload.
The fuse can be pressed in again once it has
triggered.
5 Grounding screw Sets or removes the grounding bridge
NOTE
The version for continental Europe is depicted.
Item Description Description
6 AC input 230 Vwinput jack
7 AC output 230 Vwoutput jack
8 Earth terminal Earthing on the vehicle bodywork
9 POS+ Positive terminal
10 CAN1 and CAN2 port CAN BUS connections
11 Green terminal Setup of remote switch and parallel operation
12 RS-232 port, REMOTE port Connection of a PC using a serial RS-232
interface or connection of the MCR7 or
MCR9 remote control
13 NEG– Negative terminal
14 LCM Remote control connection
MSI2300-3500--IO-16s.book Seite 15 Mittwoch, 3. August 2016 5:46 17

EN
Fitting the inverter SinePower
16
8 Fitting the inverter
8.1 Tools required
For the electrical connection you will need the following tools:
•Crimping tool
•3multi-coloured, flexible connection cables. Determine the necessary thickness
from the table in chapter “Connecting the inverter” on page 17.
•Cable lugs and conductor sleeves
For fastening you will require the following tools:
•Machine bolts (M4) with washers and self-locking nuts or
•self-tapping screws or wood screws.
8.2 Mounting instructions
When selecting the installation location, observe the following instructions:
•The inverter can be mounted horizontally or vertically.
•The inverter must be installed in a place that is protected from moisture.
•The inverter may not be installed in the presence of flammable materials.
•The inverter may not be installed in a dusty environment.
•The place of installation must be well ventilated. A ventilation system must be
available for installations in small, enclosed spaces. The minimum clearance
around the inverter must be at least 25 cm (fig. 2, page 3).
•The air intake on the underside or the air outlet on the back of the inverter must
remain clear.
•For ambient temperatures higher than 50 °C (such as in engine or heating
compartments, or direct sunlight), the heat from the inverter under load can lead
to automatic shutdown.
•The device must be installed on a level and sufficiently sturdy surface.
ANOTICE!
Before drilling any holes, make sure that no electrical cables or other
parts of the vehicle can be damaged by drilling, sawing and filing.
MSI2300-3500--IO-16s.book Seite 16 Mittwoch, 3. August 2016 5:46 17

EN
SinePower Connecting the inverter
17
8.3 Mounting the inverter
➤Hold the inverter against the installation location and mark the fastening points
(fig. 3A, page 4).
➤Attach the inverter using your chosen fastening method (fig. 3B, page 4).
9 Connecting the inverter
9.1 General instructions
!
•When installed in vehicles or boats, the inverter must be connected to the chassis
or earth.
•When setting up a socket distribution circuit (mains setup), comply with the appli-
cable regulations.
•Only use copper cables.
•Keep the cables as short as possible (< 1 m).
•Keep to the specified cable cross section and fit a cable fuse (fig. 43, page 4)
as close to the battery as possible on the positive cable (see the table).
WARNING!
•The inverter may only be connected by a qualified workshop. The
following information is intended for technicians who are familiar
with the guidelines and safety precautions to be applied.
•Never use the inverter on vehicles where the positive terminal of the
battery is connected to the chassis.
•If you do not fit a fuse to the positive cable, the cables can over-
load, which might result in a fire.
Device Required cable
cross section Cable fuse
MSI2312T 70 mm² 350 A
MSI2324T 50 mm² 175 A
MSI3512T 95 mm² 400 A
MSI3524T 70 mm² 200 A
MSI2300-3500--IO-16s.book Seite 17 Mittwoch, 3. August 2016 5:46 17

EN
Connecting the inverter SinePower
18
9.2 Connecting the inverter to the battery
A
I
➤Set the main switch (fig. 53, page 4) to “OFF”.
➤Loosen the screw (fig. 41, page 4) from the red positive terminal (fig. 42,
page 4).
➤Push the cable lug (fig. 42, page 4) of the positive cable into the red positive
terminal and fasten it with the bolt.
➤Connect the negative cable to the black negative cable (fig. 44, page 4).
➤Lay the positive cable from the inverter to the positive terminal of the vehicle
battery and connect it.
➤Lay the negative cable from the inverter to the negative terminal of the vehicle
battery and connect it. A small spark can occur if the capacitors are being
charged in the inverter.
➤Connect the earth terminal (fig. 58, page 4) to the vehicle chassis.
9.3 Connecting the 230 V power cable
➤Connectthe 230 Vwconnection cable with safety plug (fig. 13, page 3) to the
230 Vwinput jack (fig. 56, page 4).
➤Connect the safety plug to the 230 Vwmains.
9.4 Connecting the 230 V output cable
!
➤Connectthe 230 Vwconnection cable with safety plug (fig. 12, page 3) to the
230 Vwoutput jack (fig. 57, page 4).
NOTICE!
Make sure that you do not reverse the polarity. Incorrect polarity can
damage the inverter.
NOTE
Tighten the nuts and bolts to a maximum torque of 15 Nm. Loose
connections may cause overheating.
WARNING!
Before connecting the 230 Vwoutput cable, make sure the inverter is
switched off at the main switch.
MSI2300-3500--IO-16s.book Seite 18 Mittwoch, 3. August 2016 5:46 17

EN
SinePower Connecting the inverter
19
9.5 Connect multiple appliances
The device is equipped at delivery with galvanic isolation. For the safe operation of
multiple appliances, it is essential that a circuit breaker (residual current circuit
breaker) is built into the socket distribution circuit, see sample circuit diagram in
fig. 6, page 5.
Sample circuit diagram legend:
!
➤Install a residual current circuit breaker in the socket distribution circuit.
9.6 Setting the earthing bridge (fig. 55, page 4)
➤Remove the earthing screw from the bottom hole.
➤Screw the screw into the top hole.
No. in
fig. 6,
page 5
Explanation
1 230 Vwpower source
2 additional devices, e.g. battery charger, refrigerator
3 DC power source (battery)
4Inverter
5 Set grounding bridge (At delivery: not set, shown by dotted line)
6 Circuit breaker (residual current circuit breaker)
7 Socket distribution circuit for appliances
WARNING! Danger of electrocution!
If you wish to connect more than one appliance to the inverter and install
a socket distribution circuit, you must arrange a circuit breaker (residual
current circuit breaker) and set a grounding bridge in the inverter.
MSI2300-3500--IO-16s.book Seite 19 Mittwoch, 3. August 2016 5:46 17

EN
Connecting the inverter SinePower
20
9.7 Connecting the MCR7 or MCR9 remote control
(accessory)
A
➤Connect the remote control (accessory) to the remote port (fig. 512, page 4).
9.8 Connect external switch to turn device on and off
I
You can use the following as an external switch:
•external switch, voltage supply from the inverter: fig. 8, page 6
•Control unit with relay or transistor circuit (TR): fig. 9, page 6
•external switch with voltage supply from the battery (BAT) of the vehicle: fig. 0,
page 6
•external switch with its own voltage supply (DC POWER) e.g. from the ignition:
fig. a, page 6
➤Set the main switch (fig. 53, page 4) to “OFF” and make sure that the connec-
tion for the remote control (fig. 512, page 4) is not assigned.
➤Set the main switch (fig. 53, page 4) to “REMOTE”.
➤Connect the external on/off switch with the connection cable to the green
terminal (fig. 511, page 4).
NOTICE!
•Only plug in the connection to theremote control intheremoteport.
The device can be damaged by connecting it incorrectly.
•Ensure that the remote control and inverter are supplied with the
same input voltage.
•Follow the instruction manual of the remote control.
NOTE
Use cables with a cable cross section of 0.25 – 0.75 mm².
MSI2300-3500--IO-16s.book Seite 20 Mittwoch, 3. August 2016 5:46 17
