Please read this instruction manual carefully before first use, and store
it in a safe place. If you pass on the product to another person, hand
over this instruction manual along with it.
Table of contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3 Target group for this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
6 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
8 Operating the generator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
9 Cleaning the generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
10 Servicing the generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
11 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
12 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
13 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
14 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

EN
TEC40D Explanation of symbols
9
1 Explanation of symbols
!
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
Damage to the product resulting from mechanical influences and excess
voltage
Alterations to the product without express permission from the manu-
facturer
Use for purposes other than those described in the operating manual
In particular, the manufacturer will not be liable for any consequential dam-
age, especially consequential damage caused by failure of the generator.
WARNING!
Safety instruction: Failure to observe this instruction can cause
fatal or serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to
injury.
NOTICE!
Failure to observe this instruction can cause material damage and
impair the function of the product.
NOTE
Supplementary information for operating the product.

EN
Safety instructions TEC40D
10
Note the following basic safety information when using electrical devices to
protect against:
Electric shock
Fire hazards
Injury
2.1 General safety
DDANGER!
Do not operate the device in spaces where danger of explosion
is present.
!WARNING!
Electrical devices are not toys
Keep electrical devices out of reach of children or infirm per-
sons. Do not allow them to use electrical devices without super-
vision.
This device can be used by children aged 8 years or over, as
well as by persons with diminished physical, sensory or mental
capacities or a lack of experience and/or knowledge, providing
they are supervised or have been taught how to use the device
safely and are aware of the resulting risks.
Only use the device as intended.
Do not make any alterations or conversions to the device.
Installation, maintenance and repairs of the generator may only
be carried out by qualified personnel who are familiar with the
risks involved when handling generators as well as the relevant
regulations. Inadequate repairs may cause serious hazards.
For repair service, please contact the manufacturer's branch
office in your country (addresses on the back page).
Mark the area surrounding the device during maintenance work
and prevent access to areas where activation can cause perils.
Exhaust fumes contain carbon monoxide which is a highly toxic,
odourless and colourless gas. Do not inhale any exhaust fumes.
Do not leave the generator motor running in a closed garage or
in a room without windows.

EN
TEC40D Target group for this manual
11
!CAUTION!
The generator may only be used with the inspection cover
closed.
Remove all flammable materials such as petrol, paints,
solvents, etc., from the vicinity of the generator.
Ensure that hot parts of the generator do not come in contact
with any flammable materials.
Only refuel the generator when it is switched off and in a well-
ventilated area. Diesel oil is highly flammable and can explode.
Do not refuel the generator when the vehicle engine is running
if the tank is in the vicinity of the vehicle engine.
Wipe up spilled diesel oil properly and wait until the fumes have
cleared before turning on the engine.
Do not touch the generator and the cables with wet hands.
Replace the fuses using only those with the same technical
data.
ANOTICE!
Do not fill up the tank too full. Fuel must not be allowed to fill up
to the neck of the tank. Check the lid is on properly.
2.2 Operating the device safely
!WARNING!
Always disconnect the power supply when working on the
device.
ANOTICE!
Only operate the device if you are certain that the housing and
the cables are undamaged.
3 Target group for this manual
This operating manual is for the user of the generator.

EN
Scope of delivery TEC40D
12
4 Scope of delivery
5 Accessories
Available as accessories (not included in the scope of delivery):
6 Intended use
The TEC40D generator (item no. 9102900201) is designed for use in motor
homes, camper vans and vehicles for commercial use.
The generator is not suitable for installation in water vessels.
The generator produces a pure sine wave voltage of 230 V/50 Hz which can
be connected to the consumer with a total continuous load of 3500 W. The
power quality is also suitable for sensitive consumers (such as PCs).
The generator can charge a 12 V battery.
Description Item number
TEC40D generator 9102900201
Remote control
Exhaust pipe, 2 m
Fastening material for silencer
Connection cable
AG 102, changeover relay for making priority circuits
Fastening material
Installation manual
Operating manual
Part designation Item number
PR 25044, external sealing kit 9102900174

EN
TEC40D Technical description
13
7 Technical description

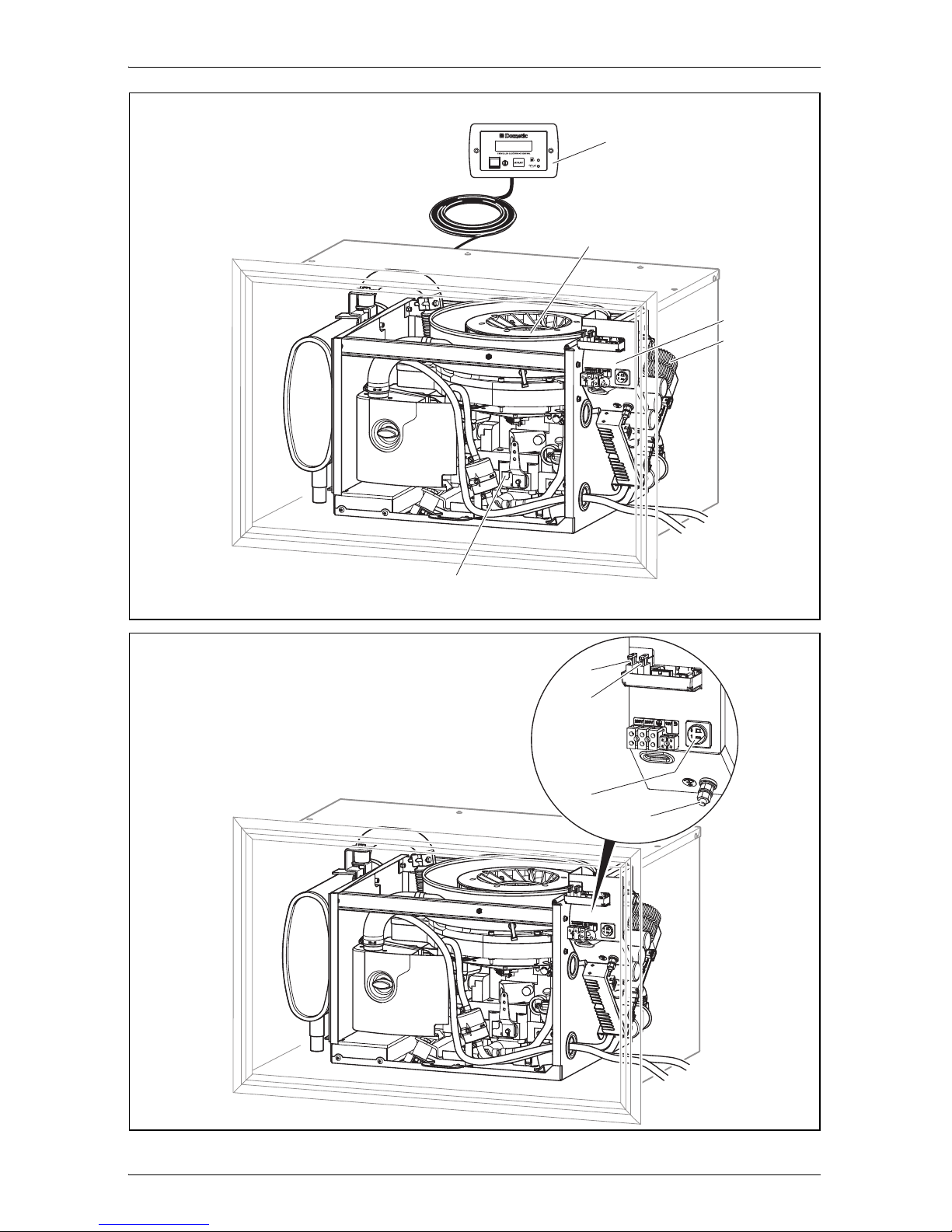

The generator consists of the following main parts (fig. 1, page 3):
Alternating current generator (1)
Endothermic engine (2)
Internal control panel (3)
Inverter (4)
Remote control (5)
The endothermic engine (2) drives the alternating current generator (1)
connected to it, which in turn generates AC voltage.
The integrated inverter (4) transforms this AC voltage into a stable voltage of
230 V and 50 Hz, which is available at the inverter terminal. The socket for
the connection cable to the control panel (5) is installed in the inverter.
The terminals and the main switch are installed in the internal control
panel (3) located behind the door.
The generator has an integrated battery charger for charging the connected
battery.
Control elements in the control panel
The control panel is located on the generator behind the cover.
No. in
fig. 2,
page 3
Description
1 Main switch Switches the generator to standby or no
function.
2 Battery positive terminal Connection to the positive battery termi-
nal.
3 Main fuse Triggers if overvoltage occurs in the
inverter
4 Battery charger fuse Triggers if overvoltage occurs in the bat-
tery charger

EN
Technical description TEC40D
14
Control elements in the remote control
The remote control is installed in the vehicle interior.
Displays
No. in
fig. 3,
page 4
Description
1 Display Shows the status reports.
2 On/Off switch PSwitches the control panel on and off if
the main switch is at “I” or “1”.
Stops the generator in emergency.
3 Green button
START/STOP
Starts/stops the generator if the control
panel is switched on and the main switch
is at “I” or “1”.
4 Fuel gauge Lights up if the diesel fuel goes into
reserve.
5 Oil gauge Lights up if the oil level is too low in the
engine.
No. in
fig. 3,
page 4
Description
6 AC supply Actual voltage output
7 Constant output Current capacity of connected consumer
8 Operating hours Time the generator is in operation
9 DC voltage Battery voltage
10 Messages Status reports of the generator (see
chapter “Display messages” on page 17)

EN
TEC40D Operating the generator
15
8 Operating the generator
A
I
8.1 Basic notes on operation
!
Please note the following basic information:
When operating the generator at low temperatures (< 0 °C) you have to
use winter diesel fuel or you have to add a percentage of petrol to the
diesel oil according to the following table:
Always check the oil level before use (chapter “Checking the oil level” on
page 19).
Even small overloads in the long-run will cause the generator to stop.
Leave the generator running for a few minutes after use without any con-
sumers before stopping it.
Abrupt braking, accelerating and driving round bends in the vehicle can
cause problems in the generator's pump system and lead to unwanted
shutdown.
If you are not using your generator for a longer period of time, start it up
at least every 10 days and leave it running for 15 minutes or more.
NOTICE!
Do not run the generator over 70 % of the maximum constant out-
put for the first 50 operating hours (run-in phase).
NOTE
Run the generator at a maximum of approx. 75 % of the maximum
continuous load after the run-in phase.
By doing this you can prolong the service life of the generator and
maximise its efficiency.
CAUTION! Beware of injury
Do not insert your fingers or objects into the air nozzles or the
intake grille.
Ambient Temperature Summer diesel Winter diesel
–10 to 0 °C 20 % –
–15 to –10 °C 30 % –
–20 to –15 °C 30 % 20 %

EN
Operating the generator TEC40D
16
8.2 Switching the generator to standby or no function
The generator can be switched to standby or no function with the main switch
(fig. 21, page 3) in the connection box.
8.3 Switching the control panel on and off
This switch on the control panel (fig. 32, page 4) is for switching the control
panel on and off.
➤Switch the control panel on with the on/off switch.
✓The display shows: GEN OFF.
The display switches off automatically after 5 minutes if the start button is
not touched within this time.
Press the start button to switch on the display again.
✓The generator can now be started.
8.4 Starting the generator
The generator can only be started if it is in standby and the control panel is
switched on.
I
➤Start up the generator with the green button "START/STOP (fig. 33,
page 4).
8.5 Stopping the generator
➤Stop the generator with the on/off switch (fig. 32, page 4).
If the generator does not stop: switch it off with the main switch (fig. 21,
page 3).
NOTE
If the generator is still warm, press the start button briefly to start
it; press longer for a cold generator.

EN
TEC40D Operating the generator
17
8.6 Display messages
Display message
Description Generator behaviour Measures
LOW BATTERY
The battery voltage has fallen
below the minimum value for
starting up (9V).
The generator does not start. Charge the battery.
Check OIL Level The generator continues to
run.
Fill up with oil (see chapter
“Checking the oil level” on
page 19).
OIL CHANGE
The number of prescribed
operating hours has been
reached for changing the
engine oil.
The generator continues to
run.
Change the oil (see chapter
“Changing the oil” on
page 23).
In order to reset the alarm
start up the generator by
pressing and holding down
the START/STOP button.
NO FUEL
The diesel fuel in the tank is
in reserve.
The generator continues to
run.
Refuel.
PRESS OIL TEMP
Insufficient engine oil.
Engine temperature too high.
The generator stops. Fill up with oil (see chapter
“Checking the oil level” on
page 19).
Leave the generator to cool
down for a few minutes then
start up the generator again.
GENERATOR ALERT!
General alarm message
The generator stops. Check the system by referring
to the troubleshooting table.
If the problem persists, con-
tact the manufacturer's
branch office in your country
(addresses on the back
page).
OVERLOAD!
The consumers generate an
overload at the output.
The inverter switches off,
therefore no voltage is sup-
plied but the engine carries
on running until it goes off.
Reduce the connected load
and start the generator again.
SHORT CIRCUIT
The consumers cause a short
circuit at the output.
The inverter switches off,
therefore no voltage is sup-
plied but the engine carries
on running until it goes off.
Check the connected con-
sumers then start the genera-
tor again.

EN
Operating the generator TEC40D
18
OVER TEMPERATURE
The inverter temperature is
too high.
The inverter switches off,
therefore no voltage is sup-
plied to cool the generator,
but the engine carries on
running.
Leave the generator to cool
down for a few minutes then
start up the generator again.
LOW POWER ENGINE
The inverter supply voltage
has dropped.
The generator stops. Reduce the connected load
and start the generator again.
GEN CAL
A message appears when the
generator is started up; it
shows the calibration phase
which takes place before
each start-up. The generator
does not supply any voltage.
The generator is running but
does not supply any voltage.
Wait a moment.
GEN WAIT
A message appears while
you are waiting for the
generator to start again.
The generator is switched off. Wait until the message has
disappeared then attempt
ignition again.
GEN ON
The generator is operating
normally.
Normal mode –
GEN OFF The generator is in stand-by
and can be started.
–
Display message
Description Generator behaviour Measures

EN
TEC40D Operating the generator
19

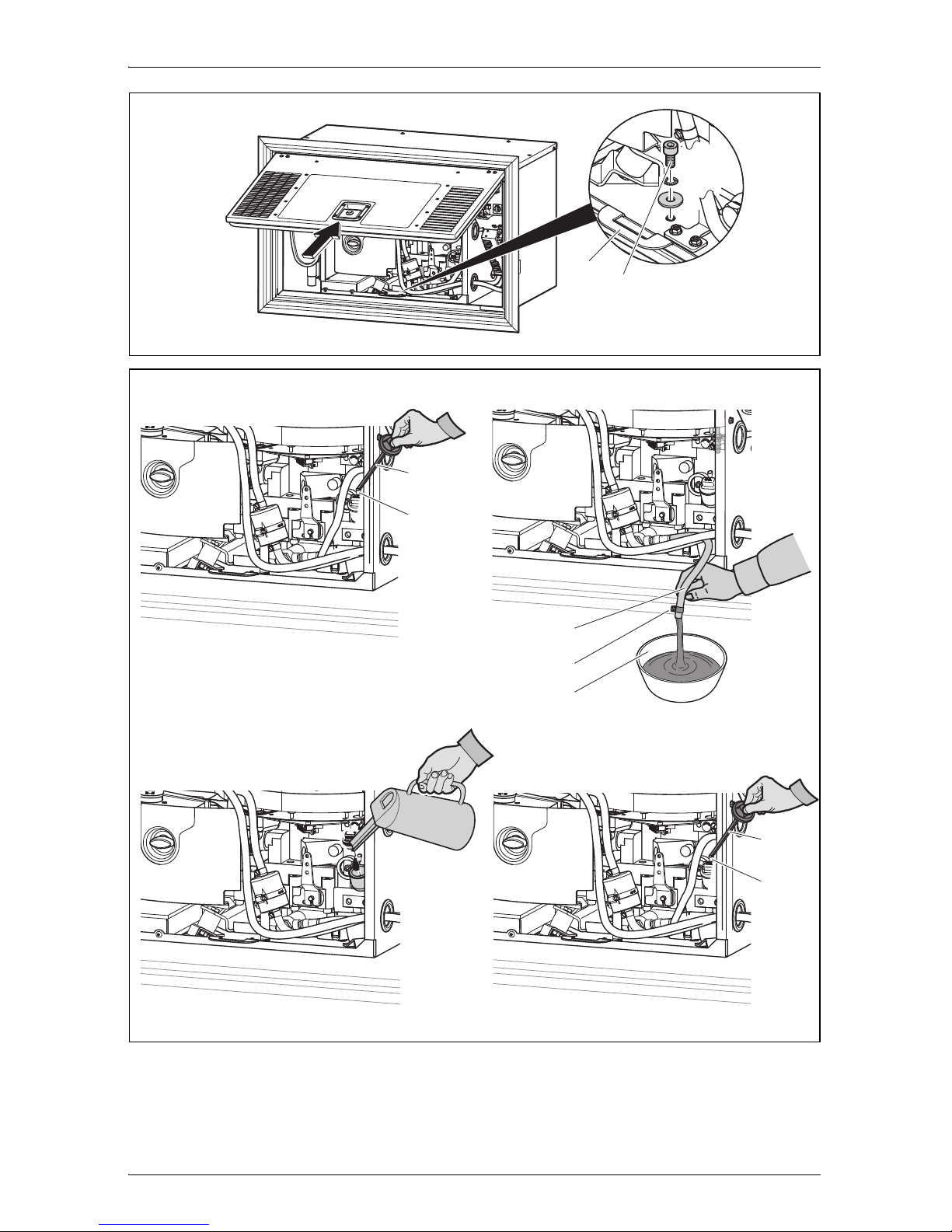

8.7 Checking the oil level
!
I
Always check the oil level before use. To do this, proceed as follows:
➤Open the generator cover.
➤Switch the generator to no function with the main switch (fig. 41,
page 4).
➤Disconnect the positive terminal of the supply battery.
➤Take the dipstick (fig. 42, page 4) out of the filler neck (fig. 43,
page 4).
➤Clean the dipstick (fig. 42, page 4) with a cloth.
➤Put the dipstick (fig. 42, page 4) back into the filler neck (fig. 43,
page 4).
➤Take the dipstick (fig. 42, page 4) out of the filler neck.
➤Check that the oil level is between the notch (maximum filling level) and
the tip of the dipstick.
If not, top up with more oil.
➤Put the dipstick (fig. 42, page 4) back into the filler neck (fig. 43,
page 4).
➤Connect the generator to the positive terminal of the supply battery.
➤Switch the generator to standby with the main switch (fig. 41, page 4).
➤Close the generator cover.
CAUTION!
Hot oil can cause burns.
Only check the oil level when the generator is switched off.
NOTE
The generator must be level.

EN
Cleaning the generator TEC40D
20
9 Cleaning the generator
A
➤Clean the generator with a damp cloth from time to time.
➤Remove any dirt from the air vents in the generator at regular intervals.
Make sure you do not damage the grilles of the generator in the process.
NOTICE! Beware of damage
Do not clean the generator with a high-pressure cleaner.
Exposure to water can damage the generator.
Do not use sharp or hard objects or cleaning agents for clean-
ing as these may damage the generator.
To clean the generator, use water with a gentle cleaning
agent. Never use petrol, diesel or solvents.
