ED700 SALES PACKAGES:
SURFACE APPLIED
See page 25 for minimum and maximum header lengths and door weights.
DS2419-02A OR DS2419-02B
PULL (IN) PULL (IN)
PULL (IN) PULL (IN)
PULL (IN) PULL (IN)
PUSH (OUT)
LH, PUSH (OUT)
RH, PUSH (OUT)
DS2416-02A OR DS2416-02B
DS1350-02A OR DS1350-02B
Left Hand Double Egress Right Hand Double Egress
DS2519-02A OR DS2519-02B
DS2521-02A OR DS2521-02B
DS2520-02A OR DS2520-02B
DS2420-02A OR DS2020-02B
DS1400-02A OR DS1400-02B
DS2418-02A OR DS2418-02B
DS2417-02A OR DS2417-02B
DS2415-02A OR DS2415-02B

ED700
Low Energy
Automatic Swing Door
DORMA
5
DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211
Lake Bluff, IL 60044 Fax: [phone] DL3038-010 Rev. B 6/08
E-mail: [email protected] Subject to change without notice

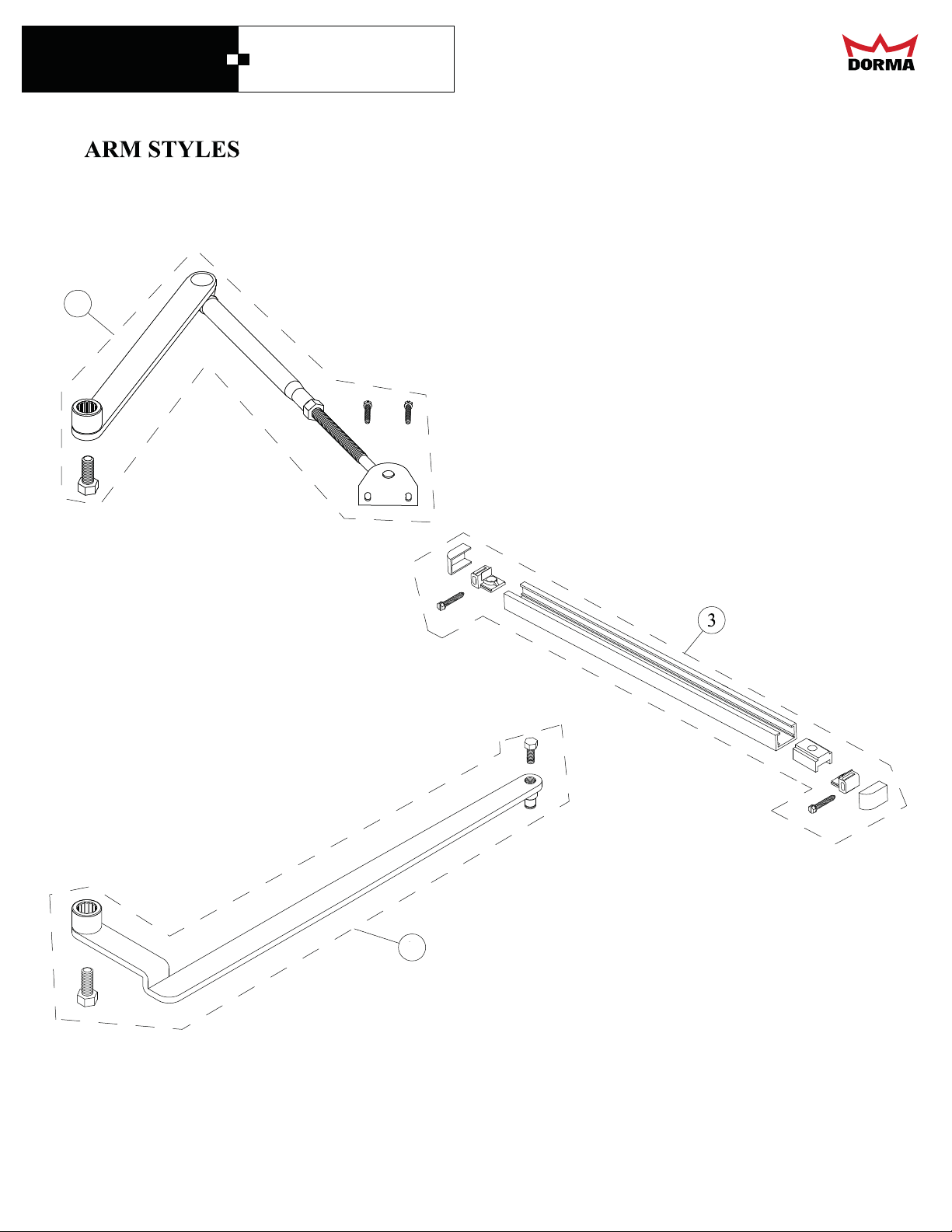

Slide Track Arm (Pull)
0’- 6” Reveals
1. DC0847-01A ARM, UNIVERSAL SCISSOR CL
DC0847-01B ARM, UNIVERSAL SCISSOR DB
DK2494-01A KIT, DOUBLE EGRESS SISSOR ARM
EXTENDED SPINDLE REQUIRED FOR DOUBLE EGEESS APPLICATIONS
2. DS2516-01A ASSY, TRACK ARM RH CL
DS2516-01B ASSY, TRACK ARM RH DB
DS2219-01A ASSY, TRACK ARM LH CL
DS2219-01B ASSY, TRACK ARM LH DB
3. DS2409-01A ASSY, SLIDE TRACK
DS2409-01B ASSY, SLIDE TRACK
2
1
Scissor Arm (Push)

ED700
Low Energy
Automatic Swing Door
DORMA
6
DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211
Lake Bluff, IL 60044 Fax: [phone] DL3038-010 Rev. B 6/08
E-mail: [email protected] Subject to change without notice
Aling

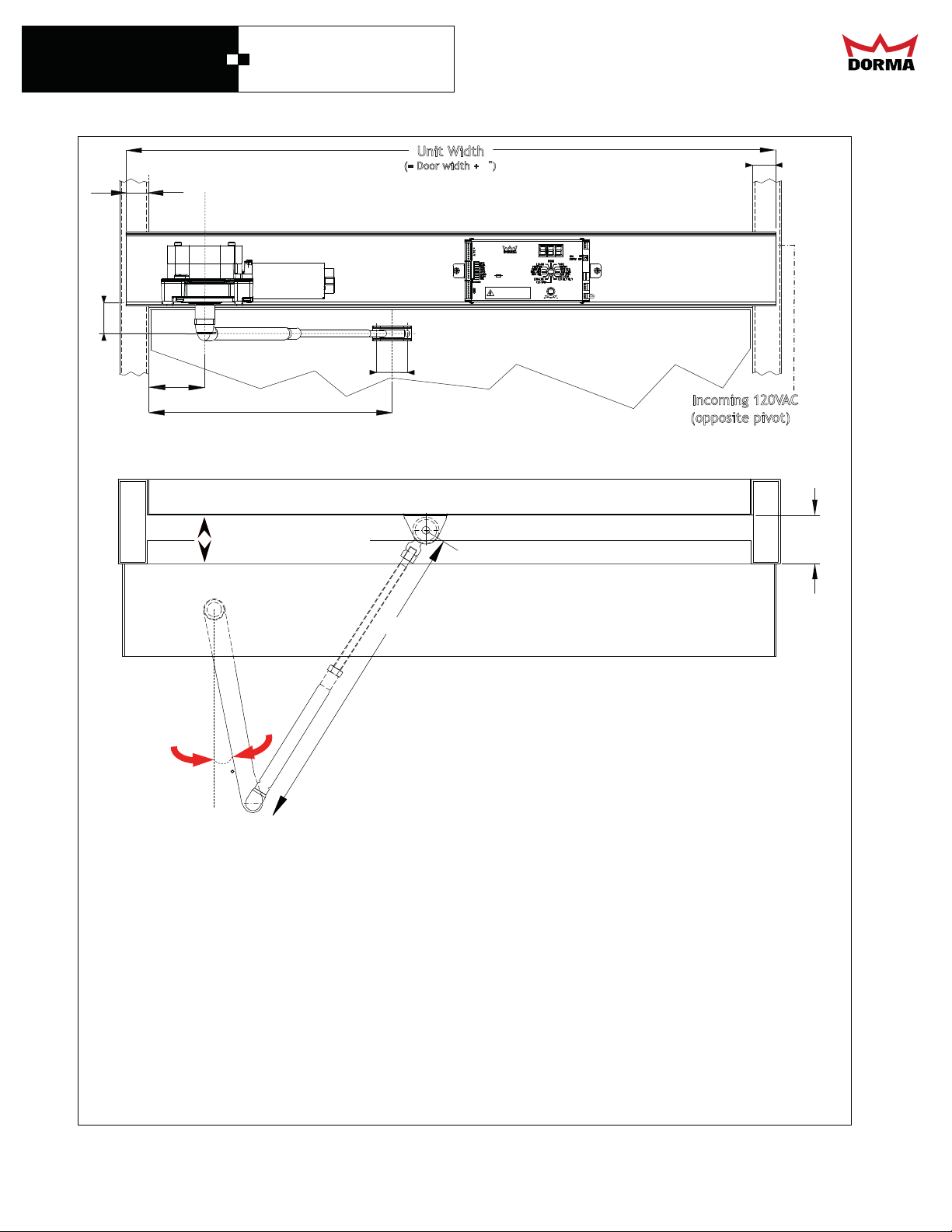

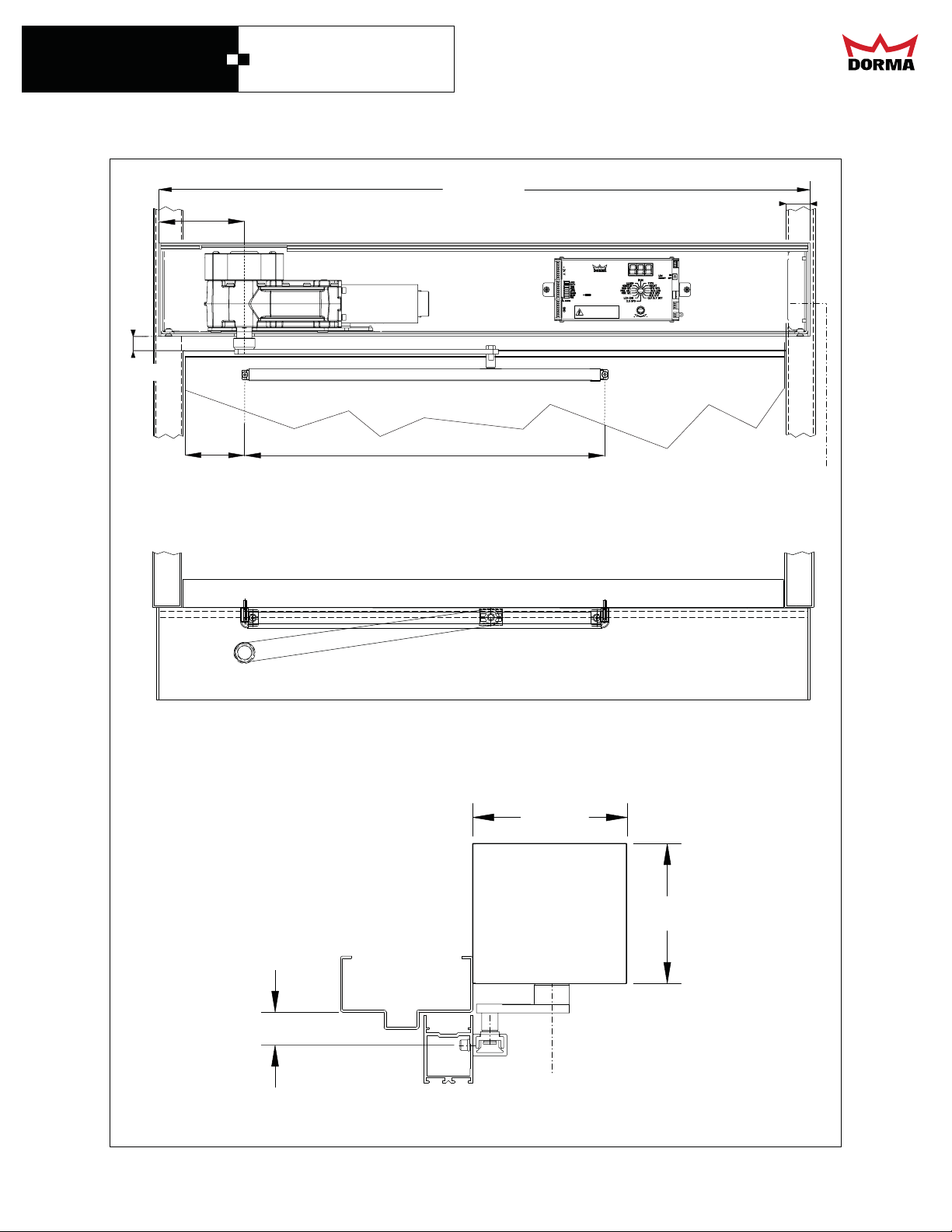

MOUNTING THE HEADER
1-1/2”1- 1-1/2”1- 1-1/2”1- 1-1/2”1-
Unit Width
(= Door width + 3”)
Unit Width
(= Door width + 3”)
1-1/2”1-
Incoming 120VAC
(opposite pivot)
1-1/2”1-1/2”
PULL ARM TRACK OR DOUBLE EGRESS PAIR
Incoming 115VAC
(opposite pivot)
4” 1- ”
11”
1- 1/4 “
23-1/2
”
1/2
The header should overlap the door opening 1-1/2” on each side of the frame.
If the header is shorter then the door opening the pivot side should overlap the
frame by 1-1/2” the centerline of the drive shaft should be 4” from the pivot side
of the opening in most applications.
If the header is not predrilled with mounting holes, locate and predrill at least six
mounting locations.
For outswing applications using a Push arm the header should be flush with the
bottom of the frame opening, for frames with a standard stop.
For inswinging doors using Pull Arms or Double Egress applications the header
should be located 1-1/4’ from top of the door.
The header must be plumb and level and fastened securely to the mounting
surface. Fasteners will vary with the mounting surface but the unit is supplied with
fasteners that provide adequate support for most applications. Drywall mounting
surfaces or stucco surfaces will require additional backing to support the header.

ED700
Low Energy
Automatic Swing Door
DORMA
7
DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211
Lake Bluff, IL 60044 Fax: [phone] DL3038-010 Rev. B 6/08
E-mail: [email protected] Subject to change without notice

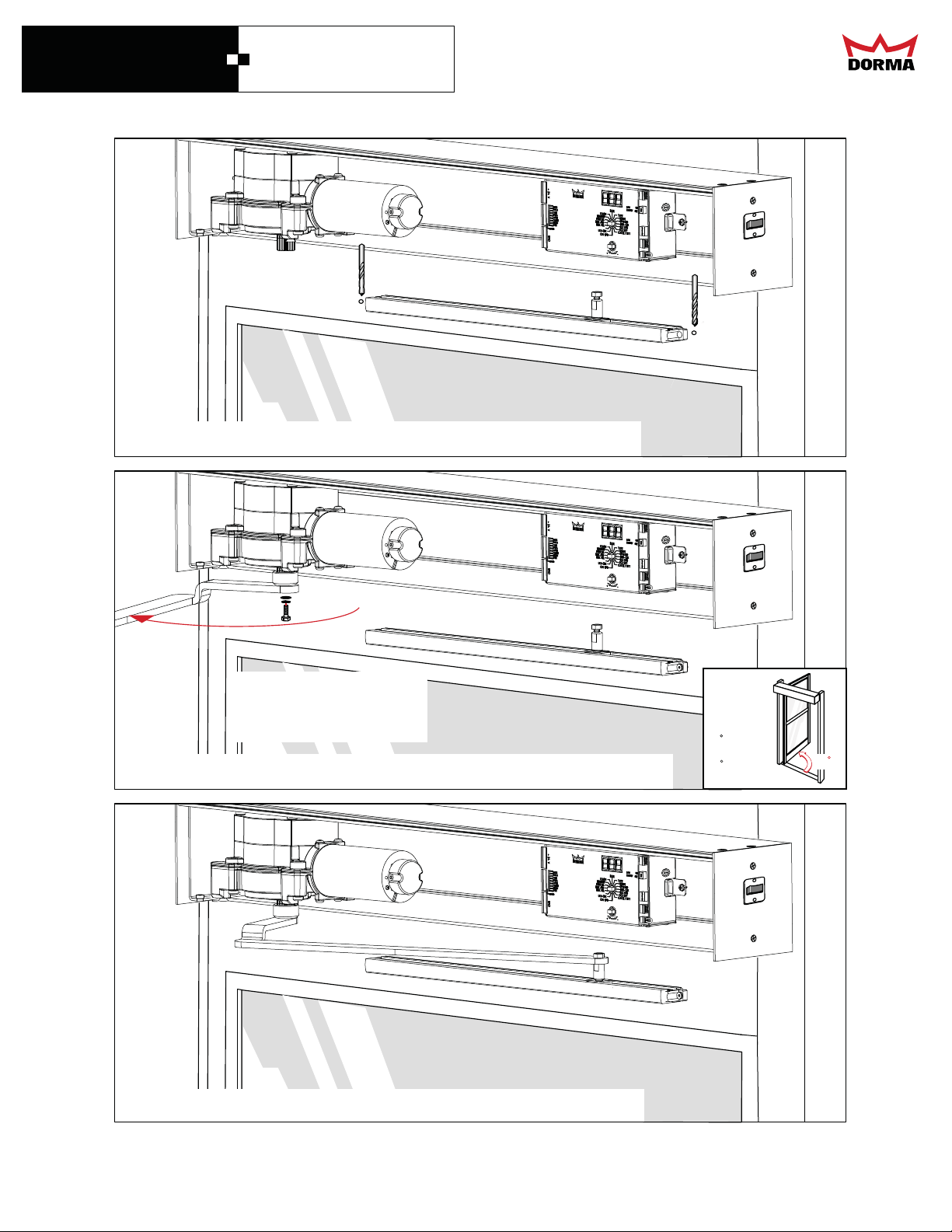

INSTALLING THE OPERATOR
TO INSTALL THE OPERATOR:
Align the bottom two holes with the two holes on the header
and fasten the operator to the header with (2) #1/4-20 X 1/2” FH screws.
WARNING: DO NOT ROTATE THE SHAFT, INSTALL THE ARM OR CONNECT TO THE DOOR
WITHOUT FIRST CONNECTING THE CONTROLER TO THE OPERATOR.
THE CLOSING SPEED CONTROL IS IN THE CONTROLER, ALLOWING THE OPERATOR TO SLAM
CLOSED WITHOUT THE CONTROLER CONNECTED MAY RESULT IN DAMAGE TO THE OPERATOR.

Connect Motor and Encoder Harnesses
OR
#1 Endcap
SYNC
TXD
GND
RXD
PGM
ENC
Breakout
2-1/8”
#2 Header Bottom
Recommended Locations for Mode Switch.
(Phillips screwdriver required).
#6-32 x ½”
SYNC
TXD
GND
RXD
Breakout
PGM
ENC
Place Mode Switch in opening and fasten.
ED700
Low Energy
Automatic Swing Door
DORMA
8
DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211
Lake Bluff, IL 60044 Fax: [phone]
DL3038-010 Rev. B 6/08
E-mail: [email protected] Subject to change without notice
ENC
Controller installation.
Fasten using supplied mounting pads to
the back of the controller and the header.
SYNC
TXD
GND
RXD
PGM
Breakout
INSTALL THE CONTROLLER and ON OFF HOLD SWITCH (PROGRAM)
1
2
21
DO NOT PLUG MOTOR HARNESS INTO POWER, IT WILL DAMAGE MOTOR!
PGM
ENC
Breakout
SYNC
GND
TXD
RXD
3/4”
1 1/2”
Drill #36 (Ø.107)
(2plcs)
Drill Ø1”hole for clearace.

7
Motor
Controller
Brown
Black
Green
Mode Switch
Hold open
ON
OFF
Connect Operator Internal Wiring to Control
Jumper
Required
ENCODER
Black
Use supplied
green connector
Sensor connections
see page - 10
Green
Red
Left Side Right Side
Use supplied
green connector
Connecting the Controller
Breakout
PGM
ENC
SYNC
TXD
GND
RXD
To RXD
To TXD
To GND
Optional: use when
synchronizing two operators
MICROPROCESSOR CONTROL
115 VAC 60 Hz 2A
DORMA AUTOMATICS
Phone: [phone]
Motor: 4A slow blow
Line: 2A fast acting
THIS OPERATOR CONTROLLER MUST BE
ADJUSTED TO MEET ANSI STANDARDS
POWER
115 Vac
White
Black
Green
Green
GROUND ATTACHED TO HEADER
NOTE: For LH or LHR, Red and Black leads must switch
Jumper
Required
Brown
Black
Green
Mode Switch Function
Brown
Black
Green
ED700
Low Energy
Automatic Swing Door
DORMA
9
DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211
Lake Bluff, IL 60044 Fax: [phone] DL3038-010 Rev. B 6/08
E-mail: [email protected] Subject to change without notice

ED700
Low Energy
Automatic Swing Door
DORMA
10
DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211
Lake Bluff, IL 60044 Fax: [phone] DL3038-010 Rev. B 6/08
E-mail: [email protected] Subject to change without notice
THI
AD
BY
(Optional)Swing Side Door Mounted Sensor
MOUNTED TO SWING SIDE OF DOOR
MOUNTED TO APPROACH OF DOOR
GREEN (N.O.)
BLACK (-24 VDC)
RED (+24VDC)
WHITE (COM)
SMOKE
DETECTOR
(Optional)
PUSH BUTTON OR
ANY OTHER KNOWING
ACT ACTIVATION DEVICE
GREEN (N.O.)
BLACK (-24 VDC)
RED (+24VDC)
WHITE (COM)
Please see Sensors Manufacturer’s Installation Guides
for further instructions and wiring details.
Follow the installation and adjustment instructions accompanying the sensors
to be installed. Insure compliance with BHMA/ANSI Standards.
Jumper MUST be installed
if an optional smoke
detector is not present.
extra
extra
extra
(Optional)Approach Side Door Mounted Sensor
WIRING DIAGRAM FOR PUSH PLATES AND OPTIONAL ACCESSORIES
MI
Isolation Relay
for electric locks
see page 22.
MOUNTED TO THE HEADER
Data+
Data-
NC
NO
COM
24V
24V
(Optional)
OVERHEAD
SWING AREA
PRESENCE
SENSOR
Do not connect electric strike
or magnetic lock directly to
the control

ED700
Low Energy
Automatic Swing Door
DORMA
11
DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211
Lake Bluff, IL 60044 Fax: [phone] DL3038-010 Rev. B 6/08
E-mail: [email protected] Subject to change without notice

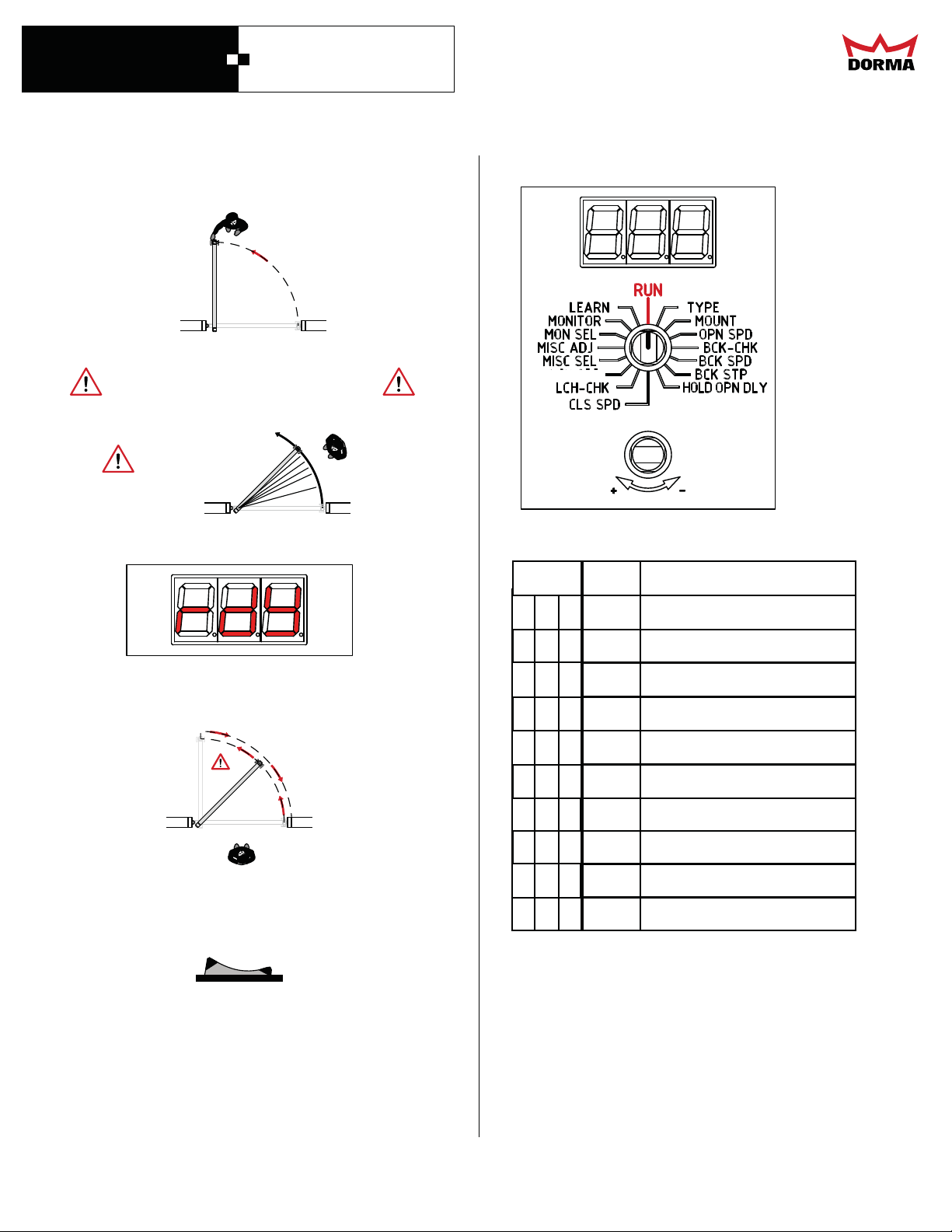

Power the Operator to Hardstop
• Turn mode switch from “OFF” to the “ON”
position.
ON
OFF
• The operator pinion will now begin turning slowly
in the open direction, and stop indefinitely at the
hardstop.
• When installation procedure is complete, turn the
mode switch to the “OFF” position to power down
the operator and close the door.
• Connect the arm to the operator pinion with the door
opened to 5 degrees beyon the desired fully open position.
Basic Requirements
• All cables are connected.
• Swing area is clear of obstacles
• Mode switch in position "OFF".
• Power connected.
Start-Up
• Turn selector knob to “LEARN”.
• The display will read “ALL”.
The purpose of this feature is to drive the operator
to the fully-open hardstop. It is also used to load the
operator spring during the installation.

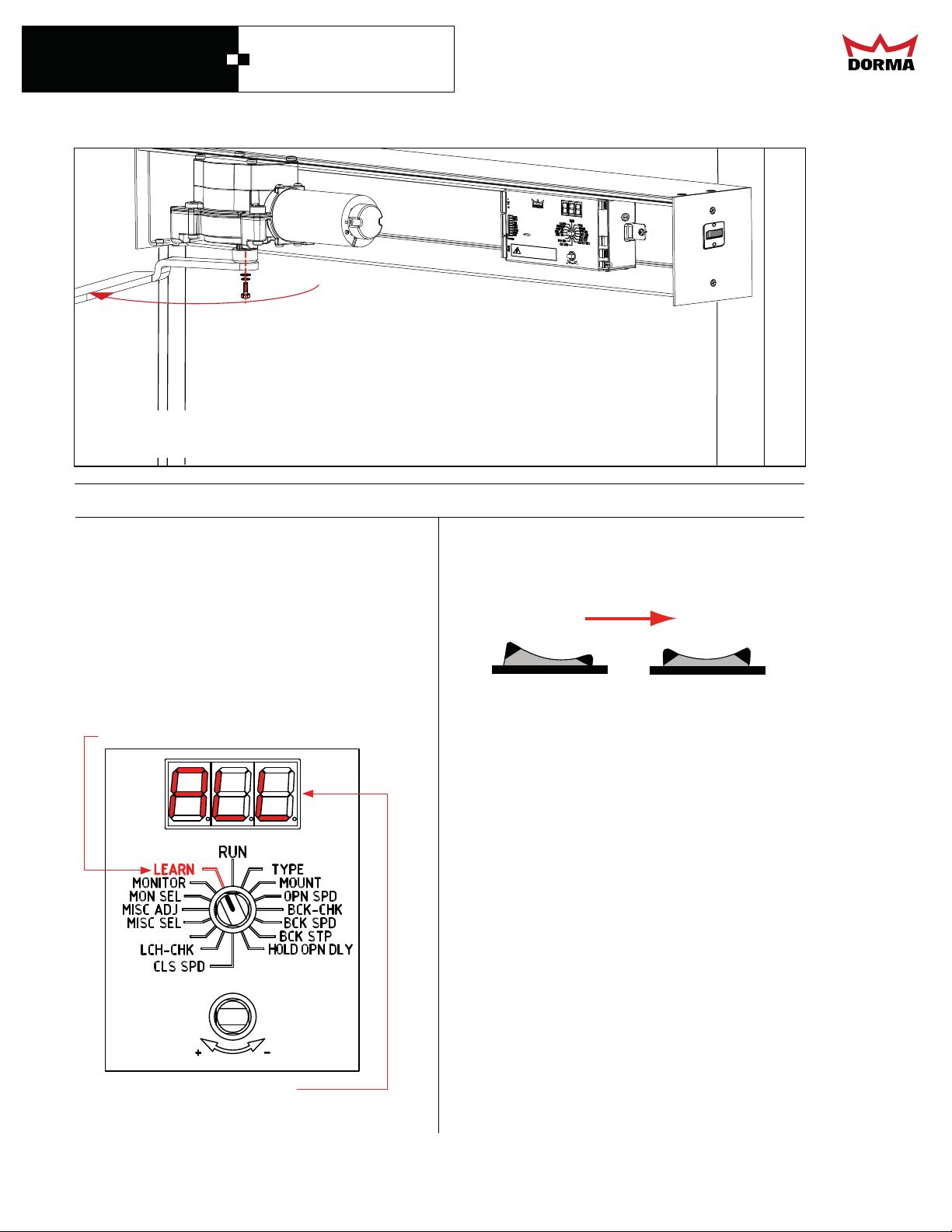

Using the Controller to Power the Operator to Hardstop
Lightly tighten SCREW in power arm with 9/16”
socket wrench to keep from falling off.
SYNC
TXD
GND
RXD
PGM
ENC
Breakout
Power the operator to the fully-open hardstop. (see controller instructions below)
Place the Main Arm on the Drive Shaft in the fully-open position.
THIS OPERATORCONTROLLER MUST BE
ADJUSTEDTO MEET ANSI STANDARDS
BY DORMATRAINED PERSONNEL
MICROPROCESSOR CONTROL
115 VAC 60 Hz 2A
DORMA AUTOMATICS
Phone: [phone]
Motor: 4A slow blow
Line: 2A fast acting
If the control will not rotate to the hardstop the control may need to
be reset to default settings.
Reseting the control to defaults.
REFER TO BOTTOM OF PAGE 19 FOR DETAILS

ED700
Low Energy
Automatic Swing Door
DORMA
12
DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211
Lake Bluff, IL 60044 Fax: [phone] DL3038-010 Rev. B 6/08
E-mail: [email protected] Subject to change without notice
ELECTRONIC STOP SETUP DETAILS
1
2
Hardstop Note
1Electronic Stop - this is set by the
controller and acts as the backstop during
door operation. It is always set at less
than the angle for the Physical Hardstop.
Set around 3 to 5 less than the Physical
Hardstop.
The ED 700 has two stops one being mechanical and the other being a software controlled stop
when programing the door keep in mind that the softstop has to 3 to 5 degrees before the
hardstop. Once programed the door will stop at the software stop if it is pushed past
this point it will return to the softstop. If you can not swing the door past 90 degrees there are
alternative options to preload the arm please contact technical services for assistance.

ED700
Low Energy
Automatic Swing Door
DORMA
13
DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211
Lake Bluff, IL 60044 Fax: [phone] DL3038-010 Rev. B 6/08
E-mail: [email protected] Subject to change without notice
Mount the Push Arm ( Install arms with doors at 95 degrees)
Installation of Surface Applied - Push Application.
Unit Width
(= Door width + 3
")
Incoming 120VAC
(opposite pivot)
16”
2”
2“
1-1/2”1-1/2”
L = Reveal + 13-1/2”
4”
Approximately 10
For Reveals greater than 6”, use arm extension
PGM
ENC
Breakout
SYNC
TXD
GND
RXD
MICROPROCESSOR CONTROL
115 VAC 60 Hz 2A
DORMA AUTOMATICS
Phone: [phone]
Motor: 4A slow blow
Line: 2A fast acting
THIS OPERATOR CONTROLLER MUST BE
ADJUSTED TO MEET ANSI STANDARDS
BY DORMA TRAINED PERSONNEL
Reveal = From Face of
Door to Back of Header
The shoe is mounted to the door 2” below the frame. 16” from the pivot side of the door to the
centerline of the shoe.Mark the mounting holes for the shoe and secure it to the door using the
fasteners provided. Next adjust the connecting arm to the proper length by adding 13-3/8 to the
reveal.
To install the arm rotate the operator to the full open position, see page 11.With the operator
against the hard stop swing the door open past 90 degrees. With the connecting arm attached to
the shoe on the on the door attach the arm to the operator with the door at 95 to 105 degrees
and secure the arm to the door. Turn the door off and let it close, once the arm is attached complete
the basic set up on page 17.
Make sure the dive arm is not at 90 degrees in relation to the header when the door is closed adjust
the connecting arm if necessary.
Reveal

ED700
Low Energy
Automatic Swing Door
DORMA
14
DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211
Lake Bluff, IL 60044 Fax: [phone] DL3038-010 Rev. B 6/08
E-mail: [email protected] Subject to change without notice
Installation of Surface Applied - Pull Application.
Note:For installation with reveals up to 6”.
Incoming 115VAC
(opposite pivot)
Unit Width
(= Door width + 3
5 1/2"
[140]
5"
[127]
2"
2"
5-1/2”1-1/2”
11”
4”
1- 1/4 “
23-1/2 ”
Mount the Pull Arm (For Reveals up to 6”)
PGM
ENC
Breakout
SYNC
TXD
GND
RXD
MICROPROCESSOR CONTROL
115 VAC 60 Hz 2A
DORMA AUTOMATICS
Phone: [phone]
Motor: 4A slow blow
Line: 2A fast acting
THIS OPERATORCONTROLLER MUST BE
ADJUSTEDTO MEET ANSI STANDARDS
BY DORMATRAINED PERSONNEL

ED700
Low Energy
Automatic Swing Door
DORMA
15
DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211
Lake Bluff, IL 60044 Fax: [phone] DL3038-010 Rev. B 6/08
E-mail: [email protected] Subject to change without notice
to page 14 or 16).
SYNC
TXD
GND
RXD
PGM
ENC
Breakout
Mount the Pull Arm (See page 16 for 0” reveal arm or 14 for 0”- 6” reveal arm dimensions)
SYNC
TXD
GND
RXD
PGM
ENC
Breakout
7/16 FL Washer 59/64” OD
3/8 Lock Washer
3/8”-16 x 3/4” Hex Head Bolt
(9/16” socket required)
SYNC
TXD
GND
RXD
PGM
ENC
Breakout
9Rotate pinion to the Front Hard-Stop using operator as specified on page 11 .
Mount arm in fully-open position.
Against Back
Hardstop
Standard of
95 for
expected
90 opening 95
Open door & glide slide block into track. Secure other end of track.
Securely mount close end of slide channel to door (Ref
Open door and attach arm to slide track. Power down door & allow to shut.
Install slide channel endcaps.

Installation of Surface Applied - Pull Application.
Note:For installation with 0” reveals.
Incoming 120VAC
(opposite pivot)
Unit Width
(= Door width + 3”)
1”
4” 1-1/2”
4”
1- 1/4 ”
23-1/2 ”
Mount the Pull Arm (For 0” Reveals)
PGM
ENC
Breakout
SYNC
TXD
GND
RXD
MICROPROCESSOR CONTROL
115 VAC 60Hz 2A
DORMA AUTOMATICS
Phone: [phone]
Motor: 4A slow blow
Line: 2A fast acting
THIS OPERATORCONTROLLER MUST BE
ADJUSTEDTO MEET ANSI STANDARDS
BY DORMATRAINED PERSONNEL
5-1/2”
5”
ED700
Low Energy
Automatic Swing Door
DORMA
16
DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211
Lake Bluff, IL 60044 Fax: [phone] DL3038-010 Rev. B 6/08
E-mail: [email protected] Subject to change without notice

ED700
Low Energy
Automatic Swing Door
DORMA
17
DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211
Lake Bluff, IL 60044 Fax: [phone] DL3038-010 Rev. B 6/08
E-mail: [email protected] Subject to change without notice
Basic Set-Up
The purpose of the initial set-up is to bring the ED700
to a point where it can open the door.
Preparation for Initial set-up
BasicRequirements
• All cables are connected.
• Swing area is clear of obstacles
• Mode switch in position "OFF".
• Power connected.
Start-Up
• Turn selector knob to “TYPE”.
• Turn dial knob to select “Low Energy”
or “Power Assist.
The corresponding letter codes are
“LE” or “PA”.
• Turn selector knob to “MOUNT”.
• Turn dial knob to select “Push or Pull mount.
• Turn selector knob to “BCK STP”.
• Turn dial knob so that display shows “90”.
This is your back stop in degrees.
NOTE: If the door is to be set to an angle
other than 90, measure the angle the door
will open to and input that value in the step
above.
o
• Turn selector knob to “LEARN”.
• Turn dial knob so that display shows
“ALL”. This will cause a full Learn Cycle.
The door will stay closed for 10 seconds to
let you get into position to catch it at the
desired Back Stop.
• Turn mode switch from “OFF” to the “ON”
position.
ON
OFF
• The control box display will show “ALL”,
indicating that a Learn Cycle is in progress.

ED700
Low Energy
Automatic Swing Door
DORMA
18
DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211
Lake Bluff, IL 60044 Fax: [phone] DL3038-010 Rev. B 6/08
E-mail: [email protected] Subject to change without notice
Please let the door close. Stand clear.
Let go of the door and
MOVE OUT OF THE WAY!
• The door will begin to open slowly. Stop the
door at the desired Back Stop position until it
begins to close back to latch position.
• The door will now SLAM open to 45, to measure it’s
inertia.
Sensors are disabled,
during learn cycle!
STAND CLEAR!
o
• When the controller has learned all of it’s self-
adjustments, the display will show “rdY”.
Basic Set-Up
• The door will now cycle open and close
continuously. The door has reduced obstacle
detection, DO NOT INTERFERE WITH DOOR!
• If you are satisfied with the door’s operation,
turn the mode switch to the “OFF” position and
allow the door to close completely.
NOTE: If door motion is undesirable , or if
adjustments need to be made to meet ANSI
guidelines, refer to page 19, 26 and 27 for
additional control settings.
Note: In some situations you may have to assist
the door during learn cycle during the initial
opening.
OFF
• Turn the selector knob to “RUN”.
The door is now ready for normal
operation.
• The display will show the present state
of the opener.
NOTE: If there is an exception to it’s operation, it
will show a code for it. If an exception code is
displayed, see pages 26 and 27 for details.
• Test the opener’s operation.
• Test that the door meets ANSI standards.
• FOR ADDITIONAL SET-UP OPTIONS, SEE CUSTOMIZED
SET UP PAGE 20.
STATES
Closed Door is at Latch-Stop
Opening Opener is opening to Back-Stop
User may open door with opener’s
assistance
Opened Opener is holding door at Back-Stop
Acts as a passive closer, letting user
open door manually, closing the door
Closing Opener reacted to obstacle during
Obstacle closing cycle
Learning Opener is learning
CODE DESCRIPTION
C d
L
O P n
A.
O P d
C r L
C. O b
O b Open Opener reacted to obstacle during
Obstacle opening cycle
A L
L
C y COpener is going through a learning
cycle
r s t Reset Opener is being reset
Power
Assist
Cycle
Closer
O.
P.

ED700
Low Energy
Automatic Swing Door
DORMA
19
DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211
Lake Bluff, IL 60044 Fax: [phone] DL3038-010 Rev. B 6/08
E-mail: [email protected] Subject to change without notice
Customized Set-Up
The purpose of the customized set-up is to change the
default ED700 settings. This can be done during or
after a completed learn cycle.
Parameters
• Open speed to Back-Check
• Back-Check angle
• Deceleration through Back-Check
• Back-Stop angle
Open Speed to Back-Check (example)
• Close Delay
• Closing speed to Latch-Check
• Latch-Check angle
• Turn selector knob to “OPN SPD”.
• Turn the dial knob to select the desired speed
in DEGREES/SECOND.
• The display will show the code and
value.
• Using the example to the right and the table below,
make parameter changes as desired. When finished,
return the selector knob to “RUN”, or do another
“LEARN” Cycle if the door’s motion has been poorly
affected.
Open Speed Opening speed to Back-Check /s
Back-Check Back-Check angle °
Back-Speed Opening speed to Back-Stop, or Off /s
Back-Stop Back-Stop angle
Hold Open
Delay Time at Back-Stop s
Close Speed Max closing speed to Latch-Check /s
Latch-Check Latch-Check angle
°
°
°
°
°
increment/decrement
increment/decrement
increment/decrement
increment/decrement
increment/decrement
increment/decrement
increment/decrement
OPN SPD
BCK-CHK
BCK SPD
BCK STP
HOLD
OPN DLY
CLS SPD
LCH-CHK
Selector Code
Meaning “Dial” Knob Function DISPLAY UNITS
• For further Set-Up options contained in “MONITOR”,
“MON SEL”, “MISC ADJ”, and “MISC SEL”, please
pages 27 and 28 for parameter details.
To adjust parameters in Miscellaneous selections turn the
selector knob to “MISC SEL” and select the desired
parameter, then turn the selector knob to “MISC ADJ”
and adjust the parameter using the dial knob.
To select the function to be monitored turn the dial to
“MON SEL” then select the function using the dial knob.
Then turn the selector knob to monitor.
RESETTING THE CONTROLLER
• To RESET the controller, turn the selector knob to “MISC SEL” and turn the dial knob until “rst” is displayed.
Now turn the selector knob to “MISC ADJ”, and turn the dial knob from “ON”, ONE click clockwise to “OFF”.
The controller has now been reset.
Once adjustments are completed verify that a learn cycle is not required by turning dial knob to
learn. If learn cycle is not required turn dial to “RUN” and turn program switch off and on.

ED700
Low Energy
Automatic Swing Door
DORMA
20
DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211
Lake Bluff, IL 60044 Fax: [phone] DL3038-010 Rev. B 6/08
E-mail: [email protected] Subject to change without notice
Setting Up Simultaneous Doors
The purpose of the this setup is to synchronize two
side-by-side doors for simultaneous operation.
Connecting the Controllers
Header
Presence
Swing
Presence
Approach
Presence
Safety
Beam
+24V
TRIGGER
COM
+24V
HEADER
DATA
COM
+24V
SWING
COM
+24V
APPR.
COM
+24V
BEAM
COM
C
O
N
T
R
O
L
L
E
R
1
Header
Presence
Swing
Presence
Approach
Presence
Safety
Beam
+24V
TRIGGER
COM
+24V
HEADER
DATA
COM
+24V
SWING
COM
+24V
BEAM
COM
C
O
N
T
R
O
L
L
E
R
2
OFF
GND
H.O.
Mode
Switch OFF
GND
H.O.
RXD
TXD
GND
RXD
TXD
GND
GND FIRE
GND
..
+24V
APPR.
COM
Fire
sensor
• Connect the grounds of the two controllers together.
• Connect the knowing act activation device to both
controllers in parallel.
• Connect the presence sensor to both controllers in
parallel, except for the Data Line.
• Let each controller power it’s presence sensors
• Connect a single program switch to both doors in
parallel.
• Connect the RXD line of each controller to the TXD
line of the other controller.
• If you use the “Fire” input, connect the Fire sensor
to both controllers.
• If you use the “Breatout” input, connect the Breakout
switch to both controllers.
• Connect both controllers to the same AC power source.
• Program the two controllers identically
(Continued on following page)
Push
Plate
