Doro 520 User manual

   
doro 520
Manual

c
9
7
8
1
2
3
4
5
6

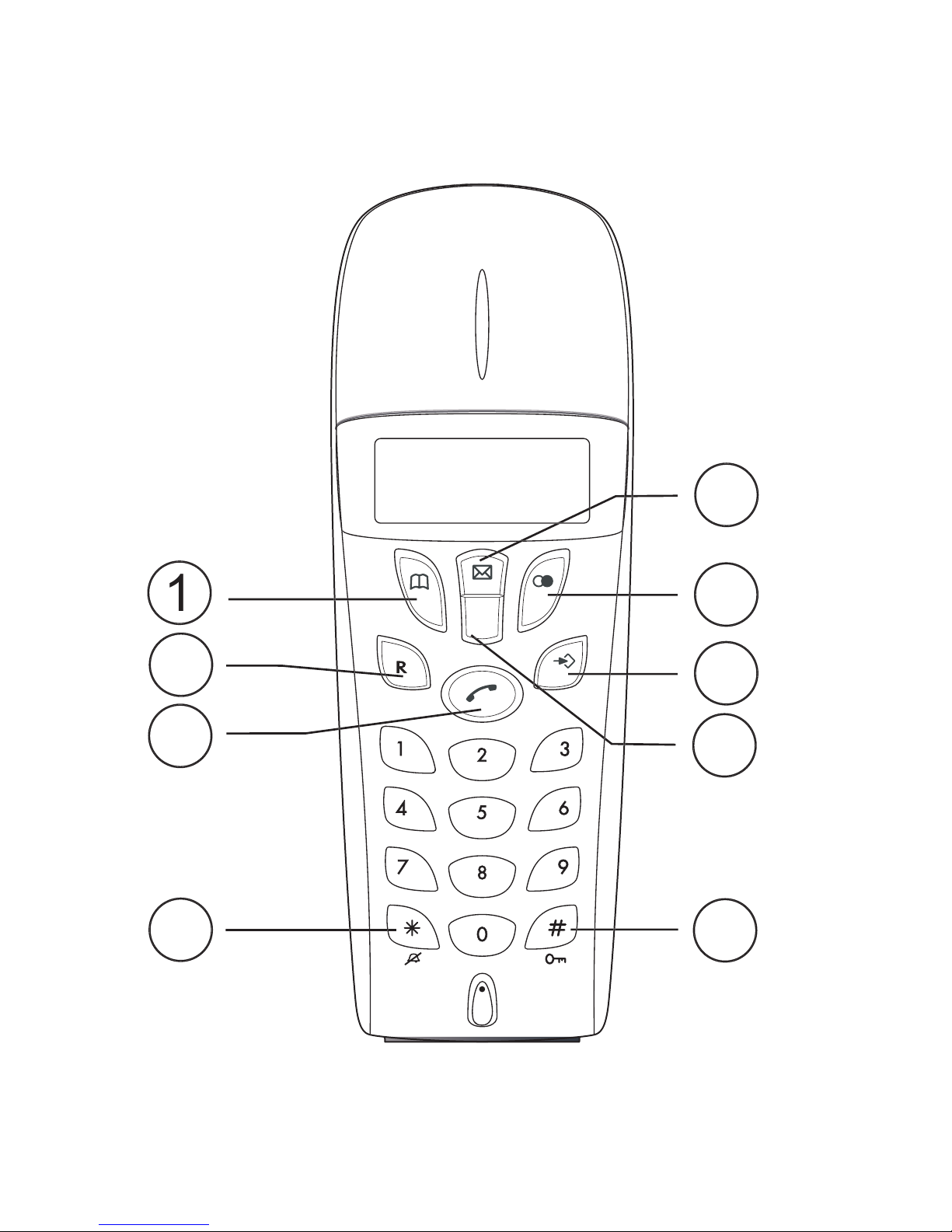

1
Memory button
2
Recall/Intercom button
3
Talk/Call end button
4
*
/Ringer signal (on/off) button
5
#
/Key Lock button
6
Erase/Mute button
7
Programming button
8
Redial button
9
Caller Identi cation (CID) button
English (see p. 4-19)

English
4
www.doro.com
Installation
5
Unpacking
...........................
5
Connection
.........................
5
Belt Clip
..............................
6
Wall Mounting
.....................
6
Range
.................................
6
Battery
................................
7
Battery Charge Indicator
....
7
Recall
..................................
7
The Display
.........................
8
Paging
.................................
8
Operation
9
Making a Call
......................
9
Receiving a Call
..................
9
Redial Button
......................
9
Key Lock
.............................
9
Mute Button
........................
10
Memory
...............................
10
Caller Identi cation
11
Network voice mail
12
Settings
13
Handset Volume
.................
13
Type of Ringer Melody
........
13
Ringer Volume
....................
13
Direct Dialling
.....................
14
R Button Time
.....................
14
PIN Number
........................
15
Tone/Pulse Dialling
.............
15
Reset Handset Defaults
......
15
Expanded system (520+1)16
Base Unit Placement
..........
16
Intercom
..............................
16
Transferring Calls Between
Handsets
............................
16
Troubleshooting
..................
17
Other
...................................
18
Index

English
www.doro.com 5
Installation
Unpacking
The package should include the following items:
- Handset
- Mains adapter
- Base unit
- Line cord
- 2 NiMH batteries
Models with extra handset (+1) are also supplied with an extra handset, batteries,
charger and electrical mains adapter.
Connection
1.
Connect the mains adapter to the
y
socket on the base unit and to an
electrical wall socket.
2.
Remove the battery cover from the back of the handset. Insert the batteries into
the handset ensuring correct battery polarity is observed. Replace the battery
cover.
3.
Place the handset in the base unit with the keypad facing outwards. Once the
handset is correctly positioned in the base unit a beep will be heard.
4.
Charge the handset batteries without interruption for 24 hours initially
(thereafter fully discharged handset batteries will take 10 hours to recharge).
5.
ONCE CHARGED, connect the telephone line cord to the
T
socket on the
T socket on the T
base unit and then to a telephone network wall socket.
6.
A click will be heard when the modular plug is correctly connected.
Only for models with an extra handset (+1):
7.
Connect the mains adapter to the
y
socket on the charger unit and to an
electrical wall socket.
8.
Remove the battery cover from the back of the handset. Insert the batteries into
the handset ensuring correct battery polarity is observed. Replace the battery
cover.
9.
Charge the handset batteries without interruption for 24 hours initially
(thereafter fully discharged handset batteries will take 10 hours to recharge).
IMPORTANT!
Under power failure conditions this telephone will not operate. Please ensure that a separate
telephone not dependent on local power is available for emergency use. The earpiece of the handset
may attract small ferromagnetic objects such as staples and pins, care should be taken when placing
the handset near such items. Do not place the base unit in areas of high humidity of where it will be
exposed to direct sunlight or other major heat sources.
Only use with the supplied power adapter/s.

English
6
www.doro.com
6 www.doro.com6
Installation
Belt Clip
A belt clip is  tted to the back of the handset allowing the handset to be
attached to a belt, shirt pocket or similar.
Wall Mounting
The telephone can be wall mounted using two vertically mounted screws, 88
mm apart. The screws should then  t into the two
‘keyholes’ on the back of the
base unit.
Australia only: To wall mount using the standard wall plate  t the supplied
bracket to the underside of the base unit. A click will be heard when  tted
correctly.
Range
The range of the telephone varies depending on different factors in the
surrounding environment. The radio waves transmitting the call may be
hindered by obstructions, reducing the range.
Speci ed ranges require unobstructed transmission between the handset and the
base unit. In such ideal conditions, the telephone range can be up to 300 metres.
In a densely populated area, house, apartment, etc. the range of the telephone
will be reduced. Try to get the best range by relocating the base unit. The ideal
location for the base unit is a high and unobstructed place.
When using the handset close to the range limit during a call, the sound quality
will decrease and the call may be disconnected.
IMPORTANT!
To reduce the risk of possible interference please do not locate the base unit near any electrical
equipment e.g. TV’s, computers, fridge’s, telecom equipment etc or close to radiators, metal pipes
or window frames. Also ensure the base unit is not exposed to direct sunlight, excessive heat,
damp or high humidity locations.

English
www.doro.com 7
Installation
Battery
The telephone is supplied with environmentally friendly nickel metal hydride
(NiMH) batteries - 2 x AAA 1.2V. As with all batteries, performance may degrade
over time; should you notice that the standby time has reduced considerably or
there are signs of leakage, the batteries should be replaced. Always replace both
batteries using only NiMH rechargeables.
Fully charged batteries will last for approx. 100 hours in standby or approx. 10
hours
’ call time. The stated times apply at normal room temperatures using fully
charged batteries.
Completely discharged batteries will take about 10 hours to fully recharge (24
hours from new).
Please note that the battery indicator in the display will  ash while the
handset is on the base unit, and does not stop/go out when the battery is fully
charged.
The base unit has an automatic charging mechanism that prevents the batteries
from being overcharged or damaged due to prolonged charging.
Please note!
To ensure and maintain good charging of the handset battery/s we recommend that the base and
handset charge contacts are cleaned regularly, ie monthly, with a pencil eraser and/or a soft dry
cloth.
When the telephone is installed for the  rst time, the battery pack must be charged for 24 hours
before using the telephone. Use DORO original batteries only. The guarantee does not cover any
damage caused by installing incorrect batteries. The handset is charged with the keypad facing
outwards. Please dispose of any batteries in a responsible and environmentally friendly manner
Battery Charge Indicator
When charging, the status of the battery symbol will remain unchanged until in
excess of 10 minutes continuous charging time has elapsed.
If the batteries are running low will be displayed, although calls can still be
made/received recharging must occur if a warning tone is heard during a call.
Failure to recharge the batteries will result in the telephone ceasing to function.
Recall
Access to additional network services can be gained by using the recall button
R
,
*
and
#
keys. Contact your network operator for more information.
Press the recall button R followed by the extension number to when connected to
a PBX (TBR only).

English
8
www.doro.com
8 www.doro.com8
Installation
The Display
Indicator
Function
6
Permanently visible when in range registered to the base unit.
Disappears/ ashes when out of range or unregistered.
p
Programme.
Indicates that a call is connected.
Flashes when the phone rings
.
Intercom Function.
z
Microphone muted.
b
Phonebook/Memories.
Handset Ringer (off).
BB
Direct Dialling.
Key Lock.
5
Numbers in Caller ID log (CID).
Network Message indicator.
Battery charge indicator.
Paging
Pressing
j
on the base unit will activate the paging signal of the handset. This
function is used to help locate the handset or to page the person carrying the
handset. The signal will stop automatically after a while or if the
q
button on the
q button on the q
handset is pressed. The page can also be cancelled by pressing
j
on the base again.
q
q
888888888888
q
q
6
p
z
BB
5
N

English
www.doro.com 9
Operation
Important!
Please note when programming all references to press = to press once and then immediately
release the button.
Making a Call
1.
Enter the required telephone number. Mistakes can be erased using
C
.
2.
Press
q
the telephone number will now be dialled.
q the telephone number will now be dialled.q
3.
Press
q
again to terminate the call.
q again to terminate the call.q
Please note!
If the telephone cannot connect to a line, a warning tone will be heard. The problem may
be due to the battery running low, the handset being too far from the base unit or all of the
transmission channels being engaged.
Receiving a Call
1.
Wait for the handset to ring.
2.
Press
q
to answer the call.
3.
Press
q
again to terminate the call.
q again to terminate the call.q
Redial Button
The last telephone number dialled can be easily redialled using
r
.
1.
Press
r
.
2.
Press
q
the displayed telephone number will now be dialled.
q the displayed telephone number will now be dialled.q
Key Lock
This function locks the push buttons on the handset to prevent unintentional
usage.
1.
Press and hold
N
until the display shows
.
2.
Deactivate the key lock by pressing and holding
N
again until
is no
longer displayed.
Calls can still be received, even if the key lock is active. When the call is
 nished, the handset returns to locked mode.

English
10
www.doro.com
10 www.doro.com10
Operation
Mute Button
The microphone can be muted during a call by pressing
C
, press
C
again to re-
activate the microphone.
z
will be displayed as long as the function is active.
Memory
This telephone has 10 memory locations numbered 0-9.
Storing telephone numbers
1.
Press
º
.
2.
Press
b
.
3.
Select a memory location (0-9) by repeatedly pressing
b
.
4.
Enter the telephone number (up to 18 digits). Press
C
to delete or make changes.
5.
Press
º
to save.
Please note!
If you need to insert a pause in the telephone number, press and hold
0
until the display shows
P
. If
P. If P
you need to change a number, store the new number in the same location as the old one.
Dialling Stored Telephone Numbers
1.
Repeatedly press
b
until the number required is displayed. You can also enter the
memory position directly by pressing
b
memory position directly by pressing bmemory position directly by pressing
then the relevant memory location
b then the relevant memory location b
0
-
9
.
2.
Press
q
the displayed number will now be dialled.
q the displayed number will now be dialled.q
Erasing a Stored Telephone Number
1.
Press
º
.
2.
Repeatedly press
b
until the number required is displayed.
3.
Repeatedly press
C
to delete the displayed number.
4.
Enter the new telephone number.
5.
Press
º
to con rm.
Erasing ALL Stored Telephone Numbers
1.
Press
º
.
2.
Press
0
.
3.
Press
b
.
4.
Press
º
.
